JCK-GN-WMAGIEEE 802.11b/g Dual-Mode Wireless LAN Card

Company : Giga-Byte Technology Co., Ltd. Page : 1 of 2 Product : IEEE 802.11b/g Dual-Mode Wireless LAN Card Model : GN-WMAG Company : Giga-Byte Technology Co., Ltd. Page : 2 of 2 Product : IEEE 802.11b/g Dual-Mode Wireless LAN Card Model : GN-WMAG

Company : Giga-Byte Technology Co., Ltd. Model: GN-WMAG Product : IEEE 802.11b/g Dual-Mode Wireless LAN Card IEEE 802.11b/g Dual-Mode Wireless LAN Card Model No: GN-WMAG FCC IDJCK-GN-WMAG This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan

Company : Giga-Byte Technology Co., Ltd. Page : 1 of 5 Product : IEEE 802.11b/g Dual-Mode Wireless LAN Card Model : GN-WMAG Company : Giga-Byte Technology Co., Ltd. Page : 2 of 5 Product : IEEE 802.11b/g Dual-Mode Wireless LAN Card Model : GN-WMAG Company : Giga-Byte Technology Co., Ltd. Page : 3 of 5 Product : IEEE 802.11b/g Dual-Mode Wireless LAN Card Model : GN-WMAG Company : Giga-Byte Technology Co., Ltd. Page : 4 of 5 Product : IEEE 802.11b/g Dual-Mode Wireless LAN Card Model : GN-WMAG Company : Giga-Byte Technology Co., Ltd. Page : 5 of 5 Product : IEEE 802.11b/g Dual-Mode Wireless LAN Card Model : GN-WMAG

GN-WMAG IEEE 802.11b/g Dual-Mode Wireless LAN Card Specification http://www.gigabyte.com.tw Rev. 1.0 First Edition Contents CHAPTER 1. PRODUCT OVERVIEW.................................................................... 1 1-1. I NTRODUCTION...........................................................................................................1 1-2. FEATURES.................................................................................................................1 1-3. PHYSICAL DIMENSIONS/PACKAGING.............................................................................1 1-5. S YSTEM REQUIREMENTS............................................................................................2 1-5-1. Supported Platform....................................................................................................................................2 1-5-2. Supported Operation System..................................................................................................................2 CHAPTER 2. SPECIFICATION........................................................................................ 3 1 Chapter 1. Product Overview 1-1. Introduction This 802.11b/g Wireless Local Area Network (WLAN) card is composed of the MAC, Baseband, and radio components, CARDBUS interface, and two built-in antennas. It operates in 2.4GHz frequency band, providing fast (up to 108Mbps) and secure (support AES, 802.1x & WEP, and WPA) connections to 802.11b and 802.11g networks from a single card. This product features the compact size, low power consumption, and power management functions, and provides a high-speed wireless data communication. Therefore, this product is ideally suitable for being integrated into the personal mobile and handheld platform. 1-2. Features „ Conforms to IEEE 802.11b and 802.11g specifications. „ Transmits data rate up to the maximum speed of 108Mbps. „ Dynamically scales the data rate. „ Automatic power management to reduce battery consumption. „ Built-in diversity antenna. „ Seamless roaming between 802.11b and 802.11g networks. „ Supports AES (Advance Encryption System), enterprise-class 802.1x security and multiple levels of WEP encryption (64-bit /128-bit/152-bit), and WPA (Wi-Fi Protected Access). „ Driver supports Windows 98SE/Me/2000/XP. 1-3. Physical Dimensions Dimensions: 120 mm * 54mm * 7mm This WLAN card conforms to the PC card Type II standard. There are six LED indicators, front two indicate currently Tx/Rx status, the other four show the receive signal strength from the linking Access Point. 1-4. LED Indicating Light The LED display window shows the current condition of the receiver signals. It specifies the four conditions of “POOR”, “FAIR”, “GOOD”, and “EXCELLENT” receiver signals. It also provides additional information if the station is “SCANING”, “Rx ” or in “Tx ” mode. 2 LED Continuously Condition of the Receiver POOR FAIR GOOD EXCELLENT LED Blinking Status SCANING Rx Tx 1-5. System Requirements 1-5-1. Supported Platform IBM PC/AT compatible computer 1-5-2. Supported Operation System Windows 98SE/Me/2000/XP 3 Chapter 2. Specification 2-1. System Host Interface CARDBUS (32-bit) card Type II v7.1 Operating Voltage 3.3VDC 5% 2-2. RF Performance 802.11b Frequency Band 2412 ~ 24835 MHz (subject to local regulation) Modulation Technology DSSS (Direct Sequence Spread Spectrum) Modulation Techniques DBPSK, DQPSK, CCK Date Rates 11, 5.5, 2, 1 Mbps, auto fallback Typical Power Consumption Doze: 25mA Receive: 350mA Transmit: 470mA Peak Output Power 20dBm @ Nominal Temp Range Minimum Receive Sensitivity - 88dBm @ 11 Mbps @ Nominal Temp Range Antenna Internal antennas supporting diversity 802.11g(backward compatible to 802.11b) Frequency Bands 2412-24835 MHz (subject to local regulations) Modulation Technology OFDM and DSSS Modulation Techniques 64QAM, 16QAM, QPSK, BPSK, CCK, DQPSK, DBPSK Date Rates Base mode: 54, 48, 36, 18,12, 9, 11, 6, 5.5, 2, and 1 Mbps, auto fallback Turbo mode: 108, 96, 72, 48, 36, 24, 18 and 12 Mbps auto fallback Typical Power Consumption Doze: 25mA Receive: 350 mA Transmit: 520 mA (Base mode) Peak Output Power 20 dBm @ Nominal Temp Range Receive sensitivity Minimum -73dBm;typical -76dBm @54Mbps @ Nominal Temp Range Antenna Internal antennae supporting diversity 4-3.Safety Regulation and Operating Environment FCC Part 15 (USA) DGT (Taiwan) EMC certification CE (Europe) Temperature Range Operating: 0 ~ 55 deg C, Storing: -20 ~ 65 deg C Humidity Max. 90% Non-condensing 4-4. Software Support Driver Windows 98SE/Me/2000/XP Security WPA; AES; 802.1X client for Windows XP; 64/128/152 bit WEP Roaming Seamless roaming among 802.11b/g access points. Management Utility Monitors the network situation. 4-5. Mechanical Dimensions 120 x 54 x 7 mm Weight 40± 1 g Packaging Packaging specially used by Gigabyte. LED indicators Power, Link, and the receive signal strength

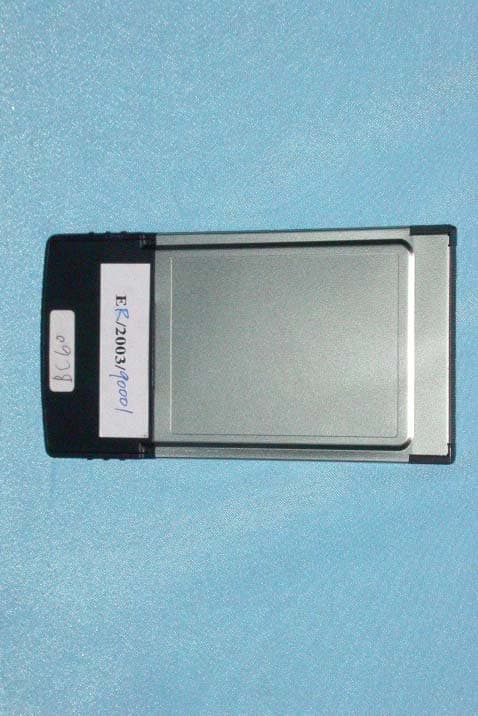

Report No. : ER/2003/90001 Page : 1 of 35 TEST REPORT Equipment Under Test : IEEE 802.11b/g Dual-Mode wireless LAN Card Model No. : GN-WMAG FCC ID : JCK-GN-WMAG Applicant : GIGA-BYTE TECHNOLOGY CO. LTD. 3F-2, No.23, Nan-Ke 3th Rd. Tanin Science-Based Address of Applicant : Industrial Park, Hsin-Shi,Tainan,744, Taiwan, R.O.C Date of Receipt : 2003.08.29 Date of Test(s) : 2003.09.01 Date of Issue : 2003.09.02 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1 , C95.3 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Taiwan E&E Services or testing done by SGS Taiwan E&E Services in connection with distribution or use of the product described in this report must be approved by SGS Taiwan E&E Services in writing. Tested by : Dikin Yang Date : 2003.09.01 Approved by : Robert Chang Date : 2003.09.02 Report No. : ER/2003/90001 Page : 2 of 35 Contents 1. General Information 1.1 Testing Laboratory 3 1.2 Details of Applicant 3 1.3 Description of EUT(s) 3 1.4 Test Environment 3 1.5 Operation Configuration 4 1.6 The SAR Measurement System 4 1.7 SAR System Verification 4 1.8 Tissue Simulant Fluid for the Frequency Band 2.4 to 2.5 GHz 5 1.9 Operation Procedure 5 1.10 Test Standards and Limits 6 2. Instruments List 8 3. Summary of Results 9 4. Measurements 10 802.11b 4.1.1 Edge-on position, lowest channel 10 4.1.2 Edge-on position, middle channel 11 4.1.3 Edge-on position, highest channel 12 4.1.4 End-on position, lowest channel 13 4.1.5 End-on position, middle channel 14 4.1.6 End-on position, highest channel 15 802.11g 4.2.1 Edge-on position, lowest channel 16 4.2.2 Edge-on position, middle channel 17 4.2.3 Edge-on position, highest channel 18 4.2.4 End-on position, lowest channel 19 4.2.5 End-on position, middle channel 20 4.2.6 End-on position, highest channel 21 4.3 System Performance Validation 22 APPENDIX 1. Photographs of Test Setup 23 2. Photographs of EUT 27 3. Probe Calibration certificate 29 4. Uncertainty Analysis 33 5. Phantom description 34 6. System Validation from Original equipment supplier 35 Report No. : ER/2003/90001 Page : 3 of 35 1. General Information 1.1 Testing Laboratory SGS Taiwan Ltd. ( FCC Registration number: 573967 ) 1F, No. 134, Wukung Road, Wuku industrial zone Taipei county , Taiwan , R.O.C. Telephone : +886-2-2299-3279 Fax : +886-2-2298-2698 Internet : http://www.sgs.com.tw 1.2 Details of Applicant Applicant : GIGA-BYTE TECHNOLOGY CO. LTD. Address : 3F-2, No.23, Nan-Ke 3th Rd Tanin Science- Based Industrial Park, Hsin-Shi,Tainan, 744, Taiwan, R.O.C Product Name : IEEE 802.11b/g Dual-Mode wireless LAN Card Model Name : GN-WMAG 1.3 Description of EUT(s) 1 Product name IEEE 802.11b/g Dual-Mode wireless LAN Card 2 Model Number GN-WMAG 3 Power supply Powered by PCMCIA slot 3.3V/5V 4 Frequency range 2412-2462 MHz 1.4 Test Environment Ambient temperature : 21.9° C Tissue Simulating Liquid : 21° C- 23° C Report No. : ER/2003/90001 Page : 4 of 35 1.5 Operation Configuration Configuration 1: “ Edge-on” placement; edge of the PC at 90° and at a distance of 1.5 cm from the base of the phantom (Fig.3 & Fig.4 & Fig.5) Configuration 2: “End-on” placement; top cover parallel and at a distance of 0.0 cm from the base of the phantom (Fig.6 & Fig.7 & Fig.8) 1.6 The SAR Measurement System A photograph of the SAR measurement System is given in Fig. 2. This SAR Measurement System uses a Computer-controlled 3-D stepper motor system ( Speag Dasy 4 professional system ). A Model ET3DV6 1759 E-field probe is used to determine the internal electric fields. The SAR can be obtained from the equation SAR= σ (|Ei| 2 )/ ρ where σ and ρ are the conductivity and mass density of the tissue-simulant. 1.7 SAR System Verification The microwave circuit arrangement for system verification is sketched in Fig.1. The Measured SAR distribution for the peak 1-g SAR is 13.7 m W/g and 10-g SAR is 6.16 m W/g. The measured 1-g SAR is 13.6 m W/g and 10-g SAR is 6.05 m W/g for this dipole. In comparison, it shows that the measured SAR plot is quite close to the original one.(see APPENDIX 6 System Validation from Original equipment supplier SPEAG by Schmid & Partner) D C F A B E Fig.1 The microwave circuit arrangement used for SAR system verification A. Agilent Model 8648D Signal Generator B. Mini circuits Model ZHL-42 Amplifier C. Agilent Model E4416A Power Meter D. Agilent Model 8482H Power Sensor E. Agilent Model 777D Dual directional coupling F. Reference dipole antenna Report No. : ER/2003/90001 Page : 5 of 35 Validation Kit Frequency Target SAR 1g (250mW) Ta r g e t SAR 10g (250mW) Measured SAR 1g Measured SAR 10g Measured date DT3DV6 S/N :1759 2450 MHz 13.7 m W/g 6.16 m W/g13.6 m W/g6.05 m W/g 2003-08-13 Table 1. Results system validation 1.8 Tissue Simulant Fluid for the Frequency Band 2.4 to 2.5 GHz The dielectric properties for this body-simulant fluid were measured by using the HP Model 85070D Dielectric Probe (rates frequence band 200 MHz to 20 GHz) in conjuncation with HP 8714ET Network Analyzer(300 KHz-3000 MHz ) by using a procedure detailed in Section V. The Measured dielectric parameters of the body-simulant fluid at 2400 MHz are ρ =52.5± 5%, σ =2.00±10% S/m. The measured properties are close to the values of ρ =51.66 and σ =2.021 S/m. The Conductivity (σ) and Permittivity (ρ) are listed in Table 1.For the SAR measurement given in this report . We obtain the desired dielectric properties to simulat…
