JCK-GN-WMKGIEEE 802.11b/g Cardbus Wireless LAN Card

GN-WMKG IEEE 802.11b/g CardBus Wireless LAN Card User’s Manual http://www.gigabyte.com.tw Rev. 1.0 First Edition Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance,any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Contents CHAPTER 1 PRODUCT OVERVIEW 1 1-1. INTRODUCTION...........................................................................................................1 1-2. FEATURES.................................................................................................................1 1-3. PHYSICAL DIMENSIONS/PACKAGING.............................................................................1 1-4. LED I NDICATING LIGHT...............................................................................................2 1-5. SYSTEM REQUIREMENTS............................................................................................2 CHAPTER 2 INSTALLING THE WLAN CARD 3 2-1. INSTALLING THE DRIVER & UTILITY (WIN 98SE/ME).....................................................3 2-2. INSTALLING THE DRIVER & UTILITY (WIN 2000/XP)......................................................7 CHAPTER 3 USING THE UTILITY 11 3-1. P ROFILE.................................................................................................................11 3-2. L INK STATUS...........................................................................................................14 3-3. SITE SURVEY..........................................................................................................15 3-4. S TATISTICS.............................................................................................................16 3-5. A DVANCE................................................................................................................16 3-6. ABOUT....................................................................................................................18 CHAPTER 4 TROUBLESHOOTING 19 I CANNOT CONNECT TO AN AP ...................................................................................19 I CAN CONNECT TO AN AP BUT I CANNOT CONNECT TO THE INTERNET...........................19 I ALWAYS HAVE POOR LINK QUALITY AND LOW SIGNAL..................................................19 CHAPTER 5 SPECIFICATION 20 1 Chapter 1 Product Overview 1-1. Introduction This 802.11b/g Wireless Local Area Network (WLAN) card is composed of the MAC, Baseband, and radio components, CARDBUS interface, and two built-in antennas. It operates in 2.4GHz frequency bands, providing fast (up to 54Mbps) and secure (support AES, 802.1x & WEP and WAP) connections to 802.11b and 802.11g networks from a single card. This product features the compact size, low power consumption, and power management functions, and provides a high-speed wireless data communication. Therefore, this product is ideally suitable for being integrated into the personal mobile and handheld platform. 1-2. Features „ Conforms to 802.11b/802.11g specification. „ Transmits data rate up to the maximum speed of 54Mbps. „ Dynamically scales the data rate. „ Automatic power management to reduce battery consumption. „ Built-in diversity antenna. „ Seamless roaming between 802.11b and 802.11g networks. „ Supports AES (Advance Encryption System), enterprise-class 802.1x security and multiple levels of WEP encryption (64-bit /128-bit), and WPA (Wi-Fi Protected Access).. „ Driver supports Windows 98SE/Me/2000/XP. 1-3. Physical Dimensions/Packaging Dimensions: 120mm* 54mm* 6mm Before the installation procedures, please ensure the components are not damaged during the shipping. The shipment of the GN-WMAG includes: One GN-WMKG Wireless LAN Card One Installation CD (including User’s Guide and Driver) One User Guide Please contact your local distributor or authorized reseller immediately for any missing or damaged components. If you require returning the damaged product, you must pack it in the original packing material or the warranty will be voided. 2 1-4. LED Indicating Light Power OFF ON ON Link ON Blink Meaning No power applied to card Looking for network association the card has an active connection LED Blinking GIGABYTE GIGABYTE Co…

Text truncated - open the document above for the full version.

Company : Giga-Byte Technology Co., Ltd. Page : 1 of 2 Product: IEEE 802.11b/g Cardbus Wireless LAN Card Model : GN-WMKG Company : Giga-Byte Technology Co., Ltd. Page : 2 of 2 Product: IEEE 802.11b/g Cardbus Wireless LAN Card Model : GN-WMKG

Company : GIGA-BYTE TECHNOLOGY CO., LTD. Model: GN-WMKG Product : IEEE 802.11b/g Cardbus Wireless LAN Card IEEE 802.11b/g Cardbus Wireless LAN Card Model No: GN-WMKG FCC IDJCK-GN-WMKG This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan

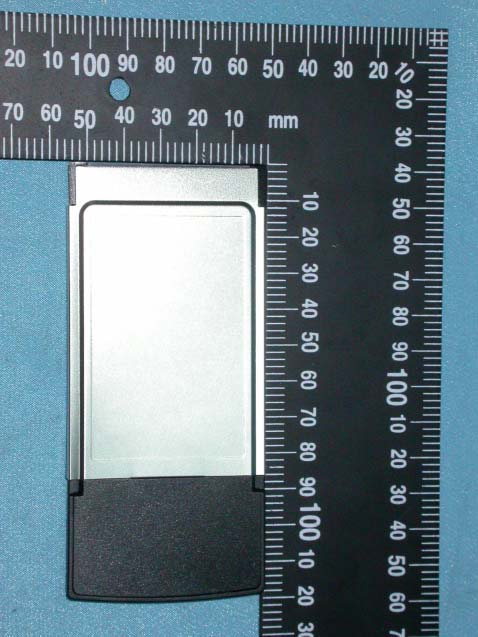

Company : Giga-Byte Technology Co., Ltd. Page : 1 of 9 Product: IEEE 802.11b/g Cardbus Wireless LAN Card Model : GN-WMKG Company : Giga-Byte Technology Co., Ltd. Page : 2 of 9 Product: IEEE 802.11b/g Cardbus Wireless LAN Card Model : GN-WMKG Company : Giga-Byte Technology Co., Ltd. Page : 3 of 9 Product: IEEE 802.11b/g Cardbus Wireless LAN Card Model : GN-WMKG Company : Giga-Byte Technology Co., Ltd. Page : 4 of 9 Product: IEEE 802.11b/g Cardbus Wireless LAN Card Model : GN-WMKG Company : Giga-Byte Technology Co., Ltd. Page : 5 of 9 Product: IEEE 802.11b/g Cardbus Wireless LAN Card Model : GN-WMKG Company : Giga-Byte Technology Co., Ltd. Page : 6 of 9 Product: IEEE 802.11b/g Cardbus Wireless LAN Card Model : GN-WMKG Company : Giga-Byte Technology Co., Ltd. Page : 7 of 9 Product: IEEE 802.11b/g Cardbus Wireless LAN Card Model : GN-WMKG Company : Giga-Byte Technology Co., Ltd. Page : 8 of 9 Product: IEEE 802.11b/g Cardbus Wireless LAN Card Model : GN-WMKG Company : Giga-Byte Technology Co., Ltd. Page : 9 of 9 Product: IEEE 802.11b/g Cardbus Wireless LAN Card Model : GN-WMKG

20 Chapter 5 Specification 1. System Host Interface CARDBUS (32-bit) card Type II Operating Voltage 3.3VDC 5% 2. RF Performance 802.11g(BACKWARD COMPATIBLE TO 802.11b) Frequency Bands 2412-2484 MHz (subject to local regulations) Modulation Technology OFDM and DSSS Modulation Techniques 64QAM, 16QAM, QPSK, BPSK, CCK, DQPSK, DBPSK Date Rates 54, 48, 36, 18,12, 9, 11, 6, 5.5, 2, and 1 Mbps, auto fallback Typical Power Consumption Receive: 240 mA Transmit: 400 mA Peak Output Power 20 dBm @ Nominal Temp Range Receive sensitivity -68dBm @54Mbps; -85dBm@11Mbps Antenna Two Printed antennas for supporting antenna diversity 3.Safety Regulation and Operating Environment FCC Part 15 (USA) DGT (Taiwan) EMC certification CE (Europe) Temperature Range Operating: 0 ~ 55 deg C, Storing: -20 ~ 65 deg C Humidity Max. 90% Non-condensing 4. Software Support Driver Windows 98SE/Me/2000/XP Security WPA-PSK(TKIP,AES); 802.1X client for Windows XP ,64/128 bit WEP Roaming Seamless roaming among 802.11b/g access points. Management Utility Monitors the network situation. 5. Mechanical Dimensions 120 x 54 x 6 mm Weight 40± 1 g Packaging Packaging specially used by Gigabyte. LED indicators Link, Power Subject to Change without Notices

Report No. : ES/2004/30004 Page : 1 of 40 TEST REPORT Equipment Under Test : IEEE 802.11b/g Cardbus Wireless LAN Card. Model No. : GN-WMKG FCC ID : JCK-GN-WMKG Applicant : GIGA-BYTE TECHNOLOGY CO., LTD. Address of Applicant : 3F-2, No. 23, Nan-Ke 3th Rd Tanin Science-Based Industrial Park, Hsin-Shi, Tainan 744 Taiwan, R.O.C. Date of Receipt : 2004.03.24 Date of Test(s) : 2004.03.29 Date of Issue : 2004.04.27 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1 , C95.3 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Taiwan E&E Services or testing done by SGS Taiwan E&E Services in connection with distribution or use of the product described in this report must be approved by SGS Taiwan E&E Services in writing. Tested by : Dikin Yang Date : 2004/03/29 Approved by : Robert Chang Date : 2004/04/27 Report No. : ES/2004/30004 Page : 2 of 40 Contents 1. General Information 1.1 Testing Laboratory 3 1.2 Details of Applicant 3 1.3 Description of EUT(s) 3 1.4 Test Environment 4 1.5 Operation description 4 1.6 Evaluation procedures 5 1.7 The SAR Measurement System 6 1.8 System Components 8 1.9 SAR System Verification 9 1.10 Tissue Simulant Fluid for the Frequency Band 2.4 to 2.5 GHz 10 1.11 Test Standards and Limits 11 2. Instruments List 13 3. Summary of Results 14 4. Measurements 16 802.11b Configuration 1 4.1.1 Vertical position, lowest channel 16 4.1.2 Vertical position, middle channel 17 4.1.3 Vertical position, highest channel 18 Configuration 2 4.1.4 Horizontal position, lowest channel 19 4.1.5 Horizontal position, middle channel 20 4.1.6 Horizontal position, highest channel 21 802.11g Configuration 1 4.2.1 Vertical position, lowest channel 22 4.2.2 Vertical position, middle channel 23 4.2.3 Vertical position, highest channel 24 Configuration 2 4.2.4 Horizontal position, lowest channel 25 4.2.5 Horizontal position, middle channel 26 4.2.6 Horizontal position, highest channel 27 4.3 System Performance Validation 28 APPENDIX 1. Photographs of Test Setup 29 2. Photographs of EUT 32 3. Probe Calibration certificate 34 4. Uncertainty Analysis 38 5. Phantom description 39 6. System Validation from Original equipment supplier 40 Report No. : ES/2004/30004 Page : 3 of 40 1. General Information 1.1 Testing Laboratory SGS Taiwan Ltd. 1F, No. 134, Wukung Road, Wuku industrial zone Taipei county , Taiwan , R.O.C. Telephone : +886-2-2299-3279 Fax : +886-2-2298-0488 Internet : http://www.sgs.com.tw 1.2 Details of Applicant Name : GIGA-BYTE TECHNOLOGY CO., LTD. Address : 3F-2, No. 23, Nan-Ke 3th Rd Tanin Science-Based Industrial Park, Hsin-Shi, Tainan 744 Taiwan, R.O.C. 1.3 Description of EUT(s) Equipment Type IEEE 802.11b/g Cardbus Wireless LAN Card. Test Procedure FCC OET Bulletin 65, Supplement C TX Frequency range 2412-2462 MHz FCC ID JCK-GN-WMKG Model No. GN-WMKG Number Of Channel 11 Modulation Direct Sequence Spread Spectrum (DSSS) 802.11b 11 Mbps Transfer Rate 802.11g54 Mbps 802.11b1.02 W/kg Max. SAR Measured 802.11g 0.499 W/kg Antenna Gain 0 dBi Antenna Type PRINTED I/O Port PCMCIA Report No. : ES/2004/30004 Page : 4 of 40 Power Supply From PCMCIA slot 3.3V/5V Host Laptop PC(s) Tested COMPAQ N800v NOTE: 1. The EUT is powered by the following adapter: Brand COMPAQ Model PPP009H Input 100-240 Vac 1.7A 50-60Hz Output 18.5Vdc 3.5A 2. For more detailed features description, please refer to the manufacturer's specifications or User's Manual. 1.4 Test Environment Ambient temperature : 22.4° C Tissue Simulating Liquid : 21.6° C Relative Humidity : 62 % 1.5 Operation Configuration The EUT is PCMCIA Card, which is installed inside a Notebook. Since the Notebook is placed on the top of the leg, when it operates, it is to be defined as a portable device. SAR measurement is mandatory. In order to measure SAR value, we used continuous transmission mode. The test set up mode was prepared by manufacturer. Value of Crest Factor = 1 was used for SAR testing according to the nature of the EUT. The test configuration tested at the low, middle and high frequency channels (2412MHz,2437MHz and 2462MHz).By using the program subordinated in the computer, and change into the written channel, and then set in highest power. Finally, we will test it by dividing into 2 ways. 802.11b 802.11g Channel Frequency Under Test And Its Conducted Output Power (Average) 18.78dBm(2412MHz) 19.32dBm(2437MHz) 19.43dBm(2462MHz) 16.31dBm(2412MHz) 16.10dBm(2437MHz) 15.28dBm(2462MHz) Antenna Configuration Internal Antenna EUT Power Source From The Host Equipment HOST Power Source Fully Charged Battery The following test configurations have been applied in this test report: Report No. : ES/2004/30004 Page : 5 of 40 Configuration 1: The left side of the notebook is paralleled with flat phantom and the top of EUT contact to the flat phantom, Spacing between EUT and phantom - In contact (0 mm).(Fig.2 & Fig.3) Configuration 2: Bottom face of the notebook is paralleled with flat phantom. Spacing between Notebook and phantom - In contact (0 mm) . Spacing between EUT and phantom - 10 mm (Fig.4 & Fig.5) NOTE: 1. Please reference “APPENDIX 1” for the photos of test configuration. 2. All test Configuration have been complied with the body worn configuration. 3. The Notebook has been installed the controlling software that could control the EUT transmitted channel and power. But that software is just for test software, not for normal user. 1.6 EVALUATION …

Text truncated - open the document above for the full version.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：JCK-GN-WMKG Report No.：ER04-03-027FRF Page 1 of 61 TEST REPORT Product Name ： IEEE 802.11b/g Cardbus Wireless LAN Card Model Number ： GN-WMKG Brand Name ： GIGABYTE Applicant ： GIGA-BYTE TECHNOLOGY CO., LTD. Address ： No. 6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Received Date ： Mar. 11, 2004 Tested Date ： Mar. 11~25, 2004 Notes ： 1. This report will be invalid if duplicated or photocopied in part. 2. This report refers only to the specimen(s) submitted to testing, and be invalid as seperately used. 3. This report is invalid without examination stamp and signature of this institute. 4. The tested specimen(s) will be preserved for thirty days from the data issued. 5. The report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：JCK-GN-WMKG Report No.：ER04-03-027FRF Page 2 of 61 Test Report Certification Product Name : IEEE 802.11b/g Cardbus Wireless LAN Card Model Number : GN-WMKG Applicant : GIGA-BYTE TECHNOLOGY CO., LTD. Measurement Standard : FCC 47 CFR Part 15, Subpart B and Subpart C (Section 15.247), ANSI C63.4 (2001) WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：JCK-GN-WMKG Report No.：ER04-03-027FRF Page 3 of 61 TABLE OF CONTENTS TITLE PAGE NO. 1. GENERAL INFORMATION........................................................................................................ 5 1.1 General Statement ....................................................................................................................... 5 1.2 General Description of EUT & Power ........................................................................................ 5 1.3 Description of Peripherals........................................................................................................... 6 1.4 EUT & Peripherals Setup Diagram.............................................................................................7 1.5 EUT Operating Procedure........................................................................................................... 7 1.6 Description of Test Site .............................................................................................................. 8 1.7 Summary of Test Results ............................................................................................................ 9 2. CONDUCTED POWERLINE TEST ........................................................................................... 10 2.1 Test Equipments ......................................................................................................................... 10 2.2 Test Setup ................................................................................................................................... 10 2.3 Conducted Power Line Emission Limit ...................................................................................... 11 2.4 Test Procedure ............................................................................................................................ 11 2.5 Uncertainty of Conducted Emission ........................................................................................... 11 2.6 Conducted RF Voltage Measurement ......................................................................................... 12 2.7 Photos of Conduction Test.......................................................................................................... 13 3. RADIATED EMISSION TEST..................................................................................................... 14 3.1 Test Equipments ......................................................................................................................... 14 3.2 Test Setup ................................................................................................................................... 14 3.3 Radiation Limit ........................................................................................................................... 15 3.4 Test Procedures........................................................................................................................... 16 3.5 Uncertainty of Radiated Emission .............................................................................................. 16 3.6 Radiated RF Noise Measurement ............................................................................................... 17-41 3.7 Photos of Open Site .................................................................................................................... 42-43 4. 6dB BANDWIDTH MEASUREMENT........................................................................................ 44 4.1 Test Equipments ......................................................................................................................... 44 4.2 Test Setup ................................................................................................................................... 44 4.3 Limits of 6dB Bandwidth Measurement ..................................................................................... 44 4.4 Test Procedure ..........................................…
