JCK-GN-WP01GSPCI Wireless Adapter

GN-WP01GS PCI Wireless Adapter User’s Manual http://www.gigabyte.com.tw Revised 1.0-1 st Version Administrative Regulations on Low Power Radio Waves Radiated Devices Article 14 Without permission granted, the frequency change, transmitting power enhance or alter of original design characteristic as well as function by companies, enterprises, or users for approved Low-power radio frequency devices is not allowed. Article 17 Low-power radio-frequency devices shall not influence aircraft security and interfere legal communications; If found, shall cease operating immediately until no interference is achieved. Article 20 A company, enterprise, or user importing, manufacturing low-power radio-frequency devices will be punished for violation of regulation hereunder, authorized frequency usage or change and power change in accordance with Telecommunications Act. Furthermore, Directorate General of Telecommunication can cancel its model certificate or recognition label. Above mentioned Legal Communications is defined as radio communications operation complying to Telecommunications Act. Low-power radio-frequency devices must susceptible with the interference from legal communications, ISM radio wave radiated devices. Content CHAPTER 1 PRODUCT OVERVIEW .............................. 1 1-1. INTRODUCTION.............................................................................................................1 1-2. FEATURES...................................................................................................................1 1-3. PHYSICAL DIMENSIONS/PACKAGING...............................................................................1 1-4. LED INDICATOR...........................................................................................................2 1-5. SYSTEM REQUIREMENTS..............................................................................................2 CHAPTER 2 INSTALLING THE WLAN CARD ............... 3 2-1. I NSTALLING THE WLAN CARD (HARDWARE INSTALLATION) ............................................3 2-2. INSTALLING THE DRIVER & UTILITY (WIN 98SE) ...........................................................4 2-3. I NSTALLING THE DRIVER & UTILITY (WIN ME)...............................................................8 2-4. I NSTALLING THE DRIVER & UTILITY (WIN2000) ...........................................................12 2-5. INSTALLING THE DRIVER & UTILITY (WIN XP) .............................................................17 CHAPTER 3 USING THE UTILITY ................................ 21 3-1.“PROFILE” SETTING.....................................................................................................21 3-2.“LINK STATUS” SETTING..............................................................................................28 3-3.“SITE SURVEY” ...........................................................................................................29 3-4.“S TATISTICS” SETTING.................................................................................................30 3-5.“ADVANCE” SETTING...................................................................................................31 3-6.“ABOUT” SETTING.......................................................................................................32 CHAPTER 4 TROUBLESHOOTING.............................. 33  “802.1 X”, “WPA” AND “WPA-PSK” CAN NOT WORK....................................................33  CANNOT CONNECT TO AN AP.....................................................................................33  C AN CONNECT TO AN AP BUT CANNOT CONNECT TO THE INTERNET..............................33  POOR LINK QUALITY AND SIGNAL STRENGTH................................................................33 CHAPTER 5 SPECIFICATION....................................... 34 1 Chapter 1 Product Overview 1-1.Introduction This 802.11b/g Wireless Local Area Network (WLAN) card is composed of Media Access Controller (MAC), baseband, radio components, PCI interface, and one external antenna. It operates within the 2.4GHz spectrum, providing high speed (up to 54Mbps) and secure (supporting AES, 802.1x & WEP and WPA) WLAN connections. 1-2.Features „ Conforms to 802.11b/802.11g specification „ Transmits data rate up to the maximum speed of 54 Mbps „ Dynamically scales the data rate. „ External antenna. „ Seamless roaming between WLAN. „ Supports AES (Advance Encryption System), enterprise-class 802.1x security and multiple-levels WEP encryption (64-bit /128-bit/), and WPA (Wi-Fi Protected Access) „ Drivers support Windows 98SE/Me/2000/XP. 1-3.Physical Dimensions/Packaging Dimensions: 134mm × 121mm × 22mm Before the installation procedures, please ensure the components are not damaged during the shipping. The components include: GN-WP01GS WLAN card×1 External antenna×1 Installation CD (including User’s Manual and driver)×1 User’s Manual×1 In case of any missing or damaged accessories, please contact your local distributor or authorized reseller immediately. If you require returning the damaged product, you must pack it in the original packing material or the warranty will be voided. 2 1-4.LED Indicator ACT OFF ON ON LINK OFF ON BLINK Meaning Network card is not functioning Network card is connecting to network Network card is sending/receiving data. LED Condition of the Receiver ACT LINK 1-5.System Requirements 1-5-1. Supported Platform: IBM PC/AT compatible computer 1-5-2. Supported Operation System: Windows 98SE/Me/2000/XP 3 Chapter 2 Installing the WLAN Card The following sections will assist you to install this WLAN card. 2-1: Hardware Installation, 2-2~2-5: Software Installation, which provides users more convenient installation methods and automatically installs drivers and utilities. Please refer to different section (2-2: Windows 98SE, 2-3: Windows ME, 2-4: Windows 2000, and 2-5: Windows XP) for software installation in accordance with your operation system. 2-1. Installing th…

Text truncated - open the document above for the full version.

Giga-Byte Technology Co., Ltd. NO.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Confidentiality Request FCC ID ：JCK-GN-WP01GS Product ：PCI Wireless LAN Card Model ：GN-WP01GS Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below. Schematics / Block Diagram/Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application And all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: (Name / Date)

Giga-Byte Technology Co., Ltd. NO.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Attestation FCC ID ：JCK-GN-WP01GS Product ：PCI Wireless LAN Card Model ：GN-WP01GS Statements: We don’t provide with any controls or software to allow operation outside the USA frequency band for all future applications when we sell this product in USA. Sincerely, Signature: (Name / Date)

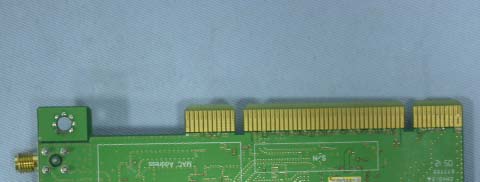

Compliance Certification Services Inc. Report No.50516404-RP2 External Photo ( Model : GN-WP01GS )

Company : GIGA-BYTE TECHNOLOGY CO., LTD. Model : GN-WP01GS Product : PCI Wireless LAN Card PCI Wireless LAN Card Model No: GN-WP01GS FCC ID：JCK-GN-WP01GS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N： Made in Taiwan Label Here

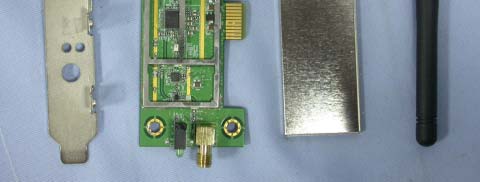

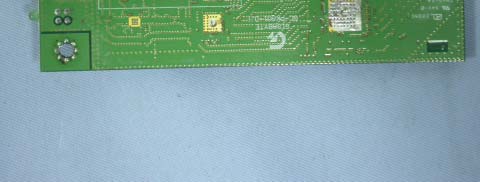

Compliance Certification Services Inc. Report No.50516404-RP2 Internal Photo Compliance Certification Services Inc.Report No.50516404-RP1

Compliance Certification Services Inc. Report No: 50516404-RP2 FCC ID: JCK-GN-WP01GS Date of Issue: May.30, 2005 Page 1 Rev. 00 7.5 radio frequency exposure LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(i) and §1.1307(b)(1) of this chapter. EUT Specification EUT PCI Wireless LAN Card Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 22.08 dBm (161.43mW) Antenna gain (Max) 2 dBi (Numeric gain: 1.58) Evaluation applied MPE Evaluation SAR Evaluation Remark: 1. The maximum output power is 22.08dBm (161.43mW) at 2437MHz (with 1.58 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No: 50516404-RP2 FCC ID: JCK-GN-WP01GS Date of Issue: May.30, 2005 Page 2 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field Strength in Volts / meter P = Power in Watts G=Numeric antenna gain d=Distance in meters S=Power Density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: S GP d × ×× = 3770 30 Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) Yields S GP S GP d × ×= × ×× ×=282.0 3770 )1000/(30 100 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm^2 Substituting the logarithmic form of power and gain using: P (mW) = 10 ^ (P (dBm) / 10) and G (numeric) = 10 ^ (G (dBi) / 10) Yields 20 10 282.0 20 )(GP d + ×= Equation 1 Where d = MPE safe distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW / cm^2 Compliance Certification Services Inc. Report No: 50516404-RP2 FCC ID: JCK-GN-WP01GS Date of Issue: May.30, 2005 Page 3 Rev. 00 Maximum Permissible Exposure (2.4 GHz Band) EUT output power = 161.43mW Antenna Gain = 1.58 (Numeric gain) S = 1.0 mW / cm^2 from 1.1310 Table 1 Substituting these parameters into the above Equation 1: Æ MPE Safe Distance = 4.55 cm (For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less.)

Compliance Certification Services Inc. Report No: 50516404—RP2 FCC ID: JCK-GN-WP01GS Date of Issue: May 30, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 75 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For PCI Wireless LAN Card Model Number: GN-WP01GS Issued to GIGA-BYTE TECHNOLOGY CO., LTD. NO.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 8, Jiu Ceng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Compliance Certification Services Inc. Report No: 50516404-RP2 FCC ID: JCK-GN-WP01GS Date of Issue: May.30, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES 8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 6DB BANDWIDTH.............................................................................................................................11 7.2 PEAK POWER....................................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................21 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................30 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................35 7.6 SPURIOUS EMISSIONS.................................................................................................................38 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................71 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ..............................................................................74 Compliance Certification Services Inc. Report No: 50516404-RP2 FCC ID: JCK-GN-WP01GS Date of Issue: May.30, 2005 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: GIGA-BYTE TECHNOLOGY CO., LTD. NO. 6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan R.O.C. Equipment Under Test: PCI Wireless LAN Card Model Number: GN-WP01GS Brand Name GIGA-BYTE Date of Test: May .16 ~ May. 19, 2005 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Alex Chiu Jeter Wu Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: 50516404-RP2 FCC ID: JCK-GN-WP01GS Date of Issue: May.30, 2005 Page 4 Rev. 00 2. EUT DESCRIPTION Product PCI Wireless LAN Card Model Number GN-WP01GS Model Discrepancy N/A Power Supply Power by PC DC 5V 0.34A 1.7W Frequency Range 2412 ~ 2462 MHz Transmit Power IEEE802.11b mode: 22.08 dBm IEEE802.11g mode: 20.93 dBm Modulation Technique IEEE802.11b: DSSS IEEE802.11g: OFDM Transmit Data Rate IEEE802.11b: 11Mbps(CCK) with fall back rates of 5.5, 2, and 1Mbps IEEE802.11g: 54Mbps with fall ba…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 50516404-RP2 FCC ID: JCK-GN-WP01GS Date of Issue: May.30, 2005 Page 74 Rev. 00 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: 50516404-RP2 FCC ID: JCK-GN-WP01GS Date of Issue: May.30, 2005 Page 75 Rev. 00 Conducted Emission Set Up Photos
