JCK-GN-WP30N-RHAirCruiser N300 Desktop Adapter

GIGA-BYTE TECHNOLOGY CO., LTD.

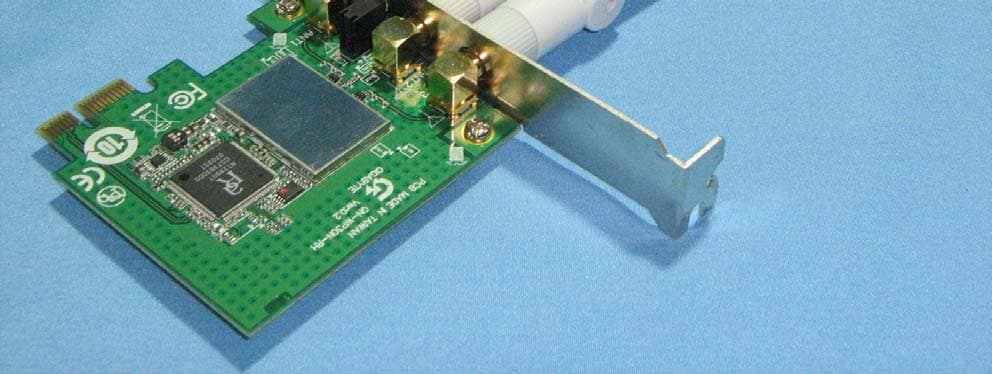

AirCruiser N300 Desktop Adapter - FCC ID JCK-GN-WP30N-RH - GIGA-BYTE TECHNOLOGY CO., LTD.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Aug 13, 2007
Application Purpose
Original Equipment
Date of Application
Aug 13, 2007
Equipment Note
AirCruiser N300 Desktop Adapter
Frequency Range
2422.00000000 - 2452.00000000
Company
GIGA-BYTE TECHNOLOGY CO., LTD.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

GN-WP30N-RH AirCruiser N300 Desktop Adapter Quick Start Guide http://www.gigabyte.com.tw Rev. 1.0 Federal Communication Commission Interference Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Contents CHAPTER 1 PRODUCT OVERVIEW...........................................1 1.1 I NTRODUCTION TO THE AIRCRUISER N300 PCI-E WIRELESS ADAPTER.......................1 1.2 F EATURES.................................................................................................................1 1.3 SYSTEM SPECIFICATIONS............................................................................................2 1.4 C ONTENTS PACKAGE..................................................................................................1 1.5 LED INDICATORS.......................................................................................................1 1.6 SYSTEM REQUIREMENTS............................................................................................1 CHAPTER 2 INSTALLATION.......................................................2 2-1. INSTALLING THE GN-WP30N-RH................................................................................2 2-2. SMARTSETUP 3..........................................................................................................4 CHAPTER 3 USING THE WIRELESS UTILITY ...........................2 3.1. PROFILE TAB.............................................................................................................2 3.2. LINK STATUS TAB.......................................................................................................1 3.3. SITE SURVEY TAB......................................................................................................2 3.4. STATISTICS TAB.........................................................................................................3 3.5. QOS .........................................................................................................................1 3.6. A BOUT TAB................................................................................................................1 APPENDIX A TROUBLESHOOTING ...........................................2 APPENDIX B REGULATORY INFORMATION ..............................3 APPENDIX C WARRANTY .............................................................4 1 Chapter 1 Product Overview 1.1 Introduction to the AIRCRUISER N300 PCI-E Wireless Adapter This GN-WP30N-RH PCI-Express 802.11b/g/n Wireless Local Area Network (WLAN) adapter is composed of the MAC, Baseband, and radio components, PCI-Express interface, and three RF connectors with high throughput and MIMO (Multi-Input and Multi-Output) feature. It operates at 2.4GHz frequency band, providing fast (up to 300Mbps) and secure (WEP 64/128, WPA, WPA2 and 802.1x) connections to 802.11n networks from a single Adapter. It is backward compatible with 11b and 11g. GN-WP30N-RH overcomes environment multi-path effect by MIMO feature and to keep its stable wireless performance and running wireless anywhere. 1.2 Features „ Conform to IEEE 802.11b, 802.11g and draft 802.11n specification „ Wireless transmits data rate up to maximum speed of 300Mbps „ Dynamically scales the data rate „ Support 64/128-bit WEP encryption, 802.1x, WPA and WPA2 „ Support Quality of Service WMM „ Automatic power management to reduce battery consumption „ Seamless roaming between 11b, 11g and draft 11n networks 2 1.3 System Specifications System Host Interface PCI v2.3 Chipset Ralink MAC RT2890, Transceiver RT2820 Operating Voltages 3.3V+/-5% Typical Power Transmitting (Legacy mode): 700mA @ 11b, 780mA @ 11g; Transmitting (HT20 mode): 780mA; Transmitting (HT40 mode): 790mA; Receiving (Legacy mode): 355mA @ 11b, 365mA @ 11g; Receiving (HT20 mode): 375mA; Receiving (HT40 mode): 430mA. RF – 802.11n (backward compatible to 802.11g & 11b) Frequency Band 2412 ~ 2484 MHz (subject to local regulation) Modulation Technology OFDM and DSSS Modulation Techniques 64QAM, 16QAM, QPSK, BPSK, DBPSK, DQPSK, CCK Data Rates 300, 270, 243, 216, 162, 135, 121, 108, 81, 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps, auto fallback Output…

Text truncated - open the document above for the full version.

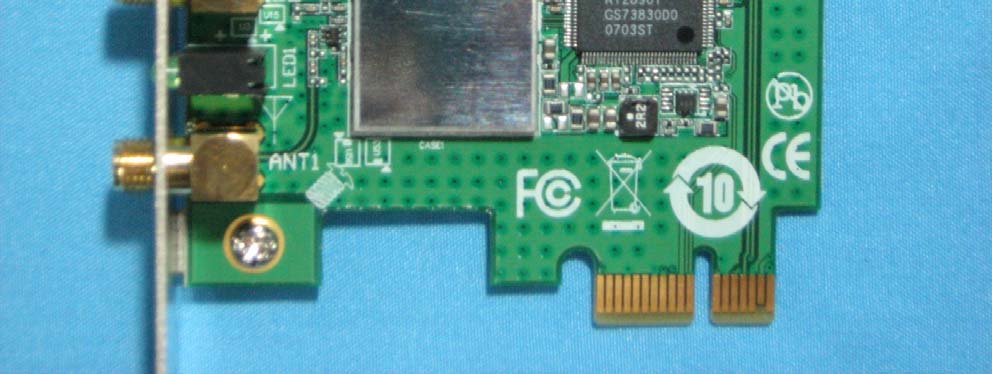

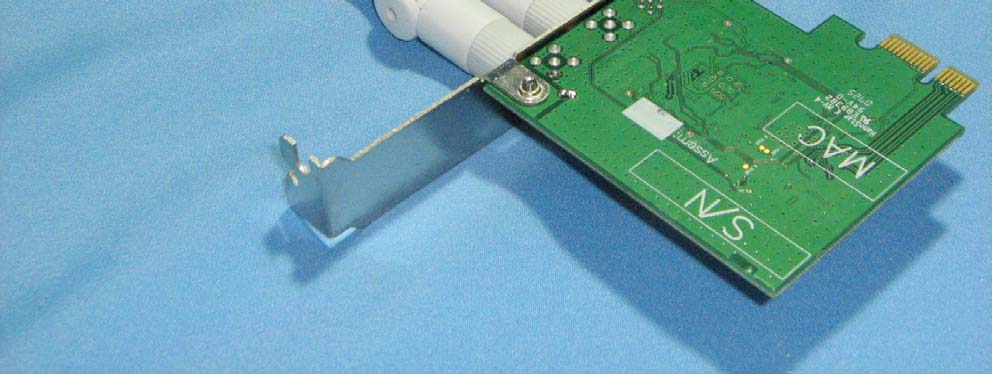

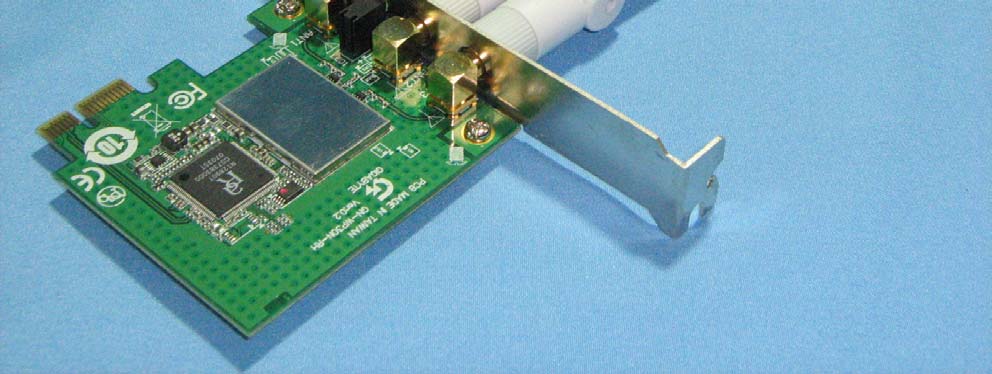

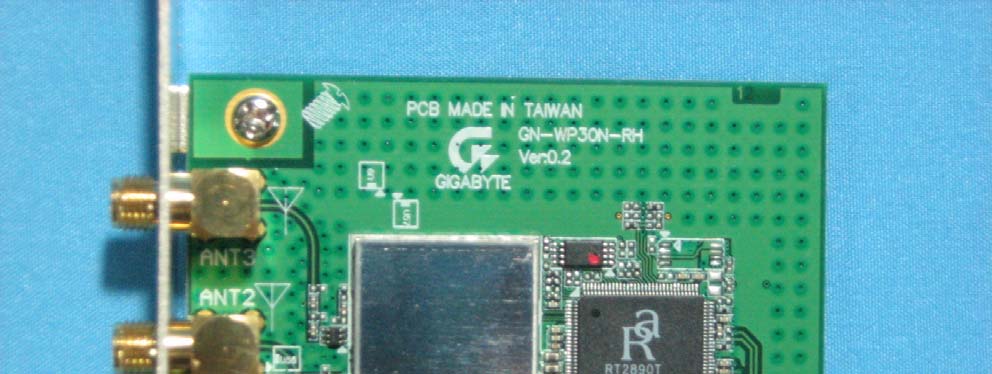

External Photos

!Compliance Certification Services Inc.!Report No.Κ70719406-RP1 ! ! ! ! External Photo ( Model :GN-WP30N-RH) ! !Compliance Certification Services Inc.!Report No.Κ70719406-RP1 ! ! ! ! !

ID Label/Location Info

AirCruiser N300 Desktop Adapter Model No: GN-WP30N-RH FCC ID:JCK-GN-WP30N-RH This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Label Here

Internal Photos

!Compliance Certification Services Inc.!Report No.Κ70719406-RP1 ! ! ! ! ! !

RF Exposure Info

!Compliance Certification Services Inc.!! Report No.Κ70719406-RP1 FCC ID˖JCK-GN-WP30N-RH Date of Issue: August 3, 2007 ! TEST RESULTS No non-compliance noted Total peak power calculation formula: 10 log (10^ (Chain 0 Power / 10) + 10^ (Chain1 Power / 10)). The maximum antenna gain is 2dBi for other than fixed, point-to-point operations, therefore the limit is 30 dBm. In the legacy mode, the effective antenna gain is 5 + 10 x Log (2) = 8.01 dBi. IEEE 802.11b mode (Two TX) Peak Power (dBm) Channel Channel Frequency (MHz) Chain 0Chain 1 Peak Power Total (dBm) Peak Power Limit (dBm) Pass / Fail Low 2412 17.3917.80 20.61 27.99 PASS Middle 2437 17.3017.63 20.48 27.99 PASS High 2462 18.1118.65 21.40 27.99 PASS Note : 1. At finial test to get the worst-case emission at 1Mbps. 2. The cable assembly insertion loss of 11.7dB (including 10 dB pad and 1.7 dB cable) was Entered as an offset in the spectrum analyzer to allow for direct reading of power. IEEE 802.11g mode (Two TX) Peak Power (dBm) Channel Channel Frequency (MHz) Chain 0Chain 1 Peak Power Total (dBm) Peak Power Limit (dBm) Pass / Fail Low 2412 22.2822.59 25.45 27.99 PASS Middle 2437 22.0422.04 25.05 27.99 PASS High 2462 20.8620.98 23.93 27.99 PASS Note : 1.At finial test to get the worst-case emission at 6Mbps. 2. The cable assembly insertion loss of 11.7dB (including 10 dB pad and 1.7 dB cable) was Entered as an offset in the spectrum analyzer to allow for direct reading of power. !Compliance Certification Services Inc.!! Report No.Κ70719406-RP1 FCC ID˖JCK-GN-WP30N-RH Date of Issue: August 3, 2007 ! IEEE 802.11n HT20 mode (Two TX) Peak Power (dBm) Channel Channel Frequency (MHz) Chain 0Chain 1 Peak Power Total (dBm) Peak Power Limit (dBm) Pass / Fail Low 2412 20.8720.82 23.86 27.99 PASS Middle 2437 21.8622.00 24.94 27.99 PASS High 2462 19.6920.18 22.95 27.99 PASS Note : 1.At finial test to get the worst-case emission at 6.5Mbps. 2. The cable assembly insertion loss of 11.7dB (including 10 dB pad and 1.7 dB cable) was Entered as an offset in the spectrum analyzer to allow for direct reading of power. IEEE 802.11n HT40 mode (Two TX) Peak Power (dBm) Channel Channel Frequency (MHz) Chain 0Chain 1 Peak Power Total (dBm) Peak Power Limit (dBm) Pass / Fail Low 2412 19.3419.40 22.38 27.99 PASS Middle 2437 21.6821.73 24.72 27.99 PASS High 2462 17.4417.74 20.60 27.99 PASS Note : 1.At finial test to get the worst-case emission at 6.5Mbps. 2. The cable assembly insertion loss of 11.7dB (including 10 dB pad and 1.7 dB cable) was Entered as an offset in the spectrum analyzer to allow for direct reading of power. !! !Compliance Certification Services Inc.!! Report No.Κ70719406-RP1 FCC ID˖JCK-GN-WP30N-RH Date of Issue: August 3, 2007 ! 8.4 MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theʳ environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E uu 30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S uu Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields 2 2 0796.0 100/3770 1000/30 d GP d GP S u u u uu Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 !Compliance Certification Services Inc.!! Report No.Κ70719406-RP1 FCC ID˖JCK-GN-WP30N-RH Date of Issue: August 3, 2007 ! LIMIT Power Density Limit, S=1.0mW/cm 2 ! TEST RESULTS No non-compliance noted Mode Minimum separation distance (cm) Output Power (dBm) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 20.0 21.40 5.00 1.00 0.09 IEEE 802.11g 20.0 25.45 5.00 1.00 0.22 IEEE 802.11n HT2020.0 24.94 5.00 1.00 0.20 IEEE 802.11n HT4020.0 24.72 5.00 1.00 0.19 Remark:For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Test Report

Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 1 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4 : 2003 TEST REPORT For AirCruiser N300 Desktop Adapter Model : GN-WP30N-RH Trade Name : GIGA-BYTE Issued for GIGA-BYTE TECHNOLOGY CO., LTD. No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Total Page: 184 Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 2 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 August 3, 2007 Initial Issue ALL Leah Peng Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 3 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION .............................................................................................. 5 2. EUT DESCRIPTION ..................................................................................................................... 6 2.1 DESCRIPTION OF EUT & POWER ......................................................................................................6 3. DESCRIPTION OF TEST MODES ............................................................................................. 7 4. TEST METHODOLOGY ............................................................................................................... 8 5. FACILITIES AND ACCREDITATIONS ..................................................................................... 8 5.1 FACILITIES.............................................................................................................................................8 5.2 EQUIPMENT ...........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS LISTINGS.................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ...............................................................................9 6. CALIBRATION AND UNCERTAINTY ....................................................................................... 10 6.1 MEASURING INSTRUMENT CALIBRATION....................................................................................10 6.2 MEASUREMENT UNCERTAINTY ......................................................................................................10 7. SETUP OF EQUIPMENT UNDER TEST ................................................................................... 11 7.1 SETUP CONFIGURATION OF EUT .....................................................................................................11 7.2 SUPPORT EQUIPMENT ........................................................................................................................11 7.3 EUT OPERATING CONDITION............................................................................................................12 8. APPLICABLE LIMITS AND TEST RESULTS........................................................................... 14 8.1 6dB BANDWIDTH..................................................................................................................................14 8.2 99% BANDWIDTH .................................................................................................................................32 8.3 MAXIMUM PEAK OUTPUT POWER ..................................................................................................50 8.4 MAXIMUM PERMISSIBLE EXPOSURE .............................................................................................69 8.4 MAXIMUM PERMISSIBLE EXPOSURE .............................................................................................69 8.5 AVERAGE POWER ................................................................................................................................71 8.6 POWER SPECTRAL DENSITY .............................................................................................................73 8.7 CONDUCTED SPURIOUS EMISSION .................................................................................................101 OUT-OF-BAND COMBINED SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ...................118 8.8 RADIATED EMISSIONS........................................................................................................................130 8.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS .............................................. 130 8.8.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz .............................................. 134 8.8.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz ............................................ 135 8.8.4 RESTRICTED BAND EDGES ......................................................................................... 159 8.9 POWERLINE CONDUCTED EMISSIONS ...........................................................................................175 Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 4 9. ANTENNA REQUIREMENT ....................................................................................................... 179 9.1 STANDARD APPLICABLE ...................................................................................................................179 9.2 ANTENNA CONNECTED CONSTRUCTION ..........................................................................…

Text truncated - open the document above for the full version.

Test Report

Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 101 8.7 CONDUCTED SPURIOUS EMISSION LIMITS § 15.247(d) In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the and that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement. Attenuation below the general limits specified in § 15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in § 15.205(a), must also comply with the radiated emission limits specified in § 15.209(a) (see § 15.205(c)). TEST PROCEDURE The transmitter output is connected to a spectrum analyzer. The resolution bandwidth is set to 100 kHz. The video bandwidth is set to 300 kHz. The spectrum from 30 MHz to 26 GHz is investigated with the transmitter set to the lowest, middle, and highest channels in the 2.4 GHz band. TEST SETUP Combiner mode COMBINER Chaino 0 Chaino 1 Chaino 2 EUT SPECTRUM ANALYZER TEST RESULTS No non-compliance noted EUT SPECTRUM ANALYZER Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 102 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( IEEE 802.11b MODE) CH Low (30MHz~26GHz) (802.11b MODE-Chain 0 ) CH Mid (30MHz~26GHz) (802.11b MODE-Chain 0 ) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 103 CH High (30MHz~26GHz) ( 802.11b MODE-Chain 0 ) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 104 CH Low (30MHz~26GHz) (802.11b MODE-Chain 1 ) CH Mid (30MHz~26GHz) (802.11b MODE-Chain 1 ) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 105 CH High (30MHz~26GHz) ( 802.11b MODE-Chain 1 ) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 106 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( IEEE 802.11g MODE) CH Low (30MHz~26GHz) (802.11g MODE-Chain 0 ) CH Mid (30MHz~26GHz) (802.11g MODE-Chain 0 ) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 107 CH High (30MHz~26GHz) ( 802.11g MODE-Chain 0 ) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 108 CH Low (30MHz~26GHz) (802.11g MODE-Chain 1 ) CH Mid (30MHz~26GHz) (802.11g MODE-Chain 1 ) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 109 CH High (30MHz~26GHz) ( 802.11g MODE-Chain 1 ) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 110 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11n HT20 MODE ) CH Low (30MHz~26GHz) ( 802.11n HT20 MODE-Chain 0 ) CH Mid (30MHz~26GHz) ( 802.11n HT20 MODE-Chain 0 ) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 111 CH High (30MHz~26GHz) ( 802.11n HT20 MODE-Chain 0 ) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 112 CH Low (30MHz~26GHz) ( 802.11n HT20 MODE-Chain 1 ) CH Mid (30MHz~26GHz) ( 802.11n HT20 MODE-Chain 1 ) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 113 CH High (30MHz~26GHz) ( 802.11n HT20 MODE-Chain 1 ) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 114 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( IEEE 802.11n HT40 MODE) CH Low (30MHz~26GHz) ( 802.11n HT40 MODE-Chain 0 ) CH Mid (30MHz~26GHz) ( 802.11n HT40 MODE-Chain 0 ) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 115 CH High (30MHz~26GHz) ( 802.11n HT40 MODE-Chain 0 ) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 116 CH Low (30MHz~26GHz) ( 802.11n HT40 MODE-Chain 1 ) CH Mid (30MHz~26GHz) ( 802.11n HT40 MODE-Chain 1 ) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 117 CH High (30MHz~26GHz) ( 802.11n HT40 MODE-Chain 1 ) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 118 OUT-OF-BAND COMBINED SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11b MODE Combined) CH Low (30MHz~26GHz) ( 802.11b MODE Combined ) CH Mid (30MHz~26GHz) (802.11b MODE Combined ) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 119 Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 120 CH High (30MHz~26GHz) (802.11b MODE Combined) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 121 OUT-OF-BAND COMBINED SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11g MODE Combined) CH Low (30MHz~26GHz) ( 802.11g MODE Combined ) CH Mid (30MHz~26GHz) (802.11g MODE Combined ) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 122 Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:JCK-GN-WP30N-RH Date of Issue: August 3, 2007 Page 123 CH High (30MHz~26GHz) (802.11g MODE Combined) Compliance Certification Services Inc. Report No.:70719406-RP1 FCC ID:J…

Text truncated - open the document above for the full version.

Test Setup Photos

!Compliance Certification Services Inc.!! Report No.Κ70719406-RP1 FCC ID˖JCK-GN-WP30N-RH Date of Issue: August 3, 2007 ! APPENDIX SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP ! ! ! ! ! !Compliance Certification Services Inc.!! Report No.Κ70719406-RP1 FCC ID˖JCK-GN-WP30N-RH Date of Issue: August 3, 2007 ! RADIATED RF MEASUREMENT SETUP ! !Compliance Certification Services Inc.!! Report No.Κ70719406-RP1 FCC ID˖JCK-GN-WP30N-RH Date of Issue: August 3, 2007 ! ! !Compliance Certification Services Inc.!! Report No.Κ70719406-RP1 FCC ID˖JCK-GN-WP30N-RH Date of Issue: August 3, 2007 ! POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP ! ! End of report

Contact Information

Applicant

Alain Sam-Lai
[email protected]886289124000Fax: 886289126322

Test Firm

Compliance Certification Service Inc.Paul Liau
[email protected]886-3-5915994Fax: 886-3-5825720

Technical Specifications

#Rule PartsFrequency RangePower Output
415C2.42 GHz - 2.45 GHz296.00 mW
Confidentiality
Long Term
Grant Notes
Power output listed is the maximum combined conducted power as indicated in the filing. Device is a Spatial Multiplexing MIMO PCI-E Card. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
