JCK-GN-WS30N-RHAirCruiser N300 Mini Card

GN-WS30N-RH AriCruiser N300 Mini Card User’s Manual http://www.gigabyte.com.tw Revised 1.0-1 st Version Administrative Regulations on Low Power Radio Waves Radiated Devices Article 14 Without permission granted, the frequency change, transmitting power enhance or alter of original design characteristic as well as function by companies, enterprises, or users for approved Low-power radio frequency devices is not allowed. Article 17 Low-power radio-frequency devices shall not influence aircraft security and interfere legal communications; If found, shall cease operating immediately until no interference is achieved. Article 20 A company, enterprise, or user importing, manufacturing low-power radio-frequency devices will be punished for violation of regulation hereunder, authorized frequency usage or change and power change in accordance with Telecommunications Act. Furthermore, Directorate General of Telecommunication can cancel its model certificate or recognition label. Above mentioned Legal Communications is defined as radio communications operation complying to Telecommunications Act. Low-power radio-frequency devices must susceptible with the interference from legal communications, ISM radio wave radiated devices. รԼԲයʳ ݁ृشࠌࢨΔֆ׹Ε೸ᇆױ෷୴᙮ሽᖲΔॺᆖ๺פ܅௑հٽᎁᢞڤী ౨Ζפ֗ࢤ଺๻ૠհ௽ޓ᧢ࢨ෷פՕף᙮෷Εޓ᧢۞լ൓ᖐ รԼ؄යʳ ڶऄຏॾΙᆖ࿇෼ٽեឫ֗٤ڜլ൓ᐙ᥼ଆ౰شࠌ෷୴᙮ሽᖲհפ܅ եឫ෼ွழΔᚨܛمೖشΔޏࠀ࿳۟ྤեឫழֱ൓ᤉᥛشࠌΖ ছႈٽऄຏॾΔਐࠉሽॾऄ๵܂ࡳᄐհྤᒵሽຏॾΖ ሽࢤሽंᘿ୴ش᠔᛭֗ՠᄐΕઝᖂࢨऄຏॾٽ࠹ݴ෷୴᙮ሽᖲႊפ܅ ᖲ๻ໂհեឫΖ ழ ௑ᑑ᧘ٽᐉ᧭ߠຝ઎؆ڇᑓิհؓ؀ྤऄءشࠌ࣠ڕ,ᚨڇᇠؓ ؀ऱ؆ຝࣔ᧩ᑑقփܶ୴᙮ᑓิ CCXXxxYYyyyZzW Content CHAPTER 1 PRODUCT OVERVIEW .............................. 1 1-1. INTRODUCTION.............................................................................................................1 1-2. F EATURES...................................................................................................................1 1-3. P HYSICAL DIMENSIONS/PACKAGING...............................................................................1 1-4. S YSTEM REQUIREMENTS..............................................................................................2 CHAPTER 2 INSTALLING THE WLAN CARD ............... 3 2-1. INSTALLING THE WLAN CARD (HARDWARE INSTALLATION) ............................................3 2-2. I NSTALLINGTHEDRIVER &UTILITY (WIN98SE) ...........................................................4 2-3. I NSTALLINGTHEDRIVER &UTILITY (WINME)...............................................................8 2-4. I NSTALLINGTHEDRIVER &UTILITY (WIN2000) ...........................................................12 2-5. I NSTALLINGTHEDRIVER &UTILITY (WINXP) .............................................................17 CHAPTER 3 USING THE UTILITY ................................ 21 3-1.“PROFILE”SETTING.....................................................................................................21 3-2.“L INKSTATUS”SETTING..............................................................................................28 3-3.“S ITESURVEY” ...........................................................................................................29 3-4.“S TATISTICS”SETTING.................................................................................................30 3-5.“A DVANCE”SETTING...................................................................................................31 3-6.“A BOUT”SETTING.......................................................................................................32 CHAPTER 4 TROUBLESHOOTING.............................. 33 ၷ“802.1X”, “WPA” AND “WPA-PSK” CAN NOT WORK....................................................33 ၷC ANNOT CONNECT TO AN AP.....................................................................................33 ၷC AN CONNECT TO AN AP BUT CANNOT CONNECT TO THE INTERNET..............................33 ၷP OOR LINK QUALITY AND SIGNAL STRENGTH................................................................33 CHAPTER 5 SPECIFICATION....................................... 34 1 Chapter 1 Product Overview 1-1.Introduction This 802.11b/g/n Wireless Local Area Network (WLAN) card is composed of Media Access Controller (MAC), baseband, radio components, MINI-PCI interface, and one external antenna. It operates within the 2.4GHz spectrum, providing high speed (up to 54Mbps) and secure (supporting AES, 802.1x & WEP and WPA) WLAN connections. 1-2.Features „ Conforms to 802.11b/802.11g/802.11n specification „ Transmits data rate up to the maximum speed of 300 Mbps „ Dynamically scales the data rate. „ External antenna. „ Seamless roaming between WLAN. „ Supports AES (Advance Encryption System), enterprise-class 802.1x security and multiple-levels WEP encryption (64-bit /128-bit/), and WPA (Wi-Fi Protected Access) „ Drivers support Windows 98SE/Me/2000/XP. 1-3.Physical Dimensions/Packaging Dimensions: 50.8mm ×29.8mm ×3.65mm Before the installation procedures, please ensure the components are not damaged during the shipping. The components include: GN-WS30N-RH WLAN card×1 External antenna×1 Installation CD (including User’s Manual and driver)×1 User’s Manual×1 In case of any missing or damaged accessories, please contact your local distributor or authorized reseller immediately. If you require returning the damaged product, you must pack it in the original packing material or the warranty will be voided. 2 1-4. System Requirements 1-4-1. Supported Platform: IBM PC/AT compatible computer 1-4-2. Supported Operation System: Windows 98SE/Me/2000/XP 3 Chapter 2 Installing the WLAN Card The following sections will assist you to install this WLAN card. 2-1: Hardware Installation, 2-2~2-5: Software Installation, which provides users more convenient installation methods and automatically installs drivers and utilities. Please refer to different section (2-2: Windows 98SE, 2-3: Windows ME, 2-4: Windows 2000, and 2-5: Windows XP) for software installation in accordance with your operation system. 2-1. Installing the WLAN Card (Hardware Installation) Step 1: Power off you PC. Step 2: …

Text truncated - open the document above for the full version.

Giga-Byte Technology Co., Ltd. NO.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Attestation Statements: We don’t provide with any controls or software to allow operation outside the USA frequency band for all future applications when we sell this product in USA. Sincerely, Signature: (Name / Date) 10/01/2007

Transmitter Modular Approval Letter Date: October 1, 2007 Federal Communications Commission Re: Application Modular Approval Certification for FCC ID: JCK-GN-WS30N-RH Gentlemen: The following attestation addresses the eight requirements to support Modular approval as required by the FCC Public Notice DA 00-1407” Part 15 Unlicensed Modular Transmitter Approval” 1 The modular transmitter has its own RF shielding.(Refer to “Internal Photograph Exhibit”) 2 The modular transmitter has buffered modulation/data inputs. All inputs to the modules are buffered through the radio circuitry. (Refer to “Block Diagram and Schematics Exhibit”) 3 The modular transmitter has its own power supply regulator.(Refer to “Block Diagram and Schematics Exhibit ”and Bill of Materials Exhibit”) 4 The modular transmitter has an antenna that complies with section 15.203 of the FCC rules. It has a UFL type of connector at the transmitter end and is PIFA for Wireless LAN Antenna (depending on OEM configuration). Also the antenna will be internal in the OEM host equipment and inaccessible to the user.(Refer to “Operational Description Exhibit” and “Antenna Specification Exhibit”) 5 The modular transmitter was tested outside of a host desktop computer using a PCI extender card. The PCI extender card allows the transmitter to be placed outside of the chassis of the host desktop computer.(Refer to “Test Configuration”in Compliance Certificaiton Services Inc. test report and to “External Photograph Exhibit”) 6 The modular transmitter will be labeled with it own FCC ID. Also, the OEM host computer manufacturer will be informed to display a label referring to the enclosed module. The exterior habel will read as follows: “Contains Transmitter Module FCC ID: JCK-GN-WS30N-RH” or “Contains TX FCCID: JCK-GN-WS30N-RH” (Refer to “Label Information Exhibit”) 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations.(Refer to“User’s Guide Exhibit) 8 The modular transmitter meets the MPE calculations of 47 CFR 1.1307(b)(1) (Refer to “RF Exposure Exhibit”.)

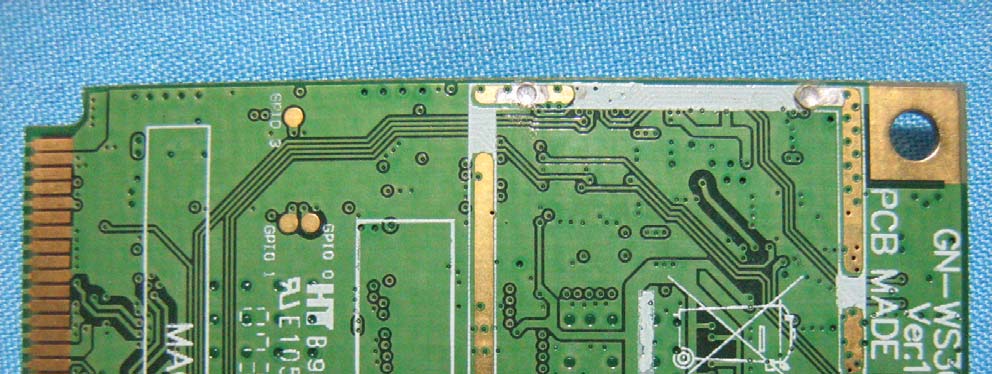

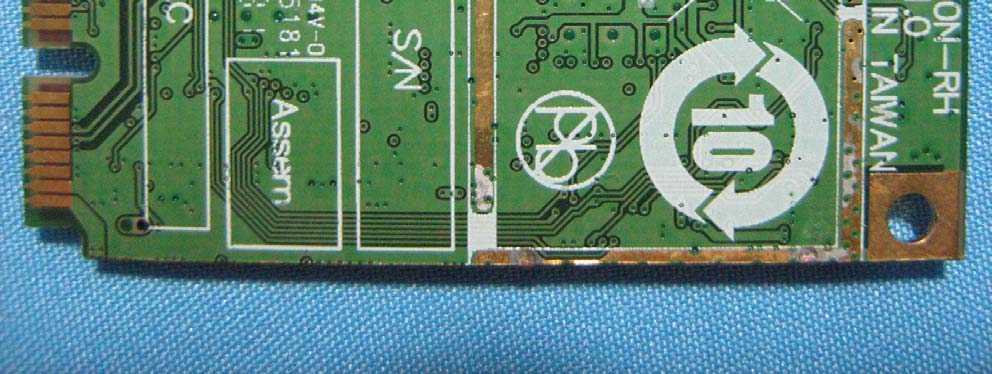

!Compliance Certification Services Inc.!!!!!Report No.Κ70911401-RP1 ! ! ! ! External Photo ( Model : GN-WS30N-RH ) !Compliance Certification Services Inc.!!!!!Report No.Κ70911401-RP1 ! ! ! ! !

Label here AirCruiser N300 Mini Card Model No: GN-WS30N-RH FCC ID：JCK-GN-WS30N-RH This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N： Made in Taiwan

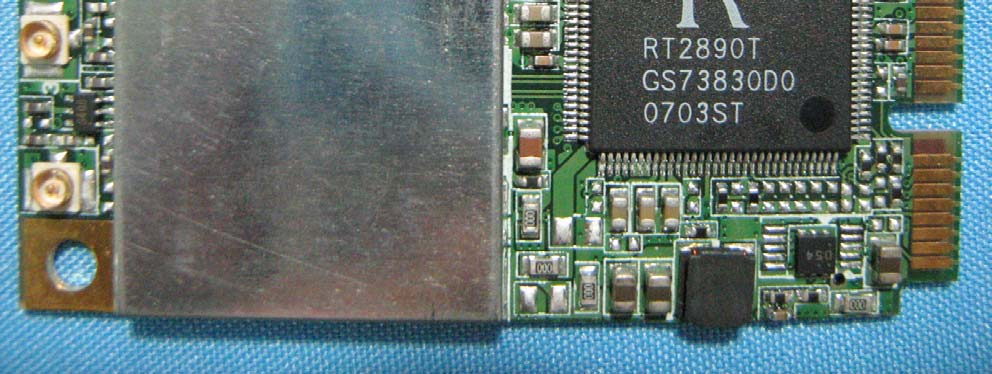

!Compliance Certification Services Inc.!!!!!Report No.Κ70911401-RP1 ! ! ! ! ! Internal photo !

!Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ ˄! MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theʳ environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E uu 30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S uu Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields 2 2 0796.0 100/3770 1000/30 d GP d GP S u u u uu Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ ˅! LIMIT Power Density Limit, S=1.0mW/cm 2 ! TEST RESULTS No non-compliance noted Mode Minimum separation distance (cm) Output Power (dBm) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 20 23.70 2.58 1.00 0.08 IEEE 802.11g 20 26.79 2.58 1.00 0.17 IEEE 802.11n HT2020 25.65 2.58 1.00 0.13 IEEE 802.11n HT4020 25.20 2.58 1.00 0.12 Remark:For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

!Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ91! CH Low ( 802.11n HT40 MODE-Chain 1 ) CH Mid ( 802.11n HT40 MODE-Chain 1 ) ! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ92! CH High ( 802.11n HT40 MODE-Chain 1 )! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ93! CH Low ( 802.11n HT40 Combined MODE ) CH Mid (802.11n HT40 Combined MODE ) ! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ94! CH High ( 802.11n HT40 Combined MODE )! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ95! 8.7 CONDUCTED SPURIOUS EMISSION LIMITS! § 15.247(d) In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the and that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement. Attenuation below the general limits specified in § 15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in § 15.205(a), must also comply with the radiated emission limits specified in § 15.209(a) (see § 15.205(c)). TEST PROCEDURE The transmitter output is connected to a spectrum analyzer. The resolution bandwidth is set to 100 kHz. The video bandwidth is set to 300 kHz. The spectrum from 30 MHz to 26 GHz is investigated with the transmitter set to the lowest, middle, and highest channels in the 2.4 GHz band. TEST SETUP! Combiner mode COMBINER Chaino 0 Chaino 1 Chaino 2 EUT SPECTRUM ANALYZER TEST RESULTS No non-compliance noted! ! ! ! EUT SPECTRUM ANALYZER !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ96! OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT (IEEE 802.11b MODE) ʳ CH Low (30MHz~26GHz) (802.11b MODE-Chain 0 ) CH Mid (30MHz~26GHz) (802.11b MODE-Chain 0 ) ! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ97! CH High (30MHz~26GHz) ( 802.11b MODE-Chain 0 ) ! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ98! (IEEE 802.11b MODE) ʳ CH Low (30MHz~26GHz) (802.11b MODE-Chain ˄ ) CH Mid (30MHz~26GHz) (802.11b MODE-Chain 1 ) ! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ99! CH High (30MHz~26GHz) ( 802.11b MODE-Chain 1 ) ! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ100! OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT (IEEE 802.11g MODE) ʳ CH Low (30MHz~26GHz) (802.11g MODE-Chain 0 ) CH Mid (30MHz~26GHz) (802.11g MODE-Chain 0 ) ! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ101! CH High (30MHz~26GHz) ( 802.11g MODE-Chain 0 ) ! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ102! (IEEE 802.11g MODE) ʳ CH Low (30MHz~26GHz) (802.11g MODE-Chain ˄ ) CH Mid (30MHz~26GHz) (802.11g MODE-Chain 1 ) ! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ103! CH High (30MHz~26GHz) ( 802.11g MODE-Chain 1 ) ! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ104! OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT (IEEE 802.11n HT20 MODE ) ʳ CH Low (30MHz~26GHz) ( 802.11n HT20 MODE-Chain 0 ) CH Mid (30MHz~26GHz) ( 802.11n HT20 MODE-Chain 0 ) ! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ105! CH High (30MHz~26GHz) ( 802.11n HT20 MODE-Chain 0 ) ! ! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ106! ʳ CH Low (30MHz~26GHz) ( 802.11n HT20 MODE-Chain 1 ) CH Mid (30MHz~26GHz) ( 802.11n HT20 MODE-Chain 1 ) ! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ107! CH High (30MHz~26GHz) ( 802.11n HT20 MODE-Chain 1 ) ! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ108! ʳOUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT (IEEE 802.11n HT40 MODE) ʳ CH Low (30MHz~26GHz) ( 802.11n HT40 MODE-Chain 0 ) CH Mid (30MHz~26GHz) ( 802.11n HT40 MODE-Chain 0 ) ! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ109! CH High (30MHz~26GHz) ( 802.11n HT40 MODE-Chain 0 ) ! ! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ110! ʳ CH Low (30MHz~26GHz) ( 802.11n HT40 MODE-Chain 1 ) CH Mid (30MHz~26GHz) ( 802.11n HT40 MODE-Chain 1 ) ! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ111! CH High (30MHz~26GHz) ( 802.11n HT40 MODE-Chain 1 ) ! !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ112! OUT-OF-BAND COMBINED SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT (IEEE 802.11b MODE Combined) CH Low (30MHz~26GHz) ( 802.11b MODE Combined ) CH Mid (…

Text truncated - open the document above for the full version.

!Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ1! FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2003 TEST REPORT For AirCruiser N300 Mini Card Model: GN-WS30N-RH Brand: GIGA-BYTE Issued for GIGA-BYTE TECHNOLOGY CO., LTD. No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 NOTE:This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Total Page: 173 !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ2! Revision History Rev. Issue Date Revisions Effect Page Revised By 00 Sep. 28, 2007 Initial Issue ALL Leah Peng !Compliance Certification Services Inc.!! Report No.ˍʳ70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007! ! Pageʳ3! TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ........................................................................................................... 4 2. EUT DESCRIPTION.................................................................................................................................... 5 2.1 DESCRIPTION OF EUT & POWER ....................................................................................................... 5 3. DESCRIPTION OF TEST MODES............................................................................................................ 6 4. TEST METHODOLOGY ............................................................................................................................ 7 5. FACILITIES AND ACCREDITATIONS .................................................................................................. 7 5.1 FACILITIES.............................................................................................................................................. 7 5.2 EQUIPMENT ............................................................................................................................................ 7 5.3 LABORATORY ACCREDITATIONS LISTINGS.................................................................................. 7 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................................ 8 6. CALIBRATION AND UNCERTAINTY.................................................................................................... 9 6.1 MEASURING INSTRUMENT CALIBRATION..................................................................................... 9 6.2 MEASUREMENT UNCERTAINTY ....................................................................................................... 9 7. SETUP OF EQUIPMENT UNDER TEST ................................................................................................. 10 7.1 SETUP CONFIGURATION OF EUT ...................................................................................................... 10 7.2 SUPPORT EQUIPMENT ......................................................................................................................... 10 7.3 EUT OPERATING CONDITION............................................................................................................. 11 8. APPLICABLE LIMITS AND TEST RESULTS........................................................................................ 13 8.1 6dB BANDWIDTH................................................................................................................................... 13 8.2 99% BANDWIDTH .................................................................................................................................. 31 8.3 MAXIMUM PEAK OUTPUT POWER ................................................................................................... 49 8.4 MAXIMUM PERMISSIBLE EXPOSURE .............................................................................................. 68 8.4 MAXIMUM PERMISSIBLE EXPOSURE .............................................................................................. 68 8.5 AVERAGE POWER ................................................................................................................................. 70 8.6 POWER SPECTRAL DENSITY .............................................................................................................. 72 8.7 CONDUCTED SPURIOUS EMISSION .................................................................................................. 95 OUT-OF-BAND COMBINED SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT .............. 112 8.8 RADIATED EMISSIONS......................................................................................................................... 120 8.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS ............................................................. 120 8.8.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ............................................................. 124 8.8.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz ........................................................... 125 8.8.4 RESTRICTED BAND EDGES ........................................................................................................ 149 8.9 POWERLINE CONDUCTED EMISSIONS ............................................................................................ 165 9. ANTENNA REQUIREMENT ..................................................................................................................... 169 9.1 STANDARD APPLICABLE .................................................................................................................... 169 9.2 ANTENN…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007 APPENDIX SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. Report No.: 70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc. Report No.: 70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007 Compliance Certification Services Inc. Report No.: 70911401-RP1 FCC ID: JCK-GN-WS30N-RH Date of Issue: Sep. 28, 2007 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP End of report
