GN-WS31N-RH AIRCRUISER N300 Mini Card Quick Start Guide http://www.gigabyte.com.tw Rev. 1.0 1 Federal Communication Commission Interference Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device is intended only for OEM integrators under the following conditions: OEM integrator is still responsible for testing their end product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE : In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: JCK-GN-WS31N-RH”. IMPORTANT NOTE FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 1 NCC規範 第十二條 型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加 大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停 用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 1 Contents CHAPTER 1 PRODUCT OVERVIEW...........................................2 1.1 INTRODUCTION TO THE AIRCRUISER N300 MINI CARD..............................................2 1.2 FEATURES.................................................................................................................2 1.3 PRODUCT SPECIFICATIONS.........................................................................................2 1.4 SYSTEM REQUIREMENTS............................................................................................4 CHAPTER 2 USING THE WIRELESS UTILITY...........................5 3.1. PROFILE TAB.............................................................................................................5 3.2. LINK STATUS TAB.....................................................................................................15 3.3. SITE SURVEY TAB....................................................................................................16 3.4. STATISTICS TAB.......................................................................................................17 3.5. QOS .......................................................................................................................19 3.6. ABOUT TAB..............................................................................................................23 CHAPTER 3 USING GIGABYTE SOFT AP...............................24 4.1 START GIGABYTE SOFT AP.......................................................................................24 4.2 CONFIG SETTING......................................................................................................26 4.3 SECURITY SETTING..................................................................................................28 4.4 ACCESS CONTROL...................................................................................................30 4.5 MAC TABLE..............................................................................................................31 4.6 EVENT LOG..............................................................................................................32 4.7 STATISTIC................................................................................................................33 4.8 ABOUT....................................................................................................................35 APPENDIX A TROUBLESHOOTING.........................................36 APPENDIX B REGULATORY INFORMATION............................37 APPENDIX C WARRANTY................................…

Text truncated - open the document above for the full version.

Page No. : 6 GIGA-BYTE TECHNOLOGY CO., LTD. No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Tel: 886-2-89124888 Fax: 888-2-89124007 Confidential Letter Date: 2008/3/6 Federal Communications Commission Authorization and Evaluation Division FCC ID：JCK-GN-WS31N-RH Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : GIGA-BYTE TECHNOLOGY CO., LTD. Applicant’s company address : No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Signature : _____________________________ Job Title and Dept. : Andy Chen / Divison Director E-Mail : [email protected] Tel. : 886-2-89124888

Page No. : 8 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2008/03/03 FCC ID: JCK-GN-WS31N-RH Dear Reviewer, We, Sporton International Inc., are authorized by GIGA-BYTE TECHNOLOGY CO., LTD. to have their state-of-the-art AirCruiser N300 Mini Card approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip RT2790. 3. The requirement of power supply regulation: The part number of the power regulator is RT9179A. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: RF exposure requirement can be fulfilled only for mobile configuration. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

Page No. : 2 GIGA-BYTE TECHNOLOGY CO., LTD. No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Tel: 886-2-89124888 Fax: 888-2-89124007 Power of Attorney Date: 2008/3/3 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: GIGA-BYTE / GN-WS31N-RH FCC ID: JCK-GN-WS31N-RH Product name: AirCruiser N300 Mini Card FCC Grantee contact person information. Applicant’s company name : GIGA-BYTE TECHNOLOGY CO., LTD. Applicant’s company address : No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Signature : ____________________________ Job Title and Dept. : Andy Chen / Divison Director E-Mail : [email protected] Tel. : 886-2-89124888

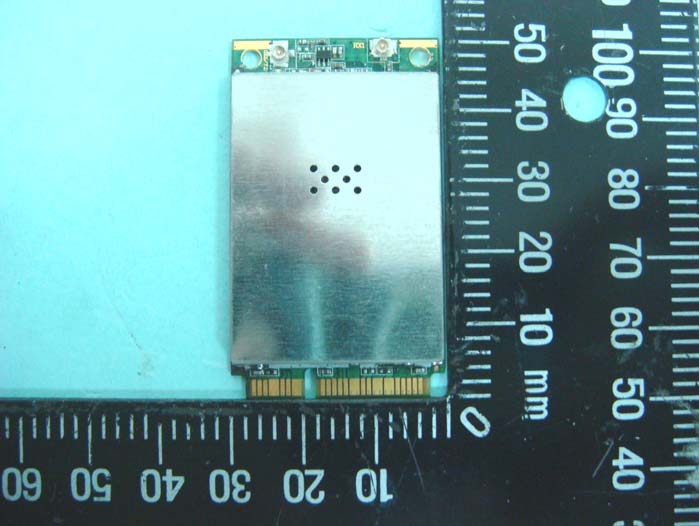

SPORTON International Inc. PAGE NUMBER : A1 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 03, 2008 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 03, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 03, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 03, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 03, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 03, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 03, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 03, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 03, 2008 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 03, 2008 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 03, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 03, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 03, 2008 FAX : 886-2-2696-2255

Report No.: FR822511 FCC ID: JCK-GN-WS31N-RH Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR822511 FCC ID: JCK-GN-WS31N-RH Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR822511 FCC ID: JCK-GN-WS31N-RH Page No. : C3 of C3 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for draft n 20MHz Ant. A : 24.40 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4 2.5119 24.4000 275.4229 0.137705 1 Complies Antenna Type : Dipole Antenna Max Conducted Power for 802.11b 20MHz Ant. A : 24.30 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4 2.5119 24.3000 269.1535 0.134571 1 Complies

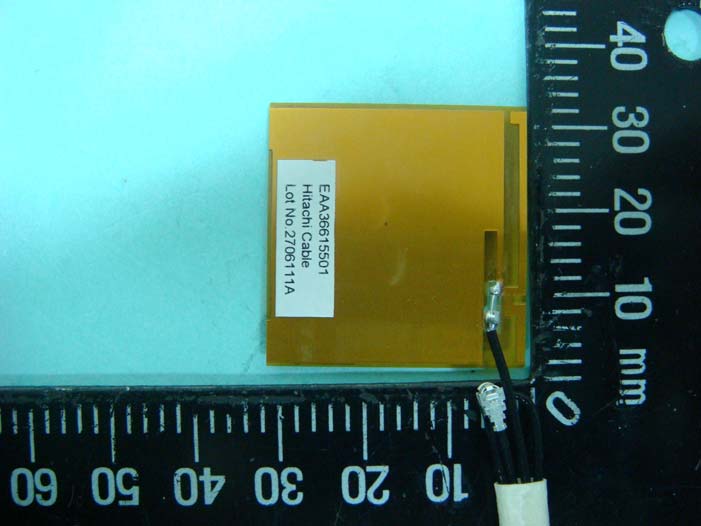

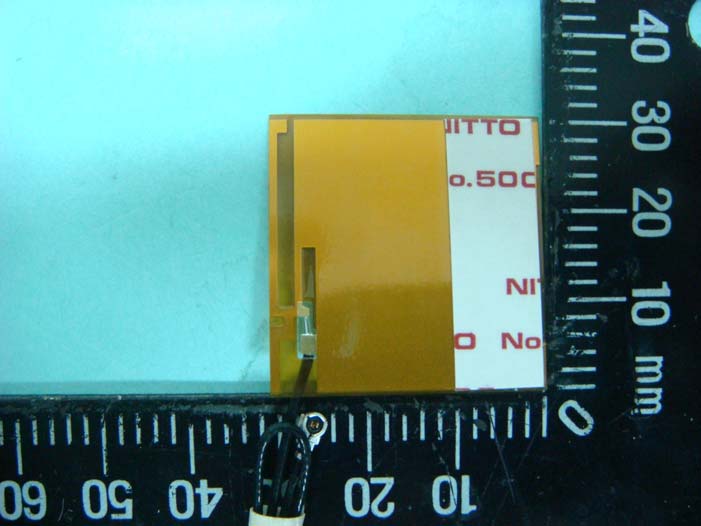

Report No.: FR822511 FCC ID: JCK-GN-WS31N-RH Page No. : C1 of C4 Appendix D. Antenna List Report No.: FR822511 FCC ID: JCK-GN-WS31N-RH Page No. : C2 of C4 1. Table for Filed Antenna Antenna Item Note Brand P/N Gain (Peak) 1 PIFA (Main) WNC 81.EEZ15.019 2.8 1 PIFA (Aux) WNC 81.EEZ15.020 2.42 2 PIFA (Main) WNC 81.EEZ15.005 1.99 2 PIFA (Aux) WNC 81.EEZ15.005 1.94 3 PIFA (Main) WNC 81.EEW15.006 -1.34 3 PIFA (Aux) WNC 81.EEW15.006 1.47 4 Dipole (Main) WNC 81.XCC15.001 2.09 4 Dipole (Aux) WNC 81.XCC15.001 2.09 5 PIFA (Main) SmartAnt CPL06-221070 1.79 5 PIFA (Aux) SmartAnt CPL06-22107A 1.25 6 PIFA (Main) SmartAnt CPL06-220120(G) 2.39 6 PIFA (Aux) SmartAnt CPL06-220120(B) 0.95 7 Dipole (Main) SmartAnt SAA04-05005G 2 7 Dipole (Aux) SmartAnt SAA04-05005G 2 8 Dipole (Main) SmartAnt SAA04-05005A 3 8 Dipole (Aux) SmartAnt SAA04-05005A 3 9 PIFA (Main) FVC K05007003702 0.71 9 PIFA (Aux) FVC K05007003802 1.73 10 PIFA (Main) WGT SKM66WIPI01F -0.19 10 PIFA (Aux) WGT SKM66WIPI01F -0.19 11 PIFA (Main) FVC K05007003652 2.02 11 PIFA (Aux) WGT SK900WIPI01A 0.37 12 PIFA (Main) WGT SK720WIPI01+B 1.3 12 PIFA (Aux) WGT SK72RWIPI03+B -0.09 13 PIFA (Main) FVC K05007003201 1.8 13 PIFA (Aux) FVC K05007003352 0.63 Report No.: FR822511 FCC ID: JCK-GN-WS31N-RH Page No. : C3 of C4 Antenna Item Note Brand P/N Gain (Peak) 14 Dipole (Main) Joymax IWX-2411RSXX-999 2 14 Dipole (Aux) Joymax IWF-HP01RSXX-361 1 15 Dipole (Main) Joymax IWX-145XRSXX-999 4 15 Dipole (Aux) Joymax IWX-145XRSXX-999 4 16 Dipole (Main) VSO 821-103-01210120 -1.17 16 Dipole (Aux) VSO 821-103-01210130 -0.08 17 Dipole (Main) VSO 821-103-01210190 -0.2 17 Dipole (Aux) VSO 821-103-01210190 0.27 18 PIFA (Main) VSO 821-101-01210380-V03 -0.47 18 PIFA (Aux) VSO 821-101-01210390-V03 1 19 PCB(Dipole) (Main) VSO S79-1800710-V03 -0.6 19 PCB(Dipole) (Aux) VSO S79-1800700-V03 0.75 20 PIFA (Main) VSO 821-101-01210420 -2.63 20 PIFA (Aux) VSO 821-101-01210420 -2.63 21 PCB(Dipole) (Main) VSO 821-103-01210170 1.17 21 PCB(Dipole) (Aux) VSO 821-103-01210180 0.75 22 PIFA (Main) Hitachi Cable HFT40-LG01 2.38 22 PIFA (Aux) Hitachi Cable HFT40-LG02 2.81 23 PIFA (Main) Hitachi Cable HFT45 1.33 23 PIFA (Aux) Hitachi Cable HFT46 0.85 24 PIFA (Main) Hitachi Cable TLA-A-285/630-LG01 0.73 24 PIFA (Aux) Hitachi Cable TLA-A-285/630-LG01 0.73 25 PIFA (Main) ACON ASAA 002 1.67 25 PIFA (Aux) ACON ASAA 002 0.5 26 PIFA (Main) ACON ASAA 003 2.25 26 PIFA (Aux) ACON ASAA 003 0.87 27 PIFA (Main) Tyco ASAT 002 2.32 27 PIFA (Aux) Tyco ASAT 002 2.16 Report No.: FR822511 FCC ID: JCK-GN-WS31N-RH Page No. : C4 of C4 Antenna Item Note Brand P/N Gain (Peak) 28 PIFA (Main) Tyco ASAT 003 2.48 28 PIFA (Aux) Tyco ASAT 003 1.61 29 PIFA (Main) Yageo ASAY 002 2.53 29 PIFA (Aux) Yageo ASAY 002 -1.58 30 PIFA (Main) Yageo ASAY 003 1.95 30 PIFA (Aux) Yageo ASAY 003 0.99 31 PIFA (Main) JEM 422817400001 1.64 31 PIFA (Aux) JEM 422817400001 2.48 32 PIFA (Main) Tyco 1909966-1 2.99 32 PIFA (Aux) Tyco 1909967-1 1.04 33 PIFA (Main) ACON APP8P-700003 1.82 33 PIFA (Aux) ACON APP8P-700004 -0.85 34 PIFA (Main) Joymax IFF-HP 2.98 34 PIFA (Aux) Joymax IFF-HP 2.98 35 Dipole (Main) WHA YU MGR-0D-22A/ 14G150004100 2 35 Dipole (Aux) WHA YU MGR-0D-22A/ 14G150004100 2 36 PIFA (Main) Asus A33/ 14G150012200 2.62 36 PIFA (Aux) Asus A33/ 14G150012000 0.39 37 PIFA (Main) Tyco MTC 2.59 37 PIFA (Aux) Tyco MTC 1.58 38 Dipole (Main) WHA YU C660S540187-A -0.6 38 Dipole (Aux) WHA YU C660S540187-A -0.6 39 PIFA (Main) Medion CAN4313 555 012501B / 022501B 1.93 39 PIFA (Aux) Medion CAN4313 555 012501B / 022501B 1.93

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company GIGA-BYTE TECHNOLOGY CO., LTD. Applicant Address No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. FCC ID JCK-GN-WS31N-RH Manufacturer’s company GIGA-BYTE TECHNOLOGY CO., LTD. Manufacturer Address No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. Product Name AirCruiser N300 Mini Card Brand Name GIGA-BYTE Model Name GN-WS31N-RH Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Oct. 9, 2007 Final Test Date Nov. 27, 2007 Submission Type Original Equipment Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR822511AB Report Format Version: 01 Page No. : i of ii FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................4 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................5 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................6 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................7 3.9. Test Configurations .............................................................................................................................................................................8 4. TEST RESULT ................................................................................................................................................... 10 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................10 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................20 4.3. Power Spectral Density Measurement ..............................................................................................................................................22 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................27 4.5. Radiated Emissions Measurement ....................................................................................................................................................32 4.6. Band Edge Emissions Measurement .................................................................................................................................................92 4.7. Antenna Requirements ...................................................................................................................................................................104 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 105 6. TEST LOCATION............................................................................................................................................ 107 7. TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 108 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A13 APPENDIX B. TEST PHOTOS........................................................................................................................ B1 ~ B21 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE........................................................…

Text truncated - open the document above for the full version.

Report No.: FR822511AB Report Format Version: 04 Page No. : 58 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Temperature 23°C Humidity 56% Test Engineer Aric Lee Configurations 802.11b CH 6 Ant. B-1 / Mode 2 Horizontal Report No.: FR822511AB Report Format Version: 04 Page No. : 59 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Vertical Report No.: FR822511AB Report Format Version: 04 Page No. : 60 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Temperature 23°C Humidity 56% Test Engineer Aric Lee Configurations 802.11b CH 11 Ant. B-1 / Mode 2 Horizontal Report No.: FR822511AB Report Format Version: 04 Page No. : 61 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Vertical Report No.: FR822511AB Report Format Version: 04 Page No. : 62 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Temperature 23°C Humidity 56% Test Engineer Aric Lee Configurations 802.11g CH 1 Ant. B-1 / Mode 2 Horizontal Report No.: FR822511AB Report Format Version: 04 Page No. : 63 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Vertical Report No.: FR822511AB Report Format Version: 04 Page No. : 64 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Temperature 23°C Humidity 62% Test Engineer Aric Lee Configurations 802.11g CH 6 Ant. B-1 / Mode 2 Horizontal Report No.: FR822511AB Report Format Version: 04 Page No. : 65 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Vertical Report No.: FR822511AB Report Format Version: 04 Page No. : 66 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Temperature 23°C Humidity 62% Test Engineer Aric Lee Configurations 802.11g CH 11 Ant. B-1 / Mode 2 Horizontal Report No.: FR822511AB Report Format Version: 04 Page No. : 67 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Vertical Note: The amplitude of spurious emissions that are attenuated by more than 20dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR822511AB Report Format Version: 04 Page No. : 68 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Temperature 23°C Humidity 56% Test Engineer Aric Lee Configurations 802.11b CH 1 Ant. C-1 / Mode 3 Horizontal Report No.: FR822511AB Report Format Version: 04 Page No. : 69 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Vertical Report No.: FR822511AB Report Format Version: 04 Page No. : 70 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Temperature 23°C Humidity 56% Test Engineer Aric Lee Configurations 802.11b CH 6 Ant. C-1 / Mode 3 Horizontal Report No.: FR822511AB Report Format Version: 04 Page No. : 71 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Vertical Report No.: FR822511AB Report Format Version: 04 Page No. : 72 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Temperature 23°C Humidity 56% Test Engineer Aric Lee Configurations 802.11b CH 11 Ant. C-1 / Mode 3 Horizontal Report No.: FR822511AB Report Format Version: 04 Page No. : 73 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Vertical Report No.: FR822511AB Report Format Version: 04 Page No. : 74 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Temperature 23°C Humidity 56% Test Engineer Aric Lee Configurations 802.11g CH 1 Ant. C-1 / Mode 3 Horizontal Report No.: FR822511AB Report Format Version: 04 Page No. : 75 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Vertical Report No.: FR822511AB Report Format Version: 04 Page No. : 76 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Temperature 23°C Humidity 62% Test Engineer Aric Lee Configurations 802.11g CH 6 Ant. C-1 / Mode 3 Horizontal Report No.: FR822511AB Report Format Version: 04 Page No. : 77 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Vertical Report No.: FR822511AB Report Format Version: 04 Page No. : 78 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Temperature 23°C Humidity 62% Test Engineer Aric Lee Configurations 802.11g CH 11 Ant. C-1/ Mode 3 Horizontal Report No.: FR822511AB Report Format Version: 04 Page No. : 79 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Vertical Note: The amplitude of spurious emissions that are attenuated by more than 20dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR822511AB Report Format Version: 04 Page No. : 80 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Temperature 23°C Humidity 56% Test Engineer Aric Lee Configurations 802.11b CH 1 Ant. D-1 / Mode 4 Horizontal Note: Item 3 is on un-restricted band, so the limit is -20dBc for the field strength of fundamental emission. Report No.: FR822511AB Report Format Version: 04 Page No. : 81 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Vertical Note: Item 4 is on un-restricted band, so the limit is -20dBc for the field strength of fundamental emission. Report No.: FR822511AB Report Format Version: 04 Page No. : 82 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Temperature 23°C Humidity 56% Test Engineer Aric Lee Configurations 802.11b CH 6 Ant. D-1 / Mode 4 Horizontal Note: Item 2 is on un-restricted band, so the limit is -20dBc for the field strength of fundamental emission. Report No.: FR822511AB Report Format Version: 04 Page No. : 83 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Vertical Note: Item 2 is on un-restricted band, so the limit is -20dBc for the field strength of fundamental emission. Report No.: FR822511AB Report Format Version: 04 Page No. : 84 of 108 FCC ID: JCK-GN-WS31N-RH Issued Date : Mar. 05, 2008 Temperature 23°C Humidity 56% Test Engineer Aric Lee Configurations 802.11b CH 11 Ant. D-1 / Mode 4 Horizontal Note: Item 1 is on un-restricted band, so the limit…
