GN-WS53HN1 802.11 b/g/n Mini Card User’s Manual http://www.gigabyte.com.tw Rev. 1.0 First Edition Federal Communication Commission Interference Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. IMPORTANT NOTE FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: JCK-GN-WS53HN1 " & IC:6655A-GNWS53HN. If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class [*] digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe [*] est conforme à la norme NMB-003 du Canada. Statement: This device complies with RSS-210 and IC ES-003 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of this device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. OEM integrator is still responsible for testing their end product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the IC authorization is no longer considered valid and the IC No. can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate IC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visi…

Text truncated - open the document above for the full version.

D-Link Corporation No.289,Sinhu 3rd Rd.,Neihu District, Taipei City 114,Taiwan,R.O.C Tel : +886+2-2916-1600 Fax :+886+2-2914-6299 Date: 05/28/2011 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation,including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: (Please type Name and Title of Person to Receive Grant/Certificate) (Please type Company Name) REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

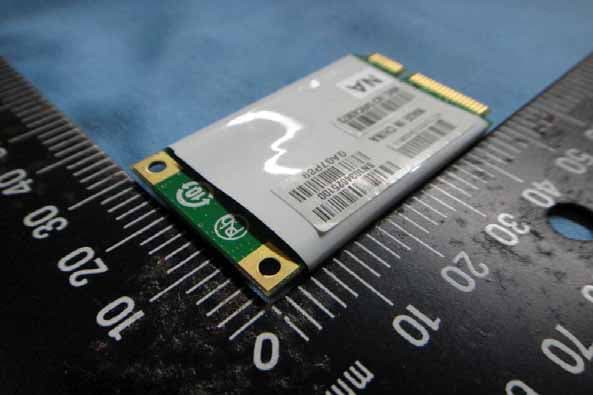

Compliance Certification Services Inc. Report No.T110505401 Page 1 / 4 External Photo (MODEL: GN-WS53HN1)

Label Format “Contains Transmitter Module FCC ID & : JCK-GN- WS53HN1” or “Contains FCC ID: JCK-GN-WS53HN1” “Contains Transmitter Module IC: 6655A-GNWS53HN” or “Contains IC: 6655A-GNWS53HN”

GN-WS53HN1 Diagram Label location

Compliance Certification Services Inc. Report No.T110505401 Page 2 / 4 Internal Photo (MODEL: GN-WS53HN1) Compliance Certification Services Inc. Report No.T110505401 Page 3 / 4 Compliance Certification Services Inc. Report No.T110505401 Page 4 / 4

DATE：2006/02/06 CUSTOMER：UNIWILL CORP. APPROVAL SHEET MODEL X40 DESCRIPTION PIFA For Wireless LAN Antenna 2.4~2.5GHZ /4.9~5.875GHZ SUPPLIER P/N ----- CUSTOMER P/N ----- FILE P/N FAVORTRON CUSTOMER Manager SupervisorEngineer Jesse Jesse Nick 台北縣新店市民權路108-1號4F TEL: (02) 2218-2189 4F, No. 108-1, MincHziuan Rd.,SHzindian City, FAX: (02) 2218-5420 Taipei HZsien 231, Taiwan. R.O.C URL:www.fvc.com.tw 1. 2. WLAN Ant./ ( LEFT) 2.4~2.5GHZ / Return Loss 2.4~2.5GHZ / VSWR WLAN Ant./ ( LEFT) 4.9~5.875GHZ/Return Loss 4.9~5.875GHZ/VSWR WLAN Ant./ ( LEFT) 2.4~2.5GHZ & 5.15~5.875GHZ / Return Loss 2.4~2.5GHZ &5.15~5.875GHZ/VSWR 3. Gain & Pattern –LEFT a. 2.4GHz b. 2.45GHz c. 2.5GHz d. 4.9GHz e. 5.075GHz f. 5.15GHz g. 5.25GHz Hz. 5.35GHz i. 5.47GHz j. 5.597GHz k. 5.725GHz l. 5.785GHz m. 5.85GHz n. 5.875GHz 4. WLAN Ant./ ( RIGHT) 2.4~2.5GHZ / Return Loss 2.4~2.5GHZ / VSWR WLAN Ant./ ( RIGHT) 4.9~5.875GHZ/Return Loss 4.9~5.875GHZ/VSWR WLAN Ant./ ( RIGHT) 2.4~2.5GHZ & 5.15~5.875GHZ / Return Loss 2.4~2.5GHZ &5.15~5.875GHZ/VSWR 5. Gain & Pattern –RIGHT a. 2.4GHz b. 2.45GHz c. 2.5GHz d. 4.9GHz e. 5.075GHz f. 5.15GHz g. 5.25GHz H. 5.35GHz i. 5.47GHz j. 5.597GHz k. 5.725GHz l. 5.785GHz m. 5.85GHz n. 5.875GHz

FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 35 / 135 8.4 MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 36 / 135 LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS No non-compliance noted. () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = G=2.58dBi=1.8113401mW IEEE 802.11b 0.0796 * 193.1968*1.81134009 ÷ 400 = 0.06964 IEEE 802.11g 0.0796 * 490.9079*1.81134009 ÷ 400 = 0.17695 IEEE 802.11n HT200.0796 * 835.8859*1.81134009 ÷ 400 = 0.3013 IEEE 802.11n HT400.0796 * 622.4027*1.81134009 ÷ 400 = 0.22435 Mode Minimum separation distance (cm) Output Power (dBm) Output Power (mw) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) B MODE 20 22.86 193.20 2.58 1.00 0.069639 G MODE 20 26.91 490.91 2.58 1.00 0.176951 HT-20 Mode 20 29.22 835.89 2.58 1.00 0.301301 HT-40 Mode 20 27.94 622.40 2.58 1.00 0.224349 REMARK: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 1 / 138 FCC 47 CFR PART 15 SUBPART C: 2009 AND ANSI C63.4: 2003 TEST REPORT For 802.11 b/g/n Mini Card Model Number: GN-WS53HN1 Brand Name: GIGABYTE Issued for GIGA-BYTE TECHNOLOGY CO., LTD. No. 6, Bao Chiang Road, Hsin-Tien Dist., New Taipei City 231, Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Ceng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Date of Issue: May 30, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 2 / 138 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 May 30, 2011 Initial Issue ALL Sunny Chang FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 3 / 138 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ...................................................................................4 2. EUT DESCRIPTION ........................................................................................................5 2.1 DESCRIPTION OF EUT & POWER ........................................................................................ 5 3. DESCRIPTION OF TEST MODES ..................................................................................7 4. TEST METHODOLOGY ..................................................................................................8 5. FACILITIES AND ACCREDITATIONS............................................................................8 5.1 FACILITIES .............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................ 8 5.3 LABORATORY ACCREDITATIONS LISTINGS ...................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................... 9 6. CALIBRATION AND UNCERTAINTY.............................................................................10 6.1 MEASURING INSTRUMENT CALIBRATION.......................................................................... 10 6.2 MEASUREMENT UNCERTAINTY .......................................................................................... 10 7. SETUP OF EQUIPMENT UNDER TEST.........................................................................11 7.1 SETUP CONFIGURATION OF EUT........................................................................................ 11 7.2 SUPPORT EQUIPMENT ......................................................................................................... 12 7.2 SUPPORT EQUIPMENT ......................................................................................................... 12 7.3 EUT OPERATING CONDITION .............................................................................................. 13 8. APPLICABLE LIMITS AND TEST RESULTS.................................................................14 8.1 6DB BANDWIDTH ................................................................................................................... 14 8.2 MAXIMUM PEAK OUTPUT POWER....................................................................................... 29 8.3 AVERAGE POWER ................................................................................................................. 32 8.4 MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. 35 8.5 POWER SPECTRAL DENSITY ............................................................................................... 37 8.6 CONDUCTED SPURIOUS EMISSION.................................................................................... 56 8.7 RADIATED EMISSIONS ..........................................................................................................85 8.8 POWERLINE CONDUCTED EMISSIONS .............................................................................. 131 9. ANTENNA REQUIREMENT ............................................................................................135 9.1 STANDARD APPLICABLE ...................................................................................................... 135 9.2 ANTENNA CONNECTED CONSTRUCTION .......................................................................... 135 APPENDIX 1 SETUP PHOTOS ..........................................................................................136 APPENDIX 2 PHOTOGRAPHS OF EUT...................................................................A1 FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 4 / 138 1. TEST REPORT CERTIFICATION Applicant GIGA-BYTE TECHNOLOGY CO., LTD. Address No. 6, Bao Chiang Road, Hsin-Tien Dist., New Taipei City 231, Taiwan Equipment Under Test 802.11 b/g/n Mini Card Model Number GN-WS53HN1 Brand Name GIGABYTE Date of Test May 18, 2011 ~ May 30, 2011 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C : 2009 AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu Eric Huang Assistant Manager Assistant Section Manager FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 5 / 138 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name 802.11 b/g/n Mini Card Model Number GN-WS53HN1 Brand Name GIGABYTE Identify Number T110505401 Received Date May 05, 2011 Frequency Range IEEE 802.11b/g,802.11n HT20 (DTS Band):2412MHz2462MHz IEEE 802.11n HT40 (DTS Band):2422MHz2452MHz Transmit Power IEEE 802.11b Mode : 22.86dBm (DTS Band) (193.2 mW) IEEE 802.11g Mode : 26.91dBm (DTS Band) (490.91 mW) IEEE 802.11n HT20 Mode : 29.22dBm (DTS Band) (83…

Text truncated - open the document above for the full version.

FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 71 / 138 CH Mid (30MHz~3GHz) (802.11n HT20 MODE-Chain 1 ) CH Mid (3GHz~26.5GHz) (802.11n HT20 MODE-Chain 1 ) FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 72 / 138 CH High (30MHz~3GHz) (802.11n HT20 MODE-Chain 1 ) CH High (3GHz~26.5GHz) (802.11n HT20 MODE-Chain 1 ) FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 73 / 138 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11n HT40 MODE ) CH Low (30MHz~3GHz) (802.11n HT40 MODE-Chain 0 ) CH Low (3GHz~26.5GHz) (802.11n HT40 MODE-Chain 0 ) FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 74 / 138 CH Mid (30MHz~3GHz) (802.11n HT40 MODE-Chain 0 ) CH Mid (3GHz~26.5GHz) (802.11n HT40 MODE-Chain 0 ) FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 75 / 138 CH High (30MHz~3GHz) (802.11n HT40 MODE-Chain 0 ) CH High (3GHz~26.5GHz) (802.11n HT40 MODE-Chain 0 ) FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 76 / 138 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11n HT40 MODE ) CH Low (30MHz~3GHz) (802.11n HT40 MODE-Chain 1 ) CH Low (3GHz~26.5GHz) (802.11n HT40 MODE-Chain 1 ) FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 77 / 138 CH Mid (30MHz~3GHz) (802.11n HT40 MODE-Chain 1 ) CH Mid (3GHz~26.5GHz) (802.11n HT40 MODE-Chain 1 ) FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 78 / 138 CH High (30MHz~3GHz) (802.11n HT40 MODE-Chain 1 ) CH High (3GHz~26.5GHz) (802.11n HT40 MODE-Chain 1 ) FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 79 / 138 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11n HT20 Combined Mode ) CH Low (30MHz~3GHz) (802.11n HT20 MODE ) CH Low (3GHz~26.5GHz) (802.11n HT20 MODE ) FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 80 / 138 CH Mid (30MHz~3GHz) (802.11n HT20 MODE ) CH Mid (3GHz~26.5GHz) (802.11n HT20 MODE ) FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 81 / 138 CH High (30MHz~3GHz) (802.11n HT20 MODE ) CH High (3GHz~26.5GHz) (802.11n HT20 MODE ) FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 82 / 138 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11n HT40 Combined Mode ) CH Low (30MHz~3GHz) (802.11n HT40 MODE ) CH Low (3GHz~26.5GHz) (802.11n HT40 MODE ) FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 83 / 138 CH Mid (30MHz~3GHz) (802.11n HT40 MODE ) CH Mid (3GHz~26.5GHz) (802.11n HT40 MODE ) FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 84 / 138 CH High (30MHz~3GHz) (802.11n HT40 MODE ) CH High (3GHz~26.5GHz) (802.11n HT40 MODE ) FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 85 / 138 8.7 RADIATED EMISSIONS 8.7.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS LIMITS § 15.205 (a) Except as shown in paragraph (d) of this section, only spurious emissions are permitted in any of the frequency bands listed below: MHz MHz MHz GHz 0.090 - 0.110 16.42 - 16.423 399.9 - 410 4.5 - 5.15 1 0.495 - 0.505 16.69475 - 16.69525608 - 614 5.35 - 5.46 2.1735 - 2.1905 16.80425 - 16.80475960 - 1240 7.25 - 7.75 4.125 - 4.128 25.5 - 25.67 1300 - 1427 8.025 - 8.5 4.17725 - 4.17775 37.5 - 38.25 1435 - 1626.5 9.0 - 9.2 4.20725 - 4.20775 73 - 74.6 1645.5 - 1646.5 9.3 - 9.5 6.215 - 6.218 74.8 - 75.2 1660 -1710 10.6 -12.7 6.26775 - 6.26825 108 -121.94 1718.8 - 1722.2 13.25 -13.4 6.31175 - 6.31225 123 - 138 2200 - 2300 14.47 – 14.5 8.291 - 8.294 149.9 - 150.05 2310 - 2390 15.35 -16.2 8.362 - 8.366 156.52475 - 156.52525 2483.5 - 2500 17.7 - 21.4 8.37625 - 8.38675 156.7 - 156.9 2655 - 2900 22.01 - 23.12 8.41425 - 8.41475 162.0125 - 167.17 3260 - 3267 23.6 - 24.0 12.29 - 12.293 167.72 - 173.2 3332 - 3339 31.2 - 31.8 12.51975 - 12.52025 240 - 285 3345.8 - 3338 36.43 - 36.5 12.57675 - 12.57725 322 -335.4 3600 - 4400 ( 2 ) 13.36 - 13.41 1 Until February 1, 1999, this restricted band shall be 0.490-0.510 MHz. 2 Above 38.6 § 15.205 (b) Except as provided in paragraphs (d) and (e), the field strength of emissions appearing within these frequency bands shall not exceed the limits shown is Section 15.209. At frequencies equal to or less than 1000 MHz, compliance with the limits in Section 15.209 shall be demonstrated using measurement instrumentation employing a CISPR quasi-peak detector. Above 1000 MHz, compliance with the emission limits in Section 15.209 shall be demonstrated based on the average value of the measured emissions. The provisions in Section 15.35 apply to these measurements. FCC IDJCK-GN-WS53HN1 Report No.T110505401-RP1 Page 86 / 138 § 15.209 (a) Except as provided elsewhere in this Subpart, the emissions from an intentional radiator shall not exceed the field strength levels specified in the following table : Frequency (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 30 - 88 100 ** 3 88 - 216 150 ** 3 216 - 960 200 ** 3 Above 960 500 3 ** Except as provided in paragraph (g), fundamental emissions from intentional radiators operating under this Section shall not be located in the frequency bands 54-72 MHz, 76-88 MHz, 174-216 MHz or 470-806 MHz, However, operation within these frequency bands is permitted under other sections of this Part, e-g, Sections 15.231 and 15.241. § 15.209 (b) In the emission table above, the tighter limit applies at the band edges. TEST EQUIPMENTS The following test equipments are utilized in making the measurements contained in this report. Open Area Test Site # 6 Name of Equipment Manufacturer Model Serial Number Calibration Due TYPE N COAXIAL CABLE SUHNER CHA9513 6 NOV. 17, 2011 BI-LOG Antenna Sunol JB1 A070506-2 OCT. 04, 2011 LOOP ANTENNA EMCO 6502 8905-2356 JUN. 10, 2011 Pre-Amplifier HP 8447F 2944A03817 NOV. 23, 2011 EMI Receiver R&S ESVS10 833206/012 MAY 10, 2012 RF Cable SUHNER SUCOFLEX104PEA 20520/4PEA NOV. 10, 2011 Horn Antenna Com-Power AH-118 071032 DEC. 27, 2011 Spectrum Analyzer R&S FSEK 30 835253/002 JUL. 14, 2011 Pre-Amplifier MITEQ AFS44-00108650-42-10P- 44 1205908 NOV. 23, 2011 Turn Table Yo Chen 001 ---------- N.C.R. Antenna Tower AR TP1000A 309874 N.C.R. Controller CT SC101 ---------- N.C.R. RF Swicth E-INSTRUME NT TELH LTD ERS-180A EC1204141 N.C.R Test…
