JCK-T1000TOUCH NOTE

Copyright © 2010 All Right Reserved - Printed in China T1000 TouchNote User's Manual Original Issue: 2010/ 01 This manual guides you through setting up and using your new Netbook PC. Information in the manual has been carefully checked for accuracy and is subject to change without prior notice. No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mecha- nical, by photocopy, recording, or otherwise, without prior written consent. Trademarks Product names used herein are for identification purposes only and may be the trademarks of their respective companies. Microsoft ® , MS-DOS, Windows ® , and Windows ® Sound System are trademarks of Microsoft Corporation. Intel ® , Atom™ is registered trademarks of Intel Corporation. Sound Blaster, Sound Blaster Pro are trademarks of Creative Technology. All other brands or product names mentioned in this manual are trademarks or registered trademarks of their respective companies. English I Safety Instructions Use the following safety guidelines to help protect yourself and your TouchNote. When Using Your T1000 TouchNote Computer CAUTION: Do not operate your portable computer for an extended period of time with the base resting directly on your body. With extended operation, heat can build up in the base. Allowing sustained contact with the skin can cause discomfort or a burn. • Do not attempt to service the TouchNote yourself. Always follow installation instructions closely. • Do not carry a battery in your pocket, purse, or other container where metal objects (such as car keys) could short-circuit the battery terminals. The resulting excessive current flow can generate extremely high temperature and may cause burns to your skin. • Be sure that nothing rests on your AC adapter's power cable and that the cable is not located where it can be tripped over or stepped on. • While you are using the computer or charging the battery, place the AC adapter in a ventilated area, like on a desktop or on the floor. Do not cover the AC adapter with papers or other items that may prevent ventilation. Also, do not use the AC adapter while it is inside a carrying case. • Do not insert objects into the air vent of your TouchNote computer. Doing so can cause short-circuiting and may result in fire or electrical shock. • Use only the AC adapter and batteries that are supplied by your TouchNote manufacturer. Using other types of battery or AC adapter may heighten the risk of fire or explosion. • Incorrectly placed batteries may result in an explosion. • Replace only with the same or compatible battery recommended by the manufacturer. • Please discard used batteries according to the manufacturer's instructions. • Before you connect your TouchNote to a power source, ensure that the voltage rating of the AC adapter matches that of the available power source. - 115 V/60 Hz in most of North and South America and some Far Eastern countries such as South Korea. - 100 V/50 Hz in eastern Japan and 100 V/60Hz in western Japan. - 230 V/50 Hz in most of Europe, the Middle East, and the Far East. • If you use an extension cord with your AC adapter, ensure that the total ampere rating of all devices plugged into the extension cord does not exceed its total capacity. • When removing battery from your TouchNote, first turn off the system, disconnect the AC adapter from the electrical outlet, and then remove the battery. • T o avoid risk of an electrical shock, do not connect or disconnect any cables, or perform maintenance or reconfiguration of this product during a thunderstorm. • Do not throw batteries into fire, doing so may cause explosion. Check with local authorities first for battery disposal instructions. • W hen setting up your TouchNote for work, place it on a level surface. • When traveling, do not check your TouchNote as baggage. You can put your TouchNote through an X-ray security machine, but nev- er put your TouchNote through a metal detector. If you have your TouchNote checked by hand, be sure to have a charged battery ready in case you are asked to turn on your TouchNote. English T1000 TouchNote USER’S MANUAL II • When traveling with the hard drive removed from your TouchNote, wrap the drive in an insulated material, such as cloth or paper. If you have the drive checked by hand, you may be asked to install the drive into your TouchNote. Your can have the hard drive checked through an X-ray machine, but never put the drive through a metal detector. • When traveling, do not place your TouchNote in the overhead stor- age compartment where it could shift around. Do not drop your TouchNote or subject it to other mechanical shocks. • Protect your TouchNote, battery, and hard drive from environmental hazards such as dirt, dust, food, liquids, extreme temperature, and direct exposure to sunlight. • When you move your TouchNote in environments where there is a substantial difference of temperature or humidity level, condensa- tion may form on or within your TouchNote. To avoid damaging your TouchNote, please allow sufficient time for the moisture to evapo- rate before continue using. NOTICE: When taking your TouchNote from a colder to a warmer en- vironment or vice versa, allow your TouchNote enough time to adapt to the new environment before turning on power. • When unplugging the power cord, please make sure that you pull on its connector or on its strain relief loop, and not on the power cord itself. As you pull out the connector, please ensure that it is pulled out evenly in order not to bend its connecting pins. Also, be- fore you connect the power cord, make sure that both connectors are correctly oriented and aligned. • Before you clean your TouchNote, turn it off first, unplug it from its power source, and remove the battery. • Handle interior components with care. When removing a compo- nent, please hold it by the edge and not on the connecting pins (such as the memory module). When using your t…

Text truncated - open the document above for the full version.

GIGA-BYTE TECHNOLOGY CO., LTD FCC ID.: JCK-T1000 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C..Tel : +886-2-8912-4000 Federal Communications Commission Feb. 03, 2010 Authorization and Evaluation Division ATTESTATION FCC ID: JCK-T1000 Product: Touch Note Model: T1000, T1000X, T1000E, T1000P, R1001 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, Kenny Hsieh / Engineer GIGA-BYTE TECHNOLOGY CO., LTD

GIGA-BYTE TECHNOLOGY CO., LTD 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C. TEL No: 886-2-8912-4000 FAX No.: 886-2-8912-6322 Letter of Authorization Date: 2010/02/03 To Whom it may concern I Mr. Andy Chen, hereby authorize Mr. Kenny Hsieh, (Basic NB Product Division to take over the certification of below products, he(she) will be designated to act on behalf of me to do all the process related to certification. Product: FCC ID：JCK-T1000 Model name：Touch Note Model NO：T1000, T1000X, T1000E, T1000P, R1001 Thank you. Sincerely Yours, Name：Mr. Andy Chen Title Dep.：Director of Network Product Division Company name：GIGA-BYTE TECHNOLOGY CO., LTD

RF_160, Issue 02 GIGA-BYTE TECHNOLOGY CO., LTD Declaration of Authorization We Name: GIGA-BYTE TECHNOLOGY CO., LTD Address: 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C. City: Taipei  . Country: Taiwan  . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Touch Note Type designation: T1000, T1000X, T1000E, T1000P, R1001 Trademark: GIGABYTE on our behalf. Date:  2010/02/03  .. City:  Taipei  .. Name:  Kenny Hsieh  .. (2) Function: ......Engineer......... Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

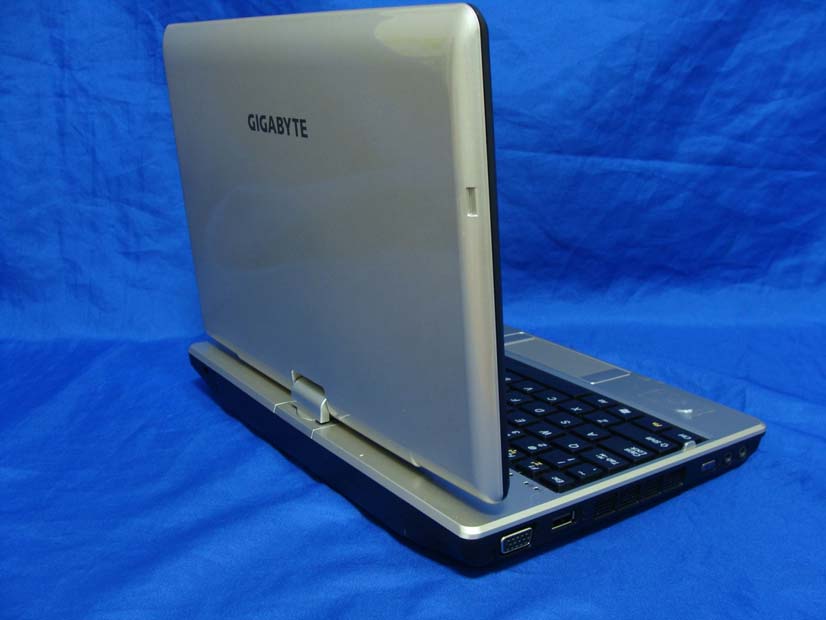

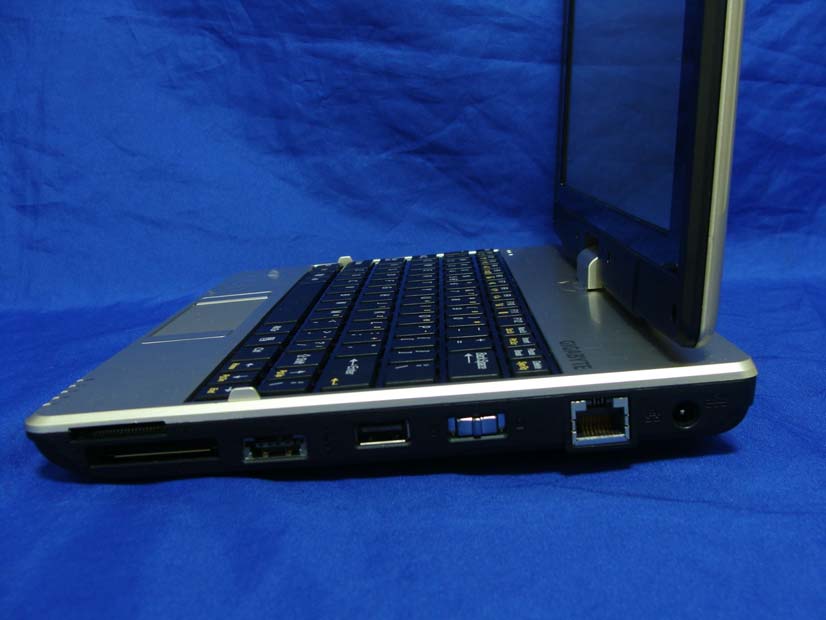

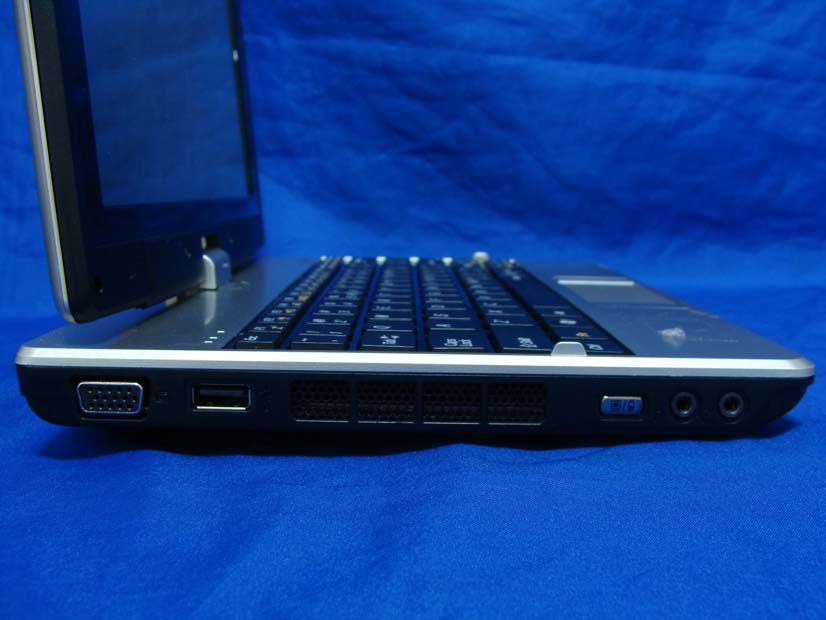

Report No.: 09C388R-RFUSP42V01 Page : 1 of 19 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 09C388R-RFUSP42V01 Page : 2 of 19 (3) EUT Photo (4) EUT Photo

GIGA-BYTE TECHNOLOGY CO., LTD FCC ID.: JCK-T1000 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C..Tel : +886-2-8912-4000 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

GIGA-BYTE TECHNOLOGY CO., LTD FCC ID.: JCK-T1000 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C..Tel : +886-2-8912-4000 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 09C388R-RFUSP42V01 Page : 3 of 19 (5) EUT Photo (6) EUT Photo Report No.: 09C388R-RFUSP42V01 Page : 4 of 19 (7) EUT Photo (8) EUT Photo Report No.: 09C388R-RFUSP42V01 Page : 5 of 19 (9) EUT Photo (10) EUT Photo Report No.: 09C388R-RFUSP42V01 Page : 6 of 19 (11) EUT Photo (12) EUT Photo Report No.: 09C388R-RFUSP42V01 Page : 7 of 19 (13) EUT Photo (14) EUT Photo Report No.: 09C388R-RFUSP42V01 Page : 8 of 19 (15) EUT Photo (16) EUT Photo Report No.: 09C388R-RFUSP42V01 Page : 9 of 19 (17) EUT Photo (18) EUT Photo Report No.: 09C388R-RFUSP42V01 Page : 10 of 19 (19) EUT Photo (20) EUT Photo Report No.: 09C388R-RFUSP42V01 Page : 11 of 19 (21) EUT Photo (22) EUT Photo Report No.: 09C388R-RFUSP42V01 Page : 12 of 19 (23) EUT Photo (24) EUT Photo BT Module Report No.: 09C388R-RFUSP42V01 Page : 13 of 19 (25) EUT Photo (26) EUT Photo BT Module Report No.: 09C388R-RFUSP42V01 Page : 14 of 19 (27) EUT Photo (28) EUT Photo Report No.: 09C388R-RFUSP42V01 Page : 15 of 19 (29) EUT Photo (30) EUT Photo BT Module Report No.: 09C388R-RFUSP42V01 Page : 16 of 19 (31) EUT Photo (32) EUT Photo Report No.: 09C388R-RFUSP42V01 Page : 17 of 19 (33) EUT Photo (34) EUT Photo Report No.: 09C388R-RFUSP42V01 Page : 18 of 19 (35) EUT Photo (36) EUT Photo Bluetooth Module 190mm Bluetooth Module 90mm Report No.: 09C388R-RFUSP42V01 Page : 19 of 19 (37) EUT Photo 55mm 110mm

Report No：09C388R-HPUSP09V01 Page: 6 of 13 Report No：09C388R-HPUSP09V01 Page: 7 of 13 Report No：09C388R-HPUSP09V01 Page: 8 of 13 Report No：09C388R-HPUSP09V01 Page: 9 of 13 Report No：09C388R-HPUSP09V01 Page: 10 of 13 Report No：09C388R-HPUSP09V01 Page: 11 of 13 Report No：09C388R-HPUSP09V01 Page: 12 of 13 Report No：09C388R-HPUSP09V01 Page: 13 of 13

Report No. 09C388R-RFUSP42V01 Page : 7 of 103 1.2. Operational Description The EUT is a Touch Note with 11 channels. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps and the device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b). The device provided of eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11g). The device provided of eight kinds of transmitting speed 7.2,14.4,21.7,28.9,43.3,57.8,65 and 72.2Mbps in 802.11n(20M-BW) mode and 15,30,45,60,90,120,135 and 150 Mbps(40M-BW) the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11n), The IEEE 802.11n is Multiple In, Single Out” (MISO) technology and two antennas to support 1(Transmit) * 2(Receive) MISO technology. This Touch Note, compliant with IEEE 802.11b and IEEE 802.11g/n, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the Touch Note Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g/n network.

Report No：09C388R-HPUSP09V01 Page: 1 of 22 SAR Test Report Product Name ： Touch Note Model No. ： T1000,T1000X,T1000E,T1000P,R1001 Applicant： GIGA-BYTE TECHNOLOGY CO., LTD Address ： 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C. Date of Receipt ：2009/12/22 Issued Date ：2010/02/09 Report No. ：09C388R-HPUSP09V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：09C388R-HPUSP09V01 Page: 2 of 22 Test Report Certification Issued Date: 2010/02/09 Report No.:09C388R-HPUSP09V01 Product Name ： Touch Note Applicant ： GIGA-BYTE TECHNOLOGY CO., LTD Address ： 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C. Manufacturer ： GIGA-BYTE TECHNOLOGY CO., LTD Model No. ： T1000,T1000X,T1000E,T1000P,R1001 Trade Name ： GIGABYTE FCC ID ： JCK-T1000 Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Test Result ： Max. SAR Measurement (1g) 0.660 W/kg Application Type ： Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： (Adm.Assistant / Anny Chou) Tested By ： (Engineer / Jung Chang) Approved By ： (Manager / Vincent Lin) Report No：09C388R-HPUSP09V01 Page: 3 of 22 TABLE OF CONTENTS Description Page 1. General Information.......................................................................................5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................6 2. SAR Measurement System..........................................................................7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid...........................................................................13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure..................................................................16 4.1 SAR System Validation................................................................................................ 16 4.1.1 Validation Dipoles..................................................................................................... 16 4.1.2 Validation Result ....................................................................................................... 16 4.2 SAR Measurement Procedure ...................................................................................... 17 5. SAR Exposure Limits..................................................................................18 6. Test Equipment List.....................................................................................19 7. Measurement Uncertainty..........................................................................20 8. Test Results....................................................................................................21 8.1 SAR Test Results Summary ......................................................................................... 21 Appendix ............................................................................................................................ 22 Appendix A. SAR System Validation Data Report No：09C388R-HPUSP09V01 Page: 4 of 22 Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No：09C388R-HPUSP09V01 Page: 5 of 22 1. General Information 1.1 EUT Description Product Name Touch Note Trade Name GIGABYTE Model No. T1000,T1000X,T1000E,T1000P,R1001 FCC ID JCK-T1000 TX Frequency 2412MHz ~ 2462MHz Number of Channel 11 Type of Modulation DSSS/OFDM Antenna Type PIFA Antenna Kit Main: RFA-02-P24-70B-340-R, Aux: RFA-02-P24-70-305-L Antenna Gain 0.88dBi WLAN Module MFR: AzureWave, M/N: AW-NE785H Device Category Portable RF Exposure Environment Uncontrolled Max. Output Power (Conduc…

Text truncated - open the document above for the full version.

Report No. 09C388R-RFUSP42V01 Page : 1 of 99 Test Report Product Name Touch Note Model No T1000, T1000X, T1000E, T1000P, R1001 FCC ID. JCK-T1000 Transmitter Module AzuerWave / AW-NE785H Applicant GIGA-BYTE TECHNOLOGY CO., LTD Address 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C. Date of Receipt Dec. 22, 2009 Issue Date Feb. 03, 2010 Report No. 09C388R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 09C388R-RFUSP42V01 Page : 2 of 99 Test Report Certification Issue Date: Feb. 03, 2010 Report No.: 09C388R-RFUSP42V01 Product Name Touch Note Applicant GIGA-BYTE TECHNOLOGY CO., LTD Address 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C. Manufacturer GIGA-BYTE TECHNOLOGY CO., LTD (GBT) Model No. T1000, T1000X, T1000E, T1000P, R1001 EUT Rated Voltage AC 120V/60Hz EUT testing Voltage AC 100-240V / 50-60Hz Trade Name GIGABYTE Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2008 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : (Engineer / Eason Hung ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 09C388R-RFUSP42V01 Page : 3 of 99 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................12 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Power Output ...................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Test Procedure .............................................................................................................................15 3.5. Uncertainty ..................................................................................................................................15 3.6. Test Result of Peak Power Output...............................................................................................16 4. Radiated Emission .....................................................................................................................20 4.1. Test Equipment............................................................................................................................20 4.2. Test Setup ....................................................................................................................................21 4.3. Limits ..........................................................................................................................................22 4.4. Test Procedure .............................................................................................................................23 4.5. Uncertainty ..................................................................................................................................23 4.6. Test Result of Radiated Emission................................................................................................24 5. RF antenna conducted test........................................................................................................40 5.1. Test Equipment.................................…

Text truncated - open the document above for the full version.

Report No. 09C388R-RFUSP42V01 Page: 66 of 99 Product : Touch Note Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2422 36.106 60.19 96.297 Peak Horizontal 2422 36.106 49.24 85.347 Average Vertical 2422 35.414 53.71 89.125 Peak Vertical 2422 35.414 42.65 78.065 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Detector Horizontal 2389.9 96.297 32.527 63.77 Peak Horizontal 2390 85.347 39.127 46.22 Average Vertical 2389.9 89.125 32.527 56.598 Peak Vertical 2390 78.065 39.127 38.938 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 09C388R-RFUSP42V01 Page: 67 of 99 Peak Detector of conducted Band Edge Delta Peak Detector of conducted Band Edge Delta Report No. 09C388R-RFUSP42V01 Page: 68 of 99 Average Detector of conducted Band Edge Delta Report No. 09C388R-RFUSP42V01 Page: 69 of 99 Product : Touch Note Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2452 36.261 59.06 95.322 Peak Horizontal 2452 36.261 47.6 83.862 Average Vertical 2452 35.767 52.27 88.037 Peak Vertical 2452 35.767 41.11 76.877 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Detector Horizontal 2483.9 95.322 31.524 63.798 Peak Horizontal 2483.5 83.862 39.661 44.201 Average Vertical 2483.9 88.037 31.524 56.513 Peak Vertical 2483.5 76.877 39.661 37.216 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 09C388R-RFUSP42V01 Page: 70 of 99 Peak Detector of conducted Band Edge Delta Peak Detector of conducted Band Edge Delta Report No. 09C388R-RFUSP42V01 Page: 71 of 99 7. Occupied Bandwidth 7.1. Test Equipment The following test equipments are used during the radiated emission tests: Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2009 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2009 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2009 X 8-WAY Power Divider JFW 50PD-647 / 526770 0916 Apr., 2009 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 3. The power combiner is used for measure 11n mode. 7.2. Test Setup 7.3. Limits The minimum bandwidth shall be at least 500 kHz. 7.4. Test Procedure The EUT was setup according to ANSI C63.4, 2003; tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW = 100 kHz, Span greater than RBW. 7.5. Uncertainty ± 150Hz 8-WAY Power Divider EUT Spectrum Analyzer RF Cable Report No. 09C388R-RFUSP42V01 Page: 72 of 99 7.6. Test Result of Occupied Bandwidth Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 12650 >500 Pass Figure Channel 1: Report No. 09C388R-RFUSP42V01 Page: 73 of 99 Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 12550 >500 Pass Figure Channel 6: Report No. 09C388R-RFUSP42V01 Page: 74 of 99 Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 13200 >500 Pass Figure Channel 11: Report No. 09C388R-RFUSP42V01 Page: 75 of 99 Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 16500 >500 Pass Figure Channel 1: Report No. 09C388R-RFUSP42V01 Page: 76 of 99 Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 16600 >500 Pass Figure Channel 6: Report No. 09C388R-RFUSP42V01 Page: 77 of 99 Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 16600 >500 Pass Figure Channel 11: Report No. 09C388R-RFUSP42V01 Page: 78 of 99 Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 17800 >500 Pass Figure Channel 1: Report No. 09C388R-RFUSP42V01…

Text truncated - open the document above for the full version.

Report No.: 09C388R-RFUSP42V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 09C388R-RFUSP42V01 Page : 2 o…
