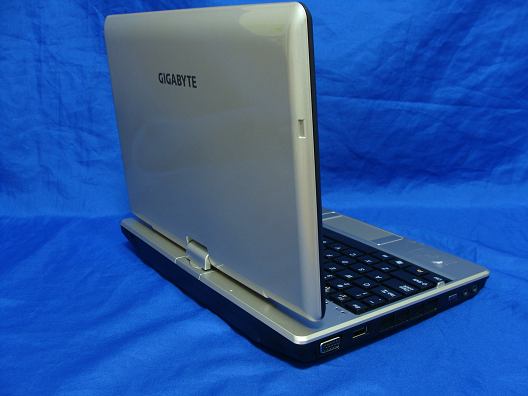

Report No.: 109073R-RFUSP42V01 Page : 1 of 14 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 109073R-RFUSP42V01 Page : 2 of 14 (3) EUT Photo (4) EUT Photo

GIGA-BYTE TECHNOLOGY CO., LTD FCC ID.: JCK-T1005 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C..Tel : +886-2-8912-4000 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. GIGA-BYTE TECHNOLOGY CO., LTD FCC ID.: JCK-T1005 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C..Tel : +886-2-8912-4000

GIGA-BYTE TECHNOLOGY CO., LTD FCC ID.: JCK-T1005 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C..Tel : +886-2-8912-4000 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. GIGA-BYTE TECHNOLOGY CO., LTD FCC ID.: JCK-T1005 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C..Tel : +886-2-8912-4000

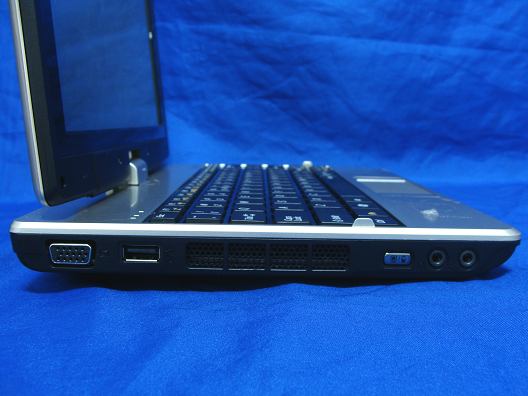

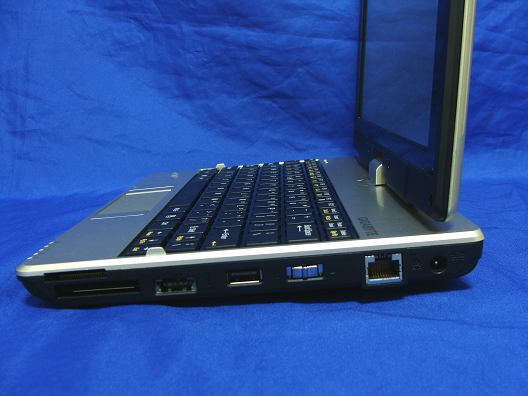

Report No.: 109073R-RFUSP42V01 Page : 3 of 14 (5) EUT Photo (6) EUT Photo Report No.: 109073R-RFUSP42V01 Page : 4 of 14 (7) EUT Photo (8) EUT Photo Report No.: 109073R-RFUSP42V01 Page : 5 of 14 (9) EUT Photo (10) EUT Photo Report No.: 109073R-RFUSP42V01 Page : 6 of 14 (11) EUT Photo (12) EUT Photo Report No.: 109073R-RFUSP42V01 Page : 7 of 14 (13) EUT Photo (14) EUT Photo Report No.: 109073R-RFUSP42V01 Page : 8 of 14 (15) EUT Photo (16) EUT Photo Report No.: 109073R-RFUSP42V01 Page : 9 of 14 (17) EUT Photo (18) EUT Photo Report No.: 109073R-RFUSP42V01 Page : 10 of 14 (19) EUT Photo (20) EUT Photo Report No.: 109073R-RFUSP42V01 Page : 11 of 14 (21) EUT Photo (22) EUT Photo Bluetooth Module Report No.: 109073R-RFUSP42V01 Page : 12 of 14 (23) EUT Photo (Bluetooth Module) (24) EUT Photo Report No.: 109073R-RFUSP42V01 Page : 13 of 14 (25) EUT Photo (26) EUT Photo Bluetooth Relative position 20cm WLAN Antenna Report No.: 109073R-RFUSP42V01 Page : 14 of 14 (27) EUT Photo (28) EUT Photo 10cm Bluetooth Relative position WLAN Antenna

Report No. 109073R-RFUSP42V01 Page : 7 of 98 1.2. Operational Description The EUT is a Touch Note with 11 channels. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps and the device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b). The device provided of eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11g). The device provided of eight kinds of transmitting speed 7.2,14.4,21.7,28.9,43.3,57.8,65 and 72.2Mbps in 802.11n(20M-BW) mode and 15,30,45,60,90,120,135 and 150 Mbps(40M-BW) the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11n), The IEEE 802.11n is Multiple In, Single Out” (MISO) technology and two antennas to support 1(Transmit) * 2(Receive) MISO technology. This Touch Note, compliant with IEEE 802.11b and IEEE 802.11g/n, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the Touch Note Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g/n network.

Report No：109073R-HPUSP09V01 Page: 1 of 22 SAR Test Report Product Name ： Touch Note Model No. ： T1005, T1005M, T1005 G, T1005X, T1005C, R1002, R1003 Applicant： GIGA-BYTE TECHNOLOGY CO., LTD Address ： 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C. Date of Receipt ：2010/09/01 Issued Date ：2010/09/13 Report No. ：109073R-HPUSP09V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：109073R-HPUSP09V01 Page: 2 of 22 Test Report Certification Issued Date: 2010/09/13 Report No.:109073R-HPUSP09V01 Product Name ： Touch Note Applicant ： GIGA-BYTE TECHNOLOGY CO., LTD Address ： 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C. Manufacturer ： GIGA-BYTE TECHNOLOGY CO., LTD Model No. ： T1005, T1005M, T1005 G, T1005X, T1005C, R1002, R1003 Trade Name ： GIGABYTE FCC ID ： JCK-T1005 Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Test Result ： Max. SAR Measurement (1g) 0.165 W/kg Application Type ： Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： (Adm.Assistant / Anny Chou) Tested By ： (Engineer / Jung Chang) Approved By ： (Manager / Vincent Lin) Report No：109073R-HPUSP09V01 Page: 3 of 22 TABLE OF CONTENTS Description Page 1. General Information.......................................................................................5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................6 2. SAR Measurement System..........................................................................7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid...........................................................................13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure..................................................................15 4.1 SAR System Validation................................................................................................ 15 4.1.1 Validation Dipoles..................................................................................................... 15 4.1.2 Validation Result ....................................................................................................... 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits..................................................................................17 6. Test Equipment List.....................................................................................18 7. Measurement Uncertainty..........................................................................19 8. Peak Conducted Power Measurement..................................................20 9. Test Results....................................................................................................21 9.1 SAR Test Results Summary ......................................................................................... 21 Appendix ............................................................................................................................ 22 Report No：109073R-HPUSP09V01 Page: 4 of 22 Appendix A. SAR System Validation Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No：109073R-HPUSP09V01 Page: 5 of 22 1. General Information 1.1 EUT Description Product Name Touch Note Trade Name GIGABYTE Model No. T1005, T1005M, T1005 G, T1005X, T1005C, R1002, R1003 FCC ID JCK-T1005 TX Frequency 2412MHz ~ 2462MHz Number of Channel 11 Type of Modulation DSSS/OFDM Antenna Type PIFA Antenna Kit Main: RFA-02-P24-70B-340-R, Aux: RFA-02-P24-70-305-L Ant…

Text truncated - open the document above for the full version.

Report No. 109073R-RFUSP42V01 Page : 1 of 98 Test Report Product Name Touch Note Model No T1005, T1005M, T1005G, T1005X, T1005C, R1002, R1003 FCC ID. JCK-T1005 Applicant GIGA-BYTE TECHNOLOGY CO., LTD Address 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C. Date of Receipt Sep. 01, 2010 Issue Date Sep. 16, 2010 Report No. 109073R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 109073R-RFUSP42V01 Page : 2 of 98 Test Report Certification Issue Date: Sep. 16, 2010 Report No.: 109073R-RFUSP42V01 Product Name Touch Note Applicant GIGA-BYTE TECHNOLOGY CO., LTD Address 5FL., No. 6, Bau Chiang Road, Hsin-Tien, Taipei-Hsien, Taiwan, R.O.C. Manufacturer GIGA-BYTE TECHNOLOGY CO., LTD Model No. T1005, T1005M, T1005G, T1005X, T1005C, R1002, R1003 EUT Rated Voltage AC 100-240V, 50-60Hz EUT Test Voltage AC 120V/60Hz Trade Name GIGABYTE Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2009 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Engineer / Vincent Chu ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 109073R-RFUSP42V01 Page : 3 of 98 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................9 1.5. EUT Exercise Software ...............................................................................................................10 1.6. Test Facility .................................................................................................................................11 2. Conducted Emission..................................................................................................................12 2.1. Test Equipment............................................................................................................................12 2.2. Test Setup ....................................................................................................................................12 2.3. Limits ..........................................................................................................................................13 2.4. Test Procedure .............................................................................................................................13 2.5. Uncertainty ..................................................................................................................................13 2.6. Test Result of Conducted Emission.............................................................................................14 3. Peak Power Output ...................................................................................................................16 3.1. Test Equipment............................................................................................................................16 3.2. Test Setup ....................................................................................................................................16 3.3. Limits ..........................................................................................................................................16 3.4. Test Procedure .............................................................................................................................16 3.5. Uncertainty ..................................................................................................................................16 3.6. Test Result of Peak Power Output...............................................................................................17 4. Radiated Emission .....................................................................................................................21 4.1. Test Equipment............................................................................................................................21 4.2. Test Setup ....................................................................................................................................22 4.3. Limits ..........................................................................................................................................23 4.4. Test Procedure .............................................................................................................................24 4.5. Uncertainty ..................................................................................................................................24 4.6. Test Result of Radiated Emission................................................................................................25 5. RF antenna conducted test........................................................................................................41 5.1. Test Equipment.......................................................…

Text truncated - open the document above for the full version.

Report No. 109073R-RFUSP42V01 Page: 70 of 98 7. Occupied Bandwidth 7.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2010 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2010 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2010 8-WAY Power Divider JFW 50PD-647 / 526770 0916 Apr., 2010 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 3. The power combiner is used for measure 11n mode. 7.2. Test Setup 7.3. Limits The minimum bandwidth shall be at least 500 kHz. 7.4. Test Procedure The EUT was setup according to ANSI C63.4, 2003; tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW = 100 kHz, Span greater than RBW. 7.5. Uncertainty ± 150Hz SMA EUT Spectrum Analyzer RF Cable Report No. 109073R-RFUSP42V01 Page: 71 of 98 7.6. Test Result of Occupied Bandwidth Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 10100 >500 Pass Figure Channel 1: Report No. 109073R-RFUSP42V01 Page: 72 of 98 Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 10100 >500 Pass Figure Channel 6: Report No. 109073R-RFUSP42V01 Page: 73 of 98 Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 10100 >500 Pass Figure Channel 11: Report No. 109073R-RFUSP42V01 Page: 74 of 98 Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 16500 >500 Pass Figure Channel 1: Report No. 109073R-RFUSP42V01 Page: 75 of 98 Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 17500 >500 Pass Figure Channel 6: Report No. 109073R-RFUSP42V01 Page: 76 of 98 Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 16600 >500 Pass Figure Channel 11: Report No. 109073R-RFUSP42V01 Page: 77 of 98 Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 17900 >500 Pass Figure Channel 1: Report No. 109073R-RFUSP42V01 Page: 78 of 98 Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 17800 >500 Pass Figure Channel 6: Report No. 109073R-RFUSP42V01 Page: 79 of 98 Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 17750 >500 Pass Figure Channel 11: Report No. 109073R-RFUSP42V01 Page: 80 of 98 Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2422MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2422.00 36500 >500 Pass Figure Channel 1: Report No. 109073R-RFUSP42V01 Page: 81 of 98 Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 4 2437.00 36500 >500 Pass Figure Channel 4: Report No. 109073R-RFUSP42V01 Page: 82 of 98 Product : Touch Note Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2452MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 7 2452.00 36500 >500 Pass Figure Channel 7: Report No. 109073R-RFUSP42V01 Page: 83 of 98 8. Power Density 8.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2010 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2010 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2010 8-WAY Power Divider JFW 50PD-647 / 526770 0916 Apr., 2010 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 3. The power combiner is used for measure 11n mode. 8.2. Test Setup 8.3. Limits The transmitted power density averaged over any 1 second interval shall not be greater +8dBm in any 3kHz bandwidth. 8.4. Test Procedure The EUT was setup according to ANSI C63.4, 2003; tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW= 3 kHz, VBW=10KHz, Sweep time=(SPAN/3KHz), detector=Peak detector 8.5. Uncertainty ± 1.27 dB SMA EUT Spectrum Analyzer RF Cable Report No. 109073R-RFUSP42V01 Page: 84 of 98 8.6. Test Result of Power Density Product : Touch Note Test Item : Power Density Data Test Site : No.…

Text truncated - open the document above for the full version.

Report No：109073R-HPUSP09V01 Page: 1 of 11 Appendix C. Test Setup Photographs & EUT Photographs Test Setup Photographs EUT Top EUT Side Report No：109073R-HPUSP09V01 Page: 2 of 11 EUT Back EUT Bottom Report No：109073R-HPUSP09V01 Page: 3 of 11 EUT Bottom (With Notebook) Note: The positions used in the measurements were according to IEEE 1528-2003.
