GIGABYTE FORCE K7 Wireless Gaming Keyboard Quick Start Guide Quick Start guide in other languages can be downloaded from GIGABYTE’s official website. Please visit www.gigabyte.com for more product information. Installation 1. System requirement: PC with built-in USB 2. OS Supported: Windows® XP / Vista/ 7/ 8 3. Insert the AAA batteries into the battery slot 4. Plug the FORCE K7 receiver into the USB port of your computer. 5. Wait until your PC detects the FORCE K7 Support Register your FORCE K7 on Aivia Forum www.aivia.gigabyte.com to get free online technical support. Instructions *Actual keyboard may differ for each region. A Hot-link function keys (f1~f12) B Anti-ghoting capability C Extended wrist rest area D Zoom control wheel E Volume control wheel F Windows lock key G Non-slick rubber feet stands ○ A Zoom Control Wheel Scroll up and down to adjust the zoom level Press down on the wheel to restore the zoom to 100% (The function works under IE/Chrome webpage and windows image viewer) ○ B Volume Control Wheel Scroll up and down to adjust the volume Press down on the wheel to mute Windows Lock Functionality The Win-lock key will disable the Windows key and prevent accidental activation of the Windows Start function during gaming session. To reactive the Windows key, just press again the Win-lock key Anti-ghosting Capability Around WASD Cluster Anti-ghosting capability around the WASD cluster on FORCE K7 guarantees the general gaming combination keys are registered and executed without conflict. Never be hurt by the missing signal failure during you press multiple keys simultaneously for the gaming commands. *The FORCE K7 wireless supports up to Q/W/A/S/D /left shift/ space 7 simultaneous key-presses without conflict! Hot-link Function Keys Fn+F1 Launch Wed Browser Fn+F2 Google Homepage Fn+F3 Facebook Homepage Fn+F4 Twitter Homepage Fn+F5 Open Email Box Fn+F6 Task Manager Fn+F7 Calculator Fn+F8 Run Media Player Fn+F9 Play/Pause Fn+F10 Stop Playing Fn+F11 Previous Playing Item Fn+F12 Next Playing Item Maintenance 1. Should you have trouble operating the keyboard properly, please contact GIGABYTE customer service center on www.gigabyte.com for support. Do not attempt to service or fix the device yourself at any time. 2. Do not take the keyboard apart (doing so will also void your warranty) and do not remove the keycaps under any circumstance. 3. Keep your keyboard away from liquid, humidity or moisture. Operate your keyboard only within the specified temperature range of 0°C (32°F) to 40°C (104°F). Should you operate it in a temperature that is beyond this range, unplug and switch off the device in order to let the temperature stabilize within the optimal temperature range. Safety Caution: • Please DO NOT directly look into the laser beam. • Keep batteries away out of children. • Dispose or recycle the worn-out batteries in accordance of Local and National Disposal Regulations. • Risk of explosion if battery is replaced by an incorrect type. Use and replace only with the same type and rating as the batteries provided. FCC Declaration:  This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Important information Long period of repetitive motion using an improperly set-up workplace, or incorrect body posture may be associated with physical discomfort and injury to nerves, tendons, and muscles. Production Information: FORCE K7 Wireless Gaming Keyboard Model No.: GK-FORCE K7 Wireless GIGABYTE FORCE K7 Stealth Gaming Keyboard 快速指南 (繁中版) 安裝說明 1. 硬體需求: 內建USB連接埠的電腦 2. 作業系統: Windows® XP / Vista/ 7/ 8 3. 將FORCE K7接收器插入電腦的USB連接埠 4. 等候電腦偵測到新增裝置，此時鍵盤背光也會亮起 支援服務 請至「Aivia 論壇」www.aivia.gigabyte.com 註冊並登錄您的FORCE K7序號，可享受免費線上技術 支援 鍵盤功能指示 *實際的按鍵配置或文版可能會因地區而有所不同 A複合功能熱鍵(f1~f12) B防鬼鍵功能 C延伸鍵盤扶手 D縮放控制滾輪 E 音量調節滾輪 F鎖定Windows鍵 G 防滑橡膠腳架 ○ A 縮放控制滾輪 上下滾動控制縮放顯示比例大小 直接按壓縮放控制滾輪可以回復100%顯示比例 ○ B 音量控制滾輪 上下滾動音量控制滾輪以調整音量大小 直接按壓音量控制滾輪可以快速切換靜音 鎖定Windows鍵功能 Win‐lock 鍵會鎖定Windows快速鍵，避免遊戲中因為不小心觸發 Windows開始選單的功能，造成遊戲被迫中斷。如果要解除鎖定，只 要再次按下win‐lock鍵，就可以恢復Windows鍵的功能 WASD遊戲指令區域防鬼鍵功能 FORCE K7針對遊戲中經常使用的WASD遊戲指令區域，特別設計了防鬼鍵功能，確保一般遊 戲中常出現的複合按鍵指令都能完全觸發執行、不衝鍵，讓您盡情施放指令密技而不再擔心掉鍵 問題。 * FORCE K7 最高可支援 Q/ W/ A/ S/ D / 左shift/ 空白鍵 七鍵同時輸出不衝突！ 複合功能熱鍵 Fn+F1 開啟網頁瀏覽器 Fn+F2 Google首頁 Fn+F3 Facebook首頁 Fn+F4 Twitter 首頁 Fn+F5 開啟郵件信箱 Fn+F6 啟動工作管理員 Fn+F7 小算盤 Fn+F8 啟動多媒體播放器 Fn+F9 播放/暫停 Fn+F10 停止播放 Fn+F11 上一首 Fn+F12 下一首 產品維護 1. 如果您在操作鍵盤(滑鼠)時遇到任何障礙，請直接洽詢技嘉科技官網 www.gigabyte.com 客服中心 尋求支援。請勿自行維修鍵盤(滑鼠)。 2. 請勿自行拆解鍵盤(滑鼠)，這可能會喪失保固效力。強烈建議不管任何情況，都不要將鍵帽拔除。 3. 請將您的鍵盤(滑鼠)遠離各種液體或潮濕環境，並且只在室溫攝氏0°C ~ 40°C之間的操作鍵盤(滑 鼠)，如果超過這個溫度範圍，請先拔除接頭或關閉電源，等候溫度恢復合適範圍再行操作。 安全規範 警告:  此產品會發射雷射光束，請避免直視雷射頭。  不可以使用望遠鏡等光學儀器觀看雷射光束。  不可在兒童附近使用雷射裝置，也不宜讓兒童操作此雷射裝置  請避免讓兒童取得本裝置的電池等細小物件。  請務必及時將老舊或耗損的電池取出，並依照當地回收與全國廢棄物處理規定進行回收或處理。  不當使用電池…

Text truncated - open the document above for the full version.

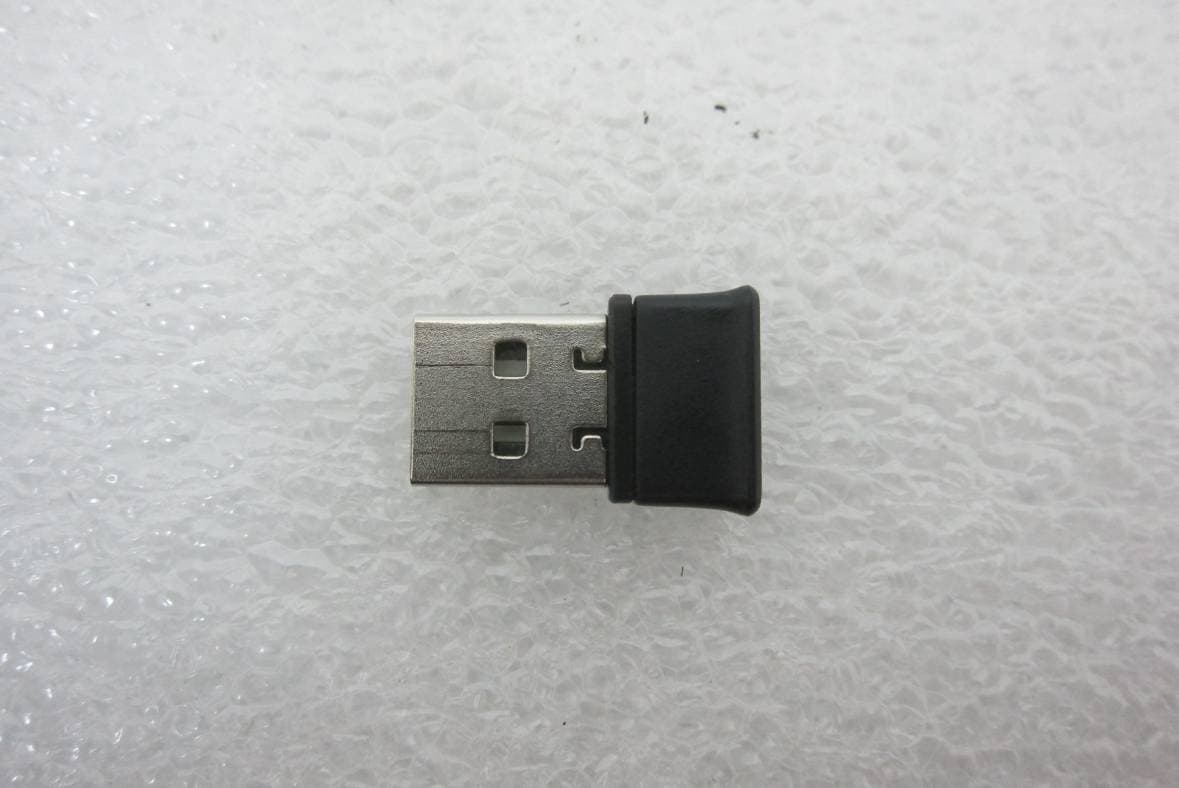

FCC ID: JCK28703FORCEK7RX International Standards Laboratory Report Number: ISL-14LR029FC EXTERNAL PHOTOGRAPHS OF EUT FCC ID: JCK28703FORCEK7RX International Standards Laboratory Report Number: ISL-14LR029FC EUT 1 EUT 2 FCC ID: JCK28703FORCEK7RX International Standards Laboratory Report Number: ISL-14LR029FC EUT 3

K7 Dongle 置中 置中 10mm Pantone 8403C Scale 1:1 FCC ID: JCK28703FORCEK7RX

FCC ID: JCK28703FORCEK7RX International Standards Laboratory Report Number: ISL-14LR029FC INTERNAL PHOTOGRAPHS OF EUT FCC ID: JCK28703FORCEK7RX International Standards Laboratory Report Number: ISL-14LR029FC EUT 1 EUT 2 RF Antenna FCC ID: JCK28703FORCEK7RX International Standards Laboratory Report Number: ISL-14LR029FC EUT 3

Page: 1 of 28 TEST REPORT of FCC Part 15 Subpart C New Application; Class I PC; Class II PC Product : Wireless Receiver Brand: GIGABYTE Model: FORCEK7RX Model Difference: N/A FCC ID: JCK28703FORCEK7RX FCC Rule Part: §15.249 Applicant: GIGA-BYTE Technology Co., Ltd. . Address: No.6, Bao Chiang Road, Hsin-Tien Dist., New Taipei City 231, Taiwan Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-14LR029FC Issue Date : 2014/03/12 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product endorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 28- FCC ID: JCK28703FORCEK7RX International Standards Laboratory Report Number: ISL-14LR029FC VERIFICATION OF COMPLIANCE Applicant: GIGA-BYTE Technology Co., Ltd. Product Description: Wireless Receiver Brand Name: GIGABYTE FCC ID: JCK28703FORCEK7RX FCC Rule Part: §15.249 Model No.: FORCEK7RX Model Difference: N/A Date of test: 2014/02/10 ~ 2014/03/04 Date of EUT Received: 2014/02/10 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards described above and performed by an independent electromagnetic compatibility consultant, International Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equipment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2014/03/12 Dion Chang / Engineer Prepared By: Date: 2014/03/12 Eva Kao / Technical Supervisor Approved By: Date: 2014/03/12 Vincent Su / Technical Manager -3 of 28- FCC ID: JCK28703FORCEK7RX International Standards Laboratory Report Number: ISL-14LR029FC Version Version No. Date Description 00 2014/03/12 Initial creation of document -4 of 28- FCC ID: JCK28703FORCEK7RX International Standards Laboratory Report Number: ISL-14LR029FC Table of Contents 1 GENERAL INFORMATION ........................................................................................... 5 1.1 PRODUCT DESCRIPTION .................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ............................................................................................... 6 1.3 TEST METHODOLOGY ........................................................................................................................ 6 1.4 TEST FACILITY .................................................................................................................................. 6 1.5 SPECIAL ACCESSORIES ...................................................................................................................... 6 1.6 EQUIPMENT MODIFICATIONS ............................................................................................................ 6 2 SYSTEM TEST CONFIGURATION .............................................................................. 7 2.1 EUT CONFIGURATION ....................................................................................................................... 7 2.2 EUT EXERCISE .................................................................................................................................. 7 2.3 TEST PROCEDURE .............................................................................................................................. 7 2.4 MEASUREMENT EQUIPMENT USED: .................................................................................................. 8 2.5 LIMITATION ....................................................................................................................................... 9 2.6 CONFIGURATION OF TESTED SYSTEM ............................................................................................. 11 3 SUMMARY OF TEST RESULTS ................................................................................. 12 4 DESCRIPTION OF TEST MODES .............................................................................. 12 5 CONDUCTED EMISSIONS TEST ............................................................................... 13 5.1 MEASUREMENT PROCEDURE: ......................................................................................................... 13 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 13 5.3 MEASUREMENT EQUIPMENT USED: ................................................................................................ 13 5.4 MEASUREMENT RESULT: ................................................................................................................ 14 6 RADIATED EMISSION TEST ...................................................................................... 16 6.1 MEASUREMENT PROCEDURE........................................................................................................... 16 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 16 6.3 MEASUREMENT EQUIPMENT USED: ................................................................................................ 17 6.4 FIELD STRENGTH CALCULATION .................................................................................................... 17 6.5 MEASUREMENT RESULT .......…

Text truncated - open the document above for the full version.

FCC ID: JCK28703FORCEK7RX International Standards Laboratory Report Number: ISL-14LR029FC PHOTOGRAPHS OF SETUP FCC ID: JCK28703FORCEK7RX International Standards Laboratory Report Number: ISL-14LR029FC Conducted Emission Setup Photos FCC ID: JCK28703FORCEK7RX International Standards Laboratory Report Number: ISL-14LR029FC Radiated Emission Setup Photos
