JCK28T0HWS1002Sky Vision WS100

SkyVision WS100 User’s Manual Copyright © 2012 GIGABYTE TECHNOLOGY CO., LTD Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. (“GBT”). No part of this manual may be reproduced or transmitted in any form without the expressed, written permission of GBT. Trademarks Third-party brands and names are the properties of their respective owners. Notice Please do not remove any labels on this product. Doing so may void the warranty of this product. Due to rapid change in technology, some of the specifi cations might be out of date before publication of this manual. The author assumes no responsibility for any errors or omissions that may appear in this document nor does.The author make a commitment to update the information contained herein. Rovi Product Notice: This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited. English - 2 - Supported Resolution Please make sure the source device is compliant with the following standards. If the source device does not support the following frame rate, the OSD will show that no video displayed or the video quality is poor. 640x480p @ 59.94 / 60 Hz 480p YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES 720x480p @ 59.94 Hz 576p 720x480p @ 60 Hz 720p 720x576p @ 50 Hz 1280x720p @ 50 Hz 1280x720p @ 59.94 / 60 Hz 1920x1080i @ 50 Hz 1920x1080i @ 59.94 / 60 Hz 1920x1080p @ 50 Hz 1920x1080p @ 59.94 / 60 Hz 1920x1080p @ 29.97 / 30 Hz 640x480 @ 59.94 / 72.809 Hz 800x600 @ 60.317 / 72.188 Hz 1024x768 @ 60 / 70.069 Hz 1280x768 @ 60 Hz 1280x1024 @ 60 Hz 1366x768 1920x1080 Video Forate Timing Resolution Supported 1080i 1080p / 60 1080p / 24 VGA SVGA XGA WXGA SXGA English - 3 - SkyVision WS100 Specification Featuring WHDI (Wireless Home Digital Interface) technology, GIGABYTE SkyVision WS100 can seamlessly transmit 1080p high- definition videos or Blu-ray movies from any HDMI-ready device to HDTV or display. It can transmit uncompressed video contents up to 10 meters (Line of sight) with no latency (latency < 1ms). Wireless Technology WHDI 1.0 Host Interface HDMI (Type A) Video quality Uncompressed Video resolution Audio Operating frequency Range Latency Power supply I/O port Dimensions SkyVision WS100 HD: 480p,576p,720p,1080i, 1080p/60Hz PC: VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024) Panel: 1280x768, 1366x768, 1920x1080 Up to 18Mbps audio stream 5.1 channel, up to 48KHz 24 Bit, AC3 and DTS USA/CANADA: 5170-5250 (MHz) 5735-5815 (MHz) EUROPE/ RUSSIA: 5170-5210 (MHz), 5210-5250 (MHz) Up to 10 meters (Line of sight)* (transmission quality varies with the environment) < 1ms TX: 5V micro USB cable(female) RX: 5V, 2A micro USB power cable TX: HDMI port*1, Micro USB*1 RX: HDMI port*1, DC-In*1 TX: 93x32x15.3 mm (LxWxH) RX: 93x82x32 mm (LxWxH) English - 4 - Packing Content Before setting up, please check whether the following items are in the package. If any item is missed or damaged, please contact your retailer. English - 5 - Overview 1. Before You Begin SkyVision WS100 transmitter SkyVision WS100 receiver HDMI connector: Connects to the HDMI port of the source device Micro USB power connector: Connects to the USB port of the source device with bundled USB cable. Registration button: Registration button is reserved for receiver paring use. LED indicator: On: LED indicator is solid blue Linking to SkyVision WS100 receiver: LED indicator is blinking HDMI port: Connects to HDMI-ready TV or display with bundled HDMI cable Micro USB power port: Connects to external power with bundled power adapter Menu button: Setup menu Up button: Scrolls up through the menu Down button: Scrolls down through the menu Power LED indicator: Power on: LED indicator is solid white Power off: LED indicator is off Link LED indicator: Linked: LED indicator is solid blue Linking to SkyVision WS100 transmitter: LED indicator is blinking 1 1 2 2 3 3 4 4 5 6 7 English - 6 - Note: 1. When SkyVision WS100 is functioning normally, power LED indicator will be in solid white and link LED indicator will be in solid blue. Please refer to the following table for LED behavior. Standby Initial boot up Searching channels Wireless linked In power saving modeSolid whiteoff Blinking blue Blinking blue Solid blue Solid blue Solid blue Solid white Solid white Solid white Solid white Solid white Boot up needs 15 to 20 seconds Searching for available channels No input from selected source Video format not recognized Video format is recognized Mode Status description Power LED Link LED English - 7 - 2.3 Rename SkyVision WS100 1. Press Menu button 2. Press Up or Down button to select Settings 3. Select Rename Video Source 4. Press Menu button to select the video source to be renamed 5. Use Up and Down buttons to move horizontally and highlight the character to be changed 6. Press Menu button to select the character to be renamed 7. Press Up or Down button to change the character 8. Press Menu button to confirm selected new character 9. Press and hold Menu button to Apply or Cancel Rename Video Source section 2. On Screen Display (OSD) Instruction: The Menu button on SkyVision WS100 receiver allows you to add, remove, or rename SkyVision WS100 transmitter. You can also disconnect SkyVision here. 2.1 To add another SkyVision WS100 transmitter or remove existing SkyVision WS100 transmitter 1. Press Menu button 2. Press Up or Down button to select Settings 3. Press Up or Down button to select Add New Video Source or Remove Video Source 4. Press Menu button to select video source you want to add or remove 5. Select OK to apply the change 2.2 Disconnect SkyVision WS100 1. Press Menu button 2. Press Up or Down button to select Settings 3. Select Disconnect SkyVision 4. Select OK to apply t…

Text truncated - open the document above for the full version.

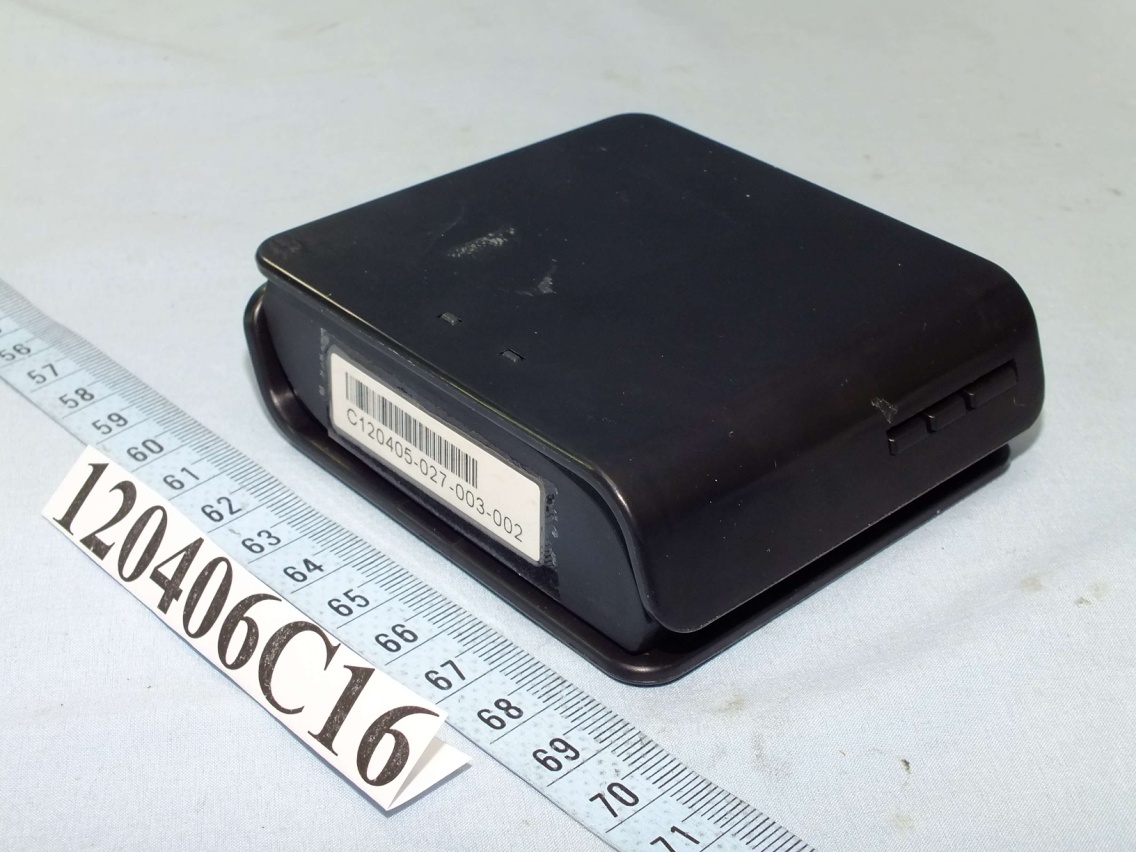

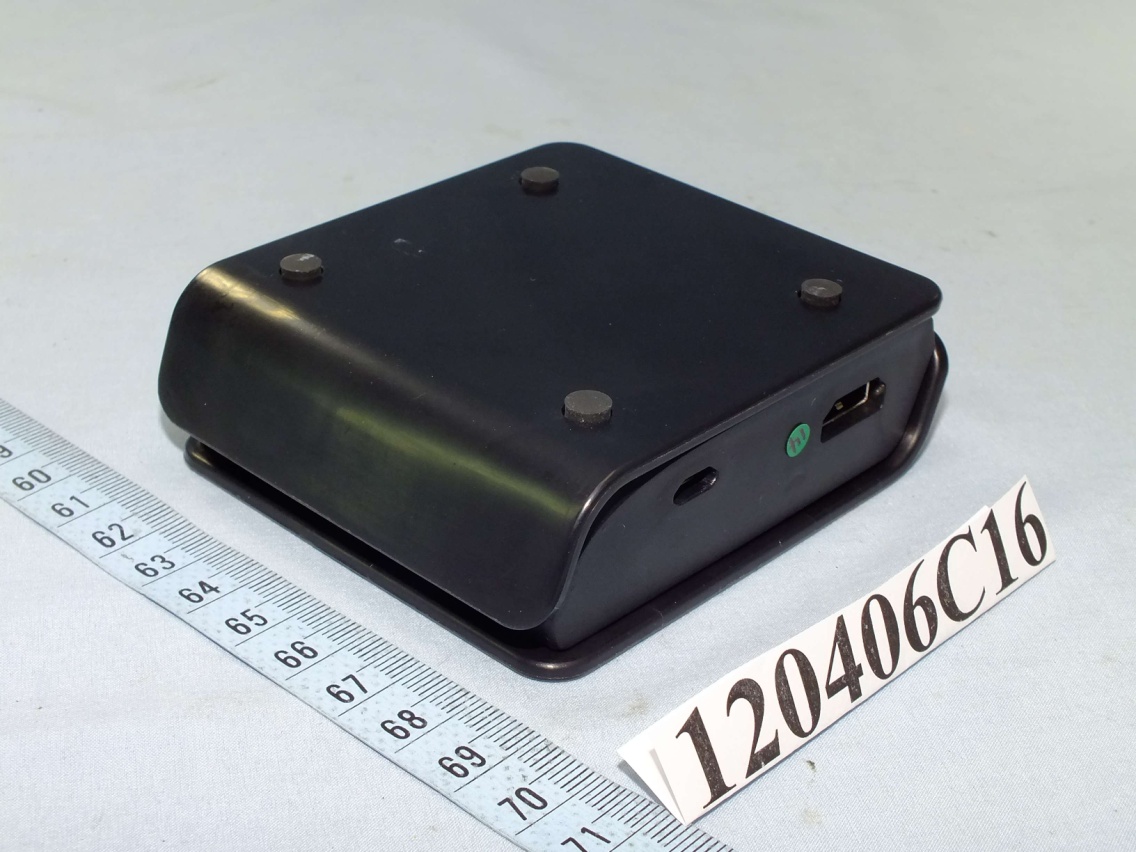

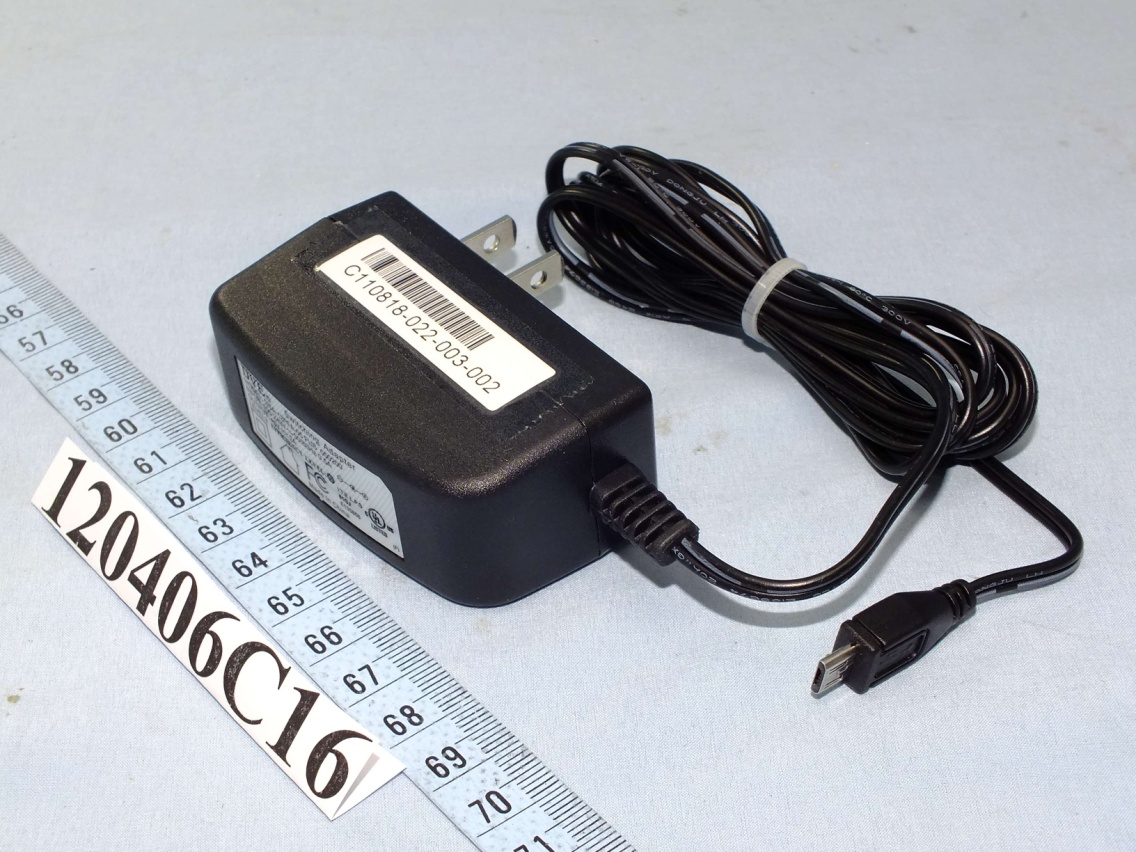

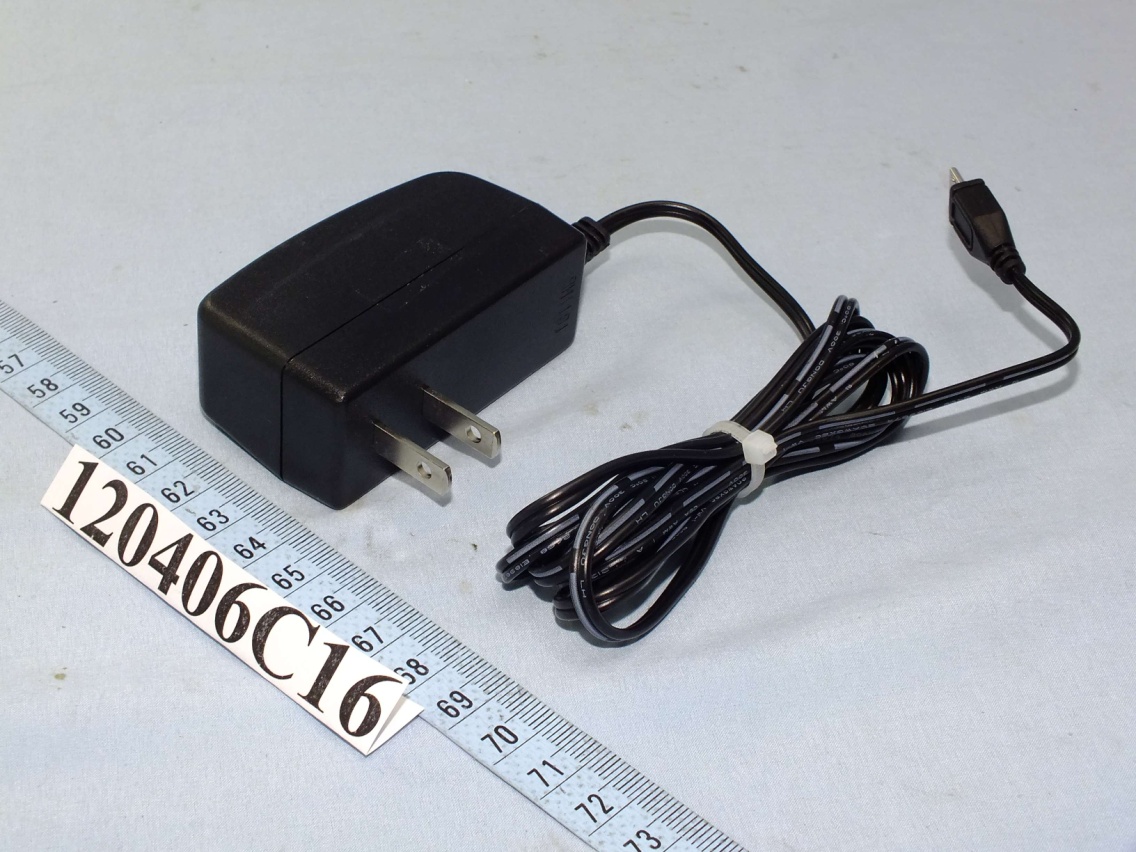

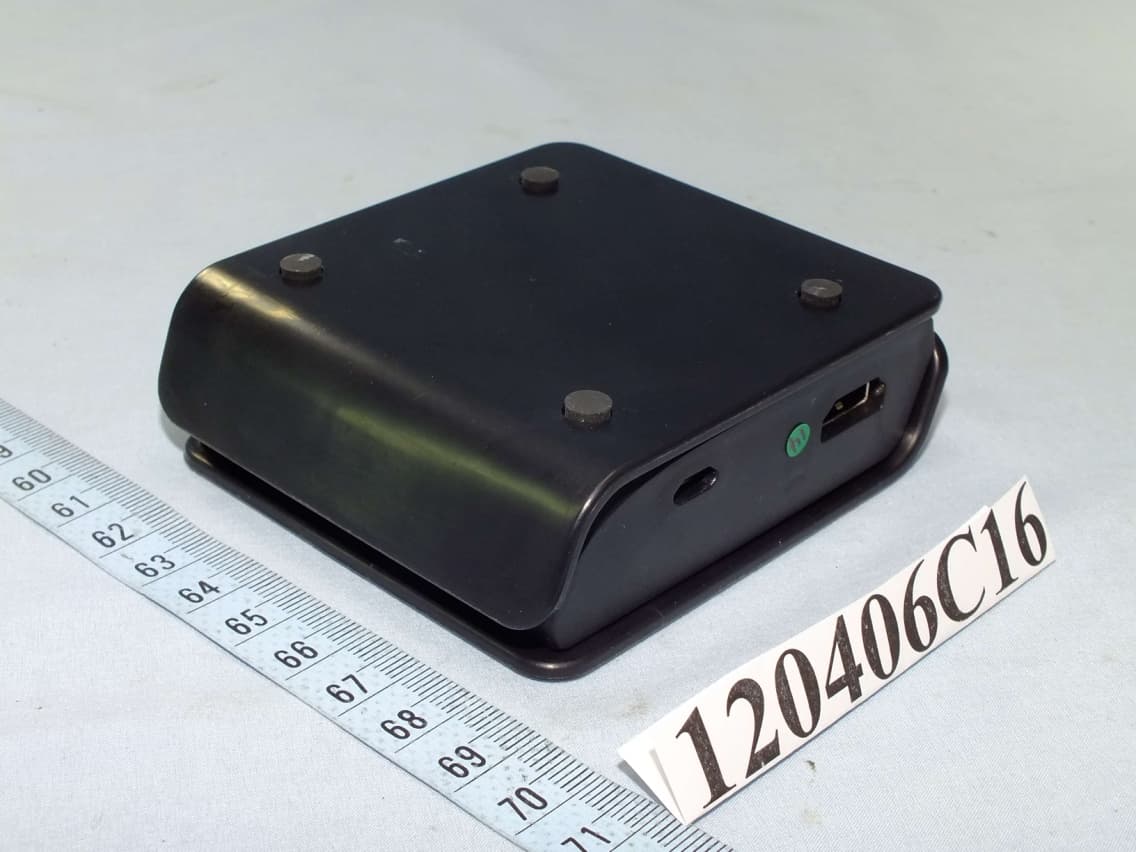

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

WS100 The device complies with part 15 of the FCC rules. S/N: Model No.:GT-WS100RXFCC ID:JCK28T0HWS1002 Made in China

Label Location

Page 5 Page 6 Page 7 Page 8

FCC ID: JCK28T0HWS1002 Report No.: RF120406C16 Operational Description This device is a SkyVision WS100, which operates in the 5GHz band; the maximum data rate could be up to 100kbps which OFDM technique. The transmitter of the EUT is powered by the 5Vdc AC Adapter. The antenna is Printed antenna without antenna connector. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA120406C16 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA120406C16 MODEL NO.: GT-WS100RX FCC ID: JCK28T0HWS1002 RECEIVED: Nov. 07, 2011 TESTED: Nov. 07 ~ Nov. 24, 2011 ISSUED: Apr. 19, 2012 APPLICANT: GIGA-BYTE TECHNOLOGY CO., LTD. ADDRESS: No.6, Bao Chiang Road, Hsin-Tien Dist., New Taipei City 231,Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 5 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval, or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA120406C16 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 3 1. CERTIFICATION ............................................................................................................. 4 2. RF EXPOSURE ............................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ......................................... 5 2.2 MPE CALCULATION FORMULA .................................................................................... 5 2.3 CLASSIFICATION ........................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .................................. 5 Report No.: SA120406C16 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120406C16 Original release Apr. 19, 2012 Report No.: SA120406C16 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: SkyVision WS100 MODEL: GT-WS100RX BRAND: Gigabyte APPLICANT: GIGA-BYTE TECHNOLOGY CO., LTD. TESTED: Nov. 07 ~ Nov. 24, 2011 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: GT-WS100RX) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Apr. 19, 2012 Polly Chien / Specialist APPROVED BY : , DATE:Apr. 19, 2012 Gary Chang / Technical Manager Report No.: SA120406C16 Report Format Version 4.0.0 5 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 5180-5240 14.1 2 20 0.008 1 5745-5805 21.8 2 20 0.048 1

Report No.: RF120406C16 1 Report Format Version 4.1.0 FCC TEST REPORT (15.247) REPORT NO.: RF120406C16 MODEL NO.: GT-WS100RX FCC ID: JCK28T0HWS1002 RECEIVED: Nov. 07, 2011 TESTED: Nov. 07 ~ Nov. 24, 2011 ISSUED: Apr. 19, 2012 APPLICANT: GIGA-BYTE TECHNOLOGY CO., LTD. ADDRESS: No.6, Bao Chiang Road, Hsin-Tien Dist., New Taipei City 231,Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 43 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF120406C16 2 Report Format Version 4.1.0 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................. 4 1. CERTIFICATION ........................................................................................................... 5 2. SUMMARY OF TEST RESULTS .................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ................................................................................ 6 3. GENERAL INFORMATION ........................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 7 3.2 DESCRIPTION OF TEST MODES ............................................................................... 8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................... 8 3.2.2 DESCRIPTION OF SUPPORT UNITS ......................................................................... 9 3.2.3 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 12 4. TEST TYPES AND RESULTS .................................................................................... 13 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ..................................... 13 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .................. 13 4.1.2 TEST INSTRUMENTS ................................................................................................ 14 4.1.3 TEST PROCEDURES ................................................................................................ 15 4.1.4 DEVIATION FROM TEST STANDARD....................................................................... 15 4.1.5 TEST SETUP .............................................................................................................. 16 4.1.6 EUT OPERATING CONDITIONS ............................................................................... 16 4.1.7 TEST RESULTS ......................................................................................................... 17 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 24 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................... 24 4.2.2 T EST INSTRUMENTS ............................................................................................... 24 4.2.3 TEST PROCEDURES ................................................................................................ 25 4.2.4 DEVIATION FROM TEST STANDARD....................................................................... 25 4.2.5 TEST SETUP .............................................................................................................. 26 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 26 4.2.7 TEST RESULTS ......................................................................................................... 27 4.3 6dB BANDWIDTH MEASUREMENT .......................................................................... 31 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................... 31 4.3.2 TEST SETUP .............................................................................................................. 31 4.3.3 TEST INSTRUMENTS ................................................................................................ 31 4.3.4 TEST PROCEDURE ................................................................................................... 31 4.3.5 DEVIATION FROM TEST STANDARD....................................................................... 31 4.3.6 EUT OPERATING CONDITIONS ............................................................................... 31 Report No.: RF120406C16 3 Report Format Version 4.1.0 4.3.7 TEST RESULTS ......................................................................................................... 32 4.4 CONDUCTED OUTPUT POWER ............................................................................... 33 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT ..................................... 33 4.4.2 TEST SETUP .............................................................................................................. 33 4.4.3 INSTRUMENTS .......................................................................................................... 33 4.4.4 TEST PROCEDURES ................................................................................................ 33 4.4.5 DEVIATION FROM TEST STANDARD....................................................................... 33 4.4.6 EUT OPERATING CONDITIONS ...............................................…
