JCKFDC-6802WLAN Keyboard

GIGA-BYTE TECHNOLOGY CO., LTD.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Sep 11, 2005
Application Purpose: Original Equipment
Date of Application: Sep 11, 2005
Equipment Note: WLAN Keyboard
Frequency Range: 2412.00000000 - 2476.00000000
Company: GIGA-BYTE TECHNOLOGY CO., LTD.
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Feature Small and lightweight design Reliable membrane contac 16 channels and 12 bit ID cod Built-in receive GIGABYTE/WLAN Keyboard FDC-6802 Operation instruction Pack two triple A batteries into KEYBOARD (the transmitter). When PC is in turned-on state, please use keyboard to aim at the receiver which has been installed in the PC. (1) Press ID switch of receiver in the front panel of PC. (2) Then, press the red button on the keyboard to pass the signal to receiver. When RF wireless keyboard is set up, it is still without reaction or without signals. (1) Repeat the direction of Step 2-(1) and 2-(2) (2) Confirm two batteries have been installed correctly. Compatibility: The operating system is suitable for Windows 2000 and Windows XP. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.

Block Diagram

BLOCK DIAGRAM GIGABYTE / MODEL NO:FDC-6802 Mouse Circuit MCU 3V POWER SUPPLY Matrix Connector Circuit Resonator 4MHz RF MCU OSCILLATOR Keyboard Matrix Row Keyboard Matrix Column Track Ball RF Control Pin Match Circuit Resonator 16MHz Antenn

Cover Letter(s)

RF_160, Issue 01 Declaration of Authorization We Name: GIGA-BYTE TECHNOLOGY CO., LTD Address: No. 6, Bau Chiang Road, Hsin-Tien, Taipei Hsien 231, Taiwan City: Taipei .................................................................. . Country: Taiwan, R.O.C ........................................................................... . Declare that: Name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District, Taipei, Taiwan 114, R.O.C. City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: WLAN Keyboard ................................................... . Type designation: FDC-6802 ................................................... . Trademark: GIGABYTE ................................................... . on our behalf. Date: .............................. .. City: .............................. .. Name: .............................. .. Signature:

External Photos

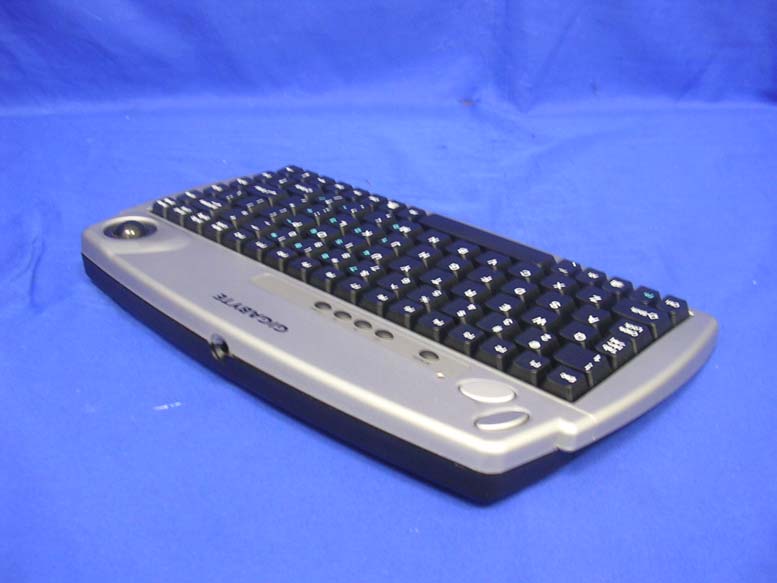

Report No： 059L012FI Page: 38 of 41 Version:1.0 Attachement ¾ EUT Photograph (1) EUT Photo (2) EUT Photo

ID Label/Location Info

GIGA-BYTE TECHNOLOGY CO., LTD FCC ID.: JCKFDC-6802 No. 6, Bau Chiang Road, Hsin-Tien, Taipei Hsien 231, Taiwan Tel : +886 2 8912-4888#3007 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. WLAN Keyboard GIGABYTE Model No.: FDC-6802 WLAN Keyboard Model No.: FDC-6802 F F C C C C I I D D : : J J C C K K F F D D C C - - 6 6 8 8 0 0 2 2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

ID Label/Location Info

Internal Photos

Report No： 059L012FI Page: 39 of 41 Version:1.0 (3) EUT Photo (4) EUT Photo Report No： 059L012FI Page: 40 of 41 Version:1.0 (5) EUT Photo (6) EUT Photo Report No： 059L012FI Page: 41 of 41 Version:1.0 (7) EUT Photo

Operational Description

Report No： 059L012FI Page: 5 of 41 Version:1.0 1.2. Operation Description The EUT is WLAN Keyboard. The operation frequency is from 2.412GHz to 2.476GHz with GFSK modulation. Sixteen channels are selectable. The signal will be transmitted through 2.4 GHz GFSK signals to the receiver. DC 3V shall be provided for EUT operation.

Test Report

Report No： 059L012FI Page: 1 of 41 Version:1.0 Test Report Product Name ： WLAN Keyboard Model No. ： FDC-6802 FCC ID. ： JCKFDC-6802 Applicant ：GIGA-BYTE TECHNOLOGY CO., LTD Address ：No. 6, Bau Chiang Road, Hsin-Tien, Taipei Hsien 231, Taiwan Date of Receipt：2005/08/30 Issued Date ：2005/09/07 Report No. ：059L012FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 059L012FI Page: 2 of 41 Version:1.0 Test Report Certification Issued Date : 2005/09/07 Report No. : 059L012FI Product Name ： WLAN Keyboard Applicant ： GIGA-BYTE TECHNOLOGY CO., LTD Address ： No. 6, Bau Chiang Road, Hsin-Tien, Taipei Hsien 231, Taiwan Manufacturer ： GIGA-BYTE TECHNOLOGY CO., LTD Model No. ： FDC-6802 FCC ID. ： JCKFDC-6802 Rated Voltage : AC 120 V / 60 Hz EUT Voltage : DC 3V (Battery) Trade Name ： GIGABYTE Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.249:2005 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Rita Huang ) Tested By : ( Tim Sung ) Approved By : ( Gene Chang ) 0914 Report No： 059L012FI Page: 3 of 41 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.................................................................................................................4 1.1. EUT Description..........................................................................................................................4 1.2. Operation Description................................................................................................................5 1.3. Test Mode....................................................................................................................................5 1.4. Tested System Details................................................................................................................6 1.5. Configuration of tested System................................................................................................6 1.6. EUT Exercise Software..............................................................................................................6 1.7. Test Facility..................................................................................................................................7 2. Conducted Emission...............................................................................................................8 2.1. Test Equipment...........................................................................................................................8 2.2. Test Setup....................................................................................................................................8 2.3. Limits.............................................................................................................................................9 2.4. Test Procedure............................................................................................................................9 2.5. Test Specification........................................................................................................................9 2.6. Test Result.................................................................................................................................10 3. Radiated Emission................................................................................................................. 11 3.1. Test Equipment.........................................................................................................................11 3.2. Test Setup..................................................................................................................................11 3.3. Limits...........................................................................................................................................12 3.4. Test Procedure..........................................................................................................................13 3.5. Test Specification......................................................................................................................13 3.6. Test Result.................................................................................................................................14 3.7. Test Photo..................................................................................................................................29 4. Band Edge................................................................................................................................31 4.1. Test Equipment.........................................................................................................................31 4.2. Test Setup..................................................................................................................................32 4.3. Limits...........................................................................................................................................32 4.4. Test Procedure..........................................................................................................................33 4.5. Test Specification......................................................................................................................33 4.6. Test Result.................................................................................................................................34 Attachement.........................................................................................................................................................38 EUT Photograph.......................................................................................................................38 Report No： 059L012F…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No： 059L012FI Page: 29 of 41 Version:1.0 3.7. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup Report No： 059L012FI Page: 30 of 41 Version:1.0 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn)
