RF LEVEL RF LEVEL DIVERSITY AF O P E N O P E N UHF PLL SYNTHESIZED IN-EAR MONITOR SYSTEM USER'S MANUAL 440-0168-0 BAND DIVERSITY PRODUCT DESCRIPTION INTRODUCTION 1 2 WirelessWireless 1 2 3 3 4 5 6 7 8 9 Fig.1 16 channels model Front panel Fig.2 64 channels model Front panel 1. Introduction Thank you for purchasing our product. This in-ear monitor system operates in UHF band frequency with Phase Locked Loop (PLL) synthesizer controlled. The system with 16 or 64 selectable frequencies via PLL circuitry makes it easy to choose non-interfered channels. Please read this instruction manual carefully before operating the system. This manual covers the function and operation of the in-ear monitor system. 2. Safety  Do not spill liquid on the appliance and do not drop it on a hard surface.  Do not place the appliance near heat sources, such as radiators, amplifier, etc.. Do not expose it directly to sunlight, extremely dust, excessive moisture, or vibration.  Unplug the power if the appliance has been not used for a long period. This will avoid the damage resulted by surge electricity. 3. Feature  IEM-168 is a Low-Power FM broadcasting transmitter. At the same time, it can send out stereo music (work with CD player, MP3, etc.) and vocal broadcasting (works with wired or wireless microphone system).  There are up to 16 or 64 selectable channels to set up a multi-channels broadcasting system and to avoid the frequency inference. Also, the LED displayer gives us a clear channel indication. And, user can select channels or groups easily by using rotary switch.  The stereo audio signal (works with CD player, MP3, etc.) can be input easily through the RCA jack.  The wired microphone can be connected to the 6.3Φ jack or to the XLR connector.  The Peak LED indicator can help avoiding the audio distortion.  User can plug a headphone into the headphone jack on the front panel to monitor the sending out audio signal.  IEM-168’s antenna is a high efficiency antenna. The service area can be improved when the antenna is placed at higher location.  IEM-168 can combine with a RF power booster (AB-168, which is 1Watt max) to used for an over 1 km area service. 4. Product Description 1. Power: push bottom to power on and push again to power off. 2. Group Rotary: adjust rotary to select frequency group. 3. Channel Rotary: adjust rotary to select frequency channel. 4. Channels LED display: indicate the current channel number. The number would show up when the power is on. 5. MIC Volume Control: adjust the volume of MIC input level. 6. Line Volume Control: adjust the volume of Line In input level. 7. Monitoring Headphone Volume Control: adjust the volume of monitoring headphone. 8. Peak Indicator: indicate the input audio signal is too high and may cause distortion. 9. Headphone Jack: 6.3Φ headphone jack stereo type. 10. Antenna Socket: TNC socket for antenna. 11. MIC IN: 6.3Φ / XLR jack for wired microphone. 12. Stereo/Mono Switch: switch the stereo or mono mode of audio signal. 13. Line IN: RCA jack for stereo audio input. 14. DC Power Jack: DC input connector for the supplied AC adapter. SETTING-UP 3 WirelessWireless SETTING-UP 4 10 1112 13 14 5.2 Setting up the transmitter  Connect 6.3Φ plug or XLR plug of the wired microphone in MIC IN jack on the transmitter rear panel. Turn the MIC Volume Control on the transmitter clockwise to set the transmitter input to receiver level.  Use the RCA plug to connect the Audio In jack on the transmitter rear panel. Turn the Line Volume control on the transmitter clockwise to set the transmitter input to receiver level.  For monitoring purpose, plug the headphone into the monitoring headphone jack on the front panel of transmitter. Turn the Monitoring Headphone Volume on the transmitter clockwise to set the headphone volume. 5.3 Setting up the frequency  For 16 channels model, adjust channel rotary to select channel to set up frequency.  For 64 channels model, frequency is divided into 8 groups, which there are 8 channels in each group. Adjust group rotary to setup group number. Adjust channel rotary to setup channel number. Fig.3 rear panel 5. Setting-Up NOTICE: Prior to setting up, please make sure the microphone and the receiver are turned to the same frequency. Two or above wireless microphones operating in the same frequency can not be used at the same time and area. So please select the different frequencies which cam be used simultaneously at the same area. 5.1 Connecting the transmitter to power  Attach the UHF antenna to the TNC connector on the rear panel.  Please check the voltage of the supplied AC adapter conforms to the voltage available in local area. Using the wrong AC adapter may cause irreparable damage to the unit.  Plug the feeder cable of the supplied AC adapter into DC IN socket on the transmitter. Then plug the AC adapter into a power outlet. SPECIFICATION TROUBLE-SHOOTING 5 6 WirelessWireless 6. Trouble-shooting Problem Solution No sound  Check the power supply of the transmitter and receiver.  Check that the transmitter and receiver are turned to the same frequency.  Check whether the Hi-Fi appliance is switched on and the transmitter output is connected to mixer or amplifier input.  Check whether receiver is too far away from transmitter.  Check whether transmitter is located too near metal object or there are obstructions between transmitter and receiver. Sound interference  Check the antenna location.  When using 2 or above transmitters simultaneously, make sure that the chosen frequencies are not interfered.  Check whether the interference comes from other wireless microphone, TV, radio and etc.. Distortion  Check the volume control for transmitter is adjusted too high or too low.  Check whether the interference comes from other wireless microphone, TV, radio and etc.. 7. Environment When disposing the equipment, remove the screws, separate the case, circuit boards, and cables, and dispose of all components according to …

Text truncated - open the document above for the full version.

910805 1 MASCOT ELECTRIC CO., LTD. No. 85 Chang Hsing First Street, Tai-tzu Village, Jen-Te Hsian, Tainan Hsien, Taiwan Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; 910805 2 f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Chiang, Kun-Tien MASCOT ELECTRIC CO., LTD. No. 85 Chang Hsing First Street, Tai-tzu Village, Jen-Te Hsian, Tainan Hsien, Taiwan

910805 3 MASCOT ELECTRIC CO., LTD. No. 85 Chang Hsing First Street, Tai-tzu Village, Jen-Te Hsian, Tainan Hsien, Taiwan Federal Communications Commission FCC ID: JEBIEM-168 Product Name: UHF Transmitter Model Name: IEM-168 Trade Name: MASCOT Dear Sir: In accordance with 47 C.F.R. Section 0.459, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics and Operation Description. By: By: Chiang, Kun-Tien (Signature) (Printed) Title : President Applicant : MASCOT ELECTRIC CO., LTD. Address : No. 85 Chang Hsing First Street, Tai-tzu Village, Jen-Te Hsian, Tainan Hsien, Taiwan Tel : +886-6-2710171 Fax: +886-6-2710808 Date : 2005/12/07

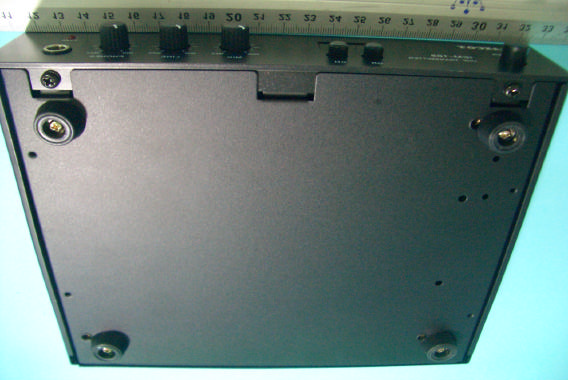

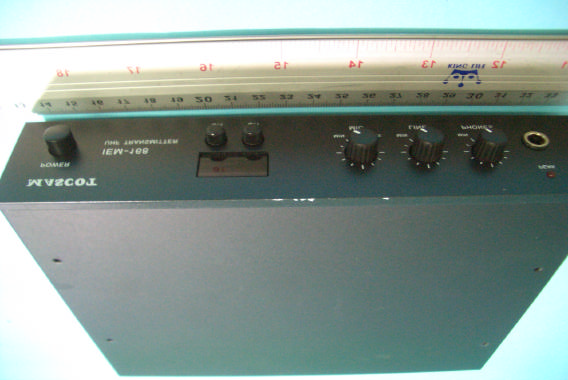

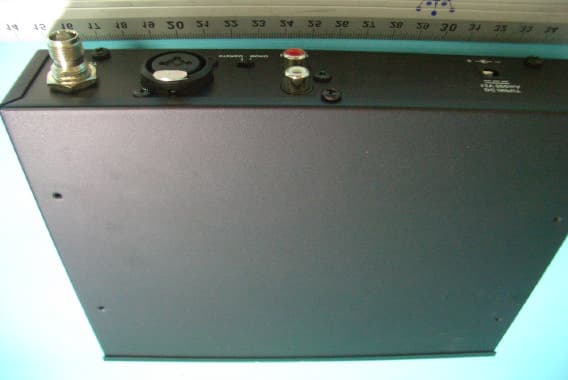

ETC Report No.:ET94R-11-041-04 FCC ID.: JEBIEM-168 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Top View of EUT Bottom View of EUT ETC Report No.:ET94R-11-041-04 FCC ID.: JEBIEM-168 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Side View of EUT ETC Report No.:ET94R-11-041-04 FCC ID.: JEBIEM-168 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT ETC Report No.:ET94R-11-041-04 FCC ID.: JEBIEM-168 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Front View of Adaptor Rear View of Adaptor ETC Report No.:ET94R-11-041-04 FCC ID.: JEBIEM-168 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Antenna

ETC Report No.:ET94R-11-041-04 FCC ID.: JEBIEM-168 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT ETC Report No.:ET94R-11-041-04 FCC ID.: JEBIEM-168 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Component View of PCB ETC Report No.:ET94R-11-041-04 FCC ID.: JEBIEM-168 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Solder View of PCB ETC Report No.:ET94R-11-041-04 FCC ID.: JEBIEM-168 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB ETC Report No.:ET94R-11-041-04 FCC ID.: JEBIEM-168 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Internal View of Adaptor Component View of Adaptor’s PCB ETC Report No.:ET94R-11-041-04 FCC ID.: JEBIEM-168 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Solder View of Adaptor’s PCB

MODEL NO.: IEM-168 TRANSMITTERDATE: 2005/11/01 808-168D-0 IEM-168 PCB PART COD EITEMSPECIFICATIONREMARKQ'TY MASCOT ELECTRIC CO., LTD. BILL OF MATERIAL PART COD EITEMSPECIFICATIONREMARKQ'TY PART COD EITEMSPECIFICATIONREMARKQ'TY PART COD EITEMSPECIFICATIONREMARKQ'TY PART COD EITEMSPECIFICATIONREMARKQ'TY PART COD EITEMSPECIFICATIONREMARKQ'TY PART COD EITEMSPECIFICATIONREMARKQ'TY

MICROPHONE SYSTEM MASCOT ELECTRIC CO.,LTD. MANUFACTURER & EXPORTER No 85, Chang Hsing First Street, Tai-Tzu Village, Jen-Te Hsian, Tainan Hsien, Taiwan, R.O.C. Tel: 886-6-271 0171~4 Fax: 886-6-271 0808 http:// www.mascot-mic.com Email: [email protected] IEM-168 PROCEDURE 1. Stereo signal (1v) is input from RCA-JACK, then through NJM4580M (U1) for decline 10 times. Output with the amplitude control of Line volume. 2. The signal of MIC /LINE is received from XLR-JACK, then through NJM4580M (U11) for 10dB amplify. Output with the amplitude control of Line volume. 3. Mix with 2 signals together by NJM4580M (U11), and go through SA575(U5) / NJM4580M(U9) for audio-compress procedure. Output the signal with MPX procedure by NJM2035M (U12) pin8 and pin14. 4. Input the signal from NJM2035M (U12) pin9 to VCO for modulation and signaling, and go through MB15E03SL (U4) for a PLL Frequency Synthesizer. VCO signal inputs from pin 8 and control the VCO frequency by pin 5. 5. Output VCO signal through BFG520/XR (Q2) will be amplify to +8dBm,then through BFQ540 (Q1) will be amplify to +16dBm, and output from antenna. MASCOT ELECTRIC CO, LTD DATE DEC 29 2005

Rev. 2.0 FCC Part 74 Subpart H EMI TEST REPORT of E.U.T. : UHF Transmitter FCC ID. : JEBIEM-168 MODEL : IEM-168 Working Frequency : 630.000MHz-806.000MHz; for APPLICANT MASCOT ELECTRIC CO., LTD. ADDRESS No. 85, Chang Hsing First Street, Tai-Tzu Village, Jen-Te Hsian, Tainan Hsien, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)226023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : ET94R-11-041-04 ETC Report No.:ET94R-11-041-04 FCC ID.: JEBIEM-168 Rev. 2.0 TEST REPORT CERTIFICATION Applicant : MASCOT ELECTRIC CO., LTD. No. 85, Chang Hsing First Street, Tai-Tzu Village, Jen-Te Hsian, Tainan Hsien, Taiwan Manufacturer : MASCOT ELECTRIC CO., LTD. No. 85, Chang Hsing First Street, Tai-Tzu Village, Jen-Te Hsian, Tainan Hsien, Taiwan Description of EUT : a) Type of EUT : UHF Transmitter b) Trade Name : MASCOT; Gemini c) Model No. : IEM-168 d) The data also apple to : IEM-1000 (Gemini) e) FCC ID : JEBIEM-168 f) Working Frequency : 630.000MHz-806.000MHz; g) Power Supply : Model:SCP41-120500 Input:120VAC 60Hz 9W Output:12VDC 500mA Regulation Applied : FCC Rules and Regulations Part 74 Subpart H (2003) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Issued Date : Jan. 19, 2006 Test Engineer : ( Kevin Lee ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET94R-11-041-04 FCC ID.: JEBIEM-168 Rev. 2.0 Table of Contents Page 1. GENERAL INFORMATION.....................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:...............................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY..........................................................................................................................................................................1 2. REQUIREMENTS OF PROVISIONS.....................................................................................................................................2 2.1 DEFINITION................................................................................................................................................................................2 2.2 FREQUENCIES AVAILABLE......................................................................................................................................................2 2.3 REQUIREMENTS FOR RADIO EQUIPMENT ON CERTIFICATION........................................................................................2 2.4 LABELING REQUIREMENT.......................................................................................................................................................3 3. OUTPUT POWER MEASUREMENT......................................................................................................................................4 3.1 PROVISION APPLICABLE..........................................................................................................................................................4 3.2 MEASUREMENT PROCEDURE..................................................................................................................................................4 3.3 TEST DATA.................................................................................................................................................................................6 3.4 RESULT CALCULATION............................................................................................................................................................7 3.5 TEST EQUIPMENT.....................................................................................................................................................................7 4. MODULATION CHARACTERISTICS..................................................................................................................................8 4.1 PROVISIONS APPLICABLE........................................................................................................................................................8 4.2 MEASUREMENT METHOD.......................................................................................................................................................8 4.3 MEASUREMENT INSTRUMENT................................................................................................................................................9 4.4 MEASUREMENT RESULT..........................................................................................................................................................9 5. OCCUPIED BANDWIDTH OF EMISSION.........................................................................................................................11 5.1 PROVISIONS APPLICABLE......................................................................................................................................................11 5.2 MEASUREMENT METHOD.....................................................................................................................................................11 5.3 OCCUPIED BANDWIDTH TEST EQUIPMENT...........…
