JEBUF-9Wireless Handheld Transmitter Microphone

910805 2 Federal Communications Commission Authorization Agreement Dear Sir: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN to act on our behalf in all matters relating to application forWireless Handheld Transmitter Microphone ( Model :UF-9, FCC ID : JEBUF-9 )authorization, including the signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. The applicant certifies that in the case of an individual applicant ( e.g., corporation ), no party to the applicant is subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-drug abuse Act of 1988, 21 U.S.C. 862. For a definition of a “party” for these purposes See 47 C.F.R. 1.2002(b). By: Chiang, Kun-Tien By: (Signature) (Printed) Title : President Applicant : MASCOT ELECTRIC CO., LTD. Address : No. 85 Chang Hsing First Street, Tai-tzu Village, Jen-Te Hsian, Tainan Hsien, Taiwan Tel : +886-6-2710171 Fax: +886-6-2710808 Date : May, 04, 2004 910805 3 Federal Communications Commission FCC ID: JEBUF-9 Dear Sir: This is to request confidentiality on information submitted for above application. We would like to request confidentiality on some exhibits we submitted for above original application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics. By: Chiang, Kun-Tien By: (Signature) (Printed) Title : President Applicant : MASCOT ELECTRIC CO., LTD. Address : No. 85 Chang Hsing First Street, Tai-tzu Village, Jen-Te Hsian, Tainan Hsien, Taiwan Tel : +886-6-2710171 Fax: +886-6-2710808 Date : May, 04, 2004

1 Mike Kuo From: SS [[email protected]] Sent: June152004Tuesday 11:06 PM To: Mike Kuo Cc: R00/ Subject: Re: MASCOT ELECTRIC CO., LTD., FCC ID: JEBUF-9, Assessment NO.: AN04T3962 Importance: High Exhibit-C-Test_Rep ort_revised.... Exhibit-K-Tune_up_ procedure_re... Exhibit-E-User's_Ma nual_revise... Dear Mike, 1. Please find attached revised test report. The test data of frequency stability with DC battery was provided. 2. Please refer to attached revised tune-up procedure. The misleading pages were removed. 3. Please refer to attached page 8 of revised user manual. The frequency range was corrected. ================================ S. S. Liou Engineer / EMC Dept. II Electronics Testing Center, Taiwan ----- Original Message ----- From: "etcemi" <[email protected]> To: "R00/???" <[email protected]> Cc: <[email protected]> Sent: Tuesday, June 08, 2004 9:53 AM Subject: Fw: MASCOT ELECTRIC CO., LTD., FCC ID: JEBUF-9, Assessment NO.: AN04T3962 > > ----- Original Message ----- > From: "Mike Kuo" <[email protected]> > To: "ETC/Iris (E-mail)" <[email protected]> > Sent: Tuesday, June 08, 2004 6:39 AM > Subject: FW: MASCOT ELECTRIC CO., LTD., FCC ID: JEBUF-9, Assessment NO.: > AN04T3962 > > > > > > > > -----Original Message----- > > From: Compliance Certification Services [mailto:[email protected]] > > Sent: Monday, June 07, 2004 3:23 PM > > To: [email protected] > > Subject: MASCOT ELECTRIC CO., LTD., FCC ID: JEBUF-9, Assessment NO.: > > AN04T3962 > > > > > > Question #1: During frequency stabilities tests, the supply voltage is > 120V > > Ac. Is this device powered by AC main or battery ? Please provide > battery > > end point condition during frequency stabilities tests. > > > > Question #2: In the tune up procedures, there are total of four pages > which > > listed the frequency range. Page 3 and 4 of tune up procedure listed 2 the > > frequency range are beyond the 770MHz. Please explain. > > > > Question #3: The transmitter technical specification listed the frequency > > range is from 630-928MHz which do not agree with frequency range from > > 630-660 MHz and 740 - 770 MHz. Please explain. > > > > > > Best Regards > > > > Mike Kuo > > > > The items indicated above must be submitted before processing can continue > > on the above referenced application. Failure to provide the requested > > information within 60 days of the original e-mail date may result in > > application dismissal and forfeiture of the filing fee. Also, please note > > that partial responses increase processing time and should not be > submitted. > > Any questions about the content of this correspondence should be directed > to > > the e-mail address listed below the name of the sender. >

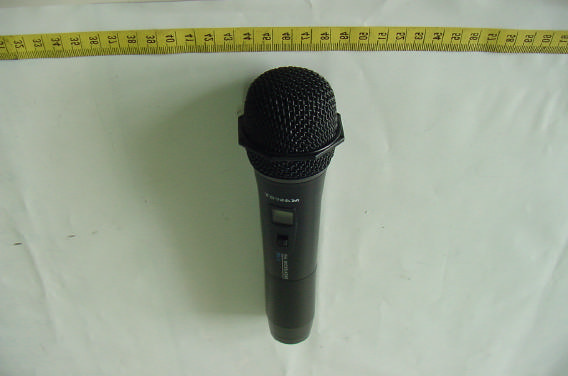

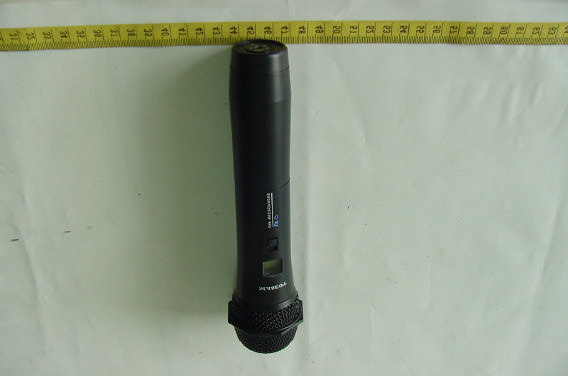

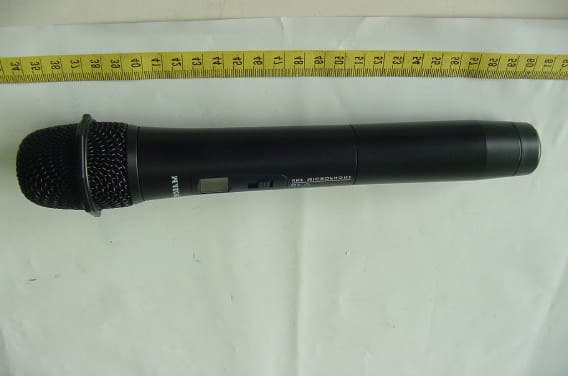

FCC ID.: JEBUF-9 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Top View of EUT FCC ID.: JEBUF-9 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Side View of EUT SideView of EUT

F C C 認 證 貼 紙 黑 底 白 字 7 4 0 ~ 7 7 0 M H z 6 3 0 ~ 6 6 0 M H z : 頻 率 U H F T R A N S M I T T E R M A D E I N T A I W A N F C C I D . : J E B U F - 9 PDF created with FinePrint pdfFactory trial version http://www.fineprint.com

FCC ID.: JEBUF-9 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Internal View of EUT FCC ID.: JEBUF-9 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Rear View of PCB FCC ID.: JEBUF-9 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB FCC ID.: JEBUF-9 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Component View of PCB FCC ID.: JEBUF-9 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Solder View of PCB

The EUT is A frequency modulation Wireless Microphone with following features: 1. Operation Frequency Range:630 - 660MHz; 740 - 770MHz. 2. Type of Modulation:FM, 161KF3E. 3. The emission designator is 161KF3E. The calculation is (2M+2DK), K=1 and (2 x 32.768 + 2 x 48) = 161.5kHz, so the emission designator is 161KF3E. 4. This Wireless Microphone operates within UHF band with PLL synthesized.

UF-9 TRANSMITTER PROCEDURE 1. Audio from the microphone is coupled through IC BA4510 applied to Audio amplifier and buffer stage. Adjust VR R4 to control audio amplify level. 2. (Variable Capacitance Diode) of the VCO modulate the audio signal into RF signal 3. The RF signal of 630MHz to 660MHz is generated from VCO and is locked via PLL IC U4 when selected. Adjust VC C31 to correct the exact frequency.. 4. The locked RF signal is coupled to bufferQ13and amplifiers Q12 & Q11. 5. After RF pre-amplify and final amplify, L7,L8,C41 & L9,L10,C50 to filter the spurious and harmonics and have the correct frequency pass through the maximum pass-point of the filter to transmit out. At this stage, the RF level is about 7dBm. MASCOT ELECTRIC CO, LTD DATE APR 15 2004 UF-9 TRANSMITTER PROCEDURE 1. Audio from the microphone is coupled through IC BA4510 applied to Audio amplifier and buffer stage. Adjust VR R4 to control audio amplify level. 2. (Variable Capacitance Diode) of the VCO modulate the audio signal into RF signal 3. The RF signal of 740MHz to 770MHz is generated from VCO and is locked via PLL IC U4 when selected. Adjust VC C31 to correct the exact frequency.. 4. The locked RF signal is coupled to bufferQ13and amplifiers Q12 & Q11. 5. After RF pre-amplify and final amplify, L7,L8,C41 & L9,L10,C50 to filter the spurious and harmonics and have the correct frequency pass through the maximum pass-point of the filter to transmit out. At this stage, the RF level is about 7dBm. MASCOT ELECTRIC CO, LTD DATE APR 15 2004

Rev. 2.0 FCC Part 74 Subpart H EMI TEST REPORT of E.U.T. : Wireless Handheld Transmitter Microphone FCC ID. : JEBUF-9 MODEL : UF-9 Working Frequency : 630MHz-770MHz for APPLICANT MASCOT ELECTRIC CO., LTD. ADDRESS No. 85, Chang Hsing First Street, Tai-Tzu Village, Jen-Te Hsian, Tainan Hsien, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)226023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : ET93R-04-041-04 ETC Report No.:ET93R-04-041-04 FCC ID.: JEBUF-9 Rev. 2.0 TEST REPORT CIRTIFICATION Applicant : MASCOT ELECTRIC CO., LTD. No. 85, Chang Hsing First Street, Tai-Tzu Village, Jen-Te Hsian, Tainan Hsien, Taiwan Manufacturer : MASCOT ELECTRIC CO., LTD. No. 85, Chang Hsing First Street, Tai-Tzu Village, Jen-Te Hsian, Tainan Hsien, Taiwan Description of EUT : a) Type of EUT : b) Trade Name : MASCOT c) Model No. : UF-9 d) FCC ID : JEBUF-9 e) Working Frequency : 630MHz-770MHz f) Power Supply : Model:SP41-120500 input:120VAC 60Hz 9W output:12VDC 500mA Regulation Applied : FCC Rules and Regulations Part 74 Subpart H (2003) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Issued Date : MAY 11, 2004 Test Engineer : ( Kevin Lee ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET93R-04-041-04 FCC ID.: JEBUF-9 Rev. 2.0 Table of Contents Page 1. GENERAL INFORMATION.....................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:...............................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY..........................................................................................................................................................................1 2. REQUIREMENTS OF PROVISIONS.....................................................................................................................................2 2.1 DEFINITION................................................................................................................................................................................2 2.2 FREQUENCIES AVAILABLE......................................................................................................................................................2 2.3 REQUIREMENTS FOR RADIO EQUIPMENT ON CERTIFICATION........................................................................................2 2.4 LABELING REQUIREMENT.......................................................................................................................................................3 3. OUTPUT POWER MEASUREMENT......................................................................................................................................4 3.1 PROVISION APPLICABLE..........................................................................................................................................................4 3.2 MEASUREMENT PROCEDURE..................................................................................................................................................4 3.3 TEST DATA.................................................................................................................................................................................6 3.4 RESULT CALCULATION............................................................................................................................................................8 3.5 TEST EQUIPMENT.....................................................................................................................................................................8 4. MODULATION CHARACTERISTICS..................................................................................................................................9 4.1 PROVISIONS APPLICABLE........................................................................................................................................................9 4.2 MEASUREMENT METHOD.......................................................................................................................................................9 4.3 MEASUREMENT INSTRUMENT..............................................................................................................................................10 4.4 MEASUREMENT RESULT........................................................................................................................................................10 5. OCCUPIED BANDWIDTH OF EMISSION.........................................................................................................................14 5.1 PROVISIONS APPLICABLE......................................................................................................................................................14 5.2 MEASUREMENT METHOD.....................................................................................................................................................14 5.3 OCCUPIED BANDWIDTH TEST EQUIPMENT............................................................................................…

Text truncated - open the document above for the full version.

FCC ID.:JEBUF-9 Rev. 2.0 Radiated Measurement Photos FCC ID.:JEBUF-9 Rev. 2.0 Photos of Conduction Measuring Setup
