JEBUST-6Wireless Bodypack Transmitter Microphone

WIRELESS MICROPHONE SYSTEM - Connecting the Receiver - Set up channel on receiver  Manual Mode  Auto-Scan Mode  Preset Mode - Set up the handheld microphone / Bodypack transmitter - Synchronizing a transmitter with a receiver - How to set at least 10 sets be used simultaneously - Receiver - Handheld Microphone - Bodypack transmitter - FCC Statement - Safety - Environment - Wireless Note  Product Description.................................................................. 2  Introduction ............................................................................. 1  System Operation ..................................................................... 6  Basic Connections ................................................................... 12  Trouble Shooting ...................................................................... 13  Specification ............................................................................ 14 WIRELESS INTRODUCTION  FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. Introduction Thank you for purchasing our product. This PLL synthesized wireless microphone system operates in UHF band frequency with 700 selectable channels. Please read this instruction manual carefully before operating the system. This manual covers the function and operation of the wireless microphone system.  Safety Do not spill liquid on the appliance and do not drop it on a hard concrete floor. Do not place the equipment near heat sources such as radiators, heating ducts, amplifier, etc. If the equipment is not going to be used for a long time, disconnect the AC adapter from the power outlet. Please note that if you turn the equipment off while leaving the AC adapter plugged in, it is not fully isolated from the power supply. Do not expose the equipment to direct sunlight, extremely dust, excessive moisture, rain, mechanical vibrations, or shock. Take out the battery from transmitter, if the appliance has been not used for a longer period. This will avoid the damage resulting from a defective leaking battery. WARNING: To reduce the risk of fire or electric shock, do not use the products near water and do not expose them to rain or moisture. No guarantee claims for the equipment and no liability for any resulting personal damage or material damage will be accepted if the equipment are used for other purpose than originally intended, if the equipment are not correctly connected or operated, or if the equipment are not repaired in an expert way.  Environment Do not throw used batteries into a fire or garbage bin with domestic rubbish. Be sure to dispose of used batteries in accordance with local waste disposal rules. When disposing the equipment, remove the batteries, separate the case, circuit boards, and cables, and dispose of all components in accordance with local waste disposal rules. 1 2 Front : LCD Display : 1. Power Button. 2. LCD Display: Display channel, frequency and settings.       !"" #$"%  #&# # "'# *+  !"" #$' -" "' /3'  46"#$$ 89  ;"#"'" %' % < ;"#"'" %-"  #  !" ;"#"'"'# "# "%"=   "%  #&#  # #"#$ 5. GP: Display selected preset group. 6. CH: Display selected preset channel. ?@ J#"%"  ' 8. FREQ.: Display selected frequency. S9; + 4##"' 10. RF Bar: Display the reception status of RF signal. 884V J#"%# ""4V"#=  3 Rear : 1. Antenna 2. Balanced XLR Audio Output 3. Unbalanced 6.35mm Audio Output 4. Mic/Line Switch: Use this to adjust audio output level for mic level (-20dB) or line level (0dB). 5. Squelch: Turn the switch to adjust or decrease the noise floor level. 6. Mix Out: The audio output for channel 1 and channel 2 are mixed. 7. Power Adapter connector 7 4 2 6 4 5 1. Power / MUTE Button: Press for 2 seconds to power the microphone on or off. With the transmitter on, a slight press for button will toggle between mute and unmute function. 2 Power / MUTE LED: Indicate the power / mute / low battery level status. 3. SYNC Button: Press to active synchronization with the receiver. 4. LCD Display: Display channel number and battery power level. 5. Battery component: Insert two AA dry or rechargeable batteries into the compartment and make sure that the polarity of batteries is correct. 6. Grille: Protects the microphone capsule and helps reduce breath sounds and wind noise. LED Indicator Status Red Ready Flashing Red Low battery power when less than 10 minutes operation Blue MUTE Flashing Blue MUTE on and low battery power when less than 10 minutes operation 5 1. Power / MUTE Button: Press for 2 seconds to power the microphone on or off. With the transmitter on, a slight press for button will toggle between mute and unmute function. 2. Power / MUTE LED: Indicate the power / mute / low battery level status. 3. SYNC Button: Press to active synchronization with the receiver 4. LCD Display…

Text truncated - open the document above for the full version.

Date: 09/22/2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD FCC ID:JEBUST-6 Dear Sir or Madam, We, Mascot Electric Co., Ltd., No. 85 Chang Hsing First Street, Tai‐tzu Village, Jen‐Te Hsian, Tainan Hsien, Taiwan, R.O.C., hereby authorize Electronics Testing Center, Taiwan, Mr. S. S. Liou (No. 34. Lin 5. Dingfu, Linkou Dist., New Taipei City, Taiwan, R.O.C., 886‐2‐2602‐352#20) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 03/22/2015. Sincerely, Chiang, Kun-Tien / President Mascot Electric Co., Ltd. No. 85 Chang Hsing First Street, Tai‐tzu Village, Jen‐Te Hsian, Tainan Hsien, Taiwan, R.O.C.

Date: 09/22/2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID:JEBUST-6 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Mascot Electric Co., Ltd., No. 85 Chang Hsing First Street, Tai‐tzu Village, Jen‐Te Hsian, Tainan Hsien, Taiwan, R.O.C., hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Theory of Operation Part Lists The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Chiang, Kun-Tien / President Mascot Electric Co., Ltd. No. 85 Chang Hsing First Street, Tai‐tzu Village, Jen‐Te Hsian, Tainan Hsien, Taiwan, R.O.C.

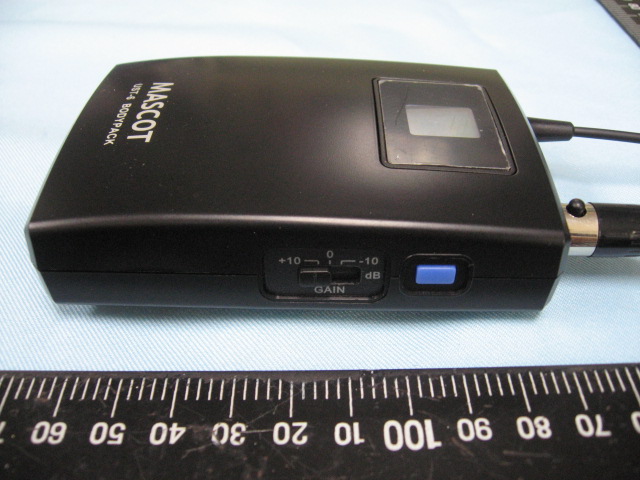

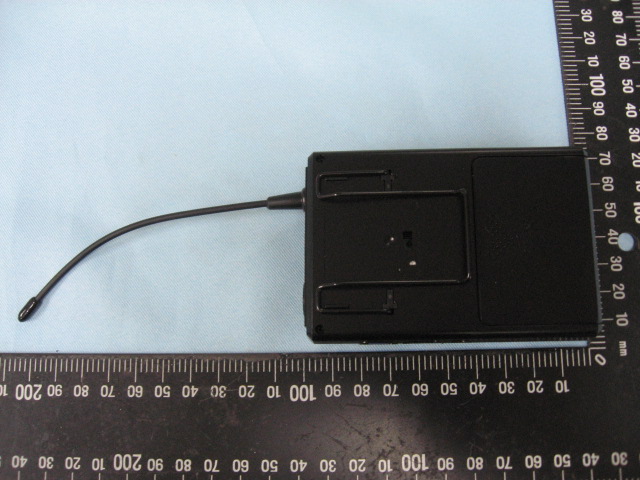

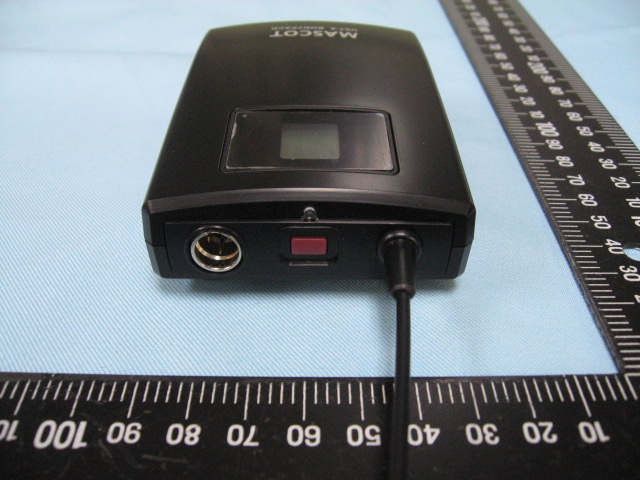

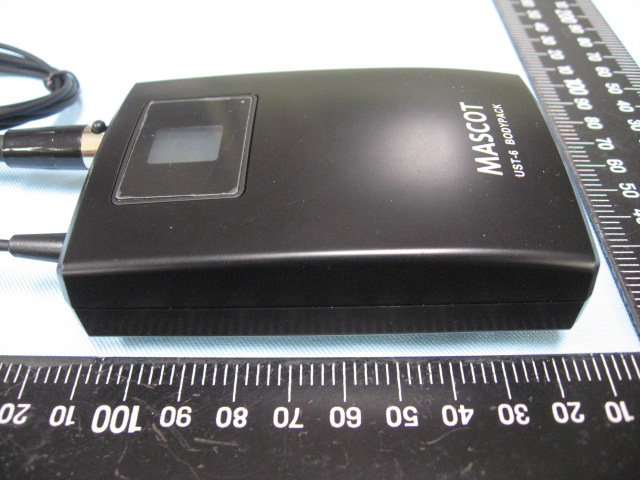

ETC Report No.: 14-04-RBF-056-05 Sheet 1 of 7 Sheets FCC ID: JEBUST-6 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 1. 2. ETC Report No.: 14-04-RBF-056-05 Sheet 2 of 7 Sheets FCC ID: JEBUST-6 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 3. 4. ETC Report No.: 14-04-RBF-056-05 Sheet 3 of 7 Sheets FCC ID: JEBUST-6 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 5. 6.

A4 UST-6-FCC-CE UST-6 㝾傖㴥 06,04 s 250 vₙ s 100-250 10-100 s 0-10 s ᷧ刓⅓ⷕ TOLERANCE NAME ⦺⏴ ⛽噆 DWG NO. UNIT mm 01 1 : 1 SCALE PARTS NO. 㖀噆 㩆❲ 㜷㖀⏴䨘 PARTS NAMEMODE NO. 嘼䏭㜷峑 MATERIAL TREAT ⯐㠟乑⛽䢡婴 APPROVE CHECK DRAW DATE BY DATE VERS. REVISION RE CORD ῕姩憴滅 䈯㜓 ῕姩俬 㗌㜆 㗌㜆 02 201 4 RoHS 婴嬰岣䴀 FCC ID. : JEBUST-6 UHF TRANSMITTER 1856 MADE IN TAIWAN

ETC Report No.: 14-04-RBF-056-05 Sheet 4 of 7 Sheets FCC ID: JEBUST-6 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 7. 8. ETC Report No.: 14-04-RBF-056-05 Sheet 5 of 7 Sheets FCC ID: JEBUST-6 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 9. 10. ETC Report No.: 14-04-RBF-056-05 Sheet 6 of 7 Sheets FCC ID: JEBUST-6 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 11. 12. ETC Report No.: 14-04-RBF-056-05 Sheet 7 of 7 Sheets FCC ID: JEBUST-6 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 13.

According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance,mm)] ·[ √f(GHz)] ≤ 3.0 The max. average power of channel, including tune-up tolerance(mW) is 12 mW @ 697.900MHz (With Tune-up tolerance), The min. test separation distance (mm) is 5 mm, So, [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] ·[√f(GHz)] = 2.00 < 3.0 (With Tune-up tolerance). Therefore, standalone SAR measurements are not required for both head and body. Signature___________________________________ Name/Title: S. S. Liou / Section Manager, EMC Testing Department II TEL: +886‐2‐2602‐3052 Email: [email protected]

Rev. 2.0 FCC Part 74 Subpart H EMI TEST REPORT of E.U.T. : Wireless Bodypack Transmitter Microphone FCC ID. : JEBUST-6 Model No. : UST-6 Working Frequency : 520.05~607.9MHz; 614.1~697.9MHz for APPLICANT : Mascot Electric Co., Ltd. ADDRESS : No. 85 Chang Hsing First Street, Tai-tzu Village, Jen-Te Hsian, Tainan Hsien, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER (ETC) , TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 FAX : (02)26010910 http:// www.etc.org.tw ; e-mail:[email protected] Report Number : 14-04-RBF-056-05 ETC Report No.: 14-04-RBF-056-05 FCC ID: JEBUST-6 Rev. 2.0 TEST REPORT CERTIFICATION Applicant : Mascot Electric Co., Ltd. No. 85 Chang Hsing First Street, Tai-tzu Village, Jen-Te Hsian, Tainan Hsien, Taiwan, R.O.C. Manufacturer : Mascot Electric Co., Ltd. No. 85 Chang Hsing First Street, Tai-tzu Village, Jen-Te Hsian, Tainan Hsien, Taiwan, R.O.C. Description of EUT : a) Type of EUT : Wireless Bodypack Transmitter Microphone b) Trade Name : MASCOT c) Model No. : UST-6 d) FCC ID : JEBUST-6 e) Working Frequency : 520.05~607.9MHz; 614.1~697.9MHz f) Power Supply : DC 1.5V Battery*2 Regulation Applied : FCC Rules and Regulations Part 74 Subpart H I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. ETC Report No.: 14-04-RBF-056-05 FCC ID: JEBUST-6 Rev. 2.0 Issued Date : Jun. 18, 2014 Test Engineer : ( Vincent Chang, Engineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.: 14-04-RBF-056-05 FCC ID: JEBUST-6 Rev. 2.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................................... 1 1.1 PRODUCT DESCRIPTION........................................................................................................................................... 1 1.2 TEST METHODOLOGY.............................................................................................................................................. 1 1.3 TEST FACILITY........................................................................................................................................................ 1 2. REQUIREMENTS OF PROVISIONS ................................................................................................................ 2 2.1 DEFINITION............................................................................................................................................................. 2 2.2 FREQUENCIES AVAILABLE...................................................................................................................................... 2 2.3 REQUIREMENTS FOR RADIO EQUIPMENT ON CERTIFICATION.................................................................................. 2 2.4 LABELING REQUIREMENT........................................................................................................................................ 3 3. OUTPUT POWER MEASUREMENT ................................................................................................................ 4 3.1 PROVISION APPLICABLE.......................................................................................................................................... 4 3.2 MEASUREMENT PROCEDURE................................................................................................................................... 4 3.3 TEST DATA.............................................................................................................................................................. 6 3.4 RESULT CALCULATION............................................................................................................................................ 7 3.5 TEST EQUIPMENT.................................................................................................................................................... 7 4. MODULATION CHARACTERISTICS ............................................................................................................. 8 4.1 PROVISIONS APPLICABLE........................................................................................................................................ 8 4.2 MEASUREMENT METHOD........................................................................................................................................ 8 4.3 MEASUREMENT INSTRUMENT.................................................................................................................................. 9 4.4 MEASUREMENT RESULT.......................................................................................................................................... 9 5. OCCUPIED BANDWIDTH OF EMISSION .................................................................................................... 11 5.1 PROVISIONS APPLICABLE...................................................................................................................................... 11 5.2 MEASUREMENT METHOD...................................................................................................................................... 11 5.3 OCCUPIED BANDWIDTH TEST EQUIPMENT............................................................................................................ 11 5.4 BANDWIDTH MEASURED....................................................................................................................................... 12 6. FIELD STRENGTH OF EMISSION................................................................................................................. 18 6.1 PROVISIONS APPLICABLE................…

Text truncated - open the document above for the full version.

ETC Report No.: 14-04-RBF-056-05 Sheet 31 of 36 Sheets FCC ID: JEBUST-6 Rev. 2.0 6.6 Radiated Measurement Photos
