JEBUT-18AWireless Body Pack Wireless Microphone

WIRELESS MICROPHONE SYSTEM 1. Introduction ........................................................................... 1 2. Safety .................................................................................... 1 3. Environment ........................................................................... 1 4. Wireless Note........................................................................ 1 5. Product Description ................................................................. 5.1 Receiver Module 5.2 Handheld Microphone 5.3 Bodypack Transmitter 2 6. System Feature...................................................................... 6 7. System Specification............................................................... 6 Table of Contents WIRELESS WIRELESS NOTE 1 FCC Statement This device complies with part 15 of the FCC rules. Operations is subject to the following two conditions: (1)This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. 1. Introduction Thank you for purchasing our product. This wireless microphone system operates in UHF band frequency with synthesizer controlled. The system with 16 or 64 selectable frequencies via Phase Locked Loop (PLL) circuitry makes it easy to choose non-interfered channels. Please read this instruction manual carefully before operating the system. This manual covers the configuration and operation of the wireless microphone system. 2. Safety ÿ Do not spill liquid on the appliance and do not drop it on a hard concrete floor. ÿ Do not place the appliance near heat sources such as radiators, amplifier, or etc. Do not expose it to direct sunlight, extremely dust, excessive moisture, or vibration. ÿ Take out the battery from transmitter, if the appliance has been not used for a longer period. This will avoid the damage resulting from a defective leaking battery 3. Environment ÿ Do not throw used batteries into a fire or garbage bin with domestic rubbish. Be sure to dispose of used batteries in accordance with local waste disposal rules. ÿ When disposing the equipment, remove the batteries, separate the case, circuit boards, and cables, and dispose of all components in accordance with local waste disposal rules. 4. Wireless Note ÿ Before setting up, make sure that the transmitter and receiver are tuned to the same frequency. ÿ Do not use two transmitters in the same frequency. ÿ Use good quality batteries to avoid the damage resulting from a defective leaking battery. ÿ To avoid interference, do not put the receiver too near metal object and avoid obstructions between transmitter and receiver. ÿ Avoid the interference from TV, radio, other wireless appliances and etc. Wireless Microphone 2 5. Product Description 5.1 Receiver Module This is a diversity receiver module suitable for inserting into PA system or portable amplifier. It can use with our 16- or 64-channel selectable transmitters. The receiver module operates in UHF band frequency with PLL synthesized control. Wireless Microphone WIRELESS PRODUCT DESCRIPTION 16 Channel Selector 64 GP/CH Selector 64 CH 16 CH 3 1. Diversity A. B Indicator: This LED lights to indicate that RF signal is being received. 2. Group Selector: Rotates this selector to choose a group number. 3. Channel Selector: Rotates this selector to choose a channel number. 4. Level Control: This rotary control adjusts the receiver output level to match the input sensitivity of an audio mixer or amplifier 5. RF Input: Uses 50 Ohm coaxial cable to connect with UHF antenna. 6. Ground: Connection with Ground. 7. AF Output: Connection with AF Output. 8. DC 12V: Connection with power supply DC12V. 9. Control: Generating about DC 7V while AF operating. Wireless Microphone WIRELESS PRODUCT DESCRIPTION CHANNEL SELECTOR 1 1 5 4 2 3 6 CH. 8 7 5 4 2 3 GR. 6 8 7 ̈ ≠ Æ Ø ∞ ± ≤ ≥ WIRELESS PRODUCT DESCRIPTION 5.2 Handheld Microphone The handheld microphone operates in UHF band frequency with PLL synthesized control. UHF 64 preprogrammed selectable frequencies to avoid interference. Uni-directional dynamic or uni-directional condenser capsules with different characters for various choices. Use 1.5V x 2 AA size batteries for low operating cost. 1. Grille: Protects the microphone capsule and helps reduce breath sounds and wind noise. The grille for the various microphone capsules differ in appearance. 2. Low Battery LED: LED indicates battery life status. Switching the power to "ON", the LED flashing once indicates that the transmitter has sufficient power. If the LED stayed on, it indicates that the battery has insufficient power and should be changed soon. If the status LED fails to flash, the battery is either dead or not positioned correctly, and you should correct the positioning or change the battery. 3. On/off Switch: Turns transmitter power on and off. 4. Battery Compartment: Insert two AA dry or rechargeable batteries into the compartment and make sure that the polarity of batteries is correct. 5. Group Selector: Changes transmitter Group setting. 6. Channel Selector: Changes transmitter Channel setting. 7. Battery Cover: Unscrew to expose battery compartment and Group/Channel selector. 8. Color Clip: This color clip helps to mark the same frequency of receiver and transmitter. 9. Charging Input: for charging rechargeable batteries inside the battery compartment using the using a supplied cable with 1.5j DC plugs. It needs up to 10 hours for charging. Wireless Microphone ¥ 4 WIRELESS PRODUCT D…

Text truncated - open the document above for the full version.

910805 2 Federal Communications Commission Authorization Agreement Dear Sir: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN to act on our behalf in all matters relating to application for“Wireless Handheld Transmitter Microphone ( Model :UT-18, FCC ID : JEBUT-18 )”authorization, including the signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. The applicant certifies that in the case of an individual applicant ( e.g., corporation ), no party to the applicant is subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-drug abuse Act of 1988, 21 U.S.C. 862. For a definition of a “party” for these purposes See 47 C.F.R. 1.2002(b). By: Chiang, Kun-Tien By: (Signature) (Printed) Title : President Applicant : MASCOT ELECTRIC C O., LTD. Address : No. 85 Chang Hsing First Street, Tai-tzu Village, Jen-Te Hsian, Tainan Hsien, Taiwan Tel : +886-6-2710171 Fax: +886-6-2710808 Date : Sep, 05, 2003 910805 3 Federal Communications Commission FCC ID: JEBUT-18 Dear Sir: This is to request confidentiality on information submitted for above application. We would like to request confidentiality on some exhibits we submitted for above original application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics. By: Chiang, Kun-Tien By: (Signature) (Printed) Title : President Applicant : MASCOT ELECTRIC CO., LTD. Address : No. 85 Chang Hsing First Street, Tai-tzu Village, Jen-Te Hsian, Tainan Hsien, Taiwan Tel : +886-6-2710171 Fax: +886-6-2710808 Date : Sep. 05, 2003

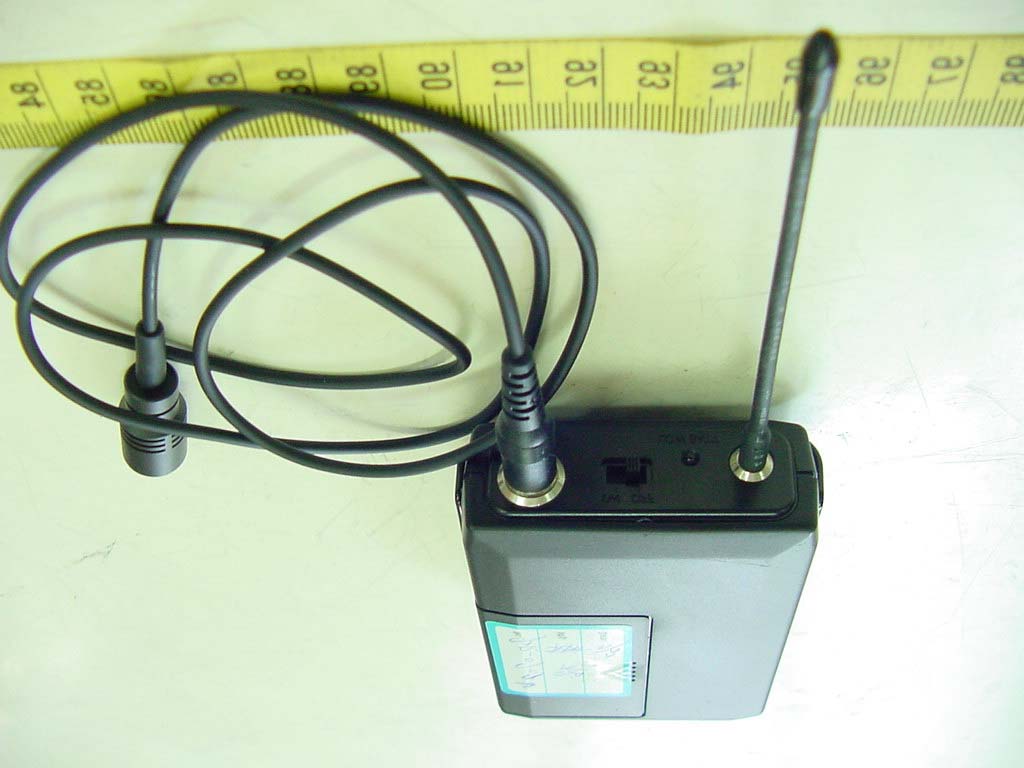

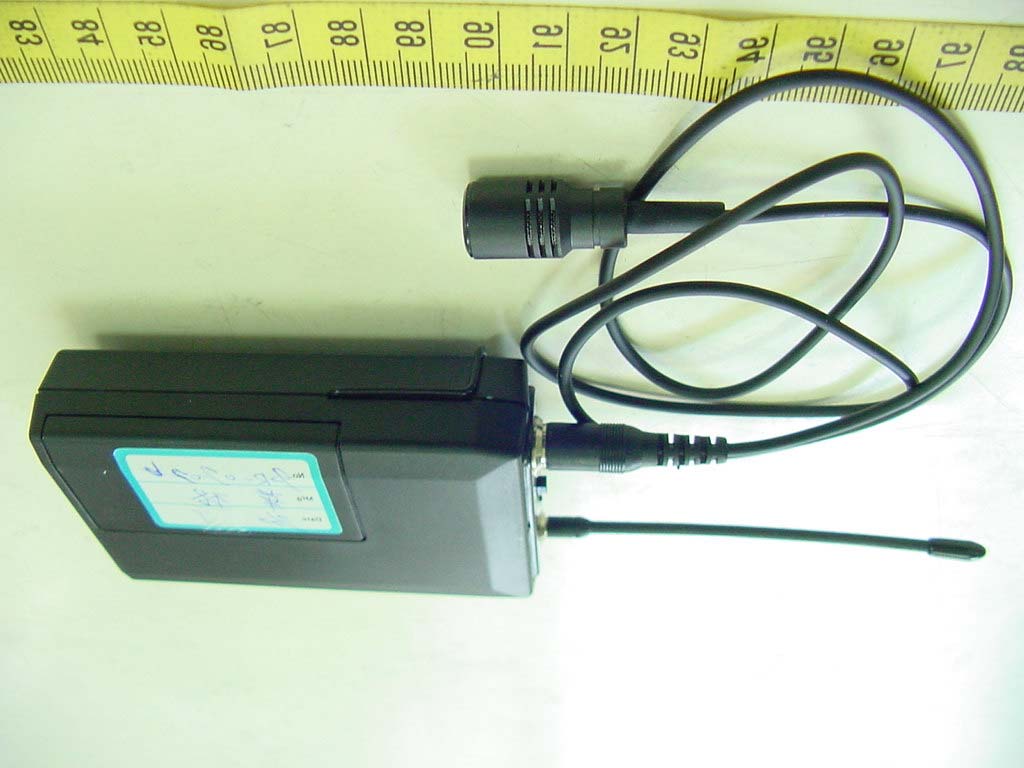

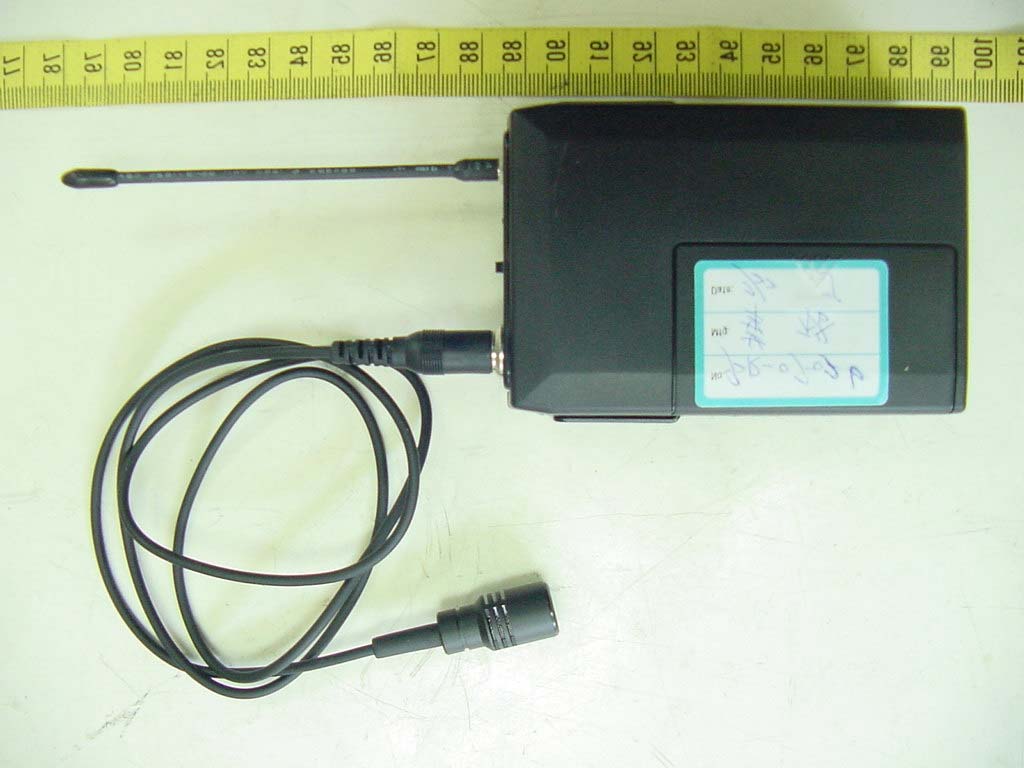

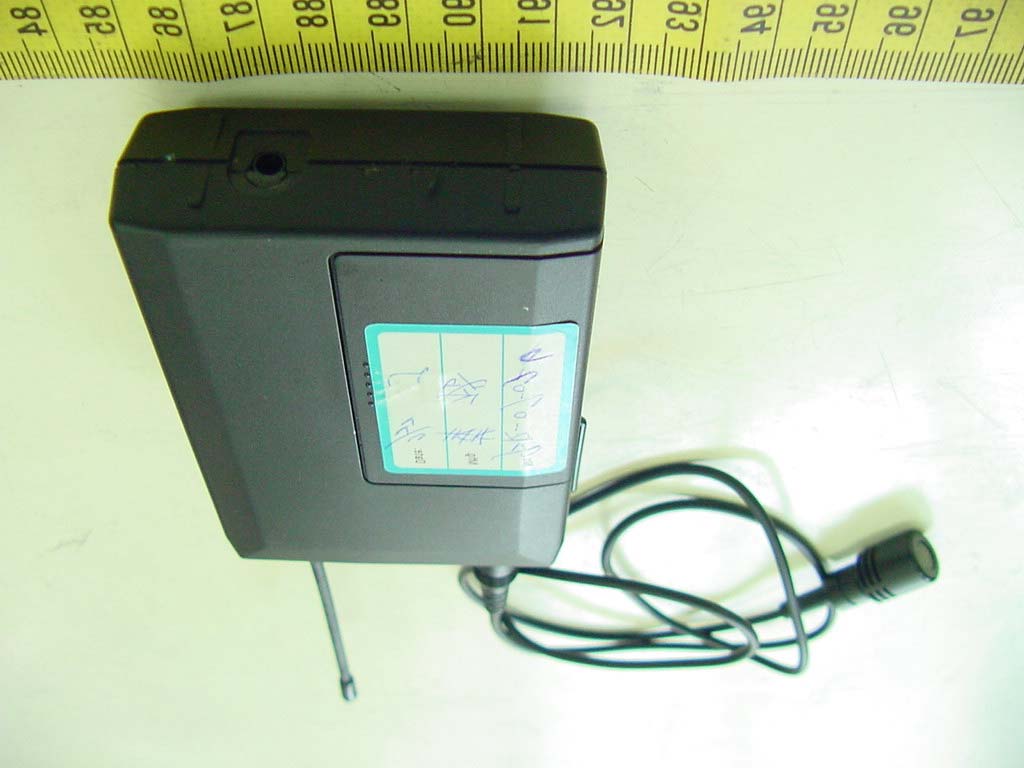

ETC Report No.:ET92R-07-076-02 FCC ID.:JEBUT-18 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Side View of EUT ETC Report No.:ET92R-07-076-02 FCC ID.:JEBUT-18 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Rear View of EUT ETC Report No.:ET92R-07-076-02 FCC ID.:JEBUT-18 Rev. 2.0 CONSTRUCTED PHOTOS of EUT Top View of EUT Bottom View of EUT Bottom View of EUT

ETC Report No.:ET92R-07-076-02 FCC ID.:JEBUT-18A Rev. 2.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Internal View of EUT ETC Report No.:ET92R-07-076-02 FCC ID.:JEBUT-18A Rev. 2.0 CONSTRUCTED PHOTOS of EUT Component View of PCB 1 Solder View of PCB 1 ETC Report No.:ET92R-07-076-02 FCC ID.:JEBUT-18A Rev. 2.0 CONSTRUCTED PHOTOS of EUT Component View of PCB 1 Solder View of PCB 1

The bodypack transmitter operates in UHF band frequency with PLL synthesized control. UHF 64 preprogrammed selectable frequencies to avoid interference. Uni-directional condenser capsules with different characters for various choices. Use 1.5V x 2 AA size dry or rechargeable batteries for low operating cost.

UT-18 MODULE PROCEDURE 1. Audio from the microphone is coupled through IC BA4510 applied to Audio amplifier and buffer stage. Adjust VR R66 to control audio amplify level. 2. The RF signal of 682.375MHz to 697.125MHz is generated from VCO and is locked via PLL IC U5 when selected. Adjust VC C60 to correct the exact frequency.. 3. The locked RF signal is coupled to buffer （ Q10 ） and amplifiers （ Q8 & Q9）. 4. After RF pre-amplify and final amplify, adjust VCs C67 & C68 to filter the spurious and harmonics and have the correct frequency pass through the maximum pass-point of the filter to transmit out. At this stage, the RF level is about 7dBm. MASCOT ELECTRIC CO,LTD DROW：Sherwin Liu CHECK： APPROVE： DATE ： MAY 28 2003

ETC Report No.:ET92R-07-076-02 FCC ID.:JEBUT-18 Rev. 2.0 Radiated Measurement Photos
