JHP10859ARemote Control Toy Car Transmitter

Page 1 ACS2000-F005 / FCC ID: JHP10859A FCC ID : Page 2 ACS2000-F005 / FCC ID: JHP10859A FCC ID : Page 3 ACS2000-F005 / FCC ID: JHP10859A FCC ID : Page 4 ACS2000-F005 / FCC ID: JHP10859A FCC ID :

EUT CONFIGURATION Description of EUT Applicant:Perfect Toys International Co., Ltd. 2/F., Block 3, Wah Lai Industrial Centre, 10-14 Kwei Tei Street, Fo Tan, Shatin, New Territories, Hong Kong Manufacturer:Xian Hao Electric Appliances & Toys Co., Ltd. Tia n Xi n Ma nage me nt Zo ne, Huang Jiang, Dongguan, Guangdong, P. R. C. Product Name:Toyhouse Cart Remote Car TX @ 27.145 MHz Part 15C / Section 15.227 Model Number.:10859A FCC ID:JHP10859A EMC Report No.: ACS-20F068

Letter of Authorization Federal Communications CommissionDate: Jun. 08, 2000 Authorization and Evaluation DivisionACS2000-F005 7435 Oakland Mills Road,FCC ID: JHP10859A Columbia, MD 21046 Dear Sir, This is your letter of authorization to accept our appointment of Richard Mullen, Manager / Safety & Compliance Consulting as agent for the following company : Company Name :Perfect Toys International Co., Ltd. Address :2/F., Block 3, Wah Lai Industrial Centre, 10-14 Kwei Tei Street, Fo Tan, Shatin, New Territories, Hong Kong From now on, Richard Mullen will sign applications before the commission on our behalf, and receive exchange data between our company and the commission in connection with certification of the following Sharp Brave Company Ltd. product : Equipment :Toyhouse Car Remote Control Car TX @ 27.145 MHz Part 15C, Section Part 15.227 Model No. :10859A FCC ID :JHP10859A Under FCC Docket Number 20780 and General Docket Number 89-103 pursuant to Part 15, Subparagraph C, of the Rules and Regulations of the FCC. This authorization will expire one year from the date of this letter. Sincerely Yours, _______________________________________ Lo Ting Ching / Manager Perfect Toys International Co., Ltd.

Safety & Compliance Consulting 29 Sweetman Lane West Milford, NJ 07480-2932 Tel/Fax (973) 728-5141 June 20, 2000 ACS2000-F005 731 Confirmation Number: EA97944 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject:Original Application for Low Power Communication Device Transmitter (DXX) Remote Control Toy Car Transmitter, Model 10859A / FCC ID: JHP10859A Gentlemen: Enclosed find Perfect Toys International Co., Ltd.’s Application for Equipment Authorization dated June 8, 2000. This device is in compliance with FCC Part 15, Subpart C. The subject device is a single channel remote control toy car transmitter that will operate on 27.145 ~ 27.150 MHz in accordance with Section 15.227 with a maximum allowable field strength of 10,000 μV/M @ 3 meters. This device’s associated toy car with built-in receiver is in compliance with Part 15, Subject B and will be authorized under DoC authorization. This EUT was tested in accordance with ANSI C63.4-1992 for intentional radiator. Note, the actual sample tested contained a fundamental frequency of 27.150 MHz. Should you have any questions or comments, please contact the undersigned. Thank you for your attention and cooperation in this matter. Sincerely yours, Richard Mullen Manager Safety & Compliance Consulting

Safety & Compliance Consulting 29 Sweetman Lane West Milford, NJ 07480-2932 Tel/Fax (973) 728-5141 August 14, 2000 ACS2000-F005A Attn:Diane Poole / FCC-OET Re:FCC ID: JHP10859A Applicant:Perfect Toys International Co., Ltd. Correspondence Ref No:15500 731 Confirmation Number:EA97944 Date of FCC E-Mail:08/09/00 Type Product:27 MHz Remote Control Toy Car Transmitter (DXX) Dear Diane Poole: Please be advised the past provided test report page for Part 3.7.2 Fundamental Emissions was performed using Quasi-Peak values and then substrate Average factor because the carrier transmission contained pulse modulation. The provided test results showed an emission safety margin greater than 29 dB. Regarding harmonic emissions, attached find plotted graph results performed over the 30~1000 MHz frequency band and tabular average value test results performed up to the 6 th harmonic. Emissions above the 162.88 MHz range were too low to report. Sincerely yours, Richard Mullen Group Manager Safety & Compliance Consulting Tel/Fax: (973) 728-5141 Email: [email protected]

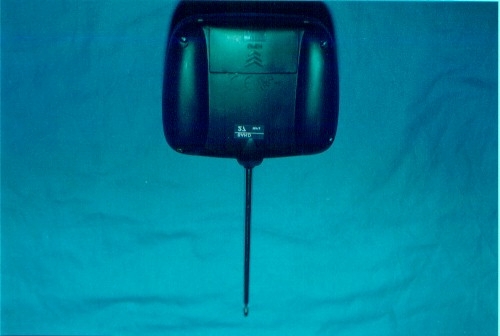

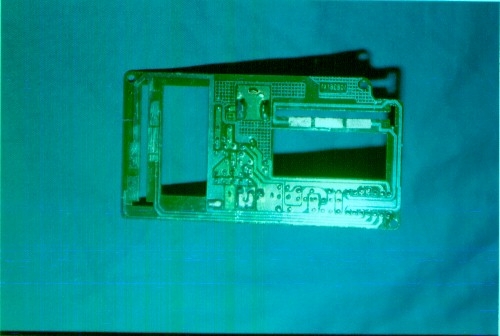

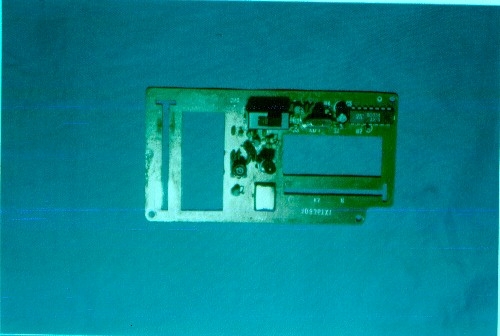

Photographs Figure 1. General Appearance of the EUT,(Front View) ACS2000-F005 / FCC ID: JHP10859A Remote Control Car TX @ 27.227 MHz Part 15C, Section 15.227 Figure 2. General Appearance of the EUT,(Rear View) Figure 3. Inside of the Eut ACS2000-F005 / FCC ID: JHP10859A Remote Control Car TX @ 27.227 MHz Part 15C, Section 15.227 ACS2000-F005 / FCC ID: JHP10859A Remote Control Car TX @ 27.227 MHz Part 15C, Section 15.227 Figure 4. Main Board, Component Side Figure 5. Main Board, Foil Side

Label Drawing ACS2000-F005 / FCC ID: JHP10859A Remote Control Car TX @ 27.227 MHz Part 15C, Section 15.227 Please refer to Exhibit 2 Figure 2 for Label Placement Location Located on bottom enclosure )

FCC ID:JHP10859A Page 1-1 APPLICATION FOR CERTIFICATION On Behalf of Perfect Toys International Co., Ltd. Toyhouse Cart Model : 10859A FCC ID: JHP10859A FCC Part 15C / Section 15.227 27.145 MHz R/C Car Transmitter Prepared for : Perfect Toys International Co., Ltd. 2/F., Block 3, Wah Lai Industrial Centre, 10-14 Kwei Tei Street, Fo Tan, Shatin, New Territories, Hong Kong Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6 Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755)663-9496 Report Number • ACS-20F068 Date of Test • Apr. 15~Jun. 02, 2000 Date of Report • Jun. 02, 2000 FCC ID:JHP10859A Page 1-2 TABLE OF CONTENTS DescriptionPage Test Report Certification 1.GENERAL INFORMATION..............................................................................................................1-1 1.1. Description of Device (EUT) ........................................................................................................... 1-1 1.2. Test Facility................................................................................................................................... 1-2 1.3. Test Uncertainty.............................................................................................................................. 1-2 2.POWER LINE CONDUCTED MEASUREMENT...........................................................................2-1 3.RADIATED EMISSION MEASUREMENT......................................................................................3-1 3.1. Test Equipment............................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ........................................................................................................... 3-1 3.3. Radiated Emission Limit (Class B) ................................................................................................... 3-2 3.4. EUT Configuration on Measurement................................................................................................. 3-2 3.5. Operating Condition of EUT............................................................................................................ 3-2 3.6. Test Procedure................................................................................................................................ 3-3 3.7. Radiated Emission Noise Measurement Result ..................................................................................3-4 4.TEST BANDWIDTH............................................................................................................................4-1 5.CALCULATION OF AVERAGE FACTOR .....................................................................................5-1 6.PHOTOGRAPH ...................................................................................................................................6-1 6.1. Photos of Radiated Measurement...................................................................................................... 6-1 APPENDIX I(6 Pages) FCC ID:JHP10859A Page 1-3 TEST REPORT CERTIFICATION Applicant:Perfect Toys International Co., Ltd. Manufacturer :Xian Hao Electric Appliances & Toys Co., Ltd. Receiver:8*1.5 DC Batteries, 30cm length antenna built-in FCC ID:JHP10859A FCC Rule Part:Part 15C. Section 15.227 EUT Description • Toyhouse Cart / R/C Car Transmitter @ 27.145 MHz (A) MODEL NO. : 10859A (B) SERIAL NO. : 2000042301 (C) POWER SUPPLY : +9V DC Battery 40cm length antenna built-in Measurement Procedure Used: FCC Rules and Regulations Part 15 Subpart C October 1998 & ANSI C63.4-1992 The device described above is tested by AUDIX TECHNOLOGY (SHENZHEN) CO., LTD. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart C limits both radiated and conducted emissions. The measurement results are contained in this test report and AUDIX TECHNOLOGY (SHENZHEN) CO., LTD. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the Equipment Under Test (EUT) is to be technically compliant with the FCC requirements. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of AUDIX TECHNOLOGY (SHENZHEN) CO., LTD. Date of Test :Apr. 15~Jun. 02, 2000 FCC ID:JHP10859A Page 1-4 FCC ID:JHP10859A Page 1-1 1. GENERAL INFORMATION 1.1. Description of Device (EUT) FCC ID:JHP10859A Description • Toyhouse R/C Car Transmitter @ 27.145 MHz Model Number • 10859A Applicant • Perfect Toys International Co., Ltd. 2/F., Block 3, Wah Lai Industrial Centre, 10-14 Kwei Tei Street, Fo Tan, Shatin, New Territories, Hong Kong Manufacturer • Xian Hao Electric Appliances & Toys Co., Ltd. Tian Xin Management Zone, Huang Jiang, Dongguan, Guangdong, P. R. C. Date of Test • Apr. 15~ Jun. 02, 2000 FCC ID:JHP10859A Page 1-2 1.2. Test Facility Site Description 3m Anechoic Chamber:Certificated by FCC, USA Aug. 18, 1997 3m & 10m Open Site:Certificated by FCC, USA Feb. 13, 1998 EMC Lab.Certificated by VCCI, Japan Oct. 29, 1998 Certificated by DATech, German Feb. 02, 1999 certificated by NVLAP, USA until Mar. 03, 2001 NVLAP Code: 200372-0 Name of Firm:Audix Technology (Shenzhen) Co., Ltd. Site Location:No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China 1.3. Test Uncertainty Conducted Emission Uncertainty= ± 2.66dB Radiated Emission Uncertainty= ± 4.26dB FCC ID:JHP10859A Page 2-1 2. POWER LINE CONDUCTED MEASUREMENT According to Paragraph (f) of FCC Part 15 Section 15.107, measurement to demonstrate compliance with the conducted emission limits are not required for devices which only employ battery power for operation and which do not operate from AC power lines or contain provisions for operation while connected to AC power lines. FCC ID:JHP10859A Page 3-1 3…
