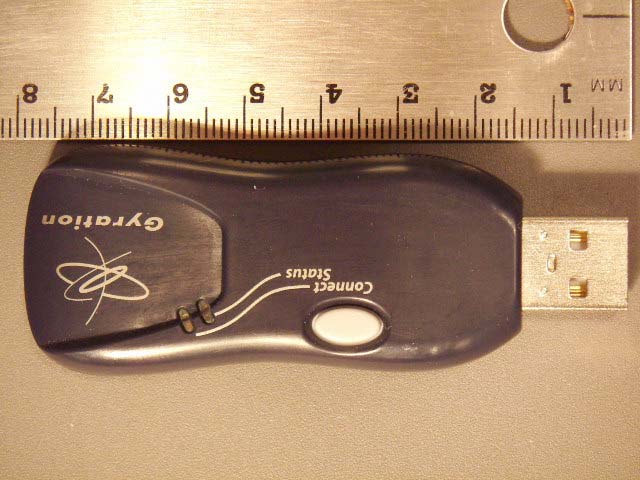

JJ4-AS00764USB Receiver

GO 2.4 GHz CORDLESS OPTICAL AIR MOUSE SOURIS AÉRIENNE OPTIQUE SANS FIL GO DE 2,4 GHZ User Guide Guide de l'utilisateur GC1005M_NA_IB_REVA_K6.qxd 2/11/05 11:33 AM Page 1 TABLE OF CONTENTS GO 2.4 GHz Cordless Optical Air Mouse...........................................1 Key Features .................................................................1 Installing and Charging the Batteries...........................1Setting Up and Synchronizing .....................................4Powering On and Off ..................................................5Using on the Desktop ................................................6Using in the Air..........................................................7Fine-Tuning Cursor Control ..........................................8GyroTools ™ Software...................................................9 RF Receiver.........................................................................................11 Connect Button ...............................................................11Status LED .....................................................................11 Troubleshooting .................................................................................13 PRODUCT SPECIFICATIONS *The E-Mail tool in GyroTools is not supported under Windows 98 (Second Edition). Note: 49 MHz mouse, keyboard and remotes are not compatible with the 2.4 GHz RF Receiver. Spec GO 2.4 GHz Wireless Optical Mouse RF Receiver System RequirementsSize 5.25” L x 2.28” W x 1.81”H (133 mm x 58 mm x 46 mm) 70'' L x 1.18'' W x .35'' H(178 cm x 3 cm x .9 cm) WeightOperating Range 4.73 ounces (134 g)Up to 30’ (9.144 m) typical with no line-of-sight requirementProfessional – Up to 100’ (30.5 m) typical with no line-of-sight requirement .53 ounces (15 g) Radio 2.4 GHz (U.S.) with automatic channel selection 2.4 GHz (U.S.)N/A Batteries NiMH Battery Pack (Note: An additional NiMH battery is included in the G.O. Professional model only) N/A Connector N/A USB Operating Temp +10 to +40 C (+50 to +104 F) Storage Temp -30 to +70 C (-86 to +158 F) • IBM compatible PCs running Windows 98 (Second Edition), 2000, ME, XP or higher• Available USB port• CD ROM drive (for GyroTools installation on Windows only*) • Microsoft or Mac compatible mouse driver (no additional drivers to install) GC1005M_NA_IB_REVA_K6.qxd 2/11/05 11:33 AM Page 2 1 GO 2.4 GHz CORDLESS OPTICAL AIR MOUSEWelcome to a world of unprecedented freedom in sur fing, gaming, mediacontrol and mobile computing! Gyration gyroscopic technology delivers theultimate PC remote control device: the GO 2.4 GHz Cordless Optical AirMouse. Gyration’s patented motion-sensing technology uses radiofrequencies to provide accurate and effortless cursor control from virtuallyanywhere in the room. Since the GO 2.4 GHz Cordless Optical Air Mouseworks on a desktop as well as in the air, sit back and relax. You have thepower to control your multimedia and internet commands in the palm of your hand. Left/Right Select Buttons Key Features Scroll Wheel & Button LED Indicator Programmable Buttons Batter y Pack Batter y Release Button (Underneath) Connect Button (Underneath) Activation Trigger (Underneath) GC1005M_NA_IB_REVA_K6.qxd 2/11/05 11:33 AM Page 4 3 charge, the LED Indicator light on the mouse will blink intermittentlywhen in use. To optimize the per formance of your NiMH batter y, it isbest to recharge it after ever y day of use. • If a full charge is not required, you can remove the mouse from thecharging cradle at anytime. You do not need to wait for the LED Indicatorlight to stop flashing. • To conser ve power, the mouse enters a “Sleep Mode” when it is left onfor more than 24 hours. To awake from Sleep Mode, click any button. Using the In-Line Battery Charger (select models only)The In-Line Batter y Charger is included with the Professional model only.To charge the NiMH batter y pack using the in-line batter y charger:1. Connect the power adapter to the in-line batter y charger and plug it into a power source. 2. Place the batter y pack in the charger and the LED Indicator light will turn solid blue. 3. To eliminate the need of one additional adapter, install the smaller connector of the charger cable into the back of the in-line charger andinstall the larger connector into the front of the charging cradle. Installing and Charging the BatteriesImportant : The GO 2.4 GHz Optical Air Mouse must be charged for nine (9) hours prior to its first use.The GO 2.4 GHz Optical Air Mouse comes with a NiMH batter y pack already installed, but you will need to remove the plastic tab located inside thebatter y compartment. This clear plastic tab prevents the batter y fromdischarging until you are ready to use your mouse. To remove the tab andcharge your batteries:1. Press the Battery Release button at the bottom of the mouse and slide the NiMH batter y pack off. 2. Remove and discard the plastic tab. 3. Replace the batter y pack by sliding it into place on the mouse. 4. Connect the power adapter to the charging cradle and plug it into a power source. 5. Place the mouse in the charging cradle. The cradle’s LED Indicator light, located at the back of the cradle, will turn solid blue and the LED Indicator light on the mouse will faintly flash green while its batteries are charging. 6. Once the batteries are fully charged, the LED Indicator light on the mouse will maintain a steady glow and will be ready for use. Battery Tips• For optimal batter y life, avoid using the mouse on dark-colored sur faces. • When the batter y drops to approximately twenty percent (20%) of its full 2 GC1005M_NA_IB_REVA_K6.qxd 2/11/05 11:33 AM Page 2 5 4 Setting Up and Synchronizing the GO 2.4 GHz Optical Air Mouseand the Gyration 2.4 GHz RF Receiver When installing the op tical air mouse for the first time or when adding additional Gyration devices to the system, it is necessar y to synchronize thedevices with the receiver. To set up and synchronize the opti cal air mouse and the RF receiver:1. Ensure…

Text truncated - open the document above for the full version.

Regulatory Information Notice to Users: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Plug the equipment into an outlet on a circuit different from that which the receiver is plugged. • Consult the dealer or an experienced radio/TC technician for help. This product works using a radio frequency, so use on an airplane may be restricted due to interference. FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. CE Statement: This equipment has been tested and found to comply with the limits of the European Council Directive on the approximation of the law of the member states relating to electromagnetic compatibility (89/336/EEC) according to EN 55022 Class B. Industry Canada Equipment Notice: The Industry Canada certification identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Document(s). The Department does not guarantee the equipment will operate to the user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an accept - able method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations. Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment. Users should ensure, for their own protection, that the electrical ground connectors of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This presentation may be particularly important in rural areas. Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority or electrician, as appropriate. Warranty Information Limited Two Year Warranty Our company (in the U.S.,THOMSON INC. / In Canada, Thomson multimedia Ltd.) warrants that for two years from the date of purchase, it will replace this product if found to be defective in materials or workmanship. For a prompt, no charge replacement of equivalent product, return the defective product postage prepaid to the appropriate address. If purchased in the US: If purchased in Canada: Product Exchange Center Thomson multimedia Ltd. 11721 Alameda Avenue 6200 Edwards Boulevard Socorro TX 79927 Mississauga, Ontario Canada L5T 2V7 This replacement is the company's sole obligation under this warranty. THOMSON INC. / Thomson multimedia Ltd. will not be responsible for any incidental or consequential damages or for any loss arising in connection with the use or inability to use this product. Some states/provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty excludes defects or damage due to misuse, abuse, or neglect. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state/province to province. Information sur la réglementation Avis aux utilisateurs : Cet appareil a été testé et approuvé en conformité avec les limites qui définissent un appareil de Classe B, suivant la Partie 15 des règlements de la FCC. Ces limites sont conçues pour assurer une protection raisonnable contre l'interférence nuisible dans une installation résidentielle. Cet appareil produit, utilise et peut transmettre par rayonnement de l'énergie radiofréquence et, s'il n'est pas installé et utilisé conformément aux instructions, peut produire de l'interférence nuisible aux communications radio. Toutefois, il n'est aucunement garanti qu'aucune interférence ne sera produite dans une installation particulière. Si cet appareil cause une interférence nuisible à la réception de la radio ou de la télévision, ce qui peut être déterminé en éteignant et en rallumant l'appareil, l'utilisateur peut tenter de corriger la situation en prenant les mesures suivantes : • Réorienter ou déplacer les antennes de réception. • Augmenter la distance entre l'appareil et le récepteur. • Brancher l'appareil dans une prise d'un circuit différent de celui du récepteur. • Consulter le revendeur ou un technicien compétent en radio/télévision pour obtenir de l'aide. Cet appareil fonc tionne par radiof…

Text truncated - open the document above for the full version.

1 From:Claire Hoque Sent:Friday, April 08, 2005 9:41 AM To:Helen Zhao Cc:Thu Chan; Danielle Zhan; Julia Luke Subject:answer: Gyration, Inc. , FCC ID: JJ4-AS00764, Assessment NO.: AN05T4680, Notice#1 (USB) 05U3274-1 REV B FCC REPORT(USB... USB Setup Photos(revised).pdf Compliance info User Manual(re... Hi Helen, Pls see our answer as follows. Question #1: Neither "Regulatory Information" nor "User manual" includes user information as specified in FCC15.21 and RF exposure statement as specified in FCC 15.247(i). The possible RF Exposure statement for this device could be: "The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. " Please revise the exhibit(s) accordingly. <answer>pls see revised compliance sheet. Question #2: Section 5.5 of the test report indicates "The EUT is a USB Transceiver and is plugged into the USB port of a host laptop". But the test setup photos show that the EUT was tested when it was connected to the host laptop via a USB cable. Please note without/with USB cable significantly changes the device from portable configuration to mobile configuration. Please provide radiated spurious emission test data and power line conducted emission test data when EUT is plugged into the USB port of host laptop directly. [Danielle]A Section 5.5 Test Configuration has been added to the report to explain that both configurations were investigated; Added 2nd set of LC data and setup photos for the configuration that EUT being connected directly to the host. pls see revised report and revised setup photos. Question #3: The test report reuses all the RF conducted test data from the report of wireless Keyboard (proposed FCC ID: JJ4-AS00900). Please provide justification to do so in the test report. [Danielel]A note has been added to the report under Section 7.1.7 Reult to justify the sharing of data. Question #4: This device is considered as a portable device, due to the low power output, it is exempted from SAR evaluation. The test report, however, includes MPE calculation, which is not applicable. Please remove MPE calculation from the test report. [Danielle]Original Section 7.1.4 has been removed. Thanks, Claire

PROPOSED FCC ID LABEL AND LOCATION GYRATION INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID : JJ4-AS00764 FCC ID LABEL

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR USB RECEIVER MODEL NUMBER: AS00764-001 FCC ID: JJ4-AS00764 REPORT NUMBER: 05U3274-1 REV B ISSUE DATE: APRIL 6, 2005 Prepared for GYRATION 12950 SARATOGA AVE. SARATOGA, CA 95070, USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 05U3274-1 REV B DATE: APRIL 6, 2005 EUT: USB RECEIVER FCC ID: JJ4-AS00764 Page 2 of 63 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Revisions Revised By B Add a note to Section 7.1 explaining the sharing of data Danielle Z. Add Section 5.5 Test Configurations Danielle Z. Add 2 nd set of data under Section 7.3 and corresponding setup photos under Section 8 Danielle Z. Delete the original Section 7.1.4 Maximum Permissible Exposure Danielle Z. REPORT NO: 05U3274-1 REV B DATE: APRIL 6, 2005 EUT: USB RECEIVER FCC ID: JJ4-AS00764 Page 3 of 63 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.5. TEST CONFIGURATIONS ........................................................................................................... 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 9 7. LIMITS AND RESULTS ................................................................................................................. 10 7.1. CHANNEL TESTS FOR THE 2400 TO 2483.5 MHz BAND ...................................................... 10 7.1.1. 6 dB BANDWIDTH ........................................................................................................... 10 7.1.2. 99% BANDWIDTH............................................................................................................ 14 7.1.3. PEAK OUTPUT POWER .................................................................................................. 18 7.1.4. AVERAGE POWER........................................................................................................... 23 7.1.5. PEAK POWER SPECTRAL DENSITY ............................................................................ 24 7.1.6. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 28 7.2. RADIATED EMISSIONS.............................................................................................................35 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 35 7.2.2. TRANSMITTER ABOVE 1 GHz FOR 2400 TO 2483.5 MHz BAND ............................. 38 7.2.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ............................................. 47 7.3. POWERLINE CONDUCTED EMISSIONS ................................................................................ 51 8. SETUP PHOTOS .............................................................................................................................. 58 REPORT NO: 05U3274-1 REV B DATE: APRIL 6, 2005 EUT: USB RECEIVER FCC ID: JJ4-AS00764 Page 4 of 63 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: GYRATION 12950 SARATOGA AVE. SARATOGA, CA 95070, USA EUT DESCRIPTION: USB RECEIVER MODEL: AS00764-001 SERIAL NUMBER: SVT 000025 DATE TESTED: FEBRUARY 25 – APRIL 5, 2005 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revis…

Text truncated - open the document above for the full version.

REPORT NO: 05U3274-1 REV B DATE: APRIL 6, 2005 EUT: USB RECEIVER FCC ID: JJ4-AS00764 Page 58 of 63 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 05U3274-1 REV B DATE: APRIL 6, 2005 EUT: USB RECEIVER FCC ID: JJ4-AS00764 Page 59 of 63 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 05U3274-1 REV B DATE: APRIL 6, 2005 EUT: USB RECEIVER FCC ID: JJ4-AS00764 Page 60 of 63 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP – EUT connected to host via USB cable LINE CONDUCTED FRONT PHOTO REPORT NO: 05U3274-1 REV B DATE: APRIL 6, 2005 EUT: USB RECEIVER FCC ID: JJ4-AS00764 Page 61 of 63 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. LINE CONDUCTED BACK PHOTO REPORT NO: 05U3274-1 REV B DATE: APRIL 6, 2005 EUT: USB RECEIVER FCC ID: JJ4-AS00764 Page 62 of 63 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP - EUT directly connected to host LINE CONDUCTED FRONT PHOTO REPORT NO: 05U3274-1 REV B DATE: APRIL 6, 2005 EUT: USB RECEIVER FCC ID: JJ4-AS00764 Page 63 of 63 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
