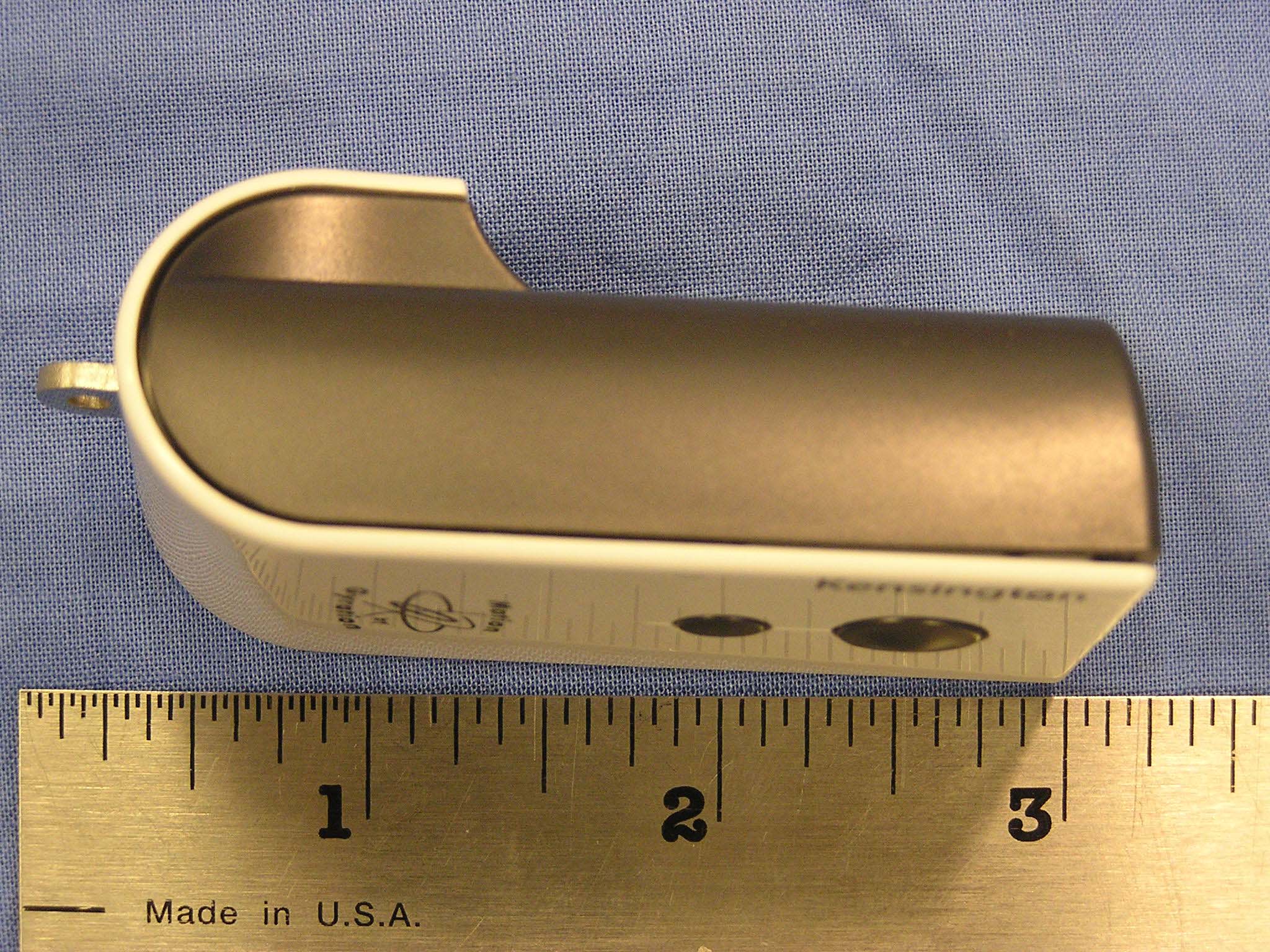

JJ4-TP1Transporter Pointer(Mouse)

Page 1 GO 2.4 GHz PRO CORDLESS AIR MOUSE User Guide Page 2 TABLE OF CONTENTS Package Contents..................................................................3 GO PRO 2.4 GHz GyroTransport Installing the Battery......................................................4 Setting Up and Synchronizing ......................................4 Using in the Air..............................................................4 Fine-Tuning Cursor Control...........................................5 GyroTools ™ Software....................................................5 Troubleshooting ...............................................................................13 Product Specifications............................................................11 Page 3 GO 2.4 GHz PRO CORDLESS AIR MOUSE Air Mouse Presenter with built-in memory Welcome to a world of unprecedented flexibility, freedom and convenience in mobile computing and presenting! Works in the Air, Take your data Anywhere! Thomson’s Gyration branded gyroscopic technology delivers the ultimate presentation device: the GO 2.4 GHz PRO Cordless Air Mouse. Our patented motion-sensing technology uses radio frequencies to provide accurate, smooth and effortless cursor control In the Air from virtually anywhere in the room. With its convenient built-in flash memory, you can Take your data Anywhere. You can store, transfer and transport your presentations, pictures and files on the simple USB Flash Drive. You have the power to control your presentations, multimedia and internet commands in the palm of your hand. Package Contents GO 2.4 GHz PRO Cordless Air Mouse USB RF Receiver/Flash Drive (Attached to the GyroTransport Air Mouse) Included on Flash Drive: GyroTransport Instruction Booklet GyroTools Media Control Software PRESENTATION EDITION GyroTransport Air Mouse Quick Start Guide Warranty Statement AAA Alkaline Battery (Quantity one) Page 4 Installing the Battery 1. Remove the RF Receiver/Flash Drive from the bottom of the GyroTransport Air Mouse. 2. Open the battery compartment from the front bottom of the GyroTransport Air Mouse and insert the included AAA battery. Close the battery compartment. Setting Up and Synchronizing the GO 2.4 GHz PRO Air Mouse and RF Receiver When installing the GyroTransport Air Mouse for the first time or when adding additional GO 2.4 GHz Series devices to the system, it is necessary to synchronize devices with the receiver. To set up and synchronize the GyroTransport Air Mouse and the RF receiver: 1. Ensure the battery has been installed in the GyroTransport Air Mouse. 2. Power on the GyroTransport by selecting a profile with the switch on the side of the GyroTransport. 3. Connect the RF receiver into an available USB port on your computer. 4. Power on your computer. 5. Your operating system should detect the new hardware device and initiate the installation procedure. Continue to follow the USB device installation onscreen prompts until installation is complete. (Some operating systems will require a reboot to initialize the device) 6. Press and hold the Connect button on the Receiver/Flash Drive for two seconds and the Status LED will begin to flash rapidly indicating that it is in “Connect” mode. (The Receiver/Flash Drive will exit out of “Connect mode” automatically after one minute if there is not a successful connection with a device made.) 7. Press and release the Connect button located on the bottom of the GyroTransport Air Mouse. The Connect light on the receiver will stop flashing. (Note: The GyroTransport and Receiver connect buttons are countersunk and require use of the tip of a pen or paperclip (or similar) to press.) 8. Your GyroTransport Air Mouse is ready for use. 9. Note: Powering off the mouse prevents battery drain when traveling. It is necessary to power the unit off when traveling on commercial airlines due to FCCregulations regarding radio emitting devices. Note: After the Connect/Connect sequence is performed, the receiver and device(s) will remain synchronized after powering down. It is only necessary to perform the Connect/Connect sequence when setting a device up for the first time or when adding additional devices to the system. Using in the Air The Air Mouse has no line-of-sight requirements so it is not necessary to point the device at the computer, receiver or monitor. 1. After you set up and synchronize the Air Mouse with the RF receiver, hold the mouse in a comfortable, relaxed position with your thumb on the Activation button. 2. Press and hold the Activation button with your thumb. While holding the button, flex your wrist up, down and sideways (in a manner similar to using a flashlight). The mouse cursor tracks the motions of your hand. Remember, it is not necessary to point the mouse at your computer, receiver or monitor. 3. Use your thumb to press the left/right mouse buttons or to operate the swipes button. Tip: Double-click the Activation Trigger to keep the cursor continuously active. To stop the cursor movement, click the trigger once. Tip: Move the cursor over a target and release the Activation Trigger before clicking the left or right mouse buttons. This “parks” the cursor and allows you to click more accurately. Page 5 Fine Tuning Cursor Control Since the Air Mouse uses standard Windows or Mac mouse drivers, there are no additional drivers to install. Any settings that are available to a standard desktop mouse (such as cursor tracking speeds and mouse double-click speeds) are also available to the GO 2.4 GHz PRO Air Mouse. Multiple factors will determine how you adjust the Air Mouse to suit your personal preference including screen resolution and driver version. While becoming familiar with your mouse and getting a feel for the “in air” method of cursor control, Gyration recommends adjusting your mouse driver to the following settings: o Pointer Speed – Average. Some new users prefer this setting to be slightly slower than average. Advanced users will increase the speed so tha…

Text truncated - open the document above for the full version.

Regulatory Information Notice to Users: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Plug the equipment into an outlet on a circuit different from that which the receiver is plugged. • Consult the dealer or an experienced radio/TC technician for help. This product works using a radio frequency, so use on an airplane may be restricted due to interference. FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. CE Statement: This equipment has been tested and found to comply with the limits of the European Council Directive on the approximation of the law of the member states relating to electromagnetic compatibility (89/336/EEC) according to EN 55022 Class B. Industry Canada Equipment Notice: The Industry Canada certification identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Document(s). The Department does not guarantee the equipment will operate to the user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an accept - able method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations. Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment. Users should ensure, for their own protection, that the electrical ground connectors of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This presentation may be particularly important in rural areas. Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority or electrician, as appropriate. Warranty Information Limited Two Year Warranty Our company (in the U.S.,THOMSON INC. / In Canada, Thomson multimedia Ltd.) warrants that for two years from the date of purchase, it will replace this product if found to be defective in materials or workmanship. For a prompt, no charge replacement of equivalent product, return the defective product postage prepaid to the appropriate address. If purchased in the US: If purchased in Canada: Product Exchange Center Thomson multimedia Ltd. 11721 Alameda Avenue 6200 Edwards Boulevard Socorro TX 79927 Mississauga, Ontario Canada L5T 2V7 This replacement is the company's sole obligation under this warranty. THOMSON INC. / Thomson multimedia Ltd. will not be responsible for any incidental or consequential damages or for any loss arising in connection with the use or inability to use this product. Some states/provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty excludes defects or damage due to misuse, abuse, or neglect. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state/province to province. Information sur la réglementation Avis aux utilisateurs : Cet appareil a été testé et approuvé en conformité avec les limites qui définissent un appareil de Classe B, suivant la Partie 15 des règlements de la FCC. Ces limites sont conçues pour assurer une protection raisonnable contre l'interférence nuisible dans une installation résidentielle. Cet appareil produit, utilise et peut transmettre par rayonnement de l'énergie radiofréquence et, s'il n'est pas installé et utilisé conformément aux instructions, peut produire de l'interférence nuisible aux communications radio. Toutefois, il n'est aucunement garanti qu'aucune interférence ne sera produite dans une installation particulière. Si cet appareil cause une interférence nuisible à la réception de la radio ou de la télévision, ce qui peut être déterminé en éteignant et en rallumant l'appareil, l'utilisateur peut tenter de corriger la situation en prenant les mesures suivantes : • Réorienter ou déplacer les antennes de réception. • Augmenter la distance entre l'appareil et le récepteur. • Brancher l'appareil dans une prise d'un circuit différent de celui du récepteur. • Consulter le revendeur ou un technicien compétent en radio/télévision pour obtenir de l'aide. Cet appareil fonc tionne par radiof…

Text truncated - open the document above for the full version.

12950 Saratoga Avenue Saratoga, CA 95070 www.gyration.com DATE: January 11, 2006 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality Gentlemen: In reference to the application under FCC ID JJ4-TP1 and JJ4-TT1, and pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block Diagrams Theory of Operation These documents contain detailed system and equipment description and related information about the product that Gyration, Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Gyration, Inc. considers that this information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Guy DeRome R&D Engineer Gyration, Inc.

Cypress Semiconductor Corporation•3901 North First Street•San Jose,CA 95134•408-943-2600 Revised March 30, 2005 WirelessUSB™ Dual Antenna Design Layout Guidelines The Antenna as a Component of Your Wireless Communication Product Design Introduction This application note describes the guidelines for the antenna design and in particular, addresses the design of an integrated printed trace wiggle antenna implementation on a reference printed circuit board. The development of small integrated antenna facilitates the application of the Cypress WirelessUSB™ chip as an integrated wireless communi- cation solution. WirelessUSB is the code name for a technology specification (Cypress Semiconductor’s propri- etary) for small form factor, low cost, short range radio links between mobile, desktop PCs, and other portable devices. The antenna is an integral part of any wireless communi- cation system. It is the interface between a radio module and atmosphere. A properly designed antenna facilitates the evaluation, characterization, and production test correlation of the WirelessUSB LS radio. In designing a short-range radio data communication system, the product/system designer faces one of the most important tasks, the antenna design. The key parameters are the antenna size, cost of implementation, radiation effectiveness, ease of manufacturability, and range performance. These recommendations have been tested and proven by Cypress Semiconductor to ensure optimal radio performance when combining RF analog circuitry with other low-frequency analog and digital board components. The purpose of an antenna is to transmit/receive electromag- netic waves to and from the atmosphere. The selection of the antenna for a WirelessUSB solution can have a big impact on wireless communication system performance, system form factor, and cost. The primary functions of an antenna are to provide the transfer of electromagnetic energy to and from the atmosphere and match the impedance of the transmission line feed (typically 50 ohms) and the impedance of free space (377 ohms). An antenna essentially provides a means of converting electrical energy into electromagnetic waves for transmission and reconverting the electromagnetic waves into electrical energy for reception. There are several properties of the antenna that affects the performance of wireless communi- cation system utilizing the Cypress WirelessUSB system radio chip. This application note describes a printed trace wiggle antenna design considerations and implementation guidelines for incorporating the WirelessUSB radio system chip into product applications in the ISM frequency band 2.4–2.5 GHz. Antenna Design Guidelines for WirelessUSB System Radio Chip Applications The most challenging parameter in designing the antenna in consumer, industrial, scientific, and medical applications is the environmental impact. The operating environment param- eters include indoor, outdoor, building materials, high-rise buildings, factories, and major highways. The physical environment parameters are related to the immediate physical structure surrounding the antenna, such as the placement of the antenna within a product package, the material of the enclosure, the human body, and the surrounding electronic/mechanical components. Therefore a significant amount of characterization, testing, validation and measurement have to be completed to optimize the antenna design. We have to consider several important antenna character- istics to achieve required antenna performance before deciding on the type of antenna and its implementation. In today’s wireless communication product design the choice of antenna selection is more critical and challenging depending upon the application demands in terms of cost, physical constraints and product packaging. Antenna Types There are many different types of antennas. Antennas most relevant to 2.4–2.5 GHz designs are: • Dipole Antennas • Sleeve Dipole Antennas • Loop Antennas • Helical Antennas • Whip (Monopole) Antennas • Ceramic Chip Antennas • Slotted Antennas • Printed/Planar Inverted –F Antennas • Printed Trace Wiggle Antennas • Microstrip Patch Antennas Each type of antenna has its own advantages and disadvan- tages depending upon the application. The optimal antenna solution is one that is part of mechanical structure or physical housing for achieving low-cost and consistency in perfor- mance. PCB Materials—Choose the Right One for Your Application A variety of different materials are used to fabricate PCBs. These materials can also be assembled in a variety of different ways potentially using multiple laminates, different materials and different plated through via structures. A range of finishes can also be used making use of materials such as gold, nickel, tin, and lead. The board material of choice for radio circuit application is FR4. Printed circuit board materials are available in various grades as defined by the National Electrical Manufacturers Associ- WirelessUSB™ Dual Antenna Layout Guidelines 2 ation (NEMA). It would be convenient for designers if NEMA was closely allied with the electronics industry—controlling parameters such as resistivity and dielectric constant of the material. Unfortunately, that is not the case. NEMA is an electrical safety organization, and the different PCB grades primarily describe the flammability, high temperature stability, and moisture absorption of the board. Therefore, specifying a given NEMA grade does not guarantee electrical param- eters of the material. If this becomes critical, consult the manufacturer of the raw board stock. Raw PCB stock is graded in flammability ratings (FR) from 1 to 5, with 1 being the most flammable and 5 the least. FR-4 is commonly used in industrial quality equipment, while FR-2 is used in high volume consumer applications. Although there are no set rules for this, it appears to be an industry “standard”. Deviating from it without good reason can limit the number of s…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR TRANSPORTER POINTER(MOUSE) MODEL NUMBER: GPT65M FCC ID: JJ4-TP1 REPORT NUMBER: 05U3790-1 ISSUE DATE: FEBRUARY 10, 2006 Prepared for GYRATION 12950 SARATOGA AVE. SARATOGA, CA 95070, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 05U3790-1 DATE: FEBRUARY 10, 2006 EUT: Transporter Pointer(Mouse) FCC ID: JJ4-TP1 Page 2 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By A 2/10/06 Initial Issue DG REPORT NO: 05U3790-1 DATE: FEBRUARY 10, 2006 EUT: Transporter Pointer(Mouse) FCC ID: JJ4-TP1 Page 3 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 9 7. LIMITS AND RESULTS ................................................................................................................. 10 7.1. CHANNEL TESTS FOR THE 2400 TO 2483.5 MHz BAND ...................................................... 10 7.1.1. 6 dB BANDWIDTH ........................................................................................................... 10 7.1.2. 99% BANDWIDTH............................................................................................................ 14 7.1.3. PEAK OUTPUT POWER .................................................................................................. 18 7.1.4. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 23 7.1.5. AVERAGE POWER........................................................................................................... 26 7.1.6. PEAK POWER SPECTRAL DENSITY ............................................................................ 27 7.1.7. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 31 7.2. RADIATED EMISSIONS.............................................................................................................38 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 38 7.2.2. TRANSMITTER ABOVE 1 GHz FOR 2400 TO 2483.5 MHz BAND ............................. 41 7.2.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ............................................. 50 7.3. POWERLINE CONDUCTED EMISSIONS ................................................................................ 54 8. SETUP PHOTO ................................................................................................................................ 55 REPORT NO: 05U3790-1 DATE: FEBRUARY 10, 2006 EUT: Transporter Pointer(Mouse) FCC ID: JJ4-TP1 Page 4 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: GYRATION 12950 SARATOGA AVE. SARATOGA, CA 95070, USA EUT DESCRIPTION: Transporter Pointer(Mouse) MODEL: GPT65M SERIAL NUMBER: 01162 DATE TESTED: DECEMBER 20 – 22, 2005 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compli…

Text truncated - open the document above for the full version.

REPORT NO: 05U3790-1 DATE: FEBRUARY 10, 2006 EUT: Transporter Pointer(Mouse) FCC ID: JJ4-TP1 Page 55 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTO ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 05U3790-1 DATE: FEBRUARY 10, 2006 EUT: Transporter Pointer(Mouse) FCC ID: JJ4-TP1 Page 56 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP – EUT STAND ALONE RADIATED FRONT PHOTO REPORT NO: 05U3790-1 DATE: FEBRUARY 10, 2006 EUT: Transporter Pointer(Mouse) FCC ID: JJ4-TP1 Page 57 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT RADIATED BACK PHOTO
