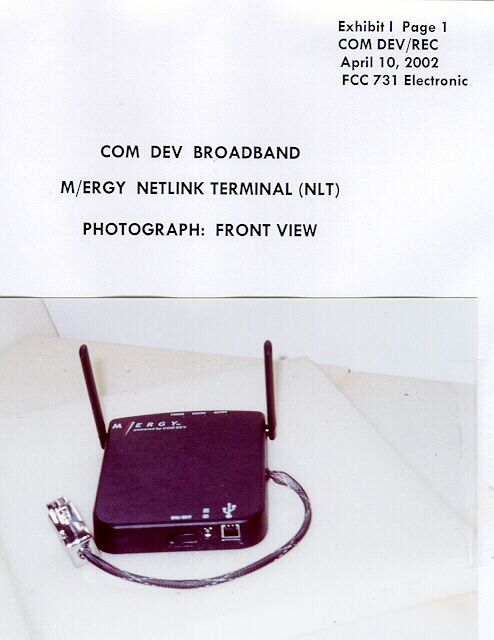

NetLink Terminal for Microsoft R Windows R User Guide DRAFT COPY Beta Release Version 1.0 Version 1.0 Beta Release March 7, 2002 380-10003-01-E05 www.comdev.cc NetLink Terminal for Microsoft ® Windows ® User Guide Copyright© 2001, 2002 by COM DEV Broadband. The copyright to this document is owned, without reser- vation, by COM DEV Broadband. This document may not be copied in whole or part without the express, written permission of COM DEV Broadband. The information in this document is subject to change without notice. All rights reserved. Printed in the United States. COM DEV Broadband is the owner of the trademark M/ERGY among others. All other products or com- pany names are used for identification purposes only, and are trademarks of their respective owners. Copyright © 2001, 2002 by COM DEV Broadband. The copyright to this document is owned, without reservation, by COM DEV Broadband. This document may not be copied in whole or part without the express, written permission of COM DEV Broadband. The information in this document is subject to change without notice. All rights reserved. Printed in the United States. iii Contents Chapter 1: Welcome to M/ERGY for Microsoft Windows . . . 1 Features of M/ERGY and Your NetLink Terminal. . . . . . . . . 1 Speed Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Where You Can Use Your NetLink Terminal . . . . . . . . . . . . 2 What Your System Needs . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Getting More Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Chapter 2: Installing the Software on Your Computer . . . . . 5 Windows 2000 Considerations . . . . . . . . . . . . . . . . . . . . . . . 5 Using the Installation Wizard . . . . . . . . . . . . . . . . . . . . . . . . 5 Uninstalling M/ERGY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Chapter 3: Installing Your NetLink Terminal . . . . . . . . . . . . 13 Connecting Your NetLink Terminal. . . . . . . . . . . . . . . . . . . 13 Preparing to Use Your NetLink Terminal . . . . . . . . . . . . . . 14 Getting to Know Your NetLink Terminal . . . . . . . . . . . . . . . 15 LEDs on Your NetLink Terminal . . . . . . . . . . . . . . . . . . 15 Chapter 4: Using Your NetLink Terminal . . . . . . . . . . . . . . . 17 Getting an M/ERGY Account . . . . . . . . . . . . . . . . . . . . . . . 17 Connecting to the Internet for the First Time . . . . . . . . . . . 17 Connecting to the Internet Daily . . . . . . . . . . . . . . . . . . . . . 20 Disconnecting from the Internet . . . . . . . . . . . . . . . . . . . . . 20 Making Changes to Your M/ERGY Service . . . . . . . . . . . . 20 Viewing the M/ERGY Status Screen . . . . . . . . . . . . . . . . . 24 General Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Details Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Modifying Your Internet Sharing Option . . . . . . . . . . . . . . . 25 Charging the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Updating Your NetLink Terminal Software . . . . . . . . . . . . . 25 Nomadic vs. Mobile Service . . . . . . . . . . . . . . . . . . . . . . . . 25 How to Improve Data Speed. . . . . . . . . . . . . . . . . . . . . . . . 26 Conditions to Avoid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Chapter 5: Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 27 Problems and Their Solutions. . . . . . . . . . . . . . . . . . . . . . . 27 NetLink Terminal for Microsoft Windows User Guide Copyright © 2001, 2002 by COM DEV Broadband. The copyright to this document is owned, without reservation, by COM DEV Broadband. This document may not be copied in whole or part without the express, written permission of COM DEV Broadband. The information in this document is subject to change without notice. All rights reserved. Printed in the United States. iv Copyright © 2001, 2002 by COM DEV Broadband. The copyright to this document is owned, without reservation, by COM DEV Broadband. This document may not be copied in whole or part without the express, written permission of COM DEV Broadband. The information in this document is subject to change without notice. All rights reserved. Printed in the United States. 1 Chapter 1 Welcome to M/ERGY for Microsoft Windows Features of M/ERGY and Your NetLink Terminal Welcome to M/ERGY™ for Microsoft ® Windows ® . Your M/ERGY software, along with your NetLink Terminal, make it easy for you to obtain a wireless Internet connection from anywhere, including your home, your office, and even while traveling in a moving vehicle. By simply installing the M/ERGY software and plugging in your NetLink Terminal, you can quickly begin surfing the Web and checking your e-mail – all wirelessly. Speed Advantages Your NetLink Terminal allows you to wirelessly access the Internet at speeds comparable to wired broadband systems such as DSL. While M/ERGY offers peak data rates of 2.4 Mbps, average data rates are 1.2 Mbps. Figure 1-1: The NetLink Terminal NetLink Terminal for Microsoft Windows User Guide Copyright © 2001, 2002 by COM DEV Broadband. The copyright to this document is owned, without reservation, by COM DEV Broadband. This document may not be copied in whole or part without the express, written permission of COM DEV Broadband. The information in this document is subject to change without notice. All rights reserved. Printed in the United States. 2 Where You Can Use Your NetLink Terminal In Different Rooms of Your Home Enjoy the ease and convenience of browsing the Internet from any spot in your home, including your living room, bedroom, and even your backyard. The NetLink Terminal’s light-weight design allows it to be easily transported, along with your laptop, to anywhere inside or outside your home. In Different Locations in Your Office Conduct your daily business activities with the assurance that you can access the Internet, your corporate intranet, …

Text truncated - open the document above for the full version.

Attachment #1 Confidential Request COM DEV Broadband 05/22/02 12:50 PM Radio & Tv Engineering Co. April 20, 2002 REQUEST FOR CONFIDENTIALITY CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: FCC ID: JJA-9001000101 , M/ERGY NetLink Terminal, Application for 1900 mHz CDMA Wireless Internet Access Terminal Transceiver Equipment Authorization (Certification) Gentle me n: Lober & Walsh Engineering, Inc. doing business as COM DEV Broadband, 805 Aerovista Place, San Luis Obispo, California 93401 herein submits "Electronic" Application for Equipment Authorization (to be followed by submission of check in the amount of $145.00 along with Form 159 and a check for $495.00 with Form 731 sent to the FCC at Pittsburgh for Certification of a 1900 mHz CDMA Wireless Internet Terminal Transceiver under FCC Rule Part 24(e), FCC ID: JJA-9001000101. In addition to confidentiality for the entire application prior to grant (per 47CFR0.457(d)(1) (ii)), COM DEV Broadband requests, pursuant to 47CFR0.459, post-grant confidentiality for portions of the material contained in this application such that the identified material will be withheld from public inspection following the grant of this authorization. This material as indicated by request for confidentiality of the items during the electronic submission process and further identified on the attached List of Exhibits. This request includes circuit diagrams and operation & maintenance manuals, and includes, but is not limited thereto, these specific items: Schematics, Pictures of Circuit boards, Pictures of the inside of radios and amplifiers, Operation manuals and Circuit descriptions. This material contains COM DEV Broadband’s confidential information and trade secrets, which COM DEV Broadband does not customarily release to the public, and which is otherwise not available to the public. Furthermore, COM DEV Broadband believes that these exhibits contain material that is leading edge technology. The information related to circuit function and complexity is not readily available, and would be of benefit to competitors and detrimental to Com Dev Broadband. COM DEV Broadband has spent a large amount of money to conduct the research necessary to develop this circuitry and software and obtain the first-to-market advantage as a result. Access to this information by competitors would eliminate that advantage. Please contact me by telephone at (805) 528-1996, by fax at (805) 528-1982 or by correspondence at the address below if there are any further questions or additional information needed concerning this filing. Regards, Norwood J. Patterson Norwood Patterson Radio & TV Engineering Co. 1416 Hollister Lane Los Osos CA 93402 Enclosures

Attachment #1 Confidential Request COM DEV Broadband 05/22/02 6:30 PM Radio & Tv Engineering Co. April 20, 2002 REQUEST FOR CONFIDENTIALITY CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: FCC ID: JJA-9001000101 , M/ERGY NetLink Terminal, Application for 1900 mHz CDMA Wireless Internet Access Terminal Transceiver Equipment Authorization (Certification) Gentle me n: Lober & Walsh Engineering, Inc. doing business as COM DEV Broadband, 805 Aerovista Place, San Luis Obispo, California 93401 herein submits "Electronic" Application for Equipment Authorization (to be followed by submission of check in the amount of $145.00 along with Form 159 and a check for $495.00 with Form 731 sent to the FCC at Pittsburgh for Certification of a 1900 mHz CDMA Wireless Internet Terminal Transceiver under FCC Rule Part 24(e), FCC ID: JJA-9001000101. In addition to confidentiality for the entire application prior to grant (per 47CFR0.457(d)(1) (ii)), COM DEV Broadband requests, pursuant to 47CFR0.459, post-grant confidentiality for portions of the material contained in this application such that the identified material will be withheld from public inspection following the grant of this authorization. This material as indicated by request for confidentiality of the items during the electronic submission process and further identified on the attached List of Exhibits. This request includes circuit diagrams and operation & maintenance manuals, and includes, but is not limited thereto, these specific items: Schematics, Pictures of Circuit boards, Pictures of the inside of radios and amplifiers, Operation manuals and Circuit descriptions. This material contains COM DEV Broadband’s confidential information and trade secrets, which COM DEV Broadband does not customarily release to the public, and which is otherwise not available to the public. Furthermore, COM DEV Broadband believes that these exhibits contain material that is leading edge technology. The information related to circuit function and complexity is not readily available, and would be of benefit to competitors and detrimental to Com Dev Broadband. COM DEV Broadband has spent a large amount of money to conduct the research necessary to develop this circuitry and software and obtain the first-to-market advantage as a result. Access to this information by competitors would eliminate that advantage. Please contact me by telephone at (805) 528-1996, by fax at (805) 528-1982 or by correspondence at the address below if there are any further questions or additional information needed concerning this filing. Regards, Norwood J. Patterson Norwood Patterson Radio & TV Engineering Co. 1416 Hollister Lane Los Osos CA 93402 Enclosures

Attachment #1 Confidential Request COM DEV Broadband Revised 8/24/02 9:01 PM Radio & Tv Engineering Co. ¶ 1 * Exhibit 8 Revised 8/14/2002 Amended Wednesday, August 14, 2002 REQUEST FOR CONFIDENTIALITY CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: FCC ID: JJA-9001000101 , M/ERGY NetLink Terminal (NLT) Application for 1900 MHz CDMA Wireless Internet Access Terminal Transceiver Equipment Authorization (Certification) FCC 731Ea #467668 Correspondence #23243 Gentle me n: Lober & Walsh Engineering, Inc. doing business as COM DEV Broadband, 805 Aerovista Place, San Luis Obispo, California 93401 herein submits "Electronic" Application for Equipment Authorization (to be followed by submission of check in the amount of $145.00 along with Form 159 and a check for $495.00 with Form 731 sent to the FCC at Pittsburgh for Certification of a 1900 mHz CDMA Wireless Internet Terminal Transceiver under FCC Rule Part 24(e), FCC ID: JJA-9001000101. In addition to confidentiality for the entire application prior to grant (per 47CFR0.457(d)(1) (ii)), COM DEV Broadband requests, pursuant to 47 CFR 0.459, post-grant confidentiality for portions of the material contained in this application such that the identified material will be withheld from public inspection following the grant of this authorization. This material as indicated by request for confidentiality of the items during the electronic submission process and further identified herein. This Confidentiality request includes circuit diagrams RF & Digital, Parts list and Circuit descriptions. This material contains COM DEV Broadband’s confidential information and trade secrets, which COM DEV Broadband does not customarily release to the public, and which is otherwise not available to the public. Furthermore, COM DEV Broadband believes that these exhibits contain material that is leading edge technology. The information related to circuit function and complexity is not readily available, and would be of benefit to competitors and detrimental to Com Dev Broadband. COM DEV Broadband has spent a large amount of time and money to conduct the research necessary to develop this circuitry and software and obtain the first-to-market advantage as a result. Access to this information by competitors would eliminate that advantage. Please contact me by telephone at e-mail [email protected] , (805) 528-1996, by fax at (805) 528-1982 or by correspondence at the address below if there are any further questions or additional information needed concerning this filing. Regards, Norwood J. Patterson Norwood Patterson

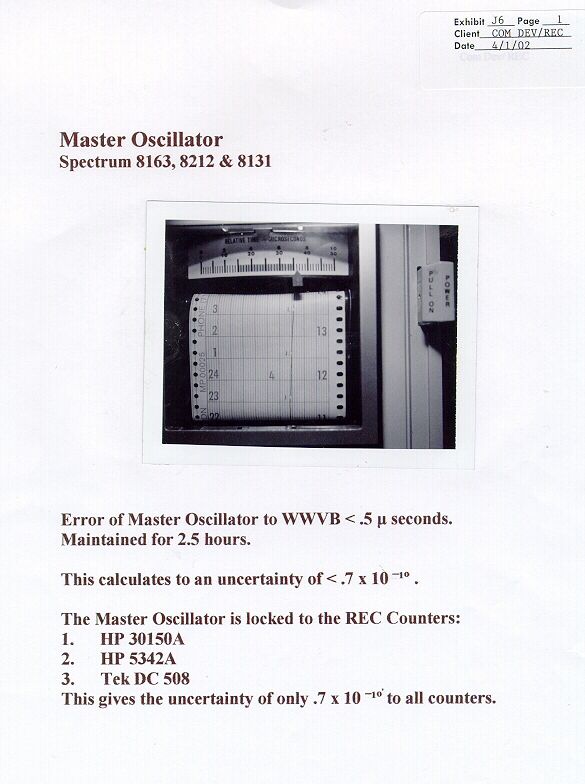

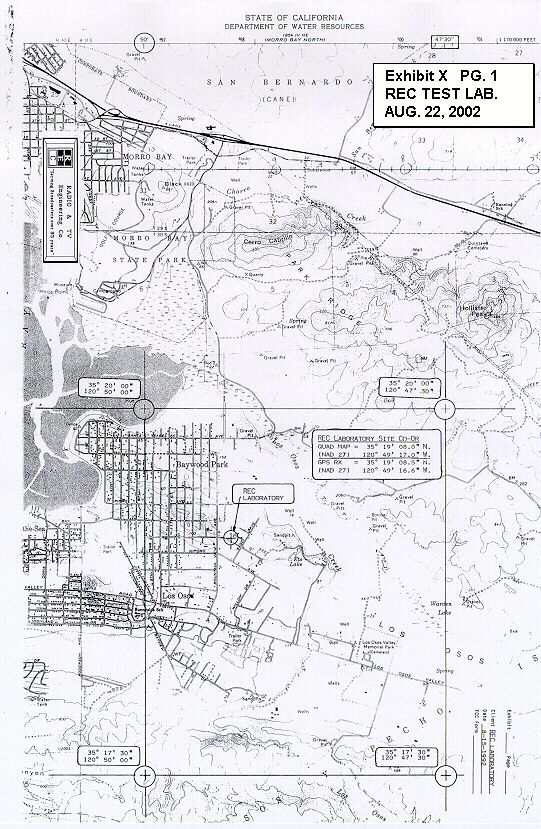

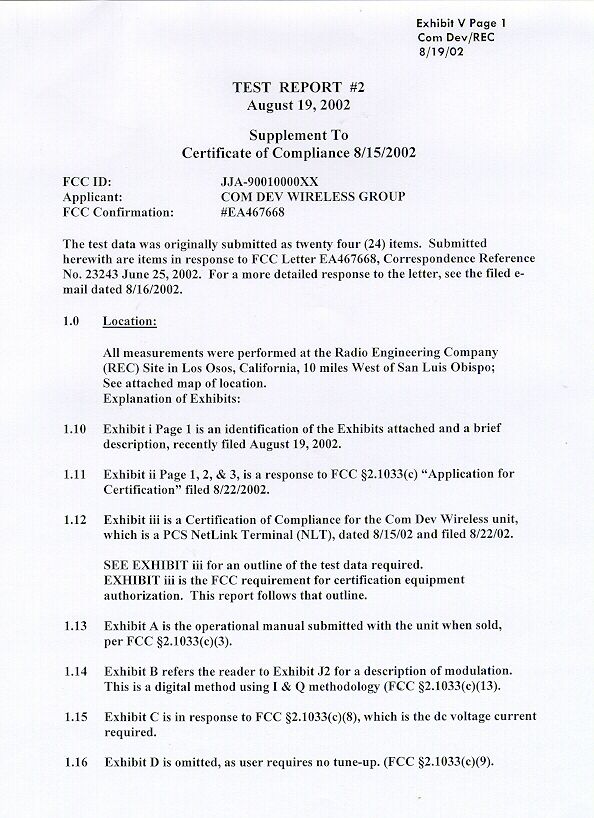

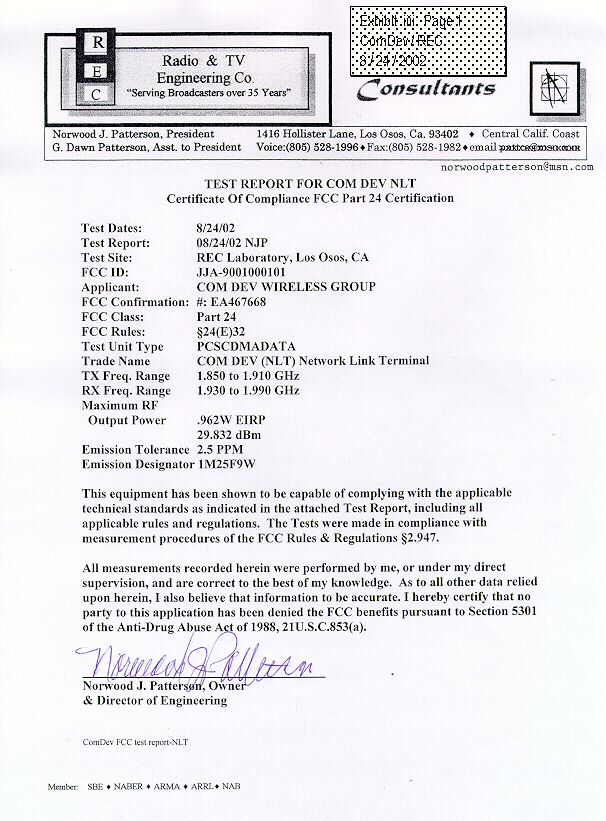

TEST EQUIPMENT: Radio & Tv Engineering Co. Date Cal. Cal. No. Item s/nAcquired Date No. 1.0 SPECTRUM ANALYZERS 1.1TEK 7L14B0101045/812/99 970203 1.2TEK 7L18B0207259/842/99 1.3TEK 7L5 Opt. 25B0712985/842/99 1.4Agilent E4407BUS40241323 4/027/02 41323 9 kHz to 26.5 GHz 2.0OSCILLOSCOPES/VECTOR VOLT METERS 2.1TEK 7704B2048332/876/99 970612NJP 2.2TEK 7B70 B2376758/772/99 970612NJP 2.3TEK 7A16AB0617288/772/99 970612NJP 2.4TEK 7012B0503768/776/93 2.5TEK 7014B0512413/796/94 970612NJP 2.6TEK 7M13B0617493/796/93 2.7TEK 7613B3435263/792/94 970204 2.8TEK SC502B0229366/794/92 2.9TEK 7A26B2446632/942/97 970612NJP 2.10 HP8405A66493/95 2.11 ULTEK Trigger Mate TVT601 00661/961/96 3.0 RF TRACKING GENERATORS 3.1TEK TR502B0203687/812/99 3.2TEK 7L50PT25B0712985/842/99 3.3Agilent E4407BUS40241323 4/027/02 41323 9 kHz to 3.0 GHz 4.0SIGNAL GENERATORS AUDIO 4.12-Tone SG376A/U 8583/794/92 4.2HP2067992/794/92 4.3Singer TG-IC22Univ.7/774/92 4.4TEK SG505B0101896/812/97 4.5RACAL-DANA 9083 21542/862/99 4.6TEK SG502B0731786/794/92 4.7TEK SG505B5005326/895/93 4.8GR1307A28533/932/97 970202 5.0 SIGNAL GENERATORS R.F. & VIDEO 5.1Rhode & SwartzSLRD3/794/92 5.2GR1021AV18991/814/92 5.3GR1001-A34141/814/92 5.4 HP8640B OPT.001 (1X10 ̄¹º)1416A01904 3/872/99 970601WWVB 5.5TS-403-BUGP-2291/874/92 5.6MSG-13471/874/92 - 2 - 5.7TS-418CAME-2921/874/92 5.8MSG-2AREC2481/874/92 5.9Pollard 1207REC691/874/92 5.10 HP-61888:CAQI1/874/92 5.11 HP-8656A OPT 001 2035A00479 5/816/99 5.12 TEK SWEEP SW503 B0102676/794/99 5.13 HP 11721A Freq. Dubler03952/812/99 5.14 Std. Spectracom 8131 (1x10 ̄¹º)05332/942/99 T8016 5.15 TEK TV Sig. Gen. TSG90 (NTS)B0218293/942/97 5.16 Agilent E8251US41140131 6/026/02 40131 250 kHz to 20 GHz 6.0 AC GENERATORS 110v AC 6.1 Honda ER400 6.2 Honda EM400 6.3 Generator 15 kW 7.0 FIELD INTENSITY METERS/R.F. RADIATION METERS 7.1Stoddart NM30A186-2510/774/99 7.2Stoddart NM50A143-215/774/99 7.3Stoddart URM42240-233/794/92 7.4Empire NF-11252810/764/92 7.5Potomac FIM-418821/806/93 7.6Potomac FIM-418882/806/93 7.7Federal FIM-101C 4601203/874/92 7.8Potomac FIM-2111149/886/93 7.9Stoddart URM-6752/874/92 7.10 Potomac FIM-717528/9212/92 7.11 NARDA RF Test Set 8718 wq/Probes: 300 kHz-40 GHz122612/951/96 7.12 SAR Probes & Amp.2/972/98 8.0 TEST CHAMBERS 8.1Delta 1060A21652/874/92 8.2Conrad ACO-CB-16RAC 83589/774/92 9.0 MULTI-METERS/TEMP./HUMIDITY/VELOCITY 9.1TEK DM502B0321179/782/99 9.2TEK DM501AB0247466/812/99 9.3TEK TM503B1191319/844/92 9.4TEK M3B0202372/844/92 9.5TEK M1B0202372/844/92 9.6Micronta 22-185A REC10B2/894/92 9.7Beckman AC-30709032522/896/99 9.8Simpson 2062/774/92 9.9University VoltMeter 6033102/774/92 - 3 - 9.10 Phastron Volt/Freq.Mtr. 420-0489811/714/92 9.11 HP E2377A3149J11888 3/923/92 9.12 TEK 503S (current) B0223592/942/97 9.13 TEK Probe 6302B056382/942/94 9.14 TEK TM502AB0240682/942/94 9.15 TEK Current Amp. B0242902/942/97 9.16 TEK DMM254TW115402/942/94 9.17 Temp/Humidity, Velocity Mtr. Omega HHF-710 w/probes 34984/942/97 9.18 TEK Current trans- Former CT-578455/952/97 10.0 FREQUENCY COUNTERS 10.1 TEK DC508B0102427/782/99 970201 10.2 GR 1192B004333/876/99 10.3 DIGITEC 8540A5187/842/99 10.4 TEK 7D14B0512413/796/93 10.5 HP8640B Opt.001 (1x10 ̄¹º)1416A01904 4/816/99 970601WWVB 10.6 HF Eng. Prescaler PS250 2706/804/92 10.7 Agilent 53150AUS40501324 4/024/02 01324 10 Hz-20 GHz 11.0 DIRECTIONAL COUPLERS 11.1 Sierra Z-1103/794/92 11.2 BIRD 4275-0203/794/99 11.3 BIRD 4274-0253/794/99 11.4 Narda 2978 (4-8 GHz) 0284/774/92 11.5 Narda3000-10 (.225-.460 mHz)060224/774/92 12.0 R. F. LOADS 12.1 Bird 80-M103023/794/92 12.2 Bird 6154 3393/794/92 12.3 Bird 82A 48013/794/92 12.4 Bird 8891 1774/804/92 12.5 Weinschel 535MN 100746/794/92 12.6 Sierra 160-20FN 29426/794/92 12.7 GR874 W-200 2716/774/92 12.8 GR874 W-50197976/774/92 12.9 TEK 017-0088-00 --7/874/92 12.10 Microlab TA-019 --7/874/92 13.0 R. F. ATTENUATORS 13.1 Bird 43142/874/92 13.2 Bird 43292/874/92 13.3 Bird 83222/874/92 13.4 Weinshel 10-1G17802/874/92 - 4 - 13.5 Weinshel 10-4507792/874/99 13.6 Weinshel 10-6407912/874/99 13.7 Weinshel 10-20169502/874/99 13.8 HP355A&BREC566/564 3/874/92 13.9 Bird 8340-1004846/814/92 13.10 Bird 8340-20023486/814/92 13.11 Narda 768-1075123/812/99 13.12 Narda 766-203/812/99 13.13 Narda 766-3041013/812/97 13.14 Bird 8322 5313/774/92 13.15 Bird 8340-100 9252/874/92 13.16 Narda 766-3941015/814/99 13.17 HP8498A DC-18 GHz (30 dB)007424/822/99 13.18 HP8494B DC-18 GHz (1/11 dB)1171614/822/99 13.19 HP8495B DC-18 GHz (10/70 dB) 117164/822/99 13.20 HP 8494B117164/822/99 13.21 HP (Set) 8491A 019806, 34273, 31245 203239/812/99 13.22 TEK 2701B0202146/796/93 13.23 Bird 83433 3, 6, 10 dB396,550,441 1/824/92 13.24 Bird 8332 5313/774/92 13.25 WEINSCHEL 3300 7724-2/874/99 (Set) .1-20 dBE667110/8710/99 13.26 GR874 GALREC-3533/874/92 13.27 WEINSCHEL 48-30-43 30 dB DC-18 GHzAN79096/872/99 13.28 Weinschel 49-30-43 30 dB dc-8 GHzNU4086/872/97 13.29 Narda 757-103771/961/96 13.30 Weinschel CN86A/U 861/961/96 13.31 Weinschel CN84U 651/961/96 13.32 Weinschel 211 19191/961/96 14.0 POWER SUPPLIES 14.1 LAMDA 200-03AM3/794/99 14.2 STD SRC 12-120-53/794/92 14.3 Invar TPA36-183/794/92 14.4 Sorensen QSB12-8 REC6834/804/92 14.5 Perkins 636-302/874/92 14.6 TEK PS501-2B0417516/794/92 14.7 TEK PS502-1B0523766/794/92 14.8 TEK TM503B1347402/942/94 14.9 TEK TM506B0149672/942/94 14.10 TEK TM502B0233592/942/94 14.11 TEK TM503B1191315/842/99 14.12 TEK TM504 Opt.7 B0211205/842/94 14.13 TEK TM504B0316075/842/94 14.14 TEK TM501B0847585/842/94 14.15 HP 6269B 3-ea.8/99 - 5 – 15.0 CAMERAS 15.1 TEK C5AB0208226/99 15.2 Minolta 1104/92 15.3 TEK C5CB0170086/99 15.4 Minolta 110 35mm4/92 15.5 Bolex 16mm4/92 15.6 Auricon 16mm4/92 15.7 Video VHS GE5/93 15.8 Polaroid SUN660 15.9 Nikon Digital 16.0 R. F. AMPLIFIERS & PRE-AMPLIFIERS 16.1 WBE A82AA82081468/764/92 16.2 WBE A52B010013/854/92 16.3 HP 10855An/a2/872/97 16.4 TEK CATV AM511B01010310/794/92 16.5 Optimax AL:-4004 083401/961/96 16.6 REC02 (dc-1.5 GHz) 0011/961/96 Broad Band Amplifiers: 16.7 EN1603L 800 kHz to 1.0 GHz (Po = Less than 3 Watts) 16.8 IF ±530…

Text truncated - open the document above for the full version.

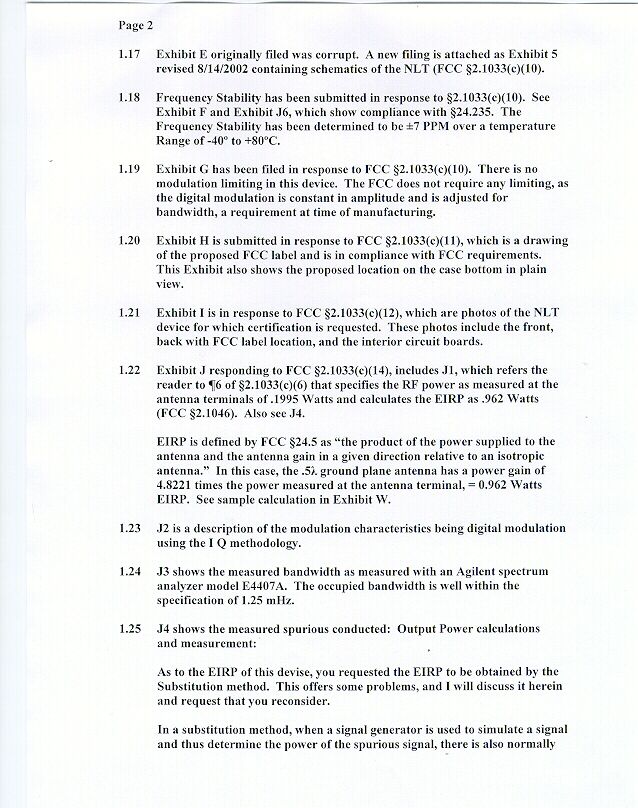

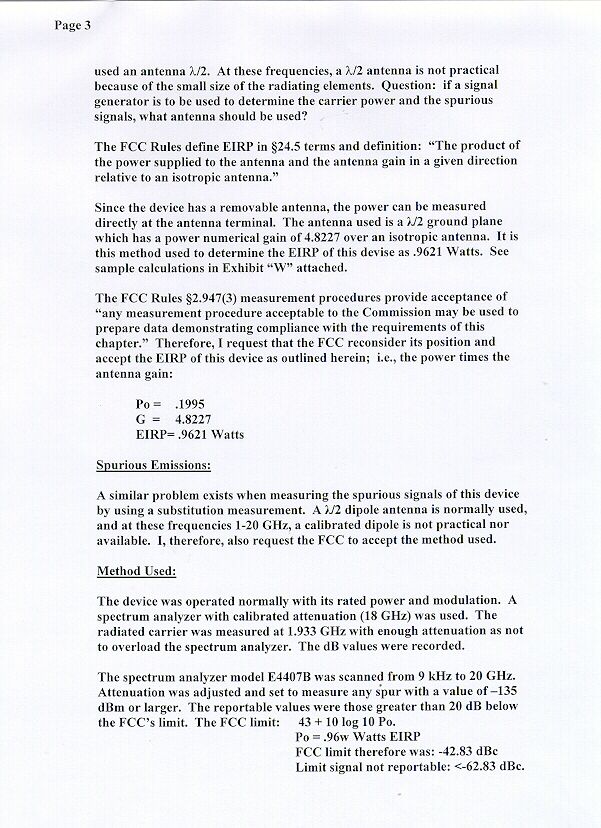

¶ 9 is in response to the FCC’s request; The Conducted ¶ 9 is in response to the FCC’s request; The Conducted¶ 9 is in response to the FCC’s request; The Conducted ¶ 9 is in response to the FCC’s request; The Conducted Power be specified in E.I.R.P. See Calculations below. Power be specified in E.I.R.P. See Calculations below.Power be specified in E.I.R.P. See Calculations below. Power be specified in E.I.R.P. See Calculations below. Radio & Radio & Radio & Radio & Tv Engineering Co. Tv Engineering Co.Tv Engineering Co. Tv Engineering Co. 1416 Hollister Lane 1416 Hollister Lane1416 Hollister Lane 1416 Hollister Lane Los Osos, CA 93402 Los Osos, CA 93402Los Osos, CA 93402 Los Osos, CA 93402 Tel: 805-528-1996 Tel: 805-528-1996Tel: 805-528-1996 Tel: 805-528-1996 Response to FCC Letter re RF Output Power ¶ 9 of FCC e-mail dated June 25, 2002 This paragraph requested the RF output power to be specified in E.I.R.P., defined in FCC Rules §24.5 terms and definition as: “The product of the power supplied to the antenna and the antenna gain in a given direction relative to an isotropic antenna.” The power supplied to the antenna was measured at the antenna terminal as 0.1995 Watts. The antenna used on the NLT is a .5  ground plane antenna. The maximum power gain over an isotropic antenna is 4.823; therefore, 0.1995 x 4.823 = .9622 Watts E.I.R.P. = (29.8327 DBm E.I.R.P.) Norwood J. Patterson 7/15/02 ComDev FCC E.I.R.P. response

Radio & Radio & Radio & Radio & Tv Engineering Co. Tv Engineering Co.Tv Engineering Co. Tv Engineering Co. 1416 Hollister Lane 1416 Hollister Lane1416 Hollister Lane 1416 Hollister Lane Los Osos, CA 93402 Los Osos, CA 93402Los Osos, CA 93402 Los Osos, CA 93402 Tel: 805-528-1996 Tel: 805-528-1996Tel: 805-528-1996 Tel: 805-528-1996 Response to FCC Letter re RF Output Power ¶ 9 of FCC e-mail dated June 25, 2002 This paragraph requested the RF output power to be specified in E.I.R.P., defined in FCC Rules §24.5 terms and definition as: “The product of the power supplied to the antenna and the antenna gain in a given direction relative to an isotropic antenna.” The power supplied to the antenna was measured at the antenna terminal as 0.1995 Watts. The antenna used on the NLT is a .5  ground plane antenna. The maximum power gain of tis antenna over an isotropic antenna is 4.822x; therefore, 0.1995 x 4.822 = 0.9620 Watts E.I.R.P. maximum (29.83 dBm). Norwood J. Patterson 7/15/02 ComDev FCC E.I.R.P. response

PROFILE OF NORWOOD J. PATTERSON EDUCATION Formal engineering studies at Pacific Radio School, San Francisco City College, San Mateo City College, and an alumnus of Stanford University 1944. Received FCC 1 st class radio telephone operator’s license in 1937. Started radio career at KSAN, San Francisco, as announcer and engineer. At age 21 was in charge of designing and installing a Million Dollar receiving station South San Francisco under Civil Service for the U. S. Federal Government. On-Going Education: Navigation, Coast Guard; Aircraft pilot; AOPA instrument pilot; Technical Writer (published in AARL magazine “QST” 1985 with front cover of antenna used in article.) BUSINESS EXPERIENCE In 1945 formed his own consulting firm, Radio & Tv Engineering Co., manufacturing towers, installation of radio towers, and broadcast industry consultation. For several years served as Chief Engineer at KSAN, and consulted with many radio and television properties for obtaining new facilities and improving existing stations: KGDM Stockton; KBLF Red Bluff; KBOX Modesto; KYOS Merced; KVSM San Mateo; KTRB Modesto; KWSN Mt. Shasta; KNPT Newport, Oregon; WAUL Auburn, AL; TV Avalon, CA; KVVT Barstow, KHIZ-TV, and many others throughout the United States. From 1945 to present designed directional antennas, filed FCC applications, installed and/or improved facilities, as a consultant to the broadcast industry. Owned, operated, and managed radio & television stations from 1944-2002. Broadcast station corporate officer, President, KSAN San Francisco, KBIF Fresno, KICU-TV Visalia, KTW AM and FM Seattle, KGDP AM Santa Maria, KWQH San Luis Obispo, and KPAT Santa Maria, CA. Supervised all Directors of engineering, financing, programming, sales, and management. Appeared as an “Expert Witness” before the FCC; before the U. S. Senate Television Hearings July 1956; FCC Hearings from 1943-1999 in Washington, DC; Superior Court of Los Angeles hearings re radio/TV stations; and other court appearances for clients. Owned and operated radio/TV stations throughout his career, as many as 5 radios and 2 TVs simultaneously. He began his career with his father, who owned and operated radio and television stations for 40 years. Designed directional antenna systems and phasing equipment, and filed FCC applications as Director of Engineering, installed and supervised directly all operations (as President): KSAN AMSan Francisco, CAKSAN TV San Francisco, CA KARE AMAtchison, KSKICU TVVisalia-Fresno, CA KJAY AMTopeka, KS KLVB FM San Luis Obispo, CA KTW AM/FMSeattle, WA KPAT FMSanta Maria, CA KGDP AM/FM Santa Maria, CA KWQH FM San Luis Obispo, CA Designed: KUIC FMVacaville, CA KRPA TVCatalina, CA KRQK FMLompoc, CAKPAT FMSanta Maria, CA KSMO AM San Mateo, CAKLVB FMSan Luis Obispo, CA KVVT TVBarstow, CAKWQH FM San Luis Obispo, CA Page 2 Assisted other engineers with Directional Antenna Design and Adjustments: KDON AM Salinas, CA KBOX AMModesto, CA KTIM AMSan Rafael, CA KCCV AMIndependence, MO KHVN FMAnchorage, AL Manufactured radio towers; Made mutual and self impedance measurements; proficient with state-of-the-art test equipment contained in REC Laboratory; type accepted through the FCC and Canada governments transmitters and receivers by measurements performed in his Laboratory; consultant to Industry Leaders on engineering matters; partial list: Harris CanadaSONYRockwellHoneywell Henry RadioHoneywellMetromedia NovAtel KokusaiCh. 44 R.P.V.Ch. 64 Barstow-Victorville Negotiated radio station sales: KSAN TV, Sold to Metromedi a$ 1.0 MillionYear: 1955 KLVB FM, San Luis Obispo to EMF$ .450 Million 1999 KPAT FM, Santa Maria to AGM$ .900 Million 2000 KWQH FM, San Luis Obispo to Clear Ch.$ 1.425 Million 2001 References, Professional AGM-Birmingham, LLC Mr. Tony Brandon, President (Radio Broadcaster) PO Box. 5688, Baltimore, MD 21210 Tel: (410) 832-5870 AGM-Birmingham, LLC Mr. Rogers Brandon, Vice President (Radio Broadcaster) PO Box 2700, Bakersfield, CA 93303 Tel: (661) 328-0118 Womble Carlyle Sandridge & Rice, PLLC, FCC Division, Washington DC Attorney Firm Mr. Vince Pepper; Mr. Peter Gutmann 1401 I St., NW, Suite 700, Washington, DC 20006 Tel: (202) 857-4400 Sinsheimer, Schiebelhut & Baggett Attorney Firm Mr. Robert Schiebelhut; Mr. Adam Daner 1010 Peach Street, PO Box 31 San Luis Obispo, CA 93406 Tel: (805) 541-2800 Barbich Longcrier Hooper & King, Accountancy Corporation Mr. Lou Barbich and Mr. Wayne Longcrier 1319 Marsh St., San Luis Obispo, CA 93401 Tel: (805) 541-2500 References-Manufacturers: Harris Canada, Inc., 6732 - 8 th Street N.E., Calgary, Alberta, Canada T2E 8M4 Tel: (403) 295-5000 Henry Radio, Inc., 2050 Bundy Dr., Los Angeles, CA 90025 Mr. Ted S. Henry Tel: (213) 820-1234 Page 3 Kokusai Electric Co., 3000 Marcus Ave., Lake Success, NY Mr. Shumei Nagaya; Yoshio Yamashita Tel: (516) 354-1177 SONY, 134 Goudo-Cho, Hodogaya-Ku, Okohama-SHI, 240 Japan Mr. S. Yamamoto Tel: Yokohama (045) 338-5111 Com Dev Wireless Group, 805 Aerovista Pl., Suite 101, San Luis Obispo, CA 93401 Mr. Josh Lober, Tel: (805) 544-1089 PERSONAL He and wife, Dawn, lived in Santa Ynez Valley for ten years, moved to Santa Maria for KGDP’s construction and operations, moved to Los Osos/SLO and established REC Laboratory and executive offices. They have 3 children, one of whom works full time for RRI and POA as chief accountant, G. Dawn Delgatty, and Jim Patterson as a Consultant, previous radio station owner/operator, and a 2-term Mayor of Fresno, CA for eight years. Holds an AOPA membership, commercial pilot-SEL-MEL-INSTRUMENT, FCC 1 st Class License, Amateur license Extra Class rating, member of Society of Broadcast Engineers, NABER Certified Tech, and ARRL 40-yr. Member. Honorable Navy Discharge 1944. MEMBERSHIPS & ASSOCIATIONS Grace Bible Church of Arroyo Grande; AOPA member #049667; FAA license #1085025; Commercial Pilot-SEL-MEL-SEA-INSTRUMENT; Elks Charter member #024; FCC license #P1-11-60569 1 st class for Life; FCC Amateur WYRX Extra Class License; Societ…

Text truncated - open the document above for the full version.

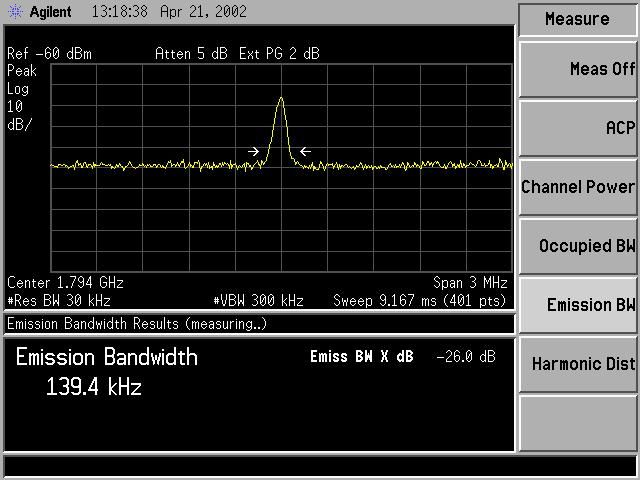

Memo To: Federal Communications Commission Attention: Stan Lyles, FCC Engineer Re: FCC ID:JJA-9001000101 Com Dev Wireless Date: October 31, 2002 From: Norwood J. Patterson, Radio & Tv Engineering Co. The attached file is in response to your request that Attachment D be placed in the file format of PDF. The attached are typical oscillograms of the tests performed on the Com Dev NTL transmitter. File Name: PKG9-NTL-PDF.POF This file has 22 oscillograms as indicated on the Table below with “thumbnails.” TABLE A: FCC ID: JJA-9001000101 File: PKG9-NTL-PDF.POF No. Ch. No. Description 1 1175 Occupied Bandwidth 2 1175 Channel Power 3 0025 Channel Power 4 1175 Harmonics 5 1175 Conducted Spurs 6 1175 Conducted Spurs 7 0600 Occupied Bandwidth 8 1175 Occupied Bandwidth 9 1175 Occupied Bandwidth 10 1175 Harmonics 11 1175 Band Edge 12 1175 Band Edge 13 1175 Band Edge 14 1175 Band Edge 15 1175 Power Output 16 0025 Power Output 17 0600 Power Output 18 0600 Power Output 19 0600 Occupied Bandwidth 20 0600 Occupied Bandwidth 21 1175 Occupied Bandwidth 22 1175 Adjacent Channel Power ComDev File PKG9-NTL-PDF..DOC
