JRMSK004Transmitter

REMOTE TRANSMITTER The slide cover is used to protect pressing buttons by accident. Move cover to up position to block all 4 buttos. 1 Arming/Locking/Panic 2 Disarming/Unlocking 3 Trunk Release/Option 4 Remote Start SLIDE COVER FUNCTION This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) this device may not cause harmful inerference,and (2)this device must accept any inerfence received,including inerference that may cause undesired operation. This equipment has been test and found to comply with the limits for a class B didital device,pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful inference in a residential installation.This equipment generates,use and can radio frequency energy and,if not installed and used in accordance with the instructions,may cause harmful interference to radio communications.However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encourage to try to correct the interference by one or more the following message: - - Reorient or relocate the receiving antenna - - Increase the separation between the equipment and receiver. - - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - - Consult the dealer or an intentional or unintentional radiator shall caution the user that change or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 FCC COMPLIANCE

Shingki Inc. DBA Micro Alarm Systems SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 Shingki Inc. DBA Micro Alarm Systems SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2013/7/17 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ _ Shingki Inc. DBA Micro Alarm Systems ____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product： Transmitter Trade Name： N/A Model Name： T518 Serial Model： N/A FCC ID： JRMSK004 We affirm that between SIEMIC and ___ Shingki Inc. DBA Micro Alarm Systems ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Signature Name: VICKY WANG Adds.: 4825 South Soto Street, Vernon, California 90058,United States

Shingki Inc. DBA Micro Alarm Systems SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 Shingki Inc. DBA Micro Alarm Systems SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2013/07/07 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: JRMSK004 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Signature Name: VICKY WANG Adds.: 4825 South Soto Street, Vernon, California 90058,United States

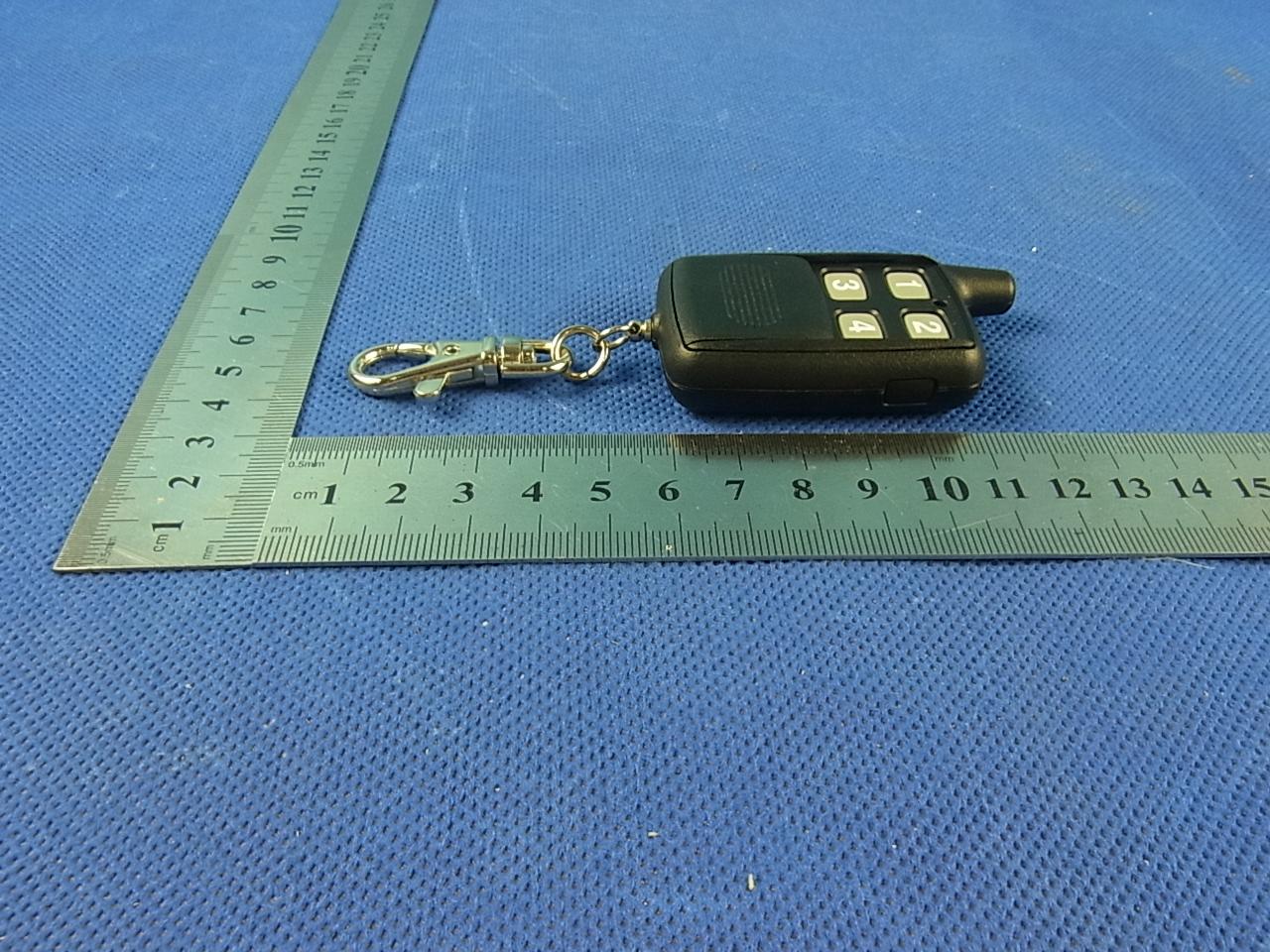

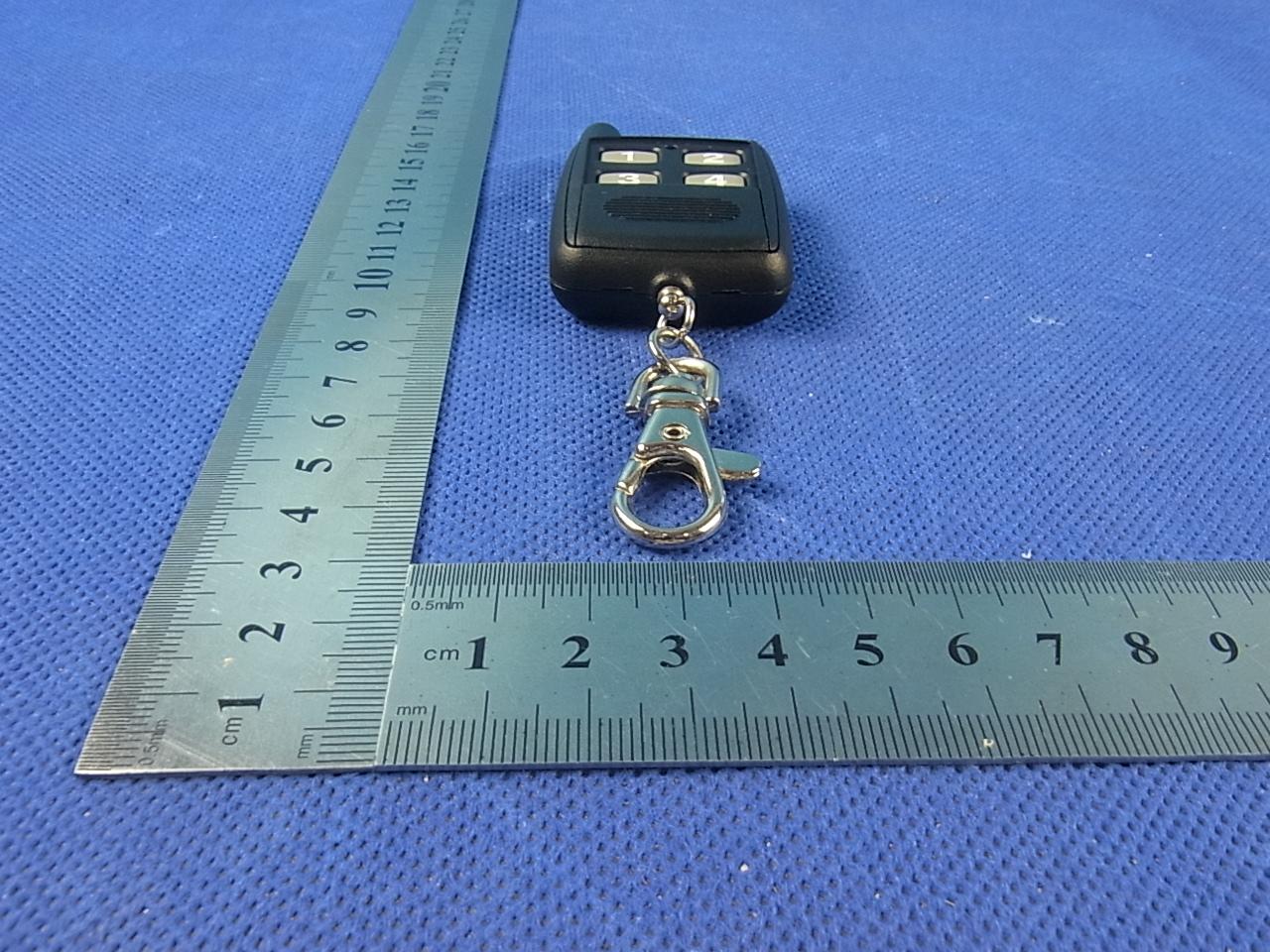

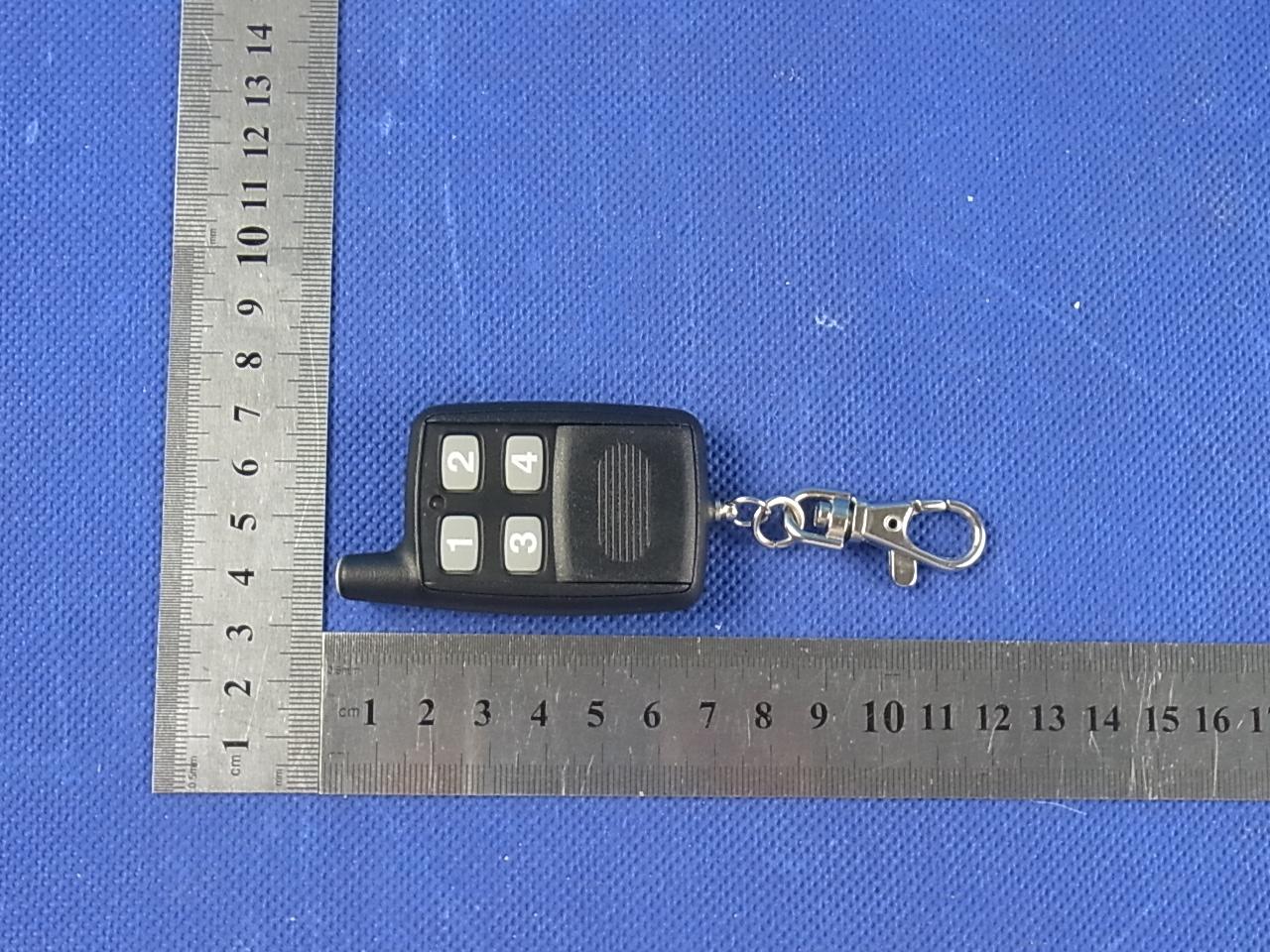

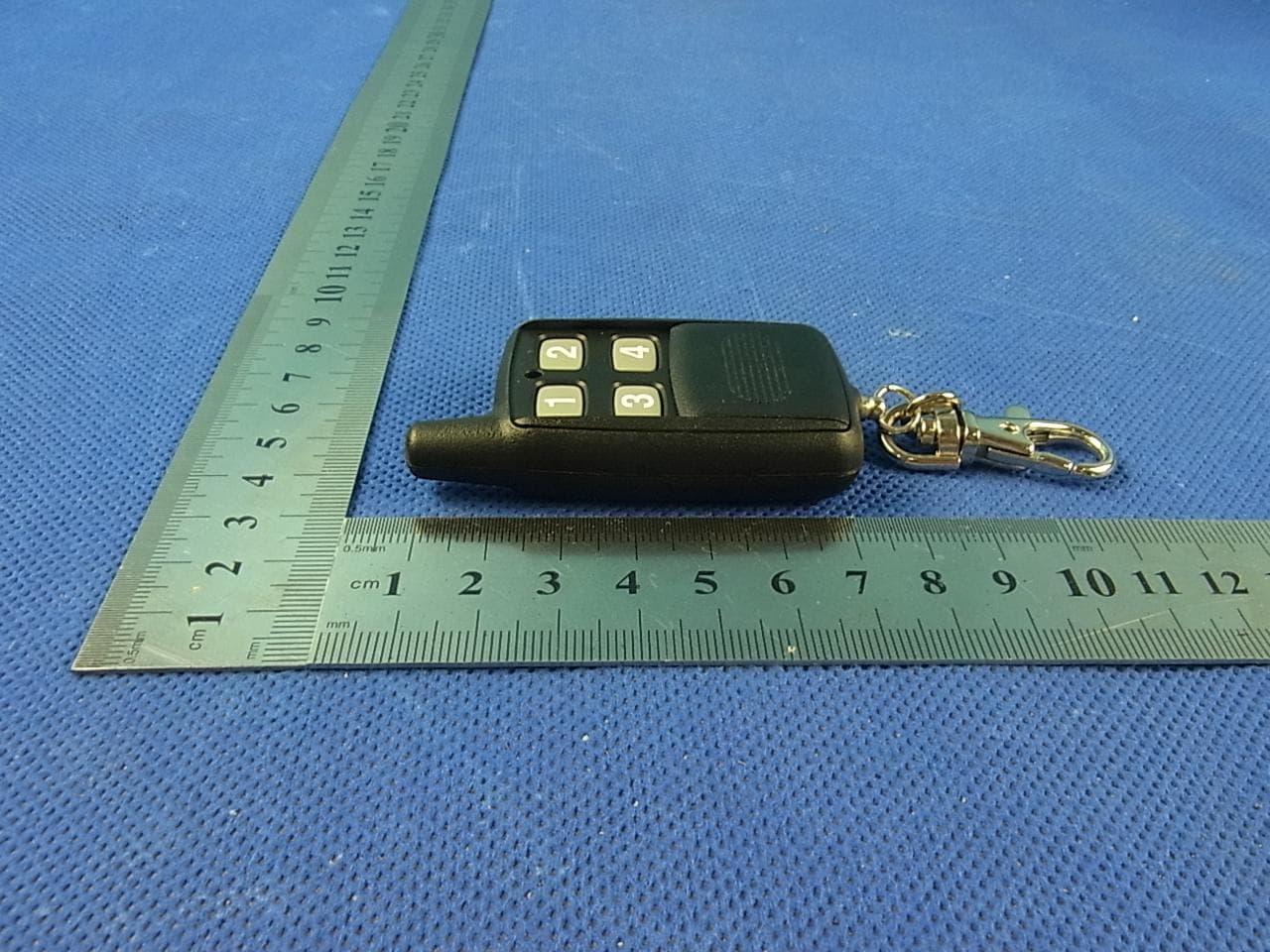

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

Label and Location Label T518 Transmitter FCC ID: JRMSK004

Photo 7 Photo 8 Photo 9 Photo 10

FCC RADIO TEST REPORT FCC ID: JRMSK004 Product： Transmitter Trade Name： N/A Model Name： T518 Serial Model： N/A Report No.： BZT13070274-3ER Prepared for Shingki Inc. DBA Micro Alarm Systems 4825 South Soto Street, Vernon, California 90058,United States Prepared by BZT Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. BZT Testing Technology Co., Ltd Page 2 of 27 Report No.: BZT13070274-3ER ` TEST RESULT CERTIFICATION Applicant’s name ................. : Shingki Inc. DBA Micro Alarm Systems Address ................................. : 4825 South Soto Street, Vernon, California 90058,United States Manufacturer........................ Beijing Jia An Electronics Technology Co., Ltd. Address.............................. No.19 GuCheng West Street, Shi Jing Shan District, Beijing 100043, CHINA Product description Product name............................ : Transmitter Model and/or type reference : T518 Serial Model： N/A Rating(s) ................................ : DC 12V Standards ............................. : FCC Part15.231 Test procedure ............................... : ANSI C63.4-2003 This device described above has been tested by BZT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BZT, this document may be altered or revised by BZT, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 05 Jul. 2013 ~18 Jul. 2013 Date of Issue .......................................... : 19 Jul. 2013 Test Result.............................................. : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) BZT Testing Technology Co., Ltd Page 3 of 27 Report No.: BZT13070274-3ER ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . ANTENNA REQUIREMENT 11 3.1 STANDARD REQUIREMENT 11 3.2 EUT ANTENNA 11 3.3 CONDUCTED EMISSION MEASUREMENT 12 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.3.2 TEST PROCEDURE 13 3.3.3 DEVIATION FROM TEST STANDARD 13 3.3.4 TEST SETUP 13 3.2.5 TEST RESULT 14 3.3.5 TEST RESULTS 14 3.4 RADIATED EMISSION MEASUREMENT 15 3.4.1 RADIATED EMISSION LIMITS 15 3.4.2 TEST PROCEDURE 16 3.4.3 DEVIATION FROM TEST STANDARD 16 3.4.4 TEST SETUP 17 3.4.5 TEST RESULTS (BELOW 30MHZ) 19 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 20 4 . BANDWIDTH TEST 23 4.1 TEST PROCEDURE 23 4.2 DEVIATION FROM STANDARD 23 4.3 TEST SETUP 23 4.4 TEST RESULTS 24 5 . TRANSMITTER TIMEOUT 25 5.1 REQUIREMENTS 25 6 . EUT TEST PHOTO 27 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS BZT Testing Technology Co., Ltd Page 4 of 27 Report No.: BZT13070274-3ER ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A Note(1) 15.203 Antenna Requirement Pass 15.231 Radiated Spurious Emission Pass 15.231 Occupied Bandwidth Pass 15.231 Transmitter Timeout Pass NOTE: (1) ” N/A” denotes test is not applicable in this Test Report. BZT Testing Technology Co., Ltd Page 5 of 27 Report No.: BZT13070274-3ER ` 1.1 TEST FACILITY BZT Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.: 701733 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% BZT Testing Technology Co., Ltd Page 6 of 27 Report No.: BZT13070274-3ER ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Transmitter Trade Name N/A Model Name T518 Serial Model N/A Model Difference N/A Product Description The EUT is a Transmitter Product Type Low Power Communication Device Transmitter Operation Frequency: 433.92MHz Modulation Type: OOK Number Of Channel 1CH. Antenna Designation: internal Antenna Antenna Gain(Peak) 2dBi Output Power: 74.15 dBuV/m (AV Max.) More details of EUT technical specification, please refer to the User's Manual. Channel List N/A Adapter N/A Battery DC 12V Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A Internal Antenna N/A 2 Antenna BZT Testing Technology Co., Ltd Page 7 of 27 Report No.: BZT13070274-3ER ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 TX For Conducted Emission Final Test Mode Description Mode 1 TX For Radiated Emission Final Test Mode Description Mode 1 TX Note: (1) The EUT use new battery. (2) The EUT is set to Continuous emission by short sensor. BZT Testing Technology Co., L…

Text truncated - open the document above for the full version.

BZT Testing Technology Co., Ltd Page 27 of 27 Report No.: BZT13070274-3ER ` 6. EUT TEST PHOTO Radiated Measurement Photos(worst case position)
