JWFTS4000ELRadio Modem

TS4000 Radio Modem User’s Manual 1729 South Main Street Milpitas, CA 95035 (408) 941-1808 (800) 663-3674 (408) 941-1818 Fax www.teledesignsystems.com [email protected] [email protected] This document is copyrighted by Teledesign Systems Inc. with all rights reserved. No part of this document may be reproduced in any form without the prior written consent of Teledesign Systems Inc. Copyright © 2012 by Teledesign Systems Inc. All rights reserved. This manual has been thoroughly reviewed for accuracy, and every effort has been made to ensure that the information is accurate and complete. However, different versions of this product have different features and capabilities, and this manual reflects only one of those versions. Therefore, Teledesign Systems Inc. assumes no responsibility for errors, omissions or defects in this material, and shall not be liable for any damages resulting from their use. The information in this document is subject to change without notice. TELEDESIGN SYSTEMS INC. MAKES NO WARRANTY OF ANY KIND WITH RESPECT TO THIS DOCUMENT AND SOFTWARE, EITHER EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Copyright Disclaimer TS4000 Radio Modem User’s Manual Emissions iii Emissions The TS4000 complies with Part 15 of the FCC Rules (Code of Federal Regulations 47CFR Part 15). Operation is subject to the following two conditions: (1) This device does not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The TS4000 has been type accepted for operation by the FCC in accordance with Part 90 of the FCC rules (47CFR Part 90). See the label on the unit for the specific FCC ID and any other certification designations. This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. The TS4000 has been certified for operation by Industry Canada in accordance with RSS-119 of the Industry Canada rules. See the label on the unit for the specific Industry Canada certification number and any other certification designations. Changes or modifications not expressly approved by Teledesign Systems Inc. could void the user’s authority to operate this equipment. Shielded cable must be used with this equipment in order to ensure that it meets the emissions limits for which it was designed. It is the responsibility of the user to obtain and use good quality shielded cables with this device. In order to ensure the safe operation of this radio equipment, the following practices should be observed. • DO NOT operate radio equipment near electrical blasting caps or in an explosive atmosphere. • DO NOT operate any radio transmitter unless all RF connectors are secure and any open connectors are properly terminated. • DO NOT allow the antenna to come close to, or touch, the eyes, face, or any exposed body parts while the radio is transmitting. In order to ensure the safe operation of this radio equipment, the minimum distance that a person should be from the attached antenna when this equipment is transmitting is 5.5 ft. (165 cm). This is based on using the TS4000 at a power of 5 watts with a 10dBd (12.1dbi) gain antenna. FCC Part 15 Part 90 Industry Canada ICES-003 RSS-119 Notice Safety Warning RF Exposure TS4000 Radio Modem User’s Manual Table of Contents iv Table of Contents Emissions ......................................................................................................iii FCC....................................................................................................iii Industry Canada.................................................................................iii Notice.......................................................................................................iii Safety Warning .......................................................................................iii RF Exposure ...........................................................................................iii Table of Contents..........................................................................................iv TS4000 Overview ...........................................................................................1 Introduction..............................................................................................1 Features....................................................................................................1 Connections.............................................................................................3 Serial Port ...........................................................................................3 Antenna Connector .............................................................................3 Power Connection...............................................................................3 Mounting ..................................................................................................4 Configuring the TS4000 ..........................................................................4 AirTest - Data Testing .............................................................................4 Upgrading the TS4000 Firmware ...........................................................4 AirScan .....................................................................................................4 Remote Diagnostics ................................................................................4 AirCalc - Range Estimation ....................................................................5 Status Lights............................................................................................6 Configuration Program..................................................................................7 Using Help................................................................................................7 Sys…

Text truncated - open the document above for the full version.

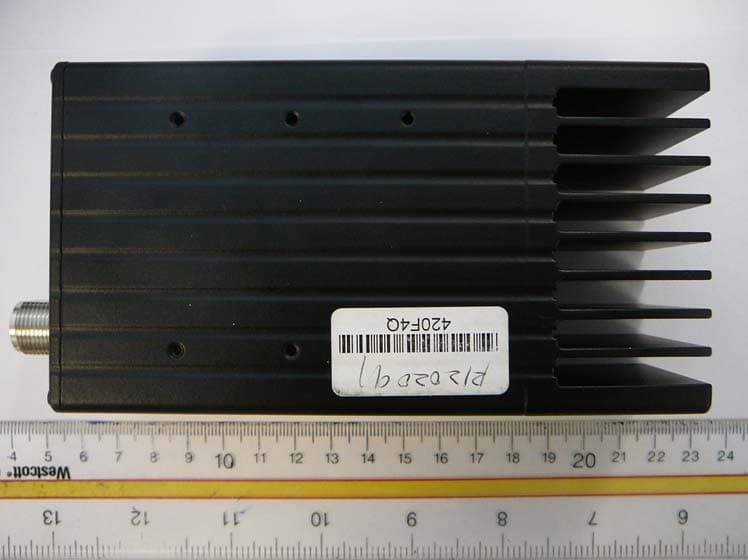

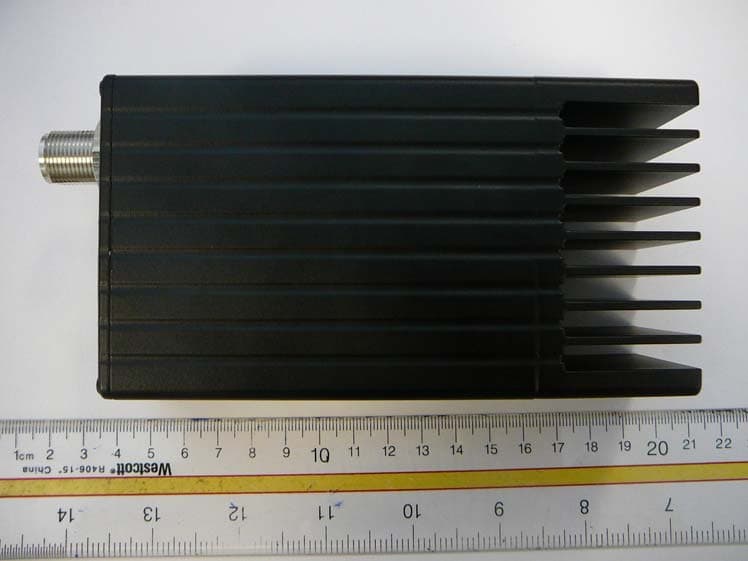

Teledesign Systems, Inc. FCC ID: JWFTS4000EL Report Number: R1202091-90EL Page 29 of 34 FCC Part 90 Test Report 14 Exhibit C - EUT Photographs 14.1 EUT - Top View 14.2 EUT – Bottom View Teledesign Systems, Inc. FCC ID: JWFTS4000EL Report Number: R1202091-90EL Page 30 of 34 FCC Part 90 Test Report 14.3 EUT – Port View 14.4 EUT – Side View

Teledesign Systems, Inc. FCC ID: JWFTS4000EL Report Number: R1202091-90EL Page 26 of 34 FCC Part 90 Test Report 12 Exhibit A - FCC Labeling Requirements 12.1 FCC ID Label Requirement Per FCC Part 2.925, (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123 Where: XXX—Grantee Code, 123—Equipment Product Code (b) The grantee code assigned pursuant to paragraph (c) of this section is assigned permanently to applicants/grantees and is valid only for the party specified as the applicant/grantee in the code assignment(s). (c) A grantee code will have three characters consisting of Arabic numerals, capital letters, or combination thereof (d) The equipment product code assigned by the grantee shall consist of a series of Arabic numerals, capital letters or a combination thereof, and may include the dash or hyphen (-). The total of Arabic numerals, capital letters and dashes or hyphens shall not exceed 14 and shall be one which has not been previously used in conjunction with: 12.2 FCC ID Label & Location Label here

Teledesign Systems, Inc. FCC ID: JWFTS4000EL Report Number: R1202091-90EL Page 31 of 34 FCC Part 90 Test Report 14.5 EUT – Cover off view 14.6 EUT – Modem PCB Top View Teledesign Systems, Inc. FCC ID: JWFTS4000EL Report Number: R1202091-90EL Page 32 of 34 FCC Part 90 Test Report 14.7 EUT – Modem PCB Bottom View 14.8 EUT – Radio PCB Top View Teledesign Systems, Inc. FCC ID: JWFTS4000EL Report Number: R1202091-90EL Page 33 of 34 FCC Part 90 Test Report 14.9 EUT – Radio PCB Bottom View 14.10 EUT – Radio PCB (Shielding off) Top View Teledesign Systems, Inc. FCC ID: JWFTS4000EL Report Number: R1202091-90EL Page 34 of 34 FCC Part 90 Test Report 14.11 EUT – Radio PCB (Shielding off) Bottom View --- END OF REPORT ---

Teledesign Systems, Inc. FCC ID: JWFTS4000EL Report Number: R1202091-90EL Page 9 of 34 FCC Part 90 Test Report 4 FCC §2.1091 - RF Exposure Information 4.1 Applicable Standards FCC §2.1091, (a) Requirements of this section are a consequence of Commission responsibilities under the National Environmental Policy Act to evaluate the environmental significance of its actions. See subpart I of part 1 of this chapter, in particular §1.1307(b). According to §1.1310 and §2.1091 RF exposure is calculated. Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 842/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Conclusion The device complies with the MPE requirements by providing a safe separation distance of at least 165 cm between the antenna with maximum 12.15 dBi gain, including any radiating structure, and any persons when normally operated. Maximum peak output power at antenna input terminal (dBm): 37.40 Maximum peak output power at antenna input terminal (mW): 5495.4 Prediction distance (cm): 165 Prediction frequency (MHz): 423.05 Maximum Antenna Gain, typical (dBi): 12.15 Maximum Antenna Gain (numeric): 16.41 Power density of prediction frequency at 165 cm (mW/cm 2 ): 0.264 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 0.282

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 90 TEST AND MEASUREMENT REPORT For Teledesign Systems, Inc. 1729 South Main Street, Milpitas, CA 95035, USA FCC ID: JWFTS4000EL Model: TS4000-05E41 Report Type: Original Report Product Type: UHF Radio Modem Test Engineer: Lionel Lara Report Number: R1202091-90EL Report Date: 2012-03-19 Reviewed By: Victor Zhang RF/EMC Lead Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94085, U.S.A. Tel: (408) 732-9162 Fax: (408) 732 9164 Teledesign Systems, Inc. FCC ID: JWFTS4000EL Report Number: R1202091-90EL Page 2 of 34 FCC Part 90 Test Report TABLE OF CONTENTS 1. General Information.............................................................................................................................................5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................5 1.2 MECHANICAL DESCRIPTION............................................................................................................................5 1.3 OBJECTIVE......................................................................................................................................................5 1.4 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................5 1.5 TEST METHODOLOGY.....................................................................................................................................6 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................6 1.7 TEST FACILITY................................................................................................................................................6 2 System Test Configuration...................................................................................................................................7 2.1 JUSTIFICATION................................................................................................................................................7 2.2 EUT EXERCISE SOFTWARE.............................................................................................................................7 2.3 EQUIPMENT MODIFICATIONS..........................................................................................................................7 2.4 INTERNAL CONFIGURATION............................................................................................................................7 2.5 LOCAL SUPPORT EQUIPMENT..........................................................................................................................7 2.6 LOCAL SUPPORT EQUIPMENT POWER SUPPLY AND LINE FILTERS..................................................................7 2.7 EXTERNAL I/O CABLING LIST AND DETAILS..................................................................................................7 3 Summary of Test Results......................................................................................................................................8 4 FCC §2.1091 - RF Exposure Information...........................................................................................................9 4.1 APPLICABLE STANDARDS...............................................................................................................................9 5 FCC §2.1046 & §90.205 – RF Output Power....................................................................................................10 5.1 APPLICABLE STANDARD...............................................................................................................................10 5.2 TEST PROCEDURE.........................................................................................................................................10 5.3 TEST EQUIPMENT LIST AND DETAILS............................................................................................................10 5.4 TEST ENVIRONMENTAL CONDITIONS............................................................................................................10 5.5 TEST RESULTS..............................................................................................................................................10 6 FCC §2.1047 & §90.207 – Modulation Characteristic .....................................................................................11 6.1 APPLICABLE STANDARD...............................................................................................................................11 6.2 TEST RESULT................................................................................................................................................11 7 FCC §2.1049 & §90.210 – Occupied Bandwidth & Emission Mask ...............................................................12 7.1 APPLICABLE STANDARD...............................................................................................................................12 7.2 TEST PROCEDURE.........................................................................................................................................12 7.3 TEST EQUIPMENT LIST AND DETAILS............................................................................................................12 7.4 TEST ENVIRONMENTAL CONDITIONS...............................…

Text truncated - open the document above for the full version.

Teledesign Systems, Inc. FCC ID: JWFTS4000EL Report Number: R1202091-90EL Page 27 of 34 FCC Part 90 Test Report 13 Exhibit B - Test Setup Photographs 13.1 Radiated Emission – Front View 13.2 Radiated Emission below 1 GHz – Rear View Teledesign Systems, Inc. FCC ID: JWFTS4000EL Report Number: R1202091-90EL Page 28 of 34 FCC Part 90 Test Report 13.3 Radiated Emission above 1 GHz – Rear View
