JXZITX02-2000Indoor Transmitter

Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 55 Proprietary 12.0 USER’S MANUAL Cable AML Installation and Maintenance Manual Indoor Broadband Transmitter Model: ITX02-2000 INSTALLATION AND MAINTENANCE MANUAL for Indoor Broadband Transmitter Model: ITX02-2000 Cable AML, Inc. 3427 W. Lomita Boulevard Torrance, California 90505 USA TEL 310 517-8888 or 702 363-5660 FAX 310 517-8555 or 702 363-2960 Copyright ©2003 Cable AML, Inc. IM402513-10 20030619 Indoor Broadband Transmitter – ITX02-2000 i IM402513-10 Rev – TABLE OF CONTENTS Section Page 1.0 INTRODUCTION ...................................................................................................... 1 2.0 CIRCUIT DESCRIPTIONS ....................................................................................... 7 2.1 MMDS Transmitter Driver ...............................................................................................7 2.2 Power Amplifier Chains ..................................................................................................8 2.3 Power Supply Assembly .................................................................................................8 2.4 Diagnostic Circuits ..........................................................................................................8 2.5 On-Delay Timer Assembly..............................................................................................9 2.6 Internal Downconverter ..................................................................................................9 3.0 INSTALLATION...................................................................................................... 11 3.1 Unpacking.....................................................................................................................11 3.2 Location ........................................................................................................................11 3.3 Input Voltage Requirements .........................................................................................11 3.4 Operating and Diagnostic Connections ........................................................................11 4.0 OPERATION .......................................................................................................... 17 4.1 Output Level Setting .....................................................................................................17 4.2 Ambient Conditions ......................................................................................................18 4.3 Thermal Sensor Switch ................................................................................................18 5.0 MAINTENANCE & TROUBLESHOOTING ............................................................ 19 5.1 Maintenance .................................................................................................................19 5.2 External Troubleshooting..............................................................................................19 5.3 Internal Troubleshooting...............................................................................................19 6.0 SPECIFICATIONS.................................................................................................. 21 Indoor Broadband Transmitter – ITX02-2000 ii IM402513-10 Rev – LIST OF ILLUSTRATIONS Figure Page Figure 1. ITX02-2000 Broadband Transmitter. ........................................................... 2 Figure 2. Dial and Expected Readings........................................................................ 3 Figure 3. MMDS Rack Monitor Panel. ......................................................................... 3 Figure 4. ITX02-2000 Block Diagram. .......................................................................... 5 Figure 5. Driver Chassis Component Layout. .......................................................... 10 Figure 6. MMDS Installation Block Diagram............................................................. 12 Figure 7. AC Input Wiring Diagram. .......................................................................... 13 Figure 8. Driver Chassis Front And Rear Panels. .................................................... 14 Figure 9. ITX02-2000 Rack (Front and Back). ........................................................... 15 Figure 10. Output Level Adjustment. ....................................................................... 17 Indoor Broadband Transmitter – ITX02-2000 1 IM402513-10 Rev – 1.0 INTRODUCTION The ITX02-2000 shown in Figure 1 is a solid-state broadband transmitter, which converts a VHF, input signal of 222 to 408 MHz to a microwave signal of 2.5 to 2.686 GHz. The ITX02-2000 transmitter consists of eight assemblies: 1. Driver Chassis - for converting the incoming VHF signal to microwave. The Driver chassis contains all components necessary for upconversion, i.e. local oscillator, mixer, as well as bandpass and notch filters. 2. Power Amplifier - input signal is amplified to a maximum level consistent with the Carrier to Composite Triple Beat (C/CTB) specification by state of the art GaAs FET microwave power amplifiers in a parallel, power-quadrupling configuration. The power amplifiers are protected from failure due to overheating by an internal temperature sensor. The sensor circuit automatically switches off the amplifier when the amplifier temperature exceeds 167 degrees F (75 degrees C). 3. Power supply system - a redundant 12 VDC system consisting of three current sharing modules with hot-plug replacement capability. Each module has an 84 Amp capability. Only two modules are required to run the system, making the third one a built-in spare. A +5 VDC voltage regulator is used to power the power amplifier TTL circuit. The Driver chassis and fans are powered by the +12 VDC power supply. 4. Monitoring and Diagnostic Circuits - To facilitate operational monitoring and diagnostics of: VHF input, VHF output, D…

Text truncated - open the document above for the full version.

Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 8 Proprietary 3.0 BLOCK DIAGRAM This section should include the block diagram of the EUT showing all internal oscillators and clock frequencies. The rule section that requires a block diagram to be submitted is 2.1033(b)(5). Although a block diagram is not specifically required for some devices, including a block diagram in the application will make processing of it easier. Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 9 Proprietary METER PANEL 1 30 dB METER PANEL 2 TEMP +RF MONITOR TEMP +RF MONITOR TEMP +RF MONITOR TEMP +RF MONITOR 0 90 0 90 0 90 0 90 0 90 0 90 120/240 VAC 50/60 Hz F1-1 AMP SLO-BLO 87202-019UPCONVERTER 12 VDC POWER SUPPLY POWER SUPPLY #1 12 VDC BUS POWER AMPS 10 dB (FRONT PANEL) DRIVER CHASSIS TO TTL-AMP VHF TEST POINTFRONT PANEL 10 dB RF OUT2500 TO2698 MHz RF TEST POINT (FRONT PANEL) 87225-013LOCAL OSCILLATOR2278.0 MHz MONITOR +12 VDC (METER PANEL) 87112-013NOTCHFILTER 87110-0014BANDPASSFILTER VHF IN222 - 420 MHz FAN METER PANEL POWER SUPPLY #2 POWER SUPPLY 24 VDC POWER SUPPLY 5 VDC REGULATOR ON-DELAY TIMER 40 dB PARALLEL POWER NETWORK RF OUT2500-2686 MHz31 CHANNELS34 dBm/CH POWER SUPPLY #3 TX MONITOR(FRONT PANEL) DOWN CONVERTER CONNECTION POINT (FRONT PANEL) POWER SUPPLY #4 12 VDC BUS POWER AMPS POWER SUPPLY #5 POWER SUPPLY #6 FANS FANS TTL +12 VDC TTLTTL +12 VDC TTL +12 VDC LO TEST POINT 87102-22020 dB +12 VDC 87116-004PUMP AMP 87151-013PUMP FILTER 86101-02020 dB 87194-000GAIN = 12 dB 63515-001 83401-001 ITX02 DRIVER 402013-06 87194-000GAIN = 12 dB 30 dB PWR INSERT DOWN CONVERT 10 dB 87226-001 421060-01VHF PROCESSOR ECN # REV DATE SHEET OF SCALE DRAWING NO. DATE APPROVED BY: REV. SIZE DATE DRAWN BY: TITLE COMPANY CABLE AML, INC. Torrance, California, USA 1 1 -- HCK 02-12-03 402513-10 ITX02-2000 GP MMDS -- -- Figure 2. ITX02-2000 Block Diagram.

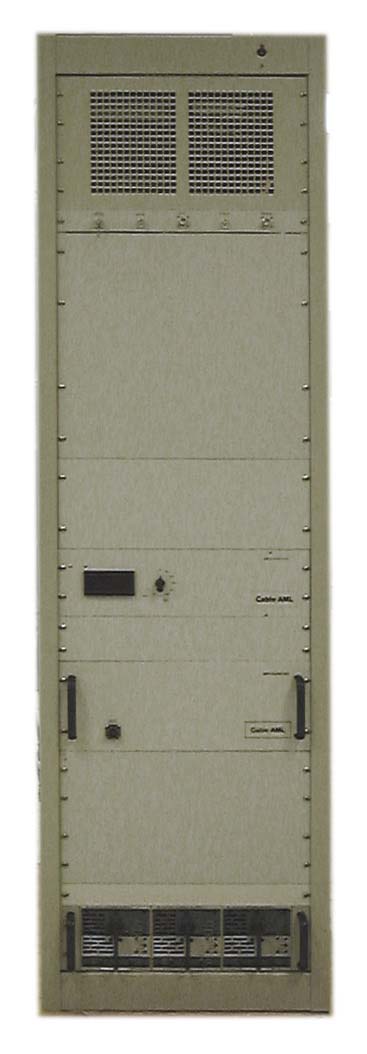

Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 10 Proprietary 4.0 EXTERNAL PHOTOS This section should include clear, focused pictures of the overall appearance showing all user accessible controls and connectors. The rule sections, which require these photos to be submitted, are 2.975(a)(5), 2.983(g) and 2.1033(b)(7). Figure 3. ITX02-2000 Broadband Transmitter (Front). Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 11 Proprietary Figure 4. ITX02-2000 Broadband Transmitter (Rear).

Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 12 Proprietary 5.0 ID LABEL AND LOCATION This section should include the FCC ID label, its location on the product, and any statements required by the rules that will be on the product. For examples and information on FCCID labels see 2.925 and 2.926 of the commissions rules. Some examples of statements required that should go in this section are the 15.19 and 15.214(c) statements. 5.1 Identification Labels and Photographs This label will be located at two places, inside on the left side-interior of the ITX02-2000 unit, and outside on the bottom surface. Cable AML 3427 W. Lomita Boulevard Torrance, CA USA 90505 Model: Model No: Part No: Serial No: FCC ID Date of Mfr: Indoor Transmitter ITX02-2000 402513-10 1192 JXZITX02-2000 June 2003 Made in USA Figure 5. Sample of ID Label. Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 13 Proprietary Figure 6. Inside ID Label Location. Figure 7. Outside ID Label Location. Internal ID Label External ID Label

Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 14 Proprietary 6.0 INTERNAL PHOTOS This section should include internal photos showing the top and bottom of each printed circuit board sufficient to clearly show component placement and chassis assembly. The rule sections, which require these photos are 2.975(a)(5), 2.983(g), 2.1033(b)(7). 50W Termination Hybrid Figure 8. ITX02-2000 Internal View (right side looking up). Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 15 Proprietary Figure 9. ITX02-2000 Internal View (looking rear, upper right). Figure 10. Front Internal View. Output Filte r Output Circulator & Termination Directional Couplers RF Detector Down-converter Power Amp (1 of 4) Front Panel Monitor Small Hybrid Variable Attenuator Phase Shifter LNA Driver Monitor Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 16 Proprietary Figure 11. Power-on Delay Panel. Figure 12. Front Internal View. Power Amp Input Power- Combining Circuit Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 17 Proprietary Figure 13. Front Internal View. Figure 14. Power Amplifier (1 of 4). On/Off Power Amp Panel (TTL) Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 18 Proprietary Amplifier Power Supply Local Oscillator Pump Amp Filters Upconverter VHF Processor Figure 15. Driver Chassis Component Layout. The ITX02-2000 is assembled from discrete components. It does not use a discrete printed circuit board. Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 19 Proprietary P/N: 87116-004 P/N: 87225-013 (Front) P/N: 52106-001 (Front) P/N: 87194-000 P/N: 87225-013 (Back) P/N: 52106-001 (Back) Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 20 Proprietary P/N: 52001-001 (Front) P/N: 87337-006 (Front) P/N: 52001-001 (Back) P/N: 87337-006 (Back)

Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 2 Proprietary 2.0 OPERATIONAL DESCRIPTION This section should include any operational or technical descriptions regarding how the device operates, is modulated, or meets specific requirements. Some examples of operational descriptions include: 2.1 General Description The MMDS Indoor Transmitter ITX02-2000 (shown in Section 4.0, Figure 3) is a solid- state broadband transmitter, which converts a VHF input signal of 222 to 408 MHz to a microwave signal of 2.5 to 2.686 GHz. The ITX02-2000 transmitter is comprised of the following sub-assemblies: 1. Driver Chassis - for converting the incoming VHF signal to microwave. The Driver chassis contains all components necessary for up-conversion, i.e. local oscillator, mixer, as well as band pass and notch filters. 2. Power Amplifier - input signal is amplified to a maximum level consistent with the Carrier to Composite Triple Beat (C/CTB) specification by state of the art GaAs FET microwave power amplifiers in a parallel, power-quadrupling configuration. The power amplifiers are protected from failure due to overheating by an internal temperature sensor. The sensor circuit automatically switches off the amplifier when the amplifier temperature exceeds 167° F (75° C). 3. Power supply system - a redundant 12 VDC system consisting of three current sharing modules with hot-plug replacement capability. Each module has an 84 Amp capability. Only two modules are required to run the system, making the third one a built-in spare. A +5 VDC voltage regulator is used to power the power amplifier TTL circuit. The Driver chassis and fans are powered by the +12 VDC power supply. 4. Monitoring and Diagnostic Circuits - To facilitate operational monitoring and diagnostics of: VHF input, VHF output, Driver RF output, and Transmitter RF output. diagnostic DC voltages can also be continuously monitored with the built-in meter on the Meter Panel. 5. On-Delay Timer Assembly - Delays power to the amplifier. This is done to avoid a big current surge when the transmitter is first turned on. 6. Internal Down-converter - For ease of monitoring the Transmitter’s output, a down- converter has been mounted inside. The down-converter takes a sample of the output and converts it to VHF. This VHF output signal can then be measured with a Field Strength Meter or a TV monitor. The ITX02-2000 transmitter can be equipped to operate on either 120 or 240 VAC at 50 or 60 Hz. This option is specified by customer request, and each unit is shipped according to this specification. Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 3 Proprietary 2.2 Technical Specifications ITX02-2000 Transmitter Input Frequency 2 : 222 to 408 MHz Input Level (80 channel loading): +20 dBmV (-29 dBm) Output Frequency 2 : 2.5 to 2.686 GHz Channels Average Power DBm/Channel Peak Power dBm/Channel C/N (dB) 9 40.5 43.0 72.5 Output Level for 50 dB C/CTB: (measured with CW carriers) 3 12 39.0 41.5 71.0 18 37.0 39.5 69.0 24 35.0 37.5 67.0 30 34.0 36.5 66.0 Local Oscillator Frequency 2: 2278 MHz Frequency Response: ±1.5 dB Frequency Stability: 0.0005% Input Return Loss: 15 dB Input Connector: Type "F" Output Return Loss: 18 dB Output Connector: Type “N” Temperature Range: 60° to 100°F (16° to 38°C) Humidity: 95% max. Primary Power: 120/240 VAC, 50/60Hz (per customer specification) Power Consumption: 2500 VA RMS Mounting: Enclosed Equipment Rack Weight: 450 lb. (205 kg) Dimensions: 22” rack W x 84” H x 27” D (55.9 cm rack W x 213.4 cm H x 68.6 cm D) 1 Specifications subject to change without prior notice. 2 Other frequencies available. 3 The C/CTB with modulated carriers is approximately 6 dB better than with CW carriers. Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 4 Proprietary The ITX02-2000 Transmitter consists of the following circuits or modules: 1. MMDS Transmitter Driver 2. Power Amplifier 3. Power Supply System (three +12 VDC current sharing modules and one +24 VDC power supply) 4. Monitoring and Diagnostic Circuits - connectors and switches. 5. On-Delay Timer Assembly. 6. Internal Down-converter. In addition, microwave isolators and filters are used as necessary to ensure the stability and purity of transmitted signals. 2.3 MMDS Transmitter Driver The MMDS Driver is comprised of the following major functional circuits or modules: 1. Local Oscillator (LO) 2. Up-converter/Mixer 3. Filter Assembly 4. Microwave Low Noise Amplifier 5. DC Diagnostics 6. Power Supply Local Oscillator (LO) The microwave local oscillator is a crystal oscillator and frequency multiplier encapsulated in a single enclosure. The output of the LO provides pump power to the signal up-converter. The LO is powered by a +12 VDC power supply. The long-term frequency stability of the oscillator is 5 parts per million per year. Up-converter Mixer The translation from VHF to microwave frequencies takes place here. The mixer is also called an "upper sideband up-converter". The desired output of the up-converter is a signal at a frequency, which is the sum of the local oscillator and VHF input frequencies. The up-converter also generates unwanted signals which have to be filtered out, among them the "lower sideband", LO leakage, and others. Filter Assembly There are two filters. The group band pass filter is tuned to pass the upper sideband. The notch filter is tuned to attenuate the local oscillator leakage without affecting the output signal. Microwave Low Noise Amplifier A Low Noise Amplifier accomplishes the amplification with minimum distortion. Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 5 Proprietary DC Diagnostics Circuit Certain test points in the transmitter can be monitored externally at the Remote Monitor output multi-pin connector on the front panel. These DC diagnostics are connected to the output connector through a signal conditioning circuit. The signal conditioning circuit is a network of resistors that provides s…

Text truncated - open the document above for the full version.

Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 49 Proprietary 11.0 PARTS LIST AND TUNE UP INFORMATION This section should include a list of active devices as required by 2.983(d)(6) and the tune up procedure as required by 2.983(d)(9). Pursuant to Section 2.983(d)(6), provide the function of each electron tube, semiconductor or other active circuit device. Pursuant to Section 2.983(d)(9), provide the tune-up procedure over the power range, or at specific operating power levels. Item Part No. Description Qty/Assy Unit 1 11002-000 WIRE HOOKUP BUSS 22AWG 0.8 FEET 2 11002-001 WIRE HOOKUP BROWN 22AWG 3.2 FEET 3 11002-001 WIRE HOOKUP BROWN 22AWG 3.3 FEET 4 11002-002 WIRE HOOKUP RED 22AWG 3.3 FEET 5 11002-002 WIRE HOOKUP RED 22AWG 4.6 FEET 6 11002-006 WIRE HOOKUP LT. BLUE 22AWG 2.5 FEET 7 11002-007 WIRE HOOKUP VIOLET 22AWG 2.5 FEET 8 11002-008 WIRE HOOKUP GRAY 22AWG 5.0 FEET 9 11002-010 WIRE HOOKUP BLACK 22AWG 3.0 FEET 10 11002-016 WIRE HOOKUP WHITE/GREEN 22AWG 3.3 FEET 11 11002-019 WIRE HOOKUP WHITE/BROWN 22AWG 1.7 FEET 12 11002-020 WIRE HOOKUP WHITE/RED 22AWG 1.0 FEET 13 11002-101 WIRE HOOKUP BROWN 18AWG 1.3 FEET 14 11002-102 WIRE HOOKUP RED 18AWG 1.3 FEET 15 11002-105 WIRE HOOKUP GREEN 18AWG 8.0 FEET 16 11002-109 WIRE HOOKUP WHITE 18AWG 8.0 FEET 17 11002-110 WIRE HOOKUP BLACK 18AWG 8.0 FEET 18 11003-001 TERMINAL CRIMP FORK 6 RED 11.0 EACH 19 11003-001 TERMINAL CRIMP FORK 6 RED 24.0 EACH 20 11003-001 TERMINAL CRIMP FORK 6 RED 25.0 EACH 21 11003-102 TERMINAL CRIMP FE PLUG RED 8.0 EACH 22 11003-103 TERMINAL CRIMP FE PLUG LARGE RED 16.0 EACH 23 11003-201 TERMINAL LUG 13.0 EACH 24 11004-001 CABLE TIES, SMALL 4" 12.0 EACH 25 11005-007 CABLE 8 CONDUCTOR 1.2 FEET 26 11005-014 CABLE SJO-3 CONDUCTOR NEOPRENE 300 50.2 FEET 27 12005-002 KNOB POINTER 1.0 EACH 28 13301-001 FUSE 1A SLO-BLO 1.0 EACH 29 14002-001 JUMPER 5.0 EACH 30 15148-134 SCREW PPH 1/4-20 X 1-3/4 1.0 EACH 31 15408-008 NUT 1/2" 3.0 EACH 32 402000-03 TX ITX02 DRIVER BASIC 1.0 EACH 33 402013-10 TX ITX02 DRIVER MMDS NO LO/PROC 1.0 EACH 34 50106-012 PANEL TOP COVER 12D BLANK 1.0 EACH 35 50110-007 PANEL REAR 7H BLANK 1.0 EACH 36 50112-007 PANEL GRILL LARGE GRID 10" 2.0 EACH 37 50113-020 PANEL SIDE 7H 12D BLANK 2.0 EACH Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 50 Proprietary Item Part No. Description Qty/Assy Unit 38 50114-005 PANEL BOTTOM ITX02-DRIVER 1.0 39 50114-020 PANEL BOTTOM 12D BLANK 1.0 EACH 40 50115-015 PANEL REAR MMDS DRIVER 1.0 EACH 41 50122-007 PANEL MTR MMDS 1000/2000 MACH'D 1.0 EACH 42 50122-307 PANEL METER MMDS 1000/2000 P/SS 1.0 EACH 43 50122-807 LABOR MACH PNL MTR MMDS 1000/2000 1.0 EACH 44 50122-907 LABOR PAINT PNL MTR MMDS 1000/2000 1.0 EACH 45 50128-001 PANEL FRONT 19X 1.72" MACH'D 1.0 EACH 46 50128-001 PANEL FRONT 19X 1.72" MACH'D 3.0 EACH 47 50128-002 PANEL FRONT BLANK 19" X 3.47" 1.0 EACH 48 50128-002 PANEL FRONT BLANK 19" X 3.47" 2.0 EACH 49 50128-003 PANEL FRONT BLANK 19" X 5.22" 1.0 EACH 50 50128-004 PANEL FRONT BLANK 19" X 6.97" 1.0 EACH 51 50128-007 PANEL FRONT BLANK 19" X 12.22" 3.0 EACH 52 50128-008 PANEL FRONT BLANK 19" X 13.97" 3.0 EACH 53 50128-010 PANEL FRONT BLANK 19" X 17.47" 1.0 EACH 54 50128-302 PANEL FRONT 3.45" GREY 1.0 EACH 55 50128-307 PANEL FRONT 12.22" GREY 3.0 EACH 56 50128-308 PANEL FRONT 13.97 GREW 3.0 EACH 57 50128-310 PANEL FRONT 17.47" GREY 1.0 EACH 58 50128-902 LABOR PAINT PANEL FRONT 19" X 3.47 1.0 EACH 59 50128-907 LABOR PAINT PANEL FRONT 19X 12.22" 3.0 EACH 60 50128-908 LABOR PAINT PANEL FRONT 19X 13.97" 3.0 EACH 61 50128-910 LABOR PAINT PANEL FRONT 19X 17.47" 1.0 EACH 62 50154-004 PANEL SUPPORT MMDS 160W AMP 4.0 63 50156-001 PANEL SWITCH 1.0 EACH 64 50156-002 PANEL AC-FAN SWITCH ITX02-1/2000 1.0 EACH 65 50161-001 PANEL ON-DELAY MOUNTING 1.0 EACH 66 50162-011 PANEL MONITOR MMDS RACK MACH'D 1.0 EACH 67 50162-311 PANEL MONITOR MMDS RACK P/SS 1.0 EACH 68 50162-811 LABOR MACH PANEL MONITR MMDS RACK 1.0 EACH 69 50162-911 LABOR PAINT PANEL MONITR MMDS RACK 1.0 EACH 70 50163-002 PANEL DISTRIBUTION DC 2.0 EACH 71 50170-001 ENCLOSURE ITX02/IAR02 ASSY MACHND 1.0 EACH 72 51108-001 HEATSINK 2GHZ UP-CONVERTER 1.0 EACH 73 52001-001 PWB MONITOR ITX 1.0 EACH 74 53144-001 SUPPORT ATTENUATOR 4.0 EACH 75 53149-001 SUPPORT POWER SUPPLY 1.0 EACH 76 53149-001 SUPPORT POWER SUPPLY 1.0 EACH 77 53150-001 SUPPORT SPLTR ITX/MMDS DRIVR 1.0 EACH 78 53153-001 SUPPORT COUPLER MMDS 1.0 EACH 79 53309-002 BRACKET MIXER/FILTER ITX02-DRIVER 2.0 EACH 80 53309-003 BRACKET LNA ITX02-DRIVER 1.0 EACH 81 53309-004 BRACKET ISOLATOR MMDS DRIVER 1.0 Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 51 Proprietary Item Part No. Description Qty/Assy Unit 82 55133-001 SPACER LINE EXTENDER 2.0 EACH 83 63515-001 POWER SUPPLY ASSY 12V @ 3.4A 1.0 EACH 84 64405-140 CABLE METER MONITOR ITX500 1.0 EACH 85 64408-004 HARNESS METER PANEL SWITCH ITX02 1.0 EACH 86 64413-001 HARNESS WIRING ITX02 DRIVER 1.0 EACH 87 65101-001 PCB ASSY ITX MONITOR 1.0 EACH 88 66008-001 PANEL ON/OFF MMDS 1.0 EACH 89 66009-003 PANEL MONITOR ITX02 500-2000 1.0 EACH 90 66010-002 PANEL DISTRIBUTION DC ASSEMBLY 2.0 EACH 91 66011-005 PANEL METER MMDS RACK 1000/2000 1.0 EACH 92 66020-001 PANEL FAN SWITCH ASSY ITX02-1/2000 1.0 93 66021-001 PANEL TIMER ON-DELAY ASSY ITX02-2K 1.0 94 80010-024 CABLE HELIAX 24" N-MALE 5.0 EACH 95 81020-290 CABLE COAX T-FLEX 29.0 5.0 EACH 96 81020-370 CABLE COAX T-FLEX 37.0 5.0 EACH 97 81020-680 CABLE COAX T-FLEX 68.0 1.0 EACH 98 81031-040 CABLE COAX .141 SMA/SMA 4.0" ALU 1.0 EACH 99 81031-050 CABLE COAX .141 SMA/SMA 5.0" ALU 1.0 EACH 100 81101-001 CONNECTOR MONITOR 15 PIN 1.0 EACH 101 81101-001 CONNECTOR MONITOR 15 PIN 1.0 EACH 102 81101-004 CONNECTOR EXTENSION TX 2.0 EACH 103 81101-038 CONNECTOR CABLE MMDS PWR AMP 4.0 EACH 104 81101-039 CONNECTOR ST. PLUG MMDS PWR AMP 4.0 EACH 105 81103-008 CONNECTOR PIN 9A FEMALE 10.0 EACH 106 81103-008 CONNECTOR PIN 9A FEMALE 25.0 EACH 107 81103-009 CONNECTOR PIN 9A MALE 6.0 EACH 108 81103-009 CONNECTOR PIN 9A MALE 7.0 EACH 109 81103-009 CONNECTOR PIN 9A MAL…

Text truncated - open the document above for the full version.

Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 21 Proprietary 7.0 RF EXPOSURE INFORMATION This section should include a statement affirming compliance with respect to controlled/uncontrolled exposure limits for MPE/SAR evaluation of mobile/portable devices (technical data upon request) or reasons for categoric exclusion from routine RF evaluation. The rule sections concerning RF radiation exposure are 1.1307 - 1.1311, 15.247(b)(4), 2.1091 and 2.1093. The ITX02-2000 is not a mobile or portable device and, as such, the section concerning RF exposure is not applicable.

Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 22 Proprietary 8.0 SCHEMATICS This section should include the electrical schematics of the device showing RF generation circuits, input signal path circuitry, and clock lines. The rule sections which require schematics to be submitted are 2.983(d)(7), and 2.1033(b)(5). Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 23 Proprietary METER PANEL 1 30 dB METER PANEL 2 TEMP +RF MONITOR TEMP +RF MONITOR TEMP +RF MONITOR TEMP +RF MONITOR 0 90 0 90 0 90 0 90 0 90 0 90 120/240 VAC 50/60 Hz F1-1 AMP SLO-BLO 87202-019UPCONVERTER 12 VDC POWER SUPPLY POWER SUPPLY #1 12 VDC BUS POWER AMPS 10 dB (FRONT PANEL) DRIVER CHASSIS TO TTL-AMP VHF TEST POINTFRONT PANEL 10 dB RF OUT2500 TO2698 MHz RF TEST POINT (FRONT PANEL) 87225-013LOCAL OSCILLATOR2278.0 MHz MONITOR +12 VDC (METER PANEL) 87112-013NOTCHFILTER 87110-0014BANDPASSFILTER VHF IN222 - 420 MHz FAN METER PANEL POWER SUPPLY #2 POWER SUPPLY 24 VDC POWER SUPPLY 5 VDC REGULATOR ON-DELAY TIMER 40 dB PARALLEL POWER NETWORK RF OUT2500-2686 MHz31 CHANNELS34 dBm/CH POWER SUPPLY #3 TX MONITOR(FRONT PANEL) DOWN CONVERTER CONNECTION POINT (FRONT PANEL) POWER SUPPLY #4 12 VDC BUS POWER AMPS POWER SUPPLY #5 POWER SUPPLY #6 FANS FANS TTL +12 VDC TTLTTL +12 VDC TTL +12 VDC LO TEST POINT 87102-22020 dB +12 VDC 87116-004PUMP AMP 87151-013PUMP FILTER 86101-02020 dB 87194-000GAIN = 12 dB 63515-001 83401-001 ITX02 DRIVER 402013-06 87194-000GAIN = 12 dB 30 dB PWR INSERT DOWN CONVERT 10 dB 87226-001 421060-01VHF PROCESSOR ECN # REV DATE SHEET OF SCALE DRAWING NO. DATE APPROVED BY: REV. SIZE DATE DRAWN BY: TITLE COMPANY CABLE AML, INC. Torrance, California, USA 1 1 -- HCK 02-12-03 402513-10 ITX02-2000 GP MMDS -- -- Figure 16. ITX02-2000 Transmitter Schematic.

Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 27 Proprietary 10.0 TEST REPORTS This section should include the test report and data showing compliance with all applicable technical standards. The rule sections which require the test report to be submitted are 2.983(e), and 2.1033(d)(6). Test report is defined as a "complete package" showing data, graphs, test method description, and a list of test equipment 10.1 RF Power Measurements Figure 21 shows the block diagram of the test set-up used for the measurements. The results are shown in Table 2 below. MMDS TRANSMITTER LOAD SPECTRUM ANALYZER POWER METER 40 dB40 dB Figure 21. RF Power Measurement Test Set-up. Table 2. RF Power Measurements. Number of channels Peak Sync Power (per channel) Intermodulation Distortion Products (dBc below sync peak) 1 178 Watts 70.5 4 44.5 Watts 56.5 9 20.0 Watts 55.7 30 4.5 Watts 53.5 Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 28 Proprietary Figure 22. RF Power Measurement, Output Power Plot, 178 Watts - 1 Channel. Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 29 Proprietary Figure 23. RF Power Measurement, Output Power Plot, 44.5 Watts - 4 Channel. Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 30 Proprietary Figure 24. RF Power Measurement, Output Power Plot, 20.0 Watts Per Channel, 9 Channels. Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 31 Proprietary Figure 25. RF Power Measurement, Output Powe r Plot, 4.5 Watts Per Channel, 31 Channels. Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 32 Proprietary 10.2 Frequency Response The frequency response test set-up is shown in Figure 26. Table 3 shows the measured frequency response. The sweep display is shown in Figure 27. SWEEP GENERATOR MMDS TRANSMITTER LOAD SPECTRUM ANALYZER POWER METER PLOTTER 40 dB40 dB Figure 26. Frequency Response Test Set-up. Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 33 Proprietary Figure 27. Frequency Response. Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 34 Proprietary Table 3. Measured Frequency Response Frequency (MHz) Level (dBm) Delta (dB) 2423 25-71 5-63 0 2429.25 -71.5 -63.0 2435.25 -71.5 -63.0 2441.25 -69.6 -61.1 2447.25 -65.3 -56.8 2453.25 -59.2 -50.7 2459.25 -52.8 -44.3 2465.25 -46.6 -38.1 2471.25 -39.8 -31.3 2477.25 -32.0 -23.5 2483.25 -22.6 -14.1 2489.25 -12.1 -3.6 2495.25 -7.1 1.4 2501.25 -7.1 1.4 2507.25 -6.6 1.9 2513.25 -6.5 2.0 2519.25 -6.6 1.9 2525.25 -6.7 1.8 2531.25 -6.6 1.9 2537.25 -6.6 1.9 2543.25 -6.6 1.9 2549.25 -7.1 1.4 2555.25 -7.4 1.1 2561.25 -7.6 0.9 2567.25 -7.3 1.2 2573.25 -7.4 1.1 2579.25 -7.5 1.0 2585.25 -8.0 0.5 2591.25 -8.5 0.0 2597.25 -8.7 -0.2 Frequency (MHz) Level (dBm) Delta (dB) 2603.25 -8.8 -0.3 2609.25 -9.0 -0.5 2615.25 -9.3 -0.8 2621.25 -9.5 -1.0 2627.25 -9.8 -1.3 2633.25 -9.6 -1.1 2639.25 -9.4 -0.9 2645.25 -9.2 -0.7 2651.25 -9.2 -0.7 2657.25 -9.5 -1.0 2663.25 -9.7 -1.2 2669.25 -9.7 -1.2 2675.25 -9.7 -1.2 2681.25 -10.3 -1.8 2687.25 -12.7 -4.2 2693.25 -23.4 -14.9 2699.25 -32.2 -23.7 2705.25 -41.1 -32.6 2711.25 -48.1 -39.6 2717.25 -53.8 -45.3 2723.25 -58.7 -50.2 2729.25 -64.3 -55.8 2735.25 -68.7 -60.2 2741.25 -71.5 -63.0 2747.25 -71.5 -63.0 2753.25 -71.5 -63.0 2759.25 -71.5 -63.0 2765.25 -71.5 -63.0 2771.25 -71.5 -63.0 2777.25 -71.5 -63.0 10.3 Occupied Bandwidth The test set-up for occupied bandwidth is shown in Figure 21. The occupied bandwidth spectrum is shown in Figure 28. Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 35 Proprietary Figure 28. Occupied Bandwidth. Proprietary FCC ID: JXZITX02-2000 Type Acceptance Report 6/20/03 36 Proprietary 10.4 Conducted Spurious Emissions The test set-up for conducted spurious emissions is shown in Figure 21. Spectrum Analyzer presentations of the measured results are shown in Figure 29, through Figure 32. Table 4 and Table 5 contain the tabulated results of these measurements. Table 4. Thirty (30) Channel Loading Data. Frequency Source Peak Sync level Observed/Channel 2500 to 2686 MHz 30 Carriers 4.5 Watts 2300 to 2500 MHz Lower Composite Triple Beat Products -61 dBc 2700 to 2900 MHz Upper Composite Triple Beat Products -62 dBc 5000 to 5400 MHz Second Harmonic -78 dBc 7500 to 8100 MHz Third Harmonic -82 dBc Table 5. Four (4) Channel Loading Data.…
