JXZOTX02-250OTX02-250 Outdoor Transmitter

Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 45 Proprietary 12.0 USER’S MANUAL Cable AML Installation and Maintenance Manual MMDS Outdoor Broadband Transmitter Model: OTX02-250 INSTALLATION AND MAINTENANCE MANUAL for MMDS Outdoor Broadband Transmitter Model: OTX02-250 Cable AML, Inc. 3427 W. Lomita Boulevard Torrance, California 90505 USA TEL 310 517-8888 or 702 363-5660 FAX 310 517-8555 or 702 363-2960 Copyright ©2002 Cable AML, Inc. IM406913-01 072402 Outdoor Broadband Transmitter – OTX02-250 IM406913-01 Rev – i TABLE OF CONTENTS Section Page 1.0 INTRODUCTION ...................................................................................................... 1 2.0 CIRCUIT DESCRIPTIONS ....................................................................................... 4 2.1 Upconverter Section .......................................................................................................4 2.2 Microwave Predistortion Network ...................................................................................4 2.3 Power Amplifier Chains ..................................................................................................5 2.4 Power Supply Assembly .................................................................................................5 2.5 Diagnostic Circuits ..........................................................................................................5 2.6 Low Noise Amplifier with microwave AGC......................................................................5 2.7 Fan Assembly .................................................................................................................6 3.0 INSTALLATION........................................................................................................ 7 3.1 Unpacking.......................................................................................................................7 3.2 Location ..........................................................................................................................7 3.3 Input Voltage Requirements ...........................................................................................7 3.4 Operating and Diagnostic Connections ..........................................................................7 4.0 OPERATION ............................................................................................................ 9 4.1 Output Level Setting .......................................................................................................9 4.2 Ambient Conditions ......................................................................................................10 4.3 Thermal Sensor Switch ................................................................................................10 5.0 MAINTENANCE AND TROUBLESHOOTING ....................................................... 11 5.1 Maintenance .................................................................................................................11 5.2 External Troubleshooting..............................................................................................11 5.3 Internal Troubleshooting...............................................................................................13 6.0 SPECIFICATIONS.................................................................................................. 15 Outdoor Broadband Transmitter – OTX02-250 IM406913-01 Rev – ii LIST OF ILLUSTRATIONS Figure Page 1 OTX02-250 Broadband Transmitter. ............................................................... 2 2 OTX02-250 Component Layout....................................................................... 2 3 OTX02-250 Block Diagram.............................................................................. 3 4 Rear Mounting View. ....................................................................................... 8 5 Output Level Adjustment. ................................................................................ 9 LIST OF TABLES Tables Page 1 Typical Channel Loading for OTX02-250 Input/Output Levels ........................ 8 2 Cable AML DTB -1 Test Box - Function Values............................................. 11 Outdoor Broadband Transmitter – OTX02-250 IM406913-01 Rev – 1 1.0 INTRODUCTION The MMDS Outdoor Transmitter OTX02-250 shown in Figure 1 is a solid-state broadband transmitter that converts VHF input signal of 220 to 403 MHz to a microwave signal of 2.5 to 2.686 GHz. The OTX02-250 transmitter consists of the following assemblies (refer to Figure 3): 1. Upconverter Assembly – for converting the incoming VHF signal to microwave. The upconverter assembly contains all components necessary for upconversion, i.e. local oscillator, mixer, as well as bandpass and notch filters. 2. Predistortion Linearity Assembly – Transmitter linearity is significantly improved by the addition of a linearity enhancement circuit to the microwave power amplifier. The better the linearity, the lower the composite triple beat (CTB) distortion. 3. Power Amplifier – The amplification is accomplished with minimum distortion by a state of the art Gallium Arsenide FET microwave power amplifier with an established field reliability record. The power amplifier is protected from failure due to overheating by an internal temperature sensor. The sensor circuit automatically switches off the amplifier D.C. power when the amplifier temperature exceeds 158° F (70° C). 4. Power Supply System – The OTX02-250 utilizes two AC/DC power supplies. One provides +12 VDC power to the power amp, and the other provides +12 VDC power to all other devices. 5. Monitoring and Diagnostic Circuits –The output of the OTX02-250 can be continuously monitored without interruption of service with a standard field strength meter. Diagnostic DC voltages can also be continuously monitored via a multipin connector. Both test points are located on the bottom of the OTX02-250. …

Text truncated - open the document above for the full version.

Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 12 Proprietary 3.0 BLOCK DIAGRAM This section should include the block diagram of the EUT showing all internal oscillators and clock frequencies. The rule section that requires a block diagram to be submitted is 2.1033(b)(5). Although a block diagram is not specifically required for some devices, including a block diagram in the application will make processing of it easier. Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 13 Proprietary COAX F 87110-001 FILTER BPF 87112-013 FILTER NOTCH 421060-01 VHF PROCESSOR COAX F COAX N-FEMALE PRE DISTORTION NETWORK +12V +12V -40 VHF MONITOR222-408 MHz +12VDC BUSS GND BUSS PWR INSERT DOWN CONVERT 87331-001MMDS DOWN CONVERTER 87158-001 LNA w/ ATTN AC HIGH AC LOW AC GND 120 or 240 VAC RF OUTPUT2500-2686 MHz VHF INPUT222-408 MHz 87193-001LINEAR AMP 87192-001NON-LINEAR AMP TEST POINT 12 3 ISOLATOR 87103-222 PS #183523-600+12VDC @ 600 W 1 2 3 ISOL 87103-223 BP FILTER87151-013 LOCAL OSCILLATOR87225-0132278 MHz MIXER DISTORTION UPCONVERTER MONITOR DIR COUPLER DIR COUPLER 87102-210 87102-210 RF MON TEMP RF SAMPLE 87203-001 POWER AMP 87161-013 BUSS 87102-230 DIR COUPLER 87102-210 DIR COUPLER LO MONITOR 84311-02020 dB Pad 12 3 90° HYBRID 87225-001 84311-02020 dB pad PUMP AMP87116-004 + 12V + 12V + 12V 90° HYBRID 87225-001 87226-001VARIABLE ATTENUATOR 87191-001PHASE SHIFTER 87099-001OUTPUTCIRCULATOR 84211-003TERMINATION15 WATTS 87312-013OUTPUT FILTER REMOTE MONITOR PIN TX POWER SUPPLY #1 L TX RF OUT M AGC VOLTS N POWER AMP TEMP F 83401-02612 VDC FAN PS #283523-201+12VDC @ 200 W F1 - 15A F2 - 4A PI FILTER67001-002 PI FILTER67001-002 TO POWER AMP 83601-007CLOSES AT100° F 64006-001AC LINE FILTER TX POWER SUPPLY #2 C 83601-005OPENS AT190° F 87331-101POWER INSERTER DET DC AGCMGC +12V 431080-01COMPOSITE AGC + + ++ ECN # REV DATE SHEET OF SCALE DRAWING NO. DATE APPROVED BY: REV. SIZE DATE DRAWN BY: TITLE COMPANY CABLE AML, INC. Torrance, California, USA 1 1 HCK 1-11-02 406913-01 OTX02-250 BLOCK DIAGRAM -- -- -- Figure 2. OTX02-250 Block Diagram.

Attn:Joe DICHOSO21NOV02 From:Norman F WOODS Cable AML, Inc. 3157 Waterside Circle Las Vegas, NV 89117 Re:Correspondence 24252TEL:702 363-5660 731 Confirmation EA319440FAX:702 363-2960 FCC ID JXZOTX02-250 [email protected] Referring to the seven pages (which follow this page) as pages 1 through 7 1) Pages 3, 4, 5 contain the photographs of both sides of all circuit boards with the shielding removed. 2) Pages 1 & 2 reflect the requested 15 W 3) Justify the emission designators, modulation types, and bandwidths 5M75C3F is a Vestigial Sideband AM (VSBAM) video portion of a television signal 250KF3E is its associated audio subcarrier A television signal in the USA occupies a 6MHz channel 6M00D7W is a digital signal occupying a 6MHz channel, as is generally used for digitized television transmission in Cable Television and wireless Cable Television systems. 4) The spectral mask for the modulations conform to 21.908 (a) and 74.936 (c) and are attached: 5M75C3F / 250KF3E Page 7 6M00D7W Page 6 5) Frequency stability will be 2.5 ppm Cable AML Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report – Addendum 11/19/02 1 Proprietary 10.1 RF Power Measurements Figure 1 shows the block diagram of the test set-up used for the measurements. The results are shown in Table 1 below. MMDS TRANSMITTER LOAD SPECTRUM ANALYZER POWER METER 40 dB40 dB Figure 1. RF Power Measurement Test Set-up. Table 1. RF Power Measurements. Number of channels Peak Sync Power (per channel) Intermodulation Distortion Products (dBc below sync peak) 1 15 Watts -70 Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report – Addendum 11/191/02 2 Proprietary Output Power Plot. 15 Watts = 41.76 dBm. Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report – Addendum 11/19/02 3 Proprietary P/N: 87158-001 P/N: 87116-004 P/N: 87225-013 (Front) P/N: 87193-001 P/N: 87192-001 P/N: 87225-013 (Back) Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report – Addendum 11/19/02 4 Proprietary P/N: 52108-001 (Front) P/N: 52106-001 (Front) P/N: 52001-001 (Front) P/N: 52108-001 (Back) P/N: 52106-001 (Back) P/N: 52001-001 (Back) Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report – Addendum 11/19/02 5 Proprietary P/N: 87161-013 (Front) P/N: 87161-013 (Back) Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report – Addendum 11/19/02 6 Proprietary QAM Spectral Mask. Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report – Addendum 11/19/02 7 Proprietary VSBAM Spectral Mask.

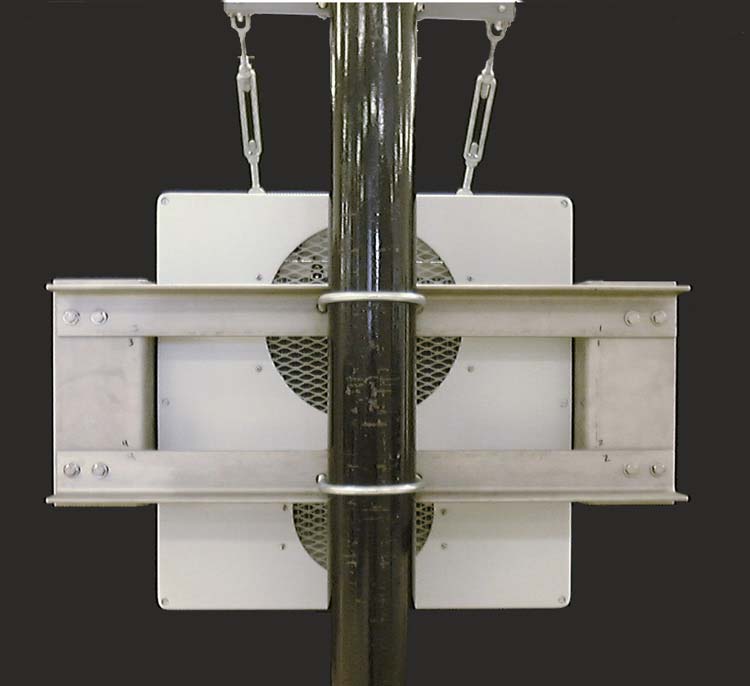

Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 14 Proprietary 4.0 EXTERNAL PHOTOS This section should include clear, focused pictures of the overall appearance showing all user accessible controls and connectors. The rule sections, which require these photos to be submitted, are 2.975(a)(5), 2.983(g) and 2.1033(b)(7). Figure 3. OTX02-250 Broadband Transmitter. Figure 4. OTX02-250 Bottom View. Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 15 Proprietary Figure 5. Rear Mounting View.

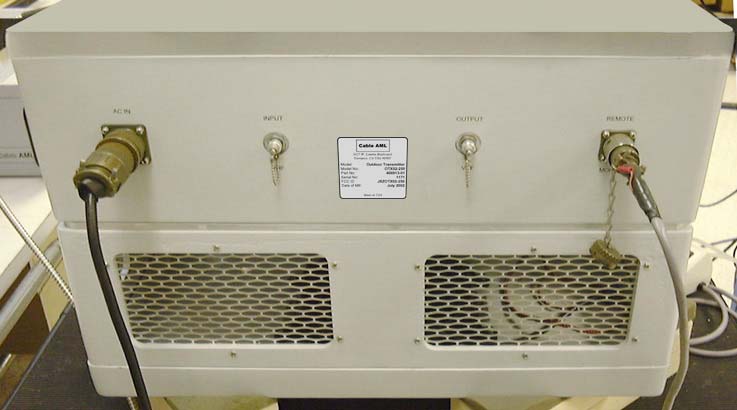

Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 16 Proprietary 5.0 ID LABEL AND LOCATION This section should include the FCC ID label, its location on the product, and any statements required by the rules that will be on the product. For examples and information on FCCID labels see 2.925 and 2.926 of the commissions rules. Some examples of statements required that should go in this section are the 15.19 and 15.214(c) statements. 5.1 Identification Labels and Photographs This label will be located at two places, inside on the left side-interior of the OTX02-250 unit, and outside on the bottom surface. Cable AML 3427 W. Lomita Boulevard Torrance, CA USA 90505 Model: Model No: Part No: Serial No: FCC ID Date of Mfr: Outdoor Transmitter OTX02-250 406913-01 1171 JXZOTX02-250 July 2002 Made in USA Figure 6. Sample of ID Label. Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 17 Proprietary Location of ID Label X0042 Figure 7. Inside Left Panel ID Label Location. Figure 8. Outside Lower Panel ID Label Location.

Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 18 Proprietary 6.0 INTERNAL PHOTOS This section should include internal photos showing the top and bottom of each printed circuit board sufficient to clearly show component placement and chassis assembly. The rule sections which require these photos are 2.975(a)(5), 2.983(g), 2.1033(b)(7). Upconverter Composite AGC Module Bandpass Filter Power Amp (under plate) L.O. Pump Amp VHF Processor Pre-Distortion Assembly LNA with Attenuator Downconverter Local Oscillator Output Filter Notch Filter Power Supply #2 Power Supply #1 X0042 Output Circular w/Termination AC Line Filter Location of ID Label Figure 9. OTX02-250 Component Layout. The OTX02-250 is assembled from discrete components. It does use a discrete printed circuit board.

Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 6 Proprietary 2.0 OPERATIONAL DESCRIPTION This section should include any operational or technical descriptions regarding how the device operates, is modulated, or meets specific requirements. Some examples of operational descriptions include: 2.1 General Description The MMDS Outdoor Transmitter OTX02-250 (shown in Section 4.0, Figure 3) is a solid- state broadband transmitter that converts VHF input signal of 222 to 408 MHz to a microwave signal of 2.5 to 2.686 GHz. The OTX02-250 transmitter consists of the following assemblies: 1. Upconverter Assembly – for converting the incoming VHF signal to microwave. The upconverter assembly contains all components necessary for upconversion, i.e. local oscillator, mixer, as well as bandpass and notch filters. 2. Predistortion Linearity Assembly – Transmitter linearity is significantly improved by the addition of a linearity enhancement circuit to the microwave power amplifier. The better the linearity, the lower the composite triple beat (CTB) distortion. 3. Power Amplifier – The amplification is accomplished with minimum distortion by a state of the art Gallium Arsenide FET microwave power amplifier with an established field reliability record. The power amplifier is protected from failure due to overheating by an internal temperature sensor. The sensor circuit automatically switches off the amplifier D.C. power when the amplifier temperature exceeds 158° F (70° C). 4. Power Supply System – The OTX02-250 utilizes two AC/DC power supplies. One provides +12 VDC power to the power amp, and the other provides +12 VDC power to all other devices. 5. Monitoring and Diagnostic Circuits –The output of the OTX02-250 can be continuously monitored without interruption of service with a standard field strength meter. Diagnostic DC voltages can also be continuously monitored via a multipin connector. Both test points are located on the bottom of the OTX02-250. 6. VHF Processor Module – The VHF input to the transmitter is sent to the VHF Processor Module. This is a level set attenuator. The VHF signal is then sent to the upconverter mixer. 7. Low Noise Amplifier with AGC – The OTX02-250 has a LNA with a built in attenuator circuit. The attenuator is controlled by a composite AGC module. The output of the OTX02-250 is keep at a constant level regardless of ambient temperature changes 8. Fan Assembly – The OTX02-250 is cooled by a +12 VDC fan controlled by a thermostat mounted on the heat sink. The OTX02-250 transmitter can be equipped to operate on either 120 or 240 VAC at 50 or 60 Hz. This option is specified by customer request, and each unit is shipped according to this specification. Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 7 Proprietary 2.2 Technical Specifications OTX02-250 Transmitter Input Frequency 2 : 222 to 408 MHz Nominal Input Level for 12 TV: +29 dBmV (-19.8 dBm) Output Frequency 2 : 2.5 to 2.686 GHz Channels Average Power dBm/Channel Peak Power dBm/Channel C/N (dB) 9 31.5 34.0 64.5 Output Level for 50 dB C/CTB: (measured with CW carriers) 3 12 30.0 32.5 63.0 18 28.0 30.5 61.0 24 26.0 28.5 59.0 30 25.0 27.5 58.0 Local Oscillator Frequency 2: 2278 MHz Frequency Response: ±1.5 dB Frequency Stability: 0.0005% Input Return Loss: 15 dB Input Connector: Type "F" Female Output Return Loss: 18 dB Output Connector: Type "N" Female Temperature Range: -40° to 122°F (-40° to 50°C) Humidity: 100% max. Primary Power: 120/240 VAC, 50/60Hz (per customer specification) Power Consumption: 840 VA RMS Mounting: Antenna Pole Mount Weight: 160 lb. (72.5 kg) Dimensions: 24" W x 24" H x 15" D (61 W x 61 H x 38.1cm D) 1 Specifications subject to change without prior notice. 2 Other frequencies available. 3 The C/CTB with modulated carriers is approximately 6 dB better than with CW carriers. Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 8 Proprietary The OTX02-250 Transmitter consists of the following circuits or modules: 1. Upconverter Section 2. Microwave Predistortion Assembly 3. Power Amplifier 4. Power Supply System 5. Diagnostic Circuits. 6. Low Noise Amplifier With AGC 7. Fan Assembly In addition, microwave isolators and filters are used as necessary to ensure the stability and purity of transmitted signals. 2.3 Upconverter Section The Upconverter Section is comprised of the following major functional circuits or modules: 1. Hybrid Local Oscillator 2. Upconverter/ Mixer 3. Filter Assembly 4. VHF Processor Module Hybrid Local Oscillator - The local oscillator consists of a crystal oscillator, frequency multiplier, and a band pass filter all encapsulated in solid 6061-T6 aluminum. The frequency of the oscillator is 2278 MHz. The frequency stability of the oscillator is .0005%. The output of the local oscillator provides pump power to the signal upconverter. The local oscillator is powered by +12 VDC. Upconverter Mixer - The translation from VHF to microwave frequencies takes place here. The mixer is also called an "upper sideband upconverter". The desired output of the upconverter is a signal at a frequency, which is the sum of the local oscillator, and VHF input frequencies. The upconverter also generates unwanted signals that have to be filtered out, among them the "lower sideband", LO leakage, and others. Filter Assembly - There are two filters. The group bandpass filter is tuned to pass the upper sideband. The notch filter is tuned to attenuate the local oscillator leakage without affecting the output signal. VHF Processor Module – The VHF signals are sent to the Processor module first. The processor changes the impedance of the VHF signals from 75 ohms to 50 ohms, and the processor has a level set attenuator so minor level changes can be made. 2.4 Microwave Predistortion Network Predistortion Linearizer Network enhances the linearity of the amplifier by generating distortion products equal in amplitude but with opposite phase to those generated in the power ampli…

Text truncated - open the document above for the full version.

Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 40 Proprietary 11.0 PARTS LIST AND TUNE UP INFORMATION This section should include a list of active devices as required by 2.983(d)(6) and the tune up procedure as required by 2.983(d)(9). Pursuant to Section 2.983(d)(6), provide the function of each electron tube, semiconductor or other active circuit device. Pursuant to Section 2.983(d)(9), provide the tune-up procedure over the power range, or at specific operating power levels. Item Part No. Description Qty/Assy Unit 1 11002-001 WIRE HOOKUP BROWN 22AWG 6.00 FEET 2 11002-009 WIRE HOOKUP WHITE 22AWG 6.00 FEET 3 11002-010 WIRE HOOKUP BLACK 22AWG 6.00 FEET 4 11002-016 WIRE HOOKUP WHITE/GREEN 22AWG 6.00 FEET 5 11002-109 WIRE HOOKUP WHITE 18AWG 18.00 FEET 6 11002-154 WIRE HOOKUP GREEN/YELLOW 18AWG 6.00 FEET 7 11002-301 WIRE HOOKUP BROWN 12AWG 12.00 FEET 8 11002-302 WIRE HOOKUP RED 12AWG 12.00 FEET 9 11002-602 WIRE HOOKUP BLACK 16AWG 12.00 FEET 10 11005-014 CABLE SJO-3 CONDUCTOR NEOPRENE 300 25.00 FEET 11 11008-001 CABLE CLAMP #71 9.00 EACH 12 13301-004 FUSE 4A SLO-BLO 1.00 EACH 13 13301-016 FUSE 15AMP SLO BLO 3AG 1.00 EACH 14 14003-001 JACK TIPS WHITE 2.00 EACH 15 15128-104 SCREW HEX HD 3/8-16 X 1-1/4 8.00 EACH 16 15132-004 SCREW PFH 4-40 X 1/4 3.00 EACH 17 15141-003 SCREW PPH 2-56 X 3/16 6.00 EACH 18 15141-004 SCREW PPH 2-56 X 1/4 2.00 EACH 19 15141-006 SCREW PPH 2-56 X 3/8 2.00 EACH 20 15142-004 SCREW PPH 4-40 X 1/4 4.00 EACH 21 15143-407 SCREW PPH 6-32 X 7/16 W/O PATCH 16.00 EACH 22 15408-006 NUT 3/8-16 8.00 EACH 23 15408-018 NUT 1/2-13 4.00 EACH 24 15502-001 WASHER SPLIT LOCK 4 3.00 EACH 25 15503-001 WASHER SPLIT LOCK 6 16.00 EACH 26 15508-006 WASHER SPLIT LOCK 3/8 8.00 EACH 27 15508-008 WASHER SPLIT LOCK 1/2 8.00 EACH 28 15601-001 WASHER INT TOOTH 2 18.00 EACH 29 15602-001 WASHER INT TOOTH 4 4.00 EACH 30 15703-001 WASHER FLAT 6 SMALL PATTERN 16.00 EACH 31 15808-006 WASHER FLAT 3/8 20.00 EACH 32 15808-008 WASHER FLAT 1/2 8.00 EACH 33 17001-001 TUNING TOOL 2.00 EACH 34 421060-01 VHF PROCESSOR ATX 1.00 EACH 35 431080-01 COMPOSITE AGC MODULE 1.00 EACH 36 483101-21 KT INSTALL KIT OAR02 1.00 EACH 37 50175-301 ENCLOSURE 1 OARO2-250 PIGBAK 1.00 EACH Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 41 Proprietary Item Part No. Description Qty/Assy Unit 38 50175-302 ENCLOSURE 2 OARO2-250 PIGBAK 1.00 EACH 39 50175-902 LABOR PAINT ENCL OAR/OTXO2-250 PGB 1.00 EACH 40 51113-001 HEATSINK OAR02-250 PIGGYBACK 1.00 EACH 41 52001-001 PWB MONITOR ITX 1.00 EACH 42 52106-001 PWB VHF ATTENUATOR 1.00 EACH 43 52108-001 PWB COMPOSITE AGC 1.00 EACH 44 53144-001 SUPPORT ATTENUATOR 1.00 EACH 45 53156-001 SUPPORT NON-LINEAR AMP OAR02 1.00 EACH 46 53157-001 SUPPORT LINEAR AMP OAR02 1.00 EACH 47 53158-001 SUPPORT LNA W/GAIN OAR02 1.00 EACH 48 53159-001 SUPPORT REAR PANEL GRILL ITX/IAR02 18.00 EACH 49 55110-001 CONNECTOR ADAPTER BNC RX 1.00 EACH 50 55112-001 SPACER CONNECTOR SMA .245 RX 1.00 EACH 51 55131-007 GASKET 4 PIN A/C RECEPTACLE 1.00 EACH 52 56019-001 MOUNTING PLATE AMP OAR02 1.00 EACH 53 56019-002 MOUNT PLATE PWR AMP OAR02-250 1.00 EACH 54 56025-014 BRACKET FAN MOUNT TRX 2.00 EACH 55 57003-009 HOUSING BOTTOM COMPOSITE MW AGC 1.00 EACH 56 57003-012 HOUSING COVER VHF ATTENUATOR ATX 1.00 EACH 57 57003-013 HOUSING BOTTOM VHF ATTENUATOR ATX 1.00 EACH 58 57003-307 HOUSING COVER COMPOSITE AGC PAINTE 1.00 EACH 59 59005-001 BRACKET MOUNTING RX 2.00 EACH 60 59009-001 BRACKET MOUNTG PWR AMP OAR02-250 2.00 EACH 61 64006-001 AC LINE FILTER ASSY TWT UNITS 1.00 EACH 62 64408-001 HARNESS, MMDS PA TO PS 1.00 EACH 63 65101-001 PCB ASSY ITX MONITOR 1.00 EACH 64 65106-001 PCB ASSY VHF ATTENUATOR ATX 1.00 EACH 65 65108-001 PCB ASSY COMPOSITE AGC 1.00 EACH 66 67001-002 FILTER-PI ASSY TWT2 2.00 EACH 67 73201-002 FUSEHOLDER IN LINE 3AG 2.00 EACH 68 80010-024 CABLE HELIAX 24" 1.00 EACH 69 81010-005 CABLE COAX FLEX .141 5.0 1.00 EACH 70 81010-007 CABLE COAX FLEX .141 7" 1.00 EACH 71 81020-200 CABLE COAX T-FLEX 20.0 2.00 EACH 72 81031-030 CABLE COAX .141 SMA/SMA 3.0" ALU 1.00 EACH 73 81031-050 CABLE COAX .141 SMA/SMA 5.0" ALU 1.00 EACH 74 81031-070 CABLE COAX .141 SMA/SMA 7.0" ALU 1.00 EACH 75 81031-180 CABLE COAX .141 SMA/SMA 18.0" ALU 1.00 EACH 76 81101-001 CONNECTOR MONITOR 15 PIN 1.00 EACH 77 81101-012 CONNECTOR PLUG 2-PIN OUTDOOR 1.00 EACH 78 81101-013 CABLE STRAIN RELIEF 2-PIN OUTDOOR 1.00 EACH 79 81101-014 PANEL MOUNT RECEPTACLE 2-PIN OUTDO 1.00 EACH 80 81102-001 CONNECTOR COVER 1.00 EACH 81 81103-008 CONNECTOR PIN 9A FEMALE 17.00 EACH Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 42 Proprietary Item Part No. Description Qty/Assy Unit 82 81103-009 CONNECTOR PIN 9A MALE 4.00 EACH 83 81103-009 CONNECTOR PIN 9A MALE 17.00 EACH 84 81103-014 CONNECTOR CONTACT SKT-L PWR AMP 4.00 EACH 85 81103-015 CONNECTOR CONTACT SKT-S PWR AMP 4.00 EACH 86 81103-019 CONNECTOR PIN 12 A FEMALE 3.00 EACH 87 81103-019 CONNECTOR PIN 12 A FEMALE 22.00 EACH 88 81103-020 CONNECTOR PIN 12A MALE 5.00 EACH 89 81103-020 CONNECTOR PIN 12A MALE 18.00 EACH 90 81105-010 CONNECTOR PLUG 9A 4 PIN 2.00 EACH 91 81105-013 CONNECTOR RECEPTACLE 9A 3 PIN 1.00 EACH 92 81105-015 CONNECTOR RECEPTACLE 9A 4 PIN 1.00 EACH 93 81105-016 CONNECTOR PLUG 9A 3 PIN 1.00 EACH 94 81105-017 CONNECTOR PLUG 9A 2 PIN 5.00 EACH 95 81105-018 CONNECTOR RECEPTACLE 9A 2 PIN 5.00 EACH 96 81105-024 CONNECTOR RECEPTACLE 12A 2 PIN 7.00 EACH 97 81105-025 CONNECTOR RECEPTACLE 12A 3 PIN 5.00 EACH 98 81105-027 CONNECTOR PLUG 12A 5.00 EACH 99 81105-028 CONNECTOR PLUG 12A 3-PIN 5.00 EACH 100 81107-008 CONNECTOR D-FEMALE RCPTCL PWR AMP 1.00 EACH 101 81110-006 TERMINAL STRIP #6 6 TERMINALS 1.00 EACH 102 81301-004 SWITCH TOGGLE SPDT 1.00 EACH 103 82000-007 CAPACITOR 10MF 25V 3.00 EACH 104 82000-011 CAPACITOR 100MF 10V 1.00 EACH 105 82000-012 CAPACITOR 100MF 16V 2.00 EACH 106 82000-016 CAPACITOR FEED THRU 3.00 EACH 107 82000-020 CAPACITOR .1MF CERAMIC 50 VOLT 5.00 EACH 108 82000-028 CAPACITOR 220 MF 16V 2.00 EACH 109 82000-055 CAPACITOR 4700MF 100V 4.00 EACH 110 82000-…

Text truncated - open the document above for the full version.

Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 19 Proprietary 7.0 RF EXPOSURE INFORMATION This section should include a statement affirming compliance with respect to controlled/uncontrolled exposure limits for MPE/SAR evaluation of mobile/portable devices (technical data upon request) or reasons for categoric exclusion from routine RF evaluation. The rule sections concerning RF radiation exposure are 1.1307 - 1.1311, 15.247(b)(4), 2.1091 and 2.1093. The OTX02-250 is not a mobile or portable device and, as such, the section concerning RF exposure is not applicable.

Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 20 Proprietary 8.0 SCHEMATICS This section should include the electrical schematics of the device showing RF generation circuits, input signal path circuitry, and clock lines. The rule sections which require schematics to be submitted are 2.983(d)(7), and 2.1033(b)(5). Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 21 Proprietary COAX F 87110-001 FILTER BPF 87112-013 FILTER NOTCH 421060-01 VHF PROCESSOR COAX F COAX N-FEMALE PRE DISTORTION NETWORK +12V +12V -40 VHF MONITOR222-408 MHz +12VDC BUSS GND BUSS PWR INSERT DOWN CONVERT 87331-001MMDS DOWN CONVERTER 87158-001 LNA w/ ATTN AC HIGH AC LOW AC GND 120 or 240 VAC RF OUTPUT2500-2686 MHz VHF INPUT222-408 MHz 87193-001LINEAR AMP 87192-001NON-LINEAR AMP TEST POINT 12 3 ISOLATOR 87103-222 PS #183523-600+12VDC @ 600 W 1 2 3 ISOL 87103-223 BP FILTER87151-013 LOCAL OSCILLATOR87225-0132278 MHz MIXER DISTORTION UPCONVERTER MONITOR DIR COUPLER DIR COUPLER 87102-210 87102-210 RF MON TEMP RF SAMPLE 87203-001 POWER AMP 87161-013 BUSS 87102-230 DIR COUPLER 87102-210 DIR COUPLER LO MONITOR 84311-02020 dB Pad 12 3 90° HYBRID 87225-001 84311-02020 dB pad PUMP AMP87116-004 + 12V + 12V + 12V 90° HYBRID 87225-001 87226-001VARIABLE ATTENUATOR 87191-001PHASE SHIFTER 87099-001OUTPUTCIRCULATOR 84211-003TERMINATION15 WATTS 87312-013OUTPUT FILTER REMOTE MONITOR PIN TX POWER SUPPLY #1 L TX RF OUT M AGC VOLTS N POWER AMP TEMP F 83401-02612 VDC FAN PS #283523-201+12VDC @ 200 W F1 - 15A F2 - 4A PI FILTER67001-002 PI FILTER67001-002 TO POWER AMP 83601-007CLOSES AT100° F 64006-001AC LINE FILTER TX POWER SUPPLY #2 C 83601-005OPENS AT190° F 87331-101POWER INSERTER DET DC AGCMGC +12V 431080-01COMPOSITE AGC + + ++ ECN # REV DATE SHEET OF SCALE DRAWING NO. DATE APPROVED BY: REV. SIZE DATE DRAWN BY: TITLE COMPANY CABLE AML, INC. Torrance, California, USA 1 1 HCK 1-11-02 406913-01 OTX02-250 SCHEMATIC -- -- -- Figure 10. OTX02-250 Transmitter Schematic.

Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 25 Proprietary 10.0 TEST REPORTS This section should include the test report and data showing compliance with all applicable technical standards. The rule sections which require the test report to be submitted are 2.983(e), and 2.1033(d)(6). Test report is defined as a "complete package" showing data, graphs, test method description, and a list of test equipment 10.1 RF Power Measurements Figure 15 shows the block diagram of the test set-up used for the measurements. The results are shown in Table 2 below. MMDS TRANSMITTER LOAD SPECTRUM ANALYZER POWER METER 40 dB40 dB Figure 15. RF Power Measurement Test Set-up. Table 2. RF Power Measurements. Number of channels Peak Sync Power (per channel) Intermodulation Distortion Products (dBc below sync peak) 4 5.6 Watts 56 9 2.5 Watts 55 30 562 mW 55 Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 26 Proprietary 10.2 Frequency Response The frequency response test set-up is shown in Figure 16. Table 3 shows the measured frequency response. The sweep display is shown in Figure 18 SWEEP GENERATOR MMDS TRANSMITTER LOAD SPECTRUM ANALYZER POWER METER PLOTTER 40 dB40 dB Figure 16. Frequency Response Test Set-up. Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 27 Proprietary Figure 17. Frequency Response. Proprietary FCC ID: JXZOTX02-250 Type Acceptance Report 9/4/02 28 Proprietary Table 3. Measured Frequency Response Frequency (GHz) Level (dBm) Delta (dB) 2.25 -76.0 -59.0 2.30 -76.0 -59.0 2.31 -76.0 -59.0 2.32 -76.0 -59.0 2.33 -76.0 -59.0 2.34 -76.0 -59.0 2.35 -76.0 -59.0 2.36 -76.0 -59.0 2.37 -76.0 -59.0 2.38 -76.0 -59.0 2.39 -76.0 -59.0 2.40 -76.0 -59.0 2.41 -76.0 -59.0 2.42 -76.0 -59.0 2.43 -76.0 -59.0 2.44 -76.0 -59.0 2.45 -69.2 -52.2 2.46 -61.0 -44.0 2.47 -50.7 -33.7 2.48 -39.8 -22.8 2.49 -26.3 -9.3 2.50 -16.5 0.5 2.51 -16.0 1.0 2.52 -15.8 1.2 2.53 -15.7 1.3 2.54 -15.8 1.2 2.55 -16.2 0.8 2.56 -16.3 0.7 2.57 -16.7 0.3 2.58 -16.8 0.2 2.59 -17.2 -0.2 2.60 -17.3 -0.3 Frequency (GHz) Level (dBm) Delta (dB) 2.61 -17.0 0.0 2.62 -17.0 0.0 2.63 -17.2 -0.2 2.64 -17.2 -0.2 2.65 -17.2 -0.2 2.66 -17.5 -0.5 2.67 -17.7 -0.7 2.68 -18.2 -1.2 2.69 -20.2 -3.2 2.70 -33.2 -16.2 2.71 -45.2 -28.2 2.72 -55.5 -38.5 2.73 -64.8 -47.8 2.74 -72.7 -55.7 2.75 -75.5 -58.5 2.76 -76.0 -59.0 2.77 -76.0 -59.0 2.78 -76.0 -59.0 2.79 -76.0 -59.0 2.80 -76.0 -59.0 2.81 -76.0 -59.0 2.82 -76.0 -59.0 2.83 -76.0 -59.0 2.84 -76.0 -59.0 2.85 -76.0 -59.0 2.86 -76.0 -59.0 2.87 -76.0 -59.0 2.88 -76.0 -59.0 2.89 -76.0 …

Text truncated - open the document above for the full version.
