JYC78GSM/CDMA Phone with Bluetooth

User Guide C781 2 3 CHAPTER 1. BEFORE USING BEFORE USING ...............................................................................................7 INSIDE THE PACKAGE ................................................................................................8 HANDSET DESCRIPTIONS .. .......................................................................................9 DISPLAY INDICATORS .. ..........................................................................................12 FEATURT OVERVIEW .. ...........................................................................................19 INSTALLING THE SIM CARD AND BATTERY .. .........................................................20 REMOVING THE BATTERY .. ....................................................................................22 CHARGING THE BATTERY.......................................................................................23 BATTERY HANDLING INFORMATION .. ...................................................................24 USING A MEMORY CARD ....................................................................................................25 CONNECTING TO THE HAEDSET ..........................................................................................26 CHAPTER 2. BASIC OPERATION BASIC OPERATION ........................................................................................29 TURNING THE PHONE ON AND OFF.......................................................................30 MENU ACCESS .......................................................................................................30 MENU SUMMARY..................................................................................................31 MAKING A CALL.....................................................................................................33 ABOUT PUSH TO TALK ...........................................................................................34 USING A PUSH TO TALK (PTT) ALERT ....................................................................34 USING A PUSH TO TALK (PTT) BARGE ...................................................................35 ANSWERING CALLS ...............................................................................................36 ANSWERING PTT CALLS .. ......................................................................................37 ENDING A CALL .. ...................................................................................................37 MISSED CALL NOTIFICATION .................................................................................37 WAIT/PAUSE ..........................................................................................................38 MAKING AN INTERNATIONAL CALL .. ....................................................................39 3 WAY CALLING .....................................................................................................39 CALL WAITING .......................................................................................................39 VOLUME QUICK ADJUSTMENT ..............................................................................40 CALLER ID ..............................................................................................................40 VIBRATE MODE ......................................................................................................40 MUTE FUNCTION ...................................................................................................40 SPEAKERPHONE ....................................................................................................41 FLASHLIGHT ..........................................................................................................41 VOICE DICTATION ...................................................................................................41 TEXT TO SPEECH ....................................................................................................42 AVAILABLE OPTIONS DURING A CALL ...................................................................43 MAKING AN EMERGENCY CALL ............................................................................43 MOTION DETECTION .. ............................................................................................44 CHAPTER 3. MEMORY FUNCTION MEMORY FUNCTION .....................................................................................47 STORING A PHONE NUMBER .................................................................................48 TEXT INPUT ............................................................................................................54 USING THE TEXT INPUT MODE .. ............................................................................54 ONE, TWO, THREE DIGIT SPEED DIALING ..............................................................57 4 5 CHAPTER 4. MENU FUNCTION MENU FUNCTION..........................................................................................59 CONTACTS ..............................................................................................................60 MESSAGING .. .........................................................................................................68 SETTINGS .. .............................................................................................................75 OPTIONS .. ..............................................................................................................78 RECENT CALLS .. .....................................................................................................78 MEDIA CENTER .. ....................................................................................................81 VZ NAVIGATOR .. .....................................................................................................86 SETTINGS & TOOLS .. ............................................................................…

Text truncated - open the document above for the full version.

Pantech Co., Ltd. Date: Mar. 16, 2009 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. SunHee Kim of HCT Co., Ltd and hereafter referred to as HCT, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. SunHee Kim of HCT Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing HCT as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Byung-Wan Kim / Senior Vice President Pantech Co., Ltd.

Pantech Co., Ltd. Pantech Building, I-2, DMC, Sangam-dong, Mapo-gu, Seoul, Korea Date: June 9, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: JYC78 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Pantech Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Pantech Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Sun-Hee Kim-Engineer HCT Co., Ltd. cc. Pantech Co., Ltd.

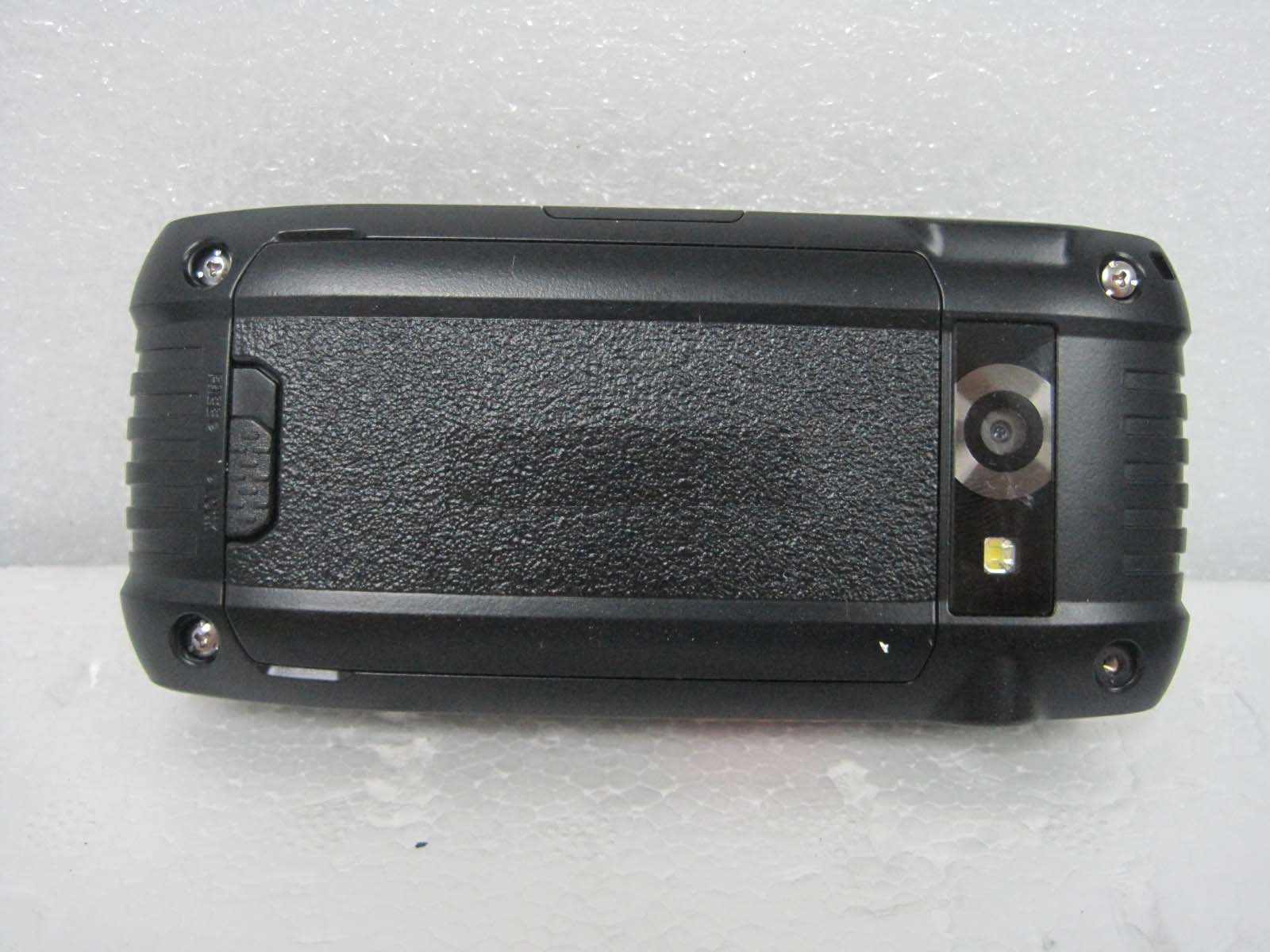

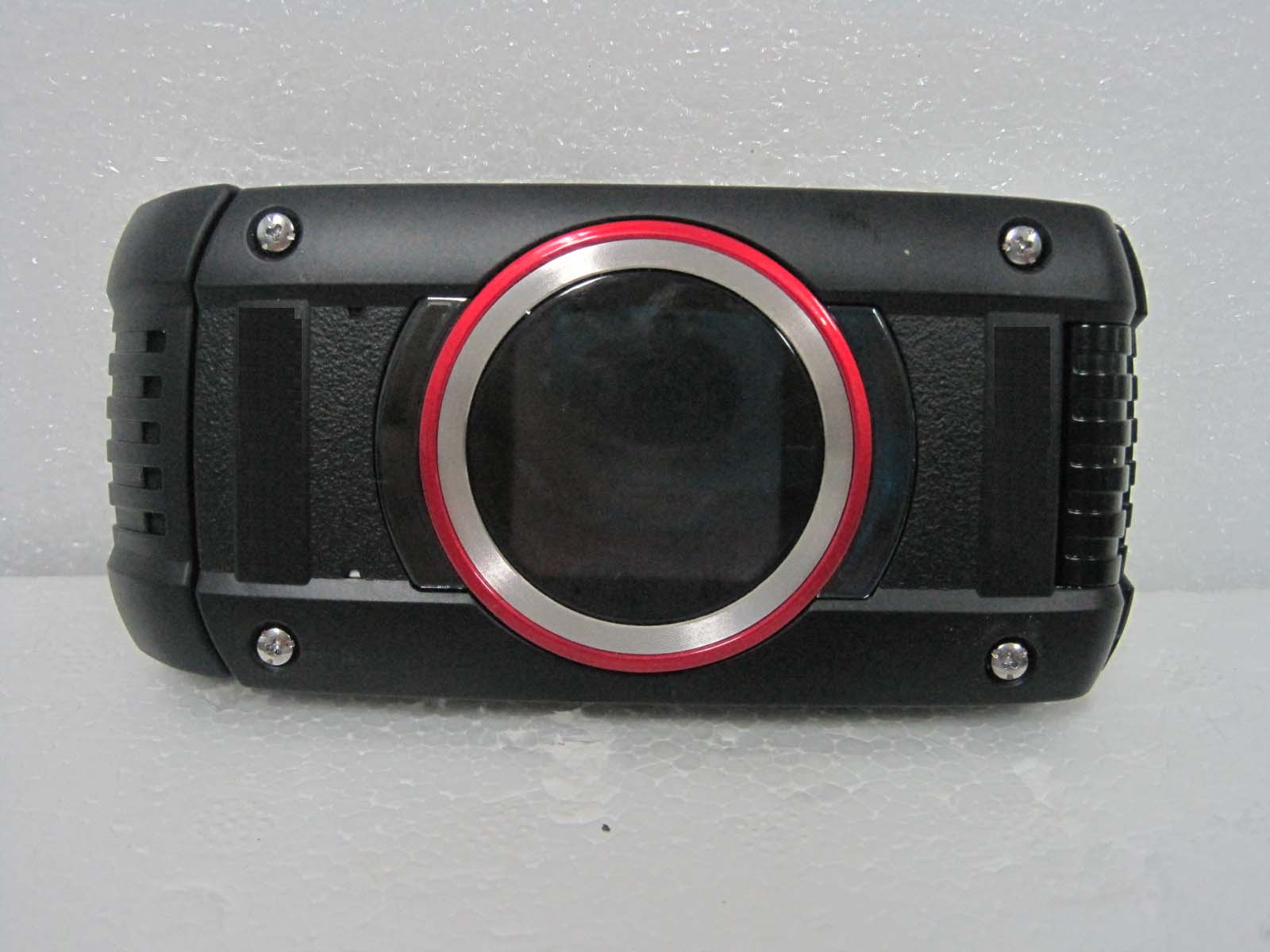

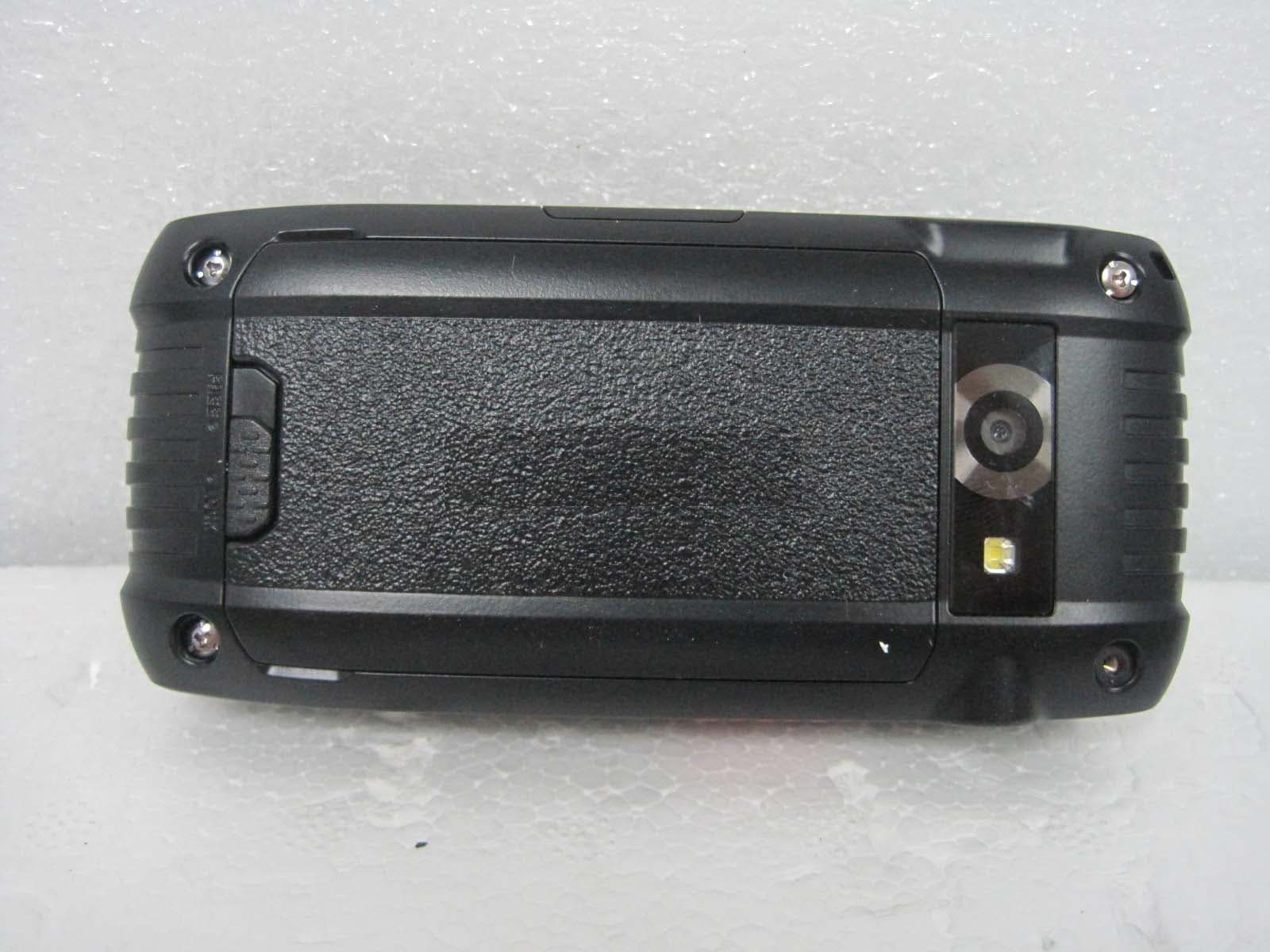

FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 11 EXTERNAL PHOTOGRAPHS FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 11 ■ EXTERNAL PHOTO FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 11 ■ EXTERNAL PHOTO FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 11 ■ EXTERNAL PHOTO FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 11 ■ EXTERNAL PHOTO FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 11 ■ EXTERNAL PHOTO FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 11 ■ EXTERNAL PHOTO FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 11 ■ EXTERNAL PHOTO FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 11 ■ EXTERNAL PHOTO FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 11 ■ EXTERNAL PHOTO FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 11 ■ EXTERNAL PHOTO

FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 10 INTERNAL PHOTOGRAPHS FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 10 ■ INTERNAL PHOTO FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 10 ■ INTERNAL PHOTO FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 10 ■ INTERNAL PHOTO FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 10 ■ INTERNAL PHOTO FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 10 ■ INTERNAL PHOTO FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 10 ■ INTERNAL PHOTO FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 10 ■ INTERNAL PHOTO FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 10 ■ INTERNAL PHOTO FCC ID: JYC78 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 10 ■ INTERNAL PHOTO

KRS-A-021(Rev.00) (주) 가람 솔루션 APPROVAL SHEET Customer PANTECH Supplier KARAM SOLUTION Product Name Main Antenna Model Name C781 Part No Maker Code KRS-C781-MA Date April 29 , 2011 Sample Picture TOP Bottom Width: 42.62mm Length:15.31mm Engineer Review Approved Circuit Kavin Mechanism Aion James Quality Colt Allen Headquarters : Shin Chang-gu, Gyeonggi-Siheung Eunhaeng Technotown 249, 4 th Floor Seoul, 429-836 Korea TEL : 82-31-312-9577, FAX : 82-31-312-9670 Reserch : Rm.905, 448 DaeRyung TechnotownIII Gasan-dong, Gumcheon-gu,Seoul, 153-772 Korea TEL : 82-2-1661-9577, FAX : 82-2-2107-7299 Antenna Specifications DATA 2011-04-29 REV. A MODEL C781 (Main Antenna) TYPE Built-in PAGE 1 KRS-A-021(Rev.00) Karam Solution REVISION LIST REVISION DATE CHANGE CONTENTS CHANGE CAUSE REMARK ISSUE 1 2011.04.29 FIRST APPROVAL SPECIFICATION FROM ISSUE TO 2011. . . FROM ISSUE TO 2011. . . FROM ISSUE TO 2011. . . FROM ISSUE TO 2011. . . FROM ISSUE TO 2011. . . FROM ISSUE TO 2011. . . FROM ISSUE TO 2011. . . FROM ISSUE TO 2011. . . FROM ISSUE TO 2011. . . FROM ISSUE TO 2011. . . FROM ISSUE TO 2011. . . FROM ISSUE TO 2011. . . FROM ISSUE TO 2011. . . FROM ISSUE TO 2011. . . Antenna Specifications DATA 2011-04-29 REV. A MODEL C781 (Main Antenna) TYPE Built-in PAGE 2 KRS-A-021(Rev.00) Karam Solution - CONTENTS - 1. Technical Items ------------------------------------------------------------------------------------------------------3 1.1 Electrical Spec. 1.2 Mechanical Spec. 1.3 Material Spec. 2. Test Equipments ---------------------------------------------------------------------------------------------------5 3. Electrical Demands -----------------------------------------------------------------------------------------------6 3.1 V.S.W.R 3.2 Radiation Pattern 3.3 Gain 3.4 Test Method 4. Mechanical Specification ------------------------------------------------------------------------------------8 4.1 Drop Test 5. Environmental Demands ------------------------------------------------------------------------------------9 5.1 Low Temperature Soaking 5.2 High Temperature Soaking 5.3 Thermal Shock Test 5.4 Static Humidity Test 5.5 Salt Spray(Corrosion) Test 6. Electrical data ------------------------------------------------------------------------------------------------------12 6.1 V.S.W.R 6.2 GAIN Antenna Specifications DATA 2011-04-29 REV. A MODEL C781 (Main Antenna) TYPE Built-in PAGE 3 KRS-A-021(Rev.00) Karam Solution 1. Technical Items 1.1 Electrical Spec. Electrical Spec. Frequency Range Cellular/GSM850/GSM900 US-PCS/DCS1800/DCS1900 Tx Rx Tx Rx 824~915MHz 869~960MHz 1710~1910MHz 1805~1990MHz Folder Position Open Close Open Close Open Close Open Close V.S.W.R (MAX) 4.5 5.0 5.5 5.0 3.5 3.5 5.0 5.5 PEAK GAIN E2-Plane (Min. dBi) -5.0 -4.5 -6.5 -6.0 0.0 -0.5 -1.5 -2.0 PEAK GAIN E1-Plane (Min. dBi) -6.0 -5.5 -4.0 -4.0 -1.5 -1.5 -1.5 -2.0 Average GAIN H-Plane (Min. dBi) -7.0 -7.0 -11.0 -8.5 -10.0 -12.0 -9.5 -11.5 Impedance (Nominal) 50 ohms Polarization Vertical Radiation Pattern Omni-Directional Maximum Power 2 Watts 1.2 Mechanical Spec. Mechanical Spec. Connector Contact Pin Type Overall length See drawing Operation Temperature -30°C  +80°C Weight 1.7 g Antenna Specifications DATA 2011-04-29 REV. A MODEL C781 (Main Antenna) TYPE Built-in PAGE 4 KRS-A-021(Rev.00) Karam Solution 1.3 Material Spec NO Part Name Material Processing Post Quantity Material manufacturers Processing manufacturers Other 1 Carrier PC (SC1004A-KPA1) Injection 1 LG Chemistry Polyhitech 2 Pattern SUS301 0.15T Press 1 POONGSAN Micron Tech 3 4 5 6 7 8 9 10 11 12 13 Antenna Specifications DATA 2011-04-29 REV. A MODEL C781 (Main Antenna) TYPE Built-in PAGE 5 KRS-A-021(Rev.00) Karam Solution 2. Test Equipment The test equipments for antenna are as follows Network Analyzer to measure the V.S.W.R and impedance of antenna Spectrum Analyzer to measure the receiving signal intensity Standard Horn antenna that is adjustable in Cellular/GSM850/GSM900, US-PCS/DCS1800/DCS1900 band Anechoic Chamber installed the cables, connectors and equipments for measurement Dogmatic Caliper to measure the dimensions Torque Driver to measure the torque force of the helix Push/Pull gauge to measure the pulling force Climatic Chamber for environmental test Antenna Specifications DATA 2011-04-29 REV. A MODEL C781 (Main Antenna) TYPE Built-in PAGE 6 KRS-A-021(Rev.00) Karam Solution 3. Electrical Demands 3.1 V.S.W.R The V.S.W.R characteristics must satisfy the electrical demands. With Built-in Antenna mounted on a handset, the V.S.W.R of antenna must be less than 5.5:1 at Cellular/GSM850/GSM900 band (824 ~ 960MHz) and 5.5:1at US-PCS/DCS1800/DCS1900 Band (1710 ~ 1990MHz) on the free space. 3.2 Radiation Pattern The radiation pattern must have the Omni-directional characteristic in Cellular/GSM850/GSM900, US-PCS/DCS1800/DCS1900 band and H-plane. Antenna Specifications DATA 2011-04-29 REV. A MODEL C781 (Main Antenna) TYPE Built-in PAGE 7 KRS-A-021(Rev.00) Karam Solution 3.3 Gain The gain is expressed as dBi that standardizes the half-wave length dipole antenna. Built-in antenna mounted on a handset condition (E2-Plane), the minimum peak Gain of antenna must be bigger than –6.5dBi at Cellular/GSM850/GSM900 band (824~960 MHz) & -2.0 dBi at US-PCS/DCS1800/DCS1900 band (1710 ~ 1990MHz). 3.4 Test Method The antenna is tested while mounted on handset with the correct matching circuit in free space. The antenna is measured for 2 elevation cuts at two different azimuth positions (Φ = 0, Φ = 90). The results of the test will be correlated to the customer handset and the Measurement environment. Antenna Specifications DATA 2011-04-29 REV. A MODEL C781 (Main Antenna) TYPE Built-in PAGE 8 KRS-A-021(Rev.00) Karam Solution 4. Mechanical Specifications 4.1 DROP TEST The antenna assembled to the mobile phone provided by Pantech, should withstand 2 drops(per each slide open & close=Total 40times x 5pcs) / 3drops for bar type(30times x 5pcs) per every each 10 sides(added below 4corner surfac…

Text truncated - open the document above for the full version.

SAR TEST REPORT HCT CO., LTD EUT Type: GSM/CDMA Phone with Bluetooth GPRS Class 12 and GPRS mode class B(GPRS and GSM, but not simultaneously) FCC ID: JYC78 Model: C781 Date of Issue: June 8, 2011 Test report No.: HCTA1106FS03 Test Laboratory: HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6485 FAX: +82 31 645 6401 Applicant : Pantech Co., Ltd. Pantech Building, I-2, DMC, Sangam-dong, Mapo-gu,Seoul, Korea(ZIP :121-792) Tel: 82-2-2030-1237 Testing has been carried out in accordance with: RSS-102 Issue 4; Health Canada Safety Code 6 47CFR §2.1093 FCC OET Bulletin 65(Edition 97-01), Supplement C (Edition 01-01) ANSI/ IEEE C95.1 – 1992 IEEE 1528-2003 Test result: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Signature Report prepared by Approved by : Sun-Hee Kim : Jae-Sang So Test Engineer of SAR Part Manager of SAR Part Report No.: HCTA1106FS03 FCC ID: JYC78 Date of Issue: June 8, 2011 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6485 FAX: +82 31 645 6401 www.hct.co.kr 2 of 117 Table of Contents 1. INTRODUCTION .......................................................................................................................................... ３ 2. DESCRIPTION OF DEVICE ......................................................................................................................... ４ 3. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... ５ 3.1 SAR MEASUREMENT SETUP .................................................................................................... ５ 3.2 DASY E-FIELD PROBE SYSTEM ................................................................................................ ６ 3.3 PROBE CALIBRATION PROCESS .............................................................................................. ７ 3.4 SAM Phantom ............................................................................................................................. ９ 3.5 Device Holder for Transmitters ..................................................................................................... ９ 3.6 Brain & Muscle Simulating Mixture Characterization .................................................................. １０ 3.7 SAR TEST EQUIPMENT .......................................................................................................... １１ 4. SAR MEASUREMENT PROCEDURE ..................................................................................................... １２ 5. DESCRIPTION OF TEST POSITION ....................................................................................................... １３ 5.1 HEAD POSITION ..................................................................................................................... １３ 5.2 Body Holster/Belt Clip Configurations ........................................................................................ １４ 6. MEASUREMENT UNCERTAINTY ..................................................................................................... １５ 7. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS .................................................................................. １６ 8. SYSTEM VERIFICATION ......................................................................................................................... １７ 8.1 Tissue Verification .................................................................................................................... １７ 8.2 System Validation ..................................................................................................................... １７ 9. RF CONDUCTED POWER ...................................................................................................................... １８ 9.1 Procedures Used to Establish RF Signal for SAR ...................................................................... １８ 9.2 SAR Measurement Conditions for CDMA2000 1x ...................................................................... １８ 10. SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas ....................... ２０ 10.1 SAR Evaluation Considerations .............................................................................................. ２０ 11. SAR TEST DATA SUMMARY ................................................................................................................. ２１ 11.1 Measurement Results (CDMA835 Head SAR) ......................................................................... ２１ 11.2 Measurement Results (PCS1900 Head SAR Touch) ................................................................ ２２ 11.3 Measurement Results (GSM850 Head SAR Touch) ................................................................. ２３ 11.4 Measurement Results (GSM1900 Head SAR Touch) ................................................................ ２４ 11.5 Measurement Results (CDMA835 Body SAR) .......................................................................... ２５ 11.6 Measurement Results (PCS1900 Body SAR) ........................................................................... ２６ 11.7 Measurement Results (GSM850 Body SAR) ............................................................................ ２７ 11.8 Measurement Results (GSM1900 Body SAR) .......................................................................... ２８ 12. CONCLUSION ........................................................................................................................................ ２９ 13. REFERENCES ....................................................................................................................................... ３０ A…

Text truncated - open the document above for the full version.

Report No.: HCTA1106FS03 FCC ID: JYC78 Date of Issue: June 8, 2011 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6485 FAX: +82 31 645 6401 www.hct.co.kr 76 of 117 Test Laboratory: HCT CO., LTD EUT Type: GSM/CDMA Phone with Bluetooth GPRS Class 10 and GPRS mode class B (GPRS and GSM, but not simultaneously) Liquid Temperature: 21.3 °C Ambient Temperature: 21.5 °C Test Date: May 27, 2011 DUT: C781; Type: Folder; Serial: #1 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.4 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Phantom section: Right Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ES3DV3 - SN3161; ConvF(4.91, 4.91, 4.91); Calibrated: 2011-03-17 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn446; Calibrated: 2010-09-21 - Phantom: SAM 1800/1900 MHz; Type: SAM Right touch 661/Area Scan (51x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.333 mW/g Right touch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.44 V/m; Power Drift = -0.133 dB Peak SAR (extrapolated) = 0.575 W/kg SAR(1 g) = 0.335 mW/g; SAR(10 g) = 0.179 mW/g Maximum value of SAR (measured) = 0.357 mW/g Report No.: HCTA1106FS03 FCC ID: JYC78 Date of Issue: June 8, 2011 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6485 FAX: +82 31 645 6401 www.hct.co.kr 77 of 117 Test Laboratory: HCT CO., LTD EUT Type: GSM/CDMA Phone with Bluetooth GPRS Class 10 and GPRS mode class B (GPRS and GSM, but not simultaneously) Liquid Temperature: 21.3 °C Ambient Temperature: 21.5 °C Test Date: May 27, 2011 DUT: C781; Type: Bar; Serial: #1 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:2.075 Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ES3DV3 - SN3161; ConvF(4.49, 4.49, 4.49); Calibrated: 2011-03-17 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn446; Calibrated: 2010-09-21 - Phantom: SAM 1800/1900 MHz; Type: SAM GSM1900 Body 661/Area Scan (51x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.813 mW/g GSM1900 Body 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.4 V/m; Power Drift = 0.134 dB Peak SAR (extrapolated) = 1.23 W/kg SAR(1 g) = 0.764 mW/g; SAR(10 g) = 0.453 mW/g Maximum value of SAR (measured) = 0.825 mW/g Report No.: HCTA1106FS03 FCC ID: JYC78 Date of Issue: June 8, 2011 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6485 FAX: +82 31 645 6401 www.hct.co.kr 78 of 117 Attachment 2. – Dipole Validation Plots Report No.: HCTA1106FS03 FCC ID: JYC78 Date of Issue: June 8, 2011 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6485 FAX: +82 31 645 6401 www.hct.co.kr 79 of 117 „ Validation Data (835 MHz Head) Test Laboratory: HCT CO., LTD Input Power 100 mW (20 dBm) Liquid Temp: 21.3 °C Test Date: May 26, 2011 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:481 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.911 mho/m; ε r = 43.1; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurem…

Text truncated - open the document above for the full version.
