JYCC1503Band GSM850/DCS1800/PCS1900(w.WAP/GPRS/EDGE/BT)

1 C150 USER MANUAL 2 Thank you for choosing the Pantech C150, our latest tri-band GSM mobile phone. The C150 has many features that will enhance your mobile experience. From its light weight and reliability, to the built-in camera, we know you will enjoy all the features the C150 has to offer. The C150 user guide contains important information about using your handset. Please read the manual thoroughly, pay attention to the warranty on the back page and be alert to the exclusions and limitations of your warranty, related to the use of unauthorized components. NOTE : Some information in this User Manual may differ from your phone, depending on your software version and network provider. 3 Contents Phone Specifications ............. .................. ................ 9 Safety precautions ................................................. 10 Pantech C150 at a glance ...................................... 11 Quick & Easy .... ............... ............... ............... ......... 12 1. Getting Started... ................. .................. .............. 13 1. Package Contents.............................................................................. 13 2. SIM Card............................................................................................ 14 About your SIM card ........................................................................ 14 Installing/Removing your SIM card................................................... 14 3. Battery ............................................................................................... 15 Inserting your battery ....................................................................... 15 Removing your battery ..................................................................... 15 Charging your battery....................................................................... 15 Getting the best from your battery .................................................... 16 4. Internal & External Displays ............................................................... 17 Internal Display ................................................................................ 17 Internal display icons........................................................................ 17 Automatic display off ........................................................................ 18 5. Selecting functions and options ......................................................... 19 Selecting functions and options........................................................ 19 To display the functions and options available, or select the one required: ..................................................................................... 19 2. Basic functions... ................ .................. ..............20 1. Switching your phone on or off........................................................... 20 To switch your phone on .................................................................. 20 To switch your phone off .................................................................. 20 2. Making and ending a call ................................................................... 21 To make a call .................................................................................. 21 To end a call.................................. ................................................... 21 To make a call using Call Logs......................................................... 21 To make a call using Entry ............................................................... 21 To make an International call ........................................................... 22 To speed-dial from Entry .................................................................. 22 To make an emergency call .............. ............................................... 22 3. Answering a call ................................................................................. 23 To answer a call ............................................................................... 23 To reply to a missed call................................................................... 23 To reject a call .................................................................................. 23 To answer a second call................................................................... 23 To switch between two calls ............................................................. 23 To end the current call...................................................................... 23 4. Options during a call .......................................................................... 24 To adjust the call volume.................................................................. 24 To switch your microphone off (Mute) or on (Speak) ........................ 24 To switch your phone’s microphone off........................................... 24 4 To switch your phone’s microphone back on .................................. 24 To put a call on hold, and return to a held call .................................. 24 To put a call on hold ....................................................................... 24 To return to a held call .................................................................... 24 To make a call while you are on a call ............................................ 24 To switch between two calls ........................................................... 24 To end a call ................................................................................... 25 Transferring a call ............................................................................ 25 Multi-party calls ................................................................................ 25 To make a multi-party call ............................................................... 25 To add a new person to a multi-party call ....................................... 25 To add a caller to a multi-party call ................................................. 25 To vi…

Text truncated - open the document above for the full version.

Pantech Co., Ltd. Sinsong Center Bldg., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ LETTER OF AUTHORIZATION DATE : Jan. 24, 2007 To whom it may concern: We the undersigned, hereby authorize ETS Germany to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ETS Germany on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Pantech Co.,LTd. Sincerely, (Company counsel or company officer signature) Name : Byung-Wan Kim Title : Vice President (Name and Title)

Pantech Co., Ltd, Sinsong Center Bldg. 6 th Floor, 25-12 , Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea, P: +82-2-3660-5862, F: +82-2-3660-5990 Date: Feb. 16, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: JYCC150 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Pantech Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Pantech Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 SAR Test-Setup Photos SHORT-TERM CONFIDENTIAL 9 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Bo Hyun Jung R&D Lab2 Manager Pantech Co., Ltd.

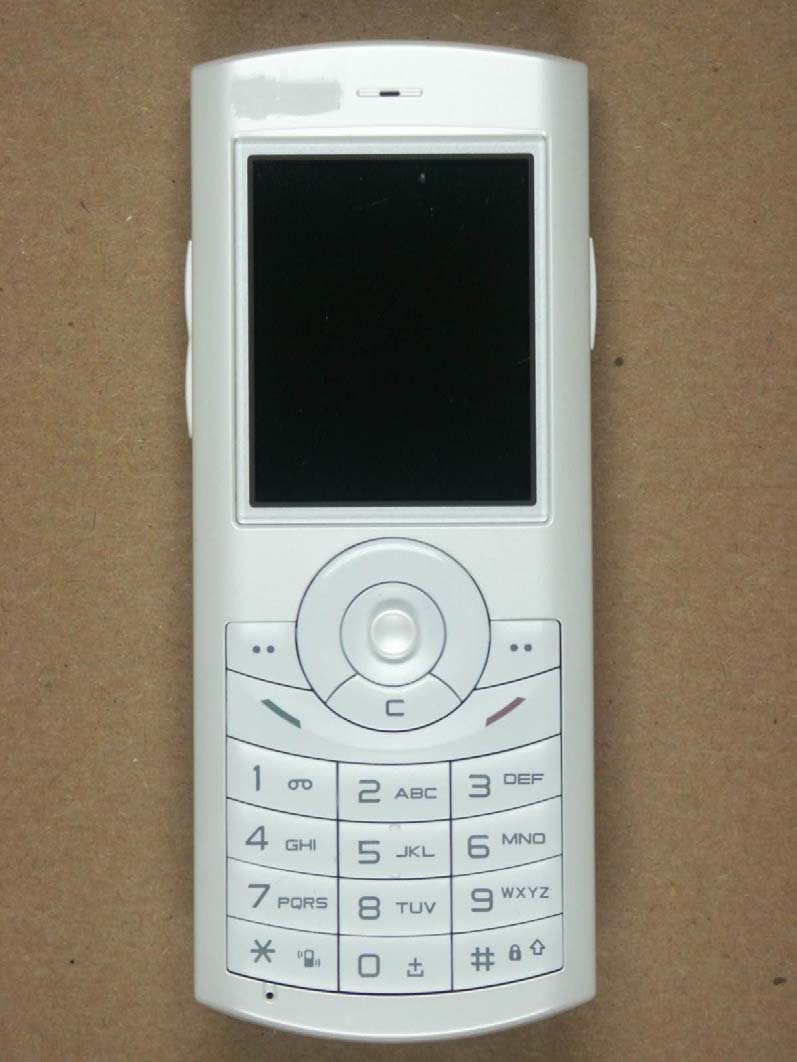

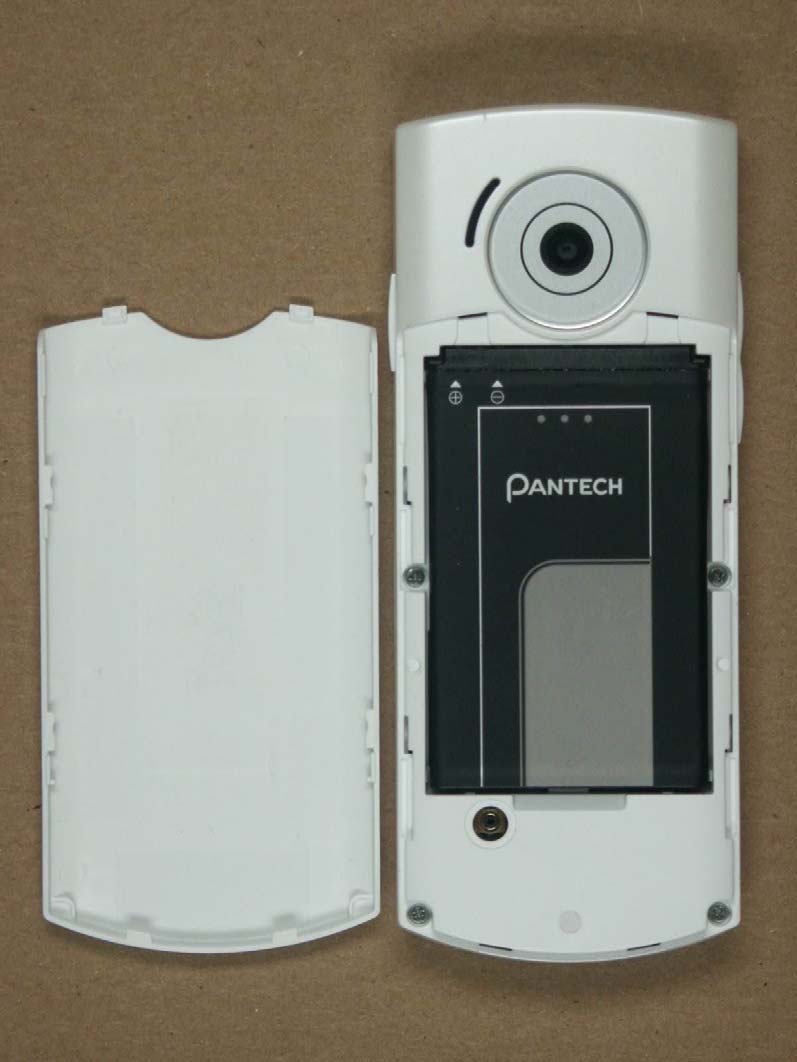

ETS Product Service AG Registration number: G5M207010008-P-15 Page 1 of 11 Appendix A. Pictures ETS Product Service AG Registration number: G5M207010008-P-15 Page 2 of 11 ETS Product Service AG Registration number: G5M207010008-P-15 Page 3 of 11 ETS Product Service AG Registration number: G5M207010008-P-15 Page 4 of 11

Pantech Co., Ltd. Sinsong Center Bldg., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ [Label Location] Description: Triple Band GSM850 /DCS 1800 /PCS 1900 (with WAP & GPRS&EDGE) FCC ID: JYCC150

Pantech Co., Ltd. Sinsong Center Bldg., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ [FCC ID Label sample] Description: Triple Band GSM850 /DCS 1800 /PCS 1900 (with WAP & GPRS & EDGE)

ETS Product Service AG Registration number: G5M207010008-P-15 Page 5 of 11 ETS Product Service AG Registration number: G5M207010008-P-15 Page 6 of 11 ETS Product Service AG Registration number: G5M207010008-P-15 Page 7 of 11 ETS Product Service AG Registration number: G5M207010008-P-15 Page 8 of 11

Pantech Co., Ltd. Sinsong Center Bldg., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ Declaration concerning Antenna Specification It’s hereby declared that the product: ............ C150 fulfills the requirement in FCC test relating to the antenna type. The ............C150.............confirm to FCC recommendation with Internal antenna type: (model if applicable) C150 built into the housing and has a unique connector GSM850 GSM900 DCS1800 PCS1900 824 – 894MHz 880 – 960MHz 1710 – 1880MHz 1850 – 1990MHz TX RX TX RX TX RX TX RX Frequency Ran ge (GHz) Band (MHz) 824 – 849 869 – 894 880 - 915 925 - 960 1710- 1785 1805- 1880 1850- 1910 1930- 1990 E2-PLANE Gain(dBi) (Peak Gain, More Than) BAR Type -4.2 -4.5 N.A. N.A -4.5 -3.8 -3.2 -3.5 The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company: Pantech Co.,Ltd. Address: Sinsong Center Bldg., 25-12,Yeouido-dong,Yeoungdeungpo-gu, City: Seoul ZIP / Postal code: 150-711 Country: Korea Place: KOREA Date Jan. 24, 2007 Signature:

ETS PRODUCT SERVICE AG TEST - REPORT SAR Compliance Test Report Test report no.: G5M207010008-S-8 SAR ETS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN PRODUCT SERVICE AG PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Product Service AG Registration number: G5M207010008-S-8 Page 1 of 29 TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Manufacturer 1.5 Application details 1.6 Test item 1.7 Test results 1.8 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Definitions 2.5 Measurement system description 2.6 Test system specification 2.7 Measurement procedure 2.8 Reference points 2.9 Test positions 2.10 Measurement uncertainty 3 Tissue and system verification 3.1 Tissue verification 3.2 System verification 4 Test Results 5 References 6 Appendix ETS Product Service AG Registration number: G5M207010008-S-8 Page 2 of 29 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 20.02.2007 M. Cersovsky Date ETS-Lab. Name Signature Technical responsibility for area of testing: 20.02.2007 N. Kaspar Date ETS Name Signature ETS Product Service AG Registration number: G5M207010008-S-8 Page 3 of 29 1.2 Testing laboratory 1.2.1 Location ETS PRODUCT SERVICE AG Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax : +49 33631 888 660 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983.01 Statement: The tests documented within this report are carried out in accordance with the scope of accreditation of test laboratory ETS Product Service AG. 1.3 Details of approval holder Name : Pantech Co., Ltd. Street : Shinsong Center Bldg, 25-12 Yeoido-dong Yeoungdongpo-gu Town : 150-711 Seoul Country : Korea Telephone : +82-2-3774 7503 Fax : +82-2-3660-5828 Contact : Mr. Bo-Hyun. Jung E-Mail : [email protected] ETS Product Service AG Registration number: G5M207010008-S-8 Page 4 of 29 1.4 Manufacturer: (if applicable) Name : Street : Town : Country : 1.5 Application details Date of receipt of application : 22.01.2007 Date of receipt of test item : 22.01.2007 Date of test : 13.02.2007 - 16.02.2007 1.6 Test item FCC ID : JYCC150 Description of test item : Triple Band GSM 850 /DCS 1800 /PCS1900 (with WAP & EGPRS) Type identification : C150 Serial number : without; Identical prototype Device category : PCE ( Licensed Portable Transmitter held to ear) Technical data GSM / PCS Frequency range : GSM 850 PCS 1900 TX Frequency range : 824.2 - 848.8 MHz 1850.2 - 1909.9 MHz RX Frequency range : 869.2 - 893.8 MHz 1930.2 - 1989.8 MHz Max. Conducted RF output power : 33,52 dBm (2,25 W) 30,71 dBm (1,18 W) EDGE 850 EDGE 1900 TX Frequency range : 824.2 - 848.8 MHz 1850.2 - 1909.9 MHz RX Frequency range : 869.2 - 893.8 MHz 1930.2 - 1989.8 MHz Max. Conducted RF output power : 31,28 dBm (1,34 W) 27,87 dBm (0,61 W) Power supply : 3.7 V DC Antenna Tx : integral Antenna RX : integral Additional information : Tx and Rx. antenna are the same. ETS Product Service AG Registration number: G5M207010008-S-8 Page 5 of 29 1.7 Test Results Max. SAR Measurement GSM (Head) : 0,724 W/kg (averaged over 1 gram) Max. SAR Measurement GSM (Body) : 0,992 W/kg (averaged over 1 gram) Max. SAR Measurement PCS (Head) : 0,668 W/kg (averaged over 1 gram) Max. SAR Measurement PCS(Body) : 0,575 W/kg (averaged over 1 gram) Max. SAR Measurement EGSM 850(Body) : 0,381 W/kg (averaged over 1 gram) Max. SAR Measurement EGSM 1900 (Body) : 0,280 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003, December 2003. 1.8 Test standards Standards : - IEEE Std. 1528-2003, December 2003 FCC Rule Part(s) : - FCC OET Bulletin 65, Supplement C, Edition 01-01 2 Technical test 2.1 Summary of test results Applicable Configuration Handset (Head) X Handset (Body) X Headset (Head) Body Worn Equipment ETS Product Service AG Registration number: G5M207010008-S-8 Page 6 of 29 EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters s…

Text truncated - open the document above for the full version.

Date/Time: 2/16/2007 07:09:13 Test Laboratory: ETS PRODUCT SERVICE AG GSM_850_left_ch189_cheek DUT: C150; Type: Triple Band GSM 850 /Dcs1800 /Pcs 1900 (with WAP & EGPRS); Serial: 0008-S11 Communication System: GSM 850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: Head 900 MHz Medium parameters used: f = 836.512 MHz; σ = 0.89 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.38, 6.38, 6.38); Calibrated: 10/16/2006 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/21/2006 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 C150/Area Scan (81x141x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.526 mW/g C150/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.1 V/m; Power Drift = -0.057 dB Peak SAR (extrapolated) = 0.652 W/kg SAR(1 g) = 0.482 mW/g; SAR(10 g) = 0.330 mW/g Maximum value of SAR (measured) = 0.514 mW/g 0 dB = 0.514mW/g Date/Time: 2/16/2007 08:19:03 Test Laboratory: ETS PRODUCT SERVICE AG GSM_850_left_ch189_tilted DUT: C150; Type: Triple Band GSM 850 /Dcs1800 /Pcs 1900 (with WAP & EGPRS); Serial: 0008-S11 Communication System: GSM 850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: Head 900 MHz Medium parameters used: f = 836.512 MHz; σ = 0.89 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.38, 6.38, 6.38); Calibrated: 10/16/2006 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/21/2006 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 C150/Area Scan (81x141x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.371 mW/g C150/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.5 V/m; Power Drift = 0.008 dB Peak SAR (extrapolated) = 0.466 W/kg SAR(1 g) = 0.350 mW/g; SAR(10 g) = 0.248 mW/g Maximum value of SAR (measured) = 0.371 mW/g 0 dB = 0.371mW/g Date/Time: 2/16/2007 10:21:35 Test Laboratory: ETS PRODUCT SERVICE AG GSM_850_right_ch128_cheek_ DUT: C150; Type: Triple Band GSM 850 /Dcs1800 /Pcs 1900 (with WAP & EGPRS); Serial: 0008-S11 Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: Head 900 MHz Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.874 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.38, 6.38, 6.38); Calibrated: 10/16/2006 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/21/2006 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 C150/Area Scan (81x141x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.344 mW/g C150/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.00 V/m; Power Drift = 0.037 dB Peak SAR (extrapolated) = 0.454 W/kg SAR(1 g) = 0.327 mW/g; SAR(10 g) = 0.223 mW/g Maximum value of SAR (measured) = 0.356 mW/g 0 dB = 0.356mW/g Date/Time: 2/16/2007 09:50:07 Test Laboratory: ETS PRODUCT SERVICE AG GSM_850_right_ch189_cheek_ DUT: C150; Type: Triple Band GSM 850 /Dcs1800 /Pcs 1900 (with WAP & EGPRS); Serial: 0008-S11 Communication System: GSM 850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: Head 900 MHz Medium parameters used: f = 836.512 MHz; σ = 0.89 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.38, 6.38, 6.38); Calibrated: 10/16/2006 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/21/2006 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 C150/Area Scan (81x141x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.542 mW/g C150/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.4 V/m; Power Drift = -0.067 dB Peak SAR (extrapolated) = 0.701 W/kg SAR(1 g) = 0.503 mW/g; SAR(10 g) = 0.342 mW/g Maximum value of SAR (measured) = 0.535 mW/g 0 dB = 0.535mW/g Date/Time: 2/16/2007 08:50:51 Test Laboratory: ETS PRODUCT SERVICE AG GSM_850_right_ch189_tilted DUT: C150; Type: Triple Band GSM 850 /Dcs1800 /Pcs 1900 (with WAP & EGPRS); Serial: 0008-S11 Communication System: GSM 850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: Head 900 MHz Medium parameters used: f = 836.512 MHz; σ = 0.89 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.38, 6.38, 6.38); Calibrated: 10/16/2006 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/21/2006 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 C150/Area Scan (81x141x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.403 mW/g C150/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.8 V/m; Power Drift = -0.027 dB Peak SAR (extrapolated) = 0.494 W/kg SAR(1 g) = 0.372 mW/g; SAR(10 g) = 0.262 mW/g Maximum value of SAR (measured) = 0.398 mW/g 0 dB = 0.398mW/g Date/Time: 2/16/2007 10:50:12 Test Laboratory: ETS PRODUCT SERVICE AG GSM_850_right_ch251_cheek DUT: C150; Type: Triple Band GSM 850 /Dcs1800 /Pcs 1900 (with WAP & EGPRS); Serial: 0008-S11 Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: Head 900 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.904 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Phantom …

Text truncated - open the document above for the full version.

ETS PRODUCT SERVICE AG TEST - REPORT FCC RULES PARTS 15.247 IC RADIO STANDARDS RSS-210 Annex 8 FCC ID: JYCC150 Model Name: C150 Test report no.: G5M207010008-P-15 Certificate 1983.01 ETS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN PRODUCT SERVICE AG PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Product Service AG Registration number: G5M207010008-P-15 Page 1 of 32 TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General test procedure 2.5 Test results 3 Transmitter parameters 3.1 RF power output conducted 3.2 RF power output radiated (EIRP) 3.3 20 dB bandwidth 3.4 Time of occupancy (dwell time) 3.5 Number of hopping frequencies 3.6 Carrier frequency separation 3.7 Spurious emission conducted 3.8 Spurious emission radiated 3.9 Band-edge compliance 3.10 AC power line conducted emission 4 Receiver parameters 4.1 Radiated emission APPENDIX ETS Product Service AG Registration number: G5M207010008-P-15 Page 2 of 32 1 General information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. Tester: 22.02.2007 M. Handrik Date ETS-Lab. Name Signature Technical responsibility for area of testing: 22.02.2007 N. Kaspar Date ETS Name Signature ETS Product Service AG Registration number: G5M207010008-P-15 Page 3 of 32 1.2 Testing laboratory 1.2.1 Location ETS PRODUCT SERVICE AG Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 ACCREDITED COMPETENT BODY BNETZA-REGISTRATION NUMBER: BNETZA-ZS-026/96 FCC FILED TEST LABORATORY: REG. NO. 96970 INDUSTRY CANADA FILED TEST LABORATORY R EG. NO.: IC 3470 A2LA ACCREDITED C ERTIFICATE NUMBER: 1983.01 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) 1.3 Details of approval holder Name : Pantech Co., Ltd. Street : Shinsong Center Bldg, 25-12 Yeoido-dong Yeoungdongpo-gu Town : 150-711 Seoul Country : Korea Telephone : +82-2-3774 7503 Contact : Mr. Bo-Hyun. Jung E-Mail : [email protected] ETS Product Service AG Registration number: G5M207010008-P-15 Page 4 of 32 1.4 Application details Date of receipt of application : 22.01.2007 Date of receipt of test item : 22.01.2007 Date of test : 09.02.2007 – 19.02.2007 1.5 Test item Description of test item : Triple Band GSM 850 /DCS 1800 /PCS1900 (with WAP & EGPRS) Type identification : C150 Serial number : without Photos : See annex A. Technical data Frequency band : 2.4 - 2.4835 GHz Frequency Ch A : 2402 MHz Frequency Ch B : 2441 MHz Frequency Ch C : 2480 MHz Transmitter Vnom Vnom –15 % Vnom +15 % Power (ch A) : Conducted: 3.55 dBm Conducted: 3.40 dBm Conducted: 3.41 dBm Power (ch B) : Conducted: 2.90 dBm Conducted: 2.92 dBm Conducted: 2.97 dBm Power (ch C) : Conducted: 2.81 dBm Conducted: 2.82 dBm Conducted: 2.79 dBm Antenna Type : internal antenna Antenna Gain : -5 dBi Power supply : 4.0 V DC Operating mode : duplex Type of modulation : FHSS Host device : none ETS Product Service AG Registration number: G5M207010008-P-15 Page 5 of 32 Classification : Fixed Device Mobile Device (Human Body distance > 20 cm) Portable Device (Human Body distance < 20 cm) Manufacturer: (if applicable) Name : Pantech Co., Ltd. Street : Shinsong Center Bldg, 25-12 Yeoido-dong Yeoungdongpo-gu Town : 150-711 Seoul Country : Korea Additional information: The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronization procedure and other parameters are determined by Bluetooth Core Specification. According to attached declaration of manufacturer this device don’t work in master inquiry mode. So we have only one frequency hopping system and the hopping sequence of the master inquiry mode is not verified. ETS Product Service AG Registration number: G5M207010008-P-15 Page 6 of 32 1.6 Test standards Technical standard: FCC Parts: 15.247 IC Standards: RSS 210 Issue 6 Annex 8.1 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 23 ° C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 4.0 V DC Extreme conditions parameters: : test voltage - extreme min.: 3.6 V DC (Vnom – 15%) max: 4.2 V DC (Vnom + 15%) ETS Product Service AG Registration number: G5M207010008-P-15 Page 7 of 32 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD Gun SESD 30000 Schlöder ETS 0002 Test receiver ESVP R & S ETS 0003 Diode Power Sensor NRV-Z2 R & S ETS 0004 Spektrum- and Network- Analyzer FSMS 26 R & S …

Text truncated - open the document above for the full version.

ETS Product Service AG, Germany Registration number: G5M207010008-S-8 Appendix C Appendix C. Pictures ETS Product Service AG, Germany Registration number: G5M207010008-S-8 Appendix C ETS Product Service AG, Germany Registration number: G5M207010008-S-8 Appendix C ETS Product Service AG, Germany Registration number: G5M207010008-S-8 Appendix C ETS Product Service AG, Germany Registration number: G5M207010008-S-8 Appendix C ETS Product Service AG, Germany Registration number: G5M207010008-S-8 Appendix C ETS Product Service AG, Germany Registration number: G5M207010008-S-8 Appendix C ETS Product Service AG, Germany Registration number: G5M207010008-S-8 Appendix C ETS Product Service AG, Germany Registration number: G5M207010008-S-8 Appendix C ETS Product Service AG, Germany Registration number: G5M207010008-S-8 Appendix C ETS Product Service AG, Germany Registration number: G5M207010008-S-8 Appendix C ETS Product Service AG, Germany Registration number: G5M207010008-S-8 Appendix C ETS Product Service AG, Germany Registration number: G5M207010008-S-8 Appendix C
