JYCC5104Band GSM850/900/DCS1800/PCS1900(w.WAP/GPRS/EDGE)

1 C510 USER MANUAL 2 Thank you for choosing the Pantech C510, our latest tri-band GSM mobile phone. The C510 has many features that will enhance your mobile experience. From its light weight and reliability, to the built-in camera, we know you will enjoy all the features the C510 has to offer. The C510 user guide contains import ant information about using your handset. Please read the manual thoroughly, pay attention to the warranty on the back page and be alert to the exclusions and limitations of your warranty, related to the use of unauthorized components. NOTE : Some information in this User Manual may differ from your phone, depending on your software version and network provider. 3 Contents Phone Specifications .............................................. 9 Safety precautions ................................................ 10 Quick & Easy ......................................................... 12 1. Getting Started .................................................. 13 1. Package C ontents ............................................................................... 13 2. SIM Card.............................................................................................. 14 About your SIM card ............................................................................ 14 Installing/Removing your SIM card ...................................................... 14 3. Battery ................................................................................................. 14 Inserting your batte ry ........................................................................... 14 Removing your batte ry ........................................................................ 15 Charging your batte ry .......................................................................... 15 4. Internal & Exte rnal Displays ................................................................ 17 Internal Display .................................................................................... 17 Internal disp lay icons ........................................................................... 17 Automatic disp lay off............................................................................ 18 5. Selecting functi ons and options........................................................... 19 Selecting functions and options when your phone is open ................. 19 To display the functions and options available, or select the one require d:....................................................................................... 19 Selecting functions and options when your phone is closed ............... 19 2. Basic functions ..................................................20 1. Switching your phone on or off ............................................................ 20 To switch yo ur phone on ...................................................................... 20 To switch your phone of f ...................................................................... 20 2. Making and endi ng a call ..................................................................... 21 To make a call ...................................................................................... 21 To end a call......................................................................................... 21 To make a call us ing Call Logs ............................................................ 21 To make a call using En try................................................................... 21 To make an Inter national call ............................................................... 22 3. Answerin g a call................................................................................... 23 To speed-dial from En try...................................................................... 23 To make an emergency call ................................................................. 23 To answer a call ................................................................................... 23 To reply to a missed ca ll ...................................................................... 23 To reject a call ...................................................................................... 23 To answer a se cond call ...................................................................... 24 To switch between two calls................................................................. 24 To end the curre nt ca ll ......................................................................... 24 4. Options dur ing a ca ll ............................................................................ 25 To adjust the call volu me ..................................................................... 25 To switch your microphone of f (Mute) or on (Speak) ........................... 25 To switch your phon e’s microph one off ............................................ 25 To switch your phone’ s microphone back on ................................... 25 To put a call on hold, and return to a held call ..................................... 25 4 To put a ca ll on hol d ......................................................................... 25 To return to a held call...................................................................... 25 To make a call while you are on a call ............................................. 25 To switch between two calls............................................................. 25 To end a call ..................................................................................... 26 Transferring a call ................................................................................ 26 Multi-part y calls .................................................................................... 26 To make a mult i-party call ................................................................ 26 To add a new person to a multi-part y call ........................................ 26 To add a caller to a multi-party call ....…

Text truncated - open the document above for the full version.

Pantech Co., Ltd. Sinsong Center Bldg., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ LETTER OF AUTHORIZATION DATE : Dec. 05, 2006 To whom it may concern: We the undersigned, hereby authorize ETS Germany to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ETS Germany on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Pantech Co.,LTd. Sincerely, (Company counsel or company officer signature) Name : Byung-Wan Kim Title : Vice President (Name and Title)

Pantech Co., Ltd. Sinsong Center Bldg., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ Date : Dec. 05, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Pantech Co., Ltd. FCC ID: JYCC510 Gentlemen, In accordance with 0.459 of CFR 47, Pantech Co., Ltd. hereby requests confidentiality of all Schematics, Parts List, Operational Description, Block Diagram attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Pantech Co., Ltd. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Pantech Co., Ltd. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Name : Byung-Wan Kim Title : Vice President Company : Pantech Co., Ltd.

ETS Handelsregister: Bankverbindung: ETS PRODUCT SERVICE AG Amtsgericht Frankfurt/Oder HRB 10300 F Sparkasse Oder Spree Storkower Strasse 38c Vorstand: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin UST-ID Nr. DE 2377 15216 Kto. Nr. 3000 859 364 ETS PRODUCT SERVICE AG STORKOWER STRASSE 38c, D-15526 REICHENWALDE B.BERLIN T: +49 33631 888 00 F: +49 33631 888 660 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 DATE : 08. Feb 2007 Subject: SUPERSEDE REQUEST LETTER Applicant: Authorization Pantech Co., Ltd. FCC ID: JYCC510 Hello, We have uploaded up to two incorrect exhibits. We will follow the FCC recommendation on the Conference Call on September 12, 2006 to set supersede the following incorrect exhibit(s). Exhibit 1: Exhibit Type : RF Exposure Info File Name : C510 RFExp SAR 2.pdf File Size : 1559876 Description : SAR2 Submission Date : 02/07/2007 We have send a wrong filing, that is why we are requesting Supersede. Kind regards, Andreas Herrmann Certification Manager ETS Product Service AG Storkower Str. 38C D-15526 Reichenwalde b. Berlin Germany Tel.: +49 33631 888 713 Fax: +49 33631 888 680 Email: [email protected] http://www.ets-ps.com

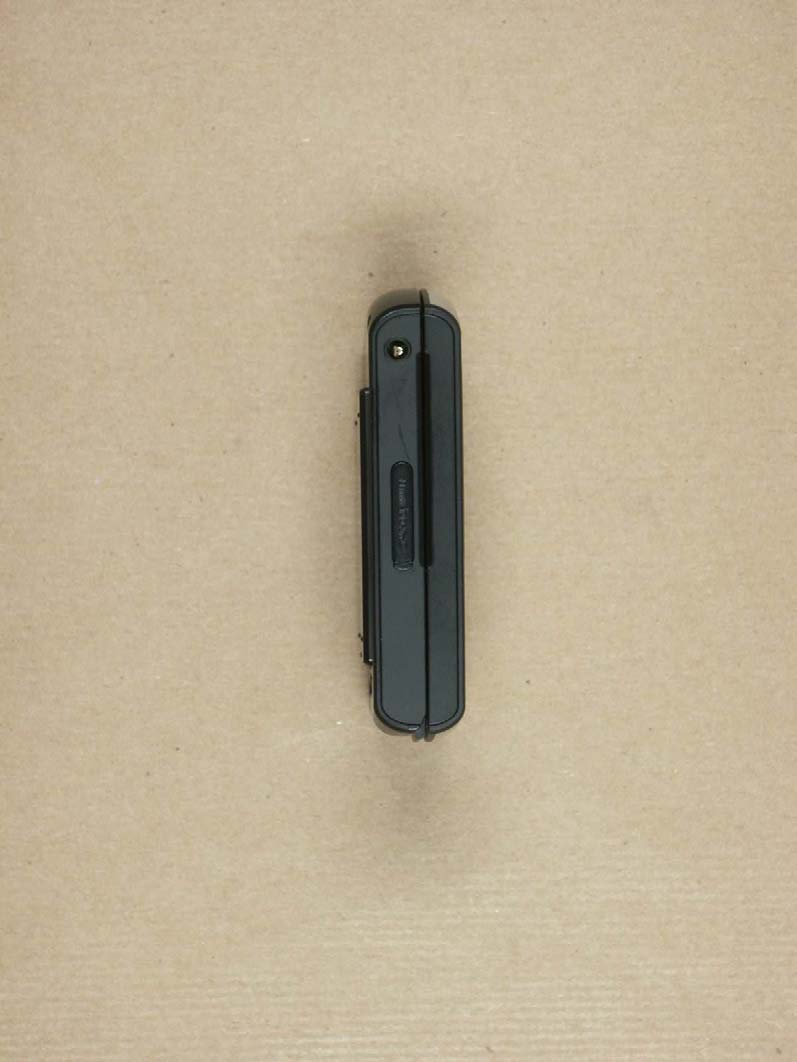

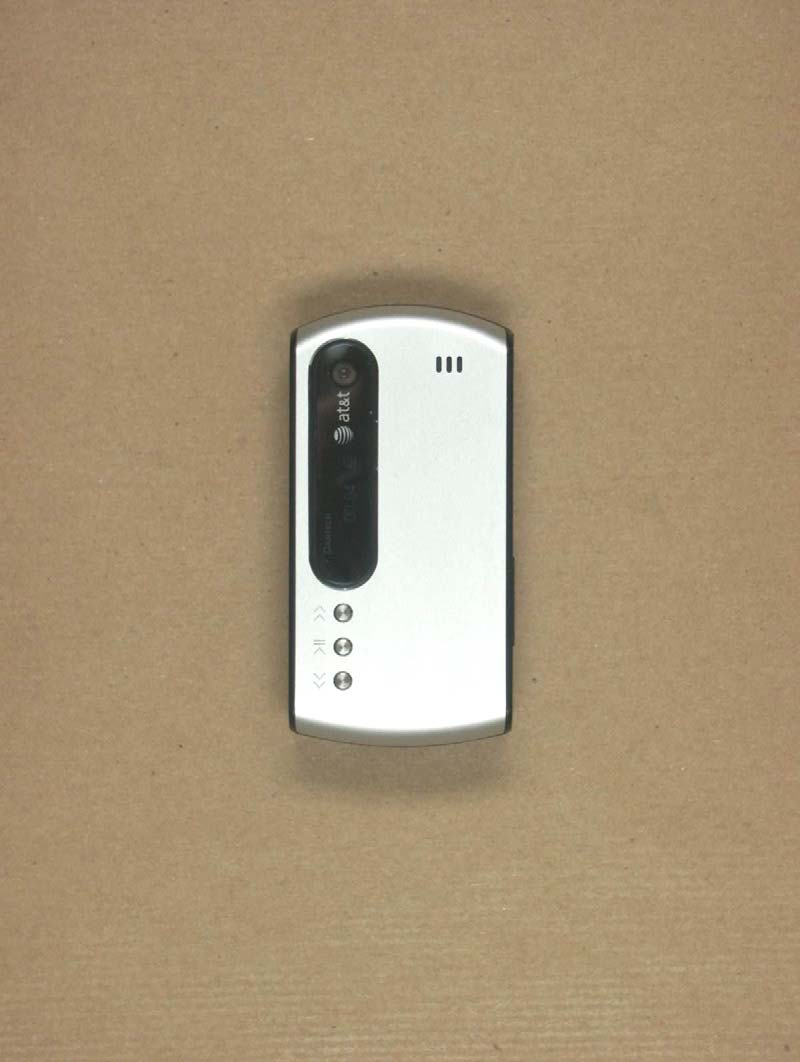

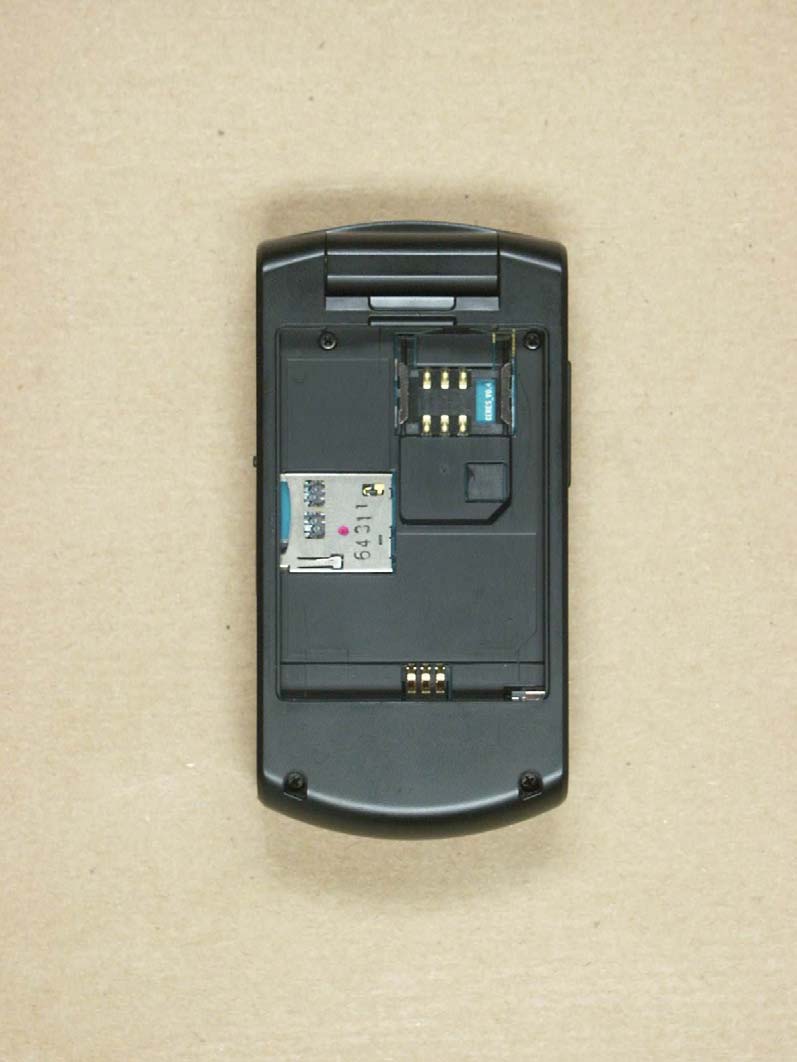

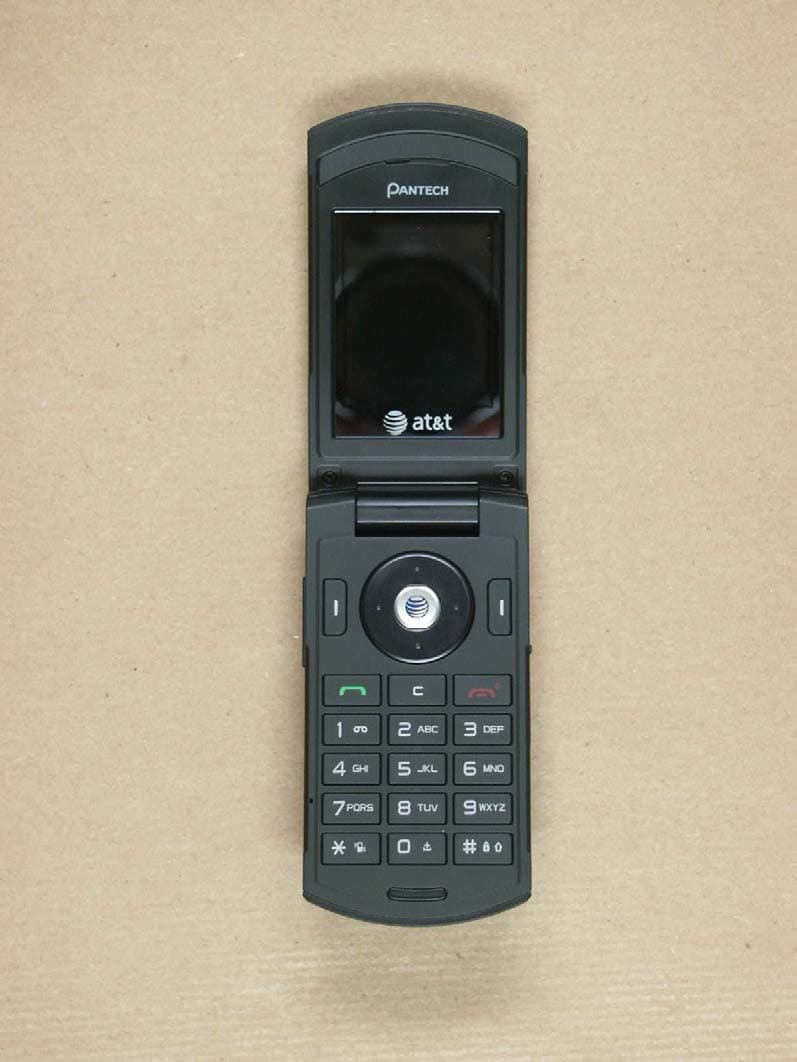

ETS Product Service AG Registration number: G5M206100083-P-15 Page 1 of 13 Appendix A. Pictures ETS Product Service AG Registration number: G5M206100083-P-15 Page 2 of 13 ETS Product Service AG Registration number: G5M206100083-P-15 Page 3 of 13 ETS Product Service AG Registration number: G5M206100083-P-15 Page 4 of 13 ETS Product Service AG Registration number: G5M206100083-P-15 Page 5 of 13 ETS Product Service AG Registration number: G5M206100083-P-15 Page 6 of 13

Pantech Co., Ltd. Sinsong Center Bldg., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ [Label Location] Description: Quad Band GSM850 /GSM 900 /DCS 1800 /PCS 1900 (with WAP & GPRS&EDGE) FCC ID: JYCC510

Pantech Co., Ltd. Sinsong Center Bldg., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ [FCC ID Label sample] Description: Quad Band GSM850 /GSM 900 /DCS 1800 /PCS 1900 (with WAP & GPRS & EDGE) FCC ID: JYCC510

ETS Product Service AG Registration number: G5M206100083-P-15 Page 7 of 13 ETS Product Service AG Registration number: G5M206100083-P-15 Page 8 of 13 ETS Product Service AG Registration number: G5M206100083-P-15 Page 9 of 13 ETS Product Service AG Registration number: G5M206100083-P-15 Page 10 of 13

Pantech Co., Ltd. Sinsong Center Bldg., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ Declaration concerning Antenna Specification It’s hereby declared that the product: ............ C510 fulfills the requirement in FCC test relating to the antenna type. The ............C510.............confirm to FCC recommendation with Internal antenna type: (model if applicable) C510 built into the housing and has a unique connector GSM850 GSM900 DCS1800 PCS1900 824 – 894MHz 880 – 960MH z 1710 – 1880MHz 1850 – 1990MHz TX RX TX RX TX RX TX RX Frequency Ran ge (GHz) Band (MHz) 824 – 849 869 – 894 880 - 915 925 - 960 1710- 1785 1805- 1880 1850- 1910 1930- 1990 E2-PLANE Gain(dBi) (Peak Gain, More Than) Folder Type -3.5 -3.5 -3.0 -7.5 -4.5 -2.5 -2.5 -2.5 The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company: Pantech Co.,Ltd. Address: Sinsong Center Bldg., 25-12,Yeouido-dong,Yeoungdeungpo-gu, City: Seoul ZIP / Postal code: 150-711 Country: Korea Place: KOREA DateDec. 05, 2006 Signature:

Pantech Co., Ltd. Sinsong Center Bldg., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 __________________________________________________________________________________ Date: Dec.05, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Declaration – Tuning Procedure Pantech Co., Ltd. FCC ID: JYCC510 FCC Part 22, 24 Certification Gentlemen, There are no user accessible adjustments or tuning for this C510. All necessary adjustments and tuning are performed during manufacture of the product. Sincerely, Byung-Wan Kim Vice President Pantech Co., Ltd.

ETS PRODUCT SERVICE AG TEST - REPORT SAR Compliance Test Report Test report no.: G5M206100083-S-8 SAR ETS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN PRODUCT SERVICE AG PHONE +49-33631-888 00 FAX +49-33631-888 660 TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Manufacturer 1.5 Application details 1.6 Test item 1.7 Test results 1.8 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Definitions 2.5 Measurement system description 2.6 Test system specification 2.7 Measurement procedure 2.8 Reference points 2.9 Test positions 2.10 Measurement uncertainty 3 Tissue and system verification 3.1 Tissue verification 3.2 System verification 4 Test Results 5 References 6 Appendix ETS Product Service AG, Germany Registration number: G5M206100083-S-8 Page 1 of 30 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 07.02.2007 M. Cersovsky Date ETS-Lab. Name Signature Technical responsibility for area of testing: 07.02.2007 N. Kaspar Date ETS Name Signature ETS Product Service AG, Germany Registration number: G5M206100083-S-8 Page 2 of 30 1.2 Testing laboratory 1.2.1 Location ETS PRODUCT SERVICE AG (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax : +49 33631 888 660 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 FCC FILED TEST LABORATORY REG. NO. 96970 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 Statement: The tests documented within this report are carried out in accordance with the scope of accreditation of test laboratory ETS Product Service AG. 1.3 Details of approval holder Name : Pantech Co., Ltd. Street : Shinsong Center Bldg., 25-12, Yeouido-dong Town : 150-711 Yeoungdeungpo-gu, Seoul Country : Korea Telephone : +82-2-3660-5862 Fax : +82-2-3660-5990 Contact : Mr. B.W. Kim E-Mail : [email protected] ETS Product Service AG, Germany Registration number: G5M206100083-S-8 Page 3 of 30 1.4 Manufacturer: (if applicable) Name : Street : Town : Country : 1.5 Application details Date of receipt of application : 12.01.2007 Date of receipt of test item : 12.01.2007 Date of test : 12.01.2007 - 15.01.2007 and 06.02.2007 1.6 Test item FCC ID : JYCC510 Description of test item : Quad Band GSM 850 / 900 (E-GSM)/DCS 1800 / PCS 1900 (with WAP & GPRS) Type identification : C510 Serial number : without Identical prototype Device category : PCE ( Licensed Portable Transmitter held to ear) Technical data GSM / PCS / GPRS / EGPRS Frequency range : GSM 850 / GPRS / EGPRS PCS 1900 / GPRS / EGPRS TX Frequency range : 824,2 - 848,8 MHz 1850,2 - 1909,9 MHz RX Frequency range : 869,2 - 893,8 MHz 1930,2 - 1989,8 MHz Max Cond. GSM RF output power : 32,6dBm (1,82W) 29,4 dBm (0,87W) Max Cond. Edge RF output power : 32,46 dBm (1,76 W) 30,24 dBm (1,06 W) Power supply : 3,7 V DC rechargeable battery Antenna Tx : integral Antenna RX : integral ETS Product Service AG, Germany Registration number: G5M206100083-S-8 Page 4 of 30 Additional information : Tx and Rx. antenna are the same. This device contains 900/1800 MHz not operational in U.S. Territories. This filing is only applicable for 850/1900 MHz operations. 1.7 Test Results Max. SAR Measurement GSM 850 (Head) : 0,389 W/kg (averaged over 1 gram) Max. SAR Measurement PCS 1900 (Head) : 0,931 W/kg (averaged over 1 gram) Max. SAR Measurement GSM 850 (Body) : 0,864 W/kg (averaged over 1 gram) Max. SAR Measurement PCS 1900 (Body) : 1,580 W/kg (averaged over 1 gram) Max. SAR Measurement EGPRS 850 (Body) : 1,500 W/kg (averaged over 1 gram) Max. SAR Measurement EGPRS 1900 (Body) : 1,210 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003, December 2003. 1.8 Test standards Standards : - IEEE Std. 1528-2003, December 2003 FCC Rule Part(s) : - FCC OET Bulletin 65, Supplement C, Edition 01-01 ETS Product Service AG, Germany Registration number: G5M206100083-S-8 Page 5 of 30 2 Technical test 2.1 Summary of test results Applicable Configuration Handset (Head) X Handset (Body) X Headset (Head) Body Worn Equipment EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case c…

Text truncated - open the document above for the full version.

Appendix B Measurement Plots ETS Product Service AG, Germany Registration number: G5M206100083-S-8 Appendix B Date/Time: 1/12/2006 11:50:07 Test Laboratory: ETS PRODUCT SERVICE AG Dipol Valid.1900(m)_250mW_12.1.2007 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Muscle 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.58 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.57, 4.57, 4.57); Calibrated: 10/16/2006 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/21/2006 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 Dipol 1900 (250mW)/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 13.7 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 98.2 V/m; Power Drift = -0.070 dB Peak SAR (extrapolated) = 19.6 W/kg SAR(1 g) = 11.6 mW/g; SAR(10 g) = 6.09 mW/g Maximum value of SAR (measured) = 13.2 mW/g 0 dB = 13.2mW/g Date/Time: 1/16/2007 09:41:16 Test Laboratory: ETS PRODUCT SERVICE AG Dipol Valid.900 (h)_250mW_15.1.2007 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Head 900 MHz Medium parameters used: f = 900 MHz; σ = 0.944 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.38, 6.38, 6.38); Calibrated: 10/16/2006 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/21/2006 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.92 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.7 V/m; Power Drift = -0.008 dB Peak SAR (extrapolated) = 4.01 W/kg SAR(1 g) = 2.67 mW/g; SAR(10 g) = 1.71 mW/g Maximum value of SAR (measured) = 2.88 mW/g 0 dB = 2.88mW/g Date/Time: 1/15/2007 10:02:36 Test Laboratory: ETS PRODUCT SERVICE AG Dipol Valid.900 (m)_250mW_15.1.2007 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Muscle 900 MHz Medium parameters used: f = 900 MHz; σ = 0.997 mho/m; ε r = 54.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.11, 6.11, 6.11); Calibrated: 10/16/2006 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/21/2006 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.79 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.2 V/m; Power Drift = -0.040 dB Peak SAR (extrapolated) = 3.88 W/kg SAR(1 g) = 2.63 mW/g; SAR(10 g) = 1.7 mW/g Maximum value of SAR (measured) = 2.89 mW/g 0 dB = 2.89mW/g Date/Time: 1/15/2007 10:54:57 Test Laboratory: ETS PRODUCT SERVICE AG Dipol Valid.1900(h)_250mW_15.1.2007 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.42 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.16, 5.16, 5.16); Calibrated: 10/16/2006 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/21/2006 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 Dipol 1900 (250mW)/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.7 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 93.8 V/m; Power Drift = -0.056 dB Peak SAR (extrapolated) = 17.5 W/kg SAR(1 g) = 10.1 mW/g; SAR(10 g) = 5.34 mW/g Maximum value of SAR (measured) = 11.5 mW/g 0 dB = 11.5mW/g Date/Time: 2/6/2007 13:43:00 Test Laboratory: ETS PRODUCT SERVICE AG Dipol Valid.900(m)_250mW_06.02.2007 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Muscle 900 MHz Medium parameters used: f = 900 MHz; σ = 0.997 mho/m; ε r = 54.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.11, 6.11, 6.11); Calibrated: 10/16/2006 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/21/2006 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 171 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.88 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.4 V/m; Power Drift = -0.015 dB Peak SAR (extrapolated) = 3.93 W/kg SAR(1 g) = 2.65 mW/g; SAR(10 g) = 1.72 mW/g Maximum value of SAR (measured) = 2.90 mW/g 0 dB = 2.90mW/g Date/Time: 2/6/2007 11:13:15 Test Laboratory: ETS PRODUCT SERVICE AG Dipol Valid.1900(m)_250mW_06.02.2007 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Muscle 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.58 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.57, 4.5…

Text truncated - open the document above for the full version.

ETS PRODUCT SERVICE AG TEST - REPORT FCC RULES PARTS 15.247 IC RADIO STANDARDS RSS-210 Annex 8 FCC ID: JYCC510 Model Name: C510 Test report no.: G5M206100083-P-15 Certificate 1983.01 ETS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN PRODUCT SERVICE AG PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Product Service AG Registration number: G5M206100083-P-15 Page 1 of 32 TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General test procedure 2.5 Test results 3 Transmitter parameters 3.1 RF power output conducted 3.2 RF power output radiated (EIRP) 3.3 20 dB bandwidth 3.4 Time of occupancy (dwell time) 3.5 Number of hopping frequencies 3.6 Carrier frequency separation 3.7 Spurious emission conducted 3.8 Spurious emission radiated 3.9 Band-edge compliance 3.10 AC power line conducted emission 4 Receiver parameters 4.1 Radiated emission APPENDIX ETS Product Service AG Registration number: G5M206100083-P-15 Page 2 of 32 1 General information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. Tester: 18.01.2007 M. Handrik Date ETS-Lab. Name Signature Technical responsibility for area of testing: 18.01.2007 N. Kaspar Date ETS Name Signature ETS Product Service AG Registration number: G5M206100083-P-15 Page 3 of 32 1.2 Testing laboratory 1.2.1 Location ETS PRODUCT SERVICE AG Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 ACCREDITED COMPETENT BODY BNETZA-REGISTRATION NUMBER: BNETZA-ZS-026/96 FCC FILED TEST LABORATORY: REG. NO. 96970 INDUSTRY CANADA FILED TEST LABORATORY R EG. NO.: IC 3470 A2LA ACCREDITED C ERTIFICATE NUMBER: 1983.01 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) 1.3 Details of approval holder Name : Pantech Co., Ltd. Street : Shinsong Center Bldg., 25-12, Yeouido-dong Town : 150-711 Yeoungdeungpo-gu, Seoul Country : Korea Telephone : +82-2-3660-5862 Contact : Mr. B.W. Kim E-Mail : [email protected] ETS Product Service AG Registration number: G5M206100083-P-15 Page 4 of 32 1.4 Application details Date of receipt of application : 01.11.2006 Date of receipt of test item : 01.11.2006 Date of test : 09.01.2007 – 16.01.2007 1.5 Test item Description of test item : Quad Band GSM 850 / 900 (E-GSM)/DCS 1800 / PCS 1900 (with WAP & GPRS) Type identification : C510 Serial number : without Photos : See annex A. Technical data Frequency band : 2.4 - 2.4835 GHz Frequency Ch A : 2402 MHz Frequency Ch B : 2441 MHz Frequency Ch C : 2480 MHz Transmitter Vnom Vnom –15 % Vnom +15 % Power (ch A) : Conducted: 1.98 dBm Conducted: 2.00 dBm Conducted: 2.00 dBm Power (ch B) : Conducted: 1.91 dBm Conducted: 1.92 dBm Conducted: 1.93 dBm Power (ch C) : Conducted: 1.69 dBm Conducted: 1.71 dBm Conducted: 1.68 dBm Antenna Type : internal antenna Antenna Gain : -5 dBi Power supply : 4.0 V DC Operating mode : duplex Type of modulation : FHSS Host device : none ETS Product Service AG Registration number: G5M206100083-P-15 Page 5 of 32 Classification : Fixed Device Mobile Device (Human Body distance > 20 cm) Portable Device (Human Body distance < 20 cm) Manufacturer: (if applicable) Name : Pantech Co., Ltd. Street : Shinsong Center Bldg., 25-12, Yeouido-dong Town : 150-711 Yeoungdeungpo-gu, Seoul Country : Korea Additional information: The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronization procedure and other parameters are determined by Bluetooth Core Specification. According to attached declaration of manufacturer this device don’t work in master inquiry mode. So we have only one frequency hopping system and the hopping sequence of the master inquiry mode is not verified. ETS Product Service AG Registration number: G5M206100083-P-15 Page 6 of 32 1.6 Test standards Technical standard: FCC Parts: 15.247 IC Standards: RSS 210 Issue 6 Annex 8.1 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 ° C Relative humidity content : 20 ... 75 % Air pr…

Text truncated - open the document above for the full version.
