JYCC5204BandGSM850/EGSM900/DCS1800/PCS1900(w.WAP/EDGE/BT)

1 C520 USER MANUAL 2 Thank you for choosing the Pantech C520, our latest tri-band GSM mobile phone. The C520 has many features that will enhance your mobile experience. From its light weight and reliability, to the built-in camera, we know you will enjoy all the features the C520 has to offer. The C520 user guide contains import ant information about using your handset. Please read the manual thoroughly, pay attention to the warranty on the back page and be alert to the exclusions and limitations of your warranty, related to the use of unauthorized components. NOTE : Some information in this User Manual may differ from your phone, depending on your software version and network provider. 3 Contents Phone Specifications . 오류 ! 책갈피가 정의되어 있지 않습니다 . Pantech C520 at a glance ....................................... 9 Quick & Easy ......................................................... 10 1. Getting Started ...................................................11 1. Package C ontents ............................................................................... 11 2. SIM Card.............................................................................................. 오 류 ! 책갈피가 정의되어 있지 않습니다 . About your SIM card ........................................................................................................... 오 류 ! 책갈피가 정의되어 있지 않습니다 . Installing/Removing your SIM card ........................................................................................................... 오 류 ! 책갈피가 정의되어 있지 않습니다 . 3. Battery ................................................................................................. 오 류 ! 책갈피가 정의되어 있지 않습니다 . Inserting your battery ........................................................................................................... 오 류 ! 책갈피가 정의되어 있지 않습니다 . Removing your battery ........................................................................................................... 오 류 ! 책갈피가 정의되어 있지 않습니다 . Charging your battery ........................................................................................................... 오 류 ! 책갈피가 정의되어 있지 않습니다 . Getting the best from your ba ttery ..................................................... 81 4. LCD Di splay ......................................................................................... 13 Display Lay out ................................................................................... 13 Display icons...................................................................................... 13 Automatic disp lay off.......................................................................... 14 5. Selecting functi ons and options ........................................................... 15 Selecting functi ons and opt ions ......................................................... 15 To display the functions and options available, or select the one require d: ....................................................................................... 15 6. Keypad Lock ........................................................................................ 16 To lock the keypad ............................................................................. 16 To unlock the keypad ......................................................................... 16 2. Basic functions ..................................................17 1. Switching your phone on or off ............................................................ 17 To switch yo ur phone on .................................................................... 17 To switch your phone of f .................................................................... 17 2. Making and endi ng a call ..................................................................... 18 To make a call .................................................................................... 18 To end a call....................................................................................... 18 4 To make a call us ing Call Logs .......................................................... 18 To make a call usi ng contact list ........................................................ 18 To make an Inter national call ............................................................. 19 To speed-dial from En try.................................................................... 19 To make an emergency call ............................................................... 19 3. Answerin g a call................................................................................... 20 To answer a call ................................................................................. 20 To reply to a missed ca ll .................................................................... 20 To reject a call.................................................................................... 20 To answer a se cond call .................................................................... 20 To switch between two calls .............................................................. 20 To end the curre nt ca ll ....................................................................... 20 4. Options dur ing a ca ll ............................................................................ 21 To adjust the call volu me ................................................................... 21 To switch your microphone of f (Mute) or on (Speak) ......................... 21 To switch your phon e’s microph one off ............................................ 21 To switch your phone’ s microphone back on ................................... 21 To put a call on hold, and return to a held call ................................... 21 To put a ca ll on hol d ......................................................................... 21 To return to a held call...................................................................... 21 To make a call while you are on a call ............................................. 21 To switc…

Text truncated - open the document above for the full version.

Pantech Co., Ltd. Pantech Bldg, I-2,DMC, Sangam-dong,, Mapo-gu, Seoul, Korea P: +82-2-2030-1313, F: +82-2-20302519 ___________________________________________________________________ LETTER OF AUTHORIZATION DATE : Oct. 31,2007 To whom it may concern: We the undersigned, hereby authorize ETS Germany to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ETS Germany on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Pantech Co.,LTd. Sincerely, (Company counsel or company officer signature) Name : Byung-Wan Kim Title : Vice President (Name and Title)

Pantech Co., Ltd, Pantech Bldg, I-2,DMC, Sangam-dong, Mapo-gu, Seoul, Korea Phone: +82-2-2030-1313, Fax: +82-2-20302519 Date: Oct. 31, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: JYCC520 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Pantech Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Pantech Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 SAR Test-Setup Photos SHORT-TERM CONFIDENTIAL 9 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, B.W Kim R&D Lab2 Manager Pantech Co., Ltd.

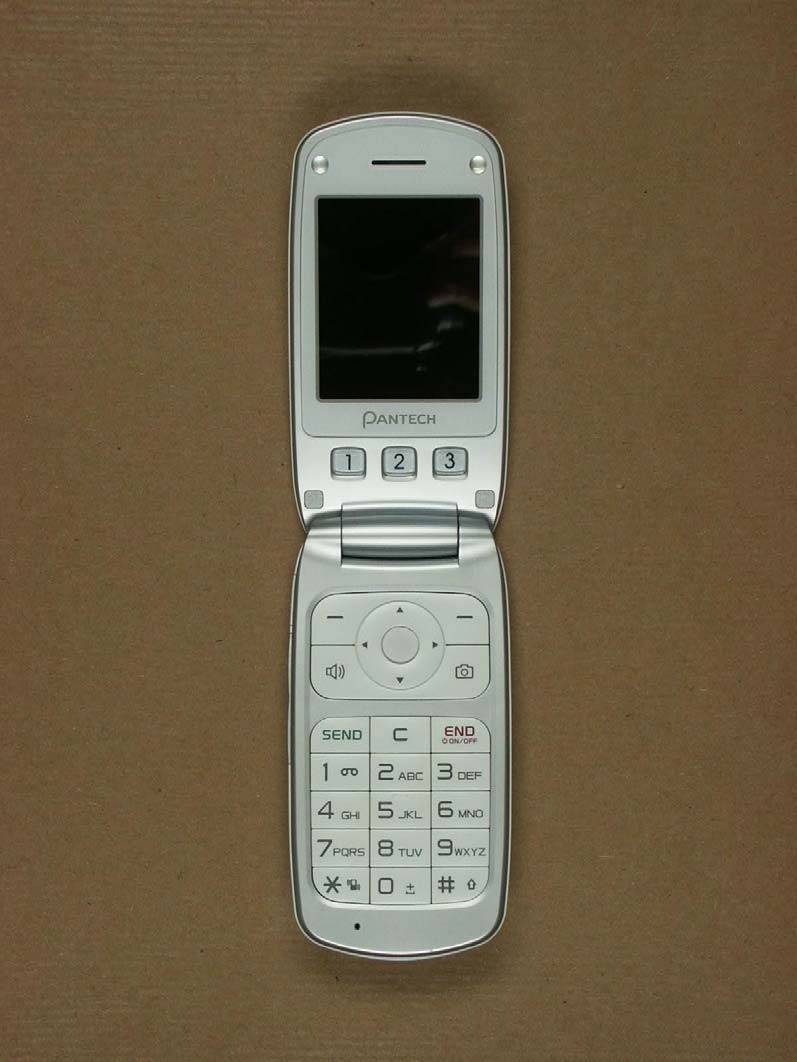

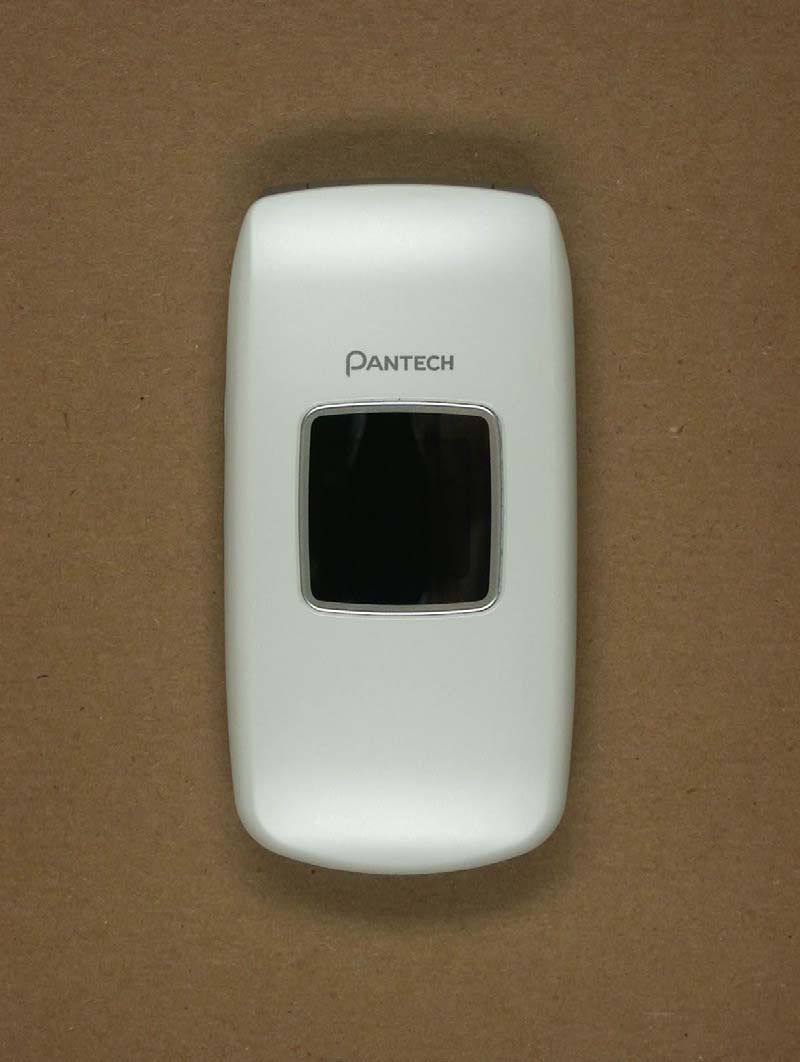

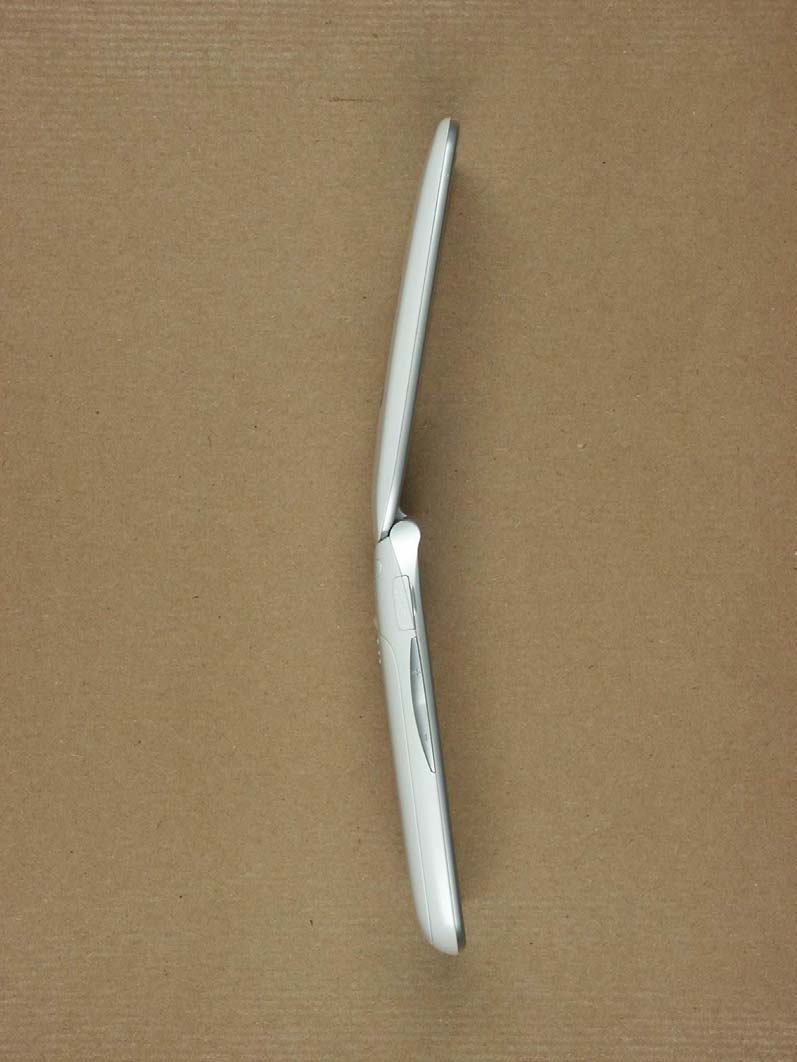

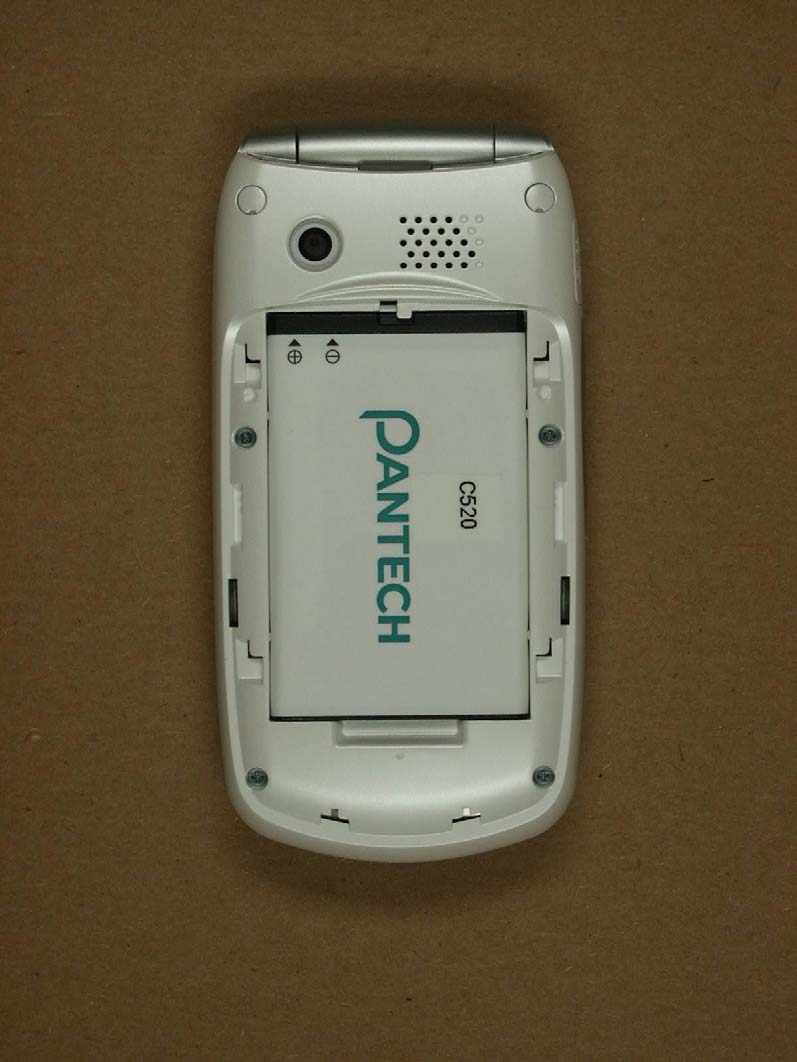

ETS Product Service AG Registration number: G5M207110017-P-15 Page 1 of 13 Appendix A. Pictures ETS Product Service AG Registration number: G5M207110017-P-15 Page 2 of 13 ETS Product Service AG Registration number: G5M207110017-P-15 Page 3 of 13 ETS Product Service AG Registration number: G5M207110017-P-15 Page 4 of 13 ETS Product Service AG Registration number: G5M207110017-P-15 Page 5 of 13 ETS Product Service AG Registration number: G5M207110017-P-15 Page 6 of 13

Pantech Co., Ltd. Pantech Bldg., I-2, DMC, Sangam-dong, Mapopo-gu, Seoul, Korea Tel.: +82-2-2030-1200 Fax: +82-2-2030-2519 ______________________________________________________________________ [FCC ID Label sample] Description: Quad Band GSM 850/GSM 900 /DCS 1800 /PCS 1900 (with WAP & GPRS) FCC ID: JYCC520

Pantech Co., Ltd. Pantech Bldg., I-2, DMC, Sangam-dong, Mapopo-gu, Seoul, Korea Tel.: +82-2-2030-1200 Fax: +82-2-2030-2519 ______________________________________________________________________ [Label Location] Description: Quad Band GSM850 /GSM900 /DCS1800 /PCS1900 (with WAP & GPRS&EDGE) FCC ID: JYCC520

ETS Product Service AG Registration number: G5M207110017-P-15 Page 7 of 13 ETS Product Service AG Registration number: G5M207110017-P-15 Page 8 of 13 ETS Product Service AG Registration number: G5M207110017-P-15 Page 9 of 13 ETS Product Service AG Registration number: G5M207110017-P-15 Page 10 of 13

Pantech Co., Ltd. Pantech Bldg., I-2, DMC, Sangam-dong, Mapo-gu, Seoul, Korea Tel.: +82-2-2030-1200 Fax: +82-2-2030-2519 ______________________________________________________________________ Declaration concerning Antenna Specification It’s hereby declared that the product: ............ C520.................... fulfills the requirement in FCC test relating to the antenna type. The ............C520.............confirm to FCC recommendation with Internal antenna type: (model if applicable) C520 built into the housing and has a unique connector GSM850 GSM900 DCS1800 PCS1900 824 – 894MHz 880 - 960MHz 1710 – 1880MHz 1850 – 1990MHz TX RX TX RX TX RX TX RX Frequency Range (GHz) Band (MHz) 824- 849 869- 894 880- 915 925- 960 1710- 1785 1805- 1880 1850- 1910 1930- 1990 FC -6.5 -4.5 -3 -3 -2.5 -2.5 -2.5 -2 E2-PLANE Gain(dBi) (Peak Gain , More Than) FO -2 -1.5 -2 -2 -1 -1 0.5 0.5 The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company: Pantech Co.,Ltd. Address: Pantech Bldg., I-2, DMC, Sangam-dong, Mapo-gu City: Seoul ZIP / Postal code: 150-711 Country: Korea Place: KOREA Date: Nov., 27 ,2007 Signature:

ETS PRODUCT SERVICE AG TEST - REPORT SAR Compliance Test Report Test report no.: G5M207110017-S-8 SAR ETS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN PRODUCT SERVICE AG PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Product Service AG, Germany Registration number: G5M207110017-S-8 Page 1 of 29 TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Manufacturer 1.5 Application details 1.6 Test item 1.7 Test results 1.8 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Definitions 2.5 Measurement system description 2.6 Test system specification 2.7 Measurement procedure 2.8 Reference points 2.9 Test positions 2.10 Measurement uncertainty 3 Tissue and system verification 3.1 Tissue verification 3.2 System verification 4 Test Results 5 References 6 Appendix ETS Product Service AG, Germany Registration number: G5M207110017-S-8 Page 2 of 29 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 23.01.2008 M. Cersovsky Date ETS-Lab. Name Signature Technical responsibility for area of testing: 23.01.2008 K. Damm Date ETS Name Signature ETS Product Service AG, Germany Registration number: G5M207110017-S-8 Page 3 of 29 1.2 Testing laboratory 1.2.1 Location ETS PRODUCT SERVICE AG Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax : +49 33631 888 660 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 ACCREDITED NOTIFIED BODY EMC BNETZA-REGISTRATION NO.: BNETZA-BS EMV-7/61 ACCREDITED NOTIFIED BODY R&TTE BNetzA-Registration number: BNetzA-BS-02/51-53 FCC filed test laboratory Reg. No. 96970 A2LA Accredited Certification #1983.01 Bluetooth Qualification Test Facility (BQTF) Accredited by Bluetooth Qualification Review Board Industry Canada filed test laboratory Reg. No. IC 3470A Statement: The tests documented within this report are carried out in accordance with the scope of accreditation of test laboratory ETS Product Service AG. 1.3 Details of approval holder Name : Pantech Co., Ltd. Street : Pantech Bldg, I-2 DMC, Sangam-dong Town : 121-270 Mapo-gu, Seoul Country : Korea Telephone : +82-2-2030-1200 Fax : +82-2-2030-2519 Contact : Mr. B.W. Kim E-Mail : [email protected] ETS Product Service AG, Germany Registration number: G5M207110017-S-8 Page 4 of 29 1.4 Manufacturer: (if applicable) Name : Street : Town : Country : 1.5 Application details Date of receipt of application : 05.11.2007 Date of receipt of test item : 05.11.2007 Date of test : 15.01.2008 - 17.01.2008 1.6 Test item FCC ID : JYCC520 Description of test item : Quad Band GSM 850 /GSM 900 /DCS 1800 /PCS 1900 (with WAP & GPRS) Type identification : C520 Serial number : without; Identical prototype Device category : PCE ( Licensed Portable Transmitter held to ear) Technical data TX Frequency range : GSM 850 PCS 1900 TX Frequency range : 824,2 - 848,8 MHz 1850,2 - 1909,9 MHz RX Frequency range : 869,2 - 893,8 MHz 1930,2 - 1989,8 MHz Max. Conducted RF output power : 33,20 dBm (2,09W) 30,76 dBm (1,19W) EDGE 850 EDGE 1900 TX Frequency range : 824.2 - 848.8 MHz 1850.2 - 1909.9 MHz RX Frequency range : 869.2 - 893.8 MHz 1930.2 - 1989.8 MHz Max. Conducted RF output power : 28,63 dBm (0,73 W) 29,41 dBm (0,87 W) Power supply : 3,7 V DC rechargeable battery Antenna Tx : integral Antenna RX : integral Additional information : Tx and Rx. antenna are the same. ETS Product Service AG, Germany Registration number: G5M207110017-S-8 Page 5 of 29 1.7 Test Results Max. SAR Measurement (Head) : 0,959 W/kg (averaged over 1 gram) Max. SAR Measurement (Body) : 1,27 W/kg (averaged over 1 gram) Max. SAR Measurement EGSM 850(Body) : 0,468 W/kg (averaged over 1 gram) Max. SAR Measurement EGSM 1900 (Body) : 0,72 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003, December 2003. 1.8 Test standards Standards : - IEEE Std. 1528-2003, December 2003 FCC Rule Part(s) : - FCC OET Bulletin 65, Supplement C, Edition 01-01 2 Technical test 2.1 Summary of test results Applicable Configuration Handset (Head) X Handset (Body) X Headset (Head) Body Worn Equipment ETS Product Service AG, Germany Registration number: G5M207110017-S-8 Page 6 of 29 EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT compli…

Text truncated - open the document above for the full version.

ETS Product Service AG, Germany Registration number: G5M207110017-S-8 Appendix B Appendix B Measurement Plots Date/Time: 1/17/2008 12:26:51 Test Laboratory: ETS PRODUCT SERVICE AG Dipol Valid.900 (h)_250mW 17.01.2008 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Head 900 MHz Medium parameters used: f = 900 MHz; σ = 0.944 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.58, 6.58, 6.58); Calibrated: 9/19/2007 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/18/2007 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.98 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.4 V/m; Power Drift = -0.023 dB Peak SAR (extrapolated) = 4.23 W/kg SAR(1 g) = 2.75 mW/g; SAR(10 g) = 1.77 mW/g Maximum value of SAR (measured) = 3.03 mW/g 0 dB = 3.03mW/g Date/Time: 1/17/2008 15:18:50 Test Laboratory: ETS PRODUCT SERVICE AG Dipol Valid.900 (m)_250mW 17.01.2008 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Muscle 900 MHz Medium parameters used: f = 900 MHz; σ = 1.01 mho/m; ε r = 54.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.04, 6.04, 6.04); Calibrated: 9/19/2007 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/18/2007 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.95 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.4 V/m; Power Drift = -0.045 dB Peak SAR (extrapolated) = 3.76 W/kg SAR(1 g) = 2.67 mW/g; SAR(10 g) = 1.76 mW/g Maximum value of SAR (measured) = 2.92 mW/g 0 dB = 2.92mW/g Date/Time: 1/16/2008 19:18:02 Test Laboratory: ETS PRODUCT SERVICE AG Dipol Valid.1900(m)_250mW_16.01.2008 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Muscle 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.58 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.71, 4.71, 4.71); Calibrated: 9/19/2007 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/18/2007 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Dipol 1900 (250mW)/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 12.4 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 89.8 V/m; Power Drift = -0.030 dB Peak SAR (extrapolated) = 17.7 W/kg SAR(1 g) = 10.5 mW/g; SAR(10 g) = 5.59 mW/g Maximum value of SAR (measured) = 11.9 mW/g 0 dB = 11.9mW/g Date/Time: 1/15/2008 12:38:51 Test Laboratory: ETS PRODUCT SERVICE AG Dipol Valid.1900(h)_250mW_15.01.2008 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.42 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.22, 5.22, 5.22); Calibrated: 9/19/2007 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/18/2007 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Dipol 1900 (250mW)/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.6 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 85.9 V/m; Power Drift = -0.047 dB Peak SAR (extrapolated) = 17.6 W/kg SAR(1 g) = 10.3 mW/g; SAR(10 g) = 5.45 mW/g Maximum value of SAR (measured) = 11.6 mW/g 0 dB = 11.6mW/g Date/Time: 1/17/2008 11:05:43 Test Laboratory: ETS PRODUCT SERVICE AG 850_right_ch251_cheek DUT: C 520; Type: Quad-Band GSM 850/GSM 900/DCS 1800 /PCS1900(with WAP & GPRS); Serial: # 1 Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: Head 900 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.904 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.58, 6.58, 6.58); Calibrated: 9/19/2007 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/18/2007 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 C520/Area Scan (81x151x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.956 mW/g C520/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.02 V/m; Power Drift = -0.039 dB Peak SAR (extrapolated) = 2.95 W/kg SAR(1 g) = 0.959 mW/g; SAR(10 g) = 0.525 mW/g Maximum value of SAR (measured) = 1.11 mW/g 0 dB = 1.11mW/g Date/Time: 1/17/2008 09:16:11 Test Laboratory: ETS PRODUCT SERVICE AG 850_right_ch189_tilted DUT: C 520; Type: Quad-Band GSM 850/GSM 900/DCS 1800 /PCS1900(with WAP & GPRS); Serial: # 1 Communication System: GSM 850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: Head 900 MHz Medium parameters used: f = 836.512 MHz; σ = 0.89 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Phantom section: Right …

Text truncated - open the document above for the full version.

ETS PRODUCT SERVICE AG TEST - REPORT FCC RULES PARTS 15.247 IC RADIO STANDARDS RSS-210 Issue 7 FCC ID: JYCC520 Model Name: C520 Test report no.: G5M207110017-P-15 Certificate #1983.01 ETS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN PRODUCT SERVICE AG PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Product Service AG Registration number: G5M207110017-P-15 Page 1 of 32 TABLE OF CONTENTS 1 General information 2 1.1 Notes 2 1.2 Testing laboratory 3 1.3 Details of approval holder 3 1.4 Application details 4 1.5 Test item 4 1.6 Test standards 6 2 Technical test 6 2.1 Summary of test results 6 2.2 Test environment 6 2.3 Test equipment utilized 7 2.4 General test procedure 16 2.5 Test results 17 3 Transmitter parameters 18 3.1 RF power output conducted 18 3.2 RF power output radiated (EIRP) 19 3.3 20 dB bandwidth 21 3.4 Time of occupancy (dwell time) 22 3.5 Number of hopping frequencies 23 3.6 Carrier frequency separation 24 3.7 Spurious emission conducted 25 3.8 Spurious emission radiated 26 3.9 Band-edge compliance 29 3.10 AC power line conducted emission 30 4 Receiver parameters 31 4.1 Radiated emission 31 APPENDIX 32 ETS Product Service AG Registration number: G5M207110017-P-15 Page 2 of 32 1 General information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. Tester: 21.12.2007 D. Hoppe Date ETS-Lab. Name Signature Technical responsibility for area of testing: 21.12.2007 K. Damm Date ETS Name Signature ETS Product Service AG Registration number: G5M207110017-P-15 Page 3 of 32 1.2 Testing laboratory 1.2.1 Location ETS PRODUCT SERVICE AG Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 ACCREDITED NOTIFIED BODY EMC BNetzA-Registration No.: BNetzA-BS EMV-7/61 A CCREDITED NOTIFIED BODY R&TTE BNetzA-Registration number: BNetzA-BS-02/51-53 FCC filed test laboratory Reg. No. 96970 A2LA Accredited Certification #1983.01 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) Accredited by Bluetooth Qualification Review Board Industry Canada filed test laboratory Reg. No. IC 3470A 1.3 Details of approval holder Name : Pantech Co., Ltd. Street : Pantech Bldg, I-2 DMC, Sangam-dong Town : 121-270 Mapo-gu, Seoul Country : Korea Telephone : +82-2-2030-1200 Contact : Mr. B.W. Kim E-Mail : [email protected] ETS Product Service AG Registration number: G5M207110017-P-15 Page 4 of 32 1.4 Application details Date of receipt of application : 05.11.2007 Date of receipt of test item : 05.11.2007 Date of test : 19.11.2007 – 21.11.2007 1.5 Test item Description of test item : Quad Band GSM 850 /GSM 900 /DCS 1800 /PCS 1900 (with WAP & GPRS) Type identification : C520 Serial number : without Photos : See annex A. Technical data Frequency band : 2.4 - 2.4835 GHz Frequency Ch A : 2402 MHz Frequency Ch B : 2441 MHz Frequency Ch C : 2480 MHz Transmitter Vnom Vnom –15 % Vnom +15 % Power (ch A) : Conducted: -0.32 dBm Conducted: -0.52 dBm Conducted: -0.53 dBm Power (ch B) : Conducted: 0.15 dBm Conducted: -0.07 dBm Conducted: -0.06 dBm Power (ch C) : Conducted: 1.46 dBm Conducted: 1.28 dBm Conducted: 1.29 dBm Antenna Type : internal antenna Antenna Gain : -5 dBi Power supply : 4.0 V DC 120 V AC/DC Adapter Operating mode : duplex Type of modulation : FHSS Host device : none ETS Product Service AG Registration number: G5M207110017-P-15 Page 5 of 32 Classification : Fixed Device Mobile Device (Human Body distance > 20 cm) Portable Device (Human Body distance < 20 cm) Manufacturer: (if applicable) Name : Pantech Co., Ltd. Street : Pantech Bldg, I-2 DMC, Sangam-dong Town : 121-270 Mapo-gu, Seoul Country : Korea Additional information: The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronization procedure and other parameters are determined by Bluetooth Core Specification. According to attached declaration of manufacturer this device don’t work in master inquiry mode. So we have only one frequency hopping system and the hopping sequence of the master inquiry mode is not verified. ETS Product Service AG Registration number: G5M207110017-P-15 Page 6 of 32 1.6 Test standards Technical standard: FCC Parts: 15.247 IC Standards: RSS 210 Issue 7 Annex 8.1 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 ° C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 4.0 V DC 120 V AC/DC Adapter Extreme conditions parameters: : test voltage - extreme min.: 3.6 V DC (Vnom – 15%) max: 4.2 V DC (Vnom + 15%) ETS Product Service AG Registration number: G5M207110017-P-15 Page 7 of 32 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD G…

Text truncated - open the document above for the full version.

ETS PRODUCT SERVICE AG TEST - REPORT FCC RULES PARTS 22H and 24E IC RADIO STANDARDS RSS 132 and RSS 133 FCC ID: JYCC520 Model Name: C520 Test report no.: G5M207110017-P-2224 Certificate #1983.01 ETS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN PRODUCT SERVICE AG PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Product Service AG, Germany Registration number: G5M207110017-P-2224 Page 1 of 36 TABLE OF CONTENTS 1 General information 2 1.1 Notes 2 1.2 Testing laboratory 3 1.3 Details of approval holder 3 1.4 Application details 4 1.5 Test item 4 1.6 Test standards 5 2 Technical test 5 2.1 Summary of test results 5 2.2 Test environment 5 2.3 Test equipment utilized 6 2.4 General test procedure 15 2.5 Test results 16 3 Transmitter parameters 17 3.1 RF power output conducted 17 3.2 RF power output radiated (ERP, EIRP) 18 3.3 Occupied bandwidth, emission bandwidth 21 3.4 Frequency stability 22 3.5 Spurious emission conducted (antenna terminal) 25 3.6 Spurious emission radiated 27…

Text truncated - open the document above for the full version.
