JYCCDMAPTI11CDMA/ GSM/ WCDMA Phone with Bluetooth & WLAN

Introduction Table of Contents Before Using Your New Cell Phone Basic Functions Phone Functions Mail Functions Google Functions Internet Functions Multimedia Functions Useful Functions In Case of Loss of Your IS11PT Appendix/Index ii Introduction Thank you for purchasing the IS11PT. Before using your IS11PT, be sure to read the IS11PT Basic Manual (this PDF manual) to ensure correct usage. After you have finished reading this manual, store this PDF manual and the printed manuals in safe places so you can retrieve them whenever you need them. Manuals for the IS11PT The IS11PT comes with the Basic Manual and Instruction Manual. ● For learning the basics: Read the IS11PT Basic Manual (this manual). ● For learning details on using each function: Read the supplied IS11PT Instruction Manual (Japanese). Be sure to read the Safety Precautions “安全上のご注意” to ensure proper usage of the IS11PT. The keyword searchable au Online Manual is also available on the au homepage: http://www.au.kddi.com/manual/index.html Notes on Cell Phone Use Cell Phone Etiquette The cell phone always emits weak radio waves when power is on. Use the cell phone in an enjoyable and safe manner without forgetting to be considerate of others around you. ● Use of cell phones is not allowed in some places. • Do not use the cell phone while you are driving. Doing so is both dangerous and prohibited by law. • Using a cell phone in an aircraft is prohibited by law. Be sure to turn the cell phone off. ● Radio waves from cell phones may interfere with medical electrical equipment. • Some people close to you in crowded places such as packed trains may be using a cardiac pacemaker. Turn the cell phone off in such places. • Abide by the rules of hospitals and other medical institutions where it is forbidden to use or carry cell phones. ● Be considerate of where you use the cell phone and how loudly you talk. • Do not make calls in theaters, museums, libraries, and other similar places. Turn power off or turn on 1 Introduction manner mode not to disturb others around you by ringtones. • Do not use the cell phone on a street where you might interrupt the flow of pedestrians. • Move to areas where you will not inconvenience others on trains or in hotel lobbies. • Refrain from talking in a loud voice. • Obtain the permission of other people before you take their photos with the cell phone’s camera. • Do not record information with the cell phone’s camera in bookstores and other locations where taking photos is not permitted. Do not use the cell phone while driving! Turn off your cell phone or put it in Drive mode while driving. Do not use the cell phone while driving a car/ motorcycle or riding a bicycle. It may result in a traffic accident. Using a cell phone while driving is prohibited by law. Using a cell phone while riding a bicycle may also be punishable by law. Prohibited! • Looking at a cell phone display • Talking on a cell phone while holding it Illustrations and Screenshots in This Manual The illustrations in this manual may look different from the actual cell phone in shape, color and typeface. The screenshots in this manual are simplified and may look different from the actual cell phone screens. Notation of Tapping Instructions in This Manual This instruction manual omits the phrase “tap” when listing instructions that involve tapping menu items, icons, keys, or other user interface elements. Ex.: Registering a new contact in your Contacts from the Dialer [Phone] ▶ Enter phone number ▶ ▶ [Create new contact] → This means, Tap [Phone] ▶ Enter phone number ▶ Tap ▶ Tap [Create new contact]. 2 Introduction .......................ii Notes on Cell Phone Use ...ii Illustrations and Screenshots in This Manual .............................1 Notation of Tapping Instructions in This Manual .............................1 Table of Contents ············2 Before Using Your New Cell Phone List of Icons ·····················5 List of Included Items ·····6 Names and Functions of Parts ····························7 Included Items ·················9 Battery Pack .....................9 au IC-Card......................11 microSD Memory Card ...12 Turning On/Off the Power·····························13 Turning On the Power ....13 Turning Off the Power ....13 Switching the Display Language ·······················13 Using the System Settings ..........................13 Using the Initial Settings Screen ............................13 Setting Manner Mode/ Airplane Mode ···············14 Setting Manner Mode .....14 Setting Airplane Mode ....14 Touch Panel ···················14 Operating the Touch Panel ..............................14 Displaying the Home Preview Screen ..............17 Executing Widgets .........18 Locking the Screen ........20 Unlocking the Screen .....20 How to Input Character ·21 Showing the Keyboard ...21 Using the Android Keyboard ........................21 Using the iWnn IME Keyboard ........................22 Basic Functions Using Android················25 Home Screen ·················26 Using the Home Screen ...26 Viewing the Status Bar ...27 Showing the Notification Panel/Using Easy Setting ............................27 Using Applications/ Widgets/Folders .............28 Menu Screen ·················31 Using Applications and Other Functions..............31 Quick Search ···················32 Using Quick Search .......32 Phone Functions Making a Phone Call ·····34 Entering a Phone Number to Call ...............34 Making International Calls ...............................34 Searching and Calling From Your Contacts .......35 Making a Call Using the Call Log ..........................35 Receiving a Call ············36 In Call Functions ···········37 Adjusting the Receiver Volume ...........................37 Call Log ·························37 Viewing Your Call Log ....37 Making a Call From Your Call Log .................37 Sending E-mail/C-mail From Your Call Log ........37 Contacts ························38 Adding a New Contact ..…

Text truncated - open the document above for the full version.

Pantech Co., Ltd. Date: Mar. 16, 2009 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. SunHee Kim of HCT Co., Ltd and hereafter referred to as HCT, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. SunHee Kim of HCT Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing HCT as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Byung-Wan Kim / Senior Vice President Pantech Co., Ltd.

Pantech Co., Ltd. Pantech Building, I-2, DMC, Sangam-dong, Mapo-gu, Seoul, Korea Date: July 18, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: JYCCDMAPTI11 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Pantech Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Pantech Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Sun-Hee Kim-Engineer HCT Co., Ltd. cc. Pantech Co., Ltd.

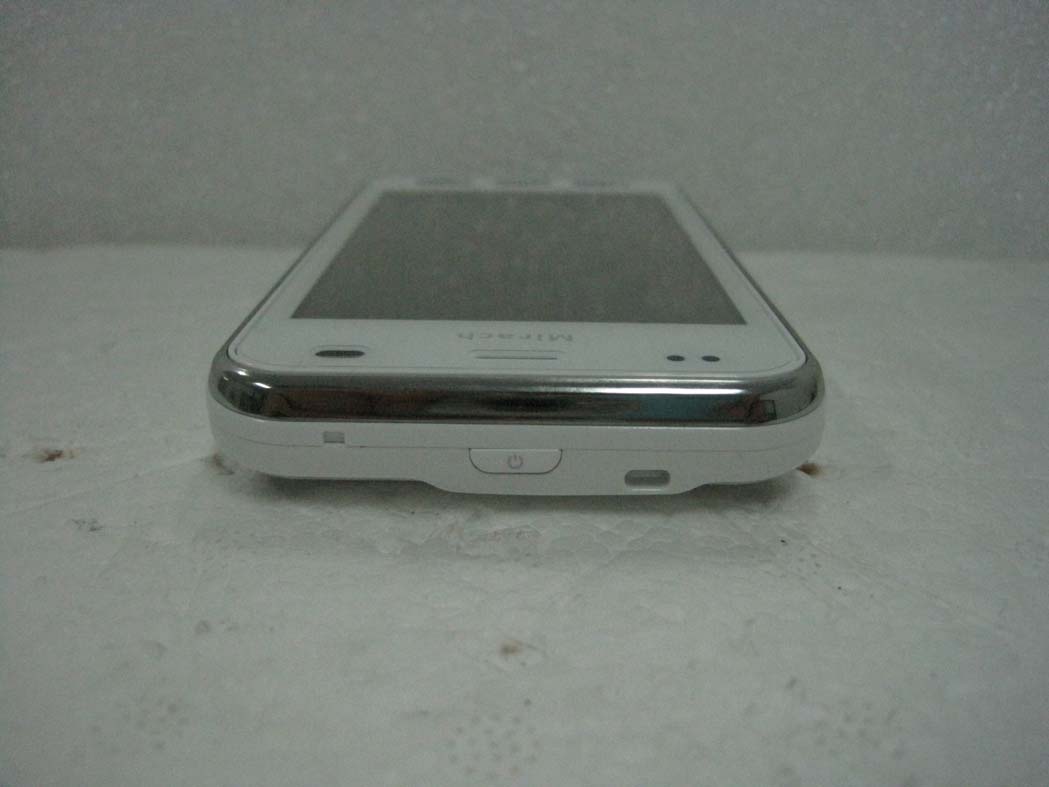

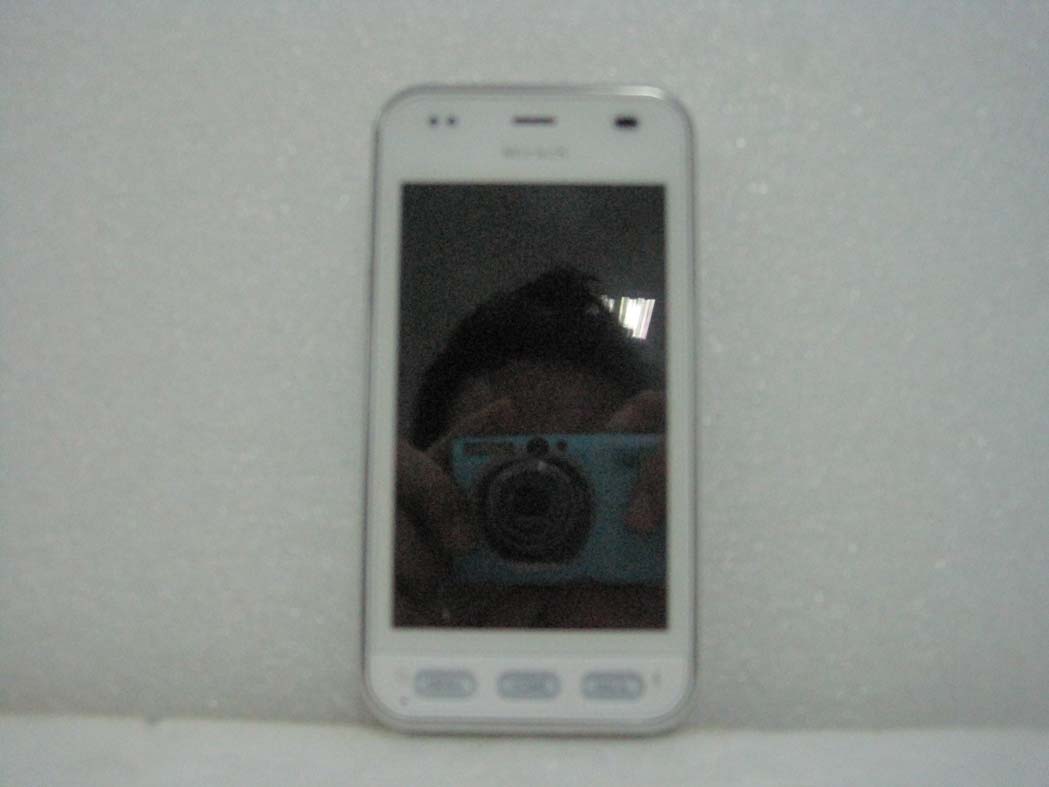

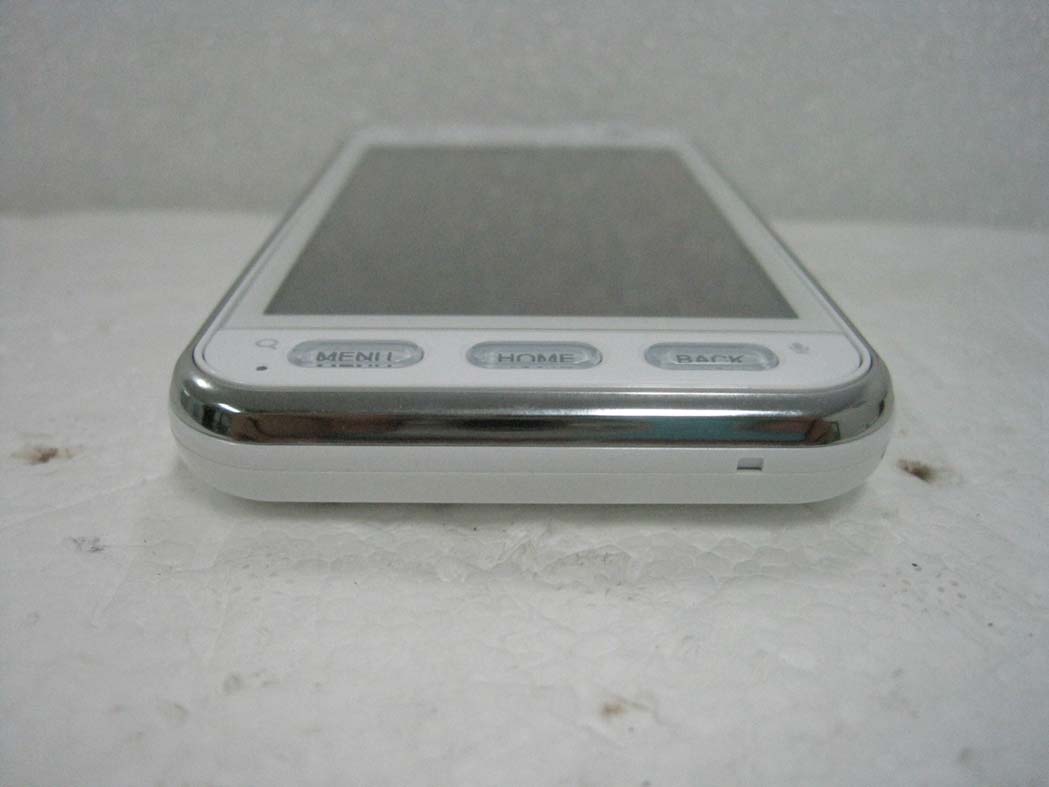

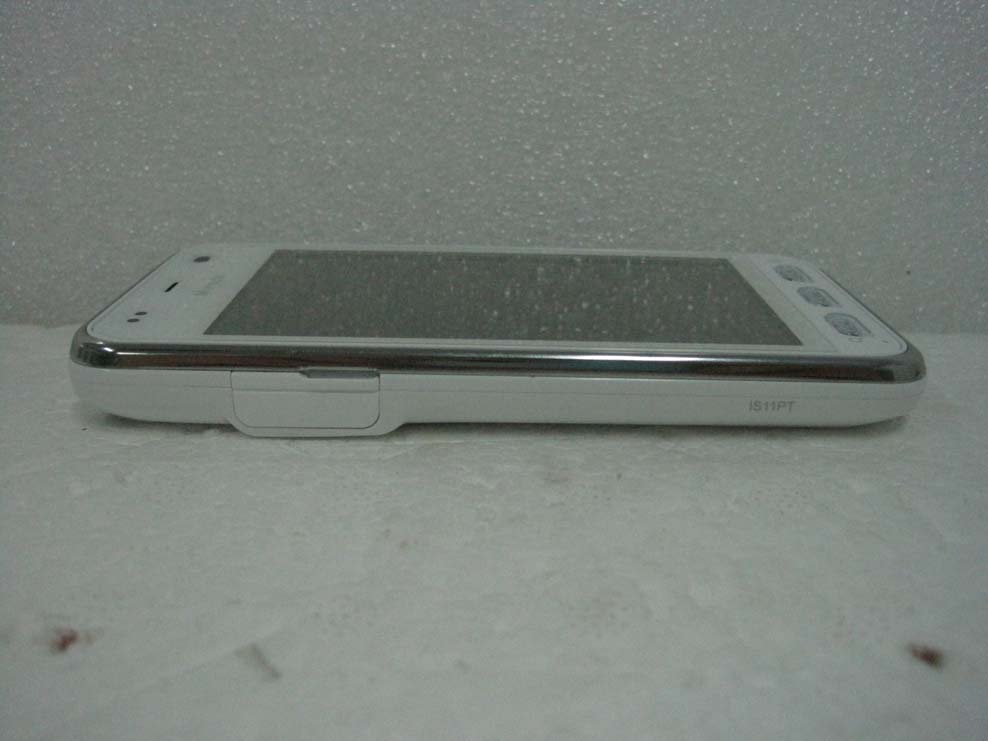

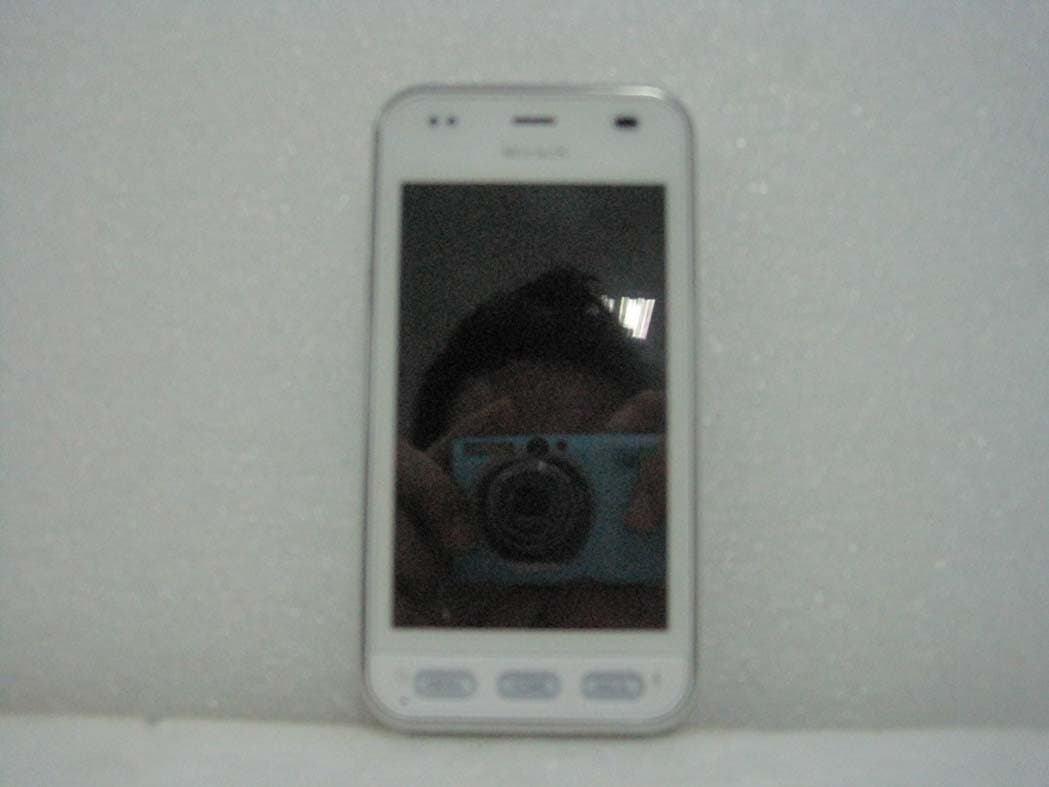

FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 7 EXTERNAL PHOTOGRAPHS FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 7 ■ EXTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 7 ■ EXTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 7 ■ EXTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 7 ■ EXTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 7 ■ EXTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 7 ■ EXTERNAL PHOTO

FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 16 INTERNAL PHOTOGRAPHS FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 16 ■ INTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 16 ■ INTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 16 ■ INTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 16 ■ INTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 16 ■ INTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 16 ■ INTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 16 ■ INTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 16 ■ INTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 16 ■ INTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 16 ■ INTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １２ of 16 ■ INTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １３ of 16 ■ INTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １４ of 16 ■ INTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １５ of 16 ■ INTERNAL PHOTO FCC ID: JYCCDMAPTI11 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １６ of 16 ■ INTERNAL PHOTO

ANTENNA SPECIFICATION DATE 2011-04-29 REV. IR MODEL CDMA PTI 11 TYPE Internal Antenna PAGE 1 Antenna Specifications Product Name ： CDMA PTI 11 Main Antenna Product Part/No ： 3357276 Customer Model ： CDMA PTI 11 Customer Part/No ： Customer ： Pantech. Co ., Ltd. Date ： 2011-04-29 #680-9, JAKJEUN-DONG, KYEYANG-GU, INCHON, KOREA TEL : 82-32-676-9224 FAX : 82-32-546-4797 DYKTX DRAFTING CHECK CHECK APPROVAL RF Engineer 04/29 04/29 Design Engineer 04/29 04/29 04/29 ANTENNA SPECIFICATION DATE 2011-04-29 REV. IR MODEL CDMA PTI 11 TYPE Internal Antenna PAGE 2 Table of Contents 1. Document change record 2. List of material 3. Electrical & mechanical specifications 3.1. Electrical specifications 3.2. Mechanical specifications 3.3. Package 4. Electrical properties 4.1. Test equipment 4.2. V.S.W.R 4.3. Radiation pattern and gain 5. Measurement Data 5.1. V.S.W.R 5.2. Radiation pattern 6. Mechanical Drawing 6.1. Assembly ANTENNA SPECIFICATION DATE 2011-04-29 REV. IR MODEL CDMA PTI 11 TYPE Internal Antenna PAGE 3 1, Document Change Record Rev. No Rev. Date Page History Drafter 1 - - - - 2 - - - - ANTENNA SPECIFICATION DATE 2011-04-29 REV. IR MODEL CDMA PTI 11 TYPE Internal Antenna PAGE 4 2. List of Material Raw Material Material Supplier Tooling & Injection Finishing & Spec. Remark Carrier PC(SC1004,KPA1) LG CHMISTRY QDM - - Radiator STS304 3/4H (t=0.15) POONGSAN Deayoung KTX - - Assembly Tolerance of heat staking height should not bk over 0.6mm the surface of pattern ANTENNA SPECIFICATION DATE 2011-04-29 REV. IR MODEL CDMA PTI 11 TYPE Internal Antenna PAGE 5 3. Electrical & Mechanical Specifications 3.1. Electrical Specifications Frequency Range USC JCDMA IMT-2000 TX(824~849MHz) RX(869~894MHz) TX(898~925MHz) RX(843~870MHz) TX(1920~1980MHz) RX(2110~2170MHz) Peak gain -0.4dBi(max, at824MHz) -0.5dBi(max, at870MHz) -0.3dBi(max, at898MHz) -0.6dBi(max, at843MHz) -0.3dBi(max, at1920MHz) -0.8dBi(max, at2130MHz) VSWR 3.0:1 below(at 824Mhz) 3.0:1 below(at 925Mhz) 3.0:1 below(at 2110Mhz) Impedance 50Ω Polarization Linear Radiation pattern Omni-directional Power Handling 2 Watt 3.2. Mechanical Specifications Connector Contact Type Dimension 55.2(W) x 11.32(H) x 4.65(D) Operating Temperature -30°C ~ +80°C Weight 2.0g 3.3. Package Name Quantity Material Remark Tray 50EA P.S(0.5t) N/A Carton BOX 1000EA DW 2 Branches(AB) N/A ANTENNA SPECIFICATION DATE 2011-04-29 REV. IR MODEL CDMA PTI 11 TYPE Internal Antenna PAGE 6 4. Electrical properties 4.1. Test equipment The equipment for the antenna measurement we used is as follows. 4.1.1. Agilent 8753 Series Network Analyzer to measure the V.S.W.R and input impedance. 4.1.2. Three-dimensional anechoic chamber to measure the gain (Standard dipole and horn were used to calibrate the chamber) 4.1.3. Digital caliper to measure the dimensions. 4.1.4. Climatic chamber for mechanical tests. 4.1.5 Test environment Standard temperature : 15°C ~ 25°C(Normal state : 20°C) Relative humidity 25% ~ 80%, Air pressure : 86 ~ 106 kPa 4.2. V.S.W.R The VSWR characteristics must satisfy the electrical demands. The VSWR is measured with Agilent 8753 Series network analyzer. All the measurements are performed with the customer provided fixture. ANTENNA SPECIFICATION DATE 2011-04-29 REV. IR MODEL CDMA PTI 11 TYPE Internal Antenna PAGE 7 4.3. Radiation pattern and gain Radiation pattern of this antenna has Omni-directional specification in H-Plane. Antenna gain is satisfied with customer demand based on SET after calibration with standard horn antenna. ANTENNA SPECIFICATION DATE 2011-04-29 REV. IR MODEL CDMA PTI 11 TYPE Internal Antenna PAGE 8 5. Measurement Data 5.1. V.S.W.R ANTENNA SPECIFICATION DATE 2011-04-29 REV. IR MODEL CDMA PTI 11 TYPE Internal Antenna PAGE 9 5.2. Radiation pattern Azimuth pattern theta=90(USC/JCDMA/IMT-2000) ANTENNA SPECIFICATION DATE 2011-04-29 REV. IR MODEL CDMA PTI 11 TYPE Internal Antenna PAGE 10 Elevation pattern phi=0(USC/JCDMA/IMT-2000) ANTENNA SPECIFICATION DATE 2011-04-29 REV. IR MODEL CDMA PTI 11 TYPE Internal Antenna PAGE 11 Elevation pattern phi=90(USC/JCDMA/IMT-2000) ANTENNA SPECIFICATION DATE 2011-04-29 REV. IR MODEL CDMA PTI 11 TYPE Internal Antenna PAGE 12 6. Mechanical Drawing 6.1. Assembly

SAR TEST REPORT HCT CO., LTD EUT Type: CDMA/GSM/WCDMA Phone with Bluetooth & WLAN GPRS Class10 and GPRS mode class B(GPRS and GSM, but not simultaneously) FCC ID: JYCCDMAPTI11 Model: CDMA PTI11 Additional model: CDMA EIS01PT Date of Issue: Jul.12, 2011 Test report No.: HCTA1107FS02 Test Laboratory: HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6485 FAX: +82 31 645 6401 Applicant : Pantech Co., Ltd. Pantech Building, I-2, DMC, Sangam-dong, Mapo-gu,Seoul, Korea(ZIP :121-792) Tel: 82-2-2030-1319 Fax: 82-2-2030-2500 Testing has been carried out in accordance with: RSS-102 Issue 4; Health Canada Safety Code 6 47CFR §2.1093 FCC OET Bulletin 65(Edition 97-01), Supplement C (Edition 01-01) ANSI/ IEEE C95.1 – 1992 IEEE 1528-2003 Test result: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Signature Report prepared by Approved by : Young-Soo Jang : Jae-Sang So Test Engineer of SAR Part Manager of SAR Part Report No.: HCTA1107FS02 FCC ID: JYCCDMAPTI11 Date of Issue: Jul.12, 2011 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 2 of 180 Table of Contents 1. INTRODUCTION .......................................................................................................................................... ３ 2. DESCRIPTION OF DEVICE ......................................................................................................................... ４ 3. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... ５ 4. SAR MEASUREMENT PROCEDURE ..................................................................................................... １２ 5. DESCRIPTION OF TEST POSITION ....................................................................................................... １３ 6. MEASUREMENT UNCERTAINTY ........................................................................................................... １５ 7. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................................................. １７ 8. SYSTEM VERIFICATION ......................................................................................................................... １８ 8.1 Tissue Verification ........................................................................................................................... １８ 8.2 System Validation ............................................................................................................................ １８ 9. SAR Testing with IEEE 802.11 a/b/g Transmitters ............................................................................... １９ 10. RF CONDUCTED POWER .................................................................................................................... ２０ 10.1 Procedures Used to Establish RF Signal for SAR ........................................................................ ２０ 10.2 SAR Measurement Conditions for UMTS ..................................................................................... ２０ 11. Mobile Hotspot Side for SAR Testing ................................................................................................. ２４ 12. SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas ............ ２５ 13. SAR TEST DATA SUMMARY ................................................................................................................ ２７ 13.1 Measurement Results (GSM850 Head SAR) ................................................................................ ２７ 13.2 Measurement Results (GSM1900 Head SAR) .............................................................................. ２８ 13.3 Measurement Results (WCDMA850 Head SAR) .......................................................................... ２９ 13.4 Measurement Results (WCDMA1900 Head SAR) ........................................................................ ３０ 13.5 Measurement Results (CDMA835 Head SAR) ............................................................................. ３１ 13.6 Measurement Results (802.11b/g/n Head) .................................................................................... ３２ 13.7 Measurement Results (GSM850 Hotspot Body SAR) ................................................................... ３３ 13.8 Measurement Results (GSM1900 Hotspot Body SAR) ................................................................. ３４ 13.9 Measurement Results (WCDMA850 Hotspot Body SAR) ............................................................. ３５ 13.10 Measurement Results (WCDMA1900 Hotspot Body SAR) ......................................................... ３６ 13.11 Measurement Results (CDMA835 Hotspot Body SAR) .............................................................. ３７ 13.12 Measurement Results (802.11b/g/n Hotspot Body SAR) ............................................................ ３８ 14. CONCLUSION ........................................................................................................................................ ３９ 15. REFERENCES ....................................................................................................................................... ４０ Attachment 1. – SAR Test Plots ................................................................................................................ ４１ Attachment 2. – Dipole Validation Plots ................................................................................................ １１５ Attachment 3. – Probe Calibration Data ................................................................................................ １２９ Attachment 4. – …

Text truncated - open the document above for the full version.

Report No.: HCTA1107FS02 FCC ID: JYCCDMAPTI11 Date of Issue: Jul.12, 2011 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 101 of 180 Test Laboratory: HCT CO., LTD EUT Type: CDMA/GSM/WCDMA Phone with Bluetooth & WLAN GPRS Class10 and GPRS mode class B(GPRS and GSM, but not simultaneously) Liquid Temperature: 21.2 °C Ambient Temperature: 21.4 °C Test Date: Jul.11, 2011 DUT: CDMA PTI11(side); Type: Bar; Serial: #1 Communication System: 2450MHz FCC; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.95 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(4.2, 4.2, 4.2); Calibrated: 2010-11-24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn869; Calibrated: 2010-09-21 - Phantom: 1800/1900 Phantom; Type: SAM hotspot body left 1/Area Scan (31x101x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.115 mW/g hotspot body left 1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.65 V/m; Power Drift = -0.152 dB Peak SAR (extrapolated) = 0.229 W/kg SAR(1 g) = 0.107 mW/g; SAR(10 g) = 0.056 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.114 mW/g 0 dB = 0.114mW/g Report No.: HCTA1107FS02 FCC ID: JYCCDMAPTI11 Date of Issue: Jul.12, 2011 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 102 of 180 Test Laboratory: HCT CO., LTD EUT Type: CDMA/GSM/WCDMA Phone with Bluetooth & WLAN GPRS Class10 and GPRS mode class B(GPRS and GSM, but not simultaneously) Liquid Temperature: 21.2 °C Ambient Temperature: 21.4 °C Test Date: Jul.11, 2011 DUT: CDMA PTI11(top); Type: Bar; Serial: #1 Communication System: 2450MHz FCC; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.95 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(4.2, 4.2, 4.2); Calibrated: 2010-11-24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn869; Calibrated: 2010-09-21 - Phantom: 1800/1900 Phantom; Type: SAM hotspot body top 1/Area Scan (31x61x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.056 mW/g hotspot body top 1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.27 V/m; Power Drift = 0.069 dB Peak SAR (extrapolated) = 0.099 W/kg SAR(1 g) = 0.048 mW/g; SAR(10 g) = 0.026 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.050 mW/g 0 dB = 0.050mW/g Report No.: HCTA1107FS02 FCC ID: JYCCDMAPTI11 Date of Issue: Jul.12, 2011 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 103 of 180 Test Laboratory: HCT CO., LTD EUT Type: CDMA/GSM/WCDMA Phone with Bluetooth & WLAN GPRS Class10 and GPRS mode class B(GPRS and GSM, but not simultaneously) Liquid Temperature: 21.1 °C Ambient Temperature: 21.3 °C Test Date: Jul.07, 2011 DUT: CDMA PTI11; Type: Bar; Serial: #1 Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.9 mho/m; ε r = 43; ρ = 1000 kg/m 3 Phantom section: Right Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(6.27, 6.27, 6.27); Calibrated: 2010-11-24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn869; Calibrated: 2010-09-21 - Phantom: 1800/1900 Phantom; Type: SAM Right touch 190/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.572 mW/g Right touch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.23 V/m; Power Drift = -0.126 dB Peak SAR (extrapolated) = 0.660 W/kg SAR(1 g) = 0.547 mW/g; SAR(10 g) = 0.416 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.579 mW/g Report No.: HCTA1107FS02 FCC ID: JYCCDMAPTI11 Date of Issue: Jul.12, 2011 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.…

Text truncated - open the document above for the full version.
