JYCG310PCS 1900 (with WAP & GPRS)

USER’S MANUAL Caution Table of contents Components Handset Description Sub display Side keys Antenna Ear-microphone LCD display Earpiece Microphone Navigation keys N Alphanumeric ke ys Menu keys N Clear key N OK keys N Power Adaptor Connectors Internal LCD(Main LCD) Function keys Key Icon Name Key Function SEND KEY Press this key to make a call, or answer incoming call (except ANY KEY ANSWER). Press this key long to redial a last call number. Press this key once to retrieve the list of last dialed. END KEY Press this key to end a call, to return to standby state in menu (Cancel, Exit). Long press this key to turn the phone on or off. OK KEY Press this key to enter main menu basically. At each state, special function/menu will be displayed on the screen above this key. Press this key to execute the menu which selected by arrow in the display.(OK) MEMU KEY Press this key to enter menu. At each state, menu will be displayed on the screen above this key. CLEAR KEY Press this key to clear a single letter and long press this key to clear a line. Press this key to return to the previous screen. NAVIGATION KEYS with shortcut keys to WAP, Sound setting, Message and Phonebook Press these keys to move the cursor up and left or down and right in menu or in list. In call state, press ‘up’ key to show recent received call list and press ‘down’ key to show missed call list. With shortcut keys, you can easily access phonebook, Sound setting, SMS and WAP browser. SIDE UP and DOWN KEYS Press these keys to adjust volume of earpiece up and down in call state. And when idle screen, press down side key, you can see date and day at sub LCD. Quick start Install the SIM card Install the battery Charge the battery Basic Operation Getting started 1. Turn on the phone power 2. Turn off the phone power 3. Make a call 4. End a call 5. Answer a call 6. Adjust the earpiece volume 7. Browse main menu 8. Type numbers and letters on handset Basic call functions How to use T9 ‘T9’ is to help you to input text easily either in English or in Chinese. This section is to help you to use ‘T9’. First of all, when you enter input mode, each mode of the possible ‘T9’ is displayed by examples followed by key mapping table. Key T9Number T9English T9Stroke T9PINYIN Multitap 1 Next candidate  Next character 2 ABC  ABC ABC 3 DEF / DEF DEF 4 GHI  GHI GHI 5 JKL ¬ JKL JKL 6 MNO component mode MNO MNO LONG press ? (WILD CARD) 7 PQRS SELECT1 PQRS(SELECT2) PQRS 8 TUV SELECT2 TUV(SELECT2) TUV 9 WXYZ SELECT3 WXYZ(SELECT3) WXYZ * + - / = Smart SELECT4 SELECT4 Smart functuation LONG press T9Number T9Number T9Number T9Number 0 OPR SELECT5 SELECT5 OPR LONG press (SPACE) (SPACE) (SPACE) (SPACE) (SPACE) # Shift- CapsLOCK SELECT6 T9 Tone menu (SELECT6) Shift- CapsLOCK LONG press T9EmoticonT9Emoticon T9Emoticon T9Emoticon T9 Input Modes Description This ‘T9’ is to input predictive English word. This mode is to input Chinese character by inputting stroke by stroke like writing it with brush. Also, you can browse the possible character by component.(Press key [1]) This PINYIN input mode is to input Chinese character by typing the pronounce of letter. You can specify the pronounce by tone. This is an alternate English editor by pressing multi-tap keys T9 number mode is to input the number or arithmetic symbols With T9 symbol mode, you can input symbols such like Greek letter, the unit of currency, punctuations Details are described as following sections. T9 English The more types you enter, the more complete word you can get using T9 English editor. For example, if you like to make the word, ‘China’, then press the keys, [2] for C,[4] for h, [4] for i, [6] for n, and [2] for a. If you could not find the word what you want, just press [1]key for next possible candidates. You can switch the lowercase to the capital letter or the capital letter to one capital letter mode by pressing [#]key. Also you can insert by pressing key [*]. Blank space can be added by pressing [0]. You can shift input mode by pressing [up] or [down] arrow keys. Alternately, you can switch to T9 number mode by long pressing [*]key and to T9 Symbol mode by long pressing [#] key. Multi-tap English In this mode, you can insert special English word something like name, nickname, abbreviations and so on. T9 English has special dictionary to find and to list candidates up. As like ordinary mobile phone, you can input alphabets by pressing a key several times ‘til finding the character. By pressing key [#] you can easily shift to Capitalized letter to lowercase to T9 number easily. T9 STROKE Now you don’t have to input pronounces for input only one Chinese character. Just type 5 STROKE characters and one wild card character as like you writing a letter by brush. If you would like to a letter (zhong), then press [2] for stroke , [5] for , [4] for , and [2] for . As you types the more strokes, you can get the more accurate candidates below the selection window. As seen in candidate windows, just press selection number keys from [7][8][9][*][0]. Also you can add the character or make a word by context sensitive candidates. You can browse candidates by components mode. This mode can be accessed easily by pressing [6] key. Component is the part of the character which can have relative meanings. So you can find a character by component. This is an example for searching character by component by pressing [3], [3], and [4] keys. After selecting component, you can find more candidates in order of relation of component. For one more example, you can find the component, by pressing T9 PINYIN You can input Chinese character by typing the spelling of pronounces of it. For convenience, T9 PINYIN uses T9 English for making pronounce. Just type the keys which the proper spelling on, then you can choose possible pronounce candidates. After selecting pronounces by pressing [SEND], you can choose the character that you like to add in selection window. Additionally, you can specify the character using tone w…

Text truncated - open the document above for the full version.

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality

___________________________________________________________________________________ ETSHandelsregister:Bankverbindung: Electronic Technology Systems Dr. Genz GmbHAmtsgericht Frankfurt/Oder HRB 5151Sparkasse Oder-Spree Storkower Strasse 38cGeschäftsführung: Dr. Dietmar GenzBLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert KasparKto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH - ETS - STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Tel: 033631 888 000 FAX: 033631 888660 BZT ETS CERTIFICATION GMBH Storkower Str. 38c 15526 Reichenwalde b. Berlin GERMANY IHR ZEICHEN / YOUR REF.IHR SCHREIBEN / YOUR INFORM.UNSER ZEICHEN / OUR REF. DATUM / DATE 29.09.2003 Subject:Application for TCB Certification Applicant: Pantech Co., Ltd. Equipment: PCS 1900 (with WAP & GPRS) FCC ID: JYCG310 Dear Sirs, Submitted herewith, on behalf of Pantech Co., Ltd., is an application for certification under FCC Rule 24 of the following PCS equipment: PCS 1900 (with WAP & GPRS) / FCC ID: JYCG310 Attached are the 731Form, Confidentiality request letter, test report (TestRpt1=test data, TestRpt2=test plots), SAR TestRpt, FCC ID label and label location information, test setup photographs, internal and external photographs, operational description, part’s list, block diagrams, schematics, tune procedure information and user manual. In accordance with 0.459 of CFR 47 Pantech Co., Ltd. hereby requests confidentiality of all Block Diagrams, Circuit Diagrams (Schematics) and Parts List (see attached Confi- dentiality Request Letter) for the subject application. Should you have any questions or comments concerning the above, please contact the following e-mail addresses: [email protected]. Best Regards Jenifer Täubert Electronic Technology Systems Dr. Genz GmbH Storkower Strasse 38c 15526 Reichenwalde bei Berlin Germany e-mail: [email protected]

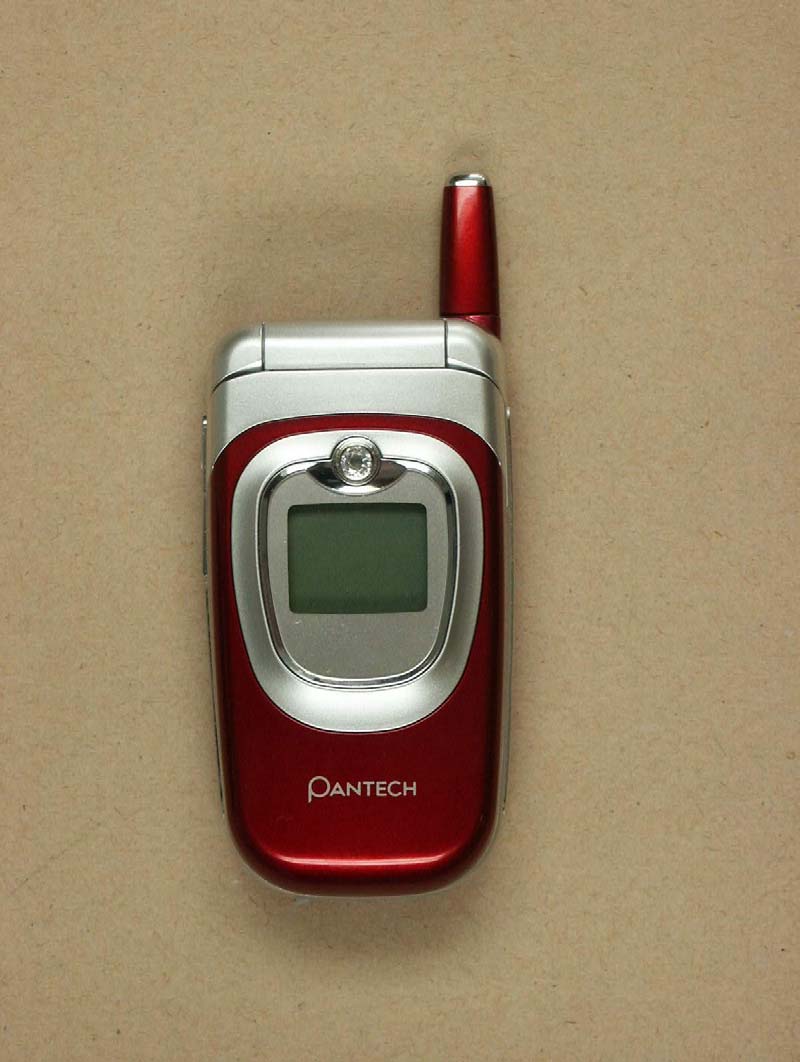

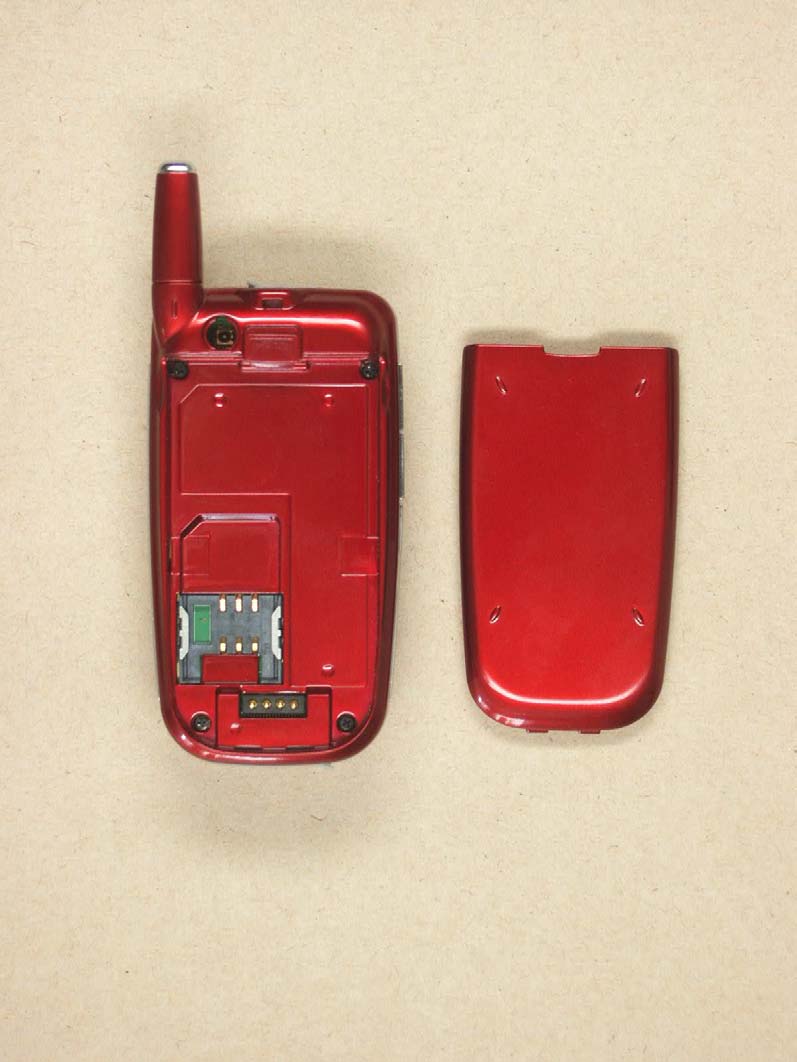

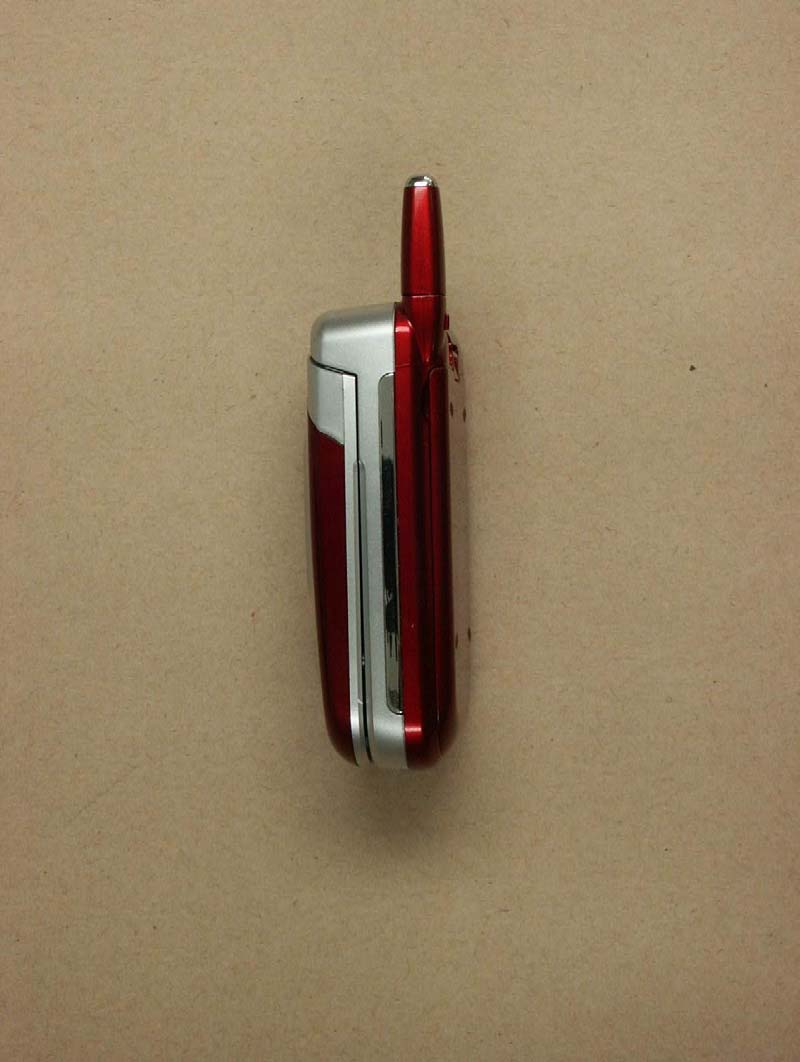

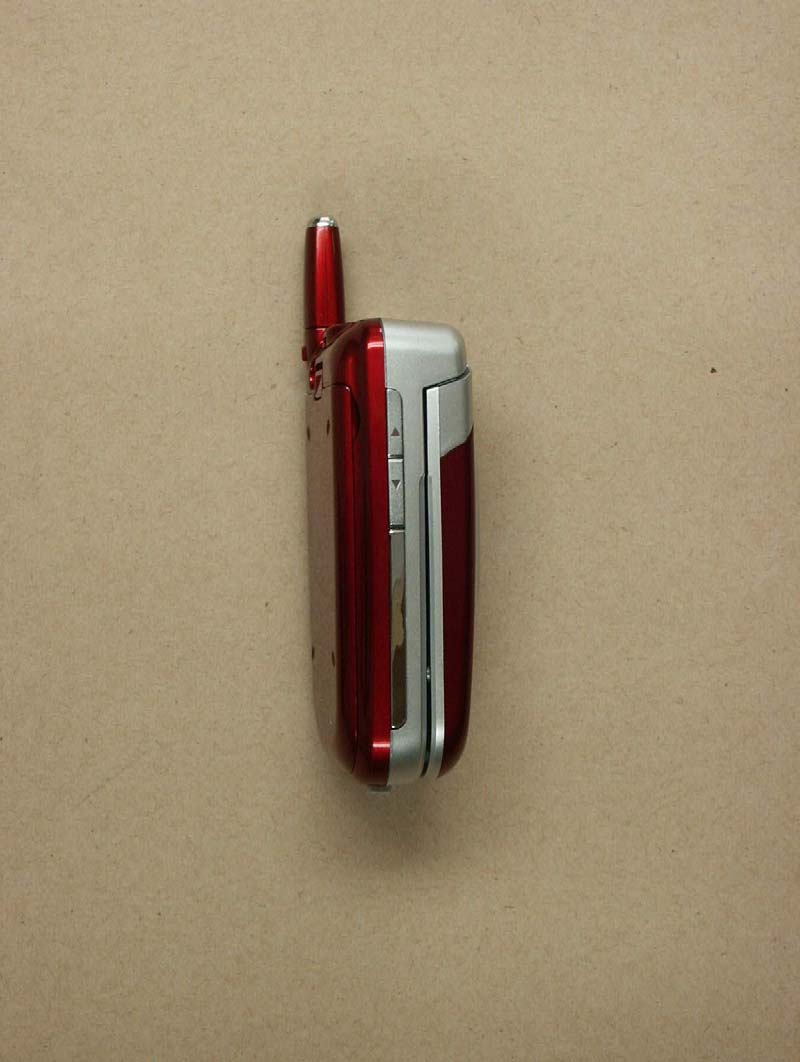

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-P-24Page 1 of 18 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-P-24Page 2 of 18 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-P-24Page 3 of 18 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-P-24Page 4 of 18 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-P-24Page 5 of 18 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-P-24Page 6 of 18

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-P-24Page 7 of 18 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-P-24Page 8 of 18 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-P-24Page 9 of 18 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-P-24Page 10 of 18 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-P-24Page 11 of 18 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-P-24Page 12 of 18 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-P-24Page 13 of 18

PreparedReviewConfirm Approval Specification Sheet Approval / / / / Model G310 REV. IR No Page 1 of 1 Name JIN TAE KIM Date 2003. 8. 29 Electrical Spec GSM PCS Frequency Range (GHz) 0.88 – 0.96 1.85 – 1.99 TX RX TX RX Band (GHz) 0.88-0.915 0.925-0.961.85-1.91 1.93-1.99 FC 4.5 3.0 3.0 3.5 V. S . W. R (Less than) FO 3.5 2.5 2.5 2.5 FC -5.5 -3.5 -3.5 -4.0 Gain(dBi) (Peak Gain , More Than) FO -3.0 -1.5 -1.5 -1.5 Nominal Impedance 50 ohms Polarization Vertical Max Input power 2 Watt Mechanical Spec Length 29.0 ±1.0 mm Weight 2.0 g Connector type Cover material PC(HF-1023IM) Swivel Torque More Than 3Kgf Pulling force More Than 10Kgf Temperature Range -20 +70 Other AQF04-01-11.E Antenna Radiation Pattern G310_AntSpec#2 1/1 GSM-E1-FOLDER CLOSED Antenna Radiation Pattern G310_AntSpec#2 2/2 GSM-E1-FOLDER OPENED Antenna Radiation Pattern G310_AntSpec#2 3/3 GSM-E2-FOLDER CLOSED Antenna Radiation Pattern G310_AntSpec#2 4/4 GSM-E2-FOLDER OPENED Antenna Radiation Pattern G310_AntSpec#2 5/5 GSM-H-FOLDER CLOSED Antenna Radiation Pattern G310_AntSpec#2 6/6 GSM-H-FOLDER OPENED Antenna Radiation Pattern G310_AntSpec#2 7/7 PCS-E1-FOLDER CLOSED Antenna Radiation Pattern G310_AntSpec#2 8/8 PCS-E1-FOLDER OPENED Antenna Radiation Pattern G310_AntSpec#2 9/9 PCS-E2-FOLDER CLOSED Antenna Radiation Pattern G310_AntSpec#2 10/10 PCS-E2-FOLDER OPENED Antenna Radiation Pattern G310_AntSpec#2 11/11 PCS-H-FOLDER CLOSED Antenna Radiation Pattern G310_AntSpec#2 12/12 PCS-H-FOLDER OPENED Antenna Radiation Pattern G310_AntSpec#2 13/13 VSWR Folder Close Antenna Radiation Pattern G310_AntSpec#2 14/14 VSWR Folder Open Antenna Radiation Pattern G310_AntSpec#2 15/15

G310 Service Manual G310 G310 Service Manual (GSM Cellular Phone) Pantech Co., Ltd., Korea September 8, 2003 1 st Edition For Use by Authorized Service/Maintenance Personal Only Documents to Receive This Addendum: G310 Maintenance/Repair/Operating Manual G310 Service Manual PANTECH R&D CONFIDENTIAL 1 CONTENTS SECTION 1 INTRODUCTION .............................................................................................................3 1.1 INTRODUCTION..............................................................................................................................3 1.2 FREQUENCY ALLOCATION AND ITS USE...........................................................................................3 1.3 ITEM NAME AND USE.....................................................................................................................4 1.4 CHARACTERISTICS........................................................................................................................4 SECTION 2 ELECTRICAL SPECIFICATIONS....................................................................................5 2.1 GENERAL......................................................................................................................................5 2.2 TRANSMITTER..........................................................................................................5 2.3 RECEIVER...............................................................................................................5 SECTION 3 OPERATION....................................................................................................................6 3.1 NAME OF EACH PART...................................................................................................6 3.2.DISPLAY ..................................................................................................................7 3.3 KEYPAD ................................................................................................................7 SECTION 4 THEORY OF OPERATION..............................................................................................8 4.1 LOGIC SECTION ........................................................................................................................8 4.1.1 DC DISTRIBUTION AND REGULATION PART......................................................................8 4.1.2 LOGIC PART..........................................................................................................8 4.1.2.1 SUMMARY..........................................................................................................8 4.1.2.2 BASEBAND DIGITAL SIGNAL PROCESSING....................................................................8 4.1.3 MEMORY PART.....................................................................................................10 4.1.4 NOTIFICATION PART.................................................................................................................. 11 4.1.5 KEY PAD PART......................................................................................................................... 11 4.1.6 LCD MODULE(DISPLAY PART) .................................................................................................. 11 4.2 RADIO TRANSCEIVER SECTION.....................................................................................................12 4.2.1 DC DISTRIBUTION AND REGULATION PART.................................................................................13 4.2.2 TRANSCEIVER PIN DESCRIPTION.......................................................................14 4.2.3 RECEIVE SECTION.................................................................................................17 4.2.3.1 AN OVERVIEW OF RECEIVE SECTION......................................................................................17 4.2.3.2 RECEIVER PART.................................................................................................18 4.2.4 TRANSMIT SECTION..................................................................................................................19 4.2.4.1 AN OVERVIEW OF TRANSMIT SECTION....................................................................................19 4.2.4.2 TRANSMITTER PART...............................................................................................................20 4.2.5 OFFSET PLL.........................................................................................................21 4.2.5.1 AN OVERVIEW OF OFFSET PLL............................................................................................21 4.2.5.2 VCTCXO(VOLTAGE CONTROLLED TEMPERATURE COMPENSATED CRYSTAL OSCILLATOR):V801....22 SECTION 5 ALIGNMENT PROCEDURE..........................................................................................23 5.1 RECOMMENDED TEST EQUIPMENT...............................................................................................23 5.2 CONNECTION OF TEST EQUIPMENT..............................................................................................23 SECTION 6 EQUIPMENT REPAIR PROCEDURE ...........................................................................24 6.1 NO POWER ON WITH BATTERY APPLIED..........................................................................................24 6.1.1 POWER CHECK.........................................................................................................................24 6.1.2 OSCILLATION CHECK ...............................................................................................................30 6.1.3 KEYPAD LED NOT IN OPERATION(3-COLOR AND BLUE) ..............................................................31 6.1.4 LCD EL BACKLIGHT LED NOT IN OPERATION(WHITE).................................................. ...33 6.1.5 POWER INDICATED LED & STATUS LED........................................................…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G5M203080154-S-8 SAR ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-S-8Page 1 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4 Manufacturer 1.5Application details 1.6Test item 1.7Test results 1.8Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Definitions 2.5Measurement system description 2.6Test system specification 2.7Measurement procedure 2.8Reference points 2.9Test positions 2.10Measurement uncertainty 3Tissue and system verification 3.1Tissue verification 3.2System verification 4Test Results 5References 6Appendix ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-S-8Page 2 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 29.09.2003N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 29.09.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-S-8Page 3 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax: +49 33631 888 660 1.2.2Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3Details of approval holder Name: Pantech Co., Ltd. Street: Sinsong Center Bldg. 6th Fl., 25-12, Yeouido-dong Town: Yeoungdeungpo-gu, Seoul Country: Korea Telephone: +82-2-3660-5862 Fax: +82-2-3660-5990 Contact: Mr. B.W. Kim E-Mail: [email protected] 1.4Manufacturer: (if applicable) Name: Street: Town: Country: ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-S-8Page 4 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5Application details Date of receipt of application: 18.08.2003 Date of receipt of test item: 18.08.2003 Date of test: 23.08.2003 - 28.08.2003 1.6Test item FCC ID: JYCG310 Description of test item: Dual Band GSM 900 (E-GSM)/PCS 1900 (with WAP & GPRS) Type identification: G310 Serial number: without;Identical Prototype Device category: PCE ( Licensed Portable Transmitter held to ear) Technical data PCS TX Frequency range: 1850,2 - 1909,8 MHz RX Frequency range: 1930,2 - 1989,8 MHz Max. Radiated RF output power: 29,33 dBm (0,857 W) Max. Conducted RF output power : 29,04 dBm (0,801 W) Power supply : 3,7 V DC rechargeable battery Antenna Tx: integral Antenna RX: integral Additional information: Tx and Rx. antenna are the same. This device contains 900 MHz GSM function that are not operational in U.S. territories. This filing is only applicable for 1900 MHz PCS operations. 1.7Test Results Max. SAR Measurement: 1,34 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 2002). ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-S-8Page 5 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8Test standards Standards: - IEEE Std. 1528-200X (Draft 6.5, January 2002) FCC Rule Part(s): - FCC OET Bulletin 65, Supplement C, Edition 01-01 2Technical test 2.1Summary of test results Applicable Configuration Handset (Head)X Handset (Body)X Headset (Head) Body Worn Equipment EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagnetic energy in the body are very complex phenomena that depend on the mass, shape, and size of the body, the orientation of the body with respect to the field vectors, and the electrical properties of both the body and the environment. Other variables that may play a substant…

Text truncated - open the document above for the full version.

ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-S-8Appendix B ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Appendix B Measurement Plots Date/Time: 08/25/03 15:49:55 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: Dipol Valid.1900(h)_25.08.03.da4 Dipol Valid.1900(h)_25.08.03 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Program: Dipol Valid 1900 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Head 1900 MHz (σ = 1.41529 mho/m, ε r = 39.8679, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Dipol 1900 (17dBm)/Area Scan (81x81x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 40.7 V/m Power Drift = -0.03 dB Maximum value of SAR = 2.15 mW/g Dipol 1900 (17dBm)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 3.48 W/kg SAR(1 g) = 2.05 mW/g; SAR(10 g) = 1.081 mW/g Reference Value = 40.7 V/m Power Drift = -0.03 dB Maximum value of SAR = 2.17 mW/g 0 dB = 2.17mW/g Page 1 of 1 8/25/2003file://C:\TEMP\Dipol%20Valid.1900(h)_25.08.03-1.htm Date/Time: 08/26/03 14:58:43 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: Dipol Valid.1900(h)_26.08.03.da4 Dipol Valid.1900(h)_26.08.03 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Program: Dipol Valid 1900 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Head 1900 MHz (σ = 1.41529 mho/m, ε r = 39.8679, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Dipol 1900 (17dBm)/Area Scan (81x81x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 41.9 V/m Power Drift = 0.1 dB Maximum value of SAR = 2.28 mW/g Dipol 1900 (17dBm)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 3.81 W/kg SAR(1 g) = 2.09 mW/g; SAR(10 g) = 1.07 mW/g Reference Value = 41.9 V/m Power Drift = 0.1 dB Maximum value of SAR = 2.34 mW/g 0 dB = 2.34mW/g Page 1 of 1 8/26/2003file://C:\TEMP\Dipol%20Valid.1900(h)_26.08.03-1.htm Date/Time: 08/28/03 07:41:33 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: Dipol Valid.1900(h)_28.08.03.da4 Dipol Valid.1900(h)_28.08.03 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Program: Dipol Valid 1900 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Head 1900 MHz (σ = 1.41529 mho/m, ε r = 39.8679, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Dipol 1900 (17dBm)/Area Scan (81x81x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 41.7 V/m Power Drift = -0.04 dB Maximum value of SAR = 2.2 mW/g Dipol 1900 (17dBm)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 3.53 W/kg SAR(1 g) = 1.97 mW/g; SAR(10 g) = 1.02 mW/g Reference Value = 41.7 V/m Power Drift = -0.04 dB Maximum value of SAR = 2.2 mW/g 0 dB = 2.2mW/g Page 1 of 1 8/28/2003file://C:\TEMP\Dipol%20Valid.1900(h)_28.08.03-1.htm Date/Time: 08/26/03 17:26:18 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: 1900_right_ch512_cheek.da4 1900_right_ch512_cheek DUT: Dual Band GSM900 (EGSM) / PCS1900 (with WAP & GPRS); Type: -; Serial: G310 Program: PCS 1900 Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8 Medium: Head 1900 MHz (σ = 1.3685 mho/m, ε r = 39.9283, ρ = 1000 kg/m 3 ) Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 G310/Area Scan (101x141x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 4.97 V/m Power Drift = -0.03 dB Maximum value of SAR = 1.1 mW/g G310/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.45 W/kg SAR(1 g) = 1 mW/g; SAR(10 g) = 0.617 mW/g Reference Value = 4.97 V/m Power Drift = -0.03 dB Maximum value of SAR = 1.09 mW/g 0 dB = 1.09mW/g Page 1 of 1 8/26/2003file://C:\TEMP\1900_right_ch512_cheek-3.htm Date/Time: 08/26/03 20:17:45 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: 1900_right_ch512_tilted.da4 1900_right_ch512_tilted DUT: Dual Band GSM900 (EGSM) / PCS1900 (with WAP & GPRS); Type: -; Serial: G310 Program: PCS 1900 Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8 Medium: Head 1900 MHz (σ = 1.3685 mho/m, ε r = 39.9283, ρ = 1000 kg/m 3 ) Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 G310/Area Scan (101x141x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 7.81 V/m Power Drift = -0.02 dB Maximum value of SAR = 0…

Text truncated - open the document above for the full version.

ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080154-S-8Appendix C ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Appendix C Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M203080154-S-8Page 1 of 11 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M203080154-S-8Page 2 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M203080154-S-8Page 3 of …
