JYCG700PCS 1900 (with WAP & GPRS)

Antenna LCD display Microphone Navigation keys Alphanumeric ke ys Menu key Clear key Ear-microphone OK key Side keys Power Adaptor Connectors Earpiece Æ Æ Æ – ÆÆ Æ Æ

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ Declaration concerning Antenna Specification It’s hereby declared that the product: ............ G700.................... fulfills the requirement in FCC test relating to the antenna type. The ............G700.............confirm to FCC recommendation with internal antenna type: (model if applicable) G700 built into the housing and has a unique connector gain of the antenna ..-2.0... dBi frequency range ... 1850~1990.......MHz. : please refer to the below The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company: Pantech Co.,Ltd. City: Seoul ZIP / Postal code: 150-745 Country: Korea Place: KOREA Date: December 08, 2003

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Parts List, Operational Description

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ Date: 2003. 11. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Cover Letter _ Request for the FCC Certification Pantech Co., Ltd. FCC ID: JYCG700 FCC Certification Gentlemen, In accordance with FCC rule, Pantech Co., Ltd. hereby requests certification. Model Name: PCS 1900 (with WAP & GPRS). Model No.: G700 Sincerely,

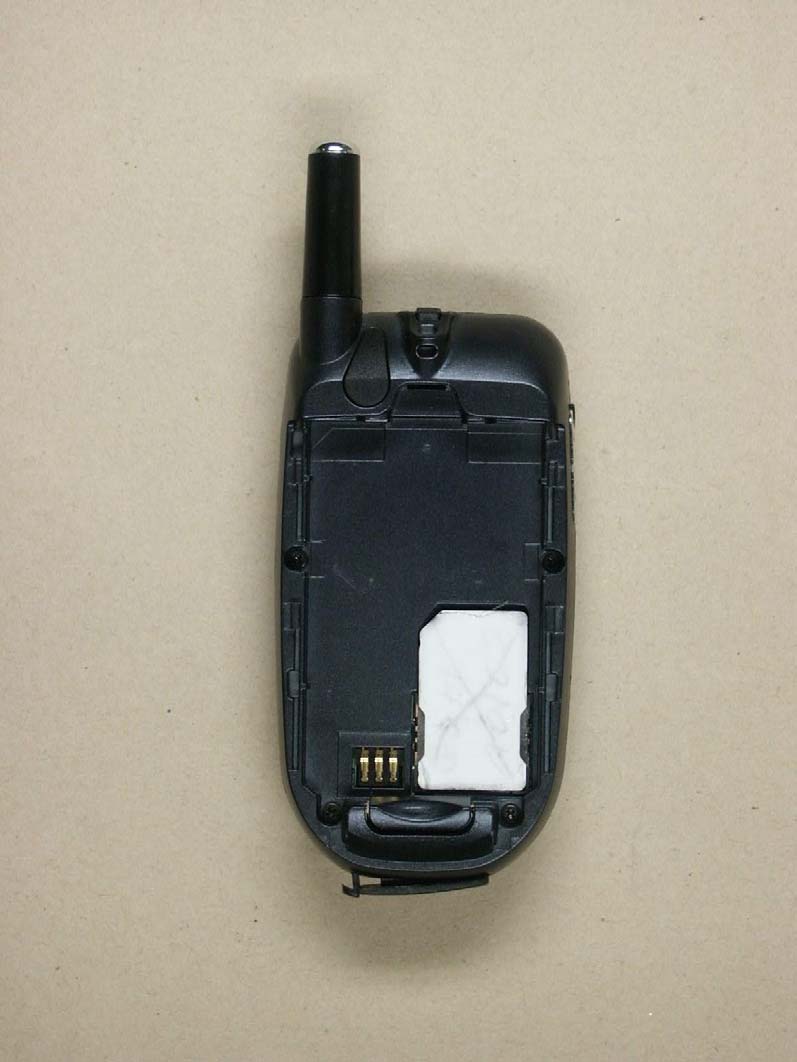

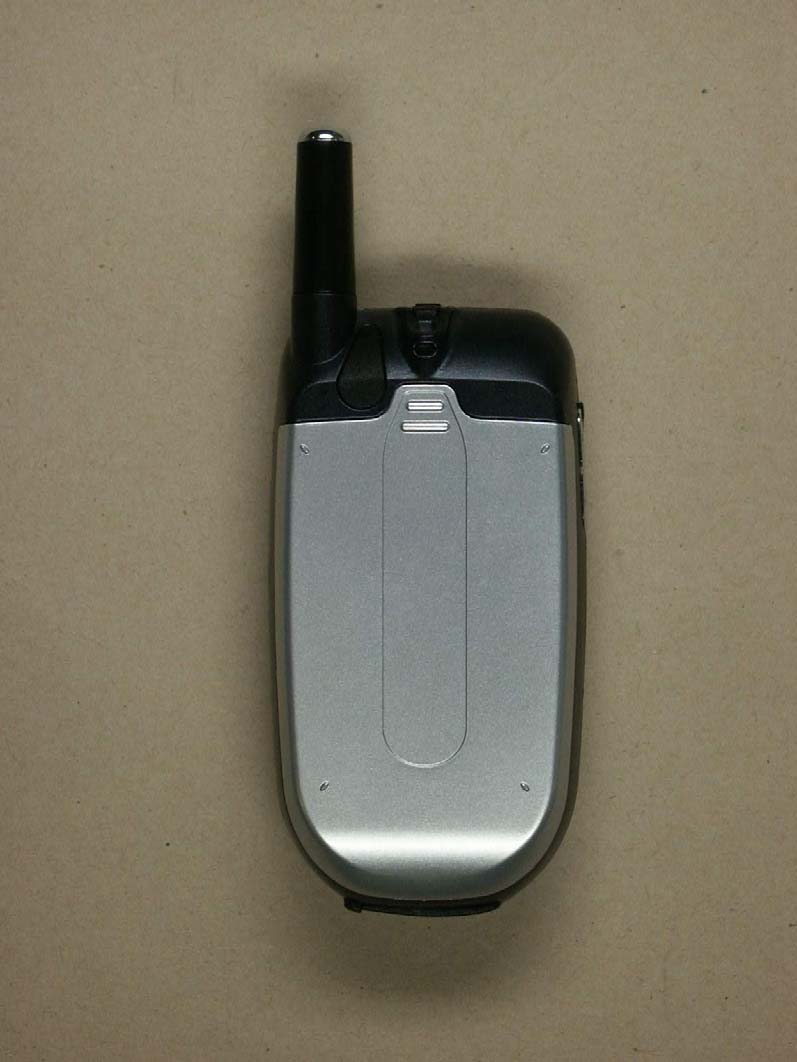

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-P-24Page 1 of 12 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-P-24Page 2 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-P-24Page 3 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-P-24Page 4 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-P-24Page 5 of 12

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ PCS 1900 (with WAP & GPRS) FCC ID: JYCG700

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ [FCC ID Label sample] Description: PCS 1900 (with WAP & GPRS) FCC ID: JYCG700

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-P-24Page 6 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-P-24Page 7 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-P-24Page 8 of 12

30430 FPCB LCD 30430 FPCB GROUND 30430 FPCB LED 35505

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G0M20310-8276-S-8 SAR ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-S-8Page 1 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4 Manufacturer 1.5Application details 1.6Test item 1.7Test results 1.8Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Definitions 2.5Measurement system description 2.6Test system specification 2.7Measurement procedure 2.8Reference points 2.9Test positions 2.10Measurement uncertainty 3Tissue and system verification 3.1Tissue verification 3.2System verification 4Test Results 5References 6Appendix ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-S-8Page 2 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 17.11.2003N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 17.11.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-S-8Page 3 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax: +49 33631 888 660 1.2.2Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3Details of approval holder Name: Pantech Co., Ltd. Street: Sinsong Center Bldg. 6th Fl., 25-12, Yeouido-dong Town: Yeoungdeungpo-gu, Seoul Country: Korea Telephone: +82-2-3660-5862 Fax: +82-2-3660-5990 Contact: Mr. B.W. Kim E-Mail: [email protected] 1.4Manufacturer: (if applicable) Name: Street: Town: Country: ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-S-8Page 4 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5Application details Date of receipt of application: 27.10.2003 Date of receipt of test item: 27.10.2003 Date of test: 07.11.2003 - 10.11.2003 1.6Test item FCC ID :JYCG700 Description of test item: Triple Band GSM 900(E-GSM)/DCS 1800/PCS 1900(with WAP&GPRS) Type identification: G700 Serial number: without;Identical prototype Device category: PCE ( Licensed Portable Transmitter held to ear) Technical data PCS TX Frequency range: 1850,2 - 1909,8 MHz RX Frequency range: 1930,2 - 1989,8 MHz Max. Conducted RF output power : 28.16 dBm (0,597 W) Power supply : 3,8 V DC Antenna Tx: integral Antenna RX: integral Additional information: Tx and Rx. antenna are the same. This device contains 900/1800 MHz GSM functions that are not operational in U.S. Territories. This filing is only applicable for 1900 MHz PCS operations. 1.7Test Results Max. SAR Measurement: 1,190 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 2002). ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-S-8Page 5 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8Test standards Standards: - IEEE Std. 1528-200X (Draft 6.5, January 2002) FCC Rule Part(s): - FCC OET Bulletin 65, Supplement C, Edition 01-01 - § 2.1093 2Technical test 2.1Summary of test results Applicable Configuration Handset (Head)X Handset (Body)X Headset (Head) Body Worn Equipment EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagnetic energy in the body are very complex phenomena that depend on the mass, shape, and size of the body, the orientation of the body with respect to the field vectors, and the electrical properties of both the body and the environment. Other variables that may play a substantial role in possible biological effects a…

Text truncated - open the document above for the full version.

ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-S-8Appendix B ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Appendix B Measurement Plots Date/Time: 11/07/03 07:47:34 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: Dipol Valid.1900(h)_07.11.03.da4 Dipol Valid.1900(h)_07.11.03 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Program: Dipol Valid 1900 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Head 1900 MHz (σ = 1.41529 mho/m, ε r = 39.8679, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Dipol 1900 (250mW)/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 96.4 V/m Power Drift = -0.02 dB Maximum value of SAR = 12.7 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 19.3 W/kg SAR(1 g) = 10.8 mW/g; SAR(10 g) = 5.53 mW/g Reference Value = 96.4 V/m Power Drift = -0.02 dB Maximum value of SAR = 12 mW/g 0 dB = 12mW/g Date/Time: 11/17/03 10:20:22 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: Dipol Valid.1900 h_17.11.03.da4 Dipol Valid.1900 h_17.11.03 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Program: Dipol Valid 1900 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Head 1900 MHz (σ = 1.41529 mho/m, ε r = 39.8679, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Dipol 1900 (250mW)/Area Scan (81x81x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 93.7 V/m Power Drift = -0.03 dB Maximum value of SAR = 11.3 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 18.3 W/kg SAR(1 g) = 10 mW/g; SAR(10 g) = 5.07 mW/g Reference Value = 93.7 V/m Power Drift = -0.03 dB Maximum value of SAR = 11.2 mW/g 0 dB = 11.2mW/g Date/Time: 11/10/03 08:16:28 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: Dipol Valid.1900(b)_10.11.03.da4 Dipol Valid.1900(m)_10.11.03 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Program: Dipol Valid 1900 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Muscle 1900 MHz (σ = 1.58102 mho/m, ε r = 51.8712, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5, 5, 5); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Dipol 1900 (250mW)/Area Scan (71x101x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 95 V/m Power Drift = -0.02 dB Maximum value of SAR = 12.5 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 19.6 W/kg SAR(1 g) = 10.8 mW/g; SAR(10 g) = 5.48 mW/g Reference Value = 95 V/m Power Drift = -0.02 dB Maximum value of SAR = 12.3 mW/g 0 dB = 12.3mW/g Date/Time: 11/17/03 12:56:38 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: 1900_right_ch512_cheek.da4 1900_right_ch512_cheek DUT: Triple Band GSM 900(E-GSM)/DCS 1800 /PCS 1900(with WAP&GPRS); Type: -; Serial: G700 Program: PCS 1900 Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8 Medium: Head 1900 MHz (σ = 1.3685 mho/m, ε r = 39.9283, ρ = 1000 kg/m 3 ) Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 G700/Area Scan (91x161x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 6.59 V/m Power Drift = -0.3 dB Maximum value of SAR = 0.983 mW/g G700/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.29 W/kg SAR(1 g) = 0.788 mW/g; SAR(10 g) = 0.444 mW/g Reference Value = 6.59 V/m Power Drift = -0.02 dB Maximum value of SAR = 0.85 mW/g 0 dB = 0.85mW/g Date/Time: 11/07/03 23:09:26 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: 1900_right_ch512_tilted.da4 1900_right_ch512_tilted DUT: Triple Band GSM 900(E-GSM)/DCS 1800 /PCS 1900(with WAP&GPRS); Type: -; Serial: G700 Program: PCS 1900 Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8 Medium: Head 1900 MHz (σ = 1.3685 mho/m, ε r = 39.9283, ρ = 1000 kg/m 3 ) Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 G700/Area Scan (91x161x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 8.28 V/m Power Drift = 0.1 dB Maximum value of SAR = 0.211 mW/g G700/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.292 W/kg SAR(1 g) = 0.193 mW/g; SAR(10 g) = 0.12 mW/g Reference Value = 8.28 V/m Power Drift = 0.1 dB Maximum value of SAR = 0.204 mW/g 0 dB = 0.204mW/g Date/Time…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 24 Test report no.: G0M20310-8276-P-24 FCC ID: JYCG700 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-P-24Page 1 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 3 Test Results 4 RF Power Output, FCC 2.1046 4.1 Test Procedure 4.2 Test Results 5 Radiated Power, FCC 24.232 5.1 Test Procedure 5.2 Test Results 6 Occupied Bandwidth, FCC 2.1049 6.1 Test Procedure 6.2 Test Results 7 Field Strength of Spurious Radiations, FCC 2.1053, 24.238 7.1 Test Procedure 7.2 Test Results 8 Line Conducted Emissions, FCC 15.207 8.1 Test Procedure 8.2 Test Results 9 Frequency Stability vs Temperature, FCC 2.1055, 24.235 9.1 Test Procedure 9.2 Test Results 10 Frequency Stability vs Voltage, FCC 2.1055, 24.235 10.1 Test Procedure 10.2 Test Equipment ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-P-24Page 2 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 19.11.2003N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 19.11.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-P-24Page 3 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA A CCREDITEDCertificate Number: 1983-01 1.3Details of approval holder Name: Pantech Co., Ltd. Street: Sinsong Center Bldg. 6th Fl., 25-12, Yeouido-dong Town: Yeoungdeungpo-gu, Seoul Country: Korea Telephone: +82-2-3660-5862 Fax: +82-2-3660-5990 Contact: Mr. B.W. Kim Email: [email protected] ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-P-24Page 4 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4Application details Date of receipt of application: 27.10.2003 Date of receipt of test item: 27.10.2003 Date of test: 28.10.2003 – 18.11.2003 1.5Test item Description of test item: Triple Band GSM 900(E-GSM)/DCS 1800/PCS 1900(with WAP&GPRS) Type identification: G700 Serial number: Test model without serial number. Photos: See annex A Technical data Frequency range Tx: 1850.2 - 1909.8 MHz Frequency range Rx: 1930.2 – 1989.8 MHz Antenna transmitter: integral (internal antenna) Antenna Gain: 1 dBi Power supply : 3,8 V DC Operating mode: duplex Type of modulation: GMSK (GSM modulation) Emission: GXW Manufacturer: (if applicable) Name: Street: Town: Country: Additional information: This device contains 900/1800 MHz GSM functions that are not operational in U.S. Territories. This filing is only applicable for 1900 MHz PCS operations. ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-P-24Page 5 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical standard : FCC Part 24 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests  performed. 2.2Test environment Temperature: 23 o C Relative humidity content: 20 ...75 % Air pressure: 86 ...103 kPa Extreme temperature: -30 / 50 °C ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-P-24Page 6 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3Test equipment utilized No.Measurement device:Type:Manufacturer: ETS 0001Test receiverESHS 10Rohde&Schwarz ETS 0002Test receiverESVPRohde&Schwarz ETS 0003Test receiverESVS 10Rohde&Schwarz ETS 0004Spectrum- and Network-AnalyzerFSMS 26Rohde&Schwarz ETS 0005Test receiverSMV 11MEB ETS 0006Test receiver systemSME 12MEB ETS 0007Spectrum analyzerPSA-65AAvcom ETS 0008AntennaLoop antennaSiemens ETS 0009AntennaLoop antennaMEB ETS 0010AntennaLoop antennaMEB ETS 0011Antennavan Veen/ FrameETS ETS 0012AntennaHK 116Rohde&Schwarz ETS 0013AntennaHL 223Rohde&Schwarz ETS 0014AntennaHL 025Rohde&Schwarz ETS 0015AntennaHL 025Rohde&Schwarz ETS 0016AntennaVHAPSchwarzbeck ETS 0017AntennaVHAPSchwarzbeck ETS 0018AntennaUHAPSchwarzbeck ETS 0019AntennaUHAPSchwarzbeck ETS 0020AntennaDP 21MEB ETS 0021AntennaDP 3MEB ETS 0022Anten…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-P-24Page 9 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-P-24Page 10 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-P-24Page 11 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8276-P-24Page 12 of 12
