JYCP9090850/1900 GSM/GPRS/EDGE/WCDMA Phone w/ Bluetooth/WLAN/NFC

Thank you for choosing the Pantech P9090, our latest smartphone. The Pantech P9090 has many features designed to enhance your mobile experience. With its unique, stylish design you will enjoy the entire phone experience. This User Guide contains important and useful information that will maximize your familiarity with all that the Pantech phone has to offer. User Guide P9090 Some of the contents in this manual may differ from your phone depending on the software of the phone. Actual color may vary. Your phone is designed to make it easy for you to access a wide variety of content. For your protection, we want you to be aware that some applications that you enable may involve the location of your phone being shared. For applications available through XXXX, we offer privacy controls that let you decide how an application may use the location of your phone and other phones on your account. However, the XXXX privacy tools do not apply to applications available outside of XXXX. Please review the terms and conditions and the associated privacy policy for each location-based service to learn how location information will be used and protected. In addition, your XXXX phone may be used to access the internet and to download, and/or purchase goods, applications, and services from XXXX or elsewhere from third parties. XXXX provides tools for you to control access to the Internet and certain Internet content. These controls may not be available for certain devices which bypass XXXX controls. Service provided by XXXX Mobility. Portions © 2012 XXXX Intellectual Property. All rights reserved. XXXX, the XXXX logo and all other XXXX marks contained herein are trademarks of XXXX Intellectual Property and/or XXXX affiliated companies. All other marks contained herein are the property of their respective owners. Copyright © 2012. Pantech. All Rights Reserved. 3 1 READ THIS FIRST Important Safety Information Trademarks On-screen Indicators P9090 4 READ THIS FIRST Important Safety Information Safety Information The following list shows how to maintain your mobile phone and precautions to take as you use the device. xKeep your mobile phone and its accessories out of the reach of children and pets. xMaintain your mobile phone in dry conditions and keep it within normal operating temperatures. It may be damaged at temperatures higher than 55 °C/131 °F or lower than -20 °C/-4 °F. xDo not dry your phone in a microwave oven. Sparks may occur and cause an explosion or fire. xDo not use or store your mobile phone in dusty, dirty areas. xDo not disassemble your mobile phone. xDo not drop or cause severe impact to your mobile phone. xDo not clean your mobile phone with chemical products, cleaning solvents or detergents. xContact your dealer immediately if your mobile phone does not work properly. xUse only authorized batteries, battery chargers and accessories. Any malfunction or damage caused by the use of unauthorized batteries, battery chargers and accessories will void the limited product warranty. xEnsure that the battery and the battery charger do not come in contact with conductive objects. xFor optimal performance, use cases and accessories that do not contain magnets. Safety Precautions xUsing a mobile phone while driving is prohibited. xUsing a mobile phone while driving can distract your attention and cause an accident. Always switch your phone off to drive safely. xIn an emergency, use a hands-free device built into your car or pull over in a safe place first. xCheck local laws and regulations and comply with them, with regard to the prohibition of mobile phone use while driving. Switch off in restricted areas Always switch your phone off in areas where mobile phone use is restricted. Switch off in an aircraft Always switch your phone off or select the airplane mode when you are in an aircraft. Electromagnetic waves emitted by your phone may affect the electronic navigation equipment in the aircraft. Switch off in hospitals and near medical equipment Always switch your phone off in hospitals and obey their regulations. Switch your phone off when using medical equipment for private purposes. Always consult with the medical equipment’s manufacturer or an expert regarding phone use near the medical equipment. 5 READ THIS FIRST Switch Off In Dangerous Areas Always switch your phone off in areas where explosive or dangerous materials (e.g. fuels or chemical products) are located and obey relevant instructions or signals. Do not insert or remove your mobile phone’s battery in such areas. Install a Hands-free Device In a Safe Location Install a hands-free device away from the steering wheel and airbag expansion areas. Otherwise you can be injured in a car accident. Keep Away From Other Electronic Devices Mobile phones emit electromagnetic waves that may affect nearby electronic devices. After switching on your phone, do not place it close to other electronic goods. About the Battery Usage Your phone is powered by a Lithium Ion (Li-Ion) battery. This type of battery typically has a longer lifespan than other types of batteries. However, it must be handled with care. Please read and follow these battery guidelines: xDo not use a damaged battery or charger. xDo not disassemble, open, crush, bend, deform, puncture, or shred the battery. xDo not modify or remanufacture the battery, insert foreign objects into the battery, immerse or expose the battery to water or other liquids, or expose it to fire, explosions, or other hazard. xDispose of and recycle used batteries in accordance with local regulations. Do not dispose of batteries by burning as they may explode. Do not use an unauthorized charger or battery. xUse the battery only for the device for which it is specified. xUse the battery with a charging device that has been qualified for the device. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard. xDo not short circuit a battery or allow metallic conductive objec…

Text truncated - open the document above for the full version.

PANTECH Co., Ltd. PANTECH Bldg., I-2, DMC, Sangam-dong, Mapo-gu, Seoul, 121-792, Korea Date : July 30, 2012 HCT Co. Ltd. SUBJECT : Pantech Co., Ltd FCC ID : JYCP9090 To Whom It May Concern : We, Pantech Co., Ltd, declare under our sole responsibility that the JYCP9090 comply with the statements made below. 1. The following will be programmed at the factory to only operate and actively scan on these specific channels, where it can initiate transmissions and act as a master device for the 2.4 GHz band: Channels 1-11, 2412-2462Mhz 802.11b mode Channels 1-11, 2412-2462Mhz 802.11g mode Channels 1-11, 2412-2462Mhz 802.11n mode (20Mhz Bandwidth) 2. The following channels will be programmed at the factory to passively scan and will only listen and cannot send a probe/beacon request to initiate communication on these specific channels. Ad-hoc mode is always disabled on these passive channels. Channels 36-48, 5180 & 5240Mhz 802.11a mode Channels 36-48, 5180 & 5240Mhz 802.11n mode (20MHz channel) Channels 38-46, 5190 & 5230Mhz 802.11n mode (40MHz channel) Channels 52-64, 5260 & 5320Mhz 802.11a mode Channels 52-64, 5260 & 5320Mhz 802.11n mode (20MHz channel) Channels 54-62, 5270 & 5310Mhz 802.11n mode (40MHz channel) Channels 100-140, 5500 & 5700Mhz 802.11a mode Channels 100-140, 5500 & 5700Mhz 802.11n mode (20MHz channel) Channels 102-134, 5510 & 5670Mhz 802.11n mode (40MHz channel) Channels 149-165, 5745 & 5825Mhz 802.11a mode Channels 149-165, 5745 & 5825Mhz 802.11n mode (20MHz channel) Channels 151-159, 5755 & 5795Mhz 802.11n mode (40MHz channel) 3. The Battery Cover with NFC is unique for this device and there is no any other covers. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, KIM HYUNG IL/TEAM MANAGER(Senior MTS) Pantech Co., Ltd.

Pantech Co., Ltd. Date: Mar. 16, 2009 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. SunHee Kim of HCT Co., Ltd and hereafter referred to as HCT, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. SunHee Kim of HCT Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing HCT as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Byung-Wan Kim / Senior Vice President Pantech Co., Ltd.

Pantech Co., Ltd. Pantech Building, I-2, DMC, Sangam-dong, Mapo-gu, Seoul, Korea Date: July 12, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: JYCP9090 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Pantech Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Pantech Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description CONFIDENTIAL 1Block Diagram 2Operational Descriptions 3 Parts Lists and Tune-Up Procedure 4 Schematics SHORT-TERM CONFIDENTIAL 5External Photos 6Internal Photos 7Test-Setup Photos 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, KIM HYUNG IL/TEAM MANAGER(Senior MTS) Pantech Co., Ltd.

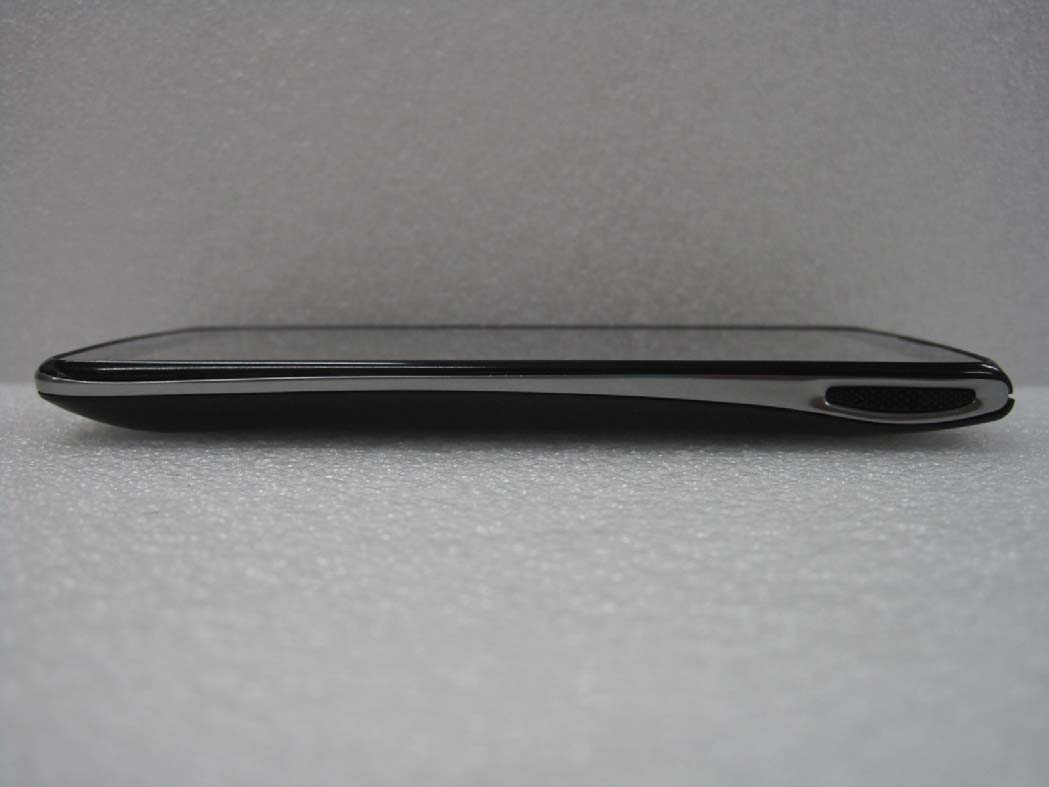

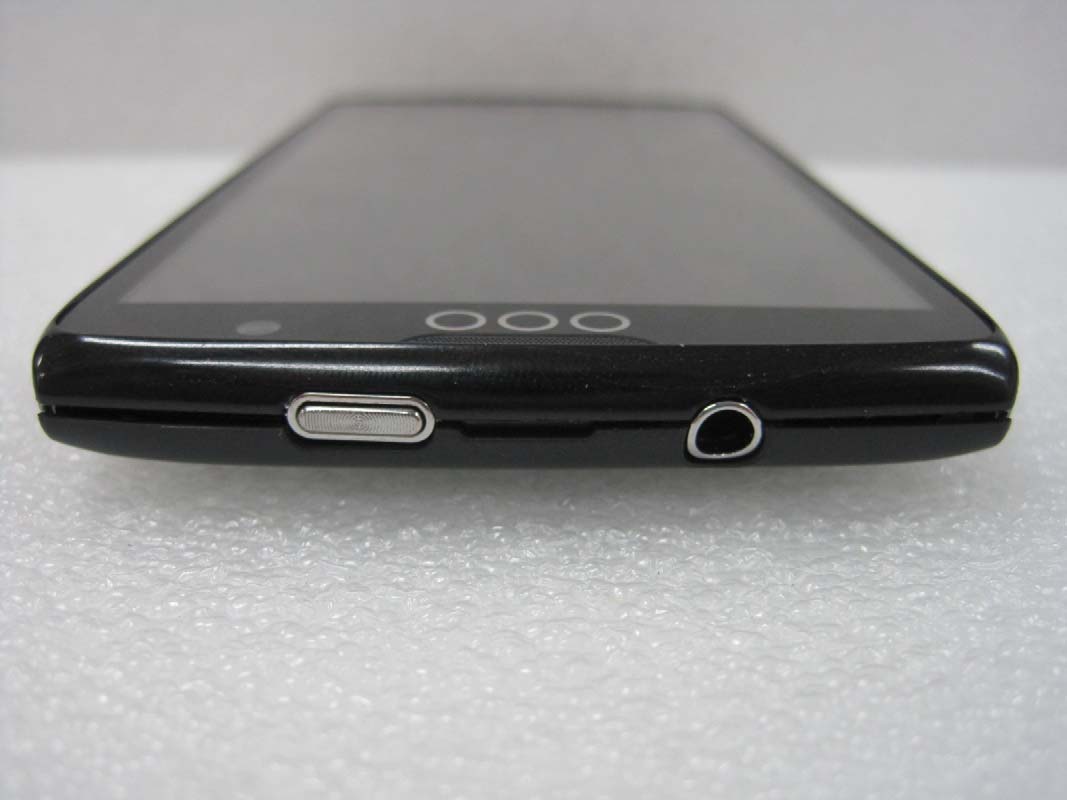

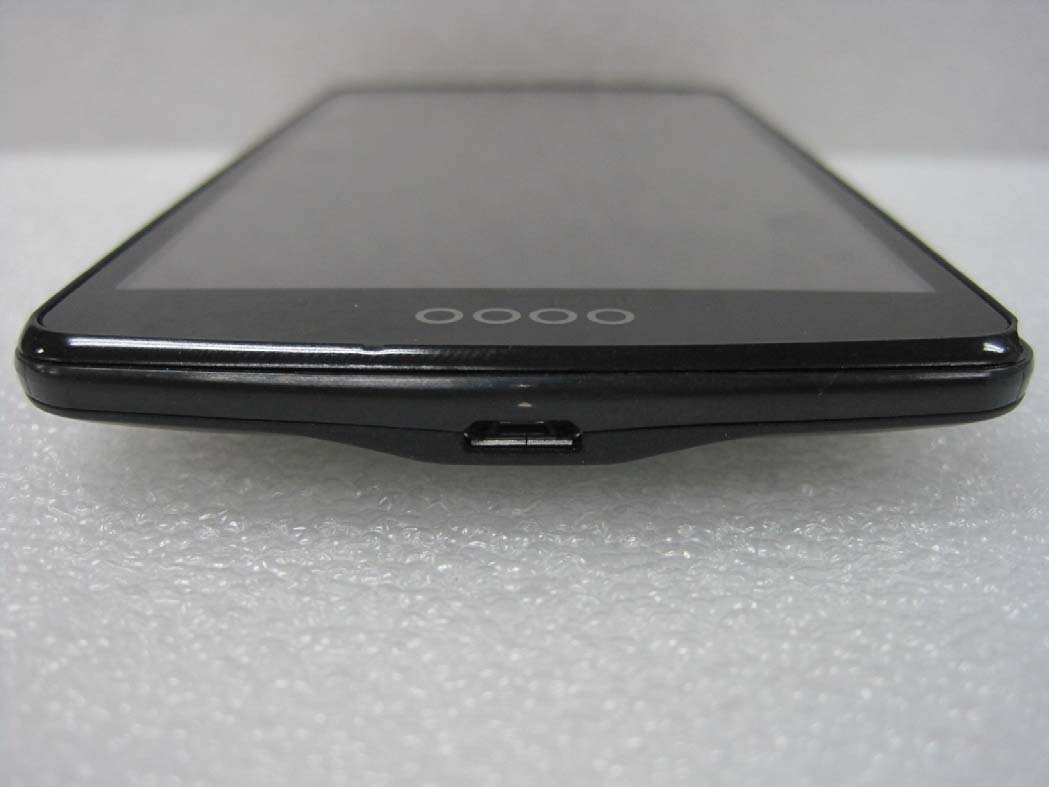

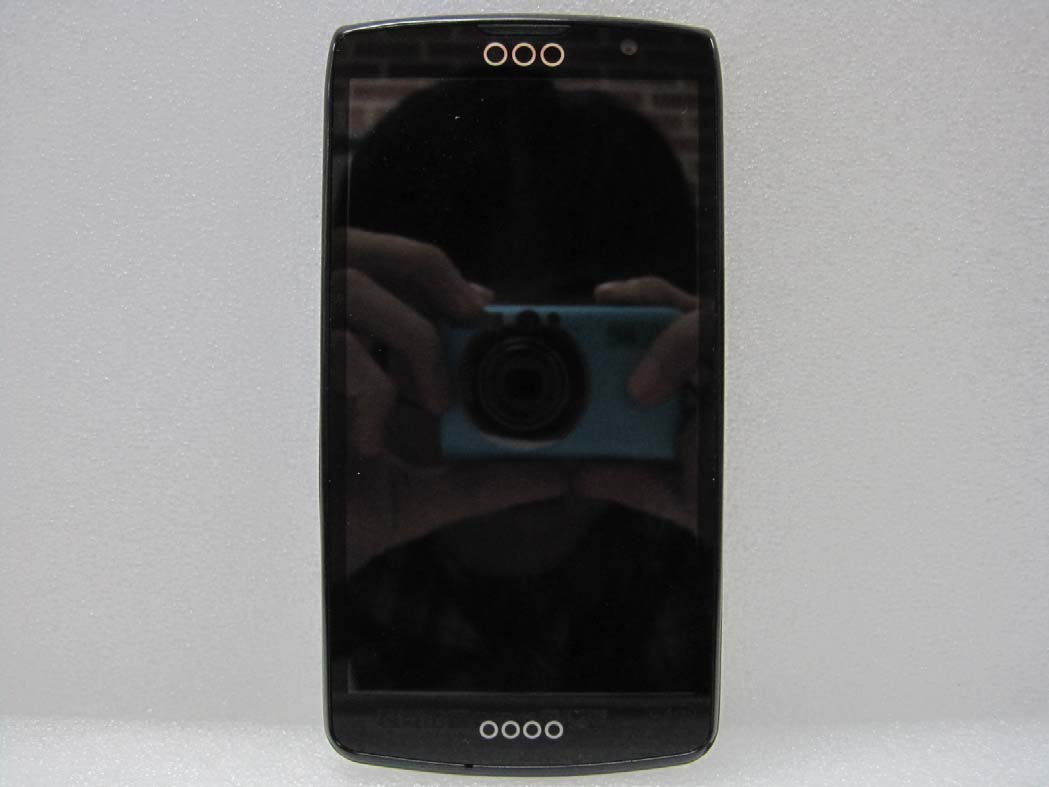

FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 7 EXTERNAL PHOTOGRAPHS FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 7 ■ EXTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 7 ■ EXTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 7 ■ EXTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 7 ■ EXTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 7 ■ EXTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 7 ■ EXTERNAL PHOTO

Background Color: WhiteThickness: 0.8T

FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 17 INTERNAL PHOTOGRAPHS FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 17 ■ INTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 17 ■ INTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 17 ■ INTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 17 ■ INTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 17 ■ INTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 17 ■ INTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 17 ■ INTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 17 ■ INTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 17 ■ INTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 17 ■ INTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １２ of 17 ■ INTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １３ of 17 ■ INTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １４ of 17 ■ INTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １５ of 17 ■ INTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １６ of 17 ■ INTERNAL PHOTO FCC ID: JYCP9090 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １７ of 17 ■ INTERNAL PHOTO

Report No.: HCTA1206FS04 FCC ID: JYCP9090 Date of Issue: Jul. 10, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 2 of 549 Table of Contents 1. INTRODUCTION .......................................................................................................................................... ３ 2. DESCRIPTION OF DEVICE ......................................................................................................................... ４ 3. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... ６ 4. SAR MEASUREMENT PROCEDURE ..................................................................................................... １３ 5. DESCRIPTION OF TEST POSITION ....................................................................................................... １４ 6. MEASUREMENT UNCERTAINTY ........................................................................................................... １６ 7. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS .................................................................................. １８ 8. SYSTEM VERIFICATION ......................................................................................................................... １９ 9. RF CONDUCTED POWER MEASUREMENT ......................................................................................... ２１ 10. SAR Test configuration & Antenna Information ...................................................................................... ４７ 11. SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas ....................... ４８ 12. SAR TEST DATA SUMMARY ................................................................................................................. ５６ 12.1 Measurement Results (GSM850 Head SAR) ................................................................................ ５６ 12.2 Measurement Results (GSM1900 Head SAR) .............................................................................. ５７ 12.3 Measurement Results (WCDMA850 Head SAR) .......................................................................... ５８ 12.4 Measurement Results (WCDMA1900 Head SAR) ........................................................................ ５９ 12.5 Measurement Results (LTE Band17 10MHz QPSK Head SAR)................................................... ６０ 12.6 Measurement Results (LTE Band17 10MHz 16QAM Head SAR) ................................................ ６１ 12.7 Measurement Results (LTE Band5 10MHz QPSK Head SAR) .................................................... ６２ 12.8 Measurement Results (LTE Band5 10MHz 16QAM Head SAR) .................................................. ６３ 12.9 Measurement Results (LTE Band4 10MHz QPSK Head SAR) .................................................... ６４ 12.10 Measurement Results (LTE Band4 10MHz 16QAM Head SAR) ................................................ ６５ 12.11 Measurement Results (LTE Band2 10MHz QPSK Head SAR) ................................................... ６６ 12.12 Measurement Results (LTE Band2 10MHz 16QAM Head SAR) ................................................ ６７ 12.13 Measurement Results (802.11b/g/n Head SAR) ......................................................................... ６８ 12.14 Measurement Results (802.11a/n 5GHz Head SAR) .................................................................. ６９ 12.15 Measurement Results (GSM850 Hotspot SAR) .......................................................................... ７０ 12.16 Measurement Results (GSM1900 Hotspot SAR) ........................................................................ ７１ 12.17 Measurement Results (GSM1900 Body-Worn SAR) .................................................................. ７２ 12.18 Measurement Results (WCDMA850 Hotspot SAR) .................................................................... ７３ 12.19 Measurement Results (WCDMA1900 Hotspot SAR) .................................................................. ７４ 12.20 Measurement Results(WCDMA1900 Body-Worn SAR) ............................................................. ７５ 12.21 Measurement Results (LTE Band17 10MHz QPSK Hotspot SAR) ............................................. ７６ 12.22 Measurement Results (LTE Band17 10MHz 16QAM Hotspot SAR)........................................... ７７ 12.23 Measurement Results (LTE Band5 10MHz QPSK Hotspot SAR) ............................................... ７８ 12.24 Measurement Results (LTE Band5 10MHz 16QAM Hotspot SAR) ............................................. ７９ 12.25 Measurement Results (LTE Band4 10MHz QPSK Hotspot SAR) ............................................... ８０ 12.26 Measurement Results (LTE Band4 10MHz 16QAM Hotspot SAR) ............................................. ８１ 12.27 Measurement Results (LTE Band4 10MHz QPSK Body-Worn SAR) ......................................... ８２ 12.28 Measurement Results (LTE Band4 10MHz 16QAM Body-Worn SAR) ....................................... ８３ 12.29 Measurement Results (LTE Band2 10MHz QPSK Hotspot SAR) ............................................... ８４ 12.30 Measurement Results (LTE Band2 10MHz 16QAM Hotspot SAR) ............................................. ８５ 12.31 Measurement Results (LTE Band2 10MHz QPSK Body-Wron SAR) ......................................... ８６ 12.32 Measurement Results (LTE Band2 10MHz 16QAM Body-Wron SAR) ....................................... ８７ 12.33 Measurement Results (802.11b/g/n Hotspot SAR) ..................................................................... ８８ 12.34 Measurement Results (802.11a/n 5GHz Body-Worn) ................................................................. ８９ 13. CONCLUSION ........................................................................................................................................ ９０ 14. REFERENCES .…

Text truncated - open the document above for the full version.

Report No.: HCTA1206FS04 FCC ID: JYCP9090 Date of Issue: Jul. 10, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 301 of 549 Test Laboratory: HCT CO., LTD EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth/WLAN/NFC Liquid Temperature: 21.1 °C Ambient Temperature: 21.3 °C Test Date: Jun.15, 2012 Separation Distance 1.0 cm DUT: P9090; Type: bar; Serial: #1 Communication System: LTE Band 5; Frequency: 836.5 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.5 MHz; σ = 1.01 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(6.24, 6.24, 6.24); Calibrated: 2012-03-19 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn648; Calibrated: 2012-04-27 - Phantom: 835/900 Phamtom ; Type: SAM LTE Band 5 HotSpot Body Rear 16QAM 1RB 0 offset 20525/Area Scan (71x111x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.216 mW/g LTE Band 5 HotSpot Body Rear 16QAM 1RB 0 offset 20525/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.75 V/m; Power Drift = -0.030 dB Peak SAR (extrapolated) = 0.254 W/kg SAR(1 g) = 0.209 mW/g; SAR(10 g) = 0.158 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.219 mW/g 0 dB = 0.219mW/g Report No.: HCTA1206FS04 FCC ID: JYCP9090 Date of Issue: Jul. 10, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 302 of 549 Test Laboratory: HCT CO., LTD EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth/WLAN/NFC Liquid Temperature: 21.1 °C Ambient Temperature: 21.3 °C Test Date: Jun.15, 2012 Separation Distance 1.0 cm DUT: P9090; Type: bar; Serial: #1 Communication System: LTE Band 5; Frequency: 836.5 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.5 MHz; σ = 1.01 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(6.24, 6.24, 6.24); Calibrated: 2012-03-19 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn648; Calibrated: 2012-04-27 - Phantom: 835/900 Phamtom ; Type: SAM LTE Band 5 HotSpot Body Rear 16QAM 1RB 49 offset 20525/Area Scan (71x111x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.128 mW/g LTE Band 5 HotSpot Body Rear 16QAM 1RB 49 offset 20525/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.83 V/m; Power Drift = 0.157 dB Peak SAR (extrapolated) = 0.150 W/kg SAR(1 g) = 0.121 mW/g; SAR(10 g) = 0.092 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.128 mW/g 0 dB = 0.128mW/g Report No.: HCTA1206FS04 FCC ID: JYCP9090 Date of Issue: Jul. 10, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 303 of 549 Test Laboratory: HCT CO., LTD EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth/WLAN/NFC Liquid Temperature: 21.1 °C Ambient Temperature: 21.3 °C Test Date: Jun.15, 2012 Separation Distance 1.0 cm DUT: P9090; Type: bar; Serial: #1 Communication System: LTE Band 5; Frequency: 836.5 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.5 MHz; σ = 1.01 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(6.24, 6.24, 6.24); Calibrated: 2012-03-19 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn648; Calibrated: 2012-04-27 - Phantom: 835/900 Phamtom ; Type: SAM LTE Band 5 HotSpot Body Front 16QAM 25RB 13 offset 20525/Area Scan (71x111x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.129 mW/g LTE Band 5 HotSpot Body Front 16QAM 25RB 13 offset 20525/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.63 V/m; Power Drift = -0.070 dB Peak SAR (extrapolated) = 0.153 W/kg SAR(1 g) = 0.123 mW/g; SAR(10 g) = 0.094 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.131 mW/g 0 dB = 0.131mW/g Report No.: HCTA1206FS04 FCC ID: JYCP9090 Date of Issue: Jul. 10, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 304 of 549 Test Laboratory: HCT CO., LTD EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth/WLAN/NFC Liquid Temperature: 21.1 °C Ambient Temperature: 21.3 °C Test Date: Jun.15, 2012 Separation Distance 1.0 cm DUT: P9090; Type: bar; Serial: #1 Communication System: LTE Band 5; Frequency: 836.5 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.5 MHz; σ = 1.01 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(6.24, 6.24, 6.24); Calibrated: 2012-03-19 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn648; Calibrated: 2012-04-27 - Phantom: 835/900 Phamtom ; Type: SAM LTE Band 5 HotSpot Body Front 16QAM 1RB 0 offset 20525/Area Scan (71x111x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.207 mW/g LTE Band 5 HotSpot Body Front 16QAM 1RB 0 offset 20525/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm,…

Text truncated - open the document above for the full version.

Report No.: HCTA1206FS04 FCC ID: JYCP9090 Date of Issue: Jul. 10, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 451 of 549  Validation Data (5.8 GHz Body) Test Laboratory: HCT CO., LTD Input Power 100 mW (20 dBm) Liquid Temp: 21.3 °C Test Date: Jun. 20, 2012 DUT: Dipole 5GHz; Type: D5000V2; Serial: D5000V2 - SN:1107 Communication System: CW; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5800 MHz; σ = 6.06 mho/m; ε r = 46.4; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: EX3DV4 - SN3797; ConvF(3.75, 3.75, 3.75); Calibrated: 2011-07-25 - Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn466; Calibrated: 2012-02-21 - Phantom: 800/900 Phantom; Type: SAM Validation 5800MHz/Area Scan (71x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 8.71 mW/g Validation 5…

Text truncated - open the document above for the full version.
