JYCPG-1310VTripleBand GSM850/DCS1800/PCS1900(withWAP&GPRS)

Welcome USER’S MANUAL PG-1310V Thank you for choosing Pantech PG-1310V and welcome to wireless mobile communication networking with the PG-1310V, our tri-band GSM mobile phone Pantech is delighted to introduce this brand new portable handset which will always keep you connected to the network. This user manual explains in detail its unique features and how to use them NOTE : Some of the contents in this User Manual could vary from your phone. It may vary depending on the S/W version and the network provider you subscribed to. Specification ƒ Display 65,000 CSTN internal z Main LCD: 1.5 inch 65,000colors. (128 x 128 pixels) z 6 lines for text in basic mode with 16-pixel font z Three Soft keys with four-way scroll including selection function (OK key) ƒ Melody Yamaha 16 poly sound Camera VGA CMOS built-in Camera. z Resolution up to 640 x 480 (307,200 pixels) z Self timer function (5 Secs or 10 Secs) z Photo album ƒ Dimension & Weight z Weight: 72.5g z Dimensions: 90 mm x 43.6 mm x 19.4 mm ƒ Power Management (Performance) Battery Type Capacity Standby Time Talk Time Standard (Li-ion) 720 mAh 240 Hours 4 Hours ƒ Operating Frequency z EGSM 900, GSM 1800, and GSM 1900 networks in Europe, Africa, Asia-Pacific, North America, and South America where these networks are supported z Automatic band switching Volume up/down Ear jack Safety Precautions ƒ Using a handset while driving is prohibited. With regards to the regulation about prohibition of handset usage while driving, please check relevant laws and regulation and comply with them. - Use of your cellular while you are dr iving may disturb your concentration on driving and consequently leads to acci dents. Please turn it off as far as possible. - Should you use your handset in an emergency, please make use of the hands-free set built in your car or pull over your car in a safe place for a while for your utmost safety. - The electronic wave energy emitting from your handset may affect the electronic device built in your car. Plea se pay attention to this characteristic. ƒ Cellular Use Restriction Area Make sure to turn your handset off in handset usage restricted areas. ƒ Using a Handset in Explosive or Dangerous Areas is not Allowed Please turn your handset off in areas with explosive or dangerous material (such as gas station, near gaseous material or chemical goods etc) and abide by any safety instruction or signs. Never try to detach your cellular battery from the handset in such areas, either. ƒ Boarding Airplane Please turn your handset off when y ou are on the airplane. The electronic wave from your handset may affect the electronic navigation device in your airplane. ƒ Using Medical Equipment - Please turn your handset off while you are in the hospital. - Please abide by the regulations or rules of the hospital. - Please turn off your handset when using medical equipments for private purposes if possible. You should cons ult with the manufacturer or an expert before you use themt. ƒ Installing a Vehicle Hands Free - Please keep a vehicle hands free off the driving radius, air bag expansion range, or whatever area may cause injury. ƒ Effect of Electronic Wave Some electronic devices may be affect ed by the electronic wave emitting from the cellular in service. Please be careful. Views 6 Quick & Easy Keys Functions Performs the functions shown at the bottom line of LCD. Scrolls through the menu option in the Menu mode. In the standby mode, Left key ( ): Favorites list screen Right key ( ):Messages menu screen Up key ( ):Profiles setting menu for sound change. Down key ( ): Contacts screen to find contact names For details, see “Using the Shortcut Key in the Standby Mode”. Opens the WAP (Wireless Application Protocol) menu list if pressed short in the standby mode. Launches the WAP browser directly, if pressed longer in the standby mode. Selects menu function for storing user input information, such as names, SIM memory. Also used for confirmation. Deletes characters from the display, or returns to previous menu. Opens the Calendar view if pressed short in the standby. Sends or receives a call. Shows the recent call list in the standby mode. Re-dials the last call number if pressed longer in the standby mode. Completes a current call. Turns on/off the phone if pressed longer. Cancels user input and returns to the standby mode in the Menu mode. Quickly connects to the voice mail server if pressed longer in the standby mode. ~ Enters numbers, letters or special characters. Goes to the dial screen if pressed in the standby mode. For various purposes by different functions. Enters or exits from the Etiquette mode if pressed longer in the standby mode. Shows the symbol input screen if pressed in the text input mode. Works as in the Word search mode if pressed in the Predictive text input mode. Enters a pause when entering a phone number, if pressed longer. Enters an international dialing prefix. Enters the space character in the text input mode. Locks or unlocks the phone if pressed longer in the standby mode. Changes various text input modes if pressed longer at the text-editing screen. Adjusts earpiece volume while making a call, and moves the cursor upward in the menu. Controls the key tone volume in the standby mode if the handset folder is o p ened , and moves 7 the cursor upward in the menu. Adjusts earpiece volume while making a call, and moves the cursor downward in the menu. Controls the key tone volume in the standby mode if the handset folder is opened, and moves the cursor downward in the menu. Enters a camera preview mode and takes a photo if pressed in standby mode.. Table of Contents SPECIFICATION............................................................................................ 3 SAFETY PRECAUTIONS .............................................................................. 4 VIEWS............................................................................................................ 5 1. GETTING STARTED .........…

Text truncated - open the document above for the full version.

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ Declaration concerning Antenna Specification It’s hereby declared that the product: ............ PG-1310V.................... fulfills the requirement in FCC test relating to the antenna type. The ............PG-1310V.............confirm to FCC recommendation with Internal antenna type: (model if applicable) PG-1310V built into the housing and has a unique connector GSM: 824 ~ 894MHz DCS: 1710 - 1880MHzPCS: 1850 – 1990MHz TX RX TX RX TX RX Frequency Range 824-849 [MHz] 869-894 [MHz] 1710~1785 [MHz] 1805~1880 [MHz] 1850~1910 [MHz] 1930~1990 [MHz] E2-PLANE Gain(dBi) (Peak, More than) -6.0 -4.0 -1.0 -1.0 -0.5 -1.5 V.S.W.R (Less than) 7:1 4:1 3.5:1 4:1 4:1 4.5:1 The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company: Pantech Co.,Ltd. Address: Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong,Yeoungdeungpo-gu, City: Seoul ZIP / Postal code: 150-711 Country: Korea Place: KOREA (South) Date: March 23, 2006 Signature:

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ LETTER OF AUTHORIZATION DATE : March 23, 2006 To whom it may concern: We the undersigned, hereby authorize ETS Germany to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ETS Germany on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Pantech Co.,LTd. Sincerely, (Company counsel or company officer signature) Name : Yong-Woo Kim Title : Vice President (Name and Title)

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ Date : March 23, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Pantech Co., Ltd. FCC ID: JYCPG-1310V Gentlemen, In accordance with 0.459 of CFR 47, Pantech Co., Ltd. hereby requests confidentiality of all Schematics, Parts List, Operational Description, Block Diagram attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Pantech Co., Ltd. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Pantech Co., Ltd. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Name : Yong-Woo Kim Title : Vice President Company : Pantech Co., Ltd.

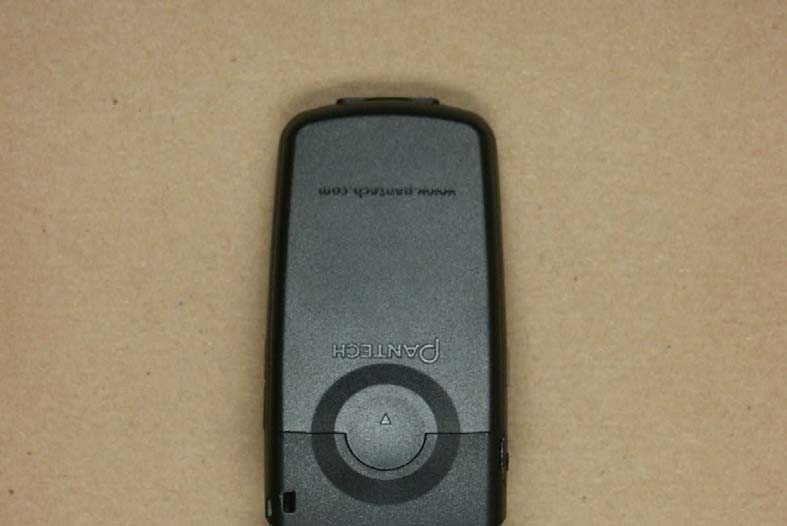

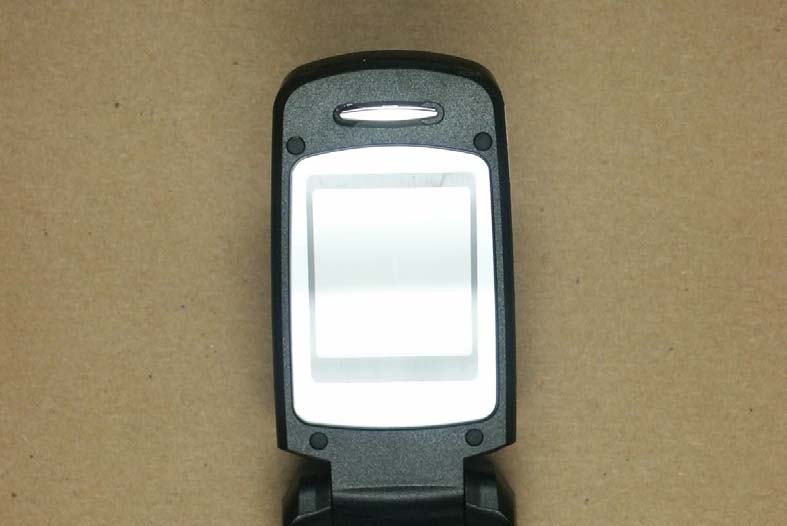

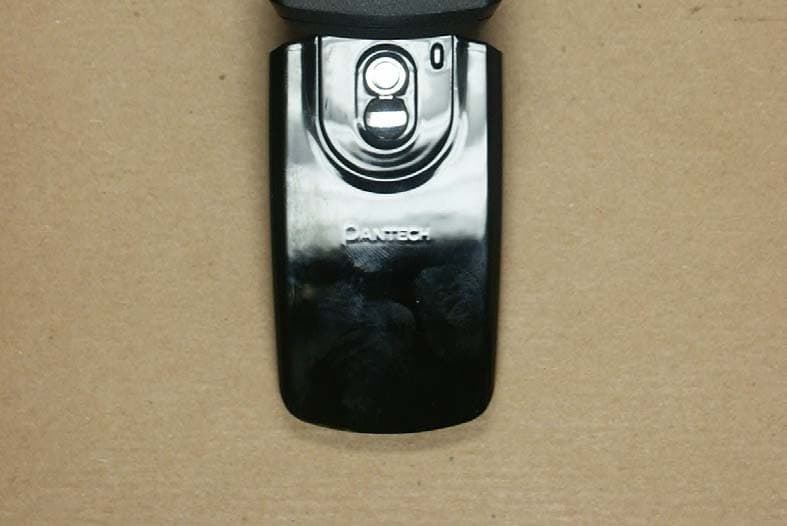

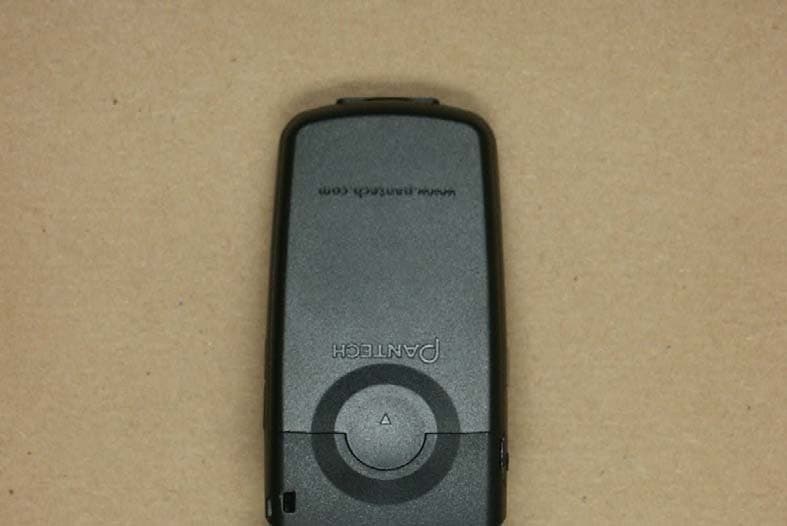

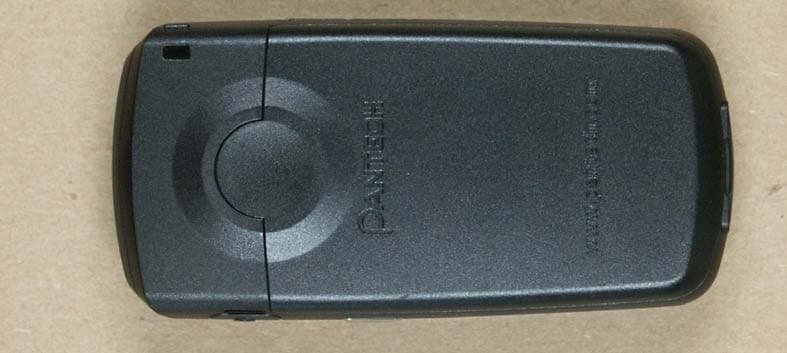

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 1 of 20 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 2 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 3 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 4 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 5 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 6 of 20

Pantech Co., Ltd. Sinsong Center Bldg. 9th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5939 Fax: +82-2-3660-5828 ______________________________________________________________________ [Label Location] Description: Triple Band GSM 850 /DCS 1800 /PCS 1900 (with WAP & GPRS) FCC ID: JYCPG-1310V

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 7 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 8 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 9 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 10 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 11 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 12 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 13 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 14 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 15 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 16 of 20

Pantech Co., Ltd. Sinsong Center Bldg. 9th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 __________________________________________________________________________________ Date: March 23, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Declaration – Tuning Procedure Pantech Co., Ltd. FCC ID: JYCPG-1310V FCC Part 22, 24 Certification Gentlemen, There are no user accessible adjustments or tuning for this PG-1310V All necessary adjustments and tuning are performed during manufacture of the product. Sincerely, Yong-Woo Kim Vice President Pantech Co., Ltd.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G5M206030035-S-8 SAR ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-S-8 Page 1 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Manufacturer 1.5 Application details 1.6 Test item 1.7 Test results 1.8 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Definitions 2.5 Measurement system description 2.6 Test system specification 2.7 Measurement procedure 2.8 Reference points 2.9 Test positions 2.10 Measurement uncertainty 3 Tissue and system verification 3.1 Tissue verification 3.2 System verification 4 Test Results 5 References 6 Appendix ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-S-8 Page 2 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 15.05.2006 M. Cersovsky Date ETS-Lab. Name Signature Technical responsibility for area of testing: 15.05.2006 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-S-8 Page 3 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : Pantech Co., Ltd. Street : Shinsong Center Bldg. 9th Fl., 25-12, Yeouido-dong Town : Yeoungdeungpo-gu, Seoul Country : Korea Telephone : +82-2-3660-5939 Fax : +82-2-3774-5828 Contact : Mr. Y.W. Kim E-Mail : [email protected] 1.4 Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-S-8 Page 4 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5 Application details Date of receipt of application : 14.03.2006 Date of receipt of test item : 14.03.2006 Date of test : 17.03. - 24.03.2006 1.6 Test item FCC ID : JYCPG-1310V Description of test item : Triple Band GSM 850 /DCS 1800 /PCS1900 (with WAP & GPRS) Type identification : PG-1310V Serial number : without; Identical prototype Device category : PCB (Licensed Base Station) Technical data GSM 850 PCS 1900 TX Frequency range : 824,2 - 848,8 MHz 1850,2 - 1909,9 MHz RX Frequency range : 869,2 - 893,8 MHz 1930,2 - 1989,8 MHz Max. Conducted RF output power : 32,87 dBm (1,94W) 29,37 dBm (0,86W) Power supply : 4,2 V DC rechargeable battery Antenna Tx : integral Antenna RX : integral Additional information : Tx and Rx. antenna are the same. This test sample was tested according FCC OET Bulletin 65, Supplement C, Edition 01-01 on the used (European) Frequency band. This Procedure is requested by customer This device contains 1800 MHz not operational in U.S. Territories. This filing is only applicable for 850/1900 MHz operations. 1.7 Test Results Max. SAR Measurement (Head) : 0,716 W/kg (averaged over 1 gram) Max. SAR Measurement (Body : 1.25 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003, December 2003. ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-S-8 Page 5 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8 Test standards Standards : - IEEE Std. 1528-2003, December 2003 FCC Rule Part(s) : - FCC OET Bulletin 65, Supplement C, Edition 01-01 2 Technical test 2.1 Summary of test results Applicable Configuration Handset (Head) X Handset (Body) X Headset (Head) Body Worn Equipment EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of ele…

Text truncated - open the document above for the full version.

ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-S-8 Appendix B ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Appendix B Measurement Plots Date/Time: 3/17/2006 11:53:24 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.900 (m)_250mW 17.03.2006 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Muscle 900 MHz Medium parameters used: f = 900 MHz; σ = 1.04 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.73, 5.73, 5.73); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 3.23 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.9 V/m; Power Drift = -0.018 dB Peak SAR (extrapolated) = 4.48 W/kg SAR(1 g) = 2.89 mW/g; SAR(10 g) = 1.83 mW/g Maximum value of SAR (measured) = 3.28 mW/g 0 dB = 3.28mW/g Date/Time: 3/20/2006 14:43:22 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.1900(h)_250mW20.3.2006 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.42 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.84, 4.84, 4.84); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Dipol 1900 (250mW)/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 12.3 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 96.1 V/m; Power Drift = 0.007 dB Peak SAR (extrapolated) = 17.7 W/kg SAR(1 g) = 10.2 mW/g; SAR(10 g) = 5.55 mW/g Maximum value of SAR (measured) = 12.0 mW/g 0 dB = 12.0mW/g Date/Time: 3/23/2006 09:30:07 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.1900(h)_250mW23.3.2006 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.42 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.84, 4.84, 4.84); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Dipol 1900 (250mW)/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 12.3 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 96.1 V/m; Power Drift = 0.021 dB Peak SAR (extrapolated) = 17.7 W/kg SAR(1 g) = 10.4 mW/g; SAR(10 g) = 5.55 mW/g Maximum value of SAR (measured) = 12.0 mW/g 0 dB = 12.0mW/g Date/Time: 3/23/2006 10:25:26 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.1900(m)_250mW23.3.2006 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Muscle 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.58 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.31, 4.31, 4.31); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Dipol 1900 (250mW)/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 13.0 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 93.4 V/m; Power Drift = 0.018 dB Peak SAR (extrapolated) = 19.5 W/kg SAR(1 g) = 11.4 mW/g; SAR(10 g) = 6 mW/g Maximum value of SAR (measured) = 13.0 mW/g 0 dB = 13.0mW/g Date/Time: 3/24/2006 11:51:40 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.900 (h)_250mW_24.3.2006 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Head 900 MHz Medium parameters used: f = 900 MHz; σ = 0.972 mho/m; ε r = 43.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.99, 5.99, 5.99); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.84 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.1 V/m; Power Drift = 0.014 dB Peak SAR (extrapolated) = 4.01 W/kg SAR(1 g) = 2.61 mW/g; SAR(10 g) = 1.7 mW/g Maximum value of SAR (measured) = 2.86 mW/g 0 dB = 2.86mW/g Date/Time: 3/24/2006 08:53:57 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 850_left_ch189_cheek DUT: Triple-Band GSM 850 / DCS 1800 / PCS1900 (with WAP & GPRS); Type: PG_1310V; Serial: --- Communication System: GSM 850; Frequency: 836.4 MHz;Duty Cycle: 1:8.…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH FCC - TEST - REPORT FCC RULES PARTS 22 and 24 FCC ID: JYCPG-1310V Test report no.: G5M206030035-P-2224 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 1 of 37 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results 4 RF Power Output, FCC 2.1046 4.1 Test Procedure 4.2 Test Results 5 Radiated Power FCC 22.913, FCC 24.232 5.1 Test Procedure 5.2 Test Results 6 Radiated Power FCC 22.913, FCC 24.232 6.1 Test Procedure 6.2 Test Results 7 Modulation Deviation Limiting, FCC 2.1047, 22.915(b)(c) 7.1 Test Procedure 7.2 Test Results ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 2 of 37 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 8 Audio Filter Characteristics, FCC 22.915(d) 8.1 Test Procedure 8.2 Test Results 9 Emission Limitations, , FCC 2.1049 9.1 Test Procedure 9.2 Test Results 10 Occupied Bandwidth FCC 22.917(b)(d); FCC 2.1049 10.1 Test Procedure 10.2 Test Results 10 Out of Band Emissions at Antenna Terminals, FCC 24.238(a) 10.1 Test Procedure 10.2 Test results 11 Spurious Radiation, FCC 2.1053, 24.236 11.1 Test Procedure 11.2 Test Results 12 Line Conducted Emissions, FCC 15.207 12.1 Test Procedure 12.2 Test Results 13 Frequency Stability vs Temperature, FCC 2.1055, 22.355, 24. 235 13.1 Test Procedure 13.2 Test Equipment 14 Frequency Stability vs Voltage, FCC 2.1055, 22.355, 24.235 14.1 Test Procedure 14.2 Test Equipment ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 3 of 37 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 15.05.2006 M. Handrik Date ETS-Lab. Name Signature Technical responsibility for area of testing: 15.05.2006 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 4 of 37 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 A CCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number: 1983-01 1.3 Details of approval holder Name : Pantech Co., Ltd. Street : Shinsong Center Bldg. 9th Fl., 25-12, Yeouido-dong Town : Yeoungdeungpo-gu, Seoul Country : Korea Telephone : +82-2-3660-5939 Fax : +82-2-3774-5828 Contact : Mr. Y.W. Kim E-Mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 5 of 37 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 14.03.2006 Date of receipt of test item : 14.03.2006 Date of test : 28.02.2006 - 15.03.2006 1.5 Test item Description of test item : Triple Band GSM 850 /DCS 1800 /PCS1900 (with WAP & GPRS) Type identification : PG-1310V Serial number : Test model without serial number. Photos : See annex A. Technical data Frequency range Tx - GSM 850 : 824.2 - 848.80 MHz Frequency range Tx - PCS : 1850.2 - 1909.8 MHz Frequency range Rx - GSM 850 : 869.2 - 893.8 MHz Frequency range Rx - PCS : 1930.2 - 1989.8 MHz Antenna Type : internal antenna Antenna Gain : GSM 850 -6 dBi PCS 1900 -0.5 dBi Power supply : 4.2 V DC Operating mode : duplex Type of modulation : GMSK (GSM modulation) Emission : GXW Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G5M206030035-P-2224 Page 6 of 37 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC Parts 22, 24, 2, 15 Additional information : Because of using the GSM 850 as an alternative technology in 850 MHz band, not all test cases of FCC Part 22 are required. This device contains 1800 MHz not operational in U.S. Territories. This filing is only applicable for 850/1900 MHz operations. 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or…

Text truncated - open the document above for the full version.
