JYCPG-1810TripleBand GSM850/DCS1800/PCS1900 (BT, WAP & GPRS)

빨간바탕위의 문구는 국가별 특이적용사항입니다. S/W, P/R등 관련부서에서는 필히 국가별 특이사항을 명확히 검수하시고 전달 부탁드립니다 USER MANUAL PG-1810 [u1] Thank you for choosing Pantech PG-1810 and welcome to wireless mobile communication networking with the PG-1810, our tri-band GSM mobile phone. Pantech is delighted to introduce this brand new portable phone which will always keep you connected to the network. This user manual explains in detail its unique features and how to use them. NOTE : Some of the contents in this User Manual could vary from your phone. It may vary depending on the S/W version and the network provider you subscribed to. 2 Specification Display Dual clamshell 262,144 TFT LCD internal and 65,536 Color STN LCD external. z 28.032 mm x 35.04 mm display for 1.8” internal LCD z 18.71 mm x 18.71 mm display for 1.04” external LCD z Supports up to 262,144 colors within 128 x 160 pixels internal and 96 x 96 pixels external z 7 lines for text in basic mode with 16-pixel font z Two Soft keys and four-way scroll and selection ([ OK ]) keys Melody Yamaha 64 poly sound(S upport MP3 Ringtones) MP3 Support fixed bit rate until 320kbps Micro SD Support FAT16 format until 512MB Camera Integrated VGA(300k) CMOS Camera. z Resolution up to 640 x 480 (307,200 pixels) z Self timer function (5 sec or 10 sec) z Phone display used as a viewfinder z Photo album in Gallery z Photo Gallery for image storing and editing z 3 image quality options: Fine, Normal, Low z Auto white balance (AWB), Auto exposure(AE), Various effects Bluetooth z Bluetooth version 2.0 compliant. z Support Mono headset call, FTP, DUN, vCard, serial communication Dimension & Weight z Weight: around 90 g z Dimensions: 95 mm x 46 mm x 18.7 mm Power Management (Performance) Battery Type Capacity Standby Time Talk Time Standard (Li-ion) 720 mAh 110 Hours 2.4 Hours 3 - Æ 중국 , 멕시코 , 국가에만 적용되고 나머지 국가 및 영문 ( 공통 ) 에는 적용되지 않습니다 .( 영업요청 및 협의결과 입니다 ) Operating Frequency z EGSM: 900Mhz, DCS : 1800Mhz, PCS : 1900Mhz networks in Europe, Africa, Asia-Pacific, North America, and South America where these networks are supported z Automatic band switching 4 views Receiver Microphone Left Soft ke y Brightness up/down Camera exit Internal LCD Microphone Volume up/down Menu Scroll Zoom in/out Camera ke y Camera Headset Jack 4-way Menu Navigation Special Menu Short key DiaI key Call Accept WAP Access key Select/Menu Confirm ke y Power On/Off Menu exit keyCancel/Back Text Clear/Edit exit key Voicemail A l p hanumeric ke y Vibration Mode Phone Lock/Unlock 5 Quick & Easy Key Function (Left/Right) Performs the functions shown at the bottom line of the display. Scrolls through the menu options in Menu mode. In standby mode, Left key ( ): Favorite list screen Right key ( ): Messages menu screen Up key ( ): Sound Settings menu for sound change. Down key ( ): Contacts menu screen to find contact names. For details, see “Using the Shortcut Key in Standby Mode”. Opens the WAP (Wireless Application Protocol) menu list if pressed shortly in standby mode Launches the WAP browser directly, if pressed and held in standby mode. Selects a menu functions which stores user input information, such as names, SIM memory. Also used for confirmation. Deletes characters from the display, or returns to previous menu. Opens Calendar view if pressed shortly in standby. Sends or receives a call. Shows the recent call list in standby mode. Re-dials the last call number if pressed and held in standby mode. Completes the current call. Turns on/off the phone if pressed and held. Cancels user input and returns to standby mode while in Menu mode. Quickly connects to the voice mail server if pressed and held in standby mode. ~ Enters numbers, letters or special characters. Goes to the dial screen if pressed in standby mode. Enters or exits from Vibration mode if pressed and held in standby mode. Shows the symbol input screen if pressed in text input mode. Works in Word search mode if pressed in the Predictive text input mode. Enters an international dialling prefix. Enters the space character in text input mode. Locks or unlocks the phone if pressed and held in standby mode. Changes various text input modes if pressed and held at the text-editing screen. Adjusts the earpiece volume while making a call, and moves the cursor upwards or downwards in the menu. Controls the key tone volume in standby mode if the phone flip is opened, Turns camera capture mode on. Works as a camera shutter in capture mode. Turns Video Mode on if pressed and held. 6 Safety Precautions Using a phone while driving is prohibited. Please check local laws and regulations with regard to the prohibition of phone usage while driving, and comply with them. - Use of your mobile phone while you are driving may disturb your concentration and consequently cause acci dents. Please turn it off as soon as possible. - Should you use your phone in an emergency, please make use of the hands free device built in your car, or pull your car over to a safe place for your utmost safety. - The electronic wave energy emitting from your phone may affect the electronic devices built in your car. Please be aware of this characteristic. Mobile Phone Use Restriction Area Make sure to turn your phone off in a phone usage restricted area. Using a Phone in an Explosive or Dangerous Area is not Permitted Please turn your phone off in areas with explosive or dangerous materials (such as fuel, fuel stations, or pl aces with chemical goods) and abide by any instructions or signals. Never tr y to detach your mobile phone battery from the phone in such areas. Boarding an Aircraft - Please turn your phone off when you are on the aircraft. The electronic wave from your phone may affect the electronic navigation device in the aircraft. Using Medical Equipment - Please turn your phone off while you are in a hospital. - Please abide by the regulations or rules of the hospital. - Please turn off your phone when using medical equipment for private purposes if possible. You should consult with the man…

Text truncated - open the document above for the full version.

Pantech Co., Ltd. Shinsong Center Bldg. 9th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5939 Fax: +82-2-3660-5828 ______________________________________________________________________ LETTER OF AUTHORIZATION DATE :Feb.03, 2006 To whom it may concern: We the undersigned, hereby authorize ETS Germany to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ETS Germany on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Pantech Co.,LTd. Sincerely, (Company counsel or company officer signature) Name : Yong-Woo Kim Title : Vice President (Name and Title)

Pantech Co., Ltd. Shinsong Center Bldg. 9th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5939 Fax: +82-2-3660-5828 ______________________________________________________________________ Date : :Feb.03, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Pantech Co., Ltd. FCC ID: JYCPG-1810 Gentlemen, In accordance with 0.459 of CFR 47, Pantech Co., Ltd. hereby requests confidentiality of all Schematics, Parts List, Operational Description, Users Manual attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Pantech Co., Ltd. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Pantech Co., Ltd. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Name : Yong-Woo Kim Title : Vice President Company : Pantech Co., Ltd.

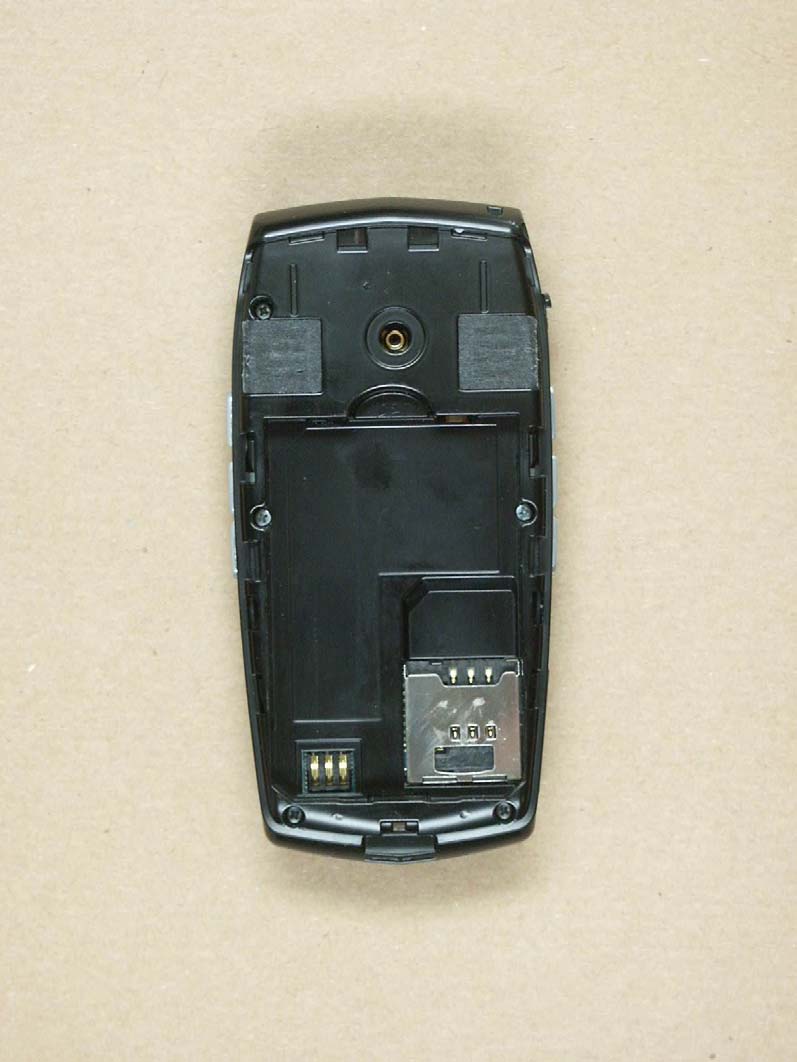

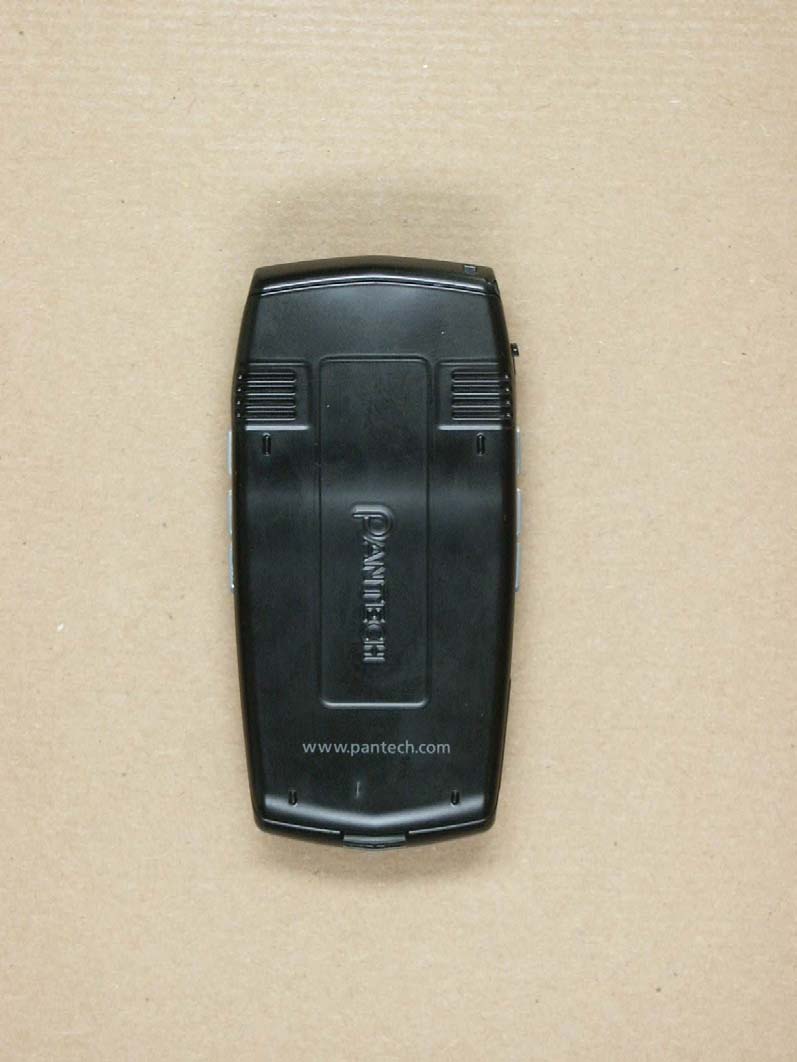

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010015-P-2224 Page 1 of 14 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010015-P-2224 Page 2 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010015-P-2224 Page 3 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010015-P-2224 Page 4 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010015-P-2224 Page 5 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010015-P-2224 Page 6 of 14

Pantech Co., Ltd. Shinsong Center Bldg. 9th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5939 Fax: +82-2-3660-5828 ______________________________________________________________________ [Label Location] Description: Triple Band GSM 850 /DCS 1800 /PCS 1900 (with WAP & GPRS) FCC ID: JYCPG-1810

Pantech Co., Ltd. Shinsong Center Bldg. 9th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5939 Fax: +82-2-3660-5828 ______________________________________________________________________ [FCC ID Label sample] Description: Triple Band GSM 850/DCS 1800 /PCS 1900 (with WAP & GPRS) FCC ID: JYCPG-1810

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010015-P-2224 Page 7 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010015-P-2224 Page 8 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010015-P-2224 Page 9 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010015-P-2224 Page 10 of 14

PG-1810 Service Manual PG-1810 Service Manual (GSM Cellular Phone) Pantech Co., Ltd., Korea February 22, 2006 1 st Edition For Use by Authorized Service/Maintenance Personal Only Documents to Receive This Addendum: PG-1810 Maintenance/Repair/Operating Manual PG-1810 Service Manual PANTECH R&D CONFIDENTIAL 1 CONTENTS SECTION 1 INTRODUCTION .............................................................................................................3 1.1 INTRODUCTION..............................................................................................................................3 1.2 FREQUENCY ALLOCATION AND ITS USE...........................................................................................3 1.3 ITEM NAME AND USE.....................................................................................................................4 1.4 CHARACTERISTICS........................................................................................................................4 SECTION 2 ELECTRICAL SPECIFICATIONS....................................................................................5 2.1 GENERAL......................................................................................................................................5 2.2 TRANSMITTER..........................................................................................................5 2.3 RECEIVER...............................................................................................................5 SECTION 3 OPERATION....................................................................................................................6 3.1 NAME OF EACH PART...................................................................................................6 3.2.DISPLAY ..................................................................................................................7 3.3 KEYPAD ................................................................................................................7 3.4 BLUETOOTH MODULE.............................................................................................8 SECTION 4 THEORY OF OPERATION..............................................................................................9 4.1 LOGIC SECTION.............................................................................................................................9 4.1.1 DC DISTRIBUTION AND REGULATION PART......................................................................9 4.1.2 LOGIC PART..........................................................................................................9 4.1.2.1 SUMMARY..........................................................................................................10 4.1.2.2 BASEBAND DIGITAL SIGNAL PROCESSING..................................................................11 4.1.3 MEMORY PART.....................................................................................................14 4.1.4 NOTIFICATION PART..................................................................................................................14 4.1.5 KEY PAD PART.........................................................................................................................14 4.1.6 LCD MODULE(DISPLAY PART) ..................................................................................................14 4.2 RADIO TRANSCEIVER SECTION.....................................................................................................15 4.2.1 DC DISTRIBUTION AND REGULATION PART.................................................................................16 4.2.2 TRANSCEIVER PIN DESCRIPTION.......................................................................16 4.2.3 RECEIVE SECTION.................................................................................................17 4.2.3.1 AN OVERVIEW OF RECEIVE SECTION......................................................................................17 4.2.3.2 RECEIVER PART.................................................................................................19 4.2.4 TRANSMIT SECTION..................................................................................................................20 4.2.4.1 AN OVERVIEW OF TRANSMIT SECTION....................................................................................20 4.2.4.2 TRANSMITTER PART...............................................................................................................21 4.2.5 OFFSET PLL.........................................................................................................22 4.2.5.1 AN OVERVIEW OF OFFSET PLL............................................................................................22 4.2.5.2 VCTCXO(VOLTAGE CONTROLLED TEMPERATURE COMPENSATED CRYSTAL OSCILLATOR):V801....22 SECTION 5 ALIGNMENT PROCEDURE..........................................................................................24 5.1 RECOMMENDED TEST EQUIPMENT...............................................................................................24 5.2 CONNECTION OF TEST EQUIPMENT..............................................................................................24 SECTION 6 EQUIPMENT REPAIR PROCEDURE ...........................................................................25 6.1 NO POWER ON WITH BATTERY APPLIED..........................................................................................25 6.1.1 POWER CHECK.........................................................................................................................25 6.1.2 OSCILLATION CHECK ...............................................................................................................28 6.1.3 KEYPAD LED NOT IN OPERATION(3-COLOR AND BLUE) ..............................................................29 6.1.4 LCD EL BACKLIGHT LED NOT IN OPERATION(WHITE)............................…

Text truncated - open the document above for the full version.

PG1810_E/S.xls -COUNTRY : -REVISION NO : 3.0 -REVIED DATE : 2006/01/16 A xxxxxxxx CDMA CELLULAR MAIN B'D ASS'Y A-1 MAIN B'D_BOTTOM No Part Number Description Specification Vendor Q'TY Location Pb- Free LAB facto r y Statu s 1 54300000094 DBB AD6528DABCZ_PB FREE BGA 204 ADI 1 U201 2 54300000087 ABB AD6535ABCZ_Pb Free ADI 1 U202 3 54100000164 MEMORY S71PL256NC0HFW5B0 AMD 1 U203 4 54301000060 RF CHIPSET SI4210 한국 유니퀘스 트 1 U306 5 52499000005 FEM ESHS-M080SF HITACH METAL 1 U301 6 52300000096 PAM SKY77328//CX77328 SKYWORKS 1 U303 7 54208000003 MELODY IC IC-AUDIO,YMU792(MX-51) WLCSP 67 YAMAHA 1 U117 8 54205000113 AMP IC-AMP, TPA6203A1ZQVR BALL GRID ARRAY 8 TI 2 U107,U108 9 52399000112 Bluetooth Module LBMA46NDE2 MURATA 1 U119 10 54201000413 REGULATOR XC6209B282DR TOREX 1 U118 11 54201000412 REGULATOR XC6209B182DR TOREX 1 U114 12 54201000572 REGULATOR XC6209B332DR TOREX 1 U121 13 54201000387 REGULATOR XC6209F282MR TOREX 1 U302 14 54200000081 ANALOG SWITCH ANALOG SWITCH-FSA2267L10X FAIRCHILD 3 U102,U113,U115 15 54203000054 OVP NUS3045 ONSEAMI 1 Q103 16 52199000145 USB PACUSB-U3R_Pb Free CMD 1 U103 17 54299000253 GATE NC7SZ08L6X FAIRCHILD 1 U110 18 54299000565 level shifter FXLP34L6X FAIRCHILD 1 U116 19 53399000024 ATTENUATOR RAC101A3CTH, 3dB KAMAYA 2 U304,U305 20 52200000121 TCXO KT21F-DCV28B-26M 1H 26MHZ F 4 KYOCERA 1 U307 21 52202000080 OSCILLATOR SG-3030LC 32.768KHz -18/+23 PPM EPSON 1 X101 22 52202000050 CRYSTAL VIB-Q13MC1461000200,32.768kHz,12.5pF EPSON 1 Y201 23 54204000044 MAGNETIC SWICH EM-1681 ASAHI KASEI 1 U112 24 50300000336 TRANSISTOR MIMD10A DIODES 1 U111 25 50300000367 TRANSISTOR KRC405V KEC 1 Q202 26 50300000194 TRANSISTOR TR-GEN,KTC4072V VSM KEC 1 Q203 27 50301000157 FET-P_CHANNEL Si7703EDN-T1-E3_Pb Free 창남 1 Q201 28 53499000471 Dupli CONN-ETC, NDTF-6S8M 넥스지 텔레콤 1 U109 29 53499000466 SPEAKER CONNECTOR CONN-ETC, 24-8040-002-001-829+ NA 2 2 KYOCERA 2 J104,J105 30 53401000269 CONNECTOR AXK7L36227G NAIS 1 J103 31 53403000027 CARKIT CONNECTOR 3050-24R-0.5MSM HJ 1 J102 32 53499000428 Battery Contacts KQ02X3-3R HIROSE 1 J201 33 53403000101 EARJACK FPJ25607-PT2 ACE TRADING 1 J202 34 53499000143 RF CONNECTOR KMS-507 HIROSE 1 J301 35 55700000019 TACT SWITCH LS10N2-T CITIZEN 6 SW212,SW219,SW220,SW221,SW223,SW227 36 52199000155 EMI FILTER ICVE31186E150R101FR INNOCHIPS 2 S102,S106 37 52199000144 EMI FILTER FLT-EMI,ICVE21184E150R101FR_pb free INNOCHIPS 1 S101 38 50400000175 TVS ARRAY UCLAMP3324P SEMTECH 3 S121,S122,S123 39 50400000078 TVS DIODE PG05FSESC KEC 1 S201 40 50400000077 TVS DIODE PG03FBESC KEC 4(1) S210,S211,S213,S214 41 50501000111 VARISOR AVLC5S02050P // 50pF AMOTECH 7 S103,S104,S107,S109,S110,S111,S113, 42 50501000109 VARISOR AVLC18S02015P // 15pF AMOTECH 16(4) S105,S108,S112,S114,S115,S116,S117,S118,S119,S120,S203,S204,S205,S206,S21 7,S218 43 50001060104 FERRITE BEAD BLM15AG601SN1D // 600 Ω MURATA 5 L104,L105,L106,L107,L201 44 50001018101 FERRITE BEAD BLM18PG181SN1D MURATA 1 L102 45 55400000618 Backup Battery NBL414R-TT33-1(2V)_Pb Free SANYO 1 BT201 46 OPEN D202 -This sheet is the bill of material for the Celluar-MODEL NAME : PG1810(Corona)-SPEC : -FREQ. : GSM850/DCS1800/PCS1900 Remark 47 50000000012 RESISTOR RES- 0 Ω 1005 J ROHM 9 R157,R160,R161,R224,R225,R302,R303,C333,C334 48 50000047408 RESISTOR RES- 4.7 Ω 1005 J ROHM 1 R152, 49 50000033008 RESISTOR RES- 33 Ω 1005 J ROHM 3 R202,R203,R204 50 50000010101 RESISTOR RES- 100 Ω 1005 J ROHM 17 R114,R115,R116,R117,R118,R119,R120,R121,R122,R123,R124,R125,R126,R127,R128,R201,R301 51 50000047111 RESISTOR RES- 470 Ω 1005 J ROHM 1 R226 52 50000010202 RESISTOR RES- 1K Ω 1005 J ROHM 2 R218,R236 53 50000022214 RESISTOR RES- 2.2K Ω 1005 J ROHM 1 R223 54 50000047212 RESISTOR RES- 4.7K Ω 1005 J ROHM 1 R228 55 50000068209 RESISTOR RES- 6.8K Ω 1005 J ROHM 1 R156 56 50000010301 RESISTOR RES- 10K Ω 1005 J ROHM 9 R137,R138,R139,R140,R147,R148,R149,R150,R208 57 50000020301 RESISTOR RES- 20K Ω 1005 J ROHM 6 R151,R153,R155,R159,R162,R220 58 50000027311 RESISTOR RES- 27K Ω 1005 J ROHM 2 R232,R233 59 50000039308 RESISTOR RES- 39K Ω 1005 J ROHM 2 R230,R231 60 50000047315 RESISTOR RES- 47K Ω 1005 J ROHM 1 R216 61 50000051305 RESISTOR RES- 51K Ω 1005 J ROHM 2 R141,R143, 62 50000010401 RESISTOR RES- 100K Ω 1005 J ROHM 5 R104,R108,R207,R210,R227 63 50000012408 RESISTOR RES- 120K Ω 1005 J ROHM 1 R235 64 50000015408 RESISTOR RES- 150K Ω 1005 J ROHM 4 R142,R144,R145,R146 65 50000020402 RESISTOR RES- 200K Ω 1005 J ROHM 1 R234 66 50000039404 RESISTOR RES- 390K Ω 1005 J ROHM 1 R222 67 50000010509 RESISTOR RES- 1M Ω 1005 J ROHM 2 R213,R217 68 50000000018 RESISTOR RES- 0 Ω 1608 J ROHM 1 D201 69 50000010602 RESISTOR RES- 10M Ω 1608 J ROHM 1 R205 70 50000100001 RESISTOR RES- 100 Ω 1005 F ROHM 1 R215 71 50000033118 RESISTOR RES- 330 Ω 1005 F ROHM 1 R212, 72 50000412102 RESISTOR RES- 4.12K Ω 1005 F ROHM 1 R219 73 50000012501 RESISTOR RES- 1.2M Ω 1005 F ROHM 1 R214 74 50000027904 RESISTOR 3216, 0.27ohm, 1%, 0.5W // 0.27(3216) KAMAYA 1 R211 75 OPEN 2 R206,R209 76 50200005902 CAPACITOR CAP- 0.5PF 50V C C0G 1005 MURATA 1 C310 77 50200001008 CAPACITOR CAP- 1PF 50V C C0G 1005 MURATA 6 C316,C317C318,C319,C320,C321 78 50200015904 CAPACITOR CAP- 1.5PF 50V C C0G 1005 MURATA 1 L101 79 50200018902 CAPACITOR CAP- 1.8PF 50V C C0G 1005 MURATA 1 C153 80 50200005006 CAPACITOR CAP- 5PF 50V C C0G 1005 MURATA 1 L301 81 50200082902 CAPACITOR CAP- 8.2PF 50V D C0G 1005 MURATA 1 C307 82 50200010014 CAPACITOR CAP- 10PF 50V J C0G 1005 MURATA 1 C156 83 50200012005 CAPACITOR CAP- 12PF 50V J C0G 1005 MURATA 2 C255,C256 84 50200022006 CAPACITOR CAP- 22PF 50V J C0G 1005 MURATA 1 C314 85 50200033007 CAPACITOR CAP(M)-33PF 50V J C0G 1005 MURATA 18(1) C104,C105,C111,C112,C228,C233,C236,C242,C248,C250,C251,C252,C324,C3 26,C327,C328,C329,C330 86 50200039004 CAPACITOR CAP- 39PF 50V J C0G 1005 MURATA 2 C335,C336 87 50200047006 CAPACITOR CAP- 47PF 50V J C0G 1005 MURATA 1 C309 88 50200010115 CAPACITOR CAP- 100PF 50V J C0G 1005 MURATA 12 C120,C121,C122,C123,C147,C201,C302,C304,C305,C308,C322,C323 89 50200047119 C…

Text truncated - open the document above for the full version.

Pantech Co., Ltd. Shinsong Center Bldg. 9th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5939 Fax: +82-2-3660-5828 __________________________________________________________________________________ Date:Feb.03, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Declaration – Tuning Procedure Pantech Co., Ltd. FCC ID: JYCPG-1810 FCC Part 2, 24 Certification Gentlemen, There are no user accessible adjustments or tuning for this PG-1810. All necessary adjustments and tuning are performed during manufacture of the product. Sincerely, Yong-Woo Kim Vice President Pantech Co., Ltd.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G5M206010015-S-8 SAR ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G5M206010015-S-8 Page 1 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Manufacturer 1.5 Application details 1.6 Test item 1.7 Test results 1.8 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Definitions 2.5 Measurement system description 2.6 Test system specification 2.7 Measurement procedure 2.8 Reference points 2.9 Test positions 2.10 Measurement uncertainty 3 Tissue and system verification 3.1 Tissue verification 3.2 System verification 4 Test Results 5 References 6 Appendix ETS Dr. Genz GmbH, Germany Registration number: G5M206010015-S-8 Page 2 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 24.02.2006 M. Cersovsky Date ETS-Lab. Name Signature Technical responsibility for area of testing: 24.02.2006 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G5M206010015-S-8 Page 3 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : Pantech Co., Ltd. Street : Shinsong Center Bldg. 8th Fl., 25-12, Yeouido-dong Town : Yeoungdeungpo-gu, Seoul Country : Korea Telephone : +82-2-3660-5862 Fax : +82-2-3660-5990 Contact : Mr. B.W. Kim E-Mail : [email protected] 1.4 Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G5M206010015-S-8 Page 4 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5 Application details Date of receipt of application : 31.01.2006 Date of receipt of test item : 31.01.2006 Date of test : 29.04. - 06.05.2004 1.6 Test item FCC ID : Description of test item : Triple Band GSM 850 /DCS 1800 /PCS 1900 (with WAR & GPRS) Type identification : PG-1810 Brand Name: Pantech Serial number : without; Identical prototype Device category : PCB (Licensed Base Station) Technical data GSM850 DCS1800 PCS 1900 TX Frequency range : 824,2 - 848,8 MHz 1710,2 - 1784,8 MHz 1850,2 - 1909,9 MHz RX Frequency range : 869,2 - 893,8 MHz 1805,2 - 1879,8 MHz 1930,2 - 1989,8 MHz Max. Conducted RF output power : 32,61 dBm (1,82W) 30,0 dBm (0,83W) Power supply : 4,2 V DC rechargeable battery Antenna Tx : integral Antenna RX : integral Additional information : Tx and Rx. antenna are the same. This test sample was tested according FCC OET Bulletin 65, Supplement C, Edition 01-01 on the used (European) Frequency band. This Procedure is requested by customer 1.7 Test Results Max. SAR Measurement : 1.2 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003, December 2003. ETS Dr. Genz GmbH, Germany Registration number: G5M206010015-S-8 Page 5 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8 Test standards Standards : - IEEE Std. 1528-2003, December 2003 FCC Rule Part(s) : - FCC OET Bulletin 65, Supplement C, Edition 01-01 2 Technical test 2.1 Summary of test results Applicable Configuration Handset (Head) X Handset (Body) X Headset (Head) Body Worn Equipment EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagnetic energy in the body are very complex phenomena that depend on the mass, shape, and size of the body, the orientation of the body w…

Text truncated - open the document above for the full version.

ETS Dr. Genz GmbH, Germany Registration number: G5M206010015-S-8 Appendix B ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Appendix B Measurement Plots Date/Time: 2/20/2006 12:36:39 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.900 (h)_250mW 20.2.2006 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Head 900 MHz Medium parameters used: f = 900 MHz; σ = 0.972 mho/m; ε r = 43.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.99, 5.99, 5.99); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 3.29 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 60.0 V/m; Power Drift = -0.021 dB Peak SAR (extrapolated) = 4.63 W/kg SAR(1 g) = 2.64 mW/g; SAR(10 g) = 1.94 mW/g Maximum value of SAR (measured) = 3.29 mW/g 0 dB = 3.29mW/g Date/Time: 2/20/2006 13:24:41 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.900 (m)_250mW 20.2.2006 DUT: Dipole 900 MHz…

Text truncated - open the document above for the full version.
