JYCPG-C120TripleBandGSM850/DCS1800/PCS1900(with WAP&GPRS)

Welcome USER MANUAL PG-C120 Thank you for choosing a Pantech PG-C120 and welcome to the wireless mobile communications with the PG-C120, our dual-band GSM mobile phone. Pantech is delighted to introduce this brand new portable phone which will always keep you conne cted to your network. This user manual explains in detail its unique features and how to use them. Note: Some of the contents in this User Manual could vary from actual features of your phone. It may vary depending on the S/W version and the network provider you subscribed to. 2 Specification 1. Display Single Candy-bar 65,536 STN LCD z 1.5” LCD z Supports up to 65,536 colors within 128 x 128 pixels z 6 lines for text in basic mode with 16-pixel font z Two Soft keys ([ ], [ ]), and 5-way joystick z List and grid menu 2. Melody Yamaha 40 poly(SMF) / 16poly (SMAF) sound 3. Camera VGA CMOS built-in Camera. z Resolution up to 640 x 480 (307,200 pixels) z Self timer function (5 Secs or 10 Secs) z Photo album 4. Dimensions & Weight z Weight: 75 g z Dimensions: 103 mm x 42.5 mm x 13.5 mm 5. Power Management (Performance) Battery Type Capacity Standby Time Talk Time Standard (Li-ion) 800 mAh 250Hours 3 Hours 6. Operating Frequency z GSM 850, and PCS 1900 networks in North America and South America where these netw orks are supported. z Automatic band switching. 3 z Power On/Off Right Soft key(Camera) Left Soft key(Menu) DiaI key Call Accept Voicemail Alphanumeric Key Joy Stick 4-way Menu Navigation (Message Write New, IM, Address Book List, My Stuff) Volume up/down Silent Mode Cancel/Back/Text Clear/Edit Exit Key Views Earpiece Camera 4 z Quick & Easy Keys Functions Performs the functions shown at the bottom line of the display (Soft Keys). Joystick Scrolls through the menu options in Menu mode. In standby mode, Push to Left: My Stuff menu Up: Message Write New menu Right: IM Down: Address Book list Push in on joystick Launches the MEdia Net directly if pressed in standby mode. Selects menu function or stores user input information, such as names, SIM memory. Also used for confirmation (OK key). Deletes characters in text input mode, or returns to the previous menu. Opens Calendar view if pressed shortly in standby mode. Makes or receives a call. Shows the recent call lists in standby mode. Re-dials the last call number if pressed and held, or pressed twice in standby mode. Completes the current call. Turns on/off the phone if pressed and held. Cancels user input and returns to the standby mode while in Menu mode. Quickly connects to the voice mail server, or inputs a voice mail box number which you want to dial if pressed and held in standby mode. ~ Enters numbers, charac ters, or symbols. Goes to the dial number input mode if pressed in standby mode. Enters or exits from silent mode if pressed and held in standby mode. Shows the symbol input screen if pressed and held in text input mode. Works in Word search mode if pressed in the Predictive text input mode. Enters an international dialing prefix (011, +). Enters the space character in text input mode. Adjusts the volume level which you want during a call, and moves the cursor upwards or downwards in the menu mode. Controls the ringtone volume in standby mode if the phone flip is opened. Turns camera preview mode on/off if side up volume key is pressed and held in standby mode. Press the side down key to turn the backlight on, and press and hold to get Flash on/off when the flip is closed. Enters a camera preview mode and takes a photo. Enters a video recording mode if pressed and held in standby mode. 5 Safety Precautions Using a phone while driving is prohibited. Please check local laws and regulations with regard to the prohibition of phone usage while driving, and comply with them. - Use of your mobile phone while you are driving may disturb your concentration and may result in an accident. Please turn it off as soon as possible. - Should you use your phone in an emergency, please make use of the hands free device built in your car, or pull your car over to a safe place for your utmost safety. - The electronic wave energy emitting from your phone may affect the electronic devices built in your car. Pl ease be aware of this characteristic. Mobile Phone Use Restriction Area Make sure to turn your phone off in an area where use of phone is restricted. Using a Phone in an Explosive or Dangerous Area is not Permitted Please turn your phone off in an area with explosive or dangerous materials (such as fuel, fuel stations , or places with chemical goods) and abide by any instructions or signs po sted in the area. Never try to detach your mobile phone battery from the phone in such areas. Boarding an Aircraft - Please select "Flight Mode On” (‘Menu>9.Settings>4. Phone>3.Flight Mode’) or turn your phone off w hen you are boarding an aircraft. The electronic wave emitted from your phone may affect the electronic navigation device in the aircraft. Using Medical Equipment - Please turn your phone off while you are in a hospital. - Please abide by the regulations or rules of the hospital. - Please turn off your phone when using medical equipment for private purposes if possible. You should consult with the manufacturer or an expert before you use your phone near medical equipment. Installing a Vehicle Hands Free Device - Please keep the vehicle hands free device away from the steering, and air bag expansion range, Otherwise, it may cause an injury. Affect of Mobile Phone on Electronic Devices Some electronic devices may be affect ed by the electronic wave emitting from the mobile phone in service. Please be careful. 6 Access Code The following section describes various security codes. PIN1 code (4 to 8 digits) The PIN (Personal Identification Numb er) code protects your SIM card against unauthorised use (9. Settings>6. Security>1. PIN1 Check). The PIN1 code is usually supplied with t he SIM card. If you input the incorrect PIN1 code five times consecutively (trial time depends on SIM card), …

Text truncated - open the document above for the full version.

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ Declaration concerning Antenna Specification It’s hereby declared that the product: ............ PG-C120.................... fulfills the requirement in FCC test relating to the antenna type. The ............PG-C120.............confirm to FCC recommendation with Internal antenna type: (model if applicable) PG-C120 built into the housing and has a unique connector GSM850 DCS1800 PCS1900 824 – 894MHz 1710 - 1880MHz 1850 – 1990MHz TX RX TX RX TX RX Frequency Range (GHz) Band (MHz) 824 - 849 869-894 1710- 1785 1805- 1880 1850- 1910 1930- 1990 E2-PLANE Gain(dBi) (Peak Gain , More Than) Bar Type -2.4 -0.07 -5.1 -1.3 -1.3 -1.4 The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company: Pantech Co.,Ltd. Address: Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong,Yeoungdeungpo-gu, City: Seoul ZIP / Postal code: 150-711 Country: Korea Place: KOREA Date: JAN., 20 ,2006 Signature:

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ LETTER OF AUTHORIZATION DATE : Jan.20, 2006 To whom it may concern: We the undersigned, hereby authorize ETS Germany to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ETS Germany on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Pantech Co.,LTd. Sincerely, (Company counsel or company officer signature) Name : Byung-Wan Kim Title : Vice President (Name and Title)

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ Date : 2006. 1.20 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Pantech Co., Ltd. FCC ID: JYCPG-C120 Gentlemen, In accordance with 0.459 of CFR 47, Pantech Co., Ltd. hereby requests confidentiality of all Schematics, Parts List, Operational Description, Users Manual attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Pantech Co., Ltd. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Pantech Co., Ltd. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Name : Byung-Wan Kim Title : Vice President Company : Pantech Co., Ltd.

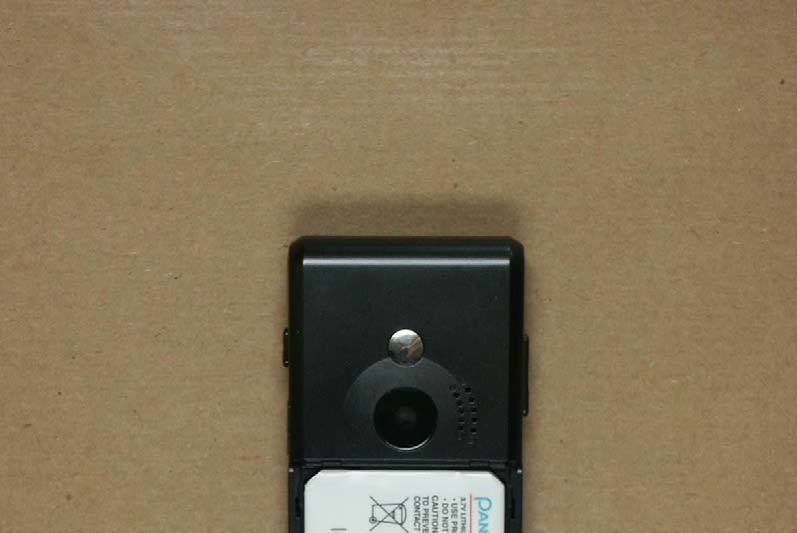

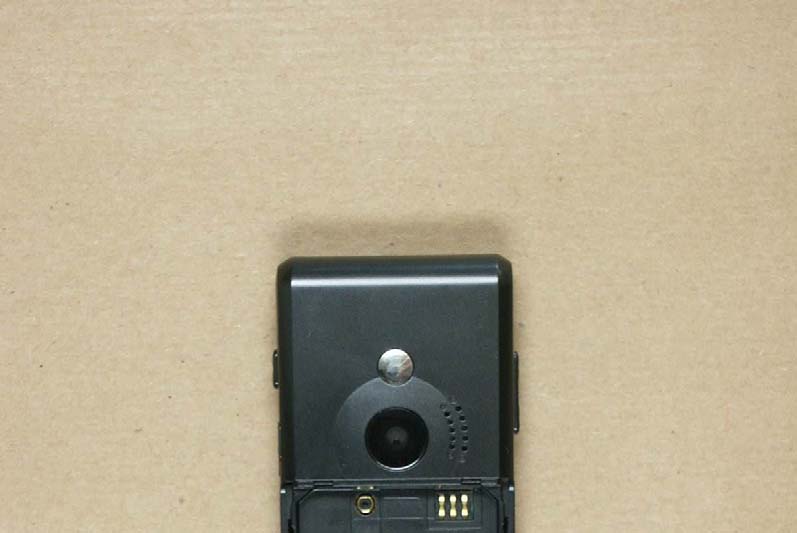

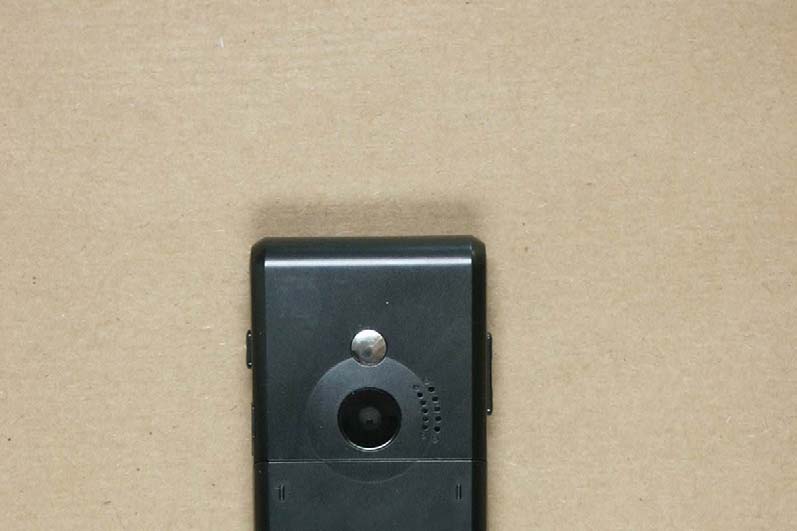

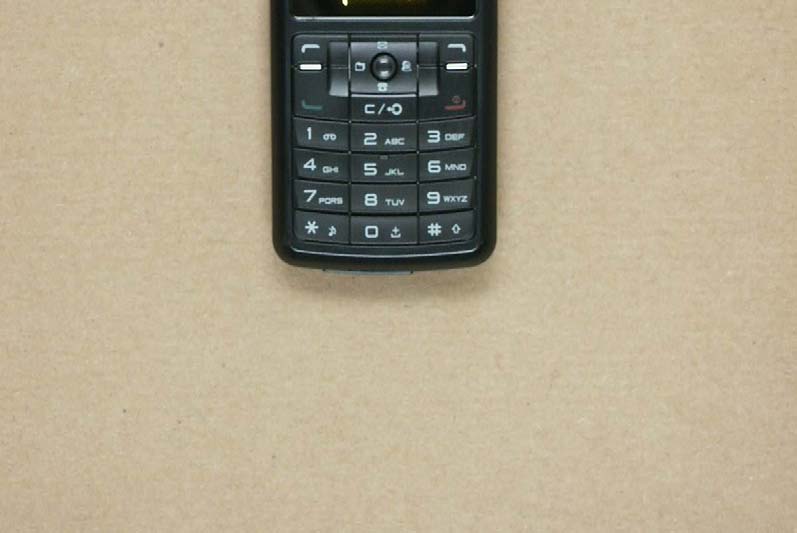

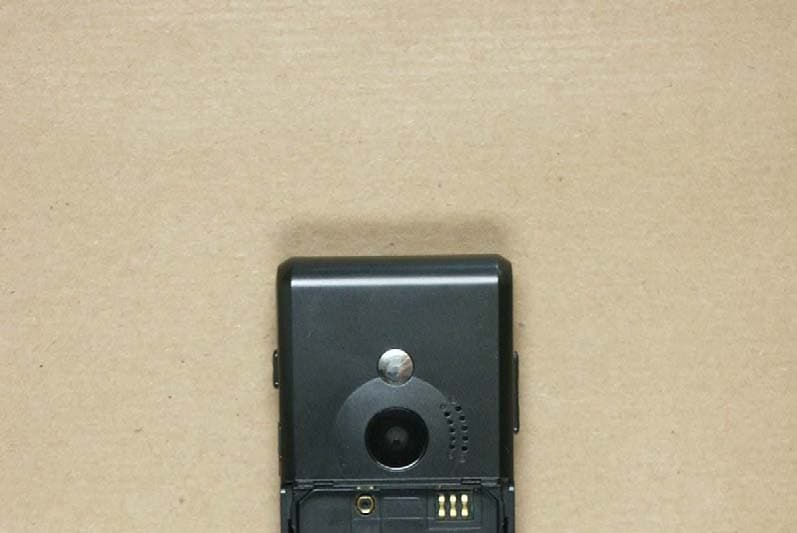

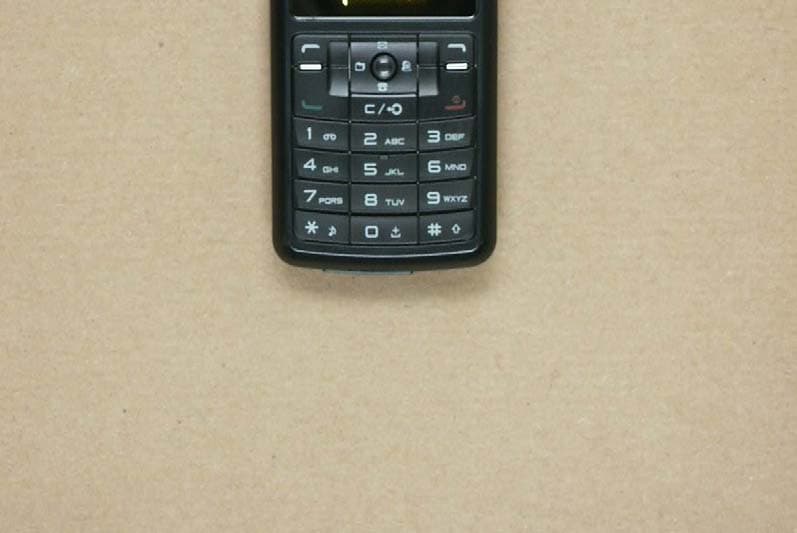

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-P-2224 Page 1 of 11 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-P-2224 Page 2 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-P-2224 Page 3 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-P-2224 Page 4 of 11

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ [Label Location] Description: Triple Band GSM 850 /DCS 1800 /PCS 1900 (with WAP & GPRS) FCC ID: JYCPG-C120

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ [FCC ID Label sample] Description: Triple Band GSM 850/DCS 1800 /PCS 1900 (with WAP & GPRS) FCC ID: JYCPG-C120

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-P-2224 Page 5 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-P-2224 Page 6 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-P-2224 Page 7 of 11

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 __________________________________________________________________________________ Date: 2006. 01 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Declaration – Tuning Procedure Pantech Co., Ltd. FCC ID: JYCPG-C120 FCC Part 2, 24 Certification Gentlemen, There are no user accessible adjustments or tuning for this PG-C120. All necessary adjustments and tuning are performed during manufacture of the product. Sincerely, Byung-Wan Kim Vice President Pantech Co., Ltd.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G5M206010009-S-8 SAR ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-S-8 Page 1 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Manufacturer 1.5 Application details 1.6 Test item 1.7 Test results 1.8 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Definitions 2.5 Measurement system description 2.6 Test system specification 2.7 Measurement procedure 2.8 Reference points 2.9 Test positions 2.10 Measurement uncertainty 3 Tissue and system verification 3.1 Tissue verification 3.2 System verification 4 Test Results 5 References 6 Appendix ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-S-8 Page 2 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 01.02.2006 M. Cersovsky Date ETS-Lab. Name Signature Technical responsibility for area of testing: 01.02.2006 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-S-8 Page 3 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : Pantech Co., Ltd. Street : Sinsong Center Bldg. 8th Fl., 25-12, Yeouido-dong Town : Yeoungdeungpo-gu, Seoul Country : Korea Telephone : +82-2-3660-5862 Fax : +82-2-3660-5990 Contact : Mr. B.W. Kim E-Mail : [email protected] 1.4 Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-S-8 Page 4 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5 Application details Date of receipt of application : 23.01.2006 Date of receipt of test item : 23.01.2006 Date of test : 23.01. - 27.01.2006 1.6 Test item FCC ID : JYCPG-C120 Description of test item : Triple Band GSM 850 /DCS 1800 /PCS 1900 (with WAP & GPRS) Type identification : PG-C120 Serial number : Identical prototype Device category : PCB (Licensed Base Station) Technical data GSM850 PCS 1900 TX Frequency range : 824,2 - 848,8 MHz 1850,2 - 1909,9 MHz RX Frequency range : 869,2 - 893,8 MHz 1930,2 - 1989,8 MHz Max. Conducted RF output power : 32.0 dBm (1.58W) 29.4 dBm (0.87W) Power supply : 4.2 V DC rechargeable battery Antenna Tx : integral Antenna RX : integral Additional information : Tx and Rx. antenna are the same. This device contains 1800 MHz not operational in U.S. Territories. This filing is only applicable for 850/1900 MHz operations. 1.7 Test Results Max. SAR Measurement : 1.49 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003, December 2003. ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-S-8 Page 5 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8 Test standards Standards : - IEEE Std. 1528-2003, December 2003 FCC Rule Part(s) : - FCC OET Bulletin 65, Supplement C, Edition 01-01 2 Technical test 2.1 Summary of test results Applicable Configuration Handset (Head) X Handset (Body) X Headset (Head) Body Worn Equipment EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagnetic energy in the body are very complex phenomena that depend on the mass, shape, and size of the body, the orientation of the body with respect to the field vectors, and the electrical properties of both the body and the environment. Ot…

Text truncated - open the document above for the full version.

Date/Time: 1/23/2006 19:36:20 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.1900(h)_250mW23.1.06 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1900 MHz; σ = 1.41 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.84, 4.84, 4.84); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Dipol 1900 (250mW)/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 12.4 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 99.6 V/m; Power Drift = 0.010 dB Peak SAR (extrapolated) = 18.7 W/kg SAR(1 g) = 10.9 mW/g; SAR(10 g) = 5.75 mW/g Maximum value of SAR (measured) = 12.4 mW/g 0 dB = 12.4mW/g Date/Time: 1/24/2006 19:00:14 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.900 (h)_250mW 24.1.06 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Head 850 MHz Medium parameters used (interpolated): f = 900 MHz; σ = 0.941 mho/m; ε r = 41.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.99, 5.99, 5.99); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 3.29 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 61.4 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 4.96 W/kg SAR(1 g) = 2.65 mW/g; SAR(10 g) = 1.73 mW/g Maximum value of SAR (measured) = 3.32 mW/g 0 dB = 3.32mW/g Date/Time: 1/26/2006 10:15:45 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.900 (m)_250mW 26.1.06 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Muscle 900 MHz Medium parameters used: f = 900 MHz; σ = 1.04 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.73, 5.73, 5.73); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 3.15 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.3 V/m; Power Drift = -0.006 dB Peak SAR (extrapolated) = 4.54 W/kg SAR(1 g) = 2.93 mW/g; SAR(10 g) = 1.86 mW/g Maximum value of SAR (measured) = 3.27 mW/g 0 dB = 3.27mW/g Date/Time: 1/26/2006 11:13:01 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.1900(m)_250mW 26.1.06 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Muscle 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.58 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.31, 4.31, 4.31); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Dipol 1900 (250mW)/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 13.5 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 99.1 V/m; Power Drift = -0.047 dB Peak SAR (extrapolated) = 19.9 W/kg SAR(1 g) = 11.8 mW/g; SAR(10 g) = 6.2 mW/g Maximum value of SAR (measured) = 13.3 mW/g 0 dB = 13.3mW/g Date/Time: 1/27/2006 10:13:01 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.1900(m)_250mW 27.1.06 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Muscle 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.58 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.31, 4.31, 4.31); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Dipol 1900 (250mW)/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 13.5 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 99.1 V/m; Power Drift = -0.047 dB Peak SAR (extrapolated) = 19.9 W/kg SAR(1 g) = 11.8 mW/g; SAR(10 g) = 6.2 mW/g Maximum value of SAR (measured) = 13.3 mW/g 0 dB = 13.3mW/g Date/Time: 1/24/2006 15:20:44 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 850_left_ch189_cheek DUT: Triple-Band GSM 850/DCS 1800 /PCS1900 (with WAP & GPRS); Type: ---; Serial: PG- C120 Communication System: GSM 850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: Head 850 MHz Medium parameters used: f = 836.4 MHz; σ = 0.892 mho/m; ε r = 42.2; ρ = 1000 kg/m 3 Phantom section:…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH FCC - TEST - REPORT FCC RULES PARTS 22 and 24 FCC ID: JYCPG-C120 Test report no.: G5M206010009-P-2224 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-P-2224 Page 1 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results 4 RF Power Output, FCC 2.1046 4.1 Test Procedure 4.2 Test Results 5 Radiated Power FCC 22.913, FCC 24.232 5.1 Test Procedure 5.2 Test Results 6 Modulation Deviation Limiting, FCC 2.1047, 22.915(b)(c) 6.1 Test Procedure 6.2 Test Results 7 Audio Filter Characteristics, FCC 22.915(d) 7.1 Test Procedure 7.2 Test Results 8 Emission Limitations, , FCC 2.1049 8.1 Test Procedure 8.2 Test Results 9 Occupied Bandwidth FCC 22.917(b)(d); FCC 2.1049 9.1 Test Procedure 9.2 Test Results 10 Out of Band Emissions at Antenna Terminals, FCC 24.238(a) 10.1 Test Procedure 10.2 Test results 11 Spurious Radiation, FCC 2.1053, 24.236 11.1 Test Procedure 11.2 Test Results ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-P-2224 Page 2 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 12 Line Conducted Emissions, FCC 15.207 12.1 Test Procedure 12.2 Test Results 13 Frequency Stability vs Temperature, FCC 2.1055, 22.355, 24. 235 13.1 Test Procedure 13.2 Test Equipment 14 Frequency Stability vs Voltage, FCC 2.1055, 22.355, 24.235 14.1 Test Procedure 14.2 Test Equipment ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-P-2224 Page 3 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 02.02.2006 M. Handrik Date ETS-Lab. Name Signature Technical responsibility for area of testing: 02.02.2006 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-P-2224 Page 4 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 A CCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number: 1983-01 1.3 Details of approval holder Name : Pantech Co., Ltd. Street : Sinsong Center Bldg. 8th Fl., 25-12, Yeouido-dong Town : Yeoungdeungpo-gu, Seoul Country : Korea Telephone : +82-2-3660-5862 Fax : +82-2-3660-5990 Contact : Mr. B.W. Kim E-Mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-P-2224 Page 5 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 23.01.2006 Date of receipt of test item : 23.01.2006 Date of test : 19.12.2005 - 29.12.2005; 25.01.2006 1.5 Test item Description of test item : Triple Band GSM 850 /DCS 1800 /PCS 1900 (with WAP & GPRS) Type identification : PG-C120 Serial number : Test model without serial number. Photos : See annex A. Technical data Frequency range Tx – GSM 850 : 824.2 – 848.80 MHz Frequency range Tx – PCS : 1850.2 – 1909.8 MHz Frequency range Rx - GSM 850 : 869.2 – 893.8 MHz Frequency range Rx - PCS : 1930.2 – 1989.8 MHz Antenna Type : internal antenna Antenna Gain : -1.3 dBi Power supply : 4.2 V DC Operating mode : duplex Type of modulation : GMSK (GSM modulation) Emission : GXW Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-P-2224 Page 6 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC Parts 22, 24, 2, 15 Additional information : Because of using the GSM 850 as an alternative technology in 850 MHz band, not all test cases of FCC Part 22 are required. This device contains 1800 MHz not operational in U.S. Territories. This filing is only applicable for 850/1900 MHz operations. 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-P-2224 Page 7 of 41 ELECTRONIC T…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-P-2224 Page 8 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-P-2224 Page 9 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-P-2224 Page 10 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M206010009-P-2224 Page 11 of 11
