JYCPG-C300Triple Band GSM850/DCS1800/PCS1900 (with WAP&GPRS)

Welcome to Pantech PG-C300 Thank you for choosing Pantech PG-C 300 and welcome to wireless mobile communication networking with the PG-C300, our tri-band GSM mobile phone. Pantech is delighted to introduce this brand new portable phone which will always keep you conne cted to the network. This user manual explains in detail its unique features and how to use them. ※ Some of the contents in this User Manual could vary from your phone. It may vary depending on the S/W version and the network provider you subscribed to. 2 Characteristic Specification of PG-C300 1. Display Dual clamshell 262,000 TFT LCD both internal and external. z 28.032 mm x 35.04 mm display for 1.52” internal LCD z 19.008 mm x 23.76 mm display for 1.0” external LCD z True TFT colour display z Supports up to 262,000 colours within 128 x 128 pixels z 6 lines for text in basic mode with 16-pixel font z Two Soft keys with four-way scr oll including selection function (OK key) z List and grid menu 2. Melody Yamaha 64 poly sound MP3 sound 3. Camera Integrated VGA CCD Camera. z Resolution up to 640 x 480 (307,200 pixels) z Self timer function (5 sec or 10 sec) z Phone display used as a viewfinder z Standard, wide (portrait) modes on external viewfinder z Photo album in Gallery z Photo Gallery for image storing and editing z 3 image quality options: Fine, Normal, Low z Flash light supported 4. Dimension & Weight z Weight: 70 g z Dimensions: 70 mm x 43 mm x 18 mm 5. Power Management (Performance) Battery Type Capacity Standby Time Talk Time Standard (Li-ion) 730(850) mAh 250 Hours 2.5 Hours 6. Operating Frequency z EGSM 850, GSM 1800, and GSM 1900 networks in Europe, Africa, Asia-Pacific, North America, and South America where these networks are supported z Automatic band switching 3 Views of Pantech PG-C300 Ear p iece Power On/Off Men uexitkey Right Soft key Left Soft ke y DiaI key Call Accept Voicemail A l p hanumeric Ke y Cancel/Back Text Clear/Edit exit key 4-way Menu Navigation Special Menu Short key Volume up/down Menu Scroll WAP Access key Select/Menu Confirm ke y Ke y Lock/Unlock Flash Li g ht Camera Internal display Microphone Vibration Mode External dis p la y 4 Quick & Easy Keys Functions Performs the functions shown at the bottom line of the display. Scrolls through the menu options in Menu mode. In standby mode, Left key ( ): Favorite list screen Right key ( ): Messages menu screen Up key ( ): Ring Tone Profiles setting menu for sound change. Down key ( 변경필요 ): Camera snap shot For details, see “Using the Shortcut Key in Standby Mode”. Opens the WAP (Wireless Application Protocol) menu list if pressed shortly in standby mode Launches the WAP browser directly, if pressed and held in standby mode. Selects menu function or stores user input information, such as names, SIM memory. Also used for confirmation. Deletes characters from the display, or returns to previous menu. Opens Calendar view if pressed shortly in standby. Immediately starts camera capture mode if pressed and held. Sends or receives a call. Shows the recent call list in standby mode. Re-dials the last call number if pressed and held in standby mode. Completes the current call. Turns on/off the phone if pressed and held. Cancels user input and returns to standby mode while in Menu mode. Quickly connects to the voice mail server if pressed and held in standby mode. ~ Enters numbers, letters or special characters. Goes to the dial screen if pressed in standby mode. Enters or exits from Vibration mode if pressed and held in standby mode. Shows the symbol input screen if pressed in text input mode. Works in Word search mode if pressed in the Predictive text input mode. Enters an international dialling prefix. Enters the space character in text input mode. Locks or unlocks the phone if pressed and held in standby mode. Changes various text input modes if pressed and held at the text-editing screen. Adjusts the earpiece volume while making a call, and moves the cursor upwards or downwards in the menu. Controls the key tone volume in standby mode if the phone flip is opened, and moves the cursor upwards or downwards in the menu. Turns camera preview mode on if up volume key is pressed and held in standby mode. Cancels camera preview mode in standby mode. Turns camera capture mode on. Works as a camera shutter in capture mode. Turns Video Mode on if pressed and held. 5 Safety Precautions Using a phone while driving is prohibited. Please check local laws and regulations with regard to the prohibition of phone usage while driving, and comply with them. - Use of your mobile phone while you are driving may disturb your concentration and consequently cause acci dents. Please turn it off as soon as possible. - Should you use your phone in an emergency, please make use of the hands free device built in your car, or pull your car over to a safe place for your utmost safety. - The electronic wave energy emitting from your phone may affect the electronic devices built in your car. Pl ease be aware of this characteristic. Mobile Phone Use Restriction Area Make sure to turn your phone off in a phone usage restricted area. Using a Phone in an Explosive or Dangerous Area is not Permitted Please turn your phone off in areas with explosive or dangerous materials (such as fuel, fuel stations, or pl aces with chemical goods) and abide by any instructions or signals. Never tr y to detach your mobile phone battery from the phone in such areas. Boarding an Aircraft - Please turn your phone off when you are on the aircraft. The electronic wave from your phone may affect the electronic navigation device in the aircraft. Using Medical Equipment - Please turn your phone off while you are in a hospital. - Please abide by the regulations or rules of the hospital. - Please turn off your phone when using medical equipment for private purposes if possible. You should consult with the manufacturer or an expert regarding phone usage near medical equipment. Installing a Vehicle Hands Free Device…

Text truncated - open the document above for the full version.

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ LETTER OF AUTHORIZATION DATE : Nov.25, 2005 To whom it may concern: We the undersigned, hereby authorize ETS Germany to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ETS Germany on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Pantech Co.,LTd. Sincerely, (Company counsel or company officer signature) Name : Byung-Wan Kim Title : Vice President (Name and Title)

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ Date : 2005. 11. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Pantech Co., Ltd. FCC ID: JYCPG-C300 Gentlemen, In accordance with 0.459 of CFR 47, Pantech Co., Ltd. hereby requests confidentiality of all Schematics, Parts List, Operational Description attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Pantech Co., Ltd. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Pantech Co., Ltd. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Name : Byung-Wan Kim Title : Vice President Company : Pantech Co., Ltd.

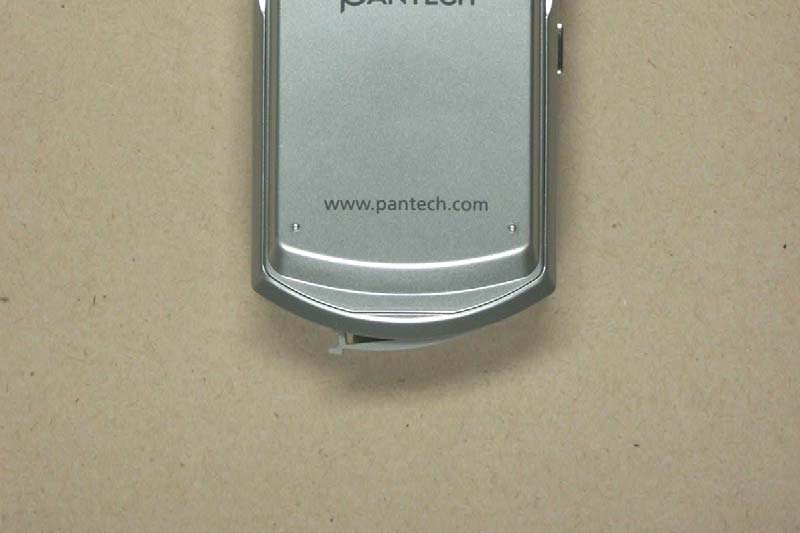

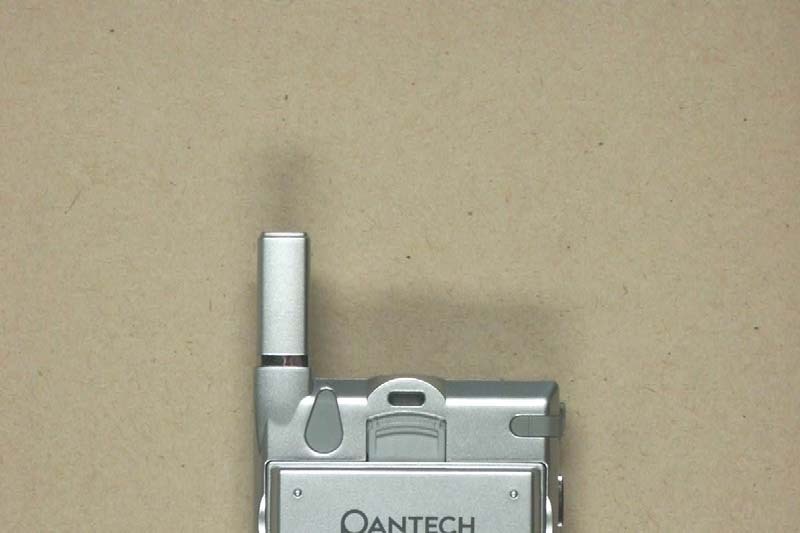

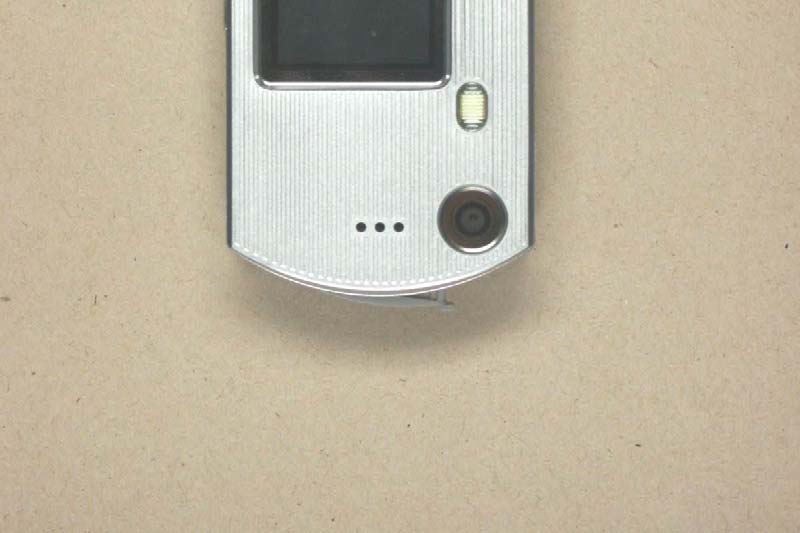

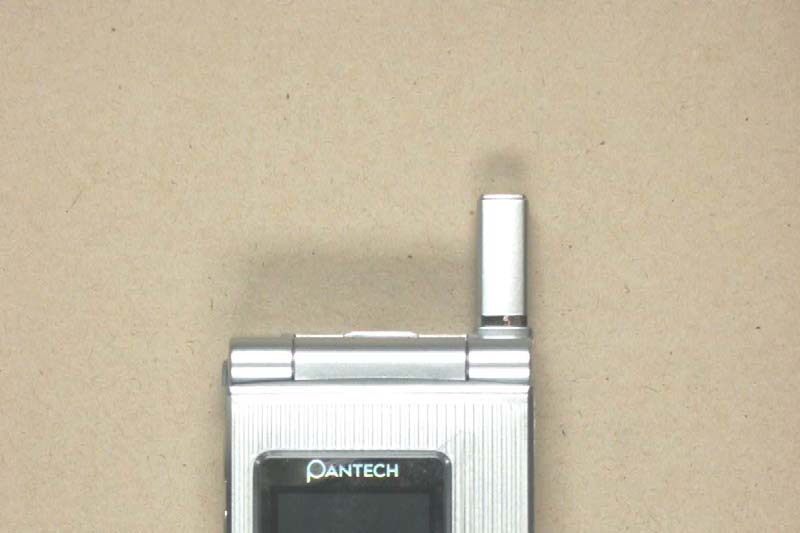

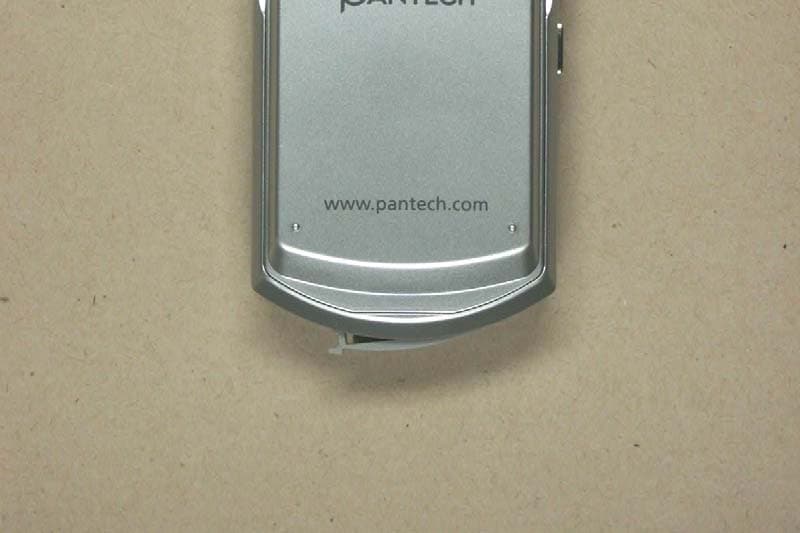

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G5M205110089-P-2224 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 1 of 9 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G5M205110089-P-2224 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 2 of 9 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G5M205110089-P-2224 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 3 of 9

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ [Label Location] Description: Triple Band GSM 850 /DCS 1800 /PCS 1900 (with WAP & GPRS) FCC ID: JYCPG-C300

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ [FCC ID Label sample] Description: Triple Band GSM 850/DCS 1800 /PCS 1900 (with WAP & GPRS) FCC ID: JYCPG-C300

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G5M205110089-P-2224 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 4 of 9 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G5M205110089-P-2224 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 5 of 9 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G5M205110089-P-2224 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 6 of 9

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 ______________________________________________________________________ Declaration concerning Antenna Specification It’s hereby declared that the product: ............ PG-C300.................... fulfills the requirement in FCC test relating to the antenna type. The ............PG-C300.............confirm to FCC recommendation with Internal antenna type: (model if applicable) PG-C300 built into the housing and has a unique connector GSM850 DCS1800 PCS1900 824 – 894MHz 1710 - 1880MHz 1850 – 1990MHz TX RX TX RX TX RX Frequency Range (GHz) Band (MHz) 824 - 849 869-894 1710- 1785 1805- 1880 1850- 1910 1930- 1990 FC -6.83 -4.57 1.34 1.86 2.91 -0.65 E2-PLANE Gain(dBi) (Peak Gain , More Than) FO -3.15 -1.55 -0.37 0.24 1.28 0.35 The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company: Pantech Co.,Ltd. Address: Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong,Yeoungdeungpo-gu, City: Seoul ZIP / Postal code: 150-711 Country: Korea Place: KOREA Date: Nov., 25 ,2005 Signature:

Pantech Co., Ltd. Sinsong Center Bldg. 6th Fl., 25-12,Yeouido-dong, Yeoungdeungpo-gu, Seoul, Korea Tel.: +82-2-3660-5862 Fax: +82-2-3660-5990 __________________________________________________________________________________ Date: 2005. 11 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Declaration – Tuning Procedure Pantech Co., Ltd. FCC ID: JYCPG-C300 FCC Part 22, 24 Certification Gentlemen, There are no user accessible adjustments or tuning for this PG-C300. All necessary adjustments and tuning are performed during manufacture of the product. Sincerely, Byung-Wan Kim Vice President Pantech Co., Ltd.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G5M205110089-S-8 SAR ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G5M205110089-S-8 Page 1 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Manufacturer 1.5 Application details 1.6 Test item 1.7 Test results 1.8 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Definitions 2.5 Measurement system description 2.6 Test system specification 2.7 Measurement procedure 2.8 Reference points 2.9 Test positions 2.10 Measurement uncertainty 3 Tissue and system verification 3.1 Tissue verification 3.2 System verification 4 Test Results 5 References 6 Appendix ETS Dr. Genz GmbH, Germany Registration number: G5M205110089-S-8 Page 2 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 05.12.2005 M. Handrik Date ETS-Lab. Name Signature Technical responsibility for area of testing: 05.12.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G5M205110089-S-8 Page 3 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : Pantech Co., Ltd. Street : Sinsong Center Bldg. 8th Fl., 25-12, Yeouido-dong Town : Yeoungdeungpo-gu, Seoul Country : Korea Telephone : +82-2-3660-5862 Fax : +82-2-3660-5990 Contact : Mr. B.W. Kim E-Mail : [email protected] 1.4 Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G5M205110089-S-8 Page 4 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5 Application details Date of receipt of application : 24.11.2005 Date of receipt of test item : 24.11.2005 Date of test : 1.12. - 2.12.2005 1.6 Test item FCC ID : JYCPG-C300 Description of test item : Triple Band GSM 850 / DCS 1800 / PCS 1900 (with WAP & GPRS) Type identification : PG-C300 Serial number : without; Identical prototype Device category : PCB (Licensed Base Station) Technical data GSM850 PCS 1900 TX Frequency range : 824,2 - 848,8 MHz 1850,2 - 1909,8 MHz RX Frequency range : 869,2 - 893,8 MHz 1930,2 - 1989,8 MHz Max. Conducted RF output power : 32,47 dBm / (1766,04 mW) 28,05 dBm / (638,26 mW) Power supply : 4,2 V DC rechargeable battery Antenna Tx : integral Antenna RX : integral Additional information : Tx and Rx. antenna are the same. This device contains 1800 MHz not operational in U.S. Territories. This filing is only applicable for 850/1900 MHz operations. 1.7 Test Results Max. SAR Measurement : 1.42 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003, December 2003. ETS Dr. Genz GmbH, Germany Registration number: G5M205110089-S-8 Page 5 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8 Test standards Standards : - IEEE Std. 1528-2003 (December 2003) FCC Rule Part(s) : - FCC OET Bulletin 65, Supplement C, Edition 01-01 2 Technical test 2.1 Summary of test results Applicable Configuration Handset (Head) X Handset (Body) X Headset (Head) Body Worn Equipment EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagnetic energy in the body are very complex phenomena that depend on the mass, shape, and size of the body, the orientation of the body with respect to the field vectors, and the electrical properties of both the body …

Text truncated - open the document above for the full version.

ETS Dr. Genz GmbH, Germany Registration number: G5M205110089-S-8 Appendix B ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Appendix B Measurement Plots Date/Time: 12/2/2005 20:17:27 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.900(h)_250mW 2.12.2005 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Head 850 MHz Medium parameters used (interpolated): f = 900 MHz; σ = 0.941 mho/m; ε r = 41.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.99, 5.99, 5.99); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 3.09 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 59.3 V/m; Power Drift = -0.012 dB Peak SAR (extrapolated) = 4.35 W/kg SAR(1 g) = 2.75 mW/g; SAR(10 g) = 1.62 mW/g Maximum value of SAR (measured) = 3.08 mW/g 0 dB = 3.08mW/g Date/Time: 12/2/2005 09:13:03 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.1900(h)_250mW2.12.2005 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1900 MHz; σ = 1.41 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.84, 4.84, 4.84); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Dipol 1900 (250mW)/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 12.3 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 97.9 V/m; Power Drift = 0.005 dB Peak SAR (extrapolated) = 18.3 W/kg SAR(1 g) = 10.8 mW/g; SAR(10 g) = 5.71 mW/g Maximum value of SAR (measured) = 12.2 mW/g 0 dB = 12.2mW/g Date/Time: 12/2/2005 08:26:20 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.900(m)_250mW 2.12.2005 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Muscle 850 MHz Medium parameters used: f = 900 MHz; σ = 1.04 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.73, 5.73, 5.73); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 3.12 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.9 V/m; Power Drift = -0.008 dB Peak SAR (extrapolated) = 4.34 W/kg SAR(1 g) = 2.9 mW/g; SAR(10 g) = 1.86 mW/g Maximum value of SAR (measured) = 3.15 mW/g 0 dB = 3.15mW/g Date/Time: 12/1/2005 17:32:15 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.1900(m)_250mW 1.12.2005 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Muscle 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.58 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.6, 4.6, 4.6); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Dipol 1900 (250mW)/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 13.0 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 85.6 V/m; Power Drift = 0.023 dB Peak SAR (extrapolated) = 19.5 W/kg SAR(1 g) = 11.2 mW/g; SAR(10 g) = 5.72 mW/g Maximum value of SAR (measured) = 12.5 mW/g 0 dB = 12.5mW/g Date/Time: 12/2/2005 15:57:32 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 850_right_ch189_cheek DUT: Triple-Band GSM 850/DCS 1800 /PCS1900 (with WAP & GPRS); Type: ---; Serial: PG- C300 Communication System: GSM 850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: Head 850 MHz Medium parameters used: f = 836.4 MHz; σ = 0.892 mho/m; ε r = 42.2; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.99, 5.99, 5.99); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 PG-C300/Area Scan (91x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.611 mW/g PG-C300/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.5 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.809 W/kg SAR(1 g) = 0.567 mW/g; SAR(10 g) = 0.383 mW/g Maximum value of SAR (measured) = 0.613 mW/g 0 dB = 0.613mW/g Date/Time: 12/2/2005 16:44:23 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 850_right_ch189_tilted DUT: Triple-Band GSM 850/DCS 1800 /PCS1900 (with WAP & GPRS); Type: ---; Serial: PG- C300 Communication System…

Text truncated - open the document above for the full version.

Date/Time: 12/1/2005 14:02:32 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 1900_flat_ch661_front_dist_0mm DUT: Triple-Band GSM 850 / DCS 1800 / PCS1900 (with WAP & GPRS); Type: PG-C300; Serial: --- Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: Muscle 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.55 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.31, 4.31, 4.31); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 PG-C300/Area Scan (81x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.500 mW/g PG-C300/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.3 V/m; Power Drift = -0.069 dB Peak SAR (extrapolated) = 0.812 W/kg SAR(1 g) = 0.430 mW/g; SAR(10 g) = 0.223 mW/g Maximum value of SAR (measured) = 0.493 mW/g 0 dB = 0.493mW/g Date/Time: 12/1/2005 14:35:37 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 1900_flat_ch661_back_dist_0mm DUT: Triple-Band GSM 850 / DCS 1800 / PCS1900 (with WAP & GPRS); Type: PG-C300; Serial: --- Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: Muscle 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.55 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.31, 4.31, 4.31); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 PG-C300/Area Scan (81x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.36 mW/g PG-C300/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.4 V/m; Power Drift = -0.035 dB Peak SAR (extrapolated) = 2.18 W/kg SAR(1 g) = 1.22 mW/g; SAR(10 g) = 0.664 mW/g Maximum value of SAR (measured) = 1.38 mW/g 0 dB = 1.38mW/g Date/Time: 12/1/2005 15:00:18 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 1900_flat_ch512_back_dist_0mm DUT: Triple-Band GSM 850 / DCS 1800 / PCS1900 (with WAP & GPRS); Type: PG-C300; Serial: --- Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: Muscle 1900 MHz Medium parameters used: f = 1850.2 MHz; σ = 1.51 mho/m; ε r = 52; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.31, 4.31, 4.31); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 PG-C300/Area Scan (81x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.12 mW/g PG-C300/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.2 V/m; Power Drift = 0.063 dB Peak SAR (extrapolated) = 1.81 W/kg SAR(1 g) = 1.01 mW/g; SAR(10 g) = 0.547 mW/g Maximum value of SAR (measured) = 1.12 mW/g 0 dB = 1.12mW/g Date/Time: 12/1/2005 15:24:43 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 1900_flat_ch810_back_dist_0mm DUT: Triple-Band GSM 850 / DCS 1800 / PCS1900 (with WAP & GPRS); Type: PG-C300; Serial: --- Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: Muscle 1900 MHz Medium parameters used: f = 1909.8 MHz; σ = 1.59 mho/m; ε r = 51.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.31, 4.31, 4.31); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 PG-C300/Area Scan (81x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.59 mW/g PG-C300/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.2 V/m; Power Drift = 0.01dB Peak SAR (extrapolated) = 2.73 W/kg SAR(1 g) = 1.42 mW/g; SAR(10 g) = 0.804 mW/g Maximum value of SAR (measured) = 1.58 mW/g 0 dB = 1.58mW/g Date/Time: 12/1/2005 15:24:43 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 1900_flat_ch810_back_dist_0mm_z-axis scan DUT: Triple-Band GSM 850 / DCS 1800 / PCS1900 (with WAP & GPRS); Type: PG-C300; Serial: --- Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: Muscle 1900 MHz Medium parameters used: f = 1909.8 MHz; σ = 1.59 mho/m; ε r = 51.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.31, 4.31, 4.31); Calibrated: 11/21/2005 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 11/23/2005 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 PG-C300/Area Scan (81x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.59 mW/g PG-C300/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.2 V/m; Power Drift = 0.01dB Peak SAR (extrapolated) = 2.73 W/kg SAR(1 g) = 1.42 mW/g; SAR(10 g) = 0.804 mW/g Maximum value of SAR (measured) = 1.58 mW/g ETS Dr. Genz GmbH, Germany Registration number: G5M205110089-S-8 Appendix C ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Appendix C Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M205110089-S-8 Appendix C Appendix C. Pictu…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH FCC - TEST - REPORT FCC RULES PARTS 22 and 24 FCC ID: JYCPG-C300 Test report no.: G5M205110089-P-2224 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-8…
