JYV-A33IGGPRS in Flybook Notebook

Dialogue Flybook User’s Manual Revision: 1.02 Part Number: DTC-FA33I-01-02 Thanks We, Dialogue Technology Corp., thank you for purchasing FlyBook. This advanced, ultra- portable and complete computer with most popular wireless and wired communication features built-in can now become your closest companion that keeps the computing and information available to you in most convenient means. We hope you to enjoy the use of FlyBook. And for any question, please refer to this manual or contact us. We will be very glad to serve you. Announcement Dialogue Technology Corporation is a registered trademark. FlyBook is a trademark of Dialogue Technology Corporation. All trade names referred to in this document are the servicemark, trademark or registered trademark of respective manufactures or companies. Disclaimer Specifications and information in this document are subject to change without notice. Please visit our web site (www.dialogue.com.tw) or contact us to get the latest information. With regards to the accuracy of this document, no warranty is made or implied. Copyright No part of this document may be copied or reproduced in any form or by any means without the express written permission of © 2003 Dialogue Technology Corporation. About this user's manual This user's manual includes the essential information for the users who need to use or manage the FlyBook computer by themselves. The content covers all FlyBook's models. Please check your own model and skip what you do not need to know. Windows® XP Home edition is the default operating system of the FlyBook computer. All of the descriptions in this manual are under Windows® XP Home edition. If this user's guide could not help you with the problems, please read the on-line helps in your computer, consult your dealer or visit our web site (http://www.dialogue.com.tw) to get more information. Table of Contents Chapter 1 Before You Start Packing list ........................................................................................ 2 Statement of limited warranty .......................................................... 4 What the warranty covers .............................................................. 4 What the warranty does not cover ................................................. 5 How to obtain the warranty service ................................................ 5 Limitation of liability ........................................................................ 6 How to get help ................................................................................. 7 Best care for your FlyBook .............................................................. 7 Taking care of your computer ........................................................ 7 Taking care of your AC-to-DC adapter and power cord ................. 8 Taking care of your battery pack .................................................... 9 Chapter 2 Introduction A glance at your FlyBook computer ............................................. 13 Front view .................................................................................... 13 Rear view ..................................................................................... 16 Left view ....................................................................................... 18 Right view .................................................................................... 19 Bottom view ................................................................................. 20 Features ........................................................................................... 21 Processor ..................................................................................... 21 Memory ........................................................................................ 21 Storage ........................................................................................ 21 Power ........................................................................................... 21 Display ......................................................................................... 22 Audio ............................................................................................ 22 Input devices ................................................................................ 22 I/O ports ....................................................................................... 22 Communication ............................................................................ 23 Convertible display screen and working modes ......................... 24 Working modes ............................................................................ 24 Notebook mode ....................................................................... 24 Tablet mode ............................................................................. 25 Turning the computer to a feasible working mode ....................... 25 To tablet mode ......................................................................... 25 To notebook mode ................................................................... 26 Innovative "Prompt to Play" user's interface ............................... 27 Multimedia ....................................................................................... 28 Display to a VGA display device .................................................. 28 Display to a video display device ................................................. 28 Sound or voice to an earphone or speakers ................................ 28 Sound or voice from an external microphone .............................. 28 Connectivity .................................................................................... 29 Fast data link ................................................................................... 29 USB link ....................................................................................... 29 IEEE 1394 link ..........................................................…

Text truncated - open the document above for the full version.

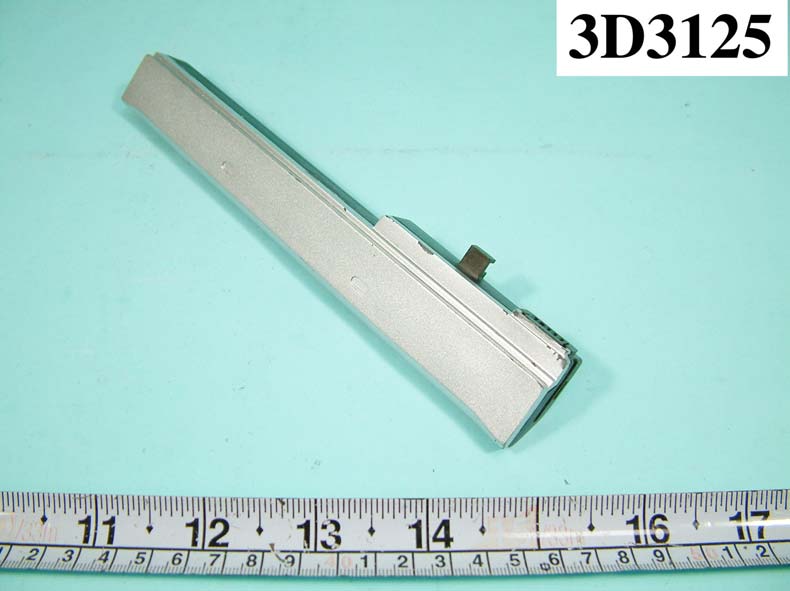

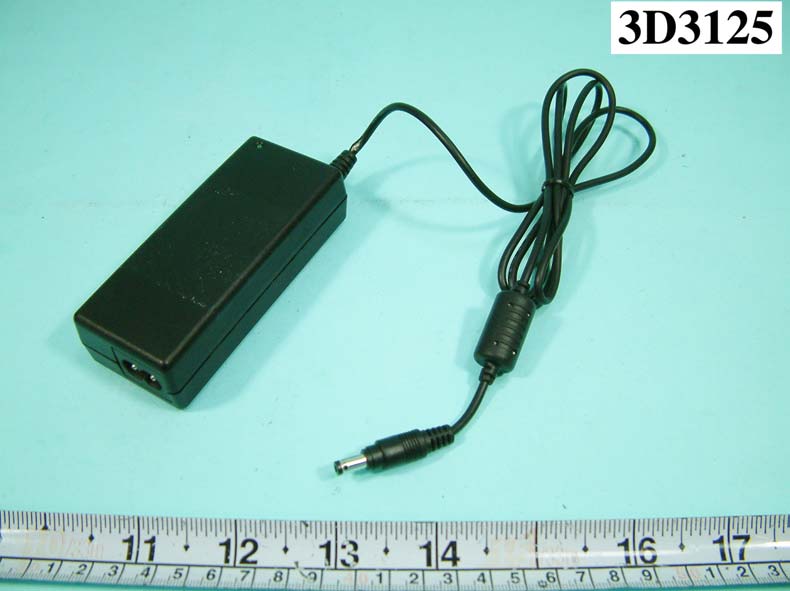

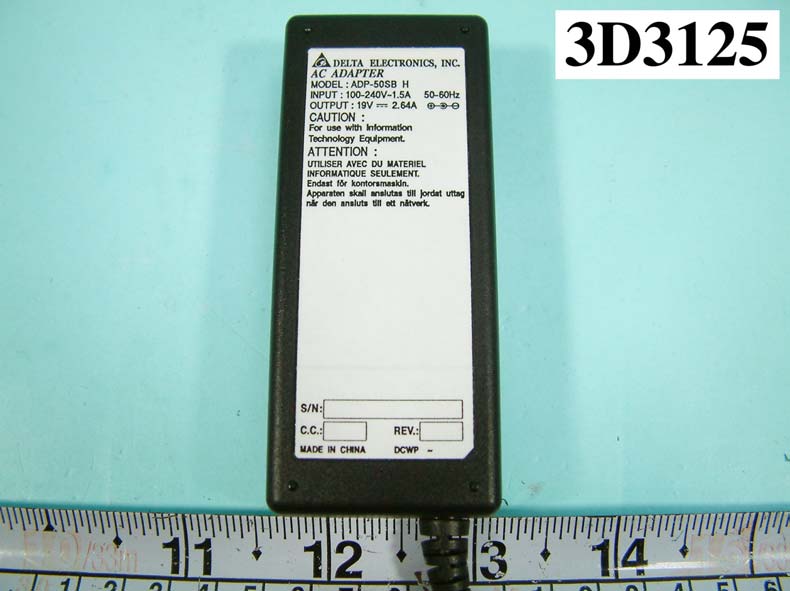

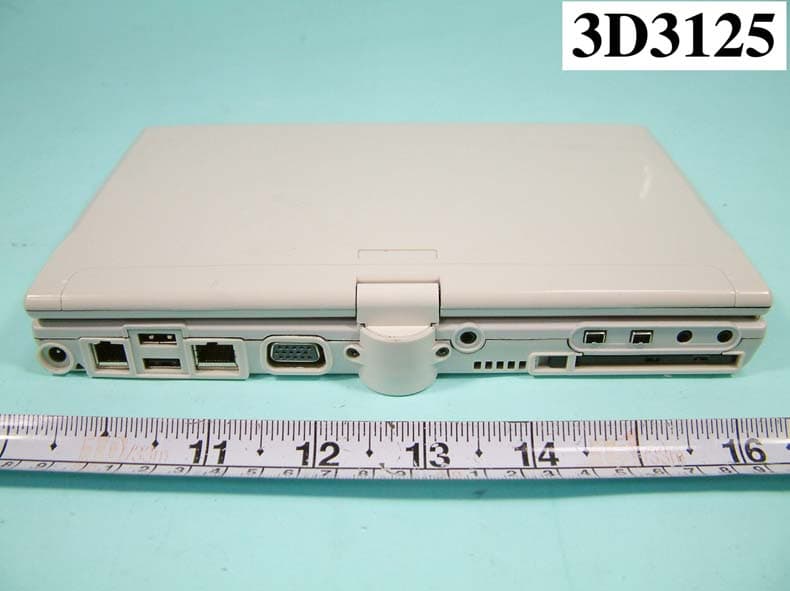

FCC TEST REPORT REPORT NO. : F3D3125 APPENDIX A. External Photographs of EUT SPORTON International Inc. PAGE NUMBER: A1 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A2 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A3 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A4 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A5 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A6 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255

FCC TEST REPORT REPORT NO. : F3D3125 APPENDIX B. Internal Photographs of EUT SPORTON International Inc. PAGE NUMBER: A1 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A2 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A3 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A4 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A5 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A6 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A7 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A8 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A9 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A10 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A11 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A12 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A13 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A14 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A15 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A16 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A17 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A18 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A19 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A20 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A21 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A22 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A23 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A24 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A25 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A26 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3D3125 SPORTON International Inc. PAGE NUMBER: A27 OF A27 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2004 FAX : 886-2-2696-2255

GPRS Bluetooth WLAN

1 Wireless communications through the built-in modules To start wireless communications through the built-in modules, you must turn on the power of the modules first and then make connections through the communication software programs. You can use hot keys or FlyBook Control Center to turn on and off the power of modules. To use hot keys, please see Keyboard section. The following steps guide you to turn on and off the power through FlyBook Control Center: „ Double click on [FlyBook Control Center] icon in system tray. A FlyBook Control Center window appears. „ Click on module’s name or icon to turn on (set checked) and off (set unchecked) the power of a module. „ Wireless Network Connection Although a peer-to-peer connection is allowed for the computer, for the most part, the computer communicates with an access-point to access resource on or over a wireless network. Configuring your connections „ Click on [Setting] icon in FlyBook Control Center window or double click on 2 [Wireless Network Connection] icon in Network Connections window. A Wireless Network Connection Properties window appears. „ Click on [Wireless Networks] tab. You can seek networks, configure the settings for the networks you wish to link and add them to the Preferred Networks under this tab. „ Click on [General] tab and refer to Windows XP user’s manual to complete the TCP/IP configuration under this tab. „ 3 Making connection to a Wireless Network If the power of Wireless Network module is turned on, the computer will automatically seek the preferred networks listed in Preferred Networks and connect to the most preferred one found. The services provided to the network members will be activated once the computer is connected to the network. You can double click on [Wireless Network Connection] icon in Network Connections window again. A Wireless Network Connection Status window will be invoked for you this time. In Wireless Network Connection Status window, you can: „ Check connection status. „ Disable and enable the connection. „ Click on [Properties] to invoke Wireless Network Connection Properties window again to change the connection settings. <Note> In Wireless Network Connection Properties window, you can set “Shows icon in notification area when connected” checked. A Wireless Network status icon will show on the taskbar, and you can directly click on the icon to invoke the Wireless Network Connection Status window. 4 Bluetooth communication (Optional) When the power of Bluetooth module is turned on, the communication starts automatically. You can find a Bluetooth icon, which is blue in color with a white Bluetooth logo insert, in the system tray. <Note> „ If the power of Bluetooth module is turned on, but the icon is blue in color with a red Bluetooth logo insert, the communication has not been started yet. Please right-click on the icon and select "Start the Bluetooth Device" to start the communication. „ To stop the communication, you can right-click on the icon again and select "Stop the Bluetooth Device". But it is better for you to turn off the power of the module (Through FlyBook Control Center) in order to conserve the power. Configuring your connections The computer connects to different types of Bluetooth-equipped devices via different types of Bluetooth service protocol. All of the connection settings are configured in Bluetooth Configuration window. You can right-click on the Bluetooth icon in system tray and then select [Advanced Configuration] to invoke Bluetooth Configuration window. Please see Bluetooth Application Note in your Recovery CD to learn how to configure 5 your connections. Making connections to Bluetooth-equipped devices You can right-click on the Bluetooth icon in system tray and then select [Explore My Bluetooth Places] to explore My Bluetooth Places. Make connections to your Bluetooth-equipped devices in My Bluetooth Places window. 6 Or you can right-click on the Bluetooth icon in system tray and then select [Quick Connect][Service name] to explore a specific connection service. Make connections to the specific type of devices in the explored window. Please also see Bluetooth Application Note in your Recovery CD to learn how to make connections to your Bluetooth-equipped devices. GPRS communication (Optional) If the GPRS module is available in your computer, first of all, you must apply for a GPRS account and get a SIM card from the network service provider before use. The SIM card is a key that allows you to connect the computer to a GPRS network. You can access Internet resource via the network. 7 Insert the SIM card into the SIM card slot before turning on the power of the module. Configuring your connection „ Click on [setting] of GPRS/CDMA in FlyBook Control Center window. A Telephone and MODEM window appears. „ Select “MC388 (GPRS)” and then click on [Properties]. A MC388 (GPRS) Properties window appears. „ Click on [Advanced] tab and then input an initialization command in the Extra initialization commands input box. „ Click on [Ok] to close the window. 8 <Note> The Extra initialization command is different from network to network. Get the command from your network service provider. „ In Network Connections window, run Create a new connection wizard to create a dial-up connection for GPRS. If completed, an entry will show in Network Connections window. Making connection to a GPRS network Please follow the steps below to make a GPRS link (If a dial-up connection, named GPRS, is created.): „ Click on [GPRS] in Network Connections window. A Connect to GPRS dialogue box appears. „ Input phone number in Dial-up input box, and then input the user name and password of your account. 9 „ Click on [Dial] to start the link. If connected, click on [GPRS] again in Network Connections window. A connection status window appears this time. In the status window, you can: „ Check connection status. „ Stop the connection. <Note> The phone number of dial-up also depends on GPRS network. Get …

Text truncated - open the document above for the full version.

©2003 SPORTON International Inc..SAR Testing Lab Tel:886-22696-2468 Fax:886-2-2696-2255 FCC SAR Test Report Test Report No ﹕ Report F3D3125-02 Specific Absorption Rate (SAR) Test Report for Dialogue Technology Corp. on the Flybook FCC ID: JYV-A33iG Report No.: F3D3125-02 Brand Name: Dialogue Model Name: .. A33i Series Date of Testing: Jan.14,2004 Date of Report: Jan.19,2004 Date of Review: Jan.19,2004 ‚ The test results refer exclusively to the presented test model / sample only. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. ©2003 SPORTON International Inc..SAR Testing Lab Tel:886-22696-2468 Fax:886-2-2696-2255 FCC SAR Test Report Test Report No ﹕ Report F3D3125-02 Table of Contents 1. Statement of Compliance ............................................................................................................................................ 1 2. Administration Data............................................................................................................................................................. 2 2.1 Testing Laboratory............................................................................................................................................................ 2 2.2 Details of Applicant .......................................................................................................................................................... 2 2.3 Application Details ........................................................................................................................................................... 2 3. General Information ........................................................................................................................................................... 3 3.1 Description of EUT........................................................................................................................................................... 3 3.2 Applied Standards............................................................................................................................................................. 5 3.3 Device Category and SAR Limits. ................................................................................................................................... 5 3.4 Test Conditions . ............................................................................................................................................................... 6 3.4.1 Ambient Conditions. ................................................................................................................................................ 6 3.4.2 Test Configuration. .................................................................................................................................................. 6 4. Specific Absorption Rate (SAR) .......................................................................................................................................... 7 4.1 Introduction ................................................................................................................................................................ 7 4.2 SAR definition.................................................................................................................................................................. 7 5. SAR Measurement System................................................................................................................................................... 8 5.1 DASY4 E-Field Probe System-------------------------------------------------------------------------------------------------------9 5.1.1 ET3DV6 E-Field Probe Specification --------------------------------------------------------------------------------------10 5.1.2 ET3DV6 E-Field Probe Calibration ----------------------------------------------------------------------------------------10 5.2 Data Acquisition Electronic (DAE) System ----------------------------------------------------------------------------------------11 5.3 Robot ------------------------------------------------------------------------------------------------------------------------------------12 5.4 Measurement Server -------------------------------------------------------------------------------------------------------------------13 5.5 SAM phantom --------------------------------------------------------------------------------------------------------------------------13 5.6 Data Storage and Evaluation --------------------------------------------------------------------------------------------------------14 5.6.1 Data Storage -------------------------------------------------------------------------------------------------------------------14 5.6.2 Data Evaluation -----------------------------------------------------------------------------------------------------------------14 5.7 Test Equipment List -------------------------------------------------------------------------------------------------------------------17 6. Tissue Simulating Liquids.................................................................................................................................................... 18 7. Uncertainty Assessment .............................................................................................................................................. 20 8. SAR Measurement Evaluation ............................................................................................................................................ 22 8.1 Purpose for System Performance Check -------------------------------------------------------------------------------------------22 8.2 Equipments Set up --------------------------------------------------------------------------------------…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F3D3125 SPORTON International Inc. FCC ID JYV-A33iG TEL : 886-2-2696-2468 Pa ge No. 1 of 50 FAX : 886-2-2696-2255 Issued Date Nov. 17, 2003 FCC TEST REPORT for 47 CFR, Part 24E Equipment : Flybook Model No. : A33i series FCC ID : JYV-A33iG Filing Type : Certification Applicant : Dialogue Technology Corp. 10F, No. 196, Sec. 2, Jungshing Rd., Shindian City, Taipei 231, Ta i w a n , R . O . C . ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F3D3125 SPORTON International Inc. FCC ID JYV-A33iG TEL : 886-2-2696-2468 Pa ge No. 2 of 50 FAX : 886-2-2696-2255 Issued Date Nov. 17, 2003 The applicant has been cautioned as to the following: 15.21 Information to User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC TEST REPORT Report No. : F3D3125 SPORTON International Inc. FCC ID JYV-A33iG TEL : 886-2-2696-2468 Pa ge No. 3 of 50 FAX : 886-2-2696-2255 Issued Date Nov. 17, 2003 Table of Contents Rule Description Page . Test Report 4 2.1033(c) General Information Required 5 2.1033(c)(14) Rule Summary 8 . General Information 9 . Standard Test Conditions and Engineering Practices 10 2.1046(a) EIRP Carrier Power (Radiated) 11 2.1051, 2.1049(c), 24, 24.238(b). . Transmitter Conducted Measurements 19 2.1053(a) Field Strength of Spurious Radiation 29 2.1055(a)(1) Frequency Stability (Temperature Variation) 45 2.1055(b)(1) Frequency Stability (Voltage Variation) 47 Antenna Factor & Cable Loss 49 List of Measuring Equipments Used 51 Uncertainty of Test Site 52 Appendix A External Product Photograph Appendix B Internal Photograph Appendix C Set up Photograph FCC TEST REPORT Report No. : F3D3125 SPORTON International Inc. FCC ID JYV-A33iG TEL : 886-2-2696-2468 Pa ge No. 4 of 50 FAX : 886-2-2696-2255 Issued Date Nov. 17, 2003 Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report b) Laboratory: Sporton International Inc. No.52, Hwa-Ya 1 st RD., Hwa Ya Technology Park, Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. c) Report Number: F3D3125 d) Client: Dialogue Technology Corp. 10F, No. 196, Sec. 2, Jungshing Rd., Shindian City, Taipei 231, Taiwan, R.O.C. e) Identification: A33i series FCC ID : JYV-A33iG Description: GSM/GPRS 1900 Radio f) EUT Condition: Not required unless specified in individual tests. g) Report Date: January 19, 2004 EUT Received: January 19, 2004 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with Sporton internal quality manual. m) Supervised by: Joe Yang n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. Accessories Used During Testing: Type Model EUT A33i series AC Adapter ADP-50SB H FCC TEST REPORT Report No. : F3D3125 SPORTON International Inc. FCC ID JYV-A33iG TEL : 886-2-2696-2468 Pa ge No. 5 of 50 FAX : 886-2-2696-2255 Issued Date Nov. 17, 2003 List of General Information Required for Certification In Accordance with FCC Rules and Regulations, Volume II, Part 2 and to 24E, Confidentiality Sub-Part 2.1033 (c)(1): Name and Address of Applicant: Dialogue Technology Corp. 10F, No. 196, Sec. 2, Jungshing Rd., Shindien City, Taipei 231, Taiwan, R.O.C. Manufacturer As above (c)(2): FCC ID: JYV-A33iG Model Number: A33i series (c)(3): Instruction Manual(s): Please See Attached Exhibits (c)(4): Type of Emission: GSM/GPRS 1900 Link mode with Bluetooth Continuous Tx (c)(5): FREQUENCY RANGE, MHz: 1850.2 to 1909.8 GSM1900 (c)(6): Power Rating, Watts: 0.117 EIRP (1900) Switchable x Variable N/A (c)(7): Maximum Power Rating, Watts: 1 GSM1900 FCC TEST REPORT Report No. : F3D3125 SPORTON International Inc. FCC ID JYV-A33iG TEL : 886-2-2696-2468 Pa ge No. 6 of 50 FAX : 886-2-2696-2255 Issued Date Nov. 17, 2003 Subpart 2.1033 (continued) (c)(8): Voltages & Currents in All Elements in Final RF Stage, Including Final Transistor or Solid State Device: Collector Curren…

Text truncated - open the document above for the full version.
