K95KNGM150MOBILE VHF (136-174MHz)

KNG Mobile Radio Basic Functionality and Operation MENU CG  TXDP2RTA RTAPWRSCN Channel 16 Secure One 155.645 MHz Ø Preliminary Contents Basic Operation ...................................................................................1 Receive ..........................................................................................1 Transmit .........................................................................................1 Radio Controls .....................................................................................2 LCD Display Options ...........................................................................3 Status Indicators.............................................................................3 Alphanumeric Label Options ..........................................................4 Microphone Controls ......................................................................5 Button/Menu Functions and Navigation ............................................5 Function Selection ..........................................................................5 Touch Screen Selection .................................................................5 Button Options................................................................................5 Menu Screen Selection .................................................................7 Menu Options .................................................................................8 Service ..................................................................................................8 RELM/BK Radio 1 Basic Operation Receive Turn power on by pushing and releasing the Volume knob. The 1. radio will beep, indicating that it has passed its self test and is operational. Set volume by pressing and holding the [MON] button or selecting 2. “Monitor” from the menu list to hear squelch noise. Turn the Volume knob to set a comfortable volume level. Press the [MON] button again or select “Monitor” from the menu to stop squelch noise. Select a channel zone (if applicable) by pressing the [ZONE] 3. button. Use the PREV/NEXT buttons to select the desired channel zone. Press [ENTER] to set. Alternatively, “Zone Select” may be programmed as a menu item. Select a channel by turning the Channel Selector knob. When the 4. unstopped channel selector is rotated past the highest channel, the radio will emit a beep and wrap around to the fist channel. When rotated past the lowest (1st) channel, the radio will emit a beep and wrap to the highest programmed channel. Transmit Press the 1. PTT (Push-To-Talk) switch on the microphone. The TX annunciator appears on the display and the red Transmit indicator illuminates while the PTT is pressed. Talk in a normal voice with the microphone approximately one to 2. two inches from your mouth. Release the 3. PTT switch to stop transmitting. If the TX annunciator does not appear and a tone is heard, you are on a receive-only channel or the channel is busy (if Busy Channel Lockout is enabled). Turn the Channel Selector knob to an authorized transmit channel or wait until the channel is clear (if Busy Channel Lockout is enabled). If the length of your transmission exceeds the preset Time-Out Timer setting, the transmitter automatically shuts off and a tone sounds. To continue the transmission, release the PTT switch, then press it again and continue talking. KNG Mobile User’s Guide 2 Radio Controls Channel/Zone Select OK BK RADIO ON/OFF - VolumeEmergency ButtonLCD Touch Screen Function Select Microphone Jack Home Button USB Port MENU  TXDP2 T/AMONSCN Channel 16 Secure One 155.645 MHz Ø C P On / Off / Volume: This control is both a push on / off button and a rotate volume knob. Pushing the button in and releasing will toggle the state of the mobile from on to off and back. Rotating this knob will increase or decrease the audio volume setting. Microphone Jack: This connector is for attaching the microphone and certain other accessories to the mobile. USB Port: This connector (under the cover) is for attaching a mini A/B USB connector. This is a USB client port and is used for programming / configuring the radio with the Windows PC programming software. LCD Touch Screen: This is the color display / touch screen that is used to show the user the status and operating condition of the radio as well as receive input from the user via the touchscreen soft buttons. LED: The LED indicator is used to show various operational states such as active receive and active transmit. Orange Button: The orange button is a programmable function button. However, it defaults to the Emergency function which is its typical assignment. Channel Select: The knob on the right side of the front panel is the Channel Select knob. Turn the knob to select the desired operating channel Home: When navigating a menu pressing the Home button will exit the menu mode and return to normal radio operation. Menu Navigation: The menu navigation pad is used to navigate the menu system. The up / down arrows will move the user to a new menu selection. The OK button selects the currently highlighted menu item. LED RELM/BK Radio 3 LCD Display Options KNG mobile radios are equipped with a programmable touch sensitive display. The top line displays radio activity such as transmit and receive indications, repeater talk-around selection, etc. The middle section shows programmed information for the selected channel. The bottom line of the display is populated with programmable buttons. Button functions are assigned using the PC radio editor. Buttons are toggled off or on by pressing the displayed icon. Status Indicators Programmable Buttons Programmable Channel Information MENU  TXDP2 T/AMONSCN Channel 16 Secure One 155.645 MHz Ø C P Status Indicators Receiver Signal Strength RXD, RXAReceive Digital, Receive Analog, Hold Time Active TXD, TXATransmit Digital, Transmit Analog HHigh Transmit Power LLow Transmit Power P1, P2Priority 1 Channel, Priority 2 Channel , Encrypted…

Text truncated - open the document above for the full version.

June 17, 2010 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: K95KNGM150 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Description Exhibit Name + Extension Schematic - System Board 3333-31006-600.pdf Schematic - VHF Board 3333-31006-700.pdf Schematic - Options Board 3333-31015-900.pdf Block Diagram KNG-M150-High_block_diagrams.doc Circuit Description KNG-M150_Theory of Operation.doc Parts List Parts_Listl.pdf Tune Up procedure Alignment Procedure KNG MXXX-FCC.doc The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, RELM Wireless Corp. – BK Radio 7100 Technology Dr. W. Melbourne, FL 32904

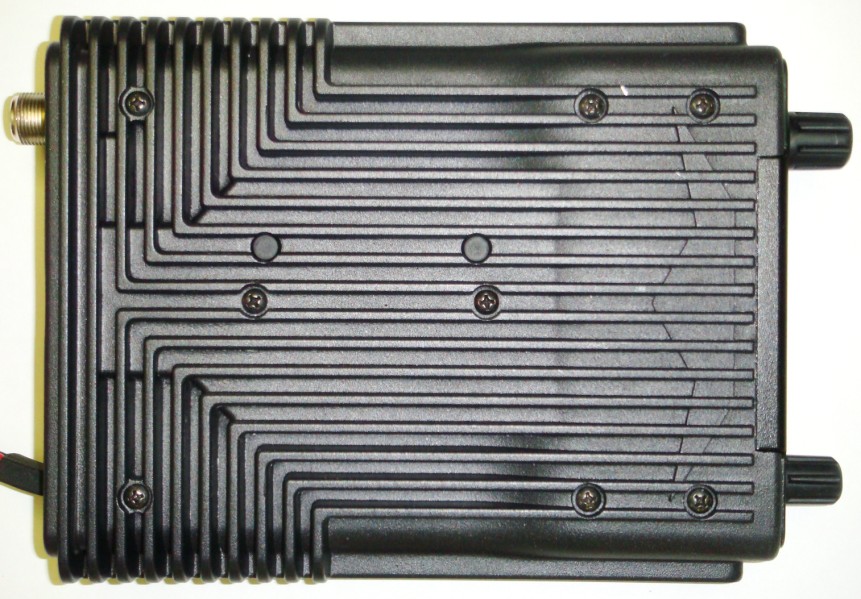

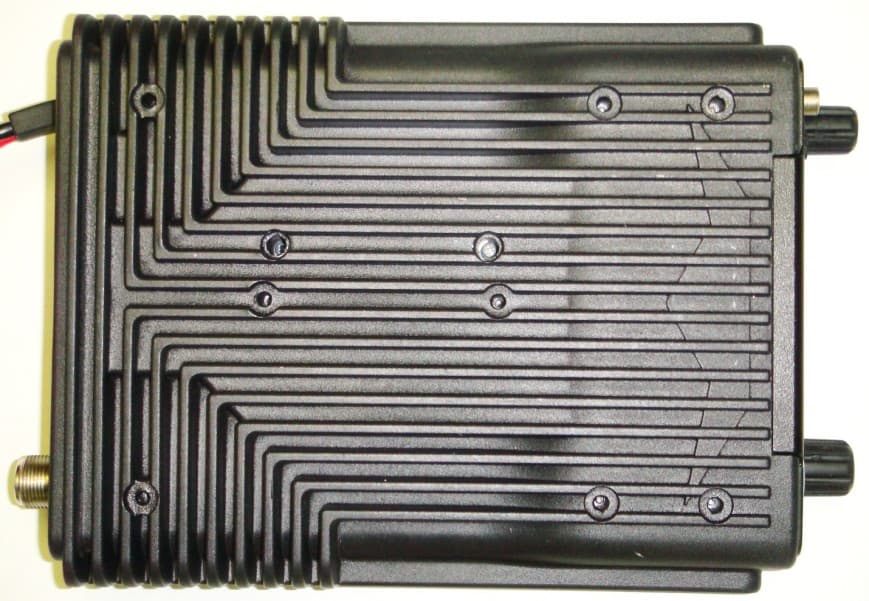

KNG-M150HP Photos FCC ID K95KNGM150 External Photos Radio Top Radio Bottom Radio Sides KNG-M150HP Photos FCC ID K95KNGM150 Radio Front Radio Back

KNG-M150HP Photos FCC ID K95KNGM150 FCC LABEL LOCATION FCC LABEL

KNG-M150HP Photos FCC ID K95KNGM150 Internal Photos. RF Board Top Side RF Board Bottom Side. KNG-M150HP Photos FCC ID K95KNGM150 System Board Top Side System Board Bottom Side KNG-M150HP Photos FCC ID K95KNGM150 Options Board Top Side Options Board Bottom Side

6/16/2010 Page 1 of 3 FCC ID: K95KNGM150 FCC RF Exposure Requirements General information: Device category: Mobile per Part 2.1091 Environment: Controlled Exposure Fixed devices that operate under Part 90 of this chapter are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if they operate at frequencies of 1.5 GHz or below and their effective radiated power (ERP) is 1.5 watts or more. However, compliance with the power density limits of 1.1310 is not required. Antenna: The manufacturer does not specify an antenna. A typical mobile mounted antenna has a gain of 0 dBi. This device has provisions for operation in a vehicle, or a fixed location. Configuration Antenna p/n Type Max. Gain (dBi) Fixed mounted Any omni 0 Operating configuration and exposure conditions: The conducted output power is 110 Watts. Typical use qualifies for a maximum duty cycle factor of 50%. The manufacturer also markets this device only for occupation use. - Part 2.1091 states that devices are excluded from routine evaluation if the EIRP is less than 2.46Watt (or 1.5WERP). - Fixed operation: A typical installation consists of an antenna system with a coaxial cable of the type RG 8U which has a loss of 1dB for a length of 40 feet at VHF frequencies. MPE Calculation: The minimum separation distance is calculated as follows: The limit for general population/uncontrolled exposure environment below 300 MHz is 1.0 mW/cm 2 . 6/16/2010 Page 2 of 3 FCC ID: K95KNGM150 Frequency: 160 MHz The conducted power output is 110 watt. The coax loss was taken as 1 dB. Antenna gain was taken as 0 dBi 50% talk time in 30 minutes 6/16/2010 Page 3 of 3 FCC ID: K95KNGM150 Conclusion: The device complies with the MPE requirements by providing a safe separation distance of 23 inchs between the antenna, including any radiating structure, and any persons when normally operated. Proposed RF exposure safety information to include in User’s Manual: “FCC RF Exposure Requirements: See user’s manual.

FCC PART 90 AND IC RSS-119, RSS-GEN TEST REPORT APPLICANT RELM WIRELESS CORP. - BK RADIO 7100 TECHNOLOGY DRIVE WEST MELBOURNE FLORIDA 32904 USA FCC ID K95KNGM150 IC CERTIFICATION 2116A-KNGM150 MODEL NUMBER KNG-M150 PRODUCT DESCRIPTION MOBILE VHF (136-174 MHz) DATE SAMPLE RECEIVED 5/4/2010 DATE TESTED 5/17/2010 TESTED BY Nam Nguyen APPROVED BY Mario de Aranzeta TIMCO REPORT NO. 1012AT10TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. TABLE OF CONTENTS 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 Applicant: RELM WIRELESS CORP. - BK RADIO FCC ID: K95KNGM150 IC CERT #: 2116A-KNGM150 Report: R\RELM_K95\1012AT10\1012AT10TestReport.doc Page 2 of 9 TABLE OF CONTENTS GENERAL REMARKS ........................................................................................................... 3 GENERAL INFORMATION .................................................................................................... 4 TEST PROCEDURES ............................................................................................................ 5 RF POWER OUTPUT ............................................................................................................ 6 FIELD STRENGTH OF SPURIOUS EMISSIONS .................................................................... 7 RECEIVER RADIATED SPURIOUS EMISSIONS .................................................................... 8 EMC EQUIPMENT LIST ........................................................................................................ 9 Applicant: RELM WIRELESS CORP. - BK RADIO FCC ID: K95KNGM150 IC CERT #: 2116A-KNGM150 Report: R\RELM_K95\1012AT10\1012AT10TestReport.doc Page 3 of 9 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025:2005 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 5/18/2010 Applicant: RELM WIRELESS CORP. - BK RADIO FCC ID: K95KNGM150 IC CERT #: 2116A-KNGM150 Report: R\RELM_K95\1012AT10\1012AT10TestReport.doc Page 4 of 9 GENERAL INFORMATION DUT Specification DUT Description MOBILE VHF (136-174 MHz) FCC ID K95KNGM150 IC Certification 2116A-KNGM150 Model Number KNG-M150 Serial Number N/A Operating Frequency (136 – 174) MHz Test Frequencies (136, 155, and 174) MHz DUT Power Source 110–120Vac/50– 60Hz DC Power 13.4V Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Test Conditions The temperature was 26ºC with a relative humidity of 50%. Modification to the DUT None Test Exercise The DUT was placed in continuous transmit mode. Applicable Standards ANSI/TIA 603-C:2004, FCC CFR 47 Part 90, IC RSS- 119, RSS-GEN Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. Applicant: RELM WIRELESS CORP. - BK RADIO FCC ID: K95KNGM150 IC CERT #: 2116A-KNGM150 Report: R\RELM_K95\1012AT10\1012AT10TestReport.doc Page 5 of 9 TEST PROCEDURES Power Line Conducted Interference: The procedure used was ANSI/TIA 603-C:2004 using a 50uH LISN. Both lines were observed with the DUT transmitting. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. Bandwidth 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Power Output: The RF power output was measured at the antenna feed point using a peak power meter. Antenna Conducted Emissions: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the 10 th harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. Radiation Interference: The test procedure used was ANSI/TIA 603-C:2004 using an Agilent spectrum receiver with pre-selector. The bandwidth (RBW) of the spectrum receiver was 100 kHz up to 1 GHz and 1 MHz above 1 GHz with an appropriate sweep speed. The VBW above 1 GHz was 3 MHz. The analyzer was calibrated in dB above a micro volt at the output of the antenna. Applicant: RELM WIRELESS CORP. - BK RADIO FCC ID: K95KNGM150 IC CERT #: 2116A-KNGM150 Report: R\RELM_K95\1012AT10\1012AT10TestReport.doc Page 6 of 9 RF POWER OUTPUT Rule Part No.: FCC Part 2.1046(a), IC RSS-119 4.1 and 5.4, RSS-GEN 4.8 Test Requirements: Method of Measurement: RF power is measured by connecting a 50-ohm, resistive wattmeter to the RF output connector. With a nominal battery voltage, and the transmitter properly adjusted the RF output measures: Test Setup Diagram: Test Data: OUTPUT POWER: 120.0 Watts Part 2.1033 (C)(8) DC Input into the final amplifier (13.4V)(19.4A) = 259.96 Watts Applicant: RELM WIRELESS CORP. - BK RADIO FCC ID: K95KNGM150 IC CERT #: 2116A-KNGM150 Report: R\RELM_K95\1012AT10\1012AT10TestReport.doc Page 7 of 9 FIELD STRENGTH OF SPURIOUS EMISSIONS Rule Parts. No.: FCC Part 2.1053, RSS-GEN 4.9 Requirements: 25 …

Text truncated - open the document above for the full version.

Applicant: RELM Wireless FCC ID: K95KNGM150 Measured Data Measurement 1. RF Output Power Test Method: TIA/EIA-603-A 2.2.1 Equipment Used: Rohde & Schwarz NRT Power Meter (01-11-12), Rohde & Schwarz NRT-Z14 Power Sensor (01-11-12), Hewlett-Packard 6032A DC Power Supply (08-17-11) 2. Audio Frequency Response Test Method: TIA/EIA-603-A 2.2.6 Equipment Used: Agilent 8920B RF Communication Test Set Modulation Analyzer (03-19-11), Hewlett Packard 35670A Signal Analyzer (03-19-11). No filters were used on the modulation analyzer. 3. Low Pass Filter Response Test Method: TIA/EIA-603-A 2.2.15 Equipment Used: Agilent 8920B RF Communication Test Set Modulation Analyzer (03-19-11), Hewlett Packard 35670A Signal Analyzer (03-19-11). No filters were used on the modulation analyzer. Equipment Under Test Power Sensor Power Meter Equipment Under Test Attenuator Modulation Analyzer Signal Analyzer Equipment Under Test Signal Analyzer Attenuator Modulation Analyzer DC Power Supply Applicant: RELM Wireless FCC ID: K95KNGM150 4. Occupied Bandwidth /Emission Mask No Modulation 16K0F3E 11K0F3E 8K10F1E 8K10F1D Test Method: TIA/EIA-603-A 2.2.11 Equipment Used: Tektronix RSA 3308A Real-time Spectrum Analyzer (11-03-10) 5. Modulation Limiting Test Method: TIA/EIA-603-A 2.2.3 Equipment Used: Agilent 8920B RF Communication Test Set Modulation Analyzer (03-19-11), Agilent 8920B RF Communication Test Set Function Generator (03-19-11) 6. Conducted Spurious Emissions Test Method: TIA/EIA-603-A 2.2.13 Equipment Used: Tektronix RSA 3308A Real-time Spectrum Analyzer (11-03-10) 7. Frequency Stability Test Method: TIA/EIA-603-A 2.2.2 Equipment Used: Agilent 8920B RF Communication Test Set (03-19-11) Test Set Environmental Chamber Equipment Under Test Equipment Under Test Attenuator Spectrum Analyzer Equipment Under Test Attenuator Spectrum Analyzer Carrier Filter Function Generator Equipment Under Test Modulation Analyzer Attenuator Applicant: RELM Wireless FCC ID: K95KNGM150 8. Transient Frequency Behavior Test Method: TIA/EIA-603-A 2.2.19.3 Equipment Used: Agilent 8920B RF Communication Test Set (03-19-11), Tektronix MSO4104 Scope (01-11-11), Rohde & Schwarz SMB100A Signal generator (09-14-10) #1 RF Output Power Frequency (MHz) Power (Watts) Voltage (Volts) Current (PA Device) (Amperes) 136.00 119.1 13.4 18.9 153.00 120 13.4 18.7 163.00 120 13.4 19.2 174.00 120 13.4 19.4 Equipment Under Test Attenuator Combiner Directional Coupler RF Generator RF Detector Scope Test Set Applicant: RELM Wireless FCC ID: K95KNGM150 #2 Audio Frequency Response 25KHz TX Audio Response 163MHz KNG-M150 Audio Frequency Response 25KHz Channel -18.00 -16.00 -14.00 -12.00 -10.00 -8.00 -6.00 -4.00 -2.00 0.00 2.00 4.00 6.00 8.00 10.00 12.00 100.001000.0010000.00 Frequency (Hz) Magnitude (dB) 12.5KHz TX Audio Response 163MHz KNG-M150 Audio Frequency Response 12.5KHz Channel -18.00 -16.00 -14.00 -12.00 -10.00 -8.00 -6.00 -4.00 -2.00 0.00 2.00 4.00 6.00 8.00 10.00 12.00 100.001000.0010000.00 Frequency (Hz) Magnitude (dB) Applicant: RELM Wireless FCC ID: K95KNGM150 #3 Low Pass Filter Response Applicant: RELM Wireless FCC ID: K95KNGM150 #4 Occupied Bandwidth No Modulation #4 Occupied Bandwidth Analog Voice 16K0F3E Mask B Applicant: RELM Wireless FCC ID: K95KNGM150 #4 Occupied Bandwidth Analog Voice 11K0F3E Mask D #4 Occupied Bandwidth Digital Voice 8K10F1E Mask D Applicant: RELM Wireless FCC ID: K95KNGM150 #4 Occupied Bandwidth Digital Data 8K10F1D Mask D Applicant: RELM Wireless FCC ID: K95KNGM150 #5 Modulation Limiting 25kHz Channel 163.0 MHz 0.0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 100.0 0.020.040.060.080.0100.0120.0 Input Level (mVrms) Percentage of Maximum Deviation (%) 300Hz 1000Hz 3000Hz 12.5kHz Channel 163.0MHz 0.0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 100.0 0.020.040.060.080.0100.0120.0 Input Level (mVrms) Percentage of Maximum Deviation (%) 300Hz 1000Hz 3000Hz Applicant: RELM Wireless FCC ID: K95KNGM150 #6 Conducted Spurious Emissions TX Conducted 136.0MHz 408 544 680 1224 -105 -100 -95 -90 -85 -80 -75 -70 -65 -60 -55 0200400600800100012001400160018002000 Frequency(MHz) Attenuation(dB) FCC Limit TX Conducted 153.0MHz 459 1071 1224 -105 -100 -95 -90 -85 -80 -75 -70 -65 -60 -55 0200400600800100012001400160018002000 Frequency(MHz) Attenuation(dB) FCC Limit Applicant: RELM Wireless FCC ID: K95KNGM150 TX Conducted 163.0MHz 489 815 1141 1304 14671630-105 -100 -95 -90 -85 -80 -75 -70 -65 -60 -55 0200400600800100012001400160018002000 Frequency(MHz) Attenuation(dB) FCC Limit TX Conducted 174.0MHz 348 696 870 1044 1218 1740 522 -105 -100 -95 -90 -85 -80 -75 -70 -65 -60 -55 0200400600800100012001400160018002000 Frequency(MHz) Attenuation(dB) FCC Limit Applicant: RELM Wireless FCC ID: K95KNGM150 #7 Frequency Stability Channel Frequency 163 MHz Frequency Error vs. Voltage @25C -3.0 -2.5 -2.0 -1.5 -1.0 -0.5 0.0 0.5 1.0 1.5 2.0 2.5 3.0 10.011.012.013.014.015.016.0 Voltage (V) Frequency Error (ppm) Frequency Error vs. Temperature -3.0 -2.5 -2.0 -1.5 -1.0 -0.5 0.0 0.5 1.0 1.5 2.0 2.5 3.0 -35-25-15-55152535455565 Te mpe rature (C) Frequency Error (ppm) Applicant: RELM Wireless FCC ID: K95KNGM150 #8 Transmitter Transient Frequency Behavior 25Khz Channel 153.0MHz TX ON 25KHz Channel 153.0MHz TX ON ZOOMED Applicant: RELM Wireless FCC ID: K95KNGM150 25Khz Channel 153.0MHz TX OFF 12.5Khz Channel 153.0MHz TX ON Applicant: RELM Wireless FCC ID: K95KNGM150 12.5Khz Channel 153.0MHz TX ON ZOOMED 12.5Khz Channel 153.0MHz TX OFF
