K95KNGP1506W VHF LAND MOBILE RADIO

KNG P150 Owner’s Manual RELM Wireless Corporation 7100 Technology Drive W. Melbourne, FL 32904 KNG P150 Owner’s Manual 2 TABLE OF CONTENTS Introduction .............................................................................................3 FCC Requir ements .................................................................................3 Safety Prec autions..................................................................................3 RF Energy Exposure Awareness and Control In formation.....................4 Basic Operation ......................................................................................7 Mixed Mode O peratio n ...........................................................................8 Channel Gr oups......................................................................................9 Scan Operat ion .....................................................................................10 Priority Scan..........................................................................................12 Unit-To-Unit Call ...................................................................................13 Emergency Call ....................................................................................16 Other Operational Features ..................................................................17 19 BK Radio BUSY CHANNEL LOCKOUT The Busy Channel Lockout featur e applies only to those channels programmed with a receive Channel Guard value. When carrier activity is detected on the channel selected , the radio checks the receive Channel Guard value. If the proper Channel Guard value is present, the radio can transmit on that channel. If the radio detects an incorrect valu e or carrier activity only, the transmitter is disabled. If an attempt is made to transmit, an alert tone will be generated and the di splay will show the word BUSY until the channel becomes available or the PTT switch is released. Channels not programmed with a receive Channel Guard value can be used to transmit regardless of carrier activity. KNG P150 Owner’s Manual 18 ANI ENCODING (Analog Mode Only) ANI encoding (Automatic Numeric Identification), if enabled, transmits a sequence of DTMF tones each time you press the PTT switch. You will hear a sidetone. Your dealer can program the ANI number to be sent. TIME-OUT TIMER The transmit Time-Out Timer limits the duration of calls and guards against accidentally locking on the transmitter and tying up the radio system. Your dealer can program the duration of the Time-Out Timer (15–225 seconds, or disabled). BUSY CHANNEL If the radio has been programmed for Busy Channel operation, it will operate in one of the following Modes: • Busy Channel Indication • Busy Channel Lockout BUSY CHANNEL INDICATION The yellow Busy Channel Indicator glows if there is carrier activity on the selected channel. If the selected channel is a Channel Guard channel and the proper Channel Guard value is not detected, the Busy Channel Indicator remains on for the duration of the carrier activity and no message is heard. During Scan an d Priority Scan operation, the Busy Channel Indicator glows when activity is detected on any channel on the Scan List. When scanning or priority scanning Channel Guard channels and activity has been detected, the Busy Channel Indicator glows for the time period necessary to determine if the proper Channel Guard value has been received. This will cause t he Busy Channel Indicator to flash at various rates. 3 BK Radio INTRODUCTION CONGRATULATIONS, you now own a BK Radio KNG P150 APCO Project 25 digital radio. To meet backwards compatibility as defined by the APCO Project 25 standard, the KNG digital portable radio provides users the ability to intero perate with narrow or wide band analog channels as well as digital sy stems. Please take a moment to read the information in this manual so you can get optimum performance from your new radio. FCC REQUIREMENTS Your radio must be properly licensed by the Federal Communications Commission prior to use. Your BK Radio dealer can assist you in meeting these requirements. Your dealer will program each radio with your authorized frequencies, signali ng codes, etc., and will be there to meet your communications needs as your system expands. SAFETY PRECAUTIONS • Do not operate the transmitter in close proximity to blasting caps. • Do not operate the radio in an explosive atmosphere (petroleum fuels, solvents, dust, etc.) unless your radio is an intrinsically safe model designed for such use. KNG P150 Owner’s Manual 4 RF ENERGY EXPOSURE AWARENESS AND CONTROL INFORMATION, AND OPERATIONAL INSTRUCTIONS FOR FCC OCCUPATIONAL USE REQUIREMENTS BEFORE USING YOUR PORTABLE 2-WAY RADIO, READ THIS IMPORTANT RF ENERGY AWARENESS AND CONTROL INFORMATION AND OPERATIONAL INSTRUCTIONS TO ENSURE COMPLIANCE WITH THE FCC’S RF EXPOSURE GUIDELINES. NOTICE: This radio is intended for use in occupational/controlled conditions, where users have full knowledge of their exposure and can exercise control over their exposure to meet FCC limits. This radio device is NOT authorized for general population, consumer, or any other use. This 2-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communica tions between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy; other forms include electric power, radar, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which w hen used improperly can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. The energy levels associated with radio waves from portable 2-way radios, when properly used, are not great enough to cause biological damage. Experts in science, engineering, m edicine, health and industry work with organizations to develop standard…

Text truncated - open the document above for the full version.

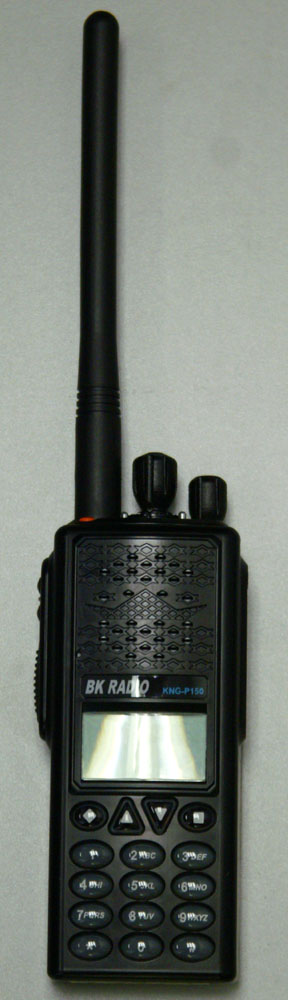

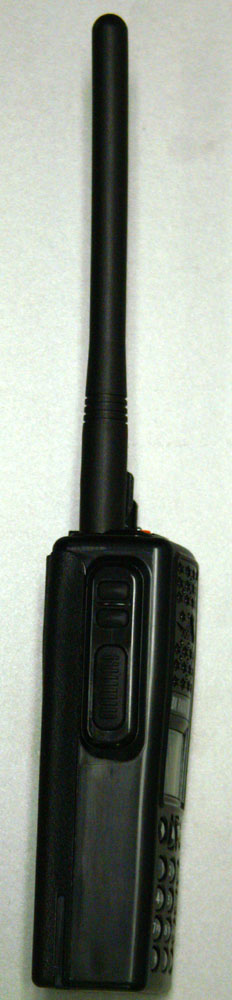

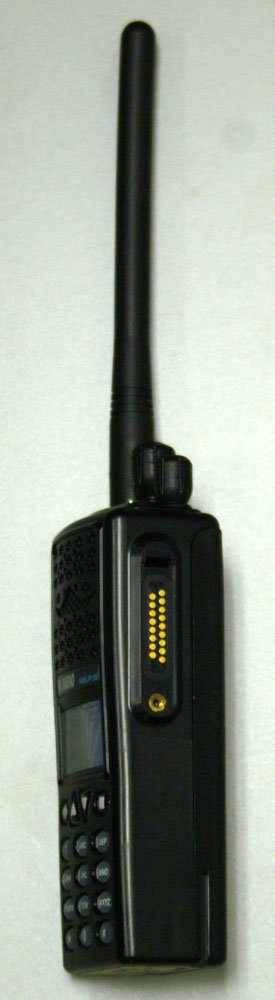

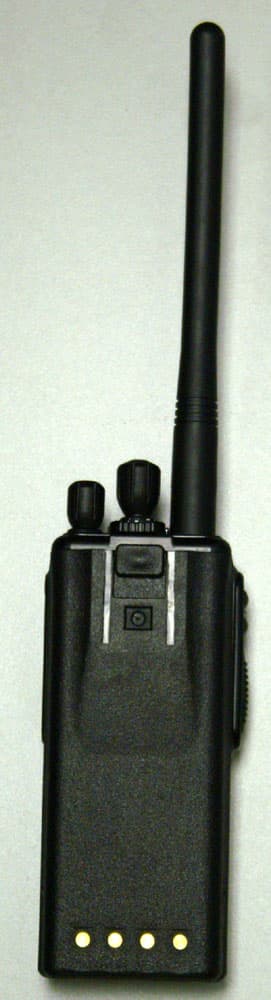

External Photos

BK Radio/ Relm Wireless November 9, 2007 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission Industrial Canada Certificate Bureau Ref: FCC ID: K95KNGP150 Label Justification Dear Sirs: The applicant requests acceptance of the labeling proposal described below for transmitters bearing FCC identifier K95KNGP150 The subject transmitter is handheld radio as shown in figure 1. Because the majority of the transmitters housing is composed of touching area, LCD display, and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, we propose placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "carbon box" which does not allow the transmitters to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), we will add the FCC identifier "K95KNGP150 to the outside of the consumer "carbon box" packaging. Sincerely, Brian Jones On behalf of BK Radio/Relm Wireless

FCC LABEL LOCATION

Internal Photos. RF board top side RF board bottom side. System board bottom side System board top side

Applicant: RELM Wireless FCC ID: K95KNGP150 Measured Data Measurement 1. RF Output Power Test Method: TIA/EIA-603-A 2.2.1 Equipment Used: Rohde&Schwarz NRT Power Meter(9-27-08), NRT-Z14 Power Sensor(9-27-08), Fluke 87 Multimeter(9-14-08) 2. Audio Frequency Response Test Method: TIA/EIA-603-A 2.2.6 Equipment Used: HP8901B Modulation Analyzer(4-30-08), HP35670A Signal Analyzer (9-19-08) No filters were used on the modulation analyzer. 3. Low Pass Filter Response Test Method: TIA/EIA-603-A 2.2.15 Equipment Used: HP35670A Signal Analyzer(9-19-08) Equipment Under Test Power Sensor Power Meter Equipment Under Test Attenuator Modulation Analyzer Signal Analyzer Equipment Under Test Signal Analyzer Applicant: RELM Wireless FCC ID: K95KNGP150 4. Occupied Bandwidth /Emission Mask No Modulation 16K0F3E 11K0F3E 8K10F1D 8K10F1E Test Method: TIA/EIA-603-A 2.2.11 Equipment Used: HP8560E Spectrum Analyzer(5-04-08) 5. Modulation Limiting Test Method: TIA/EIA-603-A 2.2.3 Equipment Used: HP8901B Modulation Analyzer(4-30-08), HP8901B Function Gen (4-30-08) 6. Conducted Spurious Emissions Test Method: TIA/EIA-603-A 2.2.13 Equipment Used: HP8560E Spectrum Analyzer(5-04-08) 7. Frequency Stability Test Method: TIA/EIA-603-A 2.2.2 Equipment Used: HP8920B RF Communications Test Set(4-30-08) Test Set Environmental Chamber Equipment Under Test Equipment Under Test Attenuator Spectrum Analyzer Equipment Under Test Attenuator Spectrum Analyzer Carrier Filter Function Generator Equipment Under Test Modulation Analyzer Attenuator Applicant: RELM Wireless FCC ID: K95KNGP150 8. Transient Frequency Behavior Test Method: TIA/EIA-603-A 2.2.19.3 Equipment Used: HP 8920B Communications Test Set(4-30-08), Tek DPO4104 Scope(2-16-08), ohde & Schwarz SMB100A Signal generator(9-13-10) 9. #1 RF Output Power Frequency Power Voltage Current(PA Device) 136.0 6.69W 10.8V 1.52A 153.0 6.50W 10.8V 1.37A 163.0 6.95W 10.8V 1.38A 174.0 6.75W 10.8V 1.46A Equipment Under Test Attenuator Combiner Directional Coupler RF Generato r RF Detector Scope Test Set Applicant: RELM Wireless FCC ID: K95KNGP150 #2 Audio Frequency Response 25KHz TX Audio Response 163MHz -17 -16 -15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10 11 12 100100010000 Frequency(Hz) Mag(dB) 12.5KHz TX Audio Response 163MHz -17 -16 -15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10 11 12 100100010000 Frequency(Hz) Mag(dB) Applicant: RELM Wireless FCC ID: K95KNGP150 #3 Low Pass Filter Response Applicant: RELM Wireless FCC ID: K95KNGP150 #4 Occupied Bandwidth No Modulation #4 Occupied Bandwidth Analog Voice 16K0F3E Mask B Applicant: RELM Wireless FCC ID: K95KNGP150 #4 Occupied Bandwidth Analog Voice 11K0F3E Mask D #4 Occupied Bandwidth Digital Voice 8K10F1D Mask D Applicant: RELM Wireless FCC ID: K95KNGP150 #4 Occupied Bandwidth Digital Data 8K10F1E Mask D Applicant: RELM Wireless FCC ID: K95KNGP150 #5 Modulation Limiting 25kHz Channel 163.0MHz 0.0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 100.0 0.0100.0200.0300.0400.0500.0 Input Level (mVrms) Percentage of Maximum Deviation (%) 300Hz 1000Hz 3000Hz 12.5kHz Channel 163.0MHz 0.0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 100.0 0.0100.0200.0300.0400.0500.0 Input Level (mVrms) Percentage of Maximum Deviation (%) 300Hz 1000Hz 3000Hz Applicant: RELM Wireless FCC ID: K95KNGP150 #6 Conducted Spurious Emissions TX Conducted 136.0MHz 272 -105 -100 -95 -90 -85 -80 -75 -70 -65 -60 -55 0200400600800100012001400160018002000 Frequency(MHz) Attenuation(dB) FCC Limit TX Conducted 153.0MHz 306 -105 -100 -95 -90 -85 -80 -75 -70 -65 -60 -55 0200400600800100012001400160018002000 Frequency(MHz) Attenuation(dB) FCC Limit Applicant: RELM Wireless FCC ID: K95KNGP150 TX Conducted 163.0MHz 326 -105 -100 -95 -90 -85 -80 -75 -70 -65 -60 -55 0200400600800100012001400160018002000 Frequency(MHz) Attenuation(dB) FCC Limit TX Conducted 174.0MHz 348 -105 -100 -95 -90 -85 -80 -75 -70 -65 -60 -55 0200400600800100012001400160018002000 Frequency(MHz) Attenuation(dB) FCC Limit Applicant: RELM Wireless FCC ID: K95KNGP150 #7 Frequency Stability Frequency Error vs. Voltage @25C -5 -4 -3 -2 -1 0 1 2 3 4 5 8.09.010.011.012.013.014.0 Voltage (V) Frequency Error (ppm) Frequency Error vs. Temperature -5 -4 -3 -2 -1 0 1 2 3 4 5 -35-25-15-55152535455565 Temperature (C) Frequency Error (ppm) Applicant: RELM Wireless FCC ID: K95KNGP150 #8 Transmitter Transient Frequency Behavior 25Khz Channel 153.0MHz TX ON 25KHz Channel 153.0MHz TX ON ZOOMED Applicant: RELM Wireless FCC ID: K95KNGP150 25Khz Channel 153.0MHz TX OFF 12.5Khz Channel 153.0MHz TX ON Applicant: RELM Wireless FCC ID: K95KNGP150 12.5Khz Channel 153.0MHz TX ON ZOOMED 12.5Khz Channel 153.0MHz TX OFF

VHF RADIO TEST REPORT RADIATED EMISSIONS ONLY PER FCC PART 22, 74, 80, 90 AND RSS-119 APPLICANT BK Radio C/O Relm Communications ADDRESS 7100 Technology Drive West Melbourne, FL 32904 FCC ID K95KNGP150 IC Label IC: 2116A-KNGP150 MODEL NUMBER KNGP150 PRODUCT DESCRIPTION VHF Two Way Radio DATE SAMPLE RECEIVED October 16, 2007 DATE TESTED October 18, 2007 TESTED BY Nam Nguyen APPROVED BY Mario de Aranzeta TIMCO REPORT NO. 3362AUT7TestReport.PDF TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 Certificate # 0955-01 Applicant: Bk Radio FCC ID: K95KNGP150, IC: 2116A-KNGP150 Report: W:\B\BKRadio_K95\3362AUT7\3362AUT7TestReport Page 2 of 11 TABLE OF CONTENTS ATTESTATION................................................................................................. 3 REPORT SUMMARY ........................................................................................ 4 TEST ENVIRONMENT AND TEST SETUP......................................................... 4 DUT DESCRIPTION......................................................................................... 5 TEST EQUIPMENT .......................................................................................... 6 TEST PROCEDURE ......................................................................................... 7 FIELD STRENGTH OF SPURIOUS EMISSIONS (RADIATED) .......................... 10 Certificate # 0955-01 Applicant: Bk Radio FCC ID: K95KNGP150, IC: 2116A-KNGP150 Report: W:\B\BKRadio_K95\3362AUT7\3362AUT7TestReport Page 3 of 11 ATTESTATION This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. Certificate #0955-01 All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Mario de Aranzeta Signature: On File Function: Lab Supervisor / Engineer Date: October 22, 2007 Certificate # 0955-01 Applicant: Bk Radio FCC ID: K95KNGP150, IC: 2116A-KNGP150 Report: W:\B\BKRadio_K95\3362AUT7\3362AUT7TestReport Page 4 of 11 REPORT SUMMARY Disclaimer The test results relate only to the items tested. Purpose of Test To demonstrate the DUT in compliance with FCC CFR 47, Part 22, 74, 80, and 90 radiated spurious emissions requirements for VHF radios. To demonstrate the DUT in compliance with IC RSS-119 radiated spurious emissions requirements for VHF radios. Test Standards ANSI/TIA 603-C: 2004, FCC CFR 47 Part 90, ANSI C63.4: 2003 Related Approval There is no significant emission for receiver portion. TEST ENVIRONMENT AND TEST SETUP Test Facility RF output power and radiated emission were conducted by Timco Engineering Inc. located at 849 NW State Road 45, Newberry, FL 32669 USA Laboratory Test Condition The temperature was 26ºC with a relative humidity of 50%. Deviation from the standards No deviation Modification to the DUT No modification was made. Test Exercise (software etc.) The DUT was placed in continuous transmitting mode of operation. System Setup Stand alone device. Certificate # 0955-01 Applicant: Bk Radio FCC ID: K95KNGP150, IC: 2116A-KNGP150 Report: W:\B\BKRadio_K95\3362AUT7\3362AUT7TestReport Page 5 of 11 DUT DESCRIPTION Manufactured by BK Radio Product Description VHF 2-Way Radio FCC ID K95KNGP150 IC Label IC: 2116A-KNGP150 M/N KNGP150 Family M/Ns N/A S/N N/A Operating Freq 136 ~ 174 MHz (for USA only 150 ~ 174 MHz) Max. Output Pwr 6.95W Bandwidth 12.5 kHz, 25 kHz Emission Designator(s) 8K10F1E, 8K10F1D, 11K0F3E, 16K0F3E Modulation FM Power Source Rechargeable battery, 10.8 VDC Test Item Preproduction Type of DUT Portable Antenna Spec Detachable Certificate # 0955-01 Applicant: Bk Radio FCC ID: K95KNGP150, IC: 2116A-KNGP150 Report: W:\B\BKRadio_K95\3362AUT7\3362AUT7TestReport Page 6 of 11 TEST EQUIPMENT Device Manufacturer Model Serial Number Cal/Char Date Due Date Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 12/7/05 12/7/07 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/05 12/7/07 Analyzer Tan Tower Quasi-Peak Adapter HP 85650A 3303A01690 CAL 12/8/05 12/8/07 Analyzer Tan Tower Preamplifier HP 8449B- H02 3008A00372 CAL 12/8/05 12/8/07 Antenna: Biconnical Electro- Metrics BIA-25 1171 CAL 4/29/07 4/29/09 Antenna: Double- Ridged Horn Electro- Metrics RGA- 180 2319 CAL 12/29/06 12/29/08 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 7/16/06 7/16/08 Certificate # 0955-01 Applicant: Bk Radio FCC ID: K95KNGP150, IC: 2116A-KNGP150 Report: W:\B\BKRadio_K95\3362AUT7\3362AUT7TestReport Page 7 of 11 TEST PROCEDURE (As applicable) Power Line Conducted Interference The procedure used was ANSI 63.4-2003 using a 50uH LISN. Both lines were observed with the DUT transmitting. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. RF Power Output The RF power output was measured at the antenna feed point using a peak power meter. A 50-ohm, resistive wattmeter was connected to the RF output connector. With a nominal battery voltage, and the transmitter properly adjusted the RF output measures: Spurious Emissions At Antenna Terminals (Conducted) The carrier was modulated 100%. The spectrum was scanned from 0.4 to at least the 10th harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. The measurements were made in accordance with standard ANSI/TIA-603-C: 2004 Radiation Interfe…

Text truncated - open the document above for the full version.
