KDY1759EXAlarm Receiver

1759EX V1.0 R EFERENCE & INSTALLATION MANUAL (433MHZ / 868MHZ) 1759EX TABLE OF CONTENTS INTRODUCTION ................................................. 3 Features.............................................................................................. 3 Specifications...................................................................................... 3 INSTALLATION .................................................. 4 Location and Mounting ....................................................................... 4 Earth Ground ...................................................................................... 4 AC Power............................................................................................ 4 Backup Battery ................................................................................... 4 Auxiliary Power Terminals .................................................................. 6 Telephone Line Connection ................................................................ 6 Bell Output Connection ....................................................................... 6 Programmable Output Connections ................................................... 6 Single Zone Inputs .............................................................................. 7 Keypad and Keypad Zone Connections ............................................. 7 Keyswitch Connections....................................................................... 8 Fire Circuits......................................................................................... 8 PROGRAMMING METHODS................................ 9 WinLoad Software for Windows.......................................................... 9 Programming Using a Keypad ............................................................ 9 Configuring The LED Keypads ......................................................... 10 Programming Using A Paradox Memory Key ................................... 11 ACCESS CODES ............................................ 12 Access Code Length......................................................................... 12 Installer Code (Default: 000000) ....................................................... 12 System Master Code (Default: 123456)............................................ 12 User Code Options ........................................................................... 12 Lock Master Code............................................................................. 13 Duress Code ..................................................................................... 13 ZONE PROGRAMMING ..................................... 14 What is an Expansion Input? ............................................................ 14 Reassign Keypad Zone 2 ................................................................. 14 Reassign Zones to Expansion Inputs ............................................... 15 Zone Programming ........................................................................... 15 Zone Definitions ................................................................................ 16 Exclusive Zone Definitions................................................................ 17 Zone Partition Assignment................................................................ 18 Zone Options .................................................................................... 18 Zone Speed ...................................................................................... 20 EOL Zones........................................................................................ 20 WIRELESS ZONE PROGRAMMING ................ 20 Wireless Transmitter Programming .................................................. 20 Viewing the Wireless Transmitter Signal Strength............................ 21 Serial Number Display ...................................................................... 21 Supervision Options.......................................................................... 22 Remote Control Programming .......................................................... 22 ARMING AND DISARMING OPTIONS ............... 25 Switch To Stay Arming ..................................................................... 25 Stay Arming with Delay..................................................................... 25 Regular Arming switches to Force Arming (Not to be used with UL Instal- lations) .............................................................................................. 25 Restrict Arming On Battery Fail ........................................................ 25 Restrict Arming On Tamper Failure .................................................. 25 Timed Auto-Arming ........................................................................... 25 No Movement Auto-Arming .............................................................. 26 Auto-Arming Options (Not to be used with UL installations) ............. 26 One-Touch Arming (Not to be used with UL installations) ................ 26 Exit Delay.......................................................................................... 26 Bell Squawk On Arm/Disarm With Keypad ...................................... 27 Bell Squawk On Arm/disarm with Remote Control........................... 27 No Exit Delay When Arming with Remote Control ........................... 27 No Exit Delay Beeps and No Bell Squawk When Stay Arming ........ 27 ALARM OPTIONS .......................................... 27 Bell Cut-Off Timer............................................................................. 27 Recycle Alarm .................................................................................. 27 Tamper Recognition ......................................................................... 28 Keypad Panic Options...................................................................... 28 Panic Lockout Timer.......................................................................…

Text truncated - open the document above for the full version.

Wednesday, August 28, 2002 Office of Engineering & Technology Federal Communications Commission Washington, D.C. 20554 Subject: FCC label applied on the metallic enclosure of the module (4” X 3”) format. FCC ID: KDY1759EX Paradox Security Systems ltd 780 Industrial Blvd, St-Eustache, Québec, Canada, J7R 5V3 MODEL: SPECTRA 1759EX FCC ID: KDY1759EX IC: 2438A-1759EX This device complies with part 15 and 68 of the FCC Rules. Operation is subject to the following Two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. FCC part 68 registration number: 5A7CAN-22633-AL-E Canada: 2438 6735 A Ringer Equivalence: 0.1B Connect to: RJ31X (USA) CA31A (CANADA) MADE IN CANADA Marc Bertrand Certification Manager Position Technology inc. e-mail: [email protected]

Master: PT15BBC Date: January 25, 2002 Test Report:2W06114 Applicant:PARADOX SECURITY SYSTEMS 780 Industrial Blvd St-Eustache, Québec Canada, J7R 5V3 Equipment Under Test:1759EX (EUT) In Accordance With:FCC 47 CFR Part 15, Subpart B: 1999 Class B Certification, Including FCC ET Dockets 98-80 (FCC-02-157) Tested By:Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: G. Westwell, Wireless Technologist Date:22 August 2002 Total Number of Pages:26 Nemko Canada Inc.FCC 47 CFR PART 15, SUBPART B: 1999 CLASS B CERTIFICATION PROJECT NO.:2W06114 EQUIPMENT: 1759EX Page 2 of 26 Table Of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. Equipment Under Test (EUT)..............................................................................6 Section 3. Equipment Configuration....................................................................................9 Section 4. Conducted Emissions..........................................................................................11 Section 5. Radiated Emissions.............................................................................................20 Section 6. Sample Calculations............................................................................................23 Section 7. Block Diagrams...................................................................................................24 Section 8. Test Equipment List...........................................................................................26 Annex A Prescans For Engineering Evaluation Only......................................................A1 Nemko Canada Inc.FCC 47 CFR PART 15, SUBPART B: 1999 CLASS B CERTIFICATION PROJECT NO.:2W06114 EQUIPMENT: 1759EX Page 3 of 26 Section 1.Summary of Test Results General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart B for Class B Digital Devices. These tests were conducted using measurement procedures of ANSI C63.4-1992. The equipment was tested for conducted emissions from 0.15 MHz to 30 MHz using a 50 microhenry line impedance stabilization network (L.I.S.N.) as described in ANSI C63.4-1992. Peripheral equipment was also operated through a 50 microhenry L.I.S.N. Abstract: Name Of TestPara. No.Results Conducted EmissionsFCC ET Dockets 98-80 (FCC-02- 157) Complied Radiated Emissions15.109Complied THIS TEST REPORT APPLIES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. The EUT is not sold with a AC/AC adapter. Refer to Equipment Configuration for details regarding the AC/AC adapter used during testing. Test Performed By: ________________________________Date: 22 August 2002 Kevin Carr, EMC Specialist Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc.FCC 47 CFR PART 15, SUBPART B: 1999 CLASS B CERTIFICATION PROJECT NO.:2W06114 EQUIPMENT: 1759EX Page 4 of 26 Measurement Uncertainty Accuracy of Measurement The measurement uncertainty was calculated using the methods described in NAMAS document NIS81 May 1994, with the confidence level of 95%. Radiated Measurements OATS #1 (A) 3 meter [UN9902B] ContributionDistributionUncertainty (+/-) Field Strength VariationRandom 0.2089 dBμV^2 Measurement EquipmentNormal 0.3275 dBμV^2 Measurement EquipmentRectangular 0.4167 dBμV^2 Total Combined Uncertainty 0.9762 dBμV^2 Expanded Uncertainty @ 95% Confidence = ±± 2.0013 dBμμV OATS #1 (B) 10 meter [UN9906B] ContributionDistributionUncertainty (+/-) Field Strength VariationRandom 0.1388 dBμV^2 Measurement EquipmentNormal 0.3275 dBμV^2 Measurement EquipmentRectangular 0.4167 dBμV^2 Total Combined Uncertainty 0.9694 dBμV^2 Expanded Uncertainty @ 95% Confidence = ±± 1.926 dBμμV OATS #2 (B) 3 meter [UN9912B] ContributionDistributionUncertainty (+/-) Field Strength VariationRandom 0.4516 dBμV^2 Measurement EquipmentNormal 0.3275 dBμV^2 Measurement EquipmentRectangular 0.4167 dBμV^2 Total Combined Uncertainty 1.0935 dBμV^2 Expanded Uncertainty @ 95% Confidence = ±± 2.2417 dBμμV Nemko Canada Inc.FCC 47 CFR PART 15, SUBPART B: 1999 CLASS B CERTIFICATION PROJECT NO.:2W06114 EQUIPMENT: 1759EX Page 5 of 26 Radiated Measurements, continued OATS #2 (C) 10 meter [UN9917B] ContributionDistributionUncertainty (+/-) Field Strength VariationRandom 0.1211 dBμV^2 Measurement EquipmentNormal 0.3275 dBμV^2 Measurement EquipmentRectangular 0.4167 dBμV^2 Total Combined Uncertainty 0.9302 dBμV^2 Expanded Uncertainty @ 95% Confidence = ±± 1.9069 dBμμV Conducted Measurements Shielded Room #1 [UN9920] ContributionDistributionUncertainty (+/-) Amplitude VariationRandom 0.0400 dBμV^2 Measurement EquipmentNormal 0.7500 dBμV^2 Measurement EquipmentRectangular 0.2500 dBμV^2 Total Combined Uncertainty 1.0198 dBμV^2 Expanded Uncertainty @ 95% Confidence = ±± 2.0396 dBμμV Nemko Canada Inc.FCC 47 CFR PART 15, SUBPART B: 1999 CLASS B CERTIFICATION PROJECT NO.:2W06114 EQUIPMENT: 1759EX Page 6 of 26 Section 2.Equipment Under Test (EUT) Brand Name:SPECTRA Manufacturer:PARADOX SECURITY SYSTEMS Model No.:1759EX Serial No.:None Primary Power:120VAC, 60Hz with 12VDC battery back-up Receive Frequency:433.92MHz-Fixed Crystal …

Text truncated - open the document above for the full version.

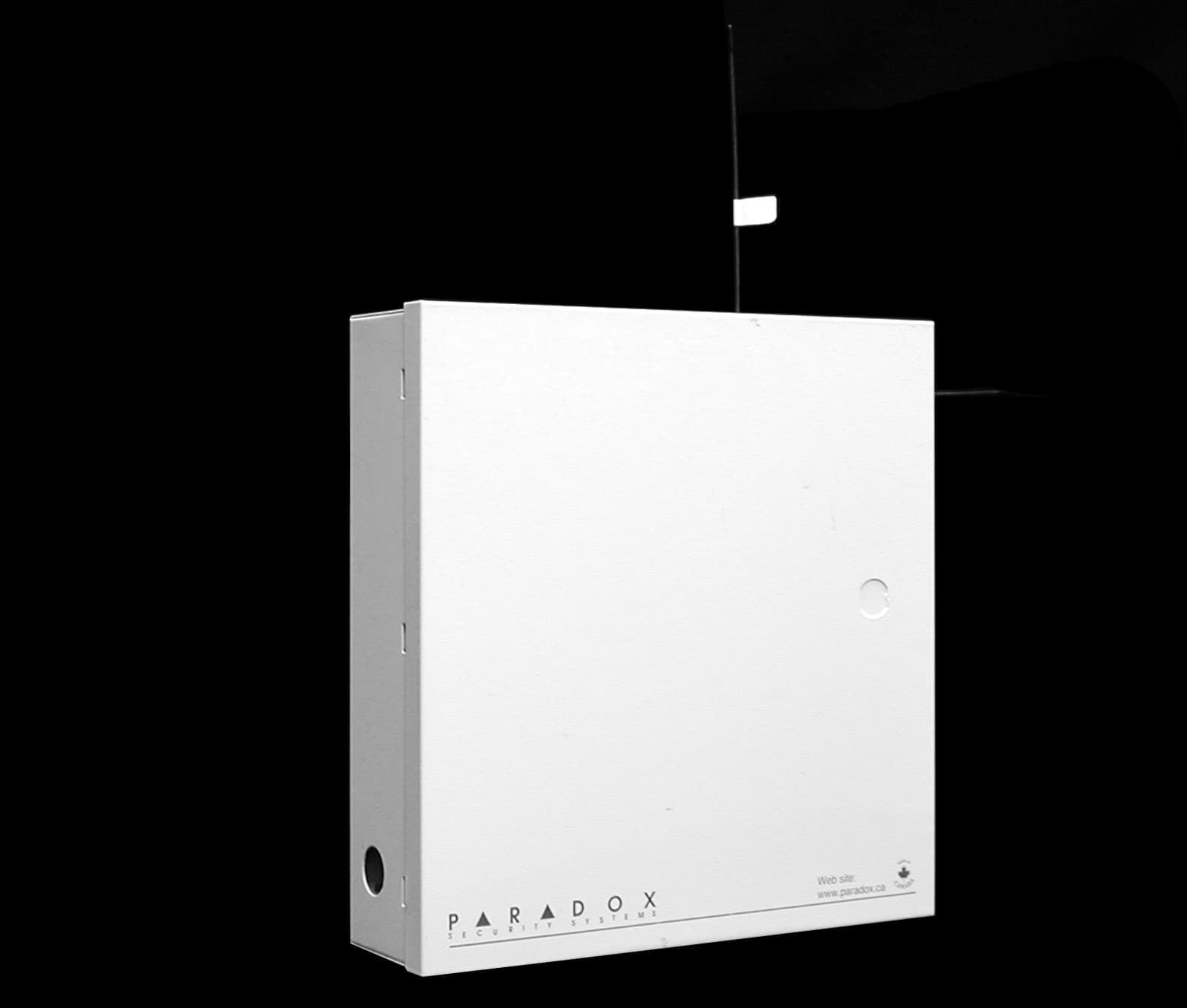

Nemko Canada Inc.FCC 47 CFR PART 15, SUBPART B: 1999 CLASS B CERTIFICATION PROJECT NO.:2W06114 EQUIPMENT: 1759EX Page 19 of 26 Conducted Photographs Side View Front View

Nemko Canada Inc.FCC 47 CFR PART 15, SUBPART B: 1999 CLASS B CERTIFICATION PROJECT NO.:2W06114 EQUIPMENT: 1759EX Page 22 of 26 Radiated Photographs Front View Rear View
