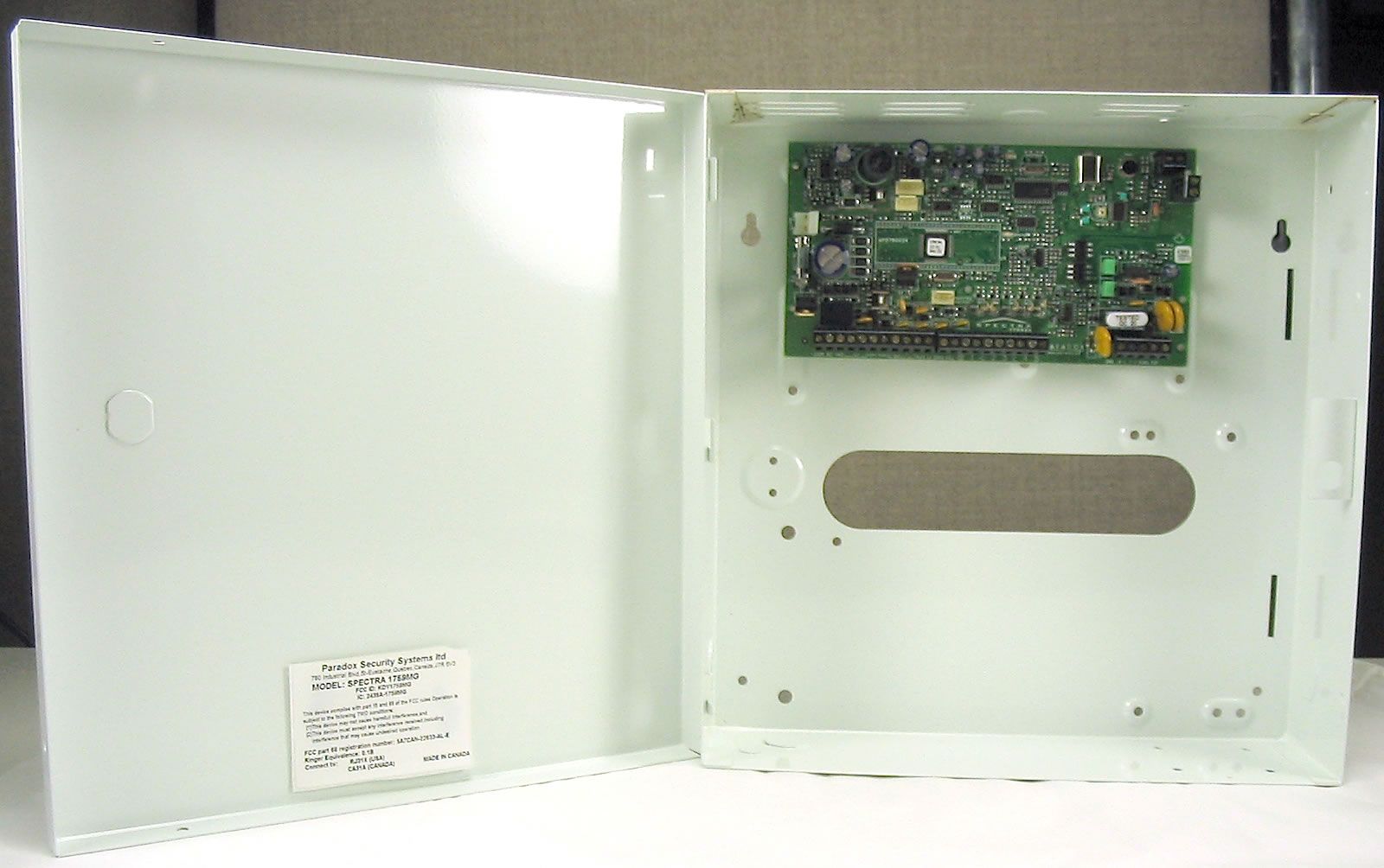

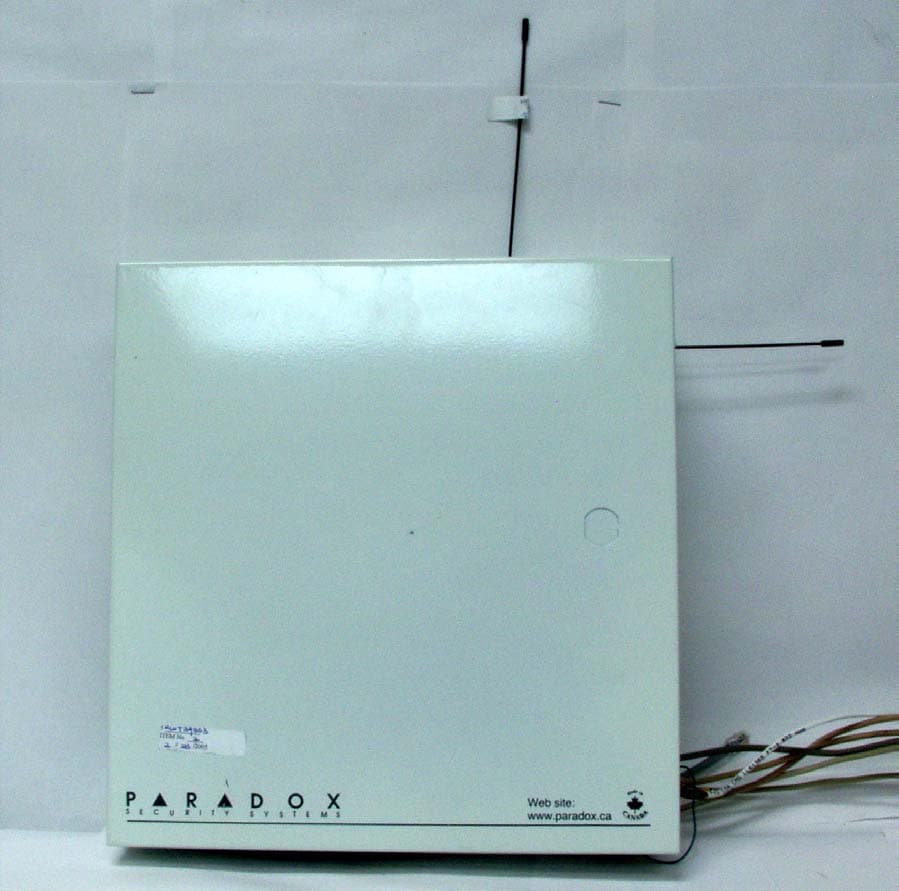

KDY1759MGSpectra 1759MG

1759MG V2.0 Reference & Installation Manual (433MHZ / 868MHZ) 1759MG Spectra Series Table of Contents Introduction...................................................................... 1 Features.............................................................................................. 1 Specifications...................................................................................... 1 Installation ........................................................................ 2 Location and Mounting ....................................................................... 2 Earth Ground ...................................................................................... 2 AC Power............................................................................................ 2 Backup Battery ................................................................................... 2 Auxiliary Power Terminals* ................................................................. 4 Telephone Line Connection ................................................................ 4 Bell Output Connection ....................................................................... 4 Programmable Output Connections* .................................................. 4 Single Zone Inputs .............................................................................. 5 Keypad and Keypad Zone Connections ......................................... 5 Keyswitch Connections....................................................................... 6 Fire Circuits......................................................................................... 6 Programming Methods.................................................... 7 WinLoad Software for Windows* ........................................................ 7 Programming Using a Keypad ............................................................ 7 Configuring The LED Keypad ............................................................. 8 Programming Using A Paradox Memory Key*.................................... 9 Access Codes ................................................................ 10 Access Code Length......................................................................... 10 Installer Code (Default: 0000 / 000000) ............................................ 10 System Master Code (Default: 1234 / 123456)................................. 10 User Code Options ........................................................................... 10 Lock Master Code............................................................................. 11 Duress Code ..................................................................................... 11 Zone Programming ........................................................ 12 What is an Expansion Input? ............................................................ 12 Reassign Keypad Zone 2 ................................................................. 12 Reassign Zones to Expansion Inputs ............................................... 13 Zone Programming ........................................................................... 13 Zone Definitions ................................................................................ 13 Exclusive Zone Definitions................................................................ 14 Programming a Wireless Fire Zone .................................................. 15 Zone Partition Assignment................................................................ 15 Zone Options .................................................................................... 16 Zone Speed ...................................................................................... 17 EOL Zones........................................................................................ 17 Wireless Features .......................................................... 18 Wireless Transmitter Programming .................................................. 18 Viewing the Wireless Transmitter Signal Strength............................ 19 Serial Number Display ...................................................................... 19 Supervision Options.......................................................................... 19 Remote Control Programming .......................................................... 20 Arming and Disarming Options.................................... 22 Switch To Stay Arming ..................................................................... 22 Stay Arming with Delay..................................................................... 22 Regular Arming Switches to Force Arming (Not to be used with UL Installations) ............................................... 23 Restrict Arming on Battery Fail ......................................................... 23 Restrict Arming on Tamper Failure ................................................... 23 Timed Auto-Arming ........................................................................... 23 No Movement Auto-Arming .............................................................. 23 Auto-Arming Options (Not to be used with UL installations) ............. 24 One-Touch Arming (Not to be used with UL installations) ................ 24 Exit Delay ......................................................................................... 24 Bell Squawk On Arm/Disarm with Keypad ....................................... 24 Bell Squawk On Arm/Disarm with Remote Control .......................... 24 No Exit Delay When Arming with Remote Control ........................... 24 No Exit Delay Beeps and No Bell Squawk When Stay Arming ........ 25 Alarm Options ............................................................... 25 Bell Cut-Off Timer............................................................................. 25 Recycle Alarm .................................................................................. 25 Tamper Recognition ........................................…

Text truncated - open the document above for the full version.

Spectra 1759MG - 1 - Programming Guide 1759MG System Programming Guide Software Version 2.0 Default Installer Code 0000 / 000000 (see section [281] on page 18) Default System Master Code 1234 / 123456 (see section [301] on page 18) How Do I Enter Programming Mode? 1) Press [ENTER]. 2) Enter your [INSTALLER CODE]. 3) Enter 3-digit [ SECTION] you wish to program. 4) Enter required [ DATA]. Decimal and Hexadecimal Programming Table Trouble Display Press the [TBL] or [TRBL] key to view the Trouble Display. Please note that the keypad can be programmed to emit a BEEP every 5 seconds whenever a new trouble condition has occurred. Press the [ TBL] or [TRBL] key to stop the beeping. [1] - No Battery or Low Battery[8] - Timer Loss** [2] - Wireless Transmitter Low Battery[9] - Tamper or Zone Wiring Failure* [3] - Power Failure[10] - Telephone Line Monitoring Failure [4] - Bell Output Disconnected[11]/[STAY] - Fire Loop Trouble* [5] - Maximum Bell Current[12]/[BYP] - Module Loss [6] - Maximum Auxiliary Current[13]/[MEM] - Wireless Transmitter Supervision Loss* [7] - Communicator Report Failure[16]/[FORCE] and [TBL]/[TRBL] flashes - Keypad Fault * Press the illuminated key ([9], [ STAY] or [MEM]) to view which zones are causing the trouble. Enter the Installer Code to clear Tamper troubles. ** Press [8] to re-program the time. Value or Action What Do I Press? What Do I See? 10-Zone LED16-Zone LEDLCD Values 1 to 9[1] to [9][1] to [9][1] to [9][1] to [9] A (hex only)[0][0 (10)][10]0 B (hex only) [STAY][STAY] [11]B C (hex only) [BYP][BYP] [12]C D (hex only) [MEM][MEM] [13]D E (hex only) [TBL] / [TRBL][TBL] [14]E F (hex only) [PG] / [FNC1][PG] [15]F Exit Without Saving [ CLEAR] [ ENTER] flashes[ARM1] & [STAY1] flash“SECTION [ ]” Erase Current Digit [ FORCE] Displays next digit or next section Save Data (hex only) [ENTER] Advances to the next section Spectra 1759MG - 3 - Programming Guide Table of Contents Default Installer Code...................................................................................................................................................... 1 Default System Master Code .......................................................................................................................................... 1 How Do I Enter Programming Mode? ............................................................................................................................. 1 Decimal and Hexadecimal Programming Table .............................................................................................................. 1 Trouble Display ............................................................................................................................................................... 1 Data Display Mode (LED Keypads Only) ........................................................................................................................ 5 Configuring the 1686H, 1686V and 1689 Keypads (V2.0 or higher) ............................................................................... 5 Zone Programming.......................................................................................................................................................... 6 System Timers ................................................................................................................................................................ 8 Programmable Outputs ................................................................................................................................................... 9 System Options ............................................................................................................................................................. 12 Communication Settings ............................................................................................................................................... 15 Report Codes ................................................................................................................................................................ 16 System Settings ............................................................................................................................................................ 18 User Code Options........................................................................................................................................................ 18 Reprogram All Modules................................................................................................................................................. 19 Paradox Memory Key (PMC-3) ..................................................................................................................................... 19 4-PGM Output Modules V2.0 ............................................................................................................ 20 PGM Programming........................................................................................................................................................ 20 Printer Module V2.0 ........................................................................................................................... 21 PGM Programming........................................................................................................................................................ 22 Clock Programming....................................................................................................................................................... 22 Voice-assisted Arm/Disarm Bus Module V2.0 ................................................................................ 23 Wireless Features.............................................................................................................................. 24 Zone Assignment ........................................................................................................................…

Text truncated - open the document above for the full version.

March 11th, 2005 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Nemko Canada Inc. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Paradox Security Systems, 780 Industrial Blvd, St-Eustache, Quebec, CANADA, J7R 5V3 Dated this 11th Day of March 2005 Agency agreement expiration date: March 11 th 2006 By: NABIL NAHOUL Signature Printed Title: Certification Manager On behalf of : Paradox Security Systems Telephone: (450) 491-7444 ext 209

March 11th, 2005 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: KDY1759MG Product Name: SPECTRA model 1759MG Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Parts list • PCB layout drawings • Block diagram • Operational description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 11th Day of March 2005 By: NABIL NAHOUL Signature Printed Title: Certification Manager On behalf of : Paradox Security Systems Telephone: (450) 491-7444 ext 209

FCC Part 15 Subpart B, March 2005 Test Report: 5W39803.2 Applicant: Paradox Security Systems 780 Industrial Blvd St-Eustache, Quebec J7R 5V3 Apparatus: Spectra 1759MG FCC ID: KDY1759MG In Accordance With: FCC Part 15 Subpart B, 15.107 and 15.109 Unintentional Radiators Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Sim Jagpal, Resource Manager Date: 18 March 2005 Total Number of Pages: 19 Nemko Canada Inc. REPORT SUMMARY Report Number: 5W39803.2 FCC ID: KDY1759MG Specification: FCC Part 15 Subpart B Page 2 of 19 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart B. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: Spectra 1759MG Specification: FCC Part 15 Subpart B, 15.107 and 15.109 Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Jason Nixon, Telecom Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number: 5W39803.2 FCC ID: KDY1759MG Specification: FCC Part 15 Subpart B Page 3 of 19 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1 : Equipment Under Test............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Theory of Operation ...................................................................................................................................4 1.4 Technical Specifications of the EUT ..........................................................................................................5 Section 2 : Test Conditions......................................................................................................................... 6 2.1 Specifications .............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment .......................................................................................................................................6 2.4 Test Equipment...........................................................................................................................................6 Section 3 : Observations ............................................................................................................................. 7 3.1 Modifications Performed During Assessment ............................................................................................7 3.2 Record Of Technical Judgements ...............................................................................................................7 3.3 EUT Parameters Affecting Compliance .....................................................................................................7 3.4 Test Deleted................................................................................................................................................7 Section 4 : Results Summary ..................................................................................................................... 8 4.1 FCC Part 15 Subpart C : Test Results ........................................................................................................9 Appendix A : Test Results ........................................................................................................................ 10 Appendix B : Setup Photographs ............................................................................................................ 18 Appendix C : Block Diagram of Test Setups .......................................................................................... 19 Nemko Canada Inc. SECTION 1 : EQUIPMENT UNDER TEST Report Number: 5W39803.2 FCC ID: KDY1759MG Specification: FCC Part 15 Subpart B Page 4 of 19 Section 1 : Equipment Under Test 1.1 Product Identification The Equipment Under Test was identified as follows: Spectra 1759MG 1.2 Samples Submitted for Assessment The following samples of the apparatus have been submitted for type assessment: Sample No. Description Serial No. 1 Euro Cabinet ⎯⎯ 3 Spectra 1759MG 050221B 4 Antenna ⎯⎯ 5 Antenna ⎯⎯ 15 20VA Power Transformer (P/N RT-1620SL/M) ⎯⎯ 16 40VA Power Transformer (M/N UB1640W) ⎯⎯ The first samples were received on: February 28, 2005 1.3 Theory of Operation The Spectra 1759MG is a security control panel. The apparatus has a 433MHz receiver for communications from different sensors placed around the house…

Text truncated - open the document above for the full version.

Nemko Canada Inc. APPENDIX B : SETUP PHOTOGRAPHS Report Number: 5W39803.2 FCC ID: KDY1759MG Specification: FCC Part 15 Subpart B Page 18 of 19 Appendix B : Setup Photographs Conducted Emissions Setup: Spurious Emissions Setup:
