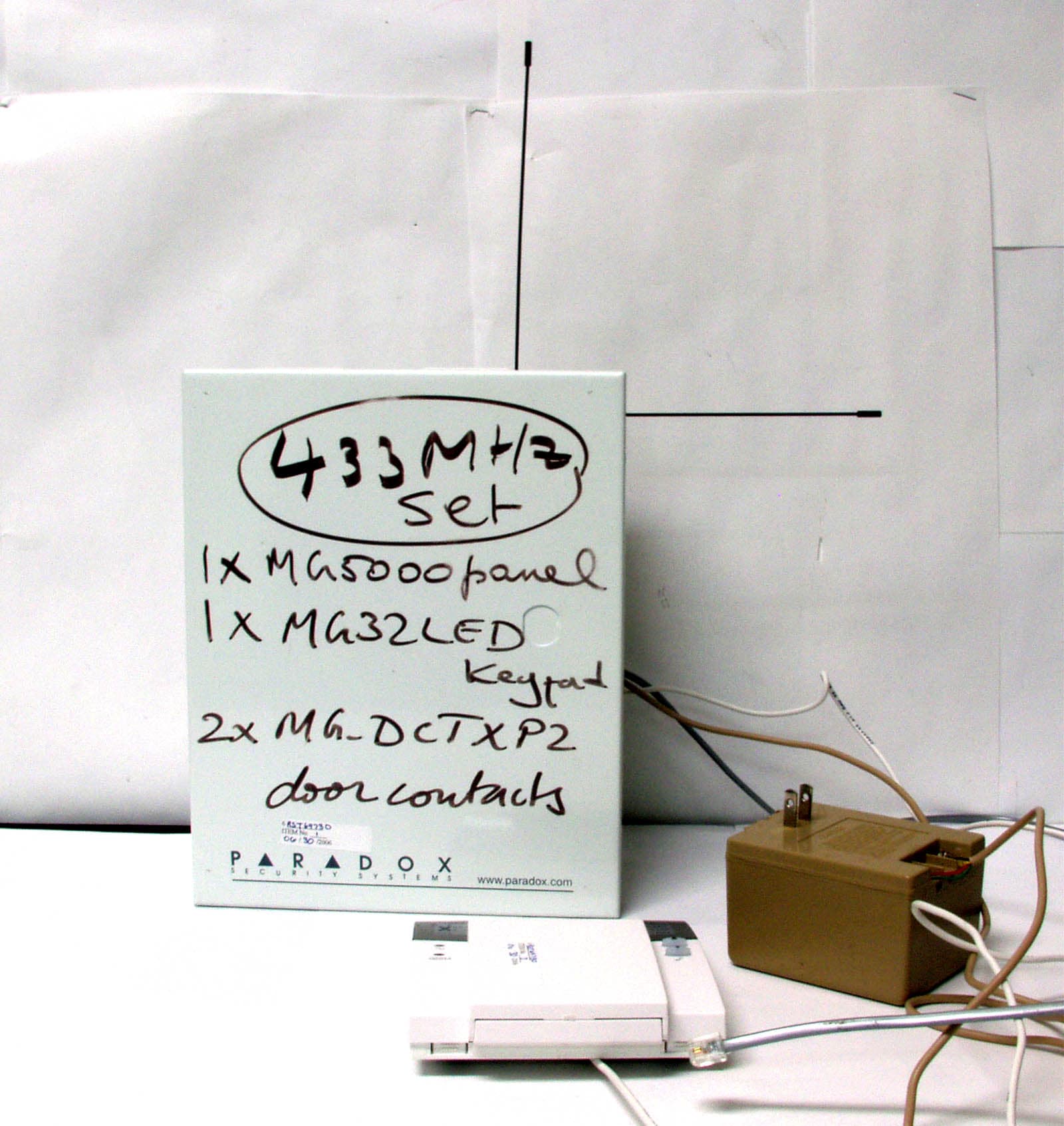

32-Zone Wireless Transceiver Control Panel MG5000 User’s Guide MG32LED MG32LRF MG10LEDH MG10LEDV Access Codes For security reasons, write only the user’s name and not his or her access code. 4-Digit Codes N 6-Digit Codes N How do I program Access Codes? 1.Press the [] key. Enter your [SYSTEM MASTER CODE] or either [MASTER CODE]. 2.The [] key will flash. When a zone LED or zone key is lit (not flashing), the user is already programmed. 3.Select a user by entering a 2-digit user number (i.e. [0]+[9] for user 9) or use the scroll keys and then press [ ENTER]. For the MG10LEDV/H, press the key corresponding to the user number (i.e. [9] for user 9). 4.Enter a new 4- or 6-digit [ ACCESS CODE]. 5.Confirm the code. 6.Press a button on the designated remote or press [ ENTER] to skip if there is no remote to program. 7.(Partitioned system only) Press [1] and/or [2] to assign the user to a partition. Press [ ENTER], the menu will now jump to the next available user. User # and NamePartition 1 or 2BypStayForceArm OnlyPGM OnlyDuress 001: Master_______________________________1 & 2 >>> 002: Master1______________________________1 >>> 003: Master2______________________________2 >>> 004:_________________________________________NNNNNDuress: Y N N N 005:__________________________________________NNNNNDuress: Y N N N 006:__________________________________________NNNNNDuress: Y N N N 007:__________________________________________NNNNNDuress: Y N N N 008:__________________________________________NNNNNDuress: Y N N N 009:__________________________________________NNNNNDuress: Y N N N 010:__________________________________________NNNNNDuress: Y N N N 011:___________________________________________NNNNNDuress: Y N N N 012:__________________________________________NNNNNDuress: Y N N N 013:__________________________________________NNNNNDuress: Y N N N 014:__________________________________________NNNNNDuress: Y N N N 015:__________________________________________NNNNNDuress: Y N N N 016:__________________________________________NNNNNDuress: Y N N N 017:__________________________________________NNNNNDuress: Y N N N 018:__________________________________________NNNNNDuress: Y N N N 019:__________________________________________NNNNNDuress: Y N N N 020:__________________________________________NNNNNDuress: Y N N N 021:__________________________________________NNNNNDuress: Y N N N 022:__________________________________________NNNNNDuress: Y N N N 023:__________________________________________NNNNNDuress: Y N N N 024:__________________________________________NNNNNDuress: Y N N N 025:__________________________________________NNNNNDuress: Y N N N 026:__________________________________________NNNNNDuress: Y N N N 027:__________________________________________NNNNNDuress: Y N N N 028:__________________________________________NNNNNDuress: Y N N N 029:__________________________________________NNNNNDuress: Y N N N 030:__________________________________________NNNNNDuress: Y N N N 031:__________________________________________NNNNNDuress: Y N N N 032:__________________________________________NNNNNDuress: Y N N N Table of Contents Access Codes............................................................... 0 Overview................................................................. 2 Basic Operations ............................................. 2 Auditory Feedback........................................................ 2 Visual Feedback ........................................................... 2 Overview of the Magellan Series Keypads ................... 2 Partitioning.................................................................... 3 Access Codes ........................................................ 4 Programming Access Codes .......................... 4 System Master Code (Default: 123456) ....................... 4 Master Codes ............................................................... 4 Duress Code................................................................. 4 Programming Access Codes ........................................ 4 Arming & Disarming .............................................. 5 Regular Arming ................................................ 5 Sleep Arming.................................................... 5 Stay Arming...................................................... 5 One-Touch Arming .......................................... 6 One-Touch Regular Arming.......................................... 6 One-Touch Stay Arming ............................................... 6 One-Touch Sleep Arming ............................................. 6 One-Touch Bypass Programming ................................ 6 Fast Exit........................................................................ 6 Auto-Arming ..................................................... 7 Timed Auto Arming ....................................................... 7 No Movement Auto Arming........................................... 7 Disarming & Deactivating an Alarm ............... 7 Manual Bypass Programming....................................... 7 Bypass Recall Feature ................................................. 8 System Features .................................................... 9 Display Mode.................................................... 9 Alarm Display ................................................... 9 Fire Alarms ....................................................... 9 Minimizing Fire Hazards ............................................... 9 Fire Safety Tips ............................................................ 9 Providing a Fire Warning System ................................. 9 Panic Alarms .................................................... 9 Programming Chime Zones .......................... 10 Keypad Muting ............................................... 10 Keypad Backlight........................................... 10 PGM Keys (Programmable Outputs) ............ 10 Power Save Mode .............…

Text truncated - open the document above for the full version.

July 11th, 2006 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Nemko Canada Inc. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Paradox Security Systems, 780 Industrial Blvd, St-Eustache, Quebec, CANADA, J7R 5V3 Dated this 11th Day of July 2006 Agency agreement expiration date: January 11 th 2006 By: NABIL NAHOUL Signature Printed Title: Certification Manager On behalf of : Paradox Security Systems Telephone: (450) 491-7444 ext 209

July 11th, 2006 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: KDYMG5000 Product Name: Magelan model MG5000 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 11th Day of July 2006 By: NABIL NAHOUL Signature Printed Title: Certification Manager On behalf of : Paradox Security Systems Telephone: (450) 491-7444 ext 209

LABEL REQUIREMENTS RF IC & FCC Paeadox Security Systems Model No.: MG-5000 IC: 2438A-MG5000 FCC ID: KDYMG5000 * This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Made in CANADA ** If label format is not in full scale, please indicate the dimensions of the label. MUST APPEAR ON THE OUTSIDE OF THE CERTIFIED UNIT. ALL INFORMATION MUST APPEAR ON THE LABEL.

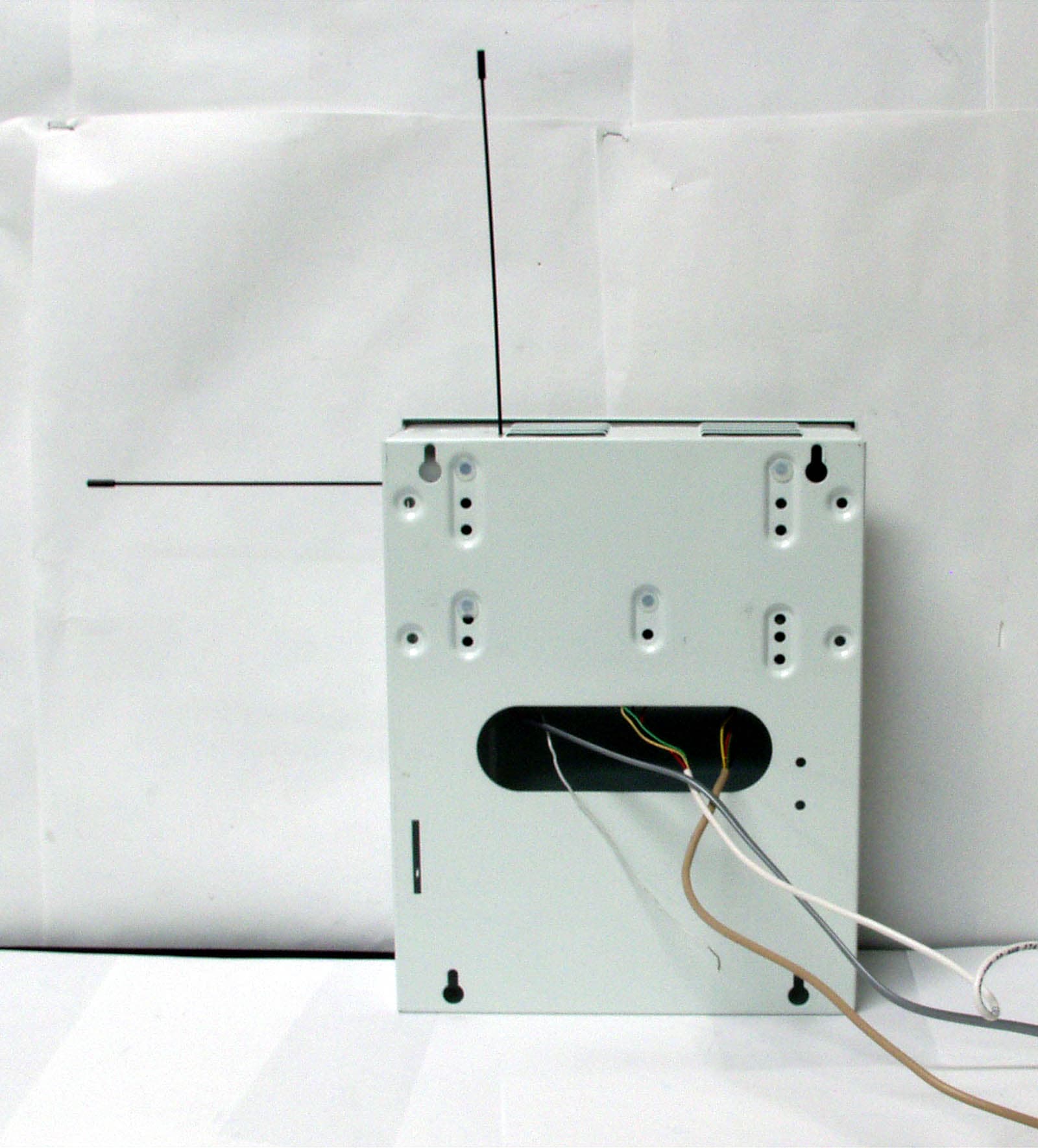

. FCC/IC Sticker in the metal box

PARADOX SECURITY SYSTEMS MG5000 (910-4004-993) NO ECO SEPT 19,2006 QTY REFERENCE VALUE PARADOX# DESCRIPTION SUPPLIER CATALOGUE# 1 PCB 9104004993 9104004993 WIRELESS TRANSCEIVER CONTROL PANEL PCB ONPRESS PRINTED CIRCUITS LIMITED 910-4004-993-R 29 F1,R80,C80,C100,L102, N/U Q115,R125,Q242,Q614,C630,R633,R677,R678,L706,L710,D712,L715,R717,R735,C803,C809,C817,C819,C822,C824,C843,C846,D851,R853 1 C101 1000UF/35V 2151020350 CAP ELEC, 1000UF/35V (PRE-CUT 4MM) COSONIC ENTERPRISE CORPORATION 2 C102,C130 3.3UF/50V_LL 2130300500 CAP ELEC, 3.3UF/50V, 20% LOW LEAK COSONIC ENTERPRISE CORPORATION RSL3.3M50V4X7TB-LF 10 C103,C612,C709,C716,C808, 1nF 2101020603 CAP 0603, 1NF X7R 10% SAMSUNG C/O C.S.C. CL10B102KB8NNND C812,C815,C827,C828,C832 2101020805 CAP 0805, 1NF X7R 10% SAMSUNG C/O C.S.C. CL21B102KBANNND 22 C104,C107,C115,C118,C120, 100NF 2101040603 CAP 0603, 100NF X7R 10% 16V SAMSUNG C/O C.S.C. CL10B104KO8NNND C128,C135,C200,C240,C241, 2101040815 CAP 0805, 100NF Y5V 50V SAMSUNG C/O C.S.C. CL21F104ZBCNNND C402,C404,C607,C703,C710,C712,C713,C802,C814,C823,C837,C840 3 C105,C116,C117 470UF/25V 2150470025 CAP ELEC, 470UF/25V SAMWHA C/O C.S.C. SG1E477M10016PA 4 C108,C414,C416,C813 30pF 2103000805 CAP 0805, 30PF NPO 10% SAMSUNG C/O C.S.C. CL21C300KBANNND 1 C113 47UF/50V 2154700500 CAP ELEC, 47UF/50V 20% SAMWHA C/O C.S.C. SG1H476M6L011PC 2 C122,C232 47UF/25V 2154701250 CAP ELEC, 47UF/25V SAMWHA C/O C.S.C. SG1E476M05011PC 2 C601,C602 100NF(T/H) 2101045250 CAP POLYESTER 0.1UF/250V/5MM 5% COSONIC ENTERPRISE CORPORATION MERO.1K250VTB-LF (FORM LEAD 5MM) 1 C603 100NF(X7R) 2101040805 CAP 0805, 100NF X7R 10% 50V SAMSUNG C/O C.S.C. CL21B104KBCANND 1 C604 33UF/50V 2153300500 CAP ELEC, 33UF/50V 20% SAMWHA C/O C.S.C. SG1H336M6L011PC 2 C609,C614 1UF 2101050815 CAP 0805, 1UF/16V X7R 10% SAMSUNG C/O C.S.C. CL21B105K0FNNND 6 C610,C631,C701,C708,C711,C820 22NF 2102230603 CAP 0603, 22NF X7R SAMSUNG C/O C.S.C. CL10B223KB8NNND 1 C611 2.2NF 2102220805 CAP 0805, 2.2NF X7R 10% SAMSUNG C/O C.S.C. CL21B222KBANNND 1 C613 220PF 2102210805 CAP 0805, 220PF NPO 5% SAMSUNG C/O C.S.C. CL21C221JBANNND 1 C618 220NF(X7R_10%) 2102240805 CAP 0805, 220NF X7R 10% 25V SAMSUNG C/O C.S.C. CL21B224KAFNNNF 1 C702 470NF 2104740825 CAP 0805, 470NF/25V X7R 10% SAMSUNG C/O C.S.C. CL21B474KAFNNND 2 C714,C715 4.7NF 2104720805 CAP 0805, 4.7NF X7R 10% SAMSUNG C/O C.S.C. CL21B472KBANNND 2 C800,C801 4.7UF 2104750805 CAP 0805, 4.7UF X5R 10% 6.3V SAMSUNG C/O C.S.C. CL21A475KQFNNNF 1 C804 4pF 2100004603 CAP 0603, 4PF +/-0.1PF NPO SAMSUNG C/O C.S.C. CL10C040BB8NNND 1 C805 150pF 2101510603 CAP 0603, 150PF NPO 10% SAMSUNG C/O C.S.C. CL10C151KBNC 5 C806,C829,C835,C838,C845 15pF 2101500603 CAP 0603, 15PF NPO 5% SAMSUNG C/O C.S.C. CL10C150JB8NNND 3 C807,C825,C841 10nF 2101030603 CAP 0603, 10NF X7R 10% SAMSUNG C/O C.S.C. CL10B103KB8NNND 1 C810 56pF 2105600603 CAP 0603, 56PF SAMSUNG C/O C.S.C. CL10C560JB8NNND 5 C811,C826,C830,C836,C839 100pF 2101010603 CAP 0603, 100PF SAMSUNG C/O C.S.C. CL10C101JB8NNND 3 C816,C818,C821 1.5nF 2101520603 CAP 0603, 1.5NF FERROTRONIC COMP. MA0603XR152K500 (MERITEK) 1 C831 33nF 2103330603 CAP 0603, 33NF X7R 10% SAMSUNG C/O C.S.C. CL10B333KB8NNND 1 C833 5.6pF 2105060603 CAP 0603, 5.6PF +/-0.25PF NPO SAMSUNG C/O C.S.C. CL10C5R6CB8ANND 1 C834 12pF 2101200603 CAP 0603, 12PF NPO 5% SAMSUNG C/O C.S.C. CL10C120JB8NNND 1 C842 3-10pF 2143010000 CAP TRIMMER 3-10PF (SMD) SUNTAN TECHNOLOGY CO. LTD. TSC3S510T1R 1 C844 8pF 2100008603 CAP 0603, 8PF +/-0.25PF NPO SAMSUNG C/O C.S.C. CL10C080CB8ANND 14 D1,D2,D3,D4,D200,D201,D230,D232, 1SR154-400 2210400010 DIODE RECTIFIER SMD 400V DIODES INC. C/O GMA S1G-13-F 13" REELS ONLY R1000M35V13X21CT-LF (STRAIGHT LEAD CUT 4 1 of 5 PARADOX SECURITY SYSTEMS MG5000 (910-4004-993) NO ECO SEPT 19,2006 QTY REFERENCE VALUE PARADOX# DESCRIPTION SUPPLIER CATALOGUE# D240,D601,D602,D603,D604,D607 18 D10,D12,D102,D104,D111,D112, 1N4148 2214148000 DIODE SWITCHING 1N4148 DIODES INC. C/O GMA 1N4148W-13-F (SOD123) D242,D600,D606,D702,D706,D707,D708,D709,D802,D807,D810,D850 1 D101 6V2_2% 2215262000 DIODE ZENER 6.2V 2%, SOD-123 DIODES INC. C/O GMA BZT52B6V2-7-F 1 D103 B230/A 2210230000 DIODE SCHOTTKY 2.0A SMA DIODES INC. C/O GMA B230A-13F 1 D110 1N5400 2215400050 DIODE 1N5400 3A 50V DIODES INC. C/O GMA 1N5401-T 3 D115,D703,D801 6V2 2215234000 DIODE ZENER 6.2V (SOD-123) DIODES INC. C/O GMA MMSZ5234B-7-F (DIODES INC) 1 D241 5V1 2215231000 DIODE ZENER 5.1V MINIMELF DIODES INC. C/O GMA ZMM5231B-13 2 D605,D608 15V 2215245000 DIODE ZENER 15V (SOD-123) DIODES INC. C/O GMA MMSZ5245B-7-F 1 D612 68V 2210680000 DIODE ZENER 68V (SOD-123/MINIMELF) VISHAY BZT52C68-V-GS08 1 F2 5A/125V 2752520005 FUSE FAST BLOW 5A/125V 5X20MM (UL APP) JENN FENG ELECTRIC INDUSTRIAL CO. L MFG1-5A-125V UL APPROUVED 0752052000 FUSE HOLDER CLIP FOR PCB 5.2MM JENN FENG ELECTRIC INDUSTRIAL CO. L JEF-501TA 1 F3 PTC 3A 2050300000 PTC 3A RAYCHEM C/O TECH TREK RGEF300K-2 1 F4 PTC 200MA(SMT) 2050020100 PTC 200MA SMT BOURNS C/O PIPE THOMPSON TECHNO L MF-MSMF020-2 1 F5 PTC 1.1A 2050110000 PTC 1.1AMP RAYCHEM C/O TECH TREK RUEF-110-2 1 F11 1211107150 FILTER 10.7MHZ BW150KHZ LIB MURATA INC C/O GMA SFELF10M7JAA0-A0 3 J1,J2,J8 MOLEX-4P 2400000108 WAFER STRAIGHT (4 PINS) GOLD WIESON ELECTRONIC CO., LTD. G2520-04SF11 1 J6 MOLEX-5P 2402520105 WAFER STRAIGHT (5 PINS) GOLD WIESON ELECTRONIC CO., LTD. G2520-05SF11 3 LD4,LD208,LD400 LED GREEN 2221401200 LED SMD GREEN 1206 SEOUL SEMICONDUCTOR C/O C.S.C SSCYG201 1 LD6 LED RED 2221601200 LED SMD RED 1206 SEOUL SEMICONDUCTOR C/O C.S.C SSCUR201TS 13" REEL ONLY 1 L100 100UH/0.6A 2290101006 INDUCTOR 100UH 0.6A LEVEN CO., LTD. PK0810-101K-0.6A-UL-TF 2 L700,L705 10UH 1 L707 18.5nH 2291805000 INDUCTOR AIR CORE 18.5NH ALLIED COMPONENTS INTERNATIONAL SMAC20-5-RC-TR (2200/REEL 13") 2 L708,L714 33nH 2290033603 INDUCTOR 33NH 0603 SAMSUNG C/O C.S.C. CIH10T33NJNC 1 L709 100nH 2290100603 INDUCTOR 100NH 0603 SAMSUNG C/O C.S.C. CIH10TR10JNC 2 L711,L716 8nH 2290008000 INDUCTOR AIR CORE 8NH SMD ALLIED COMPONENTS INTERNATIONAL SMAC20-3-RC-TR (2200/REEL 13") 1 L712 22nH …

Text truncated - open the document above for the full version.

FCC Part 15 Subpart C, 15.231 : June 2006 Test Report: 6W69730.4 Applicant: Paradox Security Systems 780 Industrial Blvd Ste-Eustache, Quebec J7R 5V3 Apparatus: MG-5000 FCC ID: KDYMG5000 In Accordance With: FCC Part 15 Subpart C, 15.231 Periodic operation in the band 40.66-40.70MHz and above 70 MHz. Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Jin Xu, Wireless Specialist Date: September 28, 2006 Total Number of Pages: 21 Nemko Canada Inc. REPORT SUMMARY Report Number: 6W69730.4 FCC ID: KDYMG5000 Specification: FCC Part 15 Subpart C, 15.231 Page 2 of 21 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. Radiated tests were conducted in accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: MG-5000 Specification: FCC Part 15 Subpart C, 15.231 Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Jason Nixon, Telecom Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number: 6W69730.4 FCC ID: KDYMG5000 Specification: FCC Part 15 Subpart C, 15.231 Page 3 of 21 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1 : Equipment Under Test............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Theory of Operation ...................................................................................................................................4 1.4 Technical Specifications of the EUT ..........................................................................................................5 1.5 Block Diagram of the EUT.........................................................................................................................5 Section 2 : Test Conditions......................................................................................................................... 6 2.1 Specifications .............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment .......................................................................................................................................6 2.4 Test Equipment...........................................................................................................................................6 Section 3 : Observations ............................................................................................................................. 7 3.1 Modifications Performed During Assessment ............................................................................................7 3.2 Record Of Technical Judgements ...............................................................................................................7 3.3 EUT Parameters Affecting Compliance .....................................................................................................7 3.4 Test Deleted................................................................................................................................................7 3.5 Additional Observations .............................................................................................................................7 Section 4 : Results Summary ..................................................................................................................... 8 4.1 FCC Part 15 Subpart C : Test Results ........................................................................................................9 Appendix A : Test Results ........................................................................................................................ 10 Clause 15.207(a) Powerline Conducted Emissions .............................................................................................10 Clause 15.209(a) Radiated Emissions within Restricted Bands ..........................................................................13 Clause 15.231(a) Conditions for intentional radiators to comply with periodic operation ..................................14 Clause 15.231(b) Radiated Emissions .................................................................................................................16 Clause 15.231(c) 20dB Bandwidth ......................................................................................................................19 Appendix B : Setup Photographs .......…

Text truncated - open the document above for the full version.

Conducted Emissions Setup: Spurious Emissions Setup:
