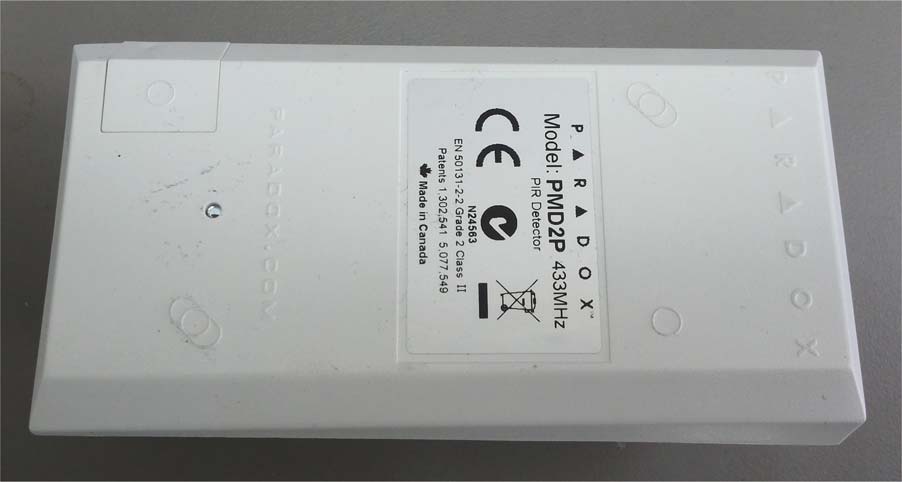

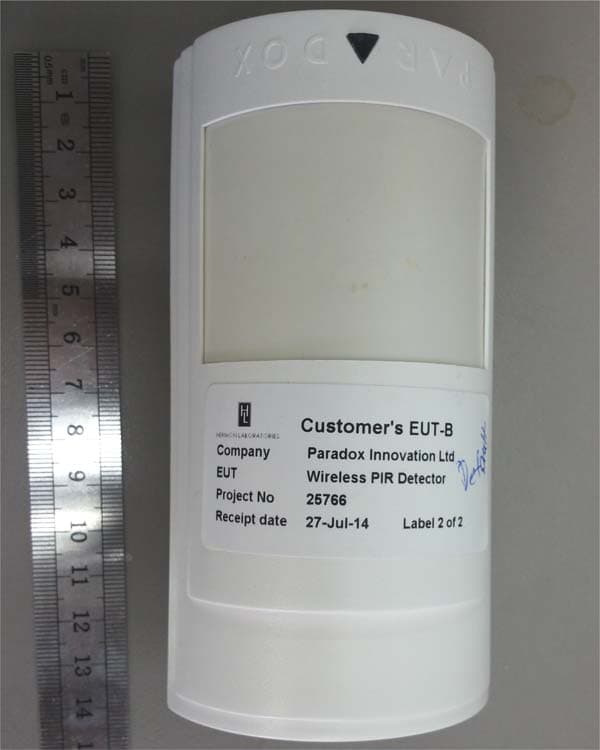

KDYMGPMD2PWireless PIR detector

PMD2P-EI01 - Printed in Canada 06/2013 PMD2P: Wireless PIR Motion Detector with Built-in Pet Immunity V1.0 Detector Settings - Quick View Detector Settings - Details Sensitivity S2 (Slider) High = High sensitivity (default) Low = Low sensitivity Fast/Slow Mode JP1 (Jumper)Off = Slow mode On = Fast mode (default) LED Feedback JP2 (Jumper)Off = Disabled On = Enabled (default) Sensitivity - S2 (Slider) High SensitivityIn high sensitivity mode, you should not be able to cross more than one complete zone (consisting of two beams - left and right sensor elements) in the coverage area with any kind of movement. Use this setting for the majority of installations. Low SensitivityIn low sensitivity mode, the amount of movement required to generate an alarm is doubled. The use of low sensitivity mode is recommended in areas where the incidence of false alarms may be greater. Fast/Slow Mode - JP1 (Jumper) Slow ModeRecommended in areas where the incidence of false alarms may be greater. Fast Mode Recommended for the majority of installations. LED Feedback - JP2 (Jumper) AlarmThe red LED will illuminate for a period of 3 seconds whenever the motion detector detects any kind of movement. Low BatteryThe PMD2P performs a battery test every 12 hours. If battery voltage drops below a certain level, the red LED flashes at 8 second intervals and the motion detector will send a low battery signal to the receiver. A trouble is generated and then transmitted to the central monitoring station. Signal TransmissionThe red LED blinks fast when transmitting. Description The Paradox PMD2P is an analog single-optic PIR motion detector with built-in pet immunity for use with Magellan wireless receivers/transceivers. The PMD2P is immune to animals weighing up to 18kg (40 pounds), and features automatic temperature compensation. The PMD2P is battery-powered and features an innovative three minute energy save mode (after two detections within a five-minute period). Also, the ALIVE software in the PMD2P ensures that the alarm LED continues to display when it is in energy save mode without compromising battery life. Installation At the installation height of 2.1m (7ft) ±10%, the PMD2P provides full coverage from 1.2m (3.9 ft) to 11m (36 ft). Mounting lower than recommended height will decrease the long range performance; higher will decrease short range performance. Do not obscure the detector, partially nor fully. IMPORTANT: Do not touch the sensor as this could result in malfunction. Clean the sensor surface using a soft cloth with pure alcohol. Also, avoid bending, cutting, or altering the antenna or mounting the detector near metal as this may affect transmission. A - Corner mount B - Flat surface mount C - Wall tamper hole A B A B A B A C Dual Tamper Mechanism - Wall and Cover The PMD2P is equipped with dual tamper protection; an alarm is generated if the front cover is removed or if the detector is removed from the wall. In order for the wall tamper removal feature to be functional, a screw needs to be inserted in the wall tamper hole (see PCB Overview at right). Powering the Wireless Detector Verifying proper polarity, insert three “AAA” alkaline batteries into the motion detector’s battery compartment. To replace the batteries, remove the old batteries, then press and release the tamper switch and wait 60 seconds in order to re-initialize the unit. After initialization is complete, insert batteries while verifying proper polarity (verify proper polarity on battery compartment connector as well). IMPORTANT: Make sure that when reinstalling the battery compartment that the batteries are facing the back-plate. Power-up Sequence After inserting the batteries, a power-up sequence begins (lasting 10-20 seconds). During this time, the red LED flashes and the detector will not detect an open zone or tamper. Signal Strength Test In order to verify proper signal reception, perform a signal strength test as described in the receiver’s Reference and Installation Manual. Prior to performing the test, ensure the batteries have been installed. Also verify that the motion detector has been assigned to a zone according to the instructions in the receiver’s Reference and Installation Manual. If the transmission is weak, relocating the transmitter by a few inches can greatly improve the reception. PCB Overview Battery compartment S2 Antenna JP1 JP2 Anti-tamper switch Battery connector Wall tamper hole PMD2P-EI01 - Printed in Canada 06/2013 Specifications FCC and Industry Canada Compliance Statement This device complies with FCC Rules Part 15 and with Industry Canada license exempt RSS standard(s). Operation is subject to two conditions: (1) This device may not cause harmful interference (2) this device must accept any interference that may be received or that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. FCC ID: KDYMGPMD2P IC: 2438A-MGPMD2P FCC WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection agai nst harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the…
