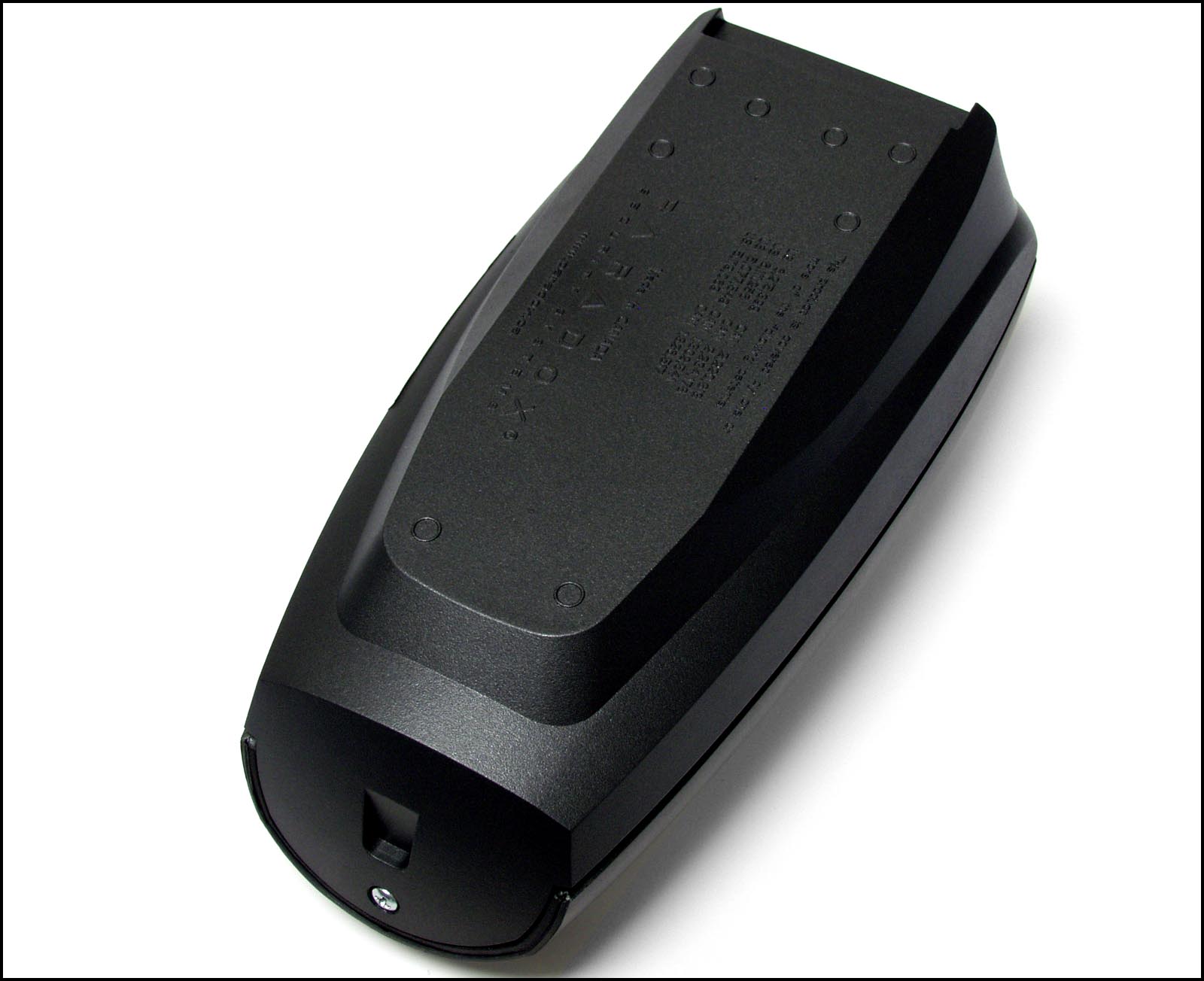

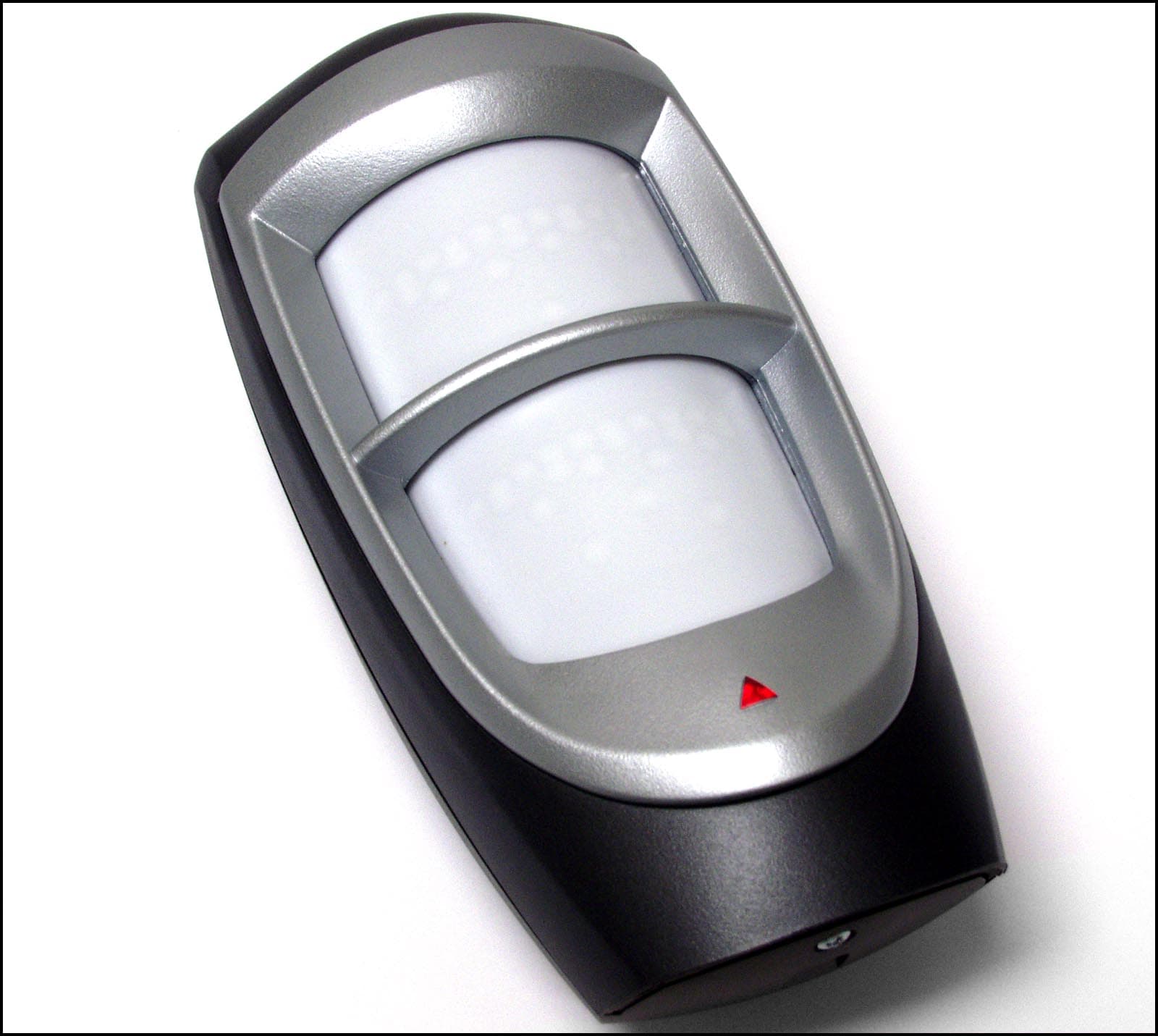

KDYMGPMD85MG-PMD85 Wireless Motion detector

Outdoor Digital Dual-Optic High-Performance PIR (40kg/90lb True Pet Immunity) V1.0 Reference & Installation Manual MG-PMD85 MGPMD85_TI00.fm Page -1 Tuesday, November 2, 2004 1:58 PM MGPMD85_TI00.fm Page 0 Tuesday, November 2, 2004 1:58 PM Reference & Installation Manual 1n Table of Contents English............................................ 3 Installation ............................................... 3 PCB Height Adjustment .......................... 4 LED Setting (DIP 1)................................. 4 Single/Dual Edge Processing (DIP 2) ..... 5 Powering the Detector............................. 6 Replacing the Batteries ........................... 6 Sensitivity Settings .................................. 6 Walk-testing ............................................ 7 Signal Strength Test................................ 8 Alive Software ......................................... 9 Technical Specifications.......................... 9 Français ........................................ 11 Installation ............................................. 11 Ajustement de la hauteur de la carte de circuits imprimés ..................... 12 Réglage de la DEL (commutateur DIP 1) ............................. 13 Traitement simple/divisé (commutateur DIP 2) ............................. 14 Mise sous tension du détecteur ............ 14 Remplacement des piles ....................... 15 Détermination de la sensibilité .............. 15 Essai de marche ................................... 16 Vérification de la puissance du signal ... 17 MGPMD85_TI00.fm Page 1 Tuesday, November 2, 2004 1:58 PM 2 Magellan MG-PMD85 Logiciel Alive ......................................... 17 Spécifications techniques...................... 18 Español ......................................... 20 Instalación ............................................. 20 Ajuste de la Altura de la PCI ................. 21 Configuración LED (DIP 1).................... 21 Procesamiento de Polaridad Simple /Doble (DIP 2) ........................... 22 Encendido del Detector ......................... 23 Cambio de Baterías .............................. 23 Configuración de la Sensibilidad ........... 23 Prueba Caminando ............................... 24 Prueba de Fuerza de la Señal .............. 25 Software Alive ....................................... 26 Especificaciones Técnicas .................... 26 MGPMD85_TI00.fm Page 2 Tuesday, November 2, 2004 1:58 PM Reference & Installation Manual 3n English Installation At the recommended height of 2.1m (7ft) to 2.7m (9ft) ± 10%, MG-PMD85 provides full coverage from 1.5m (5ft) to 11m (35ft) as shown in Figure 5 on page 32. The MG-PMD85 includes a weatherproof casing so it can be installed outside. Avoid placing the detector within proximity of the following sources of interference such as direct sunlight, reflective surfaces and moving cars. Do not touch the sensor surface as this could result in a detector malfunction. If necessary, clean the sensor surface using a soft cloth with pure alcohol. Avoid bending, cutting or altering the antenna or mounting the detector near or on metal, such as aluminum siding, as this may affect signal transmission. After selecting the detector's location, drill or punch out holes for the screws (Figure 4 on page 31). The MG-PMD85 can also be mounted using the Paradox Swivel Mount Bracket (469). The swivel mount may allow for easier mounting. If using the swivel mount, it is recommended that you seal the space where the swivel mount is connected to the back cover with some silicon or with a rubber gasket to ensure that moisture does not enter the detector. MGPMD85_TI00.fm Page 3 Tuesday, November 2, 2004 1:58 PM 4 Magellan MG-PMD85 PCB Height Adjustment The MG-PMD85 is designed for optimal performance at a height of 2.1m (7ft), but can be installed lower or higher. After you have installed the detector, ensure that the adjustable height markings on the upper right of the PCB’s cover inside the unit match the installation height. For example, if the detector is installed at a height of 2.1m (7ft), the PCB should then be adjusted to 2.1m (7ft). Align the desired marking (height) with the back cover’s plastic tab (Figure 1 on page 28 and Figure 2 on page 29). If another installation height is called for, readjust the PCB accordingly. Any PCB adjustments should be followed by a walk-test of the protected area. Walk-testing verifies that the required coverage is in place. Ensure that the unit’s front and back cover are tightly joined together without any spacing (around the rim of the unit) before tightening the screw, otherwise the weatherproof casing may be compromised and moisture may enter the unit. LED Setting (DIP 1) This option enables or disables the red LED. The red LED will illuminate for a period of four seconds to indicate detected movement. The motion detector performs a battery test every 12 MGPMD85_TI00.fm Page 4 Tuesday, November 2, 2004 1:58 PM Reference & Installation Manual 5n hours. If the battery voltage is too low, the red LED will flash at eight-second intervals and the motion detector will send a low battery signal to the receiver. A trouble will then be generated and transmitted to the central monitoring station. The red LED will flash rapidly when the motion detector transmits a signal to the receiver. DIP switch 1 OFF = LED deactivated DIP switch 1 ON = LED activated (default) Single/Dual Edge Processing (DIP 2) This option determines the DSP (Digital Signal Processing) of the detector. Single Edge Processing should be used in normal environments with minimal sources of interference. Dual Edge Processing provides better false alarm rejection if the detector is placed near sources of interference that can adversely affect it. DIP switch 2 OFF = Dual Edge DIP switch 2 ON = Single Edge (default) DIP switches 3 and 4 are reserved for future use. MGPMD85_TI00.fm Page 5 Tuesday, November 2, 2004 1:58 PM 6 Magellan MG-PMD85 Powering the Detector 1. Insert…

Text truncated - open the document above for the full version.

August 30th, 2004 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Nemko Canada Inc. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Paradox Security Systems, 780 Industrial Blvd, St-Eustache, Quebec, CANADA, J7R 5V3 Dated this 30th Day of August 2004 Agency agreement expiration date: April 30 th 2005 By: NABIL NAHOUL Signature Printed Title: Certification Manager On behalf of : Paradox Security Systems Telephone: (450) 491-7444 ext 209

August 30th, 2004 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: KDYMGPMD85 Product Name: Magellan model MG-PMD85 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 30th Day of August 2004 By: NABIL NAHOUL Signature Printed Title: Certification Manager On behalf of : Paradox Security Systems Telephone: (450) 491-7444 ext 209

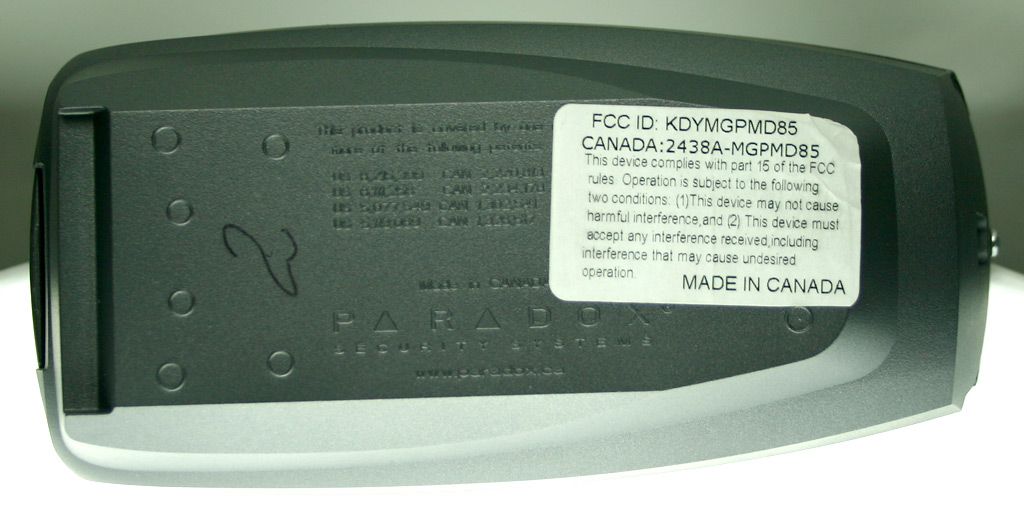

Master:PT15-Sub-C-15231 Date: November 12, 2001 Test Report: 4W26820.8 Applicant: PARADOX SECURITY SYSTEMS 780 INDUSTRIAL BLVD ST-EUSTACHE QUEBEC, CANADA, J7R 5V3 Equipment Under Test: MG-PMD85 (433MHz), Wireless Motion Detector (EUT) FCC ID: KDYMGPMD85 In Accordance With: FCC Part 15, Subpart C, 15.231 Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Glen Westwell, Wireless Specialist Date: 13 October 2004 Total Number of Pages: 15 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W26820.8 EQUIPMENT: MG-PMD85 (433MHz), Wireless Motion Detector Page 2 of 15 Table of Contents Section 1. Summary of Test Results ...................................................................................3 Section 2. Equipment Under Test .......................................................................................5 Section 3. Transmission Requirements ..............................................................................6 Section 4. Radiated Emissions .............................................................................................8 Section 5. Occupied Bandwidth ........................................................................................12 Section 6. Block Diagrams .................................................................................................14 Section 7. Test Equipment List ..........................................................................................15 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W26820.8 EQUIPMENT: MG-PMD85 (433MHz), Wireless Motion Detector Page 3 of 15 Section 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT APPLIES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE See “ Summary of Test Data”. TESTED BY: ______________________________ DATE: 7 October 2004 Chris Maidens, EMC Specialist Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W26820.8 EQUIPMENT: MG-PMD85 (433MHz), Wireless Motion Detector Page 4 of 15 Summary Of Test Data Name of Test Para. Number Results Transmission Requirements 15.231(a) Complied Radiated Emissions 15.231(b) Complied Occupied Bandwidth 15.231(c) Complied Frequency Tolerance 15.231(d) N/A(1) Periodic Alternate Field Strength Requirements 15.231(e) N/A(2) Powerline Conducted Emissions 15.207 N/A(3) Justification for N/A’s N/A(1) The Eut does not transmit in the band 40.66-40.070MHz N/A(2) The requirements of this section are not applicable to this EUT. N/A(3) The EUT is Battery Powered (3 “AA” batteries) Test Conditions: Indoor Temperature: 22°C Humidity: 60% Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W26820.8 EQUIPMENT: MG-PMD85 (433MHz), Wireless Motion Detector Page 5 of 15 Section 2. Equipment Under Test General Equipment Information Manufacturer: Paradox Security Systems Company Number: 2438A EUT Description: The EUT is a wireless motion detector for use with a Magellan alarm system. Model No.: MG-PMD85 Serial No.: 098099 Date Received In Laboratory: 14 September 2004 Nemko Identification No.: 11 Frequency Range (or fixed frequency): Fixed, 433.92MHz Type of Modulation: ASK, 100% or OOK Emission Designator (TRC-43:) 94K0L1D Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W26820.8 EQUIPMENT: MG-PMD85 (433MHz), Wireless Motion Detector Page 6 of 15 Section 3. Transmission Requirements Para. No.: 15.231(a) Test Performed By: Chris Maidens Date of Test: Sept. 14, 2004 Minimum Standard: 15.231(a) Continuous transmissions such as voice, video or data transmissions are not permitted. 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds after being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds of activation. 15.231(a)(3) Periodic transmissions at regular pre-determined intervals are not permitted. However polling or supervisory transmissions to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one transmission of not more than one second duration per hour for each transmitter. 15.231(a)(4) Intentional radiators which are employed for radio control purposes during emergencies involving fire, security, and safety of life, when activated to signal an alarm, may operate during the pendency of the alarm. Test Results: Complies Test Data: Compliance was determined by verification of technical specifications and a functional test on the equipment. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W26820.8 EQUIPMENT: MG-PMD85 (433MHz), Wireless Motion Detector Page 7 of 15 Rationale for Compliance with Transmission Requirements 15.231(a)(1) : N/A- The EUT does not continuously transmit voice, vid…
