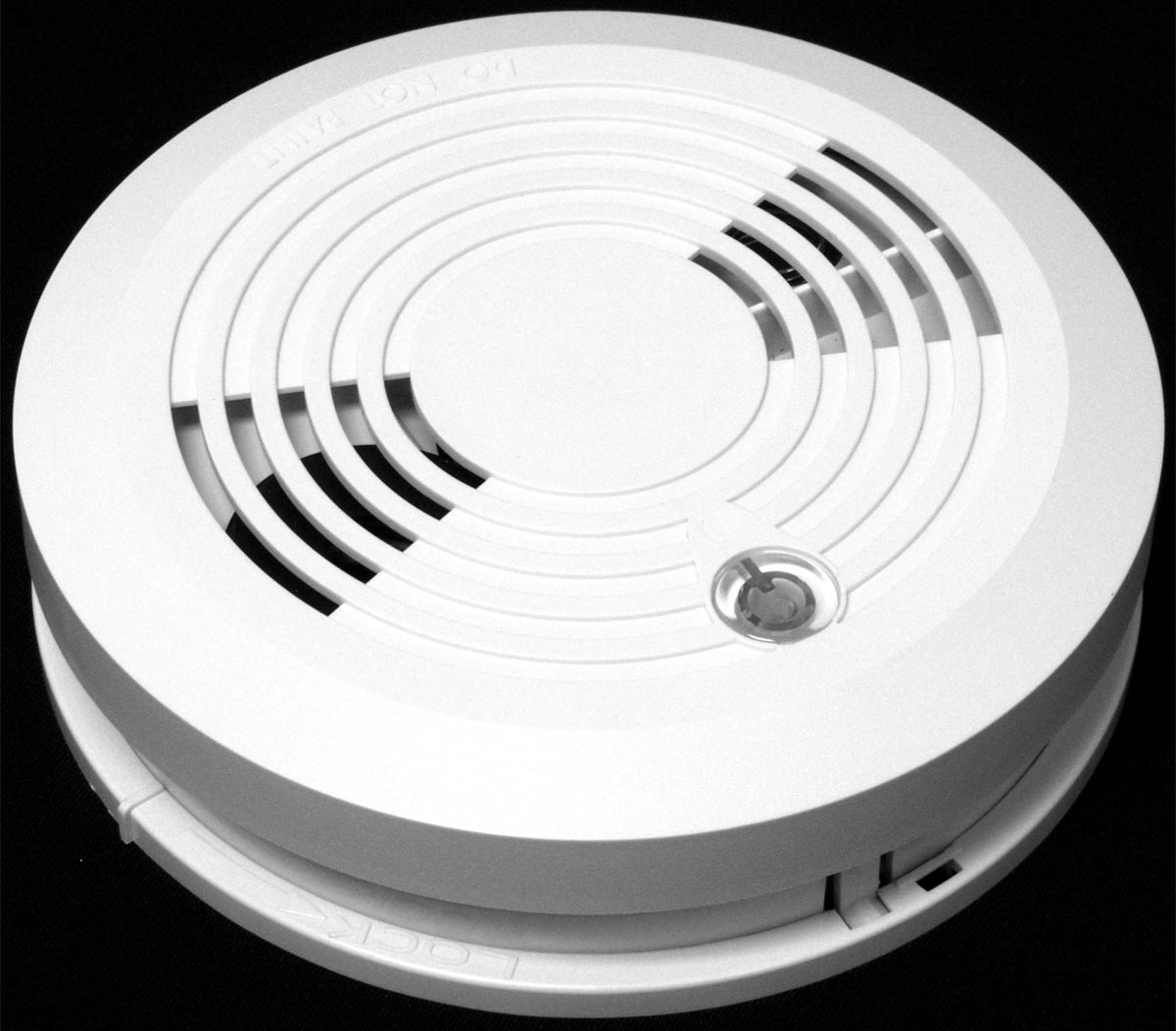

KDYMGSMK1Wireless Smoke Detector

page 1 (SD738-EI00 04/2004) SINGLE-STATION PHOTOELECTRIC SMOKE DETECTOR SD-738/w USER’S MANUAL TABLE OF CONTENTS INTRODUCTION ................................................................... 1 LOCATIONS TO INSTALL YOUR SMOKE DETECTOR ..... 1 LOCATIONS NOT TO INSTALL YOUR SMOKE DETECTORS ........................................................................ 2 INSTALLING YOUR SMOKE DETECTOR ........................... 2 TESTING YOUR SMOKE DETECTOR ................................ 3 TAKING CARE OF YOUR SMOKE DETECTOR................. 3 TIPS TO ENHANCE YOUR PROTECTION FROM FIRES .. 3 MORE TIPS TO FACE A FIRE IN YOUR HOME ................. 3 SPECIFICATIONS ................................................................ 4 SMOKE DETECTOR WITH OPTIONAL WIRELESS TRANSMITTER INFORMATION .......................................... 4 FIVE YEAR LIMITED WARRANTY....................................... 4 INTRODUCTION Everday’s single station photoelectric smoke detector is designed to sense smoke that comes into the detector chamber. It does not sense gas, heat, or flame. This smoke detector is designed to give early warning of developing fires by giving off the alarm sounds from its built-in alarm horn. It can provide precious time for you and your family to escape before a fire spreads. However, the smoke detector makes such pre-warning of fire accident possible, only if the detector is located, installed, and maintained properly as described in this User's Manual. WARNING: This smoke detector is designed for use in a single residential unit only, which means that it should be used inside a single-family home or apartment. It is not meant to be used in lobbies, hallways, basements, or another apartment in multi-family buildings, unless there are already working detectors in each family unit. Smoke detectors, placed in common areas outside of the individual living unit, such as on porches or in hallways, may not provide early warning to residents. In multi-family buildings, each family living unit should set up its own detectors. WARNING: This detector is not meant to be used in non-residential buildings. Warehouses, industrial or commercial buildings, and special purpose non-residential buildings require special fire detection and alarm systems. This detector alone is not a suitable substitute for complete fire detection systems for places where many people live or work, such as hotels or motels. The same is true of dormitories, hospitals, nursing homes or group homes of any kind, even if they were once single-family homes. Please refer NFPA 101, the Life Safety Code, NFPA71, 72A, 72B, 72C, 72D, and 72E for smoke detector requirements for fire protection in buildings not defined as “households”. WARNING: This detector will not alert people who are hard of hearing. It is strongly recommended that the special-purpose smoke detectors, using lights or vibrating devices, should be installed to alert occupants who are hard of hearing. LOCATIONS TO INSTALL YOUR SMOKE DETECTOR Smoke detectors should be installed in accordance with the NFPA Standard 74 (National Fire Protection Association, Batterymarch Park, Quincy, MA 02169). For complete coverage in residential units, smoke detectors should be installed in all rooms, halls, storage areas, basements, and attics in each family living unit. Minimum coverage is one detector on each floor and one in each sleeping area. Here, we have good tips for you: • Install a smoke detector in the hallway outside every separate bedroom area, as shown in Figure 1. Two detectors are required in homes with two bedroom areas, as shown in Figure 2. • Install a smoke detector on every floor of a multi-floor home or apartment, as shown in Figure 3. • Install a minimum of two detectors in any household. • Install a smoke detector inside every bedroom. • Install smoke detectors at both ends of a bedroom hallway if the hallway is more than 40 feet (12 meters) long. • Install a smoke detector inside every room where one sleeps with the door partly or completely closed, since smoke could be blocked by the closed door and a hallway alarm may not wake up the sleeper if the door is closed. Figure 1: LOCATIONS FOR PLACING SMOKE DETECTORS FOR SINGLE RESIDENCE WITH ONLY ONE SLEEPING AREA Figure 2: LOCATIONS FOR PLACING SMOKE DETECTORS FOR SINGLE-FLOOR RESIDENCE WITH MORE THAN ONE SLEEPING AREA Figure 3: LOCATION FOR PLACING SMOKE DETECTORS FOR A MULTI-FLOOR RESIDENCE • Install basement detectors at the bottom of the basement stairwell. • Install second-floor detectors at the top of the first-to-second floor stairwell. • Be sure no door or other obstruction blocks the path of smoke to the detector. • Install additional detectors in your living room, dining room, family room, attic, utility and storage rooms. • Install smoke detectors as close to the center of the ceiling as possible. If this is not practical, put the detector on the ceiling, no closer than 4 inches (10 cm) from any wall or corner, as shown in Figure 4. • If ceiling mounting is not possible and wall mounting is permitted by your local and state codes, put wall-mounted detectors between 4 and 6 inches (10 ~ 15 cm) from the ceiling, also see Figure 4. Figure 4: RECOMMEN DED BEST AND ACCEPTABL E LOCATIONS TO MOUNT SMOKE DETECTORS • If some of your rooms have sloped, peaked, or gabled ceilings, try to mount detectors 3 feet (0.9 meter) measured horizontally from the highest point of the ceiling as shown in Figure 5. page 2 (SD738-EI00 04/2004) Figure 5: RECOMMENDED LOCATION TO MOUNT SMOKE DETECTORS IN ROOMS WITH SLOPED, GABLED, OR PEAKED CEILING CAUTION (As required by the California State Fire Marshall) “Early warning fire detection is best achieved by the installation of fire detection equipment in all rooms and areas of the household as follows: (1) A smoke detector installed in each separate sleeping area (in the vicinity, but outside of the bedrooms), and (2) Heat or smoke detectors in the living rooms, dining rooms, bedr…

Text truncated - open the document above for the full version.

August 30th, 2004 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Nemko Canada Inc. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Paradox Security Systems, 780 Industrial Blvd, St-Eustache, Quebec, CANADA, J7R 5V3 Dated this 30th Day of August 2004 Agency agreement expiration date: April 30 th 2005 By: NABIL NAHOUL Signature Printed Title: Certification Manager On behalf of : Paradox Security Systems Telephone: (450) 491-7444 ext 209

August 30th, 2004 Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: KDYMGSMK1 Product Name: Magellan model MG-SMK1 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Technical description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 30th Day of August 2004 By: NABIL NAHOUL Signature Printed Title: Certification Manager On behalf of : Paradox Security Systems Telephone: (450) 491-7444 ext 209

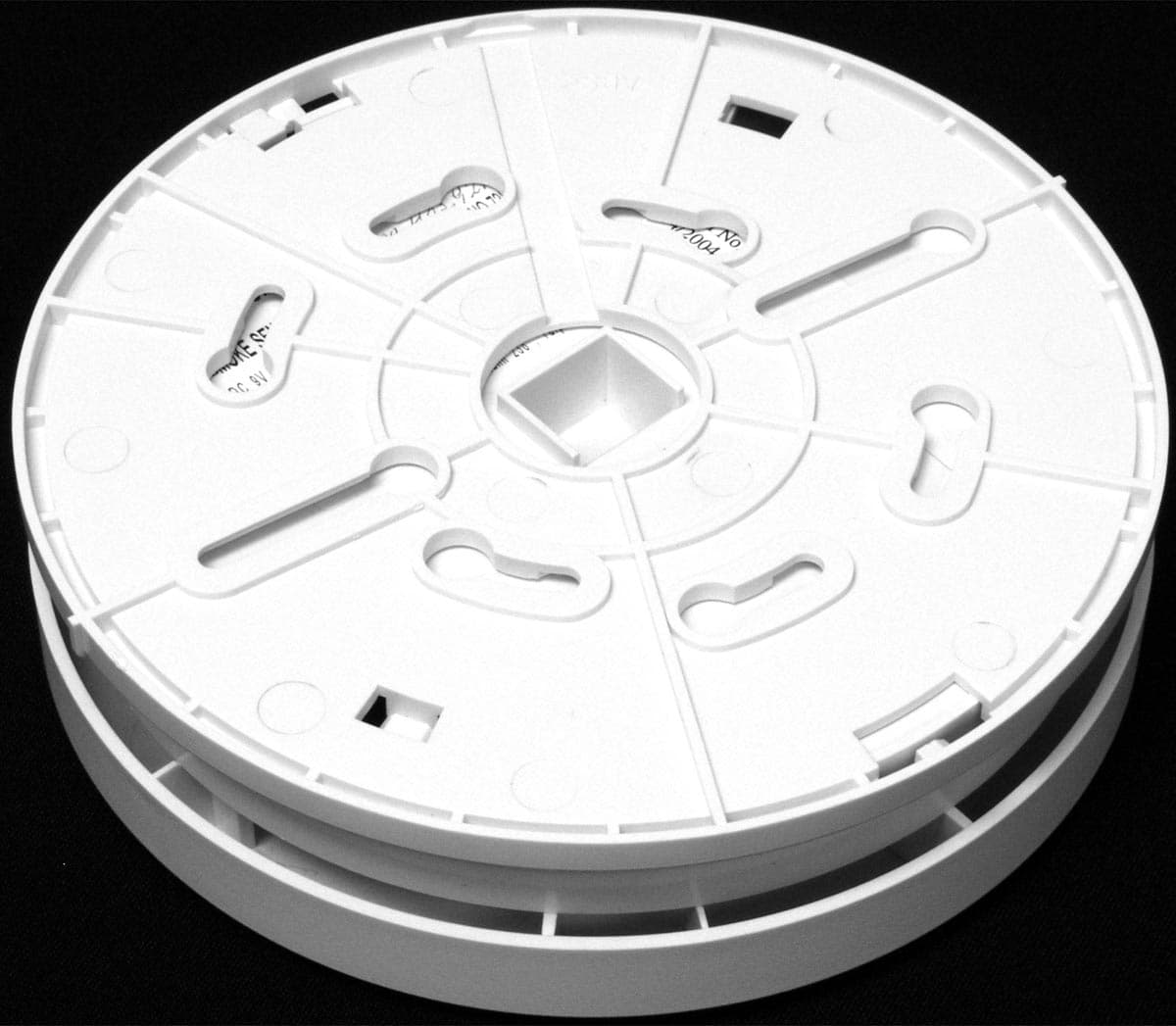

October 15, 2004 Office of Engineering & Technology Federal Communications Commission Washington, D.C. 20554 Subject: FCC label applied on the rear side of the enclosure, (1.25” X 2”) format. FCC ID: KDYMGSMK1 Label placement diagram: Rear side of the enclosure Nabil Nahoul Certification Manager Paradox Security Systems FCC ID: KDYMGSMK1 IC:2438A-MGSMK1 This device complies with part 15 of the FCC Rules. Operation is subject to the following Two conditions: (1) This device may not cause harmfull interference, and (2) This device must accept any interference received, incuding interference that may cause undesired operation. MADE IN CANADA FCC label

Master:PT15-Sub-C-15231 Date: November 12, 2001 Test Report: 4W27578.2 Applicant: PARADOX SECURITY SYSTEMS 780 INDUSTRIAL BLVD ST-EUSTACHE QUEBEC, CANADA, J7R 5V3 Equipment Under Test: MG-SMK1 (433MHz), Wireless Smoke Detector (EUT) FCC ID: KDYMGSMK1 In Accordance With: FCC Part 15, Subpart C, 15.231 Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Glen Westwell, Wireless Specialist Date: 13 October 2004 Total Number of Pages: 16 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W27578.2 EQUIPMENT: MG-SMK1 (433MHz), Wireless Smoke Detector Page 2 of 16 Table of Contents Section 1. Summary of Test Results ...................................................................................3 Section 2. Equipment Under Test .......................................................................................5 Section 3. Transmission Requirements ..............................................................................6 Section 4. Radiated Emissions .............................................................................................8 Section 5. Occupied Bandwidth ........................................................................................12 Section 6. Block Diagrams .................................................................................................15 Section 7. Test Equipment List ..........................................................................................16 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W27578.2 EQUIPMENT: MG-SMK1 (433MHz), Wireless Smoke Detector Page 3 of 16 Section 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE See “ Summary of Test Data”. TESTED BY: ______________________________ DATE: 7 October 2004 Chris Maidens, EMC Specialist Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W27578.2 EQUIPMENT: MG-SMK1 (433MHz), Wireless Smoke Detector Page 4 of 16 Summary Of Test Data Name of Test Para. Number Results Transmission Requirements 15.231(a) Complied Radiated Emissions 15.231(b) Complied Occupied Bandwidth 15.231(c) Complied Frequency Tolerance 15.231(d) N/A(1) Periodic Alternate Field Strength Requirements 15.231(e) N/A(2) Powerline Conducted Emissions 15.207 N/A(3) Justification for N/A’s N/A(1) The Eut does not transmit in the band 40.66-40.070MHz N/A(2) The requirements of this section are not applicable to this EUT. N/A(3) The EUT is Battery Powered (Single 9V battery) Test Conditions: Indoor Temperature: 20°C Humidity: 49% Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W27578.2 EQUIPMENT: MG-SMK1 (433MHz), Wireless Smoke Detector Page 5 of 16 Section 2. Equipment Under Test General Equipment Information Manufacturer: Paradox Security Systems Company Number: 2438A Model No.: MG-SMK1 Serial No.: 001185 Date Received In Laboratory: June 4, 2004 Nemko Identification No.: 9 EUT Description: The EUT is a wireless smoke detector that functions with the Magellan alarm system. Frequency Range (or fixed frequency): Fixed, 433.92MHz Type of Modulation: ASK, 100% or OOK Emission Designator (TRC-43:) 71K8L1D Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W27578.2 EQUIPMENT: MG-SMK1 (433MHz), Wireless Smoke Detector Page 6 of 16 Section 3. Transmission Requirements Para. No.: 15.231(a) Test Performed By: Chris Maidens Date of Test: Sept. 23, 2004 Minimum Standard: 15.231(a) Continuous transmissions such as voice, video or data transmissions are not permitted. 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds after being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds of activation. 15.231(a)(3) Periodic transmissions at regular pre-determined intervals are not permitted. However polling or supervisory transmissions to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one transmission of not more than one second duration per hour for each transmitter. 15.231(a)(4) Intentional radiators which are employed for radio control purposes during emergencies involving fire, security, and safety of life, when activated to signal an alarm, may operate during the pendency of the alarm. Test Results: Complies Test Data: Compliance was determined by verification of technical specifications and a functional test on the equipment. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W27578.2 EQUIPMENT: MG-SMK1 (433MHz), Wireless Smoke Detector Page 7 of 16 Rationale for Compliance with Transmission Requirements 15.231(a)(1) : N/A- The EUT does not continuously transmit voice, video or data, nor is it intended for manually activated transmissions 15.231(a)(2) : Complies- The EUT stops transmitting in less than 3 seconds (plot shows 3s/div) 15.231(a)(3) : N/A-…

Text truncated - open the document above for the full version.

Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W27578.2 EQUIPMENT: MG-SMK1 (433MHz), Wireless Smoke Detector Page 11 of 16 OATS Set up Photo
