page 1(SD360-EI01 07/2014) LONG BATTERY LIFE SINGLE STATION BATTERY POWERED PHOTOELETRIC SMOKE DETECTOR SD360 USER’S MANUAL INTRODUCTION PARADOX single station photoelectric smoke detector SD360 is designed to sense smoke that comes into the alarm chamber. It does not sense gas, or flame. This smoke detector is designed to give early warning of developing fires by giving off the alarm sounds from its built-in alarm horn. It can provide precious time for you and your family to escape before a fire spreads. However, the smoke detector makes such pre-warning of fire accident possible, only if the smoke detector is located, installed, and maintained properly as described in this User's Manual. WARNING: This smoke detector is designed for use in a single residential unit only, which means that it should be used inside a single family home or apart- ment. It is not meant to be used in lobbies, hallways, basements, or another apart- ment in multi-family buildings, unless there are already working alarms in each family unit. Smoke detectors, placed in common areas outside of the individual living unit, such as on porches or in hallways, may not provide early warning to residents. In multi-family buildings, each family living unit should set up its own detectors. WARNING: This detector is not meant to be used in non-residential buildings. Warehouses, industrial or commercial buildings, and special purpose non-resi- dential buildings require special fire detection and alarm systems. This detector alone is not a suitable substitute for complete fire detection systems for places where many people live or work, such as hotels or motels. The same is true of dor- mitories, hospitals, nursing homes or group homes of any kind, even if they were once single family homes. Please refer NFPA 101, the Life Safety Code, NFPA71, 72A, 72B, 72C, 72D, and 72E for smoke detector requirements for fire protection in buildings not defined as “households”. WARNING: This detector will not alert people who are hard of hearing. It is strongly recommended that the special-purpose smoke detectors using lights or vibrating devices, should be installed to alert occupants who are hard of hearing. LOCATIONS TO INSTALL YOUR SMOKE DETECTOR Smoke detectors should be installed in accordance with the NFPA Standard 74 (National Fire Protection Association, Battery march Park, Quincy, MA 02169). For complete coverage in residential units, smoke detectors should be installed in all rooms, halls, storage areas, basements, and attics in each family living unit. Mini- mum coverage is one detector on each floor and one in each sleeping area. Here, we have useful tips for you: •Install a smoke detector in the hallway outside every separate bedroom area, as shown in Figure 1. Two detectors are required in homes with two bedroom areas, as shown in Figure 2. •Install a smoke detector on every floor of a multi-floor home or apartment, as shown in Figure 3. •Install a minimum of two detectors in any household. •Install a smoke detector inside every bedroom. •Install smoke detectors at both ends of a bedroom hallway if the hallway is more than 40 feet (12 meters) long. •Install a smoke detector inside every room where one sleeps with the door partly or completely closed, since smoke could be blocked by the closed door and a hallway alarm may not wake up the sleeper if the door is closed. •Install basement detectors at the bottom of the basement stairwell. •Install second-floor detectors at the top of the first-to-second floor stairwell. Be sure no door or other obstruction blocks the path of smoke to the detector. •Install additional detectors in your living room, dining room, family room, attic, utility and storage rooms. •Install smoke detectors as close to the center of the ceiling as possible. If this is not practical, put the alarm on the ceiling, no closer than 4 inches (10 cm) from any wall or corner, as shown in Figure 4. •If ceiling mounting is not possible and wall mounting is permitted by your local and state codes, put wall-mounted detectors between 4 and 6 inches (10 ~ 15 cm) from the ceiling, also see Figure 4. •If some of your rooms have sloped, peaked, or gabled ceilings, try to mount detectors 3 feet (0.9 meter) measured horizontally from the highest point of the ceiling as shown in Figure 5. CAUTION (As required by the California State Fire Marshall) “Early warning fire” detection is best achieved by the installation of fire detection equipment in all rooms and areas of the household as follows: (1) A smoke detector installed in each separate sleeping area (in the vicinity, but outside of the bedrooms), and (2) smoke detectors in the living rooms, dining rooms, bedrooms, kitchens, hallways, attics, furnace rooms, closets, utility and, storage rooms, basements and attached garages.” For your information, NFPA Standard 72, Section 29 reads as follows: “29.5.1 Smoke detectors shall be installed outside of each separate sleeping area in the immediate vicinity of the bedrooms and on each additional story of the family living unit including basements and excluding crawl spaces and unfinished attics. The provisions of 29.5.1 represent the minimum number of detectors required by this standard. It is recommended that the householder consider the use of additional smoke detectors for increased protection for those areas separated by a door from the areas protected by the required smoke detectors under 29.5.1 above. The recommended additional areas are living room, dining room, bedroom(s), kitchen, attic (finished or unfinished), furnace rooms, utility room, basement, integral or attached garage, and hallways not included in 29.5.1 above. However, the use of additional detectors remains the option of the householder.” We recommend complete coverage and use of additional smoke detectors. LOCATIONS NOT TO INSTALL YOUR SMOKE DETECTORS Nuisance alarms take place when smoke detectors are installed where they will not work properly. To avoid nui…

Text truncated - open the document above for the full version.

Ref: Auth orization Letter _ SD360_PMD2P_R915 To: Her mon Labs Declaration of Authorization We, Paradox Security Systems 780 INDUSTRIAL BLVD ST-EUSTACHE, QC, CANADA J7R 5V3 Phone: 450-491-7444 Fax: 450-491-1095 Declare that Hermon Laboratories Ltd. Harakevet Industrial Zone Binyamina 30500 Israel is authorized to apply for Certification of the following product: Product description: Wireless Smoke Detector Type designation: Non Licensed RF Evaluation Trademark: SD360 on our behalf. Jul-31-2014 Nimrod Herman Certification Manager

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Paradox Security Systems Address: 780 Industriel Blvd City: Saint-Eustache, QC, J7R 5V3 Country: Canada To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: KDYMGSMK2 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Patent Pending. Competative advantage Planned Release Date STC: 180 days from the grant date (notes 2, 3, 4, 5) Date: July 31, 2014 Name and signature of applicant: Nimrod Herman Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

Page 1 of 1 August 6, 2014 Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Application for certification of a Wireless Smoke Detector, FCC ID:KDYMGSMK2 Dear Gentlemen, Please find attached our application for certification of a Wireless Smoke Detector, FCC ID:KDYMGSMK2, model name SD360, prepared in accordance with FCC Rules part 2 and part 15 subpart C section 15.231(a). The product testing and this application for certification were performed by Hermon Laboratories, which is listed by FCC, Registration Numbers 90623, 90624. The FCC Designation Number is US1003. Hermon Labs responsible person is Mr. Michael Nikishin, tel: +972 4626 8440, fax:+972 4628 8277, e-mail: [email protected]. Please send an invoice to Hermon Labs. We hope this application satisfies your requirements Sincerely yours, Nimrod Herman Certification Manager

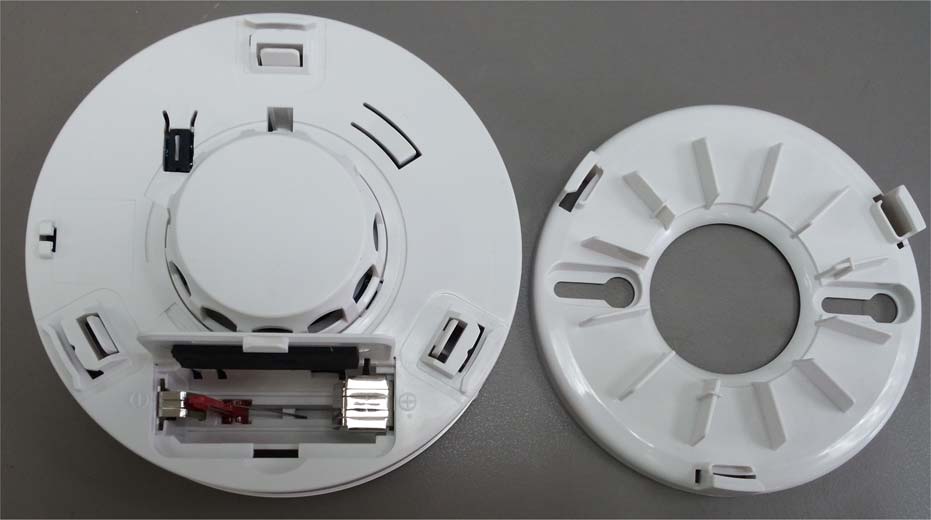

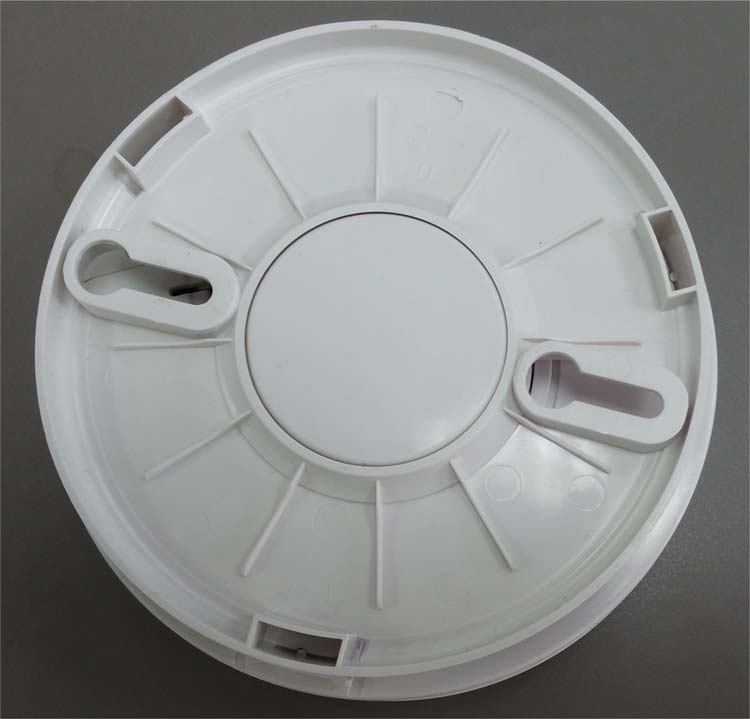

Paradox Security Systems Ltd. FCC ID:KDYMGSMK2 IC:2438A-MGSMK2 Page 1 of 4 EXTERNAL PHOTOGRAPHS This document contains 3 photographs Paradox Security Systems Ltd. FCC ID:KDYMGSMK2 IC:2438A-MGSMK2 Page 2 of 4 Photograph No.1 SD360 smoke detector front view Paradox Security Systems Ltd. FCC ID:KDYMGSMK2 IC:2438A-MGSMK2 Page 3 of 4 Photograph No.2 SD360 smoke detector rear side view Paradox Security Systems Ltd. FCC ID:KDYMGSMK2 IC:2438A-MGSMK2 Page 4 of 4 Photograph No.3 SD360 smoke detector rear side view with bracket removed

Paradox Security Systems Ltd. FCC ID:KDYMGSMK2 IC:2438A-MGSMK2 Page 1 of 1 Label The label shown below is affixed on the rear side of the smoke detector. The label material is PVC with a permanent adhesive. Label location Label with FCC ID:KDYMGSMK2 and IC:2438A-MGSMK2 will be located at the rear side panel. The statement according to FCC part 15 §15.19(a)(3) is placed in User Manual, page 4 (Application exhibit User_manual_25764). FCC ID:KDYMGSMK2 IC:2438A-MGSMK21

Paradox Security Systems Ltd. FCC ID:KDYMGSMK2 IC:2438A-MGSMK2 Page 1 of 7 INTERNAL PHOTOGRAPHS This document contains 6 photographs Paradox Security Systems Ltd. FCC ID:KDYMGSMK2 IC:2438A-MGSMK2 Page 2 of 7 Photograph No.1 SD360 smoke detector internal view Paradox Security Systems Ltd. FCC ID:KDYMGSMK2 IC:2438A-MGSMK2 Page 3 of 7 Photograph No.2 SD360 smoke detector main PCB front view Paradox Security Systems Ltd. FCC ID:KDYMGSMK2 IC:2438A-MGSMK2 Page 4 of 7 Photograph No.3 SD360 smoke detector main PCB second side view Paradox Security Systems Ltd. FCC ID:KDYMGSMK2 IC:2438A-MGSMK2 Page 5 of 7 Photograph No.4 RF module front view Paradox Security Systems Ltd. FCC ID:KDYMGSMK2 IC:2438A-MGSMK2 Page 6 of 7 Photograph No.5 RF module second side view Paradox Security Systems Ltd. FCC ID:KDYMGSMK2 IC:2438A-MGSMK2 Page 7 of 7 Photograph No.6 Antenna close view

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 51 Report ID: PARRAD_FCC.25764.docx Date of Issue: 3-Aug-14 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC CFR 47 Part 15 subpart C, section 15.231(a) and subpart B; RSS-210 issue 8 Annex 1, ICES-003 Issue 5:2012 FOR: Paradox Security Systems Wireless Smoke Detector Model: SD360 FCC ID:KDYMGSMK2 IC:2438A-MGSMK2 This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: PARRAD_FCC.25764.docx Date of Issue: 3-Aug-14 Page 2 of 51 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 EUT description ............................................................................................................................................................. 5 6.1 General information ....................................................................................................................................................... 5 6.2 Test configuration .......................................................................................................................................................... 5 6.3 Support and test equipment .......................................................................................................................................... 5 6.4 Changes made in EUT .................................................................................................................................................. 5 6.5 Transmitter characteristics ............................................................................................................................................ 6 7 Transmitter tests according to 47CFR part 15 subpart C requirements ........................................................................ 7 7.1 Periodic operation requirements ................................................................................................................................... 7 7.2 Field strength of emissions .......................................................................................................................................... 11 7.3 Occupied bandwidth test ............................................................................................................................................. 32 7.4 Antenna requirements ................................................................................................................................................. 35 8 Unintentional emissions .............................................................................................................................................. 36 8.1 Radiated emission measurements .............................................................................................................................. 36 9 APPENDIX A Test equipment and ancillaries used for tests ....................................................................................... 42 10 APPENDIX A Measurement uncertainties ................................................................................................................... 43 11 APPENDIX C Test laboratory description ................................................................................................................... 44 12 APPENDIX D Specification references ....................................................................................................................... 44 13 APPENDIX E Test equipment correction factors ......................................................................................................... 45 14 APPENDIX F Abbreviations and acronyms ................................................................................................................. 51 Report ID: PARRAD_FCC.25764.docx Date of Issue: 3-Aug-14 Page 3 of 51 1 Applicant information Client name: Paradox Security Systems Address: 780 Industriel BLVD, St-Eustache, QC, J7R 5V3, Canada Telephone: 450-491-7444 Fax: 450-491-1095 E-mail: [email protected] Contact name: Mr. Nimrod Herman 2 Equipment under test attributes Product name: Wireless Smoke Detector Product type: Transceiver Model(s): SD360 Serial number: 000156 Hardware version: 312-6006-110 Software release: V1.00 Receipt date 27-Jul-14 3 Manufacturer information Manufacturer name: Paradox Security Systems Address: 780 Industriel BLVD, St-Eustache, QC, J7R 5V3, Canada Telephone: 450-491-7444 Fax: 450-491-1095 E-Mail: [email protected] Contact name: Mr. Nimrod Herman 4 Test details Project ID: 25764 Location: Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Test started: 27-Jul-14 Test completed: 29-Jul-14 Test specification(s): FCC 47CFR part 15, subpart C, §15.231(a), subpart B; RSS-210 issue 8 An…
