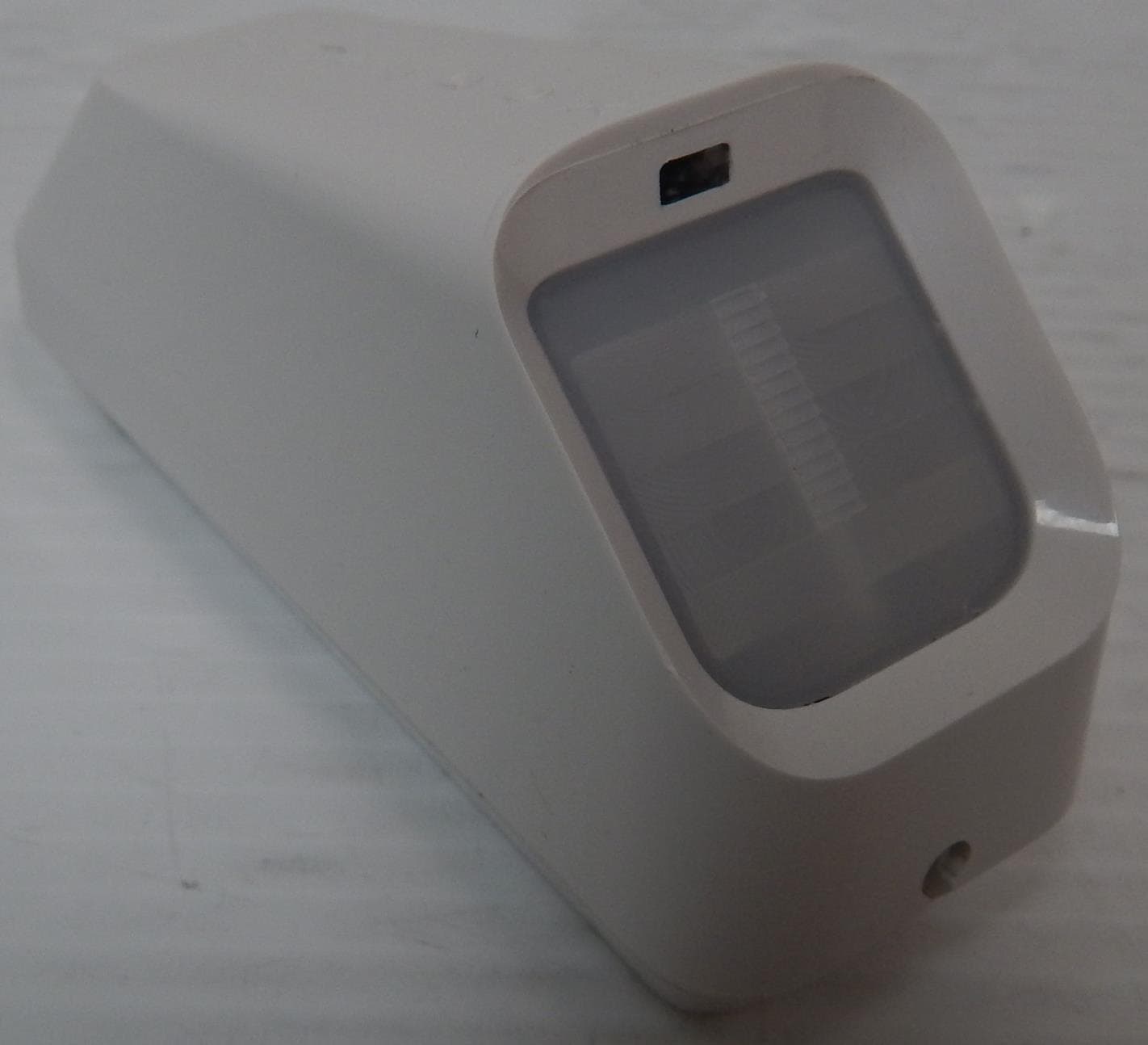

KDYNVR35MWireless PIR detector

Paradox Security Systems

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Jun 03, 2015
Application Purpose: Original Equipment
Date of Application: Jun 03, 2015
Equipment Note: Wireless PIR detector
Frequency Range: 433.92000000 - 433.92000000
Company: Paradox Security Systems
Country: Canada

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

PARADOX.COM Wireless Outdoor/Indoor Window and Sliding Door Dual Detector with Anti-Masking and Pet Immunity NVR35M-EI01 General Description The NVR35M module provides a superior wireless outdoor and indoor solution for window and sliding door protection, with two operation modes: Pet Immune Mode 7.5 x 2m (25 x 7 ft) and Sharp Mode (indoor use) 10 x 2m (33 x 7 ft) with dual verification detection. Installing the NVR35M 1. Remove the front cover - open the Captive screw. 2. Remove the Main Unit: open the two snap-lock mechanisms on each side of the back cover attaching the Main Unit to the back cover as displayed below. Then remove the Main Unit. 3. Pull the wires from the control panel through the knockout holes and mount the back cover onto the window frame or wall using screws.. 4. Attach the Main Unit to the back cover - ensure the locks snap closed.. 5. Insert two AA butteries. 6. Set DIP switch settings (see Table 1 below) according to requirements. Figure 6 – Adjusting the settings Ta b l e 1 : D I P Sw it c h Fu n c ti o n a l i t y * For USA and Canada: 433MHz frequency is set by the manufacturer and cannot be modified. 7. Set Range/PIR Sensitivity level: Turn the Sensitivity Trimmer (see Figure 6 above) to select the required level as displayed below.. Figure 7 – Sensitivity Trimmer 8. Replace the front cover and close the Captive screw. Warning: Do not obscure the detector's field of view. Testing the NV35MX Perform a Walk-Test to test successful installation: Walk slowly across the far end of the detection range. Ensure detection. Walk test mode lasts 5 minutes after the tamper screw is closed. Figure 1 – Removing the Front Cover Figure 2 – Main Unit Figure 3 – Removing the Main Unit Figure 4 – Mounting the Back Cover Front cover Captive screw Mounting screw 1 Mounting Ta m p e r screw 2 Ta m p e r knockout hole Knockout holes Figure 5 – Attaching the Main Unit Dip Switch Number FunctionMode Description 1LED ON: Default OFF: 2 PET Immunity/ SHARP Mode ON: PET Immunity mode OFF: SHARP mode *3RF ON: 433MHz * (default) OFF: 868MHz- applicable for EU versions only 123 DIP switches Sensitivity trimmer Default PIR Sensitivity level: 2 Note: After selecting the required level, the LED flashes the number of times equal to the level selected. EXAMPLE: If level 2 is selected, the LED flashes twice. NVR35M Installation Manual V1.0 PARADOX.COM Beam Pattern PET Mode SHARP Mode Top View LED Display Technical Specifications Notification Changes or modifications to this equipment not expressly approved by the party responsible for compliance (Paradox Security Systems Ltd.) could void the user’s authority to operate the equipment. Warranty The Limited Warranty Statement found on the website www.paradox.com/ terms. Your use of the Paradox product signifies your acceptance of these terms and conditions. The following US patents may apply 5,886,632 and 6,215,399, Other Canadian and international patents may apply. Printed in Canada 04/2015. FeatureLED Status Indicator FeatureLED Status Indicator Tamper open Green: ON for 0.3 seconds every 30 seconds PIR sensitivity level setting Green: Flashes 1-3 times according to the selected level Alarm detection Red: ON for 2 seconds Booting Green/Red alternating flashes for 30 seconds Model NumberNVR35M Infrared sensor type2 dual elements Detection rangePET ON: up to 7.5m Sharp ON: up to 10m Detection range•PET Immunity mode: up to 7.5m 7.5 x 2m (25 x 7 ft) •Sharp mode: 10 x 2m (33 x 7 ft) Anti- maskActive IR detection for blocking 30cm and sprayed liquid Input voltage 3VDC=2x1.5VDC AA Alkaline batteries Current consumption40μA in Standby 30mA in Alarm/RF Transmitting Battery life3 years of typical use Low battery voltage Signal 2.5V CompatibilityRTX3 and Magellan systems Outdoor protectionIP54 Operation temperature -35°c / +50°c Relative humidity95% non-condensing RF Frequency433.92 MHZ/868MHz IMPORTANT: For US and Canada, only 433.92 MHz is used Dimensions12.3 x 6.1 x 4.3 cm (4.8 x 2.4 x 1.7 in.) CertificationsEN50131-2-2 Grade 2, Class IV Certification Body: Applica Test & Certification Weight100g / 0.2 lb

Users Manual

Paradox NVR35M-EK00 FCC and Industry Canada Compliance Statement This device complies with FCC Rules Part 15 and with Industry Canada license exempt RSS standard(s). Operation is subject to two conditions: 1. This device may not cause harmful interference 2. This device must accept any interference that may be received or that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : 1. l'appareil ne doit pas produire de brouillage, et 2. l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. FCC ID: KDYNVR35M IC: 2438A-NVR35M FCC WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and the receiver.  Connect the equipment into an outlet different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this equipment not expressly approved by the party responsible for compliance (Paradox Security Systems Ltd.) could void the user’s authority to operate the equipment.

Cover Letter(s)

29 April 2015 Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 FCC ID: _KDYNVR35M_ Product Name: _Wireless Outdoor/Indoor PIR Detector _ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Bill of Materials These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 29th Day of April 20 15 By: Nimrod Herman Signature Printed Title: Certification Manager On behalf of : Paradox Security Systems Ltd. Telephone: 450-491-7444

Cover Letter(s)

29 April 2015 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent FCC On our behalf, I appoint Michelle Furrow of Nemko USA, Inc. at 2652 FM 407, Suite 215A, Bartonville TX 76226 USA, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc., still resides with Paradox Security Systems Ltd, 780 Industriel Blvd., St. Eustache, Quebec J7R 5V3 Canada. Dated this 29 th Day of April 20 15 Agency agreement expiration date: 24 September 2015 By: Nimrod Herman Signature Printed Title: Certification Manager On behalf of : Paradox Security Systems Ltd. Telephone: 450-491-7444

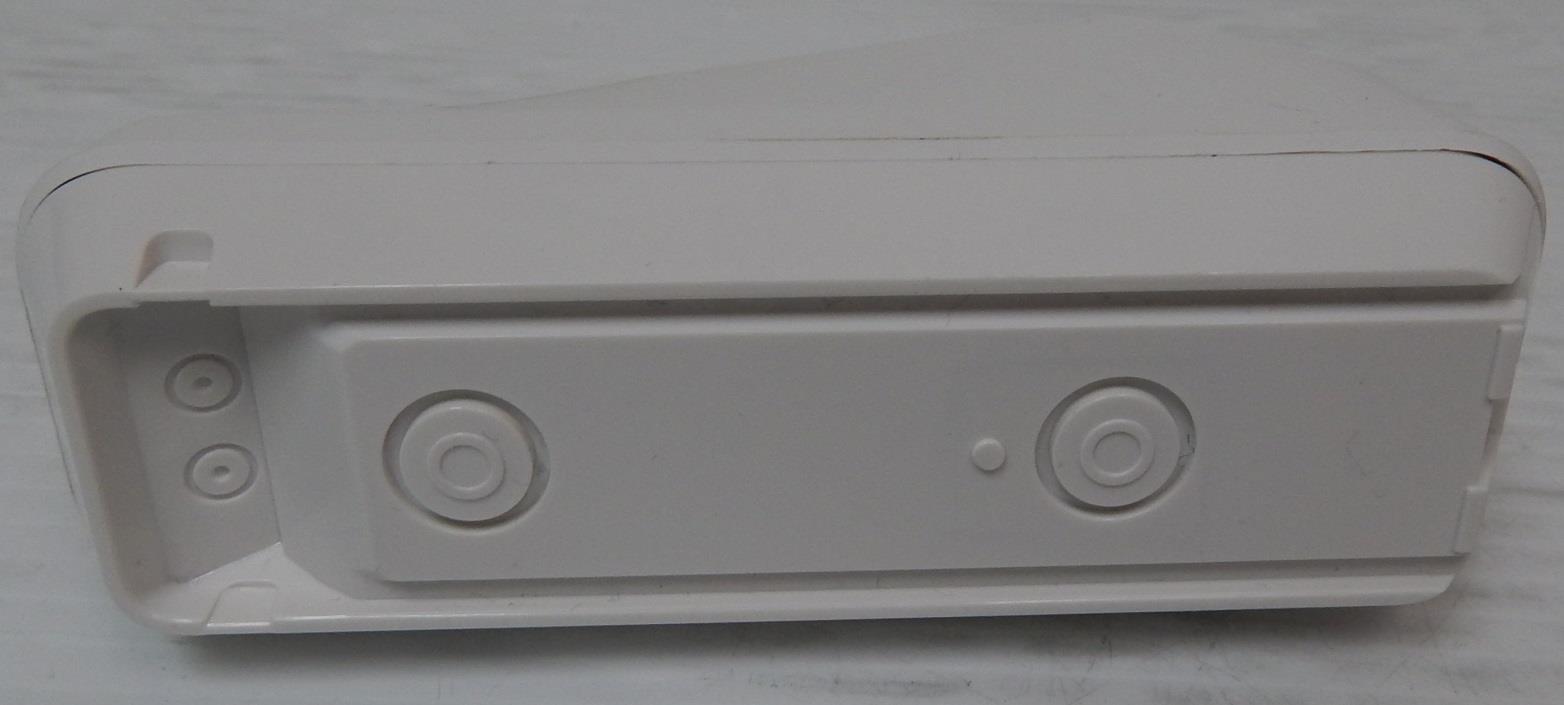

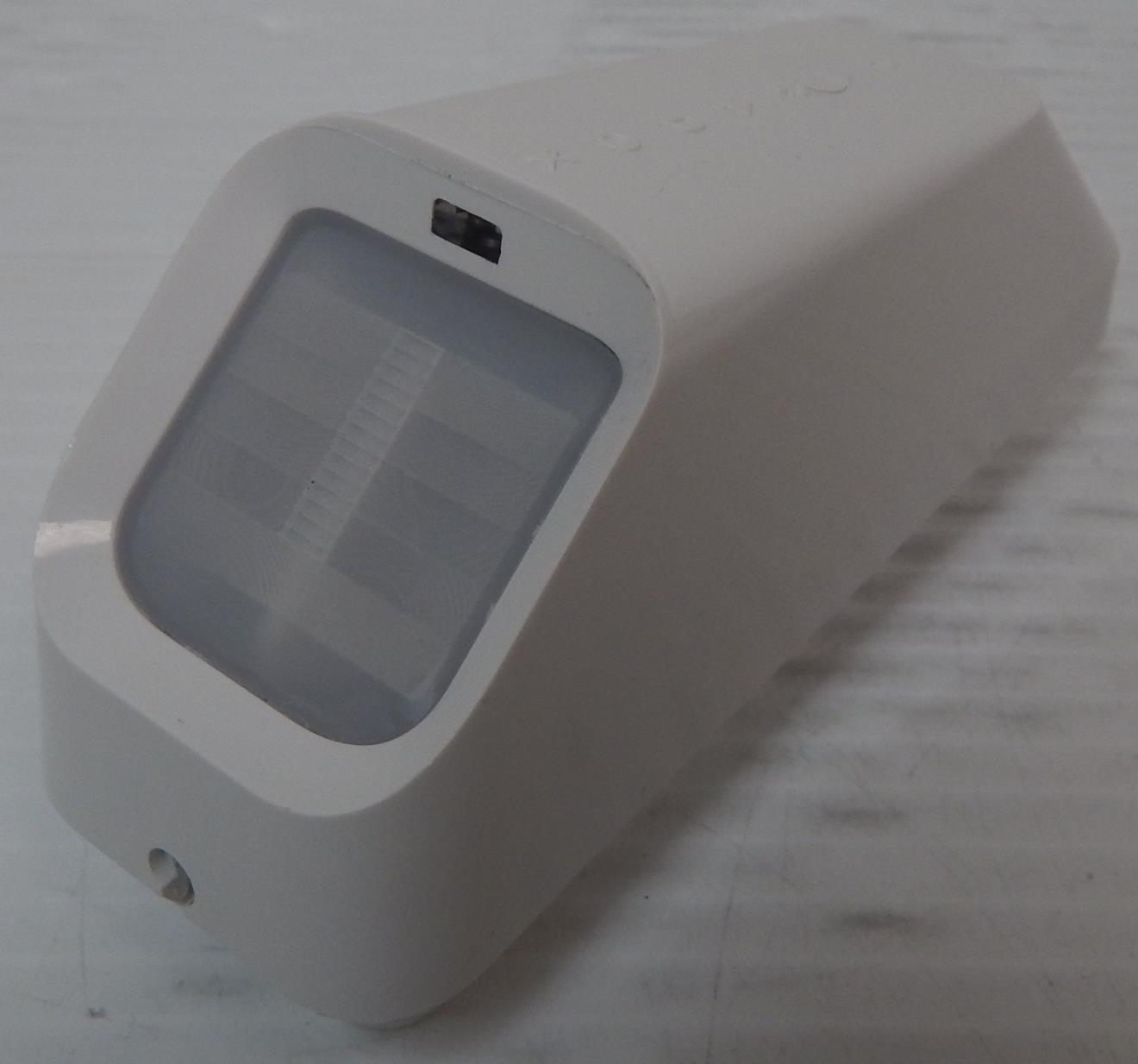

External Photos

Internal Photos

Operational Description

FCC_IC_NVR35M_Operational Description_Rev0 NVR35M Operational Description The NVR35M is a Wireless PIR Detector. It provides a superior wireless outdoor and indoor solution for window and sliding door protection, with two operation modes: Pet Immune mode 7.5X2m (25X7ft) and Sharp mode 10X2m (33X7ft) with dual verification detection. NVR35M implements passive infrared technology to provide curtain-style perimeter protection, detecting movement through a structural opening (e.g. a window or a door). NVR35M has anti-masking capability (protecting from attempts to mask/block the PIR detector). The NVR35M operate using two 1.5DC AA alkaline batteries. With normal use, the NVR35M will function up to three years without the need to replace the batteries. NVR35M operates on 433MHz or on 868MHz frequency. The wireless frequency can be changed by a DIP switch. For USA and Canada 433MHz frequency is set by manufacturer and cannot be modified. Range/PIR sensitivity level can be chosen by sensitivity trimmer (normal sensitivity is a default mode). If a tamper is detected (when opening the cover or removing from mounting surface) or alarm event occurred, the microprocessor processes the event and commands the RF circuit to send the message to the receiver unit and from there to the main control unit of the alarm system. The RF circuits of NVR35M receives the formatted message from the micro controller and modulate it on a radio frequency carrier then transmit it. The type of modulation used is OOK (On and Off Keying). A helicoidally type antenna is use to convert the electric wave to electromagnetic wave. Apr-29-2015 Nimrod Herman Certification Manager
