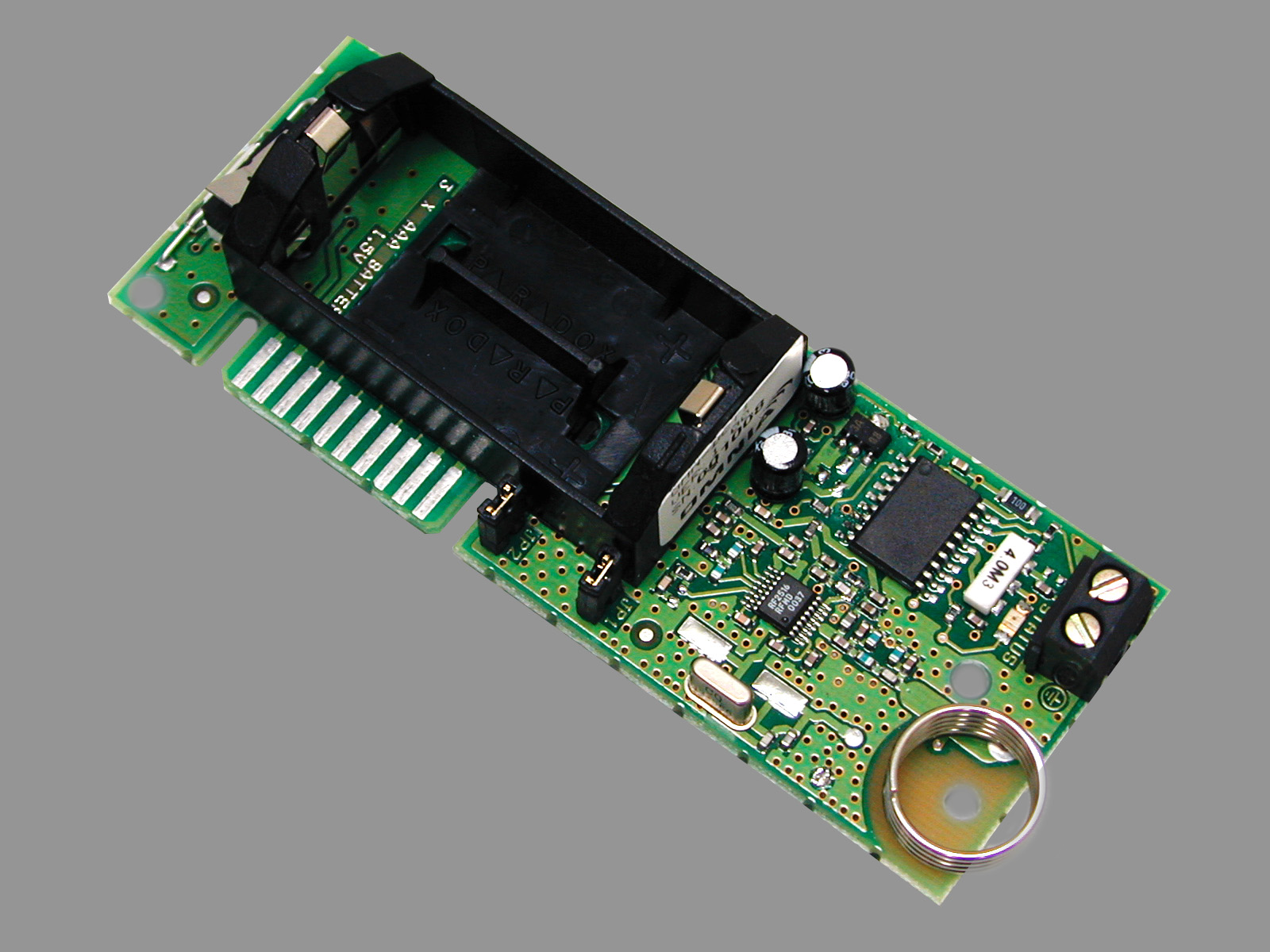

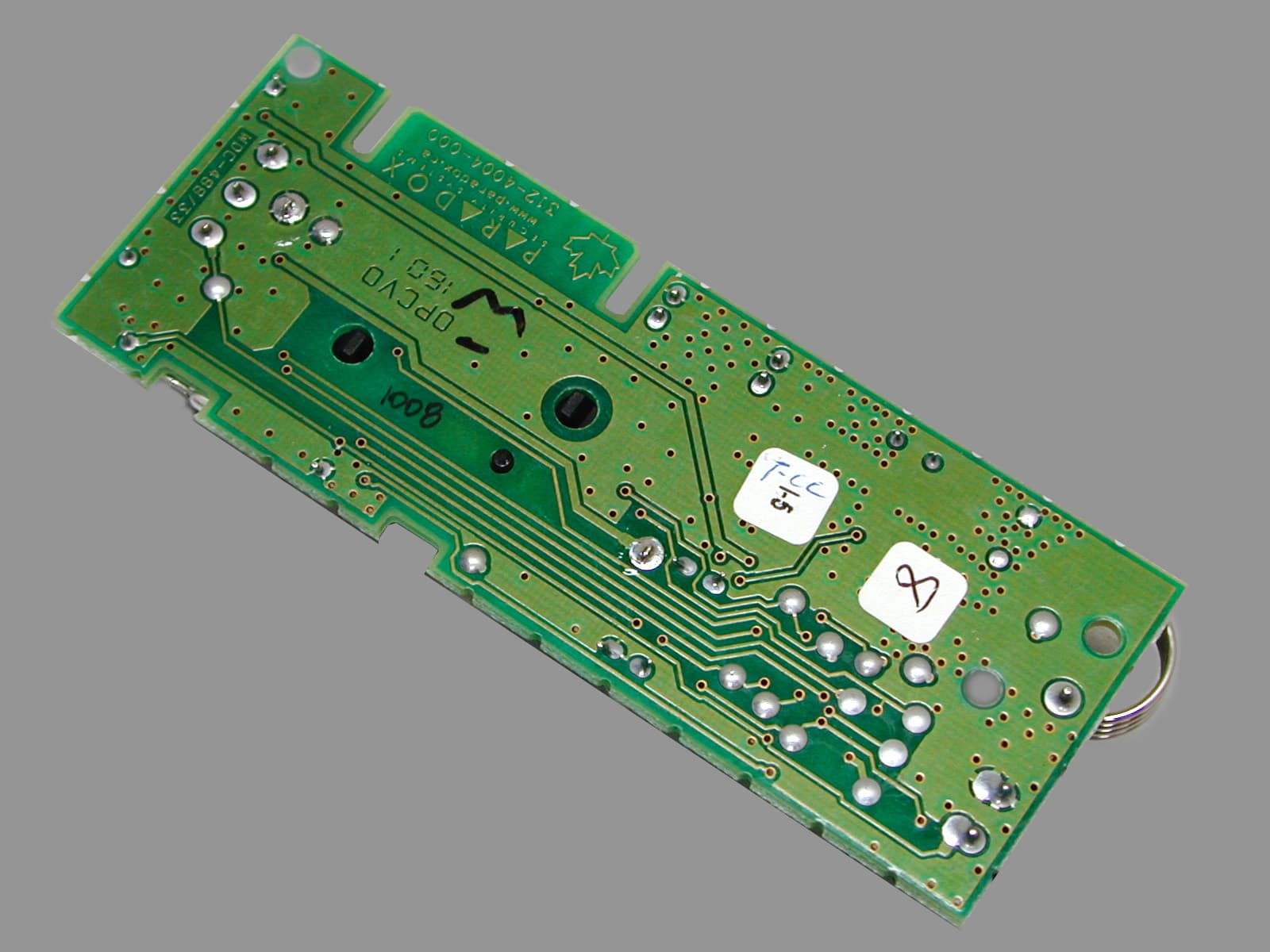

KDYOMNDCT1Wireless Door Contact OMN-DCT1

OMNDCT1-BI01 Thank you for choosing the Paradox® Omnia™ OMN-DCT1 Wireless Door Contact for your professional security applications. You have selected one of the most advanced wireless door contacts available on the market today. Every wireless door contact is 100% quality-control tested using computerized test equipment, guaranteeing proper operation and unit durability. The OMN-DCT1 Wireless Door Contact includes the following: •Two high sensitivity reed switches •Universal transmitter input •Low battery / signal transmission red LED indicator •Built-in antenna •Tamper switch •Three “AAA” alkaline batteries (included) •Range: 500 ft (150m) LOCATION & MOUNTING The door contact is used to protect doors and windows along the perimeter. Typically, a magnet is mounted on a door or window and the transmitter is mounted on the door frame or windowsill. When installing transmitters, please be sure there is at least 1ft (30cm) between each transmitter and 5 feet (1.5m) between the transmitters and the receiver. When the magnet moves approximately a half an inch from the reed switch, the transmitter will send an open zone signal. When the magnet returns to within a half an inch of the reed switch, the transmitter will send a zone restore signal. The transmitter comes with two reed switches allowing you to place the transmitter either vertically or horizontally (refer to Figure 2 on the reverse side of these instructions). Simply place the magnet in line with the reed switch you wish to use. The other reed switch and the universal transmitter input (see below) will automatically be disabled. WARNING: Do not cut, bend or alter the antenna. Avoid mounting the door contact near or on metal as this may affect transmission. UNIVERSAL TRANSMITTER INPUT The door contact can also be used as a universal transmitter. A switch or other security device can be connected to the universal transmitter input terminals in order to provide wireless transmission of the device's open/closed status to the receiver. If one of the reed switches is being used, the universal transmitter input will be disabled. JUMPERS The door contact is equipped with two jumpers used to set the Check- in Supervision mode of the door contact. Refer to Figure 2 on the reverse side of these instructions for jumper locations. WARNING: After changing jumper settings, you must reset the unit. To reset the unit, remove the batteries, press and release the tamper switch (refer to Figure 2 on reverse side) and wait 60 seconds. Re- insert the batteries while verifying proper polarity. J1 - Check-in Supervision Time Value ON = 12 (default) OFF = 6 J2 - Check-in Supervision Base Time ON = hours (default) OFF = minutes For example, to obtain a check-in Supervision Timer of 6 hours, set J1= OFF and J2=ON. WARNING: Use the same supervision setting as in the Omnia Wireless Receiver module. POWERING THE UNIT Verifying proper polarity, insert three “AAA” batteries into the door contact’s battery compartment. To replace the batteries, remove the old batteries, then press and release the tamper switch (refer to Figure 2 on the reverse side of these instructions) and wait 60 seconds in order to re-initialize the unit. Insert new batteries while verifying proper polarity. WARNING: After inserting the batteries in the door contact, a power-up sequence will begin (lasting 10-20 seconds) during which the door contact will not detect an open zone or tamper. SIGNAL STRENGTH TEST In order to verify the receiver's reception of the door contact’s signal, perform a signal strength test as described in the Omnia Receiver Module’s Reference and Installation Manual before finalizing the installation of the door contact. Prior to performing the test, verify that the batteries have been installed in order to power the door contact. Also, verify that the door contact has been assigned to a zone according to the instructions provided in the Omnia Receiver Module’s Reference and Installation Manual. If the transmission is weak, relocating the transmitter by a few inches can greatly improve the reception. RED LED INDICATOR The red LED indicates the following: Low Battery The door contact performs a battery test every 12 hours and if a battery voltage of 3.1V or less is detected during this test, the red LED will flash at 5 second intervals. Signal Transmission The red LED indicator light will blink rapidly when the door contact transmits a signal to the Receiver. FUNCTIONAL TEST Once all door contacts have been installed and a signal strength test performed, set the control panel in "Installer Test Mode" (see appropriate Paradox Control Panel’s Reference and Installation manual). Open and close all doors and windows. When a door or window is opened, the bell will squawk to indicate that it is functioning. WARRANTY The Seller warrants its products to be free from defects in materials and workmanship under normal use for a period of one year. Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise, including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expressly excluded. Because Seller does not install or connect the products and because the products may be used in conjunction with products not manufactured by Seller, Seller cannot guarantee the performance of the security system. Seller obligation and liability under this warranty is expressly limited to repairing or replacing, at Seller's option, any product not meeting the specifications. In no event shall the Seller be liable to the buyer or any other person for any loss or damages whether direct or indirect or consequential or incidental, including without limitation, any damages for lost profits, stolen goods, or claims by any other party caused by defective goods or otherwise arising from the improper, incorrect or otherwise faulty installation or use of the merchandise sold. Note: The warranty does not apply to the…

Text truncated - open the document above for the full version.

Master:PT15-Sub-C-15231 Date: August 2, 2001 Test Report:1W03972.3 Applicant:Paradox Security Systems 780 Industrial Blvd. St-Eustache, Quebec J7R 5V3 Equipment Under Test:OMN-DCT1 (EUT)Wireless Door Contact Transmitter In Accordance With:FCC Part 15, Subpart C, 15.231 Tested By:Nemko Canada Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: G. Westwell, Wireless Technologist Date: Total Number of Pages:21 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 1W03972.3 EQUIPMENT: OMN-DCT1 Wireless Door Contact Transmitter Page 2 of 21 Table of Contents Section 1. Summary of Test Results.......................................................................................... 3 Section 2. Equipment Under Test ............................................................................................. 5 Section 3. Transmission Requirements .................................................................................. 12 Section 4. Radiated Emissions................................................................................................. 15 Section 5. Occupied Bandwidth.............................................................................................. 18 Section 6. Block Diagrams.......................................................................................................20 Section 7. Test Equipment List ............................................................................................... 21 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 1W03972.3 EQUIPMENT: OMN-DCT1 Wireless Door Contact Transmitter Page 3 of 21 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 Test Performed By: ________________________________Date: __________________ Russell Grant, Wireless Group Manager Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 1W03972.3 EQUIPMENT: OMN-DCT1 Wireless Door Contact Transmitter Page 4 of 21 Summary Of Test Data Name of TestPara. NumberResults Transmission Requirements15.231(a)Complies Radiated Emissions15.231(b)Complies Occupied Bandwidth15.231(c)Complies Frequency Tolerance15.231(d)N/A Periodic Alternate Field Strength Requirements15.231(e)N/A Powerline Conducted Emissions15.207N/A Test Conditions: IndoorTemperature: 23 °C Humidity:46 % OutdoorTemperature: 25 °C Humidity:51 % Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 1W03972.3 EQUIPMENT: OMN-DCT1 Wireless Door Contact Transmitter Page 5 of 21 Section 2.Equipment Under Test General Equipment Information Manufacturer:Paradox Security Systems Model No.:OMN-DCT1 Date Received In Laboratory:July 6, 2001 Nemko Identification No.:Items #9 & 12 Tx 433.92MHz 70 K0L1D Duty Cycle Calculation: 20Log dB xxx 3.6 100 4.028.0484.44.012 −= +++ Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 1W03972.3 EQUIPMENT: OMN-DCT1 Wireless Door Contact Transmitter Page 6 of 21 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 1W03972.3 EQUIPMENT: OMN-DCT1 Wireless Door Contact Transmitter Page 7 of 21 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 1W03972.3 EQUIPMENT: OMN-DCT1 Wireless Door Contact Transmitter Page 8 of 21 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 1W03972.3 EQUIPMENT: OMN-DCT1 Wireless Door Contact Transmitter Page 9 of 21 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 1W03972.3 EQUIPMENT: OMN-DCT1 Wireless Door Contact Transmitter Page 10 of 21 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 1W03972.3 EQUIPMENT: OMN-DCT1 Wireless Door Contact Transmitter Page 11 of 21 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 1W03972.3 EQUIPMENT: OMN-DCT1 Wireless Door Contact Transmitter Page 12 of 21 Section 3.Transmission Requirements Para. No.: 15.231(a) Test Performed By: Wayne ClarkeDate of Test: August 3, 2001 Minimum Standard:15.231(a) Continuous transmissions such as voice, video or data transmissions are not permitted. 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds after being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds of activation. 15.231(a)(3) Periodic transmissions at regular pre-determined intervals are not permitted. However polling or supervisory transmissions to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one transmission of not more than one second duration per hour for each transmitter. 15.231(a)(4) Intentional radiators which are employed for radio control purposes during emergencies involving fire, security, and safety of life, when activated to signal an alarm, may operate during the pendency of the alarm. Test Results:Complies. Test Data:Compliance was determined by verification of techni…
