KDYOMNRCV3OMN-RCV3 RECEIVER

Wireless Receiver Module V1.0 Reference & Installation Manual


INTRODUCTION ........................................................................................3 Technical Specifications ...................................................................................3 System Features ...............................................................................................3 INSTALLATION .........................................................................................4 Location ............................................................................................................4 Connections and Mounting ...............................................................................4 PROGRAMMING .......................................................................................6 How to Enter Programming Mode ....................................................................6 Wireless Transmitter Programming ..................................................................6 Viewing the Transmitter Signal Strength ..........................................................8 Viewing Unknown Serial Numbers .................................................................10 System Reset .................................................................................................10 SUPERVISION OPTIONS ........................................................................10 Check-In Supervision ......................................................................................10 Check-In Supervision Timer Settings .............................................................11 Low Battery Supervision .................................................................................12 On-Board Module Tamper Supervision Zone Assignment .............................12 REMOTE CONTROL PROGRAMMING ..................................................13 Assigning a Remote Control to the Receiver Module .....................................13 Assigning the Remote Controls to User Access Codes ..................................14 Programming the Remote Control Buttons .....................................................14 Deleting Remote Controls ...............................................................................17 Replacing the Remote Control Batteries ........................................................18 LIST OF SECTIONS ................................................................................19 Omnia 3

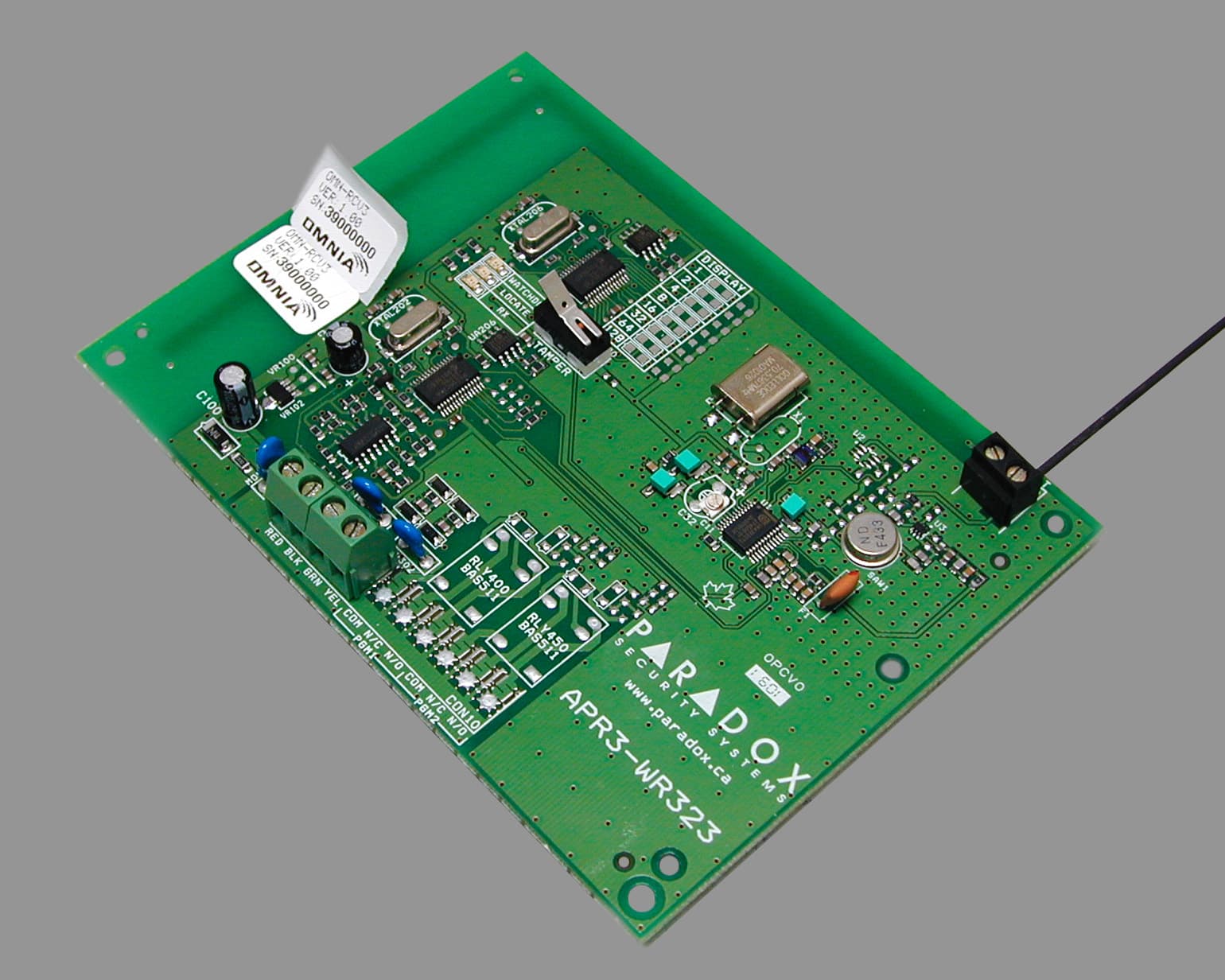

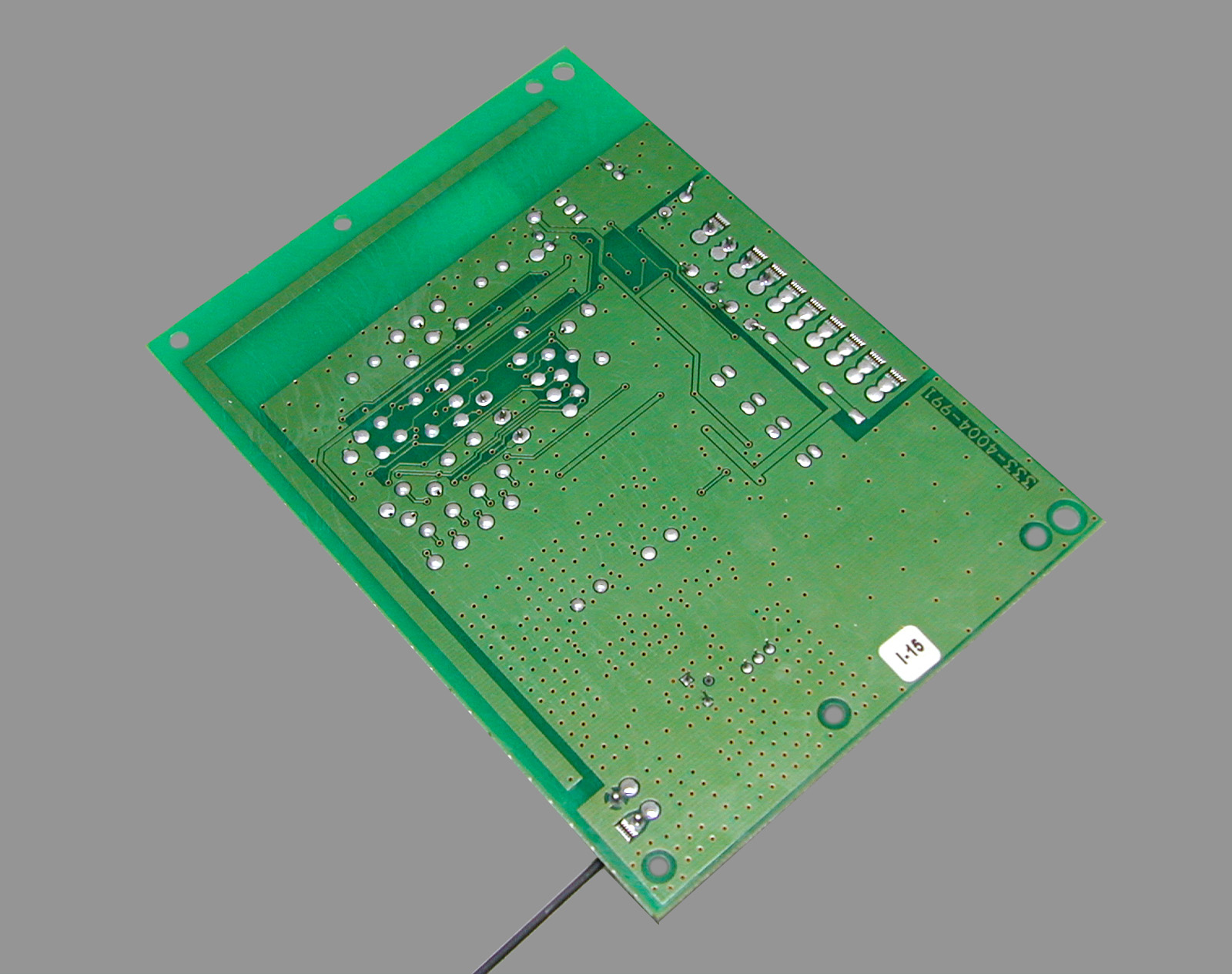

 The Omnia Wireless Receiver Module (OMN-RCV3) allows you to add up to 8 fully supervised Omnia wireless motion detectors and/or door contacts, and up to 8 programmable remote controls to the Spectra system. 1.1 TECHNICAL SPECIFICATIONS • Di-pole antenna • Error Correction Algorithm • Code-Hopping Technology • Frequency: 433 MHz • Range (line of sight): PIRs & door contacts = 500ft (150m) remote controls = 300ft (100m) • Sensitivity: -120 dBm • Current consumption: 50 mA • Dimensions (no antenna): 15cm H x 16cm L x 3cm W (6in H x 6.5in L x 1.1in W) • Operating temperature: 0°C to 50°C (32°F to 122°F) • Operating humidity: 85% • Approvals: 1.2 SYSTEM FEATURES • Auto-Panel Recognition • Add 8 wireless motion detectors and/or door contacts to the Spectra system • Add 8 remote controls to the Spectra system • Reflow design • On-board tamper switch • Full system supervision (check-in, low battery and tamper) • Transmitter signal strength indicator 4 Reference & Installation Manual

 The following sections will detail how to mount and connect the Omnia Wireless Receiver Module (OMN-RCV3). 2.1 LOCATION Mount the Omnia Wireless Receiver on a wall allowing at least 5cm (2”) around the module to permit adequate ventilation and heat dissipation. Select a site that is not susceptible to drastic temperature changes. Avoid installation near or in the path of strong RF fields (i.e. neon lights, computers), on or near metal objects, circuit breaker boxes, air conditioners, and heater ducts since they may cause interference and reduce the module’s sensitivity. We recommend installing the module in a centralized location on the main floor. Avoid installing the module in the basement. Refer to the appropriate Spectra Reference & Installation Manual for maximum allowable distances between the control panel and the Wireless Receiver Module. 2.2 CONNECTIONS AND MOUNTING Firmly screw the antenna into the connector marked " ANT " on the Receiver Module as shown in Figure 2.1 on page 5. Using a drill or screwdriver, punch out the four mounting holes on the back of the plastic case. Align the six holes of the printed circuit board with the six pins on the back plastic mounting case and snap into place. If placed correctly, the antenna will lean directly over the groove in the mounting case. Do not cut, bend, or alter the antenna. Avoid mounting the Receiver Module near or on metal as this may affect the module’s sensitivity. Do not connect more than one OMN-RCV3 module to the control panel. The OMN-RCV3 does not function with the 1758/1758EX Spectra control panel. The Omnia Wireless Receiver Module is connected to the Spectra control panel's communication bus in a star or daisy chain configuration. Refer to Figure 2.1 on page 5. Omnia 5 Figure 2.1: Connecting the OMN-RCV3 to the control panel 6 Reference & Installation Manual    To successfully install an Omnia wireless system to your Spectra system, ensure that the following steps are completed: 1. Install the Omnia Receiver. Connect the Omnia Receiver to the Spectra control panel and power up. 2. Assign the remote controls if necessary. 3. Assign the transmitters (door contacts and motion detectors), and program their zones. 4. Install the transmitters. Insert the batteries, and close the transmitter cover. 5. Wait for the control panel to be in “ready” mode. The status light on the keypad will be green when the control panel is ready. 6. In order to ensure proper sy…
