KDYPARAKEYTX

Remote Arming Module V1.10 318MHz/433MHz With KEELOQ high-security code encryption Installer’s Guide PARKEI-02 i i TABLE OF CONTENTS INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21.2 Technical Specifications . . . . . . . . . . . . . . . . . . . . 3INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2.1 Location & Mounting . . . . . . . . . . . . . . . . . . . . . . 42.2 Power & Communication . . . . . . . . . . . . . . . . . . . 4 2.2.1 With Esprit Control Panel . . . . . . . . . . . . . 4 2.2.2 Stand Alone . . . . . . . . . . . . . . . . . . . . . . . 5 2.3 Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52.4 Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62.5 Programmable Outputs (PGMs) . . . . . . . . . . . . . . 62.6 Hand-Held Remote Control . . . . . . . . . . . . . . . . . 72.7 System Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . 8HOW TO PROGRAM . . . . . . . . . . . . . . . . . . . . . . 11 PROGRAMMING THE SYSTEM . . . . . . . . . . . . 13 4.1 Access Code Length . . . . . . . . . . . . . . . . . . . . . 134.2 Installer Code . . . . . . . . . . . . . . . . . . . . . . . . . . 134.3 User Parameters . . . . . . . . . . . . . . . . . . . . . . . . 13 4.3.1 User Access Codes . . . . . . . . . . . . . . . . 14 4.3.2 Remote Control Assignment . . . . . . . . . . 15 4.3.3 Remote Control Options . . . . . . . . . . . . . 16 4.4 Panic Output Programming . . . . . . . . . . . . . . . . 174.5 Panic Lockout Timer . . . . . . . . . . . . . . . . . . . . . 184.6 PGM Output Timing . . . . . . . . . . . . . . . . . . . . . . 184.7 Button PGM Options . . . . . . . . . . . . . . . . . . . . . 194.8 Panic Option . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 1 1 INTRODUCTION The PARAKEY is a wireless remote control system that consists of a receiving module and up to eight 2 or 4-buttonremote controls (transmitters). When used in conjunctionwith any Paradox Esprit Series Control Panel , remote controls can perform actions such as remote arming anddisarming, communicating panic alarms and/or activatingprogrammable outputs (PGMs). Each remote control isassigned to a specific user and therefore, identifies the userto the control panel when used. If desired, it can be used asa stand-alone system where the remote controls will onlyactivate the on-board PGM outputs. When a button on theremote control is pressed, it will transmit an RF signal.When the PARAKEY receives this signal, it then processes the request and performs the programmed action(s). • Simple, user-friendly programming.• Supports 8 User Codes, each linked to a unique RF Code (2 or 4-button remote control). • Encrypted RF codes for additional security. Does not use DIP switch programming. • 4 programmable outputs (PGMs). • Stand-alone operation (trigger PGMs only) or in conjunction with a Paradox Esprit Series Control Panel (arm/disarm, panic & PGM activation). • Programming keypad connects directly to the Parakey Receiving Module. • Programmable Installer Code.• Software reset. 1.2.1 Receiver:Compatible Programming Keypads: (616 V4.2A & up ) (626 V4.1A & up ) DC input: 12VDC PGM outputs: 4 PGM Output 1-3 Current Rating: 30mA max. PGM Output 4 Current Rating: 5A relay Max Transmission Range: 53.34m (175 ft.) Operating Conditions: 0°C to 50°C Operating Humidity: 85% Operating Frequency: 318 or 433.92MHz Sensitivity: -110dbm 1.2.2 Remote Control:Water ResistantBattery: Lithium 3V (CR2032) Battery Life: Apprx. 2 years Power Transmission: 7mW Current Consumption: 6mA (transmission) 1.2 Technical Specifications 1.1 Features 2 3 INSTALLATION We recommend installing the receiver in a centralizedlocation on the main floor. Avoid installing the receiver inthe basement. Although, if desired, it can be installed inproximity of the control panel. When selecting aninstallation site please take into consideration that themaximum reception distance of the receiver isapproximately 54 meters (175 feet) line of sight. The circuitis static sensitive, thus take great care during handling. Avoid installing the receiving module near or in the path of strong RF fields, such as neon lights or computers. Also avoid installing the receiver on or near metal objects, circuit breaker boxes, air conditioners and heater ducts. These devices may cause interference, reducing the receiver's sensitivity. If installing the Parakey away from the control panel, mountthe Parakey Receiver Module on a wall, leaving at least 2"around the panel box to permit adequate ventilation/heatdissipation. Selecting a site that is not susceptible todrastic changes in temperature and humidity.2.2.1 With Esprit Control PanelWhen used in conjunction with any Paradox Esprit Series Control Panel , the auxiliary terminals (12V DC ) of the control panel may power the Parakey Receiving Moduleas shown in figure 3. If using an external power sourceplease ensure that the " GND " of the receiver and the power source are connected to the " AUX -" terminal of the control panel.The " GRN " and " YEL " terminals of the control panel must be connected to the " GRN " and " YEL " terminals of the Parakey Receiving Module in order to providecommunication between the modules. Alternatively, youcan use a 4-pin serial connector between the controlpanel's " SERVICE KEYPAD " connector and the Parakey Module's " PANEL " connector. 2.2.2 Stand AloneWhen used as a stand-alone system, you will need aParadox 12V DC 801 Power Supply and a 12V DC backup battery. Connect the power supply and the backupbattery as shown in figure 4.The Parakey Receiving Module is programmed using a616 or 626 Esprit LED Keypad. Connect the keypad asshown in figure 3 or 4. Alternatively, you can connect thekeypad to the Parakey Module's " PROGRAM " connector using a 4-pin serial connector. The Parakey can only be programmed using: 616 keypad version 4.2A and up or 6…

Text truncated - open the document above for the full version.

Remote Control Options Keys (on/off) [1] [2 ] [3 ] [4 ] [5 ] [6 ] [7 ] [8 ] Section [17] : User 1 ___ ___ ___ ___ ___ ___ ___ ___ Section [18] : User 2 ___ ___ ___ ___ ___ ___ ___ ___ Section [19] : User 3 ___ ___ ___ ___ ___ ___ ___ ___ Section [20] : User 4 ___ ___ ___ ___ ___ ___ ___ ___ Section [21] : User 5 ___ ___ ___ ___ ___ ___ ___ ___ Section [22] : User 6 ___ ___ ___ ___ ___ ___ ___ ___ Section [23] : User 7 ___ ___ ___ ___ ___ ___ ___ ___ Section [24] : User 8 ___ ___ ___ ___ ___ ___ ___ ___ OFF Key On [1] Set arming methods [2 ] see table on [3 ] next page Disabled [4 ] * Button 1 PGM Enabled Disabled [5 ] * Button 2 PGM Enabled Disabled [6 ] * Button 3 PGM Enabled Disabled [7 ] * Button 4 PGM Enabled Disabled [8 ] * Panic Enabled (simultaneously press buttons 1 and 2 to activate a panic alarm) = Button 1 = Button 2 References to button 3 & 4 refer to 4-button remote controls. 318/433MHz V1.10 PROGRAMMING CARD Press “ PROG ” button + [ ENTER ] + [ INSTALLER CODE ] + [ SECTION ] + required data + [ ENTER ] * = D EFAULT S ETTING Section Data Description [00] __/__/__/__/__/__ Installer Code * (757575) [01] __/__/__/__/__/__ User Access Code 1 [02] __/__/__/__/__/__ User Access Code 2 [03] __/__/__/__/__/__ User Access Code 3 [04] __/__/__/__/__/__ User Access Code 4 [05] __/__/__/__/__/__ User Access Code 5 [06] __/__/__/__/__/__ User Access Code 6 [07] __/__/__/__/__/__ User Access Code 7 [08] __/__/__/__/__/__ User Access Code 8 [09] Press [ ENTER ] & button 1 twice to assign RC to User 1 l [10] Press [ ENTER ] & button 1 twice to assign RC to User 2 l [11] Press [ ENTER ] & button 1 twice to assign RC to User 3 l [12] Press [ ENTER ] & button 1 twice to assign RC to User 4 l [13] Press [ ENTER ] & button 1 twice to assign RC to User 5 l [14] Press [ ENTER ] & button 1 twice to assign RC to User 6 l [15] Press [ ENTER ] & button 1 twice to assign RC to User 7 l [16] Press [ ENTER ] & button 1 twice to assign RC to User 8 l PARKEP-02 } Panic Output ProgrammingSection [25] : __ (select one digit only) ‘‘ [0] = Disabled[1] = Activate output 1 on panic alarm[2] = Activate output 2 on panic alarm * [3] = Activate output 3 on panic alarm [4] = Activate output 4 on panic alarm Panic Lockout TimerSection [26] : __ (select one digit only) ‘‘ * [0] = Disabled [1] = 30 second signal lockout on panic alarm[2] = 60 second signal lockout on panic alarm[3] = 90 second signal lockout on panic alarm[4] = 120 second signal lockout on panic alarm Key Key Key Description [1] [2 ] [3 ] ____________________________________________Off Off Off No Arming & Disarming On Off Off * Button 1 = Regular Arming Off On Off Button 2 = Regular Arming On On Off Button 1 = Regular Arming Button 2 = Regular Arming Off Off On Button 1 = Away Arming On Off On Button 1 = Away Arming Button 2 = Stay Arming Off On On Button 1 = Regular Arming Button 2 = Stay Arming On On On Button 1 = Stay Arming Section [35] : General Options OFF Key ON 4-Digit __ [1] __ * 6-Digit Access Codes PGM only __ [2] __ * Panic activates enabled PGM & sends panic command to control panel PGM Options Keys (on/off) [1] [2] [3] [4] PGM1 PGM2 PGM3 PGM4 Section [31] : Button 1 (default: [1] on) ___ ___ ___ ___ Section [32] : Button 2 (default: [2] on) ___ ___ ___ ___ Section [33] : Button 3 (default: [3] on) ___ ___ ___ ___ Section [34] : Button 4 (default: [4] on) ___ ___ ___ ___ Key ON activates corresponding PGM Key OFF disables corresponding PGM PGM Options TimingSection [27] : __ PGM 1 (select one digit only) Section [28] : __ PGM 2 (select one digit only) Section [29] : __ PGM 3 (select one digit only) Section [30] : __ PGM 4 (select one digit only) ‘‘ [0] = Latched [3] = 10 seconds [6] = 60 seconds [1] = 1 second [4] = 20 seconds [7] = 2 minutes * [2] = 5 seconds [5] = 40 seconds [8] = 4 minutes

WARNINGS NOTE: Any changes or modification not expressly approved by PARADOX SECURITY SYSTEMS could void the user’s authority to operate the equipment.

FCC LABEL FOR TRANSMITTER FCC ID: KDYPARAKEYTX

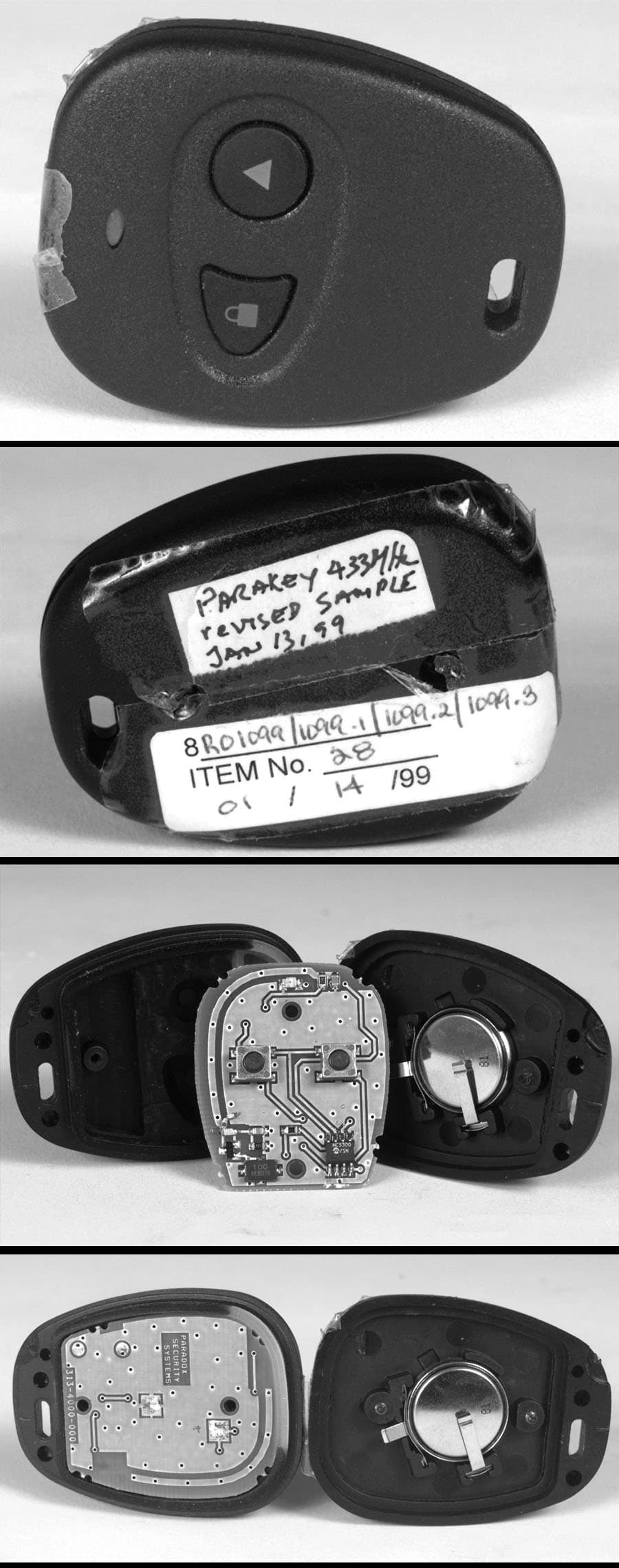

Master: ktlPT15231 Date: February 23, 1999 KTL Test Report:8R01099 Applicant:Paradox Security Systems 780 Industrial Blvd. Ste. Eustache, Quebec J7R 5V3 Equipment Under Test:PARAKEY (E.U.T.) FCC ID:KDYPARAKEYTX In Accordance With:FCC Part 15, Subpart C For Low Power Transmitters Operating Periodically In The Band 40.66 - 40.77 MHz And Above 70 MHz Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: T. Tidwell, Laboratory Manager Date: Total Number of Pages:29 KTL OttawaFCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 8R01099 EQUIPMENT: PARAKEY FCC ID: KDYPARAKEYTX Page 2 of 27 Table of Contents Section 1. Summary of Test Results General Summary of Test Data Section 2. Equipment Under Test General Equipment Information Description of E.U.T. Modifications Incorporated in E.U.T. Theory of Operation Exercise Program Section 3. Equipment Configuration Equipment Configuration List Inter-Connection Cables Configuration of E.U.T. Section 4. Transmission Requirements Test Conditions Test Results Test Data Rationale for Compliance Graphs Section 5. Radiated Emissions Test Conditions Test Results Test Data - Radiated Emissions Radiated Photographs Pre-Scan Data Section 6. Occupied Bandwidth Test Conditions Test Results Test Data Graphs KTL OttawaFCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 8R01099 EQUIPMENT: PARAKEY FCC ID: KDYPARAKEYTX Page 3 of 27 Table of Contents, continued Section 7. Frequency Tolerance Test Conditions Test Results Test Data Section 8. Periodic Alternate Field Strength Requirements Test Conditions Test Results Test Data Section 9. Powerline Conducted Emissions Test Conditions Test Results Test Data Section 10. Block Diagrams Conducted Emissions Radiated Prescan Outdoor Test Site for Radiated Emissions Occupied Bandwidth Section 11. Test Equipment List Annex A - Restricted Bands KTL OttawaFCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 8R01099 EQUIPMENT: PARAKEY FCC ID: KDYPARAKEYTX Page 4 of 27 Section 1.Summary of Test Results Manufacturer:Paradox Security Systems Model No.:PARAKEY Serial No.:None General:All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.231. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit DS C Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: _____________________________________ DATE: ___________________ Kevin Carr, Technologist KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL OttawaFCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 8R01099 EQUIPMENT: PARAKEY FCC ID: KDYPARAKEYTX Page 5 of 27 Summary Of Test Data Name of TestParagraph NumberResults Transmission Requirements15.231(a)Complies Radiated Emissions15.231(b)Complies Occupied Bandwidth15.231(c)Complies Frequency Tolerance15.231(d)Not Applicable Periodic Alternate Field Strength Requirements15.231(e)Not Applicable Powerline Conducted Emissions15.207Not Applicable Footnotes For N/A’s: Test Conditions: IndoorTemperature: 18 °C Humidity:17 % OutdoorTemperature: Not Applicable Humidity:Not Applicable KTL OttawaFCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 8R01099 EQUIPMENT: PARAKEY FCC ID: KDYPARAKEYTX Page 6 of 27 Section 2.Equipment Under Test (E.U.T.) General Equipment Information Frequency Range: 318 MHz (Fixed) Operating Frequency(ies) of Sample: 318 MHz (Fixed) Type of Emission: Pulse Width Modulation Emission Designator: 450KL1D Supply Power Requirement: 3 Vdc, Lithium Battery Duty Cycle Calculation: The pulse train consists of a sequence of pulses modulated in width. There are 72 pulses in a 100 ms window. A short pulse in 0.48 ms duration and a long pulse in 0.88 ms duration. Therefore, the worst case duty cycle is: 20 log (72 x 0.88/100) = -4.0 dBm KTL OttawaFCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 8R01099 EQUIPMENT: PARAKEY FCC ID: KDYPARAKEYTX Page 7 of 27 Description of E.U.T. The PARAKEY is a wireless transmitter operating at 318 MHz. Modifications Incorporated in E.U.T. The EUT has not been modified from what is described by the brand name and unique type identification stated above. KTL OttawaFCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 8R01099 EQUIPMENT: PARAKEY FCC ID: KDYPARAKEYTX Page 8 of 27 Theory of Operation The PARAKEY is a wireless transmitter operating at 318 MHz pulse width modulation. KTL OttawaFCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 8R01099 EQUIPMENT: PARAKEY FCC ID: KDYPARAKEYTX Page 9 of 27 Justification The E.U.T. was configured for testing as per typical installation. The following combinations were investigated to establish worst case configuration: (1) 3 orthogonal positions. Exercise Program The E.U.T. exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. Exercise Mode: (1) Normal operation. KTL OttawaFCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 8R01099 EQUIPMENT: PARAKEY FCC ID: KDYPARAKE…
